Eneo VKC-12140F2810IR User manual

Full Manual
1/3” Camera, Day/Night, Effio V, 2.8-10mm,
750TVL, WDR, Infrared, 12/24V, IP67
VKC-12140F2810IR
EN

Safety Precaution
03
ULTRA CLEAR RESOLUTION CAMERA

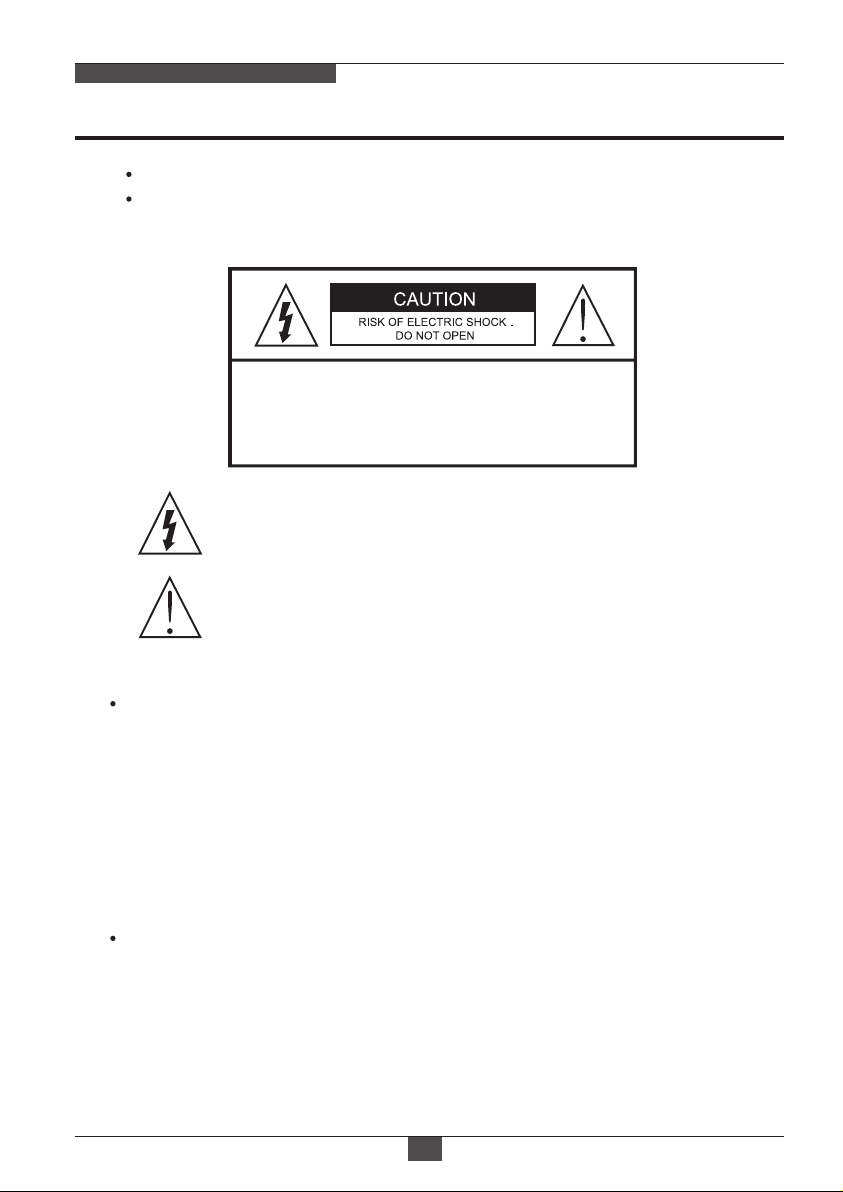

CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

ULTRA CLEAR RESOLUTION CAMERA
Safety Precaution
04
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual appearance of the camera.
Avoid installing areas where has shock or vibration which results in the problems.
Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to destruction.
The camera should never be operated in water.

ULTRA CLEAR RESOLUTION CAMERA
Contents
05
Safety Precaution
p.03~04
Contents
p.05
Features
p.06
Composition
p.07
Dimensions
p.07
Part Names
p.08
Installation Instructions
p.09~11
Operating Instructions
p.12~31
Specifications
p.32~33

ULTRA CLEAR RESOLUTION CAMERA
Features
Key Features
06
General Description
This is an ultra-clear resolution camera which realizes over 750TVL resolution
and a crisp color reproduction with SONY 960H CCD and Effio-V Enhanced
image signal processor.
• 1/3” High density Sony CCD (960H)
• 750TVL High-Resolution
• True WDR
• TDN with Dual Filter Switcher
• Built-in f=2.8~10mm F1.4 Mega pixel DC Auto Iris vari-focal lens
• Improved noise reduction 2D+3DNR
• Improved IR-Optimizer
• DIS(Digital Image Stabilizer)
• Scene preset select, LSC (Lens shading compensation), Motion detection,
Polygon privacy mask(polygon mask up to 15), Defog, Sens-up, BLC/HLC,
E-Zoom, IR Shade compensation, Flickerless, Anti-CR, Flip
• External Zoom & Focus adjustment
• IR-LED 28pcs
• LED ON/OFF Control
• Up the Coaxial (UTC) communication
• RS-485 control
• OSD MENU & Video Sub-out port for easy installation & Maintenance
• Circuit protection against faulty connection in power polarity
• Isolated power supply against ground loop problem
• One touch 3-Axis bracket, easy bracket
• IP67 protection
• With Effio-V/A series Enhanced digital imaging system,
- Delivers the crystal clear images providing 750TVL resolution in conjunction
with SONY 960H High density CCD.
-Provides‘TRUE WDR’ function
-Color signal processing provides the optimum balance between the luminance
and chroma signals for high color reproducibility even for the detail scene which
contains very high spatial frequency.
-Incorporates 2D+3DNR signal processing.
• With ICR mechanism,
- Enhances its sensitivity about 10x at night time
- Can accepts the infrared light

ULTRA CLEAR RESOLUTION CAMERA
Composition
07
Dimensions
(unit : mm)
Operating
Instruction
Camera
61
76
69
75.3
218.5
145.8
Mounting Template
Torque Wrench:
3mm (1pc)
Assembly Screw:
4 x 14mm (4pcs)
Mounting Screw:
4 x 30mm (4pcs)
Plastic Anchor:
6 x 30mm (4pcs)
Easy
Bracket
Video Sub-out
Cable (1pc)

ULTRA CLEAR RESOLUTION CAMERA
Part Names
08
REAR
VIEW
FOCUS ZOOM
DUAL WINDOW
POWER CABLE
FRONT CASE
EASY
BRACKET
OSD Setup
CONTROL COVER
BRACKET
REAR CASE
•Extreme care should be taken NOT to scratch the window in front of lens.
• Care should be taken the cable is NOT to be damaged, kinked or exposed in the
hazardous area.
• Do not expose the camera directly to a strong light source such as the sun or spot
light.
CAUTION

ULTRA CLEAR RESOLUTION CAMERA
Installation Instructions
09
1. Locate the mounting template at the installation position and drill the ceiling or wall if
needed. ( *The easy bracket can not be installed on the ceiling)
2. Place the easy bracket on pre-drilled position and fix it through using mounting screws
(4x30mm). Skip this step when an easy bracket is not installed.
3. Route the Power cable to the connecting place.
Hook up the camera bracket with the easy bracket as illustrated below.
4. Fix the camera bracket through using assembly screws (4x14mm).
5. Set the camera’s viewing angle and adjust zoom/focus of lens by using the torque wrench.
Torque Wrench
Assembly Screw
: 4x14mm
Mounting Screw
: 4x30mm
1
2
4
REAR VIEW
3
Cable exit

ULTRA CLEAR RESOLUTION CAMERA
Installation Instructions
10
Pan & Tilt adjustments
Zoom & Focus adjustments
1) Pan limit:
Pan is limited to +/- 80°.
3) Inclination limit
(Horizontal image alignment):
Inclination limited to +/-90° max.
2) Tilt limit:
Tilt is limited to 0° min ~ 90° max.
for wall(ceiling) installation respectively with
reference to the wall(ceiling) when the
inclination of camera module is 0°, that is,
the image is aligned horizontally.
80° 80°
160°
• Turn the Focus gear to “N”(Near) or “∞”(Far)
until the sharpest focus is made.
• To widen the viewing angle, turn the Zoom to
“W”(Wide) and to obtain a closer view, turn it
to “T”(Tele)
Use the torque wrench supplied.
• Unlock the screw on the camera bracket through using the torque wrench supplied
• Set the camera’s viewing angle then lock the screw on the bracket.
90°
±90°
F Z
