Energate Pioneer Z100 Smart Thermostat Specification sheet

AW001065-B
Z100 Pioneer 2 Smart Thermostat
Operating and
Installation Manual

Page 2

Page 3
Operating and Installation Manual
Congratulations on the purchase of your new thermostat. It has been designed for easy
programming to save on energy costs and allow a comfortable living environment.
Features:
Auto programming mode for your yearly heating and cooling needs
Easy adjustment of temperature and schedule
Energy efficient presets to help reduce heating and cooling costs
Wirelessly communicates with your utility
Notifies you and automatically responds to utility demand response events
Provides you with the current price of energy or rate tier
Allows you to select from a range of comfort and savings levels when energy prices
increase
Large, easy to read backlit display
Silent operation
Protection against short circuits during installation

Page 4
Table of Contents
OPERATING THE THERMOSTAT............................................................................................. 8
Navigating the Controls .............................................................................................................. 8
Home Screen............................................................................................................................. 9
Heat / Cool / Fan Icons ......................................................................................................... 11
Setpoint Value Display.......................................................................................................... 11
HELP button............................................................................................................................. 12
Title Bar.................................................................................................................................... 12
Default Schedule...................................................................................................................... 13
Temporary Temperature Hold................................................................................................... 15
Heating and Cooling Modes...................................................................................................... 17
Fan Modes............................................................................................................................... 18
Main Menu ............................................................................................................................... 19
Temperature Settings............................................................................................................... 20
Quick Schedule........................................................................................................................ 21
Schedule Type ......................................................................................................................... 22
Setpoints .............................................................................................................................. 23
Schedule Times.................................................................................................................... 24
Hold Screen - Permanent, Timed, and Temporary Temperature Holds...................................... 26
Setting the Date & Time............................................................................................................ 30
Energy Events and Price Events............................................................................................... 32
Energy Events (also known as DRE / DRLC events)................................................................. 32

Page 5
Voluntary and Mandatory Energy Events............................................................................... 33
Starting a Temporary Temperature Hold during an Energy Event.......................................... 34
Price Conservation Event ......................................................................................................... 35
Energy Options......................................................................................................................... 36
Conservation Menu .................................................................................................................. 39
The following are the default maximum adjustment and LED settings........................................ 41
Note: Your utility may have selected different values................................................................. 41
Indicators of Energy Events and Savings.................................................................................. 42
User Options............................................................................................................................ 43
Display ................................................................................................................................. 43
Language ............................................................................................................................. 44
Filter Reminder..................................................................................................................... 45
Time..................................................................................................................................... 45
See Setting Date and Time (page 28).Temperature .............................................................. 45
Service Information............................................................................................................... 47
Power Outages......................................................................................................................... 47
Utility Text Messages................................................................................................................ 48
INSTALLATION AND MAINTENANCE.................................................................................... 49
Mounting the Thermostat.......................................................................................................... 49
Mounting the Thermostat (continued)........................................................................................ 50
Mounting the Thermostat (continued)........................................................................................ 51
Mounting the Outdoor Sensor................................................................................................... 52
Cleaning the Thermostat........................................................................................................... 52

Page 6
Removing Thermostat Front Housing from Backplate ............................................................... 53
Replacing the Battery ............................................................................................................... 54
Wiring Configuration................................................................................................................. 55
Setup Menu Options................................................................................................................. 56
Password.............................................................................................................................. 56
Setpoint Range..................................................................................................................... 58
Equipment Type.................................................................................................................... 58
Equipment Settings............................................................................................................... 59
Conventional Systems....................................................................................................... 59
Heat Pump Systems.......................................................................................................... 60
Equipment Cycling................................................................................................................ 61
Conventional Systems....................................................................................................... 61
Heat Pump Systems.......................................................................................................... 62
Control Options..................................................................................................................... 63
Device Info Screen................................................................................................................ 64
ZigBee Link Info Screen........................................................................................................ 66
Reset Screen........................................................................................................................ 68
Thermostat Reset.............................................................................................................. 69
User Configuration Reset.................................................................................................. 71
Security Keys Reset.......................................................................................................... 71
Conventional System Test........................................................................................................ 72
Heat-Pump System Test........................................................................................................... 73
Product Conformity................................................................................................................... 74

Page 7
Caution..................................................................................................................................... 74
Note:........................................................................................................................................ 75

Page 8
OPERATING THE THERMOSTAT
Navigating the Controls
The function of the LEFT and RIGHT TAB buttons appears on the bottom of the display screen.

Page 9
Use the SCROLL (▲ ▼) buttons to adjust the temperature, move through the menus options, and
change highlighted values. Press the MENU / SELECT () button to access the menu as well as to
select or accept highlighted menu items.

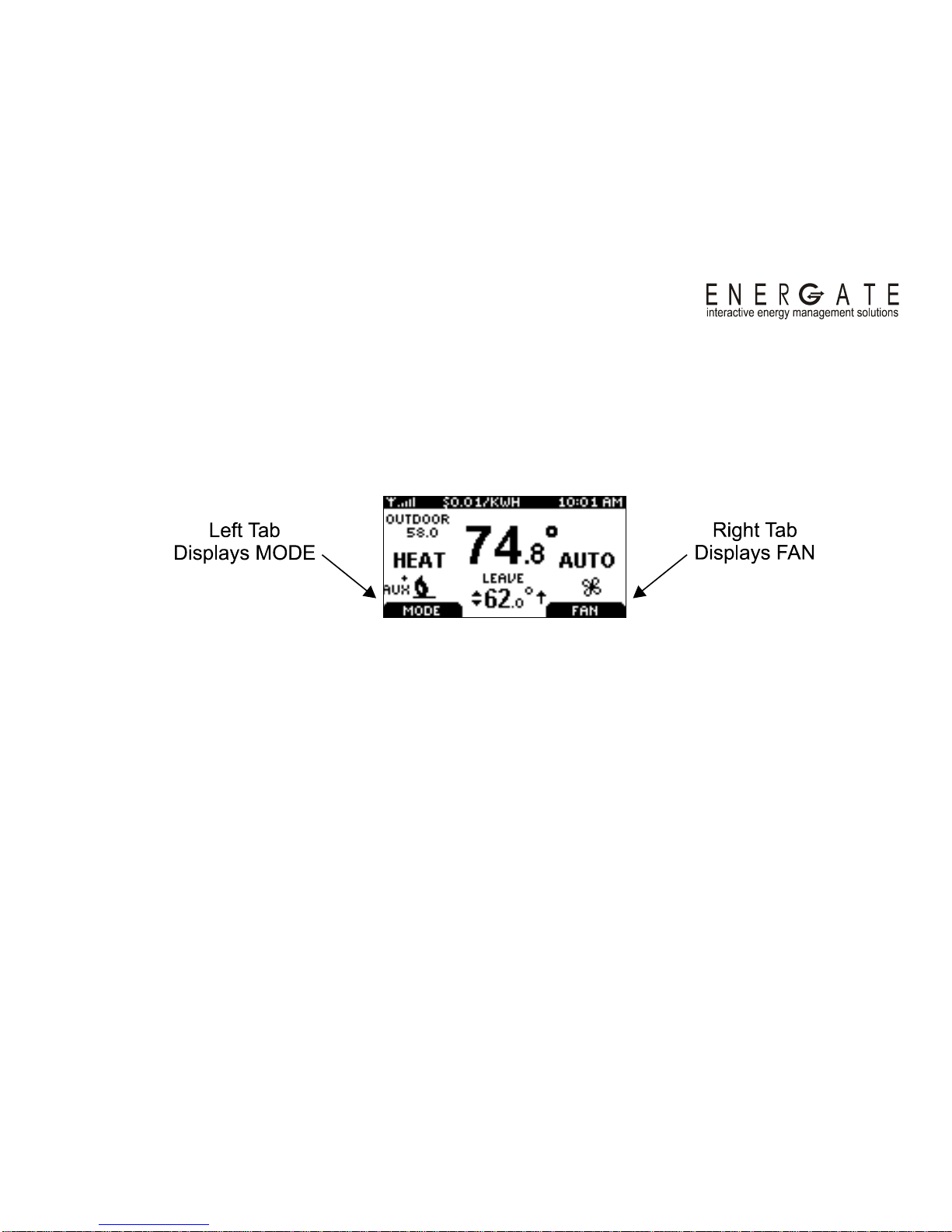

Home Screen
The Home screen displays current temperature and operation data. When the Home screen is in
idle mode, the backlight is on with a high brightness level by default, and this level may be lowered
(see User Options). Please note that icons such as heat or fan are animated when the equipment is
running.

Page 10
Note: A SETPOINT (e.g., LEAVE) is identified by a name and specifies both heating and
cooling target temperatures. See the Temperature Settings section for additional information.
By just pressing any of the buttons, the Home screen becomes Active, the backlight brightens and
the MODE and FAN tabs are shown.
Pressing the LEFT TAB button changes the thermostat mode (COOL/HEAT/AUTO/EMERG/OFF).
The available options for the thermostat mode will depend on the type of heating or cooling
equipment at your home. Pressing the RIGHT TAB button changes the fan mode (ON/AUTO)
Pressing the SCROLL (▲ ▼) buttons makes the temperatures of the SETPOINTs higher (warmer)
or lower (cooler). You can accept the changes by pressing the LEFT TAB, which will be displaying
ACCEPT, or you can walk away after making the changes. They will be automatically accepted
when the screen goes to the idle mode (i.e. the backlight diminishes).
To see the different menu items displayed, the MENU / SELECT () button needs to be pressed
once when the screen is active or twice when it is in the Idle mode.

Page 11
Heat / Cool / Fan Icons
Icon
Description
Heating mode (animated when furnace or heat pump is on).
Cooling mode (animated when air conditioning or heat pump is on).
Auxiliary heating on (animated).
More than one heating stage on (animated).
More than one cooling stage on (animated).
Fan (animated when on).
Setpoint Value Display
The thermostat is controlling the HVAC equipment to keep the home at the
displayed Setpoint temperature, and will heat or cool accordingly.
An up arrow indicates the thermostat is pre-heating in advance of a
schedule or price conservation event or that it is gradually increasing the
temperature for a price conservation event.
A down arrow indicates the thermostat is pre-cooling in advance of a
schedule or price conservation event or that it is gradually decreasing the
temperature for a price conservation event.

Page 12
HELP button
The thermostat’s HELP button provides you with information on how to navigate through the
individual menu screens. It will help you to quickly change settings without having to refer to this
user manual; however, it does not replace this manual, so please keep this manual for future
reference.
Title Bar
The left hand side of the Title Bar displays an icon showing the state of the communications link
with the utility’s network (signal quality).
means Link OFF, means Link ON, and varies from lowest signal quality (1 bar) to
highest signal quality (5 bars).
When the communications link is on, the network automatically updates the date and time in your
thermostat periodically. If the communications link is off, you need to set the current date and time
as explained in Setting the Date & Time section (page 28).
The Title Bar also displays the current electricity rate if your utility company provides energy price
information over the communication link. The price is displayed either in $ value/KWH (default) or
by the price tier name. This is assigned by your utility to different rates (e.g. normal, low, medium,
high, critical peak). By pressing the MENU / SELECT button and selecting the USER OPTIONS
menu item in the MAIN MENU, and then selecting PRICE DISPLAY, you can choose which of the
two ways the current price is displayed.
?

Page 13
Default Schedule
The thermostat’s schedule is factory programmed with the Energy Efficient START TIMES and
SETPOINTS listed below (note your utility may have selected different default values).
Note: A SETPOINT has a pre-set name and specifies both heating and cooling target
temperatures, as explained in detail in the Temperature Settings section.
This default schedule may be modified as desired to meet your comfort and schedule requirements.
The thermostat anticipates the time required to reach a desired temperature prior to the start of the
SETPOINT time; therefore, you only need to set the desired time for the SETPOINT temperature.
SCHEDULE –Fahrenheit Scale
Monday to Friday
Saturday & Sunday
START
TIMES
SETPOINT
START
TIMES
SETPOINT
NAME
HEAT
COOL
NAME
HEAT
COOL
6:00 am
Wake
70.0°F
78.0°F
8:00 am
Wake
70.0°F
78.0°F
8:00 am
Leave
62.0°F
85.0°F
6:00 pm
Return
70.0°F
78.0°F
11:00 pm
Sleep
62.0°F
82.0°F
10:00 pm
Sleep
62.0°F
82.0°F

Page 14
Default Schedule (continued)
SCHEDULE –Celsius Scale
Monday to Friday
Saturday & Sunday
START
TIMES
SETPOINT
START
TIMES
SETPOINT
NAME
HEAT
COOL
NAME
HEAT
COOL
6:00 am
Wake
21.1°C
25.6°C
8:00 am
Wake
21.1°C
25.6°C
8:00 am
Leave
16.7°C
29.4°C
6:00 pm
Return
21.1°C
25.6°C
11:00 pm
Sleep
16.7°C
27.8°C
10:00 pm
Sleep
16.7°C
27.8°C

Page 15

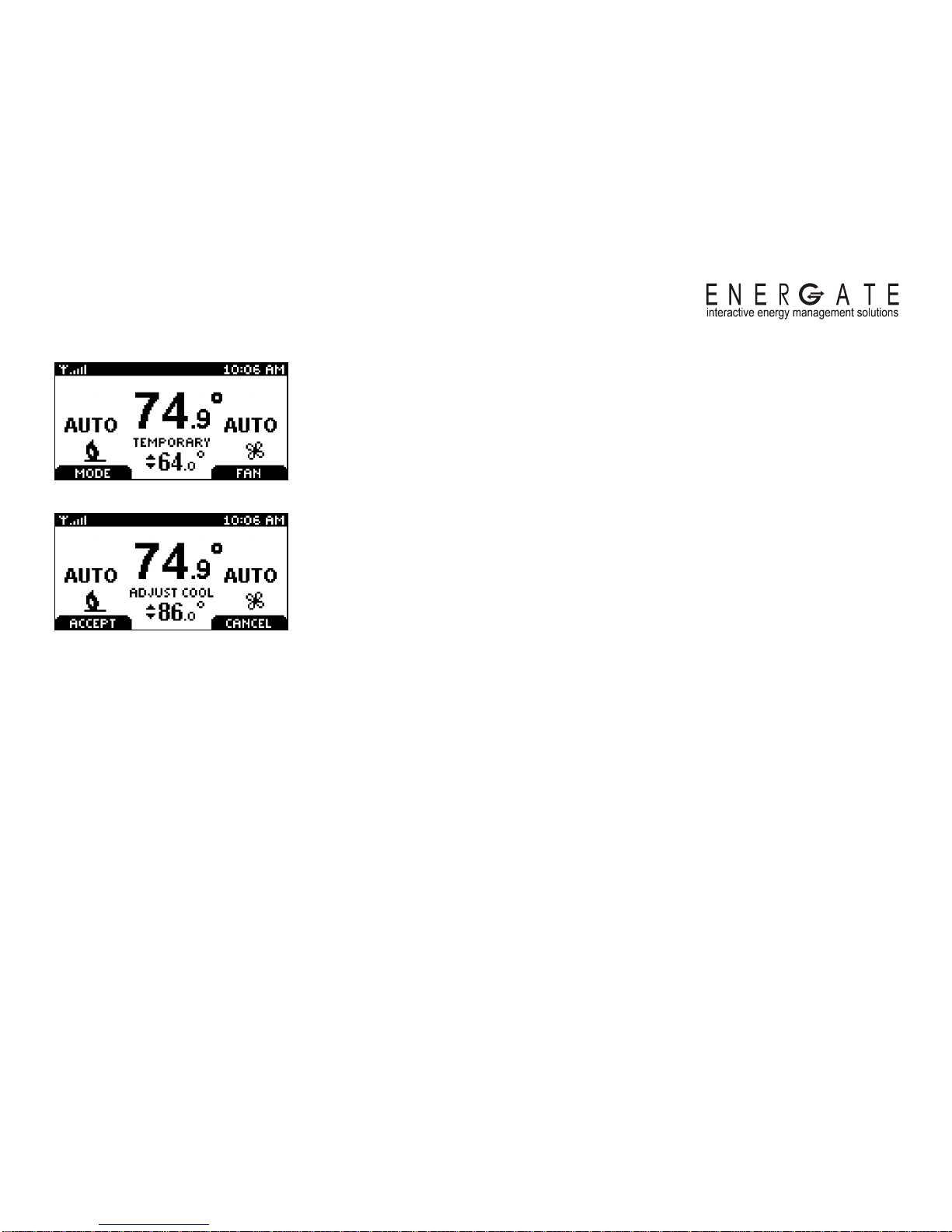

Temporary Temperature Hold
ATemporary Temperature Hold allows you to temporarily make the temperature warmer or cooler
without affecting the pre-set programming. The thermostat will remain at the Temporary Hold
temperature until the next scheduled SETPOINT.
From the Home screen, press either of the SCROLL buttons to
adjust either the HEAT (if the current operating mode is HEAT) or
the COOL (if the current operating mode is COOL) of the active
target SETPOINT, shown below the room temperature, with two
arrows beside it.
To accept the adjusted SETPOINT press the LEFT TAB .To cancel,
press the RIGHT TAB. Note that even if you don’t press the
ACCEPT tab, the Temporary Hold will take effect when the screen
goes on idle (i.e. the screen backlight diminishes).
When the thermostat mode setting is AUTO, pressing the MENU /
SELECT button will switch between the HEAT and COOL
SETPOINTS (i.e. the screen will show “ADJUST HEAT” or “ADJUST
COOL” respectively). The LEFT TAB accepts the Temporary Hold
settings and the RIGHT TAB cancels them.

Page 16
Temporary Temperature Hold (continued)
Once the Temporary Hold is in effect, the SETPOINT name will be
replaced by TEMPORARY. Note that a Temporary Hold can also be
set by scrolling to the HOLD menu item at the Main Menu and
selecting TEMPORARY as the Type of Hold, as it is explained
further in the section describing the HOLD screen.
To CANCEL a Temporary Hold, press any of the SCROLL buttons
to return to this screen.
Press the RIGHT TAB to cancel the HOLD, or LEFT TAB to accept it
(continue the hold) and return to the normal Home screen.

Page 17
Heating and Cooling Modes
The thermostat is pre-set for heating operation (HEAT) but, as explained when describing the
HOME SCREEN, you can manually (by pressing the LEFT TAB) change the thermostat mode
between AUTO, HEAT, COOL, OFF, and EMERG.
The available options for the thermostat mode will depend on the type of heating or cooling
equipment at your home.
AUTO:
The thermostat automatically selects heating or cooling based on the indoor
temperature.
HEAT:
The thermostat controls only the heating system.
COOL:
The thermostat controls only the cooling system.
OFF:
Heating and cooling systems are off.
EMERG:
This setting only applies to heat pumps with auxiliary heat. The thermostat only
controls the Emergency (Auxiliary) heat, leaving the heat pump’s compressor
locked out. Use this setting only when you suspect the heat pump is out of service
or the outdoor conditions may lead to an inefficient operation of the heat pump.

Page 18
Fan Modes
You can manually change the fan mode between AUTO and ON, by pressing the RIGHT TAB.
AUTO:
The fan runs only when the heating, cooling, or emergency systems are on. As
described in detail in the Installation section of this manual, for conventional
systems, under EQUIPMENT SETTINGS, with FAN ON IN HEAT set to NO, the fan
is not controlled by the thermostat, but by the furnace.
ON:
The fan runs continuously.

Page 19

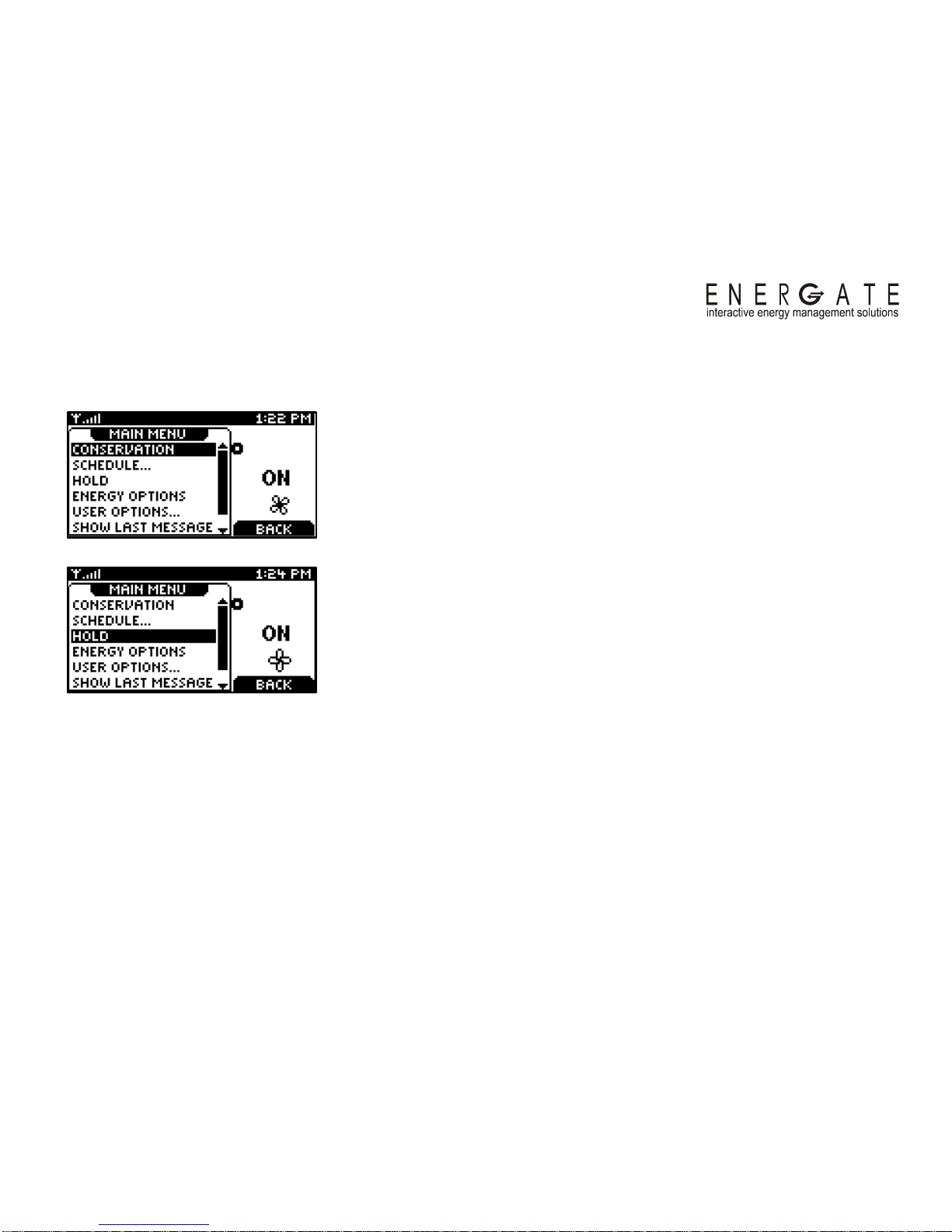

Main Menu
From the Home Screen, pressing the MENU / SELECT button
once (if the screen is active) or twice (if it is in the idle mode), the
MAIN MENU appears as it is shown on the left.
Using the SCROLL buttons, you can scroll to the desired menu
item, as shown in the two screen shots on the left.
Press the MENU / SELECT button to select the desired menu
item.

Page 20
Temperature Settings
A SETPOINT is identified by a NAME and specifies heating and cooling target temperatures.
Example: If the SETPOINT is set to WAKE, with COOL temperature of 78°F and HEAT temperature
of 70°F, a thermostat operating in AUTO mode will keep your dwelling’s temperature at the
predefined HEAT or COOL temperature. In the summer, the thermostat will COOL your dwelling
down to 78°F. In the fall, the thermostat will engage the HEAT mode, heating your dwelling up to
70°F throughout the winter. In the spring, when temperatures rise again, the thermostat will change
back to COOL mode.
The SETPOINTs HEAT and COOL temperatures can be changed either from the Quick Schedule
screen or from the Setpoints screen.
Note: If the schedule of the thermostat has been turned off (see Schedule Type), the thermostat will
use the Wake Setpoint by default, and no SETPOINT name will be displayed.
