Energenie EG-PM1W-001 User manual

USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
КЕРІВНИЦТВО КОРИСТУВАЧА
EG-PM1W-001 SMART HOME SOCKET

2
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
Smart home socket
Programmierbare Smart Home WLAN
Steckdose
WIFI Smarthome Socket
WiFi prise de courant de la maison
intelligente
WiFi розетка для умного дома
Wi-Fi розетка для розумного будинку
Do not plug several sockets in line
Do not use if covered
De-energized only if power plug is unplugged
NEVER connect appliances which do not allow unattained
operation!
1. Introduction
Congratulations with your purchase of this Smart home socket. Your
EG-PM1W-001 is an advanced power socket protector with power

3
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
management features. The socket is individually manageable via your
local WiFi network or the internet.
The socket can be switched on/off via a timer schedule, which can be
controlled manually by the user or by different programmable events.
There is also a timer schedule embedded into the device (hardware
schedule), which can be preprogrammed to disconnect the EG-PM1W-
001 from the WLAN so that it can be used elsewhere. The device can be
used as an advanced standby-killer.
With your free personal user account at EnerGenie.com you can
manage your EG-PM1W-001 via the Internet from all over the world,
even from your smartphone.
EG-PM1W-001 can also be used as a WiFi repeater to extend the
range of your existing network.
1.1. Features
Switch individual sockets on/off manually from your computer.
Switch individual sockets on/off using a programmable timer
schedule.
Switch individual socketson/off whenever a certain software event
occurs (e.g. Windows/other software start-up/shutdown, print
spooler starting and finishing its job, etc).
Because of the WLAN interface and the built-in web-server, EG-
PM1W-001 can be accessed from any computer within your local

4
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
network (via an internet browser or the provided Power Manager
software).
It is also possible to assign an external IP address to
EG-PM1W-001, to enable worldwide remote access via the
internet.
If there is no external IP address in your location, you can still
access your EG-PM1W-001 remotely by creating your own user
account on EnerGenie.com.
Manage your EG-PM1W-001 via the internet with any PC or
smartphone. Switching on your coffee maker before setting off for
home becomes a reality.
IPFilter 64-bit password protected data encryption guarantees
secure internet access to EG-PM1W-001.
EG-PM1W-001 has a built-in battery for the timer schedule, so the
timer schedule remains active even when EG-PM1W-001 is
temporarily turned off.
1.2. Specifications
High-speed 300Mbps WiFi 802.11 b/g/n interface
WLAN repeater mode
Input voltage: up to 250 VAC, 50 –60 Hz

5
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
Maximum load current: 16 A
Maximum power consumption: 2.5 W
Hardware schedule features:
oMaximum number of independent hardware schedule
events –45 per socket
oTime setting accuracy in seconds
oCombine repeating and one time events
Timer accuracy: less than 2 seconds error per day provided that
power is always present. Otherwise there can be an additional
error of up to 2 seconds for each time the device is turned off.
Indoor use only
Dimensions: 135 x 92 x 78 mm
Net weight: 0.35 Kg

6
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
1.3. Hardware requirements
Local area network with WLAN router
Any Internet-enabled computer connected to the local area network
Computer running Windows® 2000/XP/7/8 is required for using the
Power Manager software (use of this software is not compulsory)
1.4. Package contents
EG-PM1W-001
User manual and Quick installation guide
CD with Power Manager software for Windows

7
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
2. Indicators and controls of EG-PМ1W-001
ON indicator
ON/OFF switch
Figure # 1
Reset configuration
button (pinhole)

8
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
ON/OFF switch –toggles the socket output between on and off
ON indicator –shows a light if the socket is ON, otherwise the
socket is OFF.
Reset configuration button (pinhole) –when pressed and held for 5
seconds, the socket’s WLAN configuration reverts to its default
settings (See default settings list in p.4.5).
3. Installation
It is strongly recommended to avoid installing the device in damp
or wet places.
EG-PM1W-001 should be connected to the European AC wall
socket of the standard DIN 49 440.
3.1.Starting and accessing EG-PM1W-001 as an Access Point
Connect your EG-PM1W-001 to the power socket and wait around
15 seconds for socket initialization.
Your EG-PM1W-001 can now be switched on and off by means of
the ON/OFF switch. If the ON indicator is green, this means that
the socket is now live and connected to the power supply.
Open up a web browser in your WiFi-enabled computer or
smartphone.
To connect to the EG-PM1W-001 WLAN network:

9
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
oSet the Network SSID to “EG-PM1W_xxxxxx”, where
“xxxxxx” is last 6 digits of the EG-PM1W-001 MAC address.
oNo password is needed to connect.
oEnsure that the option Get the IP address automatically is
enabled.
Go to http://egsetup.net (or http://10.10.10.254) in your browser.
Input login “admin”, password “admin” in the login page (see Figure
#2) and click Sign In. You should now be connected, and able to
manage the EG-PM1W-001 via the web interface. Initially, the EG-
PM1W-001 is in “access point” mode. If you want to change to
“repeater”mode follow the steps described in the following section
(3.2).
3.2.Setting the WiFi repeater mode
Log into the EG-PM1W-001 web interface, as described in section
3.1.
Select Wireless Network in the left menu (see Figure #3).
If it is required by the WLAN network configuration, choose Static
IP for the Network type setting and fill in the IP address, mask,
gateway, DNS manually, otherwise select the DHCP Client option
to allow the network to assign the IP address automatically.
Click Site survey.

10
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners

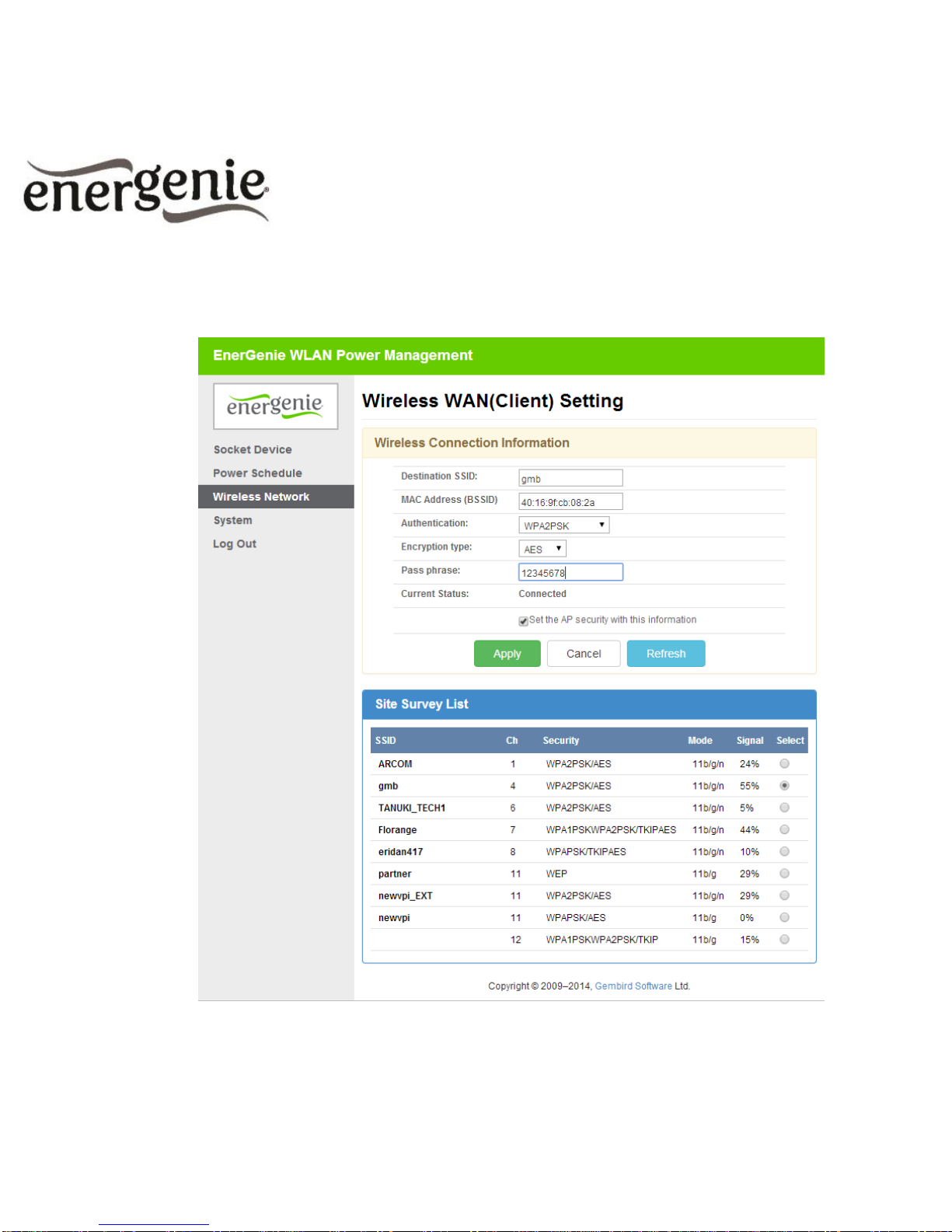

In the “Wireless WAN (Client) Setting” page select the SSID of
your network, and enter your Pass phrase (see Figure #4).
In order to ensure that the repeater network is secure, and to allow
for seamless roaming between the host and repeater’s network, it
is recommended to use the same encryption type and password of
the host WLAN network. In this case, leave Set the AP security
with this information option checked.
Click “Apply”. At this point, the EG-PM1W-001 should be in WiFi
repeater mode. The default SSID is “EG-PM1W_xxxxxx”. You can
change the repeater’s SSID to the SSID of your host network, WiFi
channel, or encryption type and password in the Wireless Network
page.
3.3. Power Manager software installation
Before setting up the Power Manager software, you need to
configure the access to the EG-PM1W-001 web interface (see
sections 3.1 - 3.2).
Insert the Power Manager CD into the PC CD-ROM drive and run
setup.exe. If your laptop does not have CD-ROM player, just
download the latest software from www.energenie.com and run the
installer package.
In order to connect the EG-PM1W-001 with the Power Manager
software, you need the IP, PM port and PM password settings.

11
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
You can find the IP in the Wireless Network page in the web
interface. You can also find the IP by using the LAN find utility in
the Power Manager software. The PM port and PM password need
to be set in advance in the System page. Usually the PM port value
is 5000. The password shall contain between 1 and 8 characters.
In Power Manager, Select Device->Add device from the main
menu. Enter the device name, IP address, PM port, PM password,
and then click OK. After a few seconds, the EG-PM1W-001 icon
will appear in the main window and the connection status will turn
green. EG-PM1W-001 is now connected and can be managed.
Note, antivirus or firewall software may block connection to the EG-
PM1W-001. Please, configure your antivirus/firewall to allow
connections to the IP address and port of your EG-PM1W-001.
3.4. Setting up EnerGenie.com device interface
Log into the EG-PM1W-001 web interface and go to the Socket
page.
Click Register. The energenie.com login page will be opened in a
new browser window.
Click New account. Complete the form in newly opened page. After
clicking Register, a new page with your EG-PM1W-001 device will
appear. Click the device icon to open the device page from where
you may control the device.

12
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
Return to the Socket page and click Activate. Wait a few seconds
until the status under the button shows “Connected and Activated”.
The EG-PM1W-001 can now be managed via your user’s account
on EnerGenie.com.
4. The web server
Your EG-PM1W-001 is equipped with a web-server which allows
managing the device using any web browser such as Internet Explorer,
Firefox, Chrome, etc.
4.1. Web-server login
To access the web-server of the EG-PM1W-001, just open Internet
Explorer (or other browser) and input http://egsetup.net or the IP address
of your EG-PM1W-001 (for example http://192.168.1.241).The login page
will then be displayed (see Figure #2).
Javascript must be enabled in your Internet Explorer (or other browser)
settings.

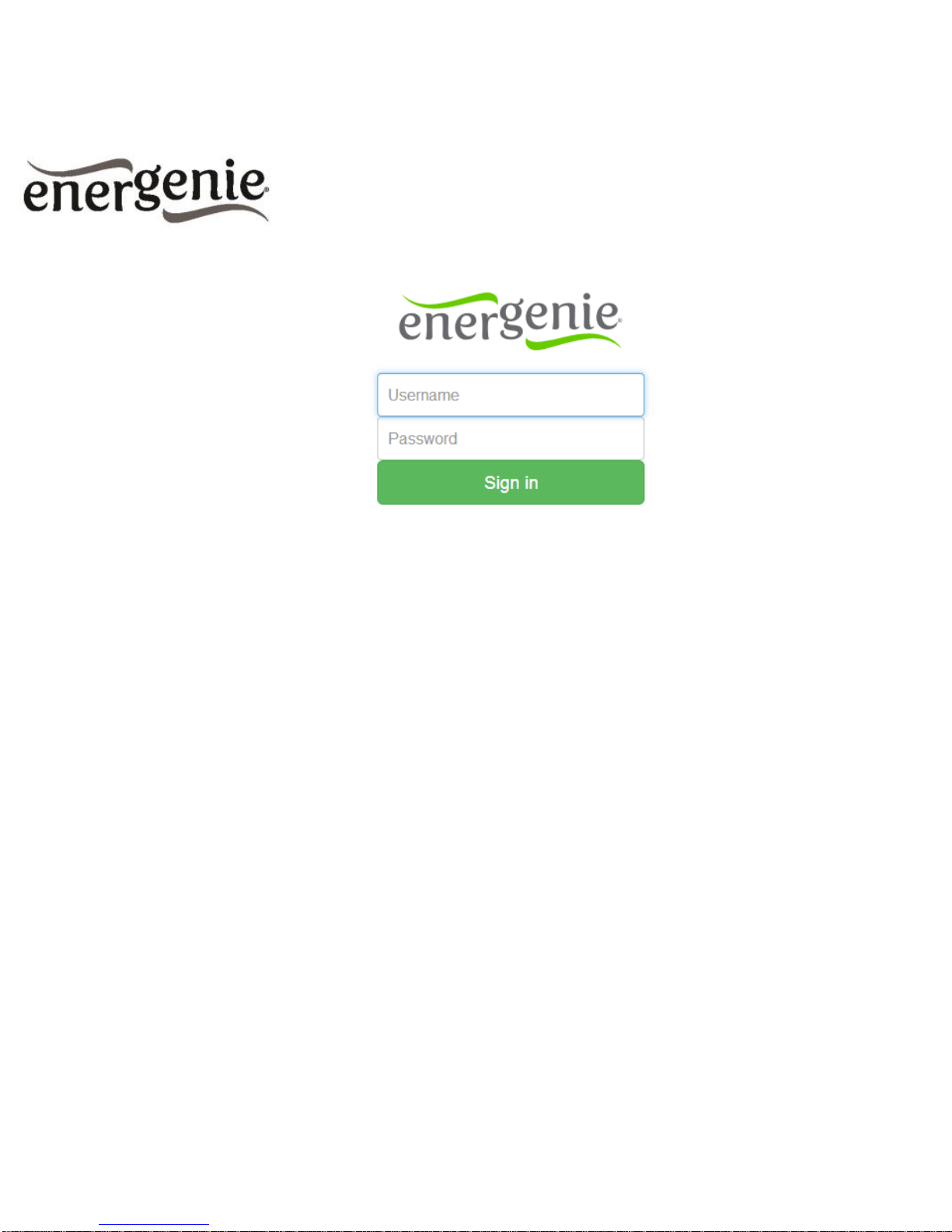

Figure # 2

13
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
The default login is:
It is recommended to change the password on the System page after
the first login. After successfully logging in, you will arrive at the Socket
page
4.2. Socket
Through the Socket page (see Figure #3) you will be able to see the
status of your manageable socket and switch the socket on and off
manually.
The system time shows the time currently set on the device. It is used
for the execution of the time schedule.
username: admin password: admin

14
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
The Network section shows you the current WLAN network settings
and status.
The Socket page also allows you to set up how the EG-PM1W-001
can be accessed and managed over the internet via EnerGenie.com
when there is no static external IP address. Through the EnerGenie.com
interface, it is possible to switch the device on and off, as well as set or
check the time schedule. Setting up this free service is described in
section.3.4 .
Figure # 3

15
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners

16
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
4.3. Power Schedule

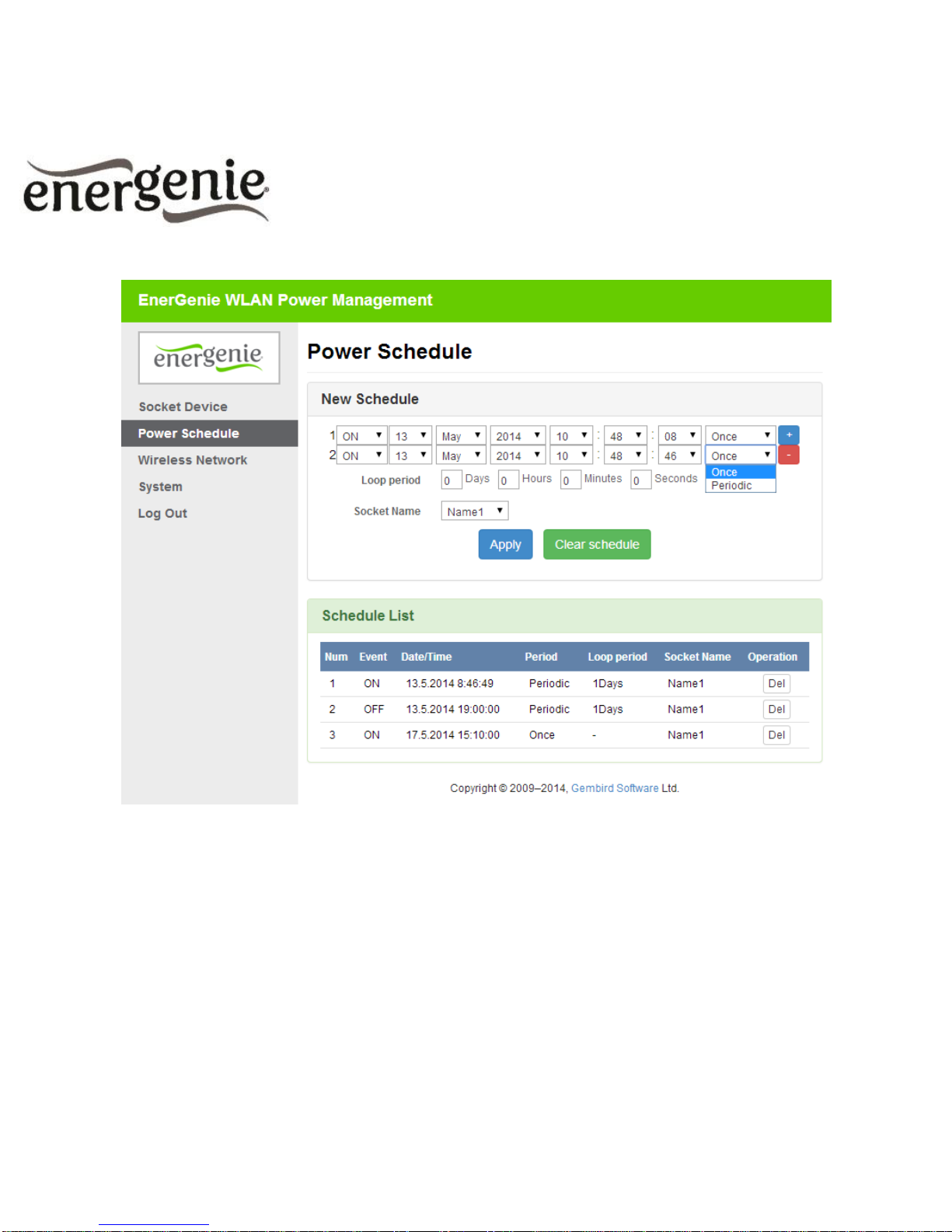

On the Power Schedule page (see Figure #4) it is possible to set up
the time schedule for switching the socket ON or OFF. You can add or
remove up to 45 schedule events (use + and –buttons). For each event,
you can set the date and time when it occurs and select whether it is
executed only once or periodically. The entire schedule can be cleared by
clicking the Clear schedule.
Although the hardware schedule is saved when the device is powered
off, the local time will be reset. Therefore, for proper schedule execution
after powering off, selecting the NTP enable option is highly
recommended (it is enabled by default). Otherwise the local time will
need to be restored manually after each “Power Off” event.
Figure # 4

17
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
4.4. Wireless Network Settings
On the Wireless Network page (see Figure #5) you can set up the EG-
PM1W-001 IP and WLAN settings. In the Basic Network section, you can
choose whether to connect automatically through DHCP or provide a
static IP address. In the Wireless AP (Access Point) section, you can

18
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
configure the WLAN network settings assigned to EG-PM1W-001. Newly
chosen settings will be implemented after clicking Apply.
These settings also work when the device is in Repeater mode
provided that a connection to the host AP is established. To set up this
connection, click Site survey. In the new page select the SSID option
corresponding to the host AP from the list. You can rescan SSIDs by
clicking Refresh. The security settings for the repeater should usually be
the same as those for the host AP. To copy these settings from the host
AP, leave the Set the AP security with this information option checked.
When selected, input the pass phrase and click Apply. The EG-PM1W-
001 will connect to that host AP. You will then need to reconnect your
client to the EG-PM1W-001 SSID.
Figure # 5

19
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners

20
EG-PM1W-001 SMART HOME SOCKET
All brands and logos are registered trademarks of their respective owners
Figure # 6
