BATTERY DISCHARGER AND ANALYSER MPD-1007E

REF 35364672 DISCHARGER MPD1007E

REF 40799583 DISCHARGER MPD1007E + BMS 48 V

REF 40799574 DISCHARGER MPD1007E + BMS 80 V

USER MANUAL

MPD-1007E

1. Optimal working conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

4. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

4.1. Synchronisation with Replus machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4.2. ‘Stand-alone’ operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4.3. Discharging report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

4.4. Error & alarm messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

5. EC-certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table of contents

USER MANUAL

MPD-1007E

1. Optimal working conditions

Optimal working conditions

Environment Condition

Temperature 0 °C ~ 50 °C

Humidity 5 % ~ 90 % RH

Altitude 0 ~ 6,562 ft (2000 m) above sea level

installation category III and pollution degree 2

2. Introduction

MPD-1007E is a battery discharger and analyser designed to test the capacity of industrial batteries from 10 to 96 V with a

maximum discharge current of 200 A.

The main feature of the discharger/analyser is that it can function in two ways:

• The “Stand-alone” operation

• The system can be synchronised with all Replus models, allowing the discharge current to be increased up to 200 A.

The capacity of your batteries can be measured with high accuracy thanks to the built-in digital control. The discharge

current can be set between 0 and 200 A to perform a constant current discharge. The discharge process will stop when the

set voltage or discharge capacity has been reached, this protects your batteries from being over-discharged.

3. Specifications

Revision: 2017.08.29

AC input

Voltage range AC 200 - 240 V

Frequency 50 Hz / 60 Hz

Phase Single-phase

SYNCH with Replus regenerators

Replus support model REF 100BA3558, REF 100BA3559,

REF 100BA3560

Current range 1 A – 200 A

Protocol interface RS-232

Discharge function support

Manual discharge mode

Program mode discharge &

restoration mode Pulse 3, 4

PC software support YES, wireless communication support.

(use existing Replus operation method)

BMS (Battery monitoring

system) support

User interface

Display panel 128 x 64 mono-LCD

Interface switch Rotary & push switch

LED indicator 2 LED indicators:

power, discharging

Alarms

(Notices on display screen)

Battery connection

Reverse battery polarity

Environment

Operating temperature 0 °C – 50 °C (32 °F – 122 °F)

Humidity 5 % - 90 % RH

Mechanical

Dimensions / weight 45 kg

Accessories

Accessories 70 mm² x 1,5 m, SB-350

USB Provide USB

Protection

Battery polarity

reversal

If the terminals of the battery are connected in reverse,

an error message will be displayed on the MPD-1007E.

Equipment

protection

If the temperature of MPD-1007E gets too high, the

process will stop automatically.

Discharge functions

Voltage range DC 10 V – 110 V

Current range 1 A – 200 A (Constant current)

Accuracy Current : 1,0 %

Voltage : 0,2 % – 0,5 %

Resolution Current : 0,1 A

Voltage : 0,01 V

Discharge data transfer USB, Zigbee wireless (2,4 GHz)

USER MANUAL

MPD-1007E

Dimensions and weight of the battery discharger

H: 899 mm

W: 360 mm

D: 400 mm

Weight: 45 kg

External features

4. Operation

4.1. ‘Stand-alone’ operation

Main menu display

Start Start discharging according to the set current settings.

Setup Change settings: discharging value, time and backlight

How to use input interface

• Rotate toggle switch †menu select

• Push †enter

How to use input interface

4.1.1 Setup menu

Change the discharge values and other settings like date,

time and backlight.

Setup menu display

Discharge Change discharge values

Date Time Time setup

Back Light LCD backlight setup

Replus output connector

(not used in stand-alone mode)

RS-232 D-sub port

AC input &

main power on/off

LCD display

LED indicator

(power, discharging)

Power on/off

Battery connector

USB port

Rotary jog dial switch

Push - enter

USER MANUAL

MPD-1007E

Discharge

Menu Description Setting range Default setting

Voltage Discharge voltage setting 10.0 V ~ 96.0 V 43.2 V

Ampere

Discharge current setting 0 A ~ 200.0 A 50.0 A

Time Discharge time setting 0 H ~ 10 H 5 H

Limit AH

Discharge capacity 0 Ah ~ 2,000 Ah 0 Ah

Discharge step graph

End condition of discharge

• When battery voltage has reached the set voltage

• When set time has been reached

• The set Limit AH value has been reached

Date & Time

Backlight

Menu Description Setting range Default setting

Brightness LCD brightness setting 0 % - 100 % 50 %

4.1.2 Discharge operation

The discharge process commences as soon as the “START”

option is selected.

The MPD-1007E will discharge according to the voltage,

current and time set in the setup menu.

If you need to force shutdown while discharging, press

the Push switch for five (5) seconds.

1) If you select “START” in the Main menu as shown below,

discharging will start

2) Display of ongoing charging mode

• Constant current discharging display

• End of discharge

USER MANUAL

MPD-1007E

4.2. Discharging report

When discharging with the MPD-1007E machine connected

to the Replus, the data log files will be saved on the Replus

machine. When using this machine as a stand-alone device,

you need to plug in a USB flash drive to store the data.

The name of the log file will contain the date and time

when the process was initiated.

When the USB flash drive is not properly connected, the

data log files will be lost.

To create a report, the freely available software ‘Integrated

Monitor’ must be used. If you do not have this software,

please contact us.

4.3. Synchronisation with Replus machines

When synchronised with the Replus, the MPD-1007E can be

controlled either with the toggle switch from the discharger

or via the touchscreen of the Replus.

Discharge parameters will appear on the screen of the

Replus. The discharger only needs to be switched on in case

you’re going to use the discharge mode.

Wiring diagram

When connecting the machines, you should use the RS-232

communication cable that is provided.

Connect the MPD-1007E to the Replus regenerator by

plugging the USB cable in the USB port on the back of the

Replus regenerator.

Connect the other end of the cable to the RS-232 port on

the back of the MPD-1007E machine.

Replus firmware upgrade

Upgrade the software on your Replus regenerator to be

able to connect to the MPD-1007E. Please contact us to

receive the latest firmware update and procedure or visit

our website.

Once you have updated the software, go to Settings and

make sure the DC Load is switched to ‘On’.

The operation of your Replus will remain the same when the discharger is

attached, except for the discharge current, which can now be set up to 200 A.

FrontRearRS-232 Cable

AC Power

Input

MCS output cable

SB175 connector

Battery connection

SB350 connector

Replus regenerator MPD-1007E

USER MANUAL

MPD-1007E

An icon will appear in the top right corner when the DC

Load is switched on. From now on, the regenerator will only

use your external discharger during the discharging process.

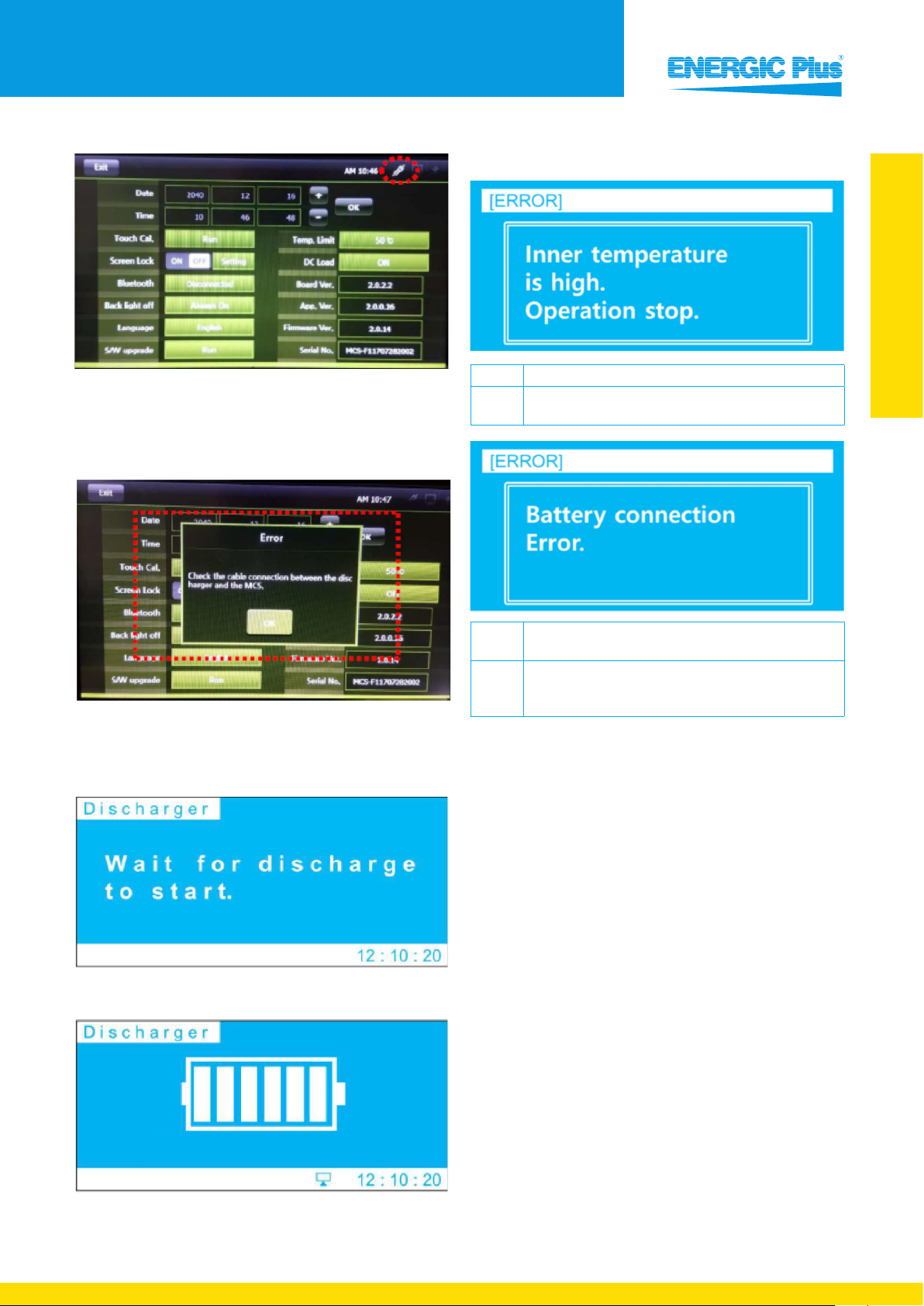

Display message

If the connection wasn’t successful, this message will

appear. What should you do?

1. Check the RS-232 cable connection

2. Make sure the MPD-1007E is switched on

When the connection is successful, this screen will appear

on your MPD-1007E machine.

Discharging...

After starting the discharge, this screen will appear to

indicate the process has started.

4.4. Error & alarm messages

Cause Internal operating temperature of the MPD-1007E is high.

Check Make sure the ambient temperature is below 50 °C.

Please check if the cooling fan functions normally.

Cause The connection between the MPD-1007E and the battery is

faulty.

Check

Please check if the connection between the MPD-1007E and

battery is correct. Make sure the (+) and (-) terminals are

correctly connected.

USER MANUAL

MPD-1007E
