Energie AquaPura Split 200esm User manual

TECHNICAL MANUAL
EN
Review: 3
Version: 0
Date: 26/Sep/2014
Directives European Certification
EN 60335-1
EN 60335-2-21
EN 60335-2-40
2006/95/CE
AQUAPURA SPLIT
200esm | 250esm
250i | 300i
250ix | 300ix

AquaPura Split
2
Technical Manual
Esteemed Client,
We would like to thank you for your choice when you acquired an equipment for
sanitary water heating.
The heat-pump AquaPura Split will surely meet all your expectations and
provide many years of comfort with a maximum power saving.
Our organization dedicates much time, energy and economic resources in order
to develop innovations that will promote power saving in our products.
Your choice has demonstrated your good sense and concern with power
consumption, a matter that affects the environment.
We have taken on a permanent commitment to conceive innovative and efficient
products so that this rational use of energy can actively contribute to the
preservation of the environment and natural resources of the planet.
Keep this manual whose objective is to inform, alert and advise about the use
and maintenance of this equipment.
Our services are always at your disposal. Feel free to call upon us!

AquaPura Split
3
Technical Manual
INDEX
1. Important .............................................................................................................................................. 5
1.1. Symbols.......................................................................................................................................... 5
1.2. Pre-installation Information........................................................................................................... 5
1.3. Safety Information ......................................................................................................................... 5
2. Package ................................................................................................................................................. 7
2.1. Contents......................................................................................................................................... 7
2.2. Transport........................................................................................................................................ 8
3. Specifications......................................................................................................................................... 9
3.1. Running Principle ........................................................................................................................... 9
3.2. Technical Features........................................................................................................................ 10
3.3. Main Components........................................................................................................................ 11
3.3.1. Internal Unit –Storage Water Heater.................................................................................. 11
3.3.2. External Unit ........................................................................................................................ 12
3.4. Dimensions.................................................................................................................................... 13
3.5. Safety and Control Devices............................................................................................................ 14
3.5.1. Pressure gauge of high/low pressure ................................................................................... 14
3.5.2. Safety Thermostat................................................................................................................ 14
3.5.3. Temperature Sensor............................................................................................................. 14
3.5.4. Protection against corrosion ................................................................................................ 14
3.5.5. TP Safety Valve .................................................................................................................... 14
3.5.6. Bipolar Socket ...................................................................................................................... 15
3.5.7. Expansion tank..................................................................................................................... 16
3.5.8. Safety Device ....................................................................................................................... 16
3.5.9. Pressure Throttle Valve ....................................................................................................... 16
4. Installation .......................................................................................................................................... 16
4.1. Set-Up........................................................................................................................................... 16
4.2. Coolant Couplings.......................................................................................................................... 18
4.2.1. Coolant Couplings................................................................................................................. 18
4.2.2. Load of Nitrogen ................................................................................................................... 20
4.2.3. Create Vacuum ..................................................................................................................... 20
4.2.4. Load of Complementary Cooling Fluid .................................................................................. 21

AquaPura Split
4
Technical Manual
4.2.5. Checking good running condition.......................................................................................... 22
4.3. Hydraulic Couplings ....................................................................................................................... 22
4.4. Electric Connections ...................................................................................................................... 22
5. First Use............................................................................................................................................... 25
5.1. Filling the tank............................................................................................................................... 25
5.2. Start-up of the System................................................................................................................... 25
5.3. Complementary Gas Load.............................................................................................................. 26
6. System Operation................................................................................................................................ 27
6.1. Control Panel................................................................................................................................. 27
6.2. Keys (Functions) ............................................................................................................................ 27
6.3. Description .................................................................................................................................... 28
6.4. Symbols ......................................................................................................................................... 28
6.5. Operating Modes........................................................................................................................... 29
6.5.1. ECO operating mode ............................................................................................................ 29
6.5.2. AUTO Operating Mode......................................................................................................... 29
6.5.3. BOOST Operating Mode....................................................................................................... 29
6.6. Extra Functions............................................................................................................................. 30
6.6.1. DISINFECT Function.............................................................................................................. 30
6.6.2. HOLIDAYS Function .............................................................................................................. 30
6.7. End of Useful Life of the System................................................................................................... 30
7. System Menu....................................................................................................................................... 31
8. Parameters Description ....................................................................................................................... 31
9. Table of Errors ..................................................................................................................................... 32
10. Graphic of Probes ................................................................................................................................ 32
11. Troubleshooting .................................................................................................................................. 33
12. System Maintenance ........................................................................................................................... 34
12.1. General Inspection...................................................................................................................... 34
12.2. Magnesium Anode...................................................................................................................... 34
12.3. TP Safety Valve............................................................................................................................ 35
12.4. Safety Thermostat........................................................................................................................ 35
12.5. Empty the Storage Water Heater ................................................................................................. 36

AquaPura Split
5
Technical Manual
1. Important
1.1. Symbols
All the information that the
supplier believes to be an asset
for better performance and
preservation of the equipment,
will be signalled together with the
information sign.
1.2. Pre-installation Information
WARNING
The electrical installation of the equipment must
comply with the national regulations for
electrical installations in effect.
AquaPura Split will only operate after receiving
its load of coolant.
Power supply is 230 V, 50 Hz.
If the power supply cable is damaged, it must be
replaced by the manufacturer, by its customer
service, or by staff with similar training in order
to avoid any danger.
AquaPura Split will only operate if the storage
water heater is filled with water.
These assembly instructions must be read
before running the equipment!
The heater-pump AquaPura Split is only for
heating drinking water within the temperature
limits indicated!
Heating other liquids such as industrial waste
water is not allowed.
You must take into account the technical rules for
installing drinking/potable water (DIN 1988).
When working on AquaPura Split, it should
always be unplugged.
1.3. Safety Information
When installing:
The installation of a thermodynamic
equipment for heating sanitary water
must be carried out by staff with suitable
training and qualified for this purpose;
The device should not be installed in
places that present a risk of impact, shock
or explosion;
Keep the equipment packed until you
reach the place and moment of
installation;
Every process that the supplier
believes to be conducive to
harmful danger and/or material
damage, will be signalled with a
danger sign.
For a better characterization of
the danger, the symbol will be
followed by one of these words:
DANGER: when there is
the possibility of harm to
the operator and/or
people in the vicinity of
the equipment.
WARNING: when there is
the possibility of material
damage to the
equipment and/or
attached materials.
WARNING
This device should not be used by
people with physical, sensorial or
mental handicaps (including
children), or lacking experience /
knowledge, unless they are
supervised by someone responsible
for their safety, or received training
regarding the running of the
device.

AquaPura Split
6
Technical Manual
Make sure all hydraulic couplings are
watertight before connecting the
equipment to the power supply.
Maintenance of the equipment:
Equipment maintenance should be
carried out by customer service, except
operations of general and continuous
cleaning which could/should be carried
out by the user;
Power supply to the equipment must be
disconnected when doing maintenance
operations;
The supplier recommends at least one
annual inspection to the equipment, by a
qualified technician;
High pressure and temperature:
The principle for running this equipment
is directly linked to high temperature and
pressure; The processes that imply
contact with the equipment must be
thought out with caution to prevent the
risk of burns and projection of material;
Refrigeration Gases
The cooling fluid employed in the whole
process is R134a, CFC-free, non-
inflammable and without harmful effects
for the ozone layer;
However, according to the law, the fluid in
this equipment cannot be released into
the environment;
Handling of the fluid in the equipment
must be carried out by a qualified
technician.
Information for the Client
The Installer must inform the client about
the running of the equipment, its dangers,
rights and duties of the client;

AquaPura Split
7
Technical Manual
2. Package

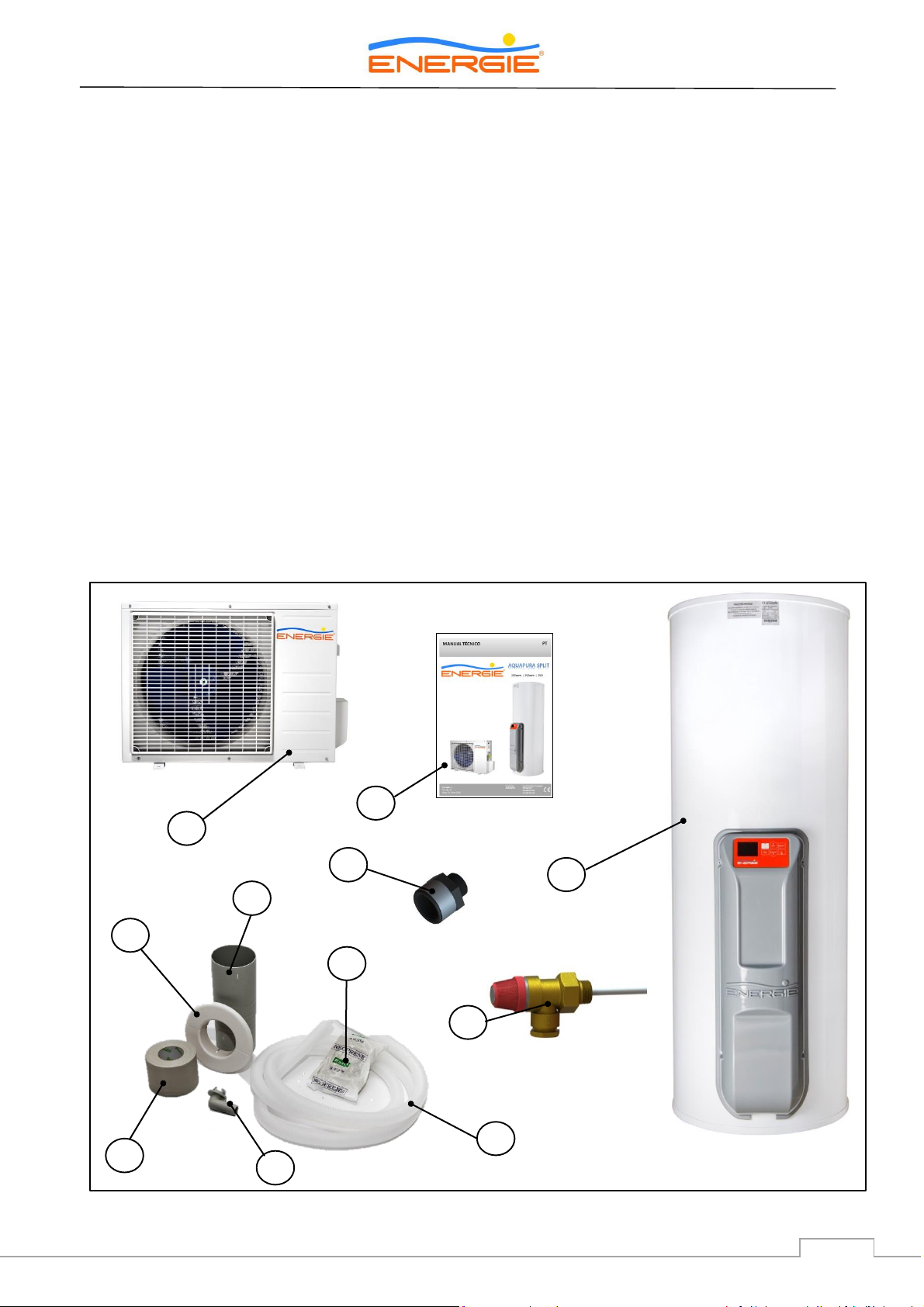

2.1. Contents
The equipment is delivered in two packages, each over a wooden pallet, with protection units and wrapped
in cardboard.
The package contains:
I. An external unit (Heater-Pump) and its components:
II. Paste for sealing the space between the piping sleeve and the wall
III. Bush for draining the condensate.
IV. Insulation tape roll for the tubes
V. Tube for draining condensate
VI. Piping sleeve
VII. Washer for piping shaft
VIII.An internal unit (Storage Water Heater + Hood)
IX. Two dielectric joint 3/4” (connection with storage water heater)
X. TP valve
XI. Installation Manual
XI
VIII
I
IX
II
V
X
VI
VII
III
IV

AquaPura Split
8
Technical Manual
2.2. Transport
The equipment must be transported in its original
package to the place of installation. Check, before
beginning transport of the external unit, if the
path you will travel is unobstructed, in order to
prevent collisions that could cause damage to the
device.
The packages contain the following information
symbols:
WARNING
Transporting the equipment
must be carried out with an
inclination below 45º;
The equipment must be raised
and lowered to avoid impact
that could damage the
material;
Make sure the belts and/or
transportation straps do not
damage the material;
Always use means of
transportation suitable for the
equipment (pallet lift, forklift,
etc…)
Fragile, handle with extreme
caution
Make sure the arrows are always
up
Keep the package dry
Do not stack packages

AquaPura Split
9
Technical Manual
3. Specifications
3.1. Running Principle
The heater-pump AquaPura Split employs
environmental air to heat sanitary water.
The cooling fluid in the heater-pump runs a
thermodynamic cycle that enables the
transference of energy from the environmental air
to the water contained in the storage water
heater.
G-i The air from the environment is forced
through the external unit of the device by a fan.
1-2 When it crosses the evaporator, the cooling
fluid collects the heat from the environmental
heat.
2-3 The compressor aspirates and compresses the
cooling fluid and raises the temperature to a quite
high degree.
3-4 The heat produced by the compressor is
transferred to the condenser that remains in
contact with the sanitary water in the storage
water heater.
4-1 The cooling fluid expands when going through
the expansion valve, and is now ready to collect
the energy present in the environmental air in the
evaporator.
A→Compressor B→Condenser C→ Expansion Valve D→Evaporator
E→Fan F→Storage water heater G→ Environment H→ External Unit

AquaPura Split
10
Technical Manual
3.2. Technical Features
Unit
250 i
300i
200esm
250esm
250ix
300ix
STORAGE HEATER
Dry weight
Kg
62
74
73
83
69
81
Volume
lts
250
300
200
250
250
300
Type of Internal Protection
Stainless steel
Enamel
Stainless steel
Cathodic Protection
Magnesium Anode
Insulation
Polyurethane
Hydraulic Connections
(Cold water | Hot water | PT Valve |
Recirculation | Coil inlet* | Coil outlet*)
Pol.
3/4" Male | 3/4" Male |1/2" Female | 3/4" Male |
1” Male* | 1" Male*
*only on 250ix and 300ix versions
Refrigeration Connections
Pol.
1/4" & 3/8", flare type
Maximum Pressure
bar
7
Maximum Temperature
°C
80
Heat Loss1
kWh/24h
1,01
1,17
1,04
1,2
1,01
1,17
Exchanger Output Power2
kW
#######################
a)30,0; b)18,0
EXTERAL
UNIT
Weight
Kg
28
Refrigeration onnections
Pol.
1/4” & 3/8”, flare type
Level of Sound Pressure at Distance
of 5m
dB(A)
33
CHARACTERISTICS OF EQUIPMENT
Voltage/ Frequency
(V / Hz)
230 Monophase / 50
General fuse (resistance and
electronic circuit-breaker)
A
7
Compressor fuse
A
7
Average Power absorbed by Heat
Pump
W
600
Max power absorbed by Heat Pump
W
1000
Power absorbed by Electrical
Resistance (Support)
W
1500
Max Distance between Refrigeration
Couplings
m
5
Max Gradient between Refrigeration
Couplings
m
3
Min Temperature of External Air
°C
-5
Max Temperature of External Air
°C
42
Cooling Fluid / Amount 3
- / Kg
R 134a / 1,1
PERFORMANCES
Performance
Coefficient
(COP)
According EN255-3
3,5
3,5
3,4
3,5
3,5
3,5
According EN16147
2,9
2,9
2,8
2,9
2,9
2,9
Heating Time4
(hh:mm)
05:36
06:51
04:31
05:29
05:31
06:45
Amount of Useful Water at 40 °C 5
l
300
356
236
308
291
351
1) According EN12897:2006
2) a) Primary (Tin=90 ºC; Tout=80 ºC); Production DHW (Tin=10 ºC; Tout=60 ºC)
b) Primary (Tin=70 ºC; Tout=60 ºC); Production DHW (Tin=10 ºC; Tout=60 ºC)
3) The amount of fluid must be checked by the installer. In some cases it is necessary to add or remove fluid in order to ensure the
correct running of the system.
4) Temperature of aspirated air: 7 °C; Relative humidity: 89%; Inlet water temperature: 10 °C; (according to EN16147)
5) Water heating from 10 °C to 54 °C; Air temperature: 7 °C; Relative humidity: 89%; (according to EN16147)

AquaPura Split
11
Technical Manual
3.3. Main Components
3.3.1. Internal Unit –Storage Water Heater
[1]
Adjustable foot
[2]
“Split” hood Top Lid
[3]
Condenser / Serpentine
[4]
Thermostat
[5]
Resistance
[6]
Display
[7]
Magnesium Anode
[8]
External Plate
[9]
Tub
[10]
Polyurethane Insulation
[11]
Cold water inlet + Bipolar Socket
[12]
Recirculation
[13]
TPR Valve
[14]
Hot water outlet + bipolar Socket
[15]
Seal with features (Storage heater)
[A]
Model
[B]
Production Nº
[C]
Series Nº
[D]
Production Date
[E]
Capacity
[F]
Weight
[G]
Downstream pressure of pressure reducing valve
[H]
Upstream Maximum Pressure of pressure reducing valve
[I]
Maximum Pressure in Storage Water Heater
[J]
Maximum Temperature in Storage Water Heater
[L]
Recommended Temperature in Storage Water Heater
1
3
5
7
10
2
4
6
8
9
11
12
13
14
15
C
B
F
H
G
I
J
L
D
A
E
15

AquaPura Split
12
Technical Manual

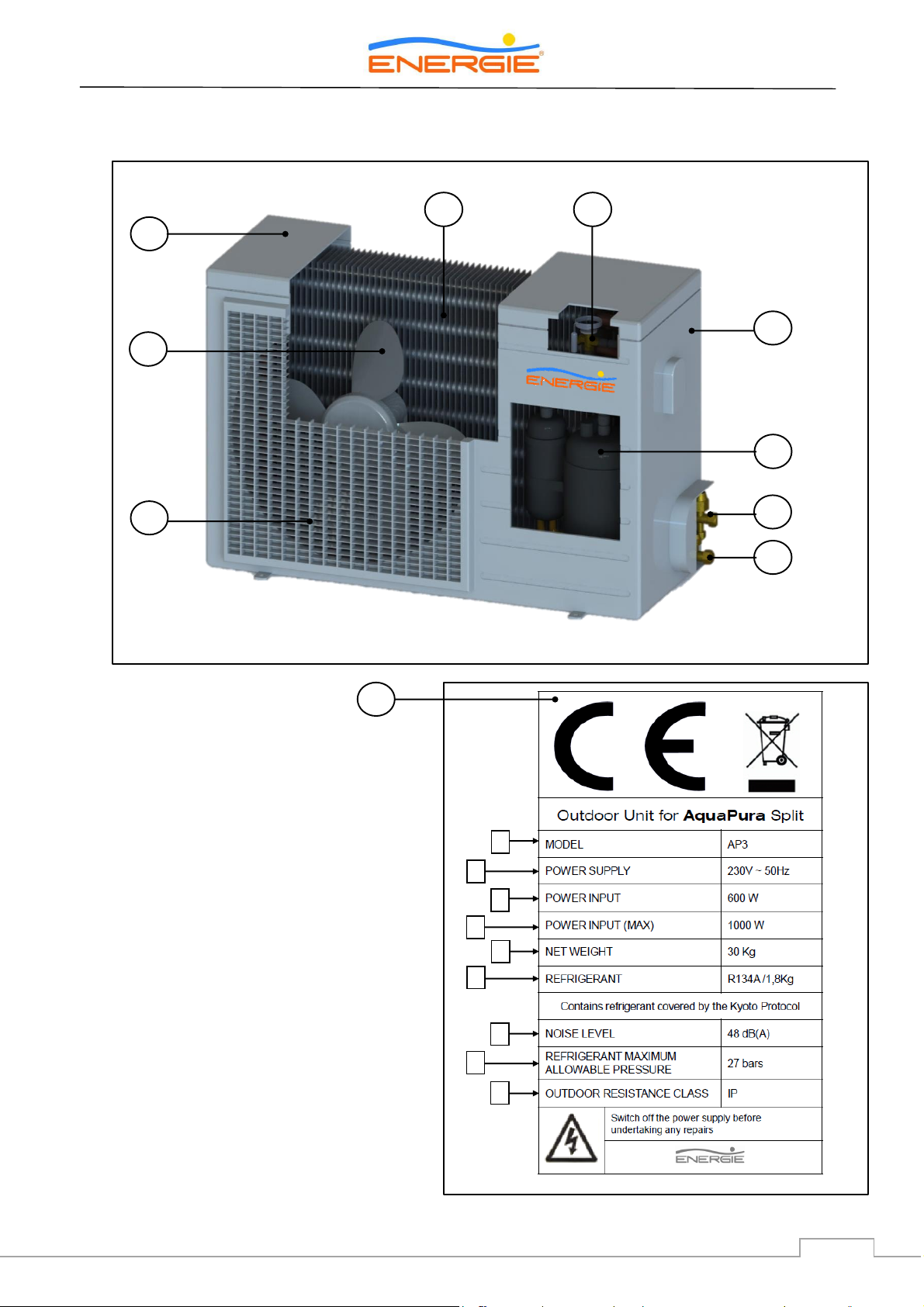

3.3.2. External Unit
[16]
Top lid
[17]
Fan
[18]
Grill
[19]
Evaporator
[20]
Expanding Valve
[21]
Unit box
[22]
Compressor
[23]
3 way valve (Aspiration)
[24]
2 way valve (Liquid)
[25]
Seal with features (split)
[M]
Model
[N]
Power supply
[O]
Average power consumption
[P]
Maximum power consumption
[Q]
Weight
[R]
Fluid
[S]
Noise level
[T]
Admissible maximum pressure of fluid
[U]
Level of protection
16
17
19
18
20
21
22
23
24
M
N
O
P
Q
R
S
T
U
25

AquaPura Split
13
Technical Manual

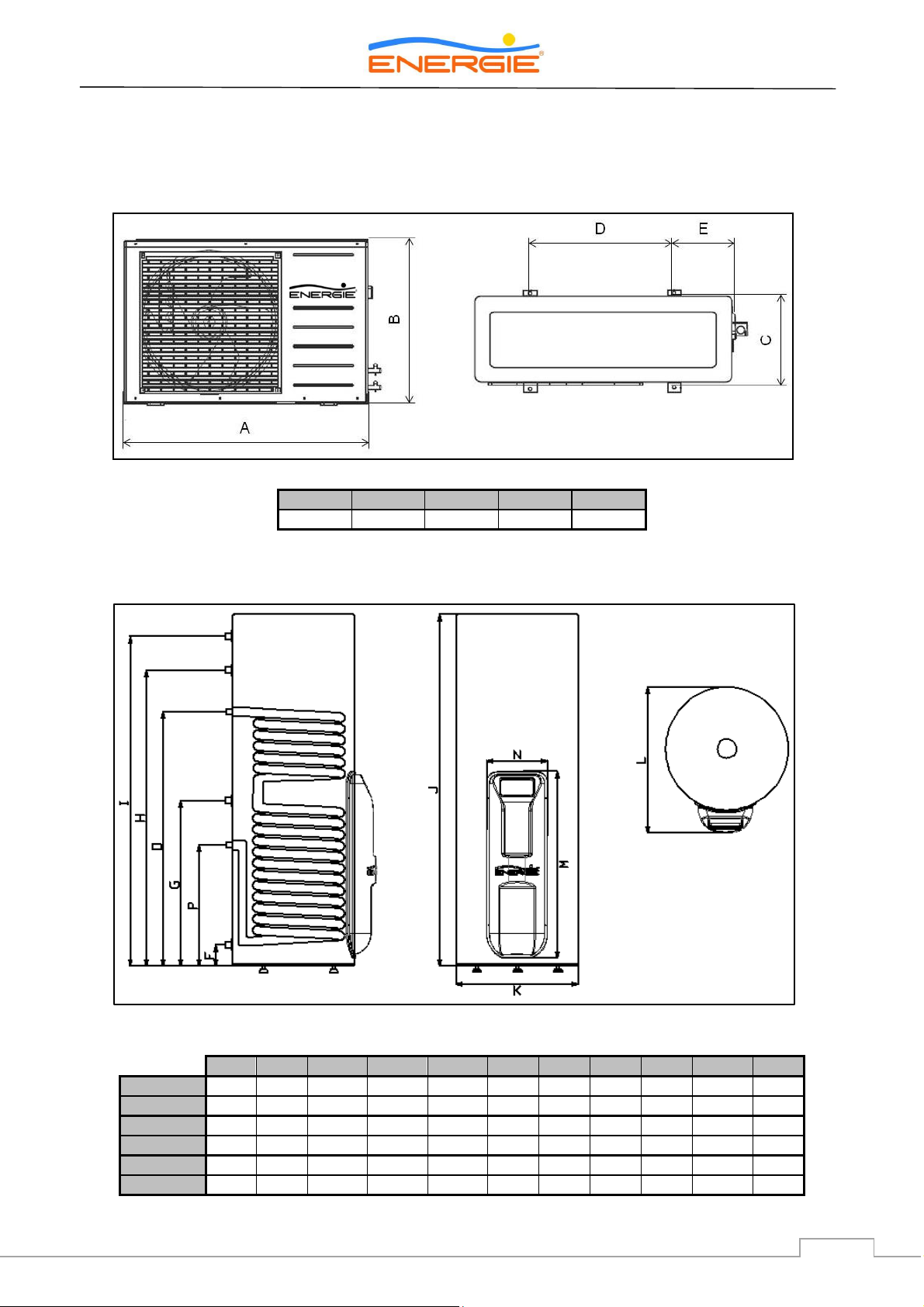

3.4. Dimensions (mm)
External unit
Internal unit - Storage heater
A
B
C
D
E
700
525
250
458
120
F
G
H
I
J
K
L
M
N
O
P
250 i
74
815
1326
1454
1530
580
685
879
290
------
------
300 i
74
815
1543
1671
1750
580
685
879
290
------
------
200 esm
74
650
1146
1274
1330
580
685
879
290
------
------
250 esm
74
815
1326
1454
1530
580
685
879
290
------
------
250 ix
74
815
1326
1454
1530
580
685
879
290
1251
681
300 ix
74
815
1543
1671
1750
580
685
879
290
1251
681

AquaPura Split
14
Technical Manual
3.5. Safety and Control Devices
3.5.1. Pressure gauge of high/low
pressure
In case of running outside the range of pressures
recommended and defined by the supplier, the
equipment will switch off and indicate error in the
electronic panel.
3.5.2. Safety Thermostat
The safety thermostat is set by the supplier to
ensure that the water temperature in the storage
water heater does not exceed the standard value.
Should the temperature exceed this value, the
thermostat switches off the support resistance.
Switching on is done manually by qualified staff,
after analyzing the reasons for the switch off.
3.5.3. Temperature Sensor
The temperature sensor has the purpose of
measuring the values of temperature of inlet
external air into the circuit. When these figures
are below or above the limits for running the
equipment, the electric resistance is activated
instead of the heat-pump.
3.5.4. Protection against corrosion
The storage water heater in this equipment can
be of two types: Stainless steel or Enamelled.
Besides being resistant to corrosion, the storage
water heater has in addition a magnesium anode
that should be checked periodically according to
information by the installer.

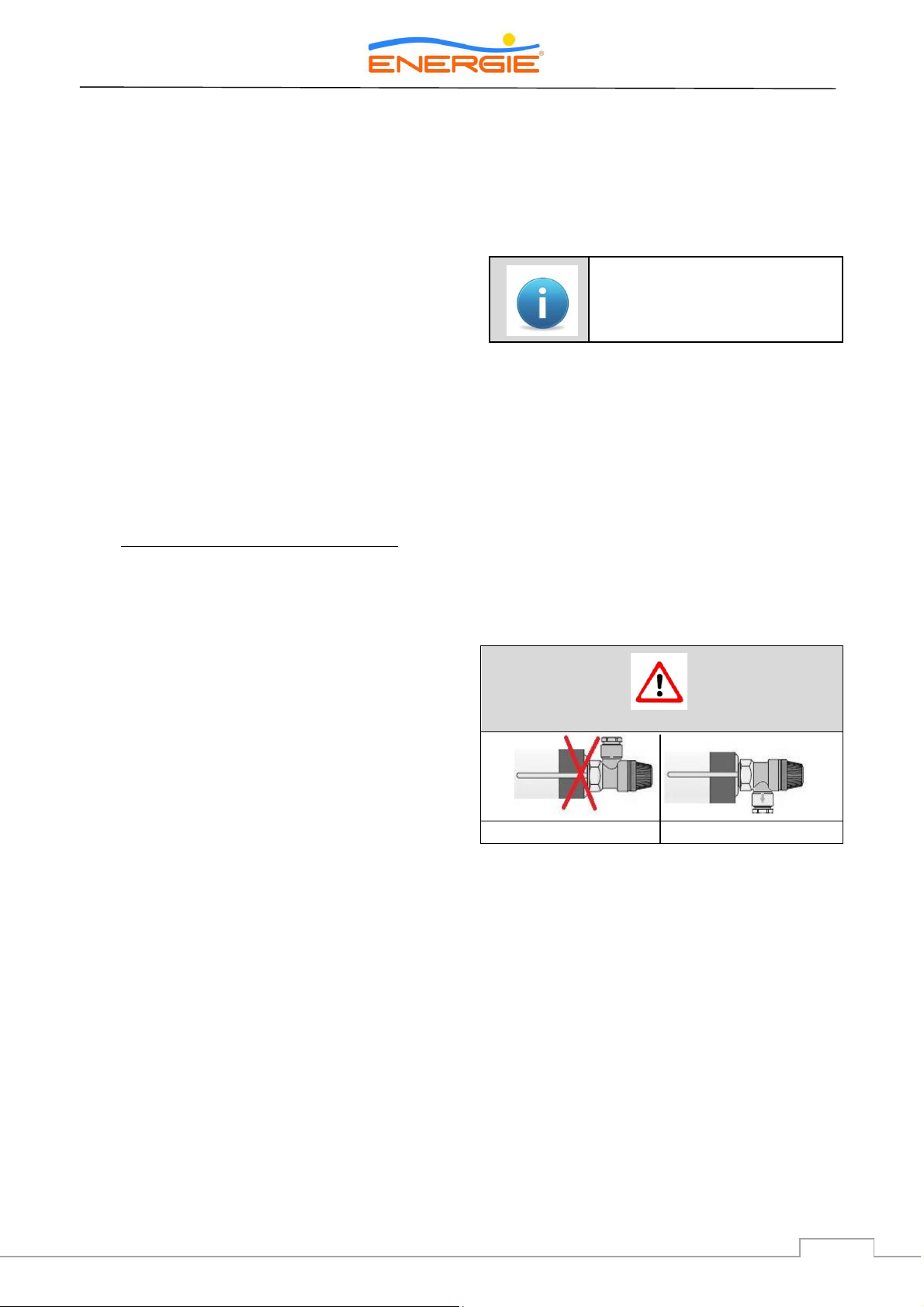

3.5.5. TPR Safety Valve
The TPR valve (combined safety valve of
temperature and pressure) is placed on top of the
storage water heater and its purpose is to limit
the pressure/temperature of the water inside the
storage water heater. This valve has been
previously calibrated to prevent the water
temperature from exceeding 99º C and pressure
from exceeding 10 bar. If any of these figures is
reached, the valve will open and release water
until the temperature and pressure inside the
storage water heater are within the calibrated
range.
The TP valve is place on top of the
storage water heater and the
valve temperature probe must be
completely submerged.
This safety device is already incorporated in your
equipment. The installer must make sure that the
draining of the TPR valve is done according to the
standards.
Remember that:
In the horizontal installation, the water
outlet nozzle must not be turned
downside up to prevent the accumulation
of waste in the device.
WARNING
Incorrect
Correct
Discharge must be done so that the
normal running of the valve is not stopped
and without risk for people or to
materials.
Discharge must be visible and into a
suitable collection pipe.
Discharge must be done into a suitable
container.

AquaPura Split
15
Technical Manual
3.5.6. Dielectric Socket
Your AquaPura Split equipment contains two
dielectrics sockets. These sockets prevent electron
exchange between the pipes of water inlet and
outlet and the storage water heater itself. This is
another way to create protection against
corrosion that could take place between these
points (Aand B).
So the installer must tighten the sockets (C) in the
water inlet and outlet (Aand B), before attaching
the piping (D), as demonstrated in the following
sequence:
A
B
A
C
D
C
D
C
D
a)
b)
c)

AquaPura Split
16
Technical Manual

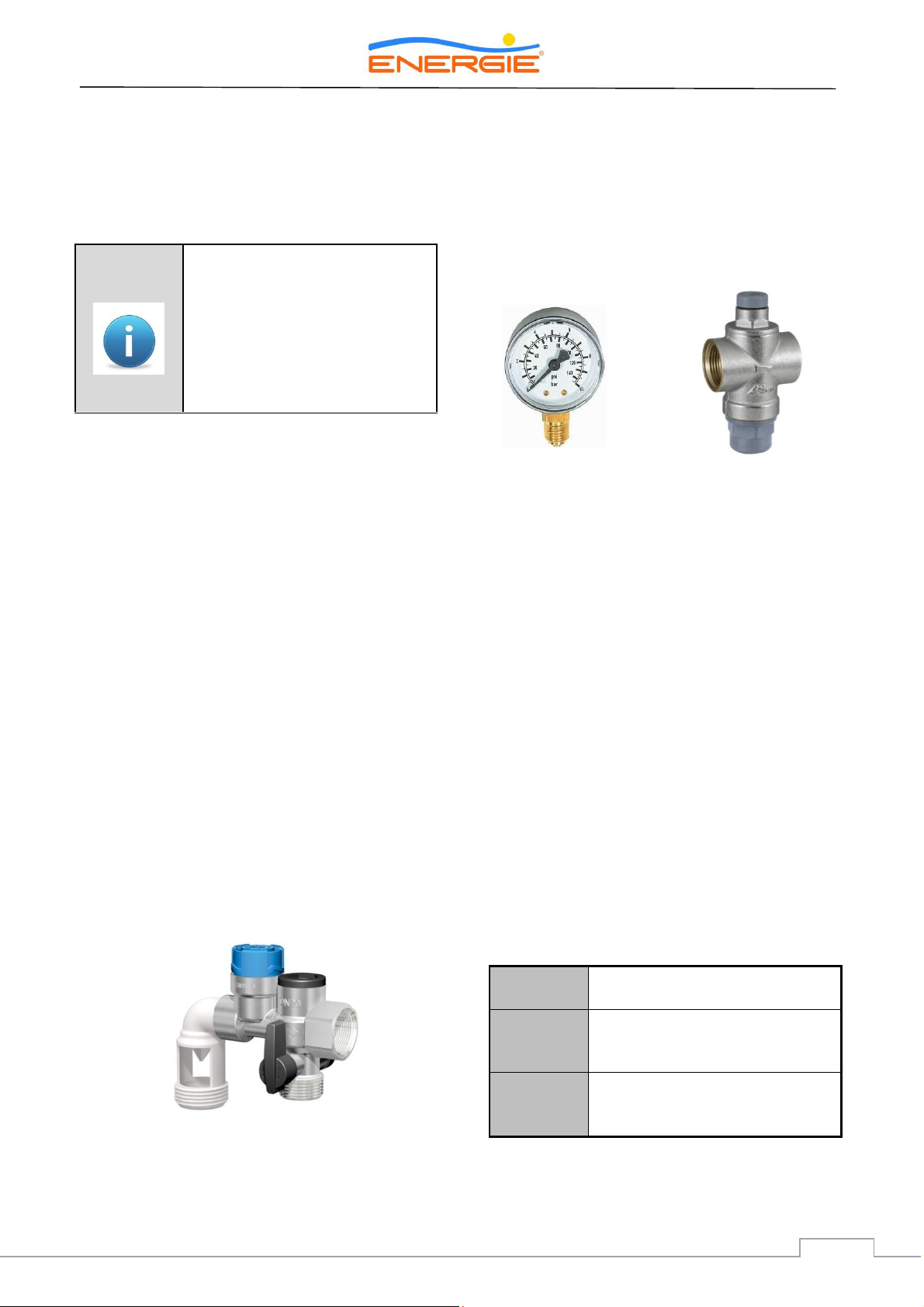

3.5.7. Expansion tank (1)
The expansion tank is a device whose purpose is
to compensate the increase in water volume due
to temperature rise.
Installing this device is
recommended procedure for a
correct installation of the
equipment.
Installing this device is the
responsibility of the installer.
As a general rule it is installed in
the cold water pipe.
3.5.8. Safety Device (1)
The safety device allows the system to be
protected against anomaly situations: cold water
supply, hot water flowing back, emptying the
storage water heater and high pressure. The valve
is calibrated to activate at 0.7 Mpa.
In order to drain the water in the storage water
heater, you should close the supply valve (4) and
open the discharge valve (5).
The safety valve discharge pipe must be open into
the atmosphere, because the valve may drip
water or even discharge water.
The safety valve must be opened regularly to
remove impurities and check that it is not
blocked. The discharge pipe must be installed in a
vertical position and not kept in a frozen
environment.
3.5.9. Pressure Throttle Valve (1)
The pressure throttle valve must always be
installed upstream from the safety device, and
ready to activate in situations when the pressure
in the circuit exceeds 3 bar. This valve comes with
a pressure gauge.
__________________________________________________
(1) This device does not come with the equipment.
4. Installation

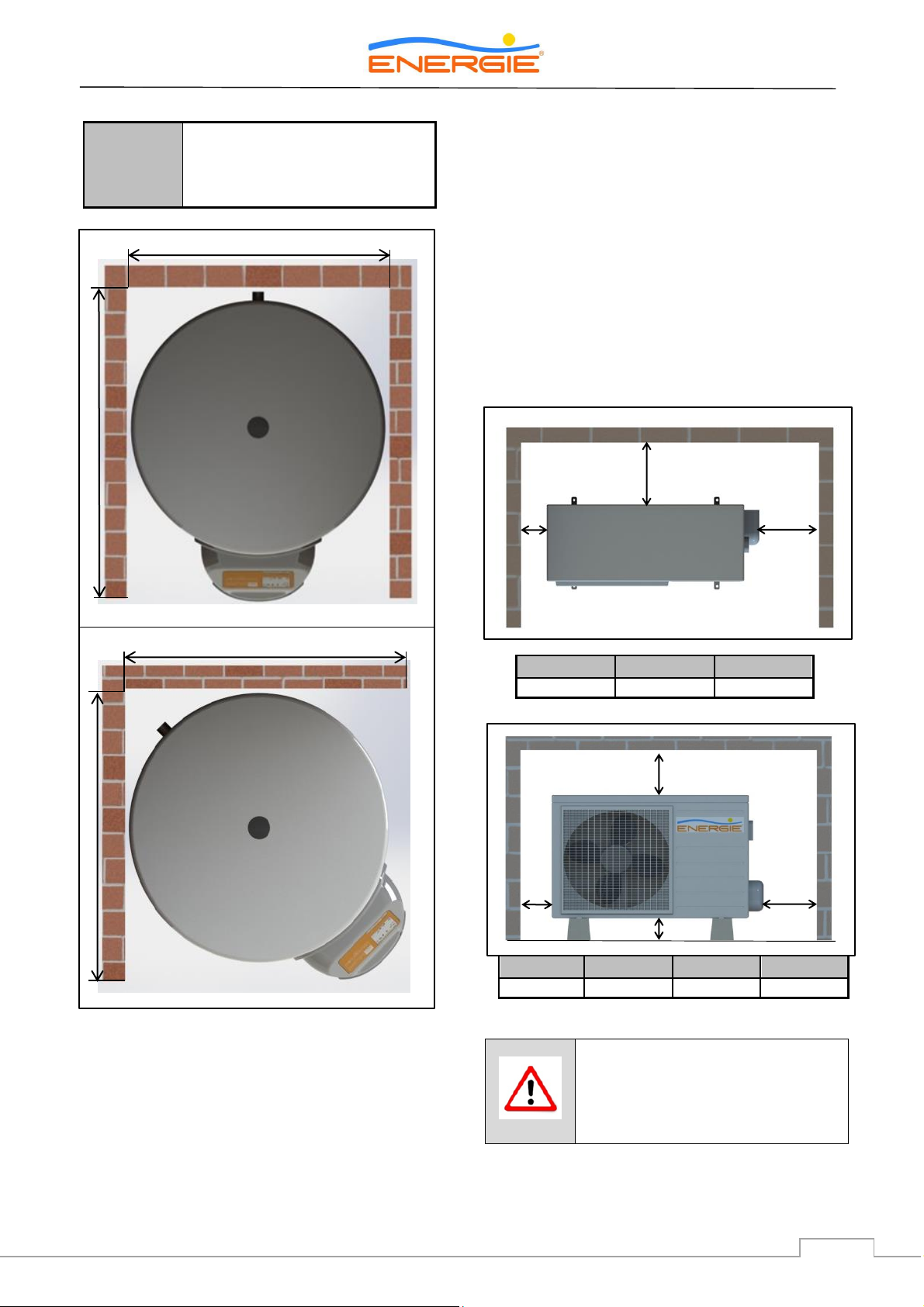

4.1. Set-Up
Internal Unit - Storage Water Heater
Keep the equipment sheltered in places
susceptible to ice crystals
Choose the position closer to the main user
points
Always insulate the piping
The temperature around the equipment must
not exceed 40 °C
The storage water heater must never be kept
outside, and avoid exposure to sunlight
Make sure the support surface is enough to
accommodate the weight of the storage water
heater filled with water
Make sure that those sides with electrical
appliances have at least a 500 mm gap for the
purpose of maintenance.
Resistance
of floor
300 Kg on the surface taken by
the storage water heater
Necessary
surface
710mm × 600mm or 630 x 630 –
depending on the set-up of the
storage water heater
Height
Clearance,
Minimum
1,8 m

AquaPura Split
17
Technical Manual
Suitable
placement
Inside the house
On the other side of the wall
where the external unit is
installed
External Unit
Any interference with the discharge air is not
allowed
The external unit must be installed on a height
from the floor equal to or above 100mm and in
such way that it facilitates the cleaning of
condensates
For a correct disposal of condensates, always
use the accessories that have been supplied
with your equipment
Make sure that the external unit is kept on a
horizontal position (use a level)
Choose a place to set up the external unit that
will not bother your neighbours with the noise
Make sure the wall where the unit is installed
is able to support its weight
Do not place anything on top of the external
unit
WARNING
The external unit must be placed on
the horizontal, in an open space and
well ventilated, in order to facilitate
the removal of condensates.
D
E
F
G
≥ 200mm
≥ 500mm
≥ 600mm
≥ 100mm
A
B
C
≥ 200mm
≥ 300mm
≥ 600mm
600
710
630
630
B
C
A
F
E
G
D

AquaPura Split
18
Technical Manual
4.2. Coolant Couplings
DANGER
The cooling fluid couplings must be
done by a qualified technician, with
a professional certificate with
abilities for this purpose.
While connecting the components bear in mind
these details:
Distance between the storage water
heater and the external unit must be as
short as possible. Performance and
longevity of the equipment depends on
these factors.
The piping must not have elbows.
The two refrigeration pipes that make up
the joint must be insulated separately.
Use only R134a, and avoid mixture with
another fluid, air or substance.
The piping must be of copper, without
seams, refrigeration type (Cu DHP
according to standard ISO1337).
Use piping whose thickness is never less
than 0.8 mm.
Do not use sanitary type copper under
any circumstance.

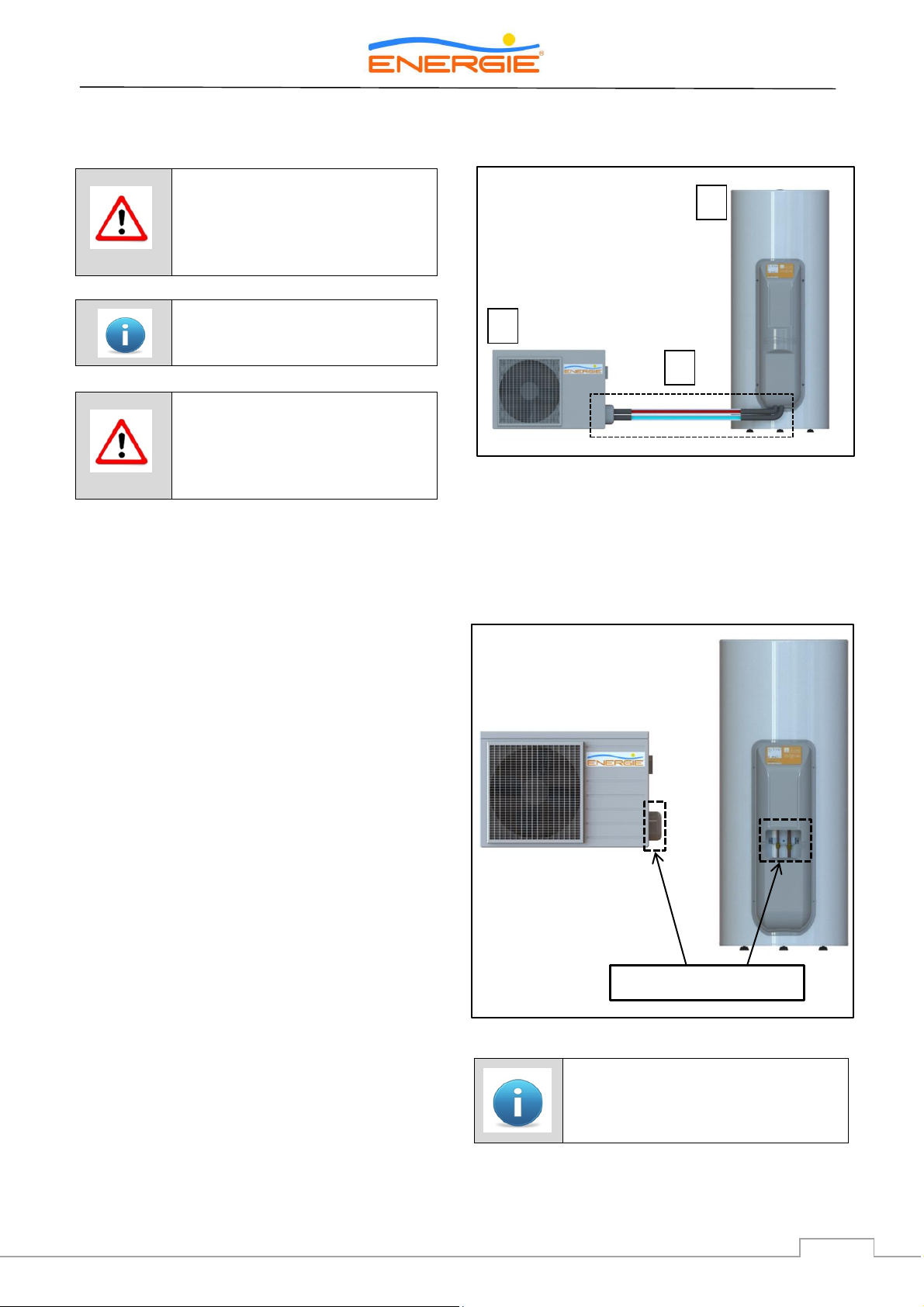

4.2.1. Coolant Couplings
The distance between the external
unit and the storage water heater
must not exceed 5 metres in length
and 3 metres in gradient!
The external unit holds a pre-load
of fluid R134a.
DANGER
The cooling fluid joints must be
thermally insulated in order to
prevent burns and to ensure an
optimal system performance.
3
1
2
[1] Storage Heater
[2] External unit
[3] Connection between External Unit and Storage
Heater
Coolant Couplings

AquaPura Split
19
Technical Manual

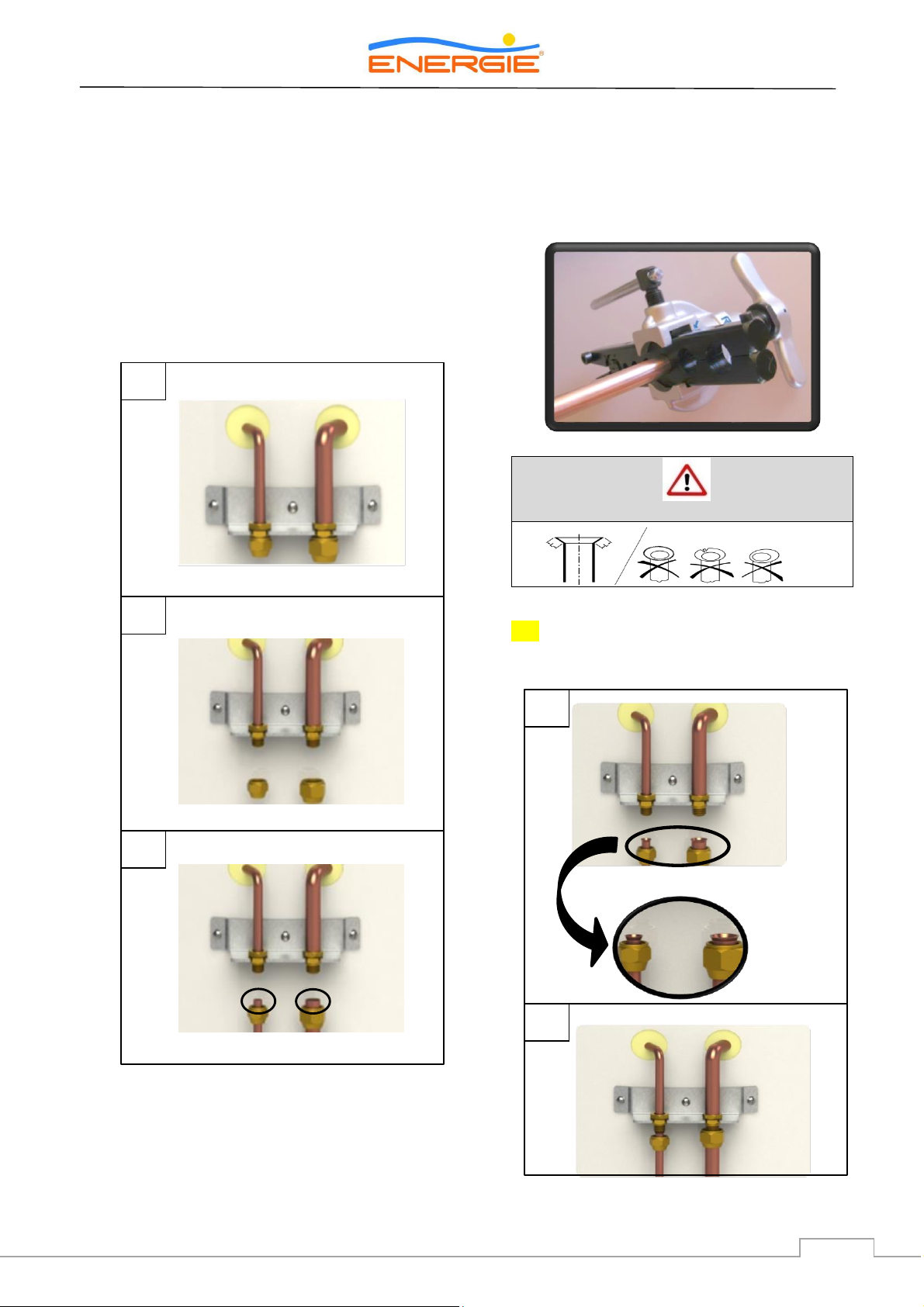

Procedure to connect the cooling couplings:
a) Prepare the copper pipe, removing the
protective caps from the extremities.
b) Place the extremity of the pipe upside
down, cut the appropriate size of pipe and
sand the rough edge.
c) Remove female couplings from the storage
water heater condenser and insert them
in the pipe.
d) Flange the pipe with the appropriate tool
shaping a conic edge, make sure that there
are no rough edges or imperfections and
that the vertical of the walls is uniform.
WARNING
e) Tighten the female coupling with your
hands, turning it a few times.
c1)
)
c3)
)
c2)
)
e1)
)
e2)
)

AquaPura Split
20
Technical Manual
f) Tighten with a wrench, apply a torque in
conformity with the diameter of the pipe
used. Insufficient torque will cause leaks of
cooling fluid. An excessive tightening of the
coupling will damage the edge of the pipe
and cause leaks.
g) Make sure that the pipes bypass the
electric box (A).
h) Insulate all connections.
4.2.2. Load of Nitrogen
a) After finishing the joints, make sure there
are no leaks. For this purpose, inject a
load of nitrogen with a pressure of 10 bar
through the pressure inlet (3 way valve).
b) Brush every coupling in soap foam and
make sure the pressure in the pressure
gauge is constant.
4.2.3. Create Vacuum
a) Employ, during the whole operation,
connections, vacuum pump and pressure
gauges suitable for fluid R134a
b) Employ a vacuum pump only to remove
the air and humidity inside the piping
c) Never use the system coolant to purge
the connection pipes
d) The valves must be completely closed
during the vacuum process, in order to
create vacuum only in the piping
Diameter of
pipe
(inches)
Applied
torque
(Nm)
Wrench nº
1/4”
14 to 16
19
3/8”
33 to 42
21
A
