Energizer EZG1300 User manual

1series

2
©2013 Energizer Power Equipment. All Rights Reserved.
Licensed by Energizer Corporation, United States of America.
EZG1300-11.2012-01
series

3series
Let's get started.
You're excited to power up, so we'll keep this brief!

4
Thank you for
purchasing your
eZG1300 generator.
Remember to register! Take a minute to register this product
online at www.energizergenerators.com. This will allow you to
request warranty support in the future.
This manual will show you how to use the great features that
sets the eZG1300 apart from the crowd.

5series
We've got you covered!
Call us at 1-887-528-3772 if you have any questions
This user guide covers the safety, operation and maintenance
procedures for the eZG1300.
All information in this publication is based on the latest
product information available at the time of print. Visit
www.energizergenerators.com for user guide updates and
operation notices.
No part of this publication may be reproduced without written
permission.
It is important that anyone operating this product read and
understand the manual prior to use.

6
Warranty Information
Warranty support, operation assistance and product support is
provided by Midland Power Inc., a licensed manufacturer of Energizer
Power Equipment. Please contact us directly for any warranty service
questions.
1-877-528-3772
www.energizergenerators.com

7series

8
Chapter 1 — Safety First
Playing it safe when working with power equipment is always a good idea. Here are some
important precautions to make sure you stay safe.
1.1 Safety while Operating Your Generator
Always perform an oil, fuel and air filter check before starting the engine.
• Properly clean and maintain the equipment.
• Operate the generator according to instructions for safe and dependable
service.
• Read user manual carefully before operating this product! Failure to do so
may result in serious harm to the user and to the equipment.
• Before operating the generator, read the user manual carefully. Otherwise, it
may result in personal injuries or equipment damage.
• Never run the generator in an enclosed area to avoid harm from exhaust
emissions of a poisonous carbon monoxide gas.
• Be careful not to touch the exhaust system or discharge tubing during
operation due to risk of burns.
• Pay attention to the warning labels. The engine exhaust system will
become heated during operation and remain hot immediately after the
engine is stopped.
• Gasoline is a highly flammable and explosive liquid. Refuel in a well
ventilated area with the engine stopped.
• When refueling the generator, keep it away from cigarettes, open flames,
smoke and/or sparks.
• Connections for standby power to a building’s electrical system must be
done by a qualified electrician and must comply with all applicable laws
and electrical codes. Improper connections may cause serious injuries to
electrical workers during a power outage, and when the utility power is
restored, the generator may explode or cause fires.
• Place the generator at least 3 feet away from buildings or other equipment
during operation.

9series
• Run the generator on a level surface. Tilting the generator may result in fuel
spills.
• Know how to stop the generator quickly and understand operation of all
the controls. Never permit anyone to operate the generator without proper
instructions.
• Keep children, pets and machinery with rotating parts away during
operation.
• Do not operate the generator in rain or snow.
• Do not allow any moisture to come in contact with the generator.
• Do not touch the spark plug while the engine is operating or shortly after
the engine has been shut down
1.2 Understanding AC Safety
Before connecting the generator to an electrical device or power cord:
• Make sure that everything is in proper working order. Faulty devices or
power cords can lead to an electrical shock.
• Turn off the generator immediately if the device begins to operate
abnormally. Then disconnect the device and investigate the problem.
• Make sure that the electrical rating of the device does not exceed that of
the generator. If the power level of the device is between the maximum
output power and the running power of the generator, the generator should
not be used for more than 30 minutes.
• The connections from the generator to the household power supply should
be done by professional electrical technicians. Improper connections may
lead to a fire hazard or damages to the generator set.
1.3 Safety while Maintaining Your Generator
After any maintenance is performed, wash immediately using soap and clean water
because repeated exposure to lubricant may cause skin irritation.
• Do not clean the filter element with flammable liquids like gasoline because
an explosion may occur.
• Turn off the engine before performing any maintenance. Otherwise it can

10
cause severe personal injury or death.
• Allow the generator set to cool down before performing any maintenance.
• Always wear safety glasses when cleaning the generator set with air.
• Do not clean the generator set with a pressure washer because it can
cause damage to the generator set.
• Before working with batteries, ventilate the area, wear safety glasses, do
not smoke and always disconnect the negative cable first and reconnect it
last.
• Use rubber gloves when coming into contact with engine oil.
• Always stop the generator set before removing the oil filler cap.
• Only qualified maintenance personnel with knowledge of fuels, electricity,
and machinery hazards should perform maintenance procedures.
• Lubricate all exposed metal parts regularly
1.4 Other Safety Tips
• To avoid breathing in poisonous carbon monoxide from the exhaust gases,
adequate ventilation should be provided if the generator set is running in a
partially enclosed space.
• If the generator set is stored outdoors, check all the electrical components
on the control panel before each use. Moisture can damage the generator
and can lead to an electric shock.
• If you start to feel sick, dizzy, or weak after the generator has been running,
move to fresh air RIGHT AWAY. See a doctor. You could have carbon
monoxide poisoning.

11 series
Chapter 2 — Learn About Your Generator
This section will show you how to identify key parts of your generator. Going over
the terminology below will make sure we're on the same page.

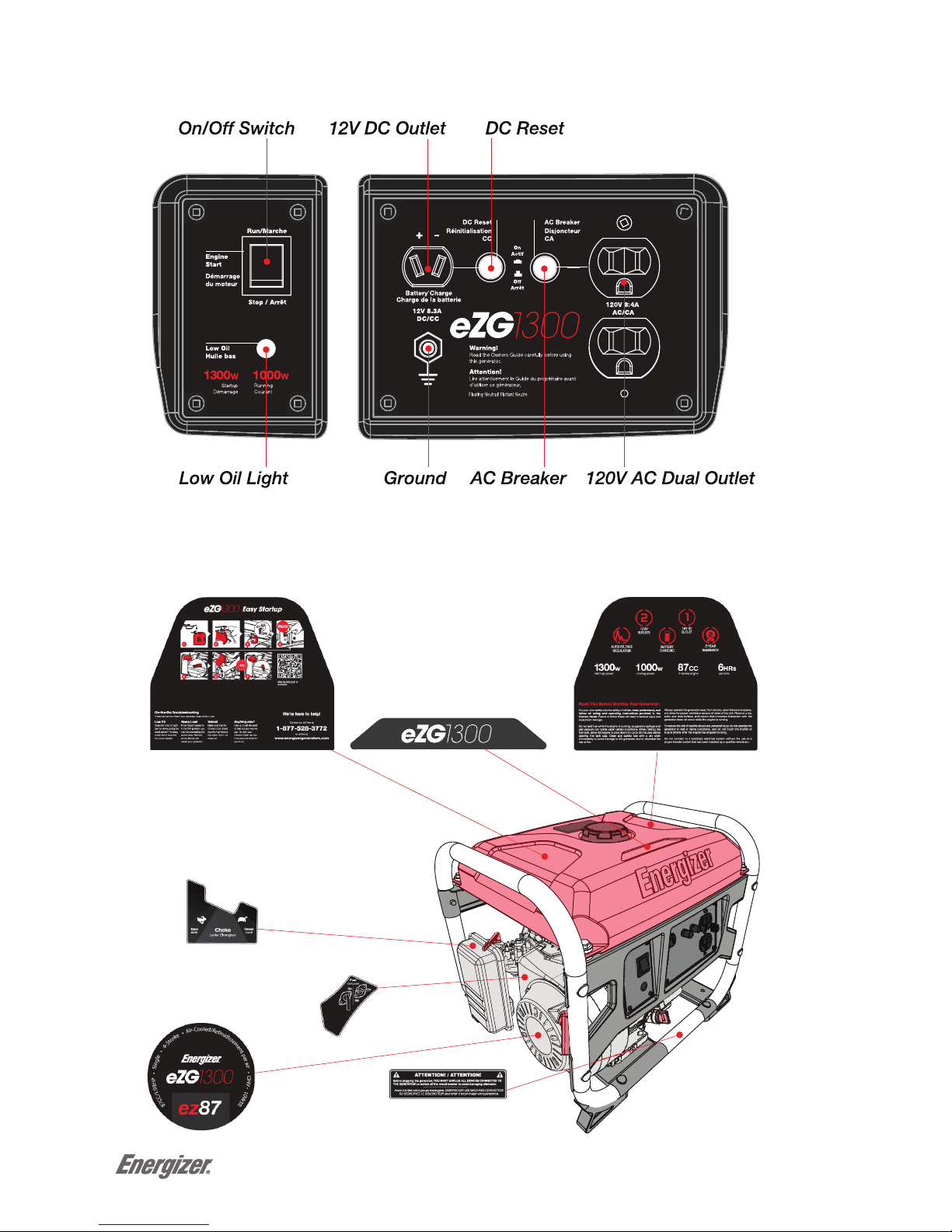

2.1 Identification of Components

12

13 series
2.2 Make Sure You Have Everything
Number Part Name Quantity
1 eZG1300 Generator 1
2 User Guide 1
3 DC Charging Cables 1
4 450mL 10W30 Oil 1
5 Spark Plug Socket Wrench 1
Make sure your generator has included everything in the table above.

14
Chapter 3 — Setting Up your eZG1300 Generator
Setup should be done everytime you start up your generator, these quick checks will
ensure you get the most out of your generator.
Exhaust gas contains poisonous carbon monoxide. Never run the generator
in an enclosed area. Be sure to provide adequate ventilation. Operate the
generator on a level surface. If the generator is tilted, fuel spillage may
result. Keep away from rotating parts while the generator is running. The
generator is air-cooled and may be damaged if ventilation is inadequate.
3.1 Checking the Engine Oil Level
1. Ensure the generator is on a level surface.
2. Inspect engine oil:
• Take out the oil filler cap and clean the dipstick.
• Check the oil level by reinserting the oil filler cap without rotating it. Remove
the oil filler cap and examine the oil level. If the oil level is at or below the
minimum oil level, refill the oil to the maximum oil level mark. (10W30)
Reinsert the oil filler cap and tighten securely. (Refer to figure below)
Engine oil is a major factor affecting engine performance and service life.
Non-detergent or vegetable oils are not recommended.
Maximum Oil Level
Minimum Oil Level

15 series
3.2 Checking the Engine Fuel Level
1. Check the fuel level by reading the gauge or removing the fuel tank cap to
visually check the level.
2. Refuel if level is too low. Tighten the fuel tank cap securely after refilling
(Refer to Figure below)
Gasoline is highly flammable and explosive under certain conditions. Refuel
in a well-ventilated area with the engine stopped. Do not smoke or allow
open flames or sparks in the area where the generator is being refueled or
where gasoline is stored. Do not overfill the tank. Be careful not to spill fuel
when refueling. Wipe up any spilled gasoline and let the area dry before
starting the engine.
Gasoline substitutes such as gasohol are not recommended. They may be
harmful to the fuel system components.

16

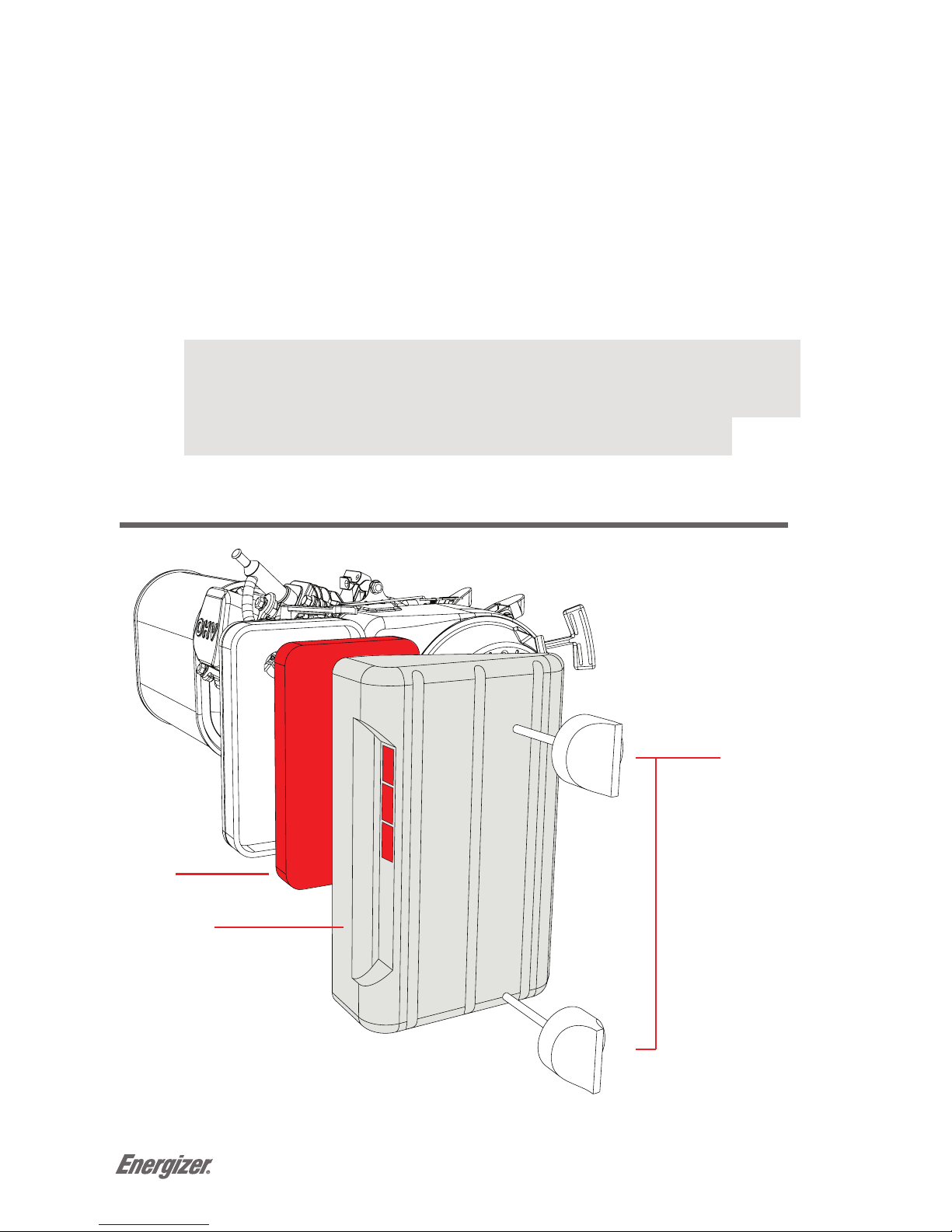

3.3 Check the Air Filter
1. Loosen the knob and remove the air filter cover. Remove the air filter
element and observe for cleanliness.
2. Clean the air filter element with soap and water or solvent. Squeeze dry
and then soak in clean engine oil.
3. Squeeze out all excess oil and reinstall. Replace the element if it is
damaged.
Check the air filter using the maintenance schedule. Always inspect air
filter before using the generator. Clean Air Filter every 3 months or after
50hrs of operation according to Section 5.4 Cleaning the Air Filter.
Knobs
Filter
Filter cap

17 series
Chapter 4 — Using Your eZG1300 Generator
DANGER- CARBON MONOXIDE
Using a generator indoors WILL KILL YOU IN MINUTES.
Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas
you cannot see or smell. If you can smell the generator exhaust you are breathing CO.
But even if you cannot smell the exhaust, you could be breathing CO. NEVER use a
generator inside homes, garages, crawlspaces, or other partly enclosed areas. Deadly
levels of carbon monoxide can build up in these areas. Using a fan or opening windows
and doors does NOT supply enough fresh air. ONLY use a generator outdoors and far
away from open windows, doors, and vents. These openings can pull in generator
exhaust. Even when you use a generator correctly, CO may leak into the home.
ALWAYS use a battery-powered or battery-backup CO alarm in your home. If you
start to feel sick, dizzy, or weak after the generator has been running, move to fresh air
RIGHT AWAY. See a doctor. You could have carbon monoxide poisoning.
4.1 Starting Your Generator
Before using generator, a ground wire must be connected to the ground
terminal. The Ground terminal is located on the Front Panel. Before using
the ground terminal consult a qualified electrician.
Leave the Choke lever at the OPEN position if the engine is warm or if the
air temperature is higher than 50°F (10°C).
We know you're excited to get using your generator. Please be sure to follow the
startup instructions below thoroughly to ensure the best lifespan for your generator.

18
1. Rotate the fuel valve lever to ON position (Vertical
position).
This is located on the left side of your generator, it is
attached to the bottom of the fuel tank.
2. If the engine is cold: push the choke lever into the
on/closed position.
You can find the choke lever above the air filter cap
on the left side of your generator.
3. Disconnect all devices from the outlets on the
generator panel. Then press the engine switch to the
“ON” position.
4. Grasp the recoil stater handle and pull it until the
generator starts.
Do not allow the recoil starter to snap back. Re-
turn it slowly by hand
5. Push the choke lever to the OPEN position as the
engine warms up. The choke is used to provide the
proper air-fuel mixture when the engine is cold.

19 series
4.2 Using the EZG1300 with your Appliances
After starting the eZG1300 you can connect your devices to it. If you want to use the
DC output to charge an automotive battery, skip to section 4.4. Before starting make
sure that you know what you are able to power with your Generator. Here's how you
can decide:
Add the watt ratings of all the loads that the generator set will be powering at the same
time. Make sure that total wattage will not exceed the generator rating.
EXAMPLE:
A generator set rated 5000W can power two 1500W heaters, a 900W circular saw, a
500W drill and a 100W light at the same time (4500W combined). However, to operate
a second 900W saw, it will be necessary to disconnect one of the 1500 W heaters.
1. Turn off the switches of devices before
before connecting them to your generator.
2. Insert the plug of the device into your generator
based on its voltage requirements. Your eZG1300
generator includes two (2) 120V AC outlets and one
(1) DC outlet for charging automotive batteries.
See Section 4.4 before using the DC outlet
3. You can now turn your devices on and use them.
To stop the engine in an emergency, turn the engine switch “OFF”. Always
connect the ground terminal at the front panel to the ground (earth) to
prevent electrical shock.

20
4.3 Using the EZG1300 to Charge Automotive Batteries
You can use 12V 8.3A DC output to charge automotive batteries. Be sure to
monitor the battery charge time.
Over-charge may cause explosion and injury.
1. Connect the positive (red) terminal of the battery to
the red (positive) terminal, the 12V 8.3A DC Output
Terminal on the front panel of your generator.
2. Connect the negative (black) terminal of the battery
to the black (negative) terminal, the 12V 8.3A DC
output terminal on the front panel of your generator.
DO NOT REVERSE THE POLARITY OF THESE
CONNECTIONS.
3. Plug in the DC plug into the DC receptacle.
Start the generator as instructed in Section 4.2
An explosive hydrogen gas is discharged through vent holes in the battery
during charging. Do not allow sparks or open flames around the generator
or battery during the charging process.
Electrolyte fluid can burn eyes and clothing. Be extremely careful to avoid
any contact. If injured, wash the affected area immediately with large
amounts of water and seek medical attention immediately.
