Enernova ETA-PRO User manual
=NZWNJVA
ETA-PRO
roiixsiarion
(1050Wh
1200W)
User
Manual
Charge
first-
Before
using,
plugitinto
the
power
outlet
until
it
is
fully
charged.
Safety
Instructions
EN
1.1
Disposal
Guide
1.
The
product
contains
high
voltage
AC
output,
please
do
not put
your
hand
or
handheld
metal
conductor
into
the
AC
outlet.
2.
Do
not
disassemble
the
product
if
you
are
not
professionals
because
internal
battery
and
circuit
of
the
product
have
dangerous
high
energy
which
is
able
to
cause
electric
shock,
short
circuit
and
other
dangerous
things
to
happen.
3.
Do
not
put
the
product
in
high
temperature
environment
(more
than
50
degrees
Celsius)
or
near
the
fire
to
avoid
the
product
from
explosion
or
catching
fire.
4.
The
product
is
not
a
toy.
Keep
the
product
out
of
the
reach
of
chil-
dren.
5.
Do
not use
it
in
a
damp
environment.
6.
Please
do
not
knock
or
hit
the
product.
7.
Itis
strictly
forbidden
to
disassemble
the
product.
8.
Itis
strictly
forbidden
to
use
products
with
obvious
damage.
9.
All
parts
of
the
product
are
environmental
friendly
and
recyclable,
please
recycle
according
to
local
regulations.
1.2
Usage
1.
Please
select
the
solar
panel
in
accordance
with
the
electrical
para-
meters
specified
by
the
manufacturer.
It
is
forbidden
to
charge
with
solar
panels
whose
voltage
is
higher
than
50V.
2.
Please
charge
the
battery
within
the
temperature
range
of
0~45°C.
Charging
at
too
low
temperature
will
shorten
the
cycle
life
of
the
battery.
3.
For
long
term
storage
(more
than
3
months),
it
should
be
stored
in
a
low
humidity
environment
without
corrosive
gas
at
-10~50°C
in
a
se-
mi-electric
state.
4.
If
the
power
station
is
stored
for
more
than
6
months,
please
charge
and
discharge
the
product
1-2
times
every three
months
to
extend
the
life
of
the
battery.
5. In
order
to
preserve
the
power
of
the
product,
please
turn
off the
product
in
time
after
using
so
as
to
avoid
running
out
of
the
battery
power
(the
device
will
have
no-load
loss
as
long
as
it
is
turned
on).
6.
When
the
product
runs
out
of
power,
please
charge
it
in
time.
7.
If
the
product
emits
abnormalities
such
as
odor
and
overheat
during
charging
or
storage,
please
stop
charging
immediately
and
place
it
in
an
open
place
for
observation
from
a
distance
to
confirm
safety,
and
contact
the
manufacturer
or
distributor
after
it.
8.
The
product
has
a
wireless
charging
function.
If
the
wireless
charging
switch
is
turned
on,
the
wireless
charging
function
will
be
turned
on.
Please
note
that
the
charging
part
on
the
back
of
the
phone
cannot
be
made
of
metal
(such
as
a
bracelet).
If
there
is
metal,
it
will
cause
heat.
Do
not put
metal
objects
or
radio-sensitive
items
on
the top
of
the
power
supply.
Otherwise,
it
may
cause
abnormal
heat
or
even
damage!
9.
This
product
is a
power
station,
please
select
the
corresponding
model
according
to
the
electrical
equipment.
The
use
of
this
product
with
excessive
power
and
load
is
prohibited.
10.
When
the
short-circuit
protection
occurs
after
the
product
is
con-
nected
to
the
device,
if
it
is
still
protected
after
restarting,
please
do
not
restart
it
again.
You
should
find
the
reason
for
the
protection
of
the
connected
device,
and
then
continue
to
use
the
product
after
troubleshooting.
11.
This
product
is
factory
set
according
to
the
voltage
standards
of
di-
fferent
countries.
Please
consult
the
dealer
or
check
the
product
instru-
ction
manual
before
purchase
and
use.
12.
The
mesh
holes
on
both
sides
of
the
power
supply
are
heat
dissipa-
tion
holes,
which
are
strictly
prohibited
to
be
blocked
and
a
certain
space
should
be
reserved
to
ensure
the
heat
dissipation
effect.
CONTENTS
1.
Package
List
2.
Technical
Specification
3.
Getting
Started
3.1
Input
&
Output
Ports
3.2
LCD
Screen
3.3
Battery
Cells
3.4
The
Output
Power
of
the
Power
Station
3.5
Alarm
Function
3.6
CEPS
and
Bypass
Function
3.7
Auto
Power
Off
3.8
Fan
3.9
Wireless
Charging
4.
Recharging
5.
Troubleshooting
WARRANTY
13
17
1.
Package
List
Please
kindly
check
all
accessories
are
complete
If
any
charger
cables
missing,
please
feel
free
to
contact
us
at:
ETA-PRO
ETA-PRO
.
User
Manual
AC
Charger
Car
Charger
User
Manual
Cable
Cable

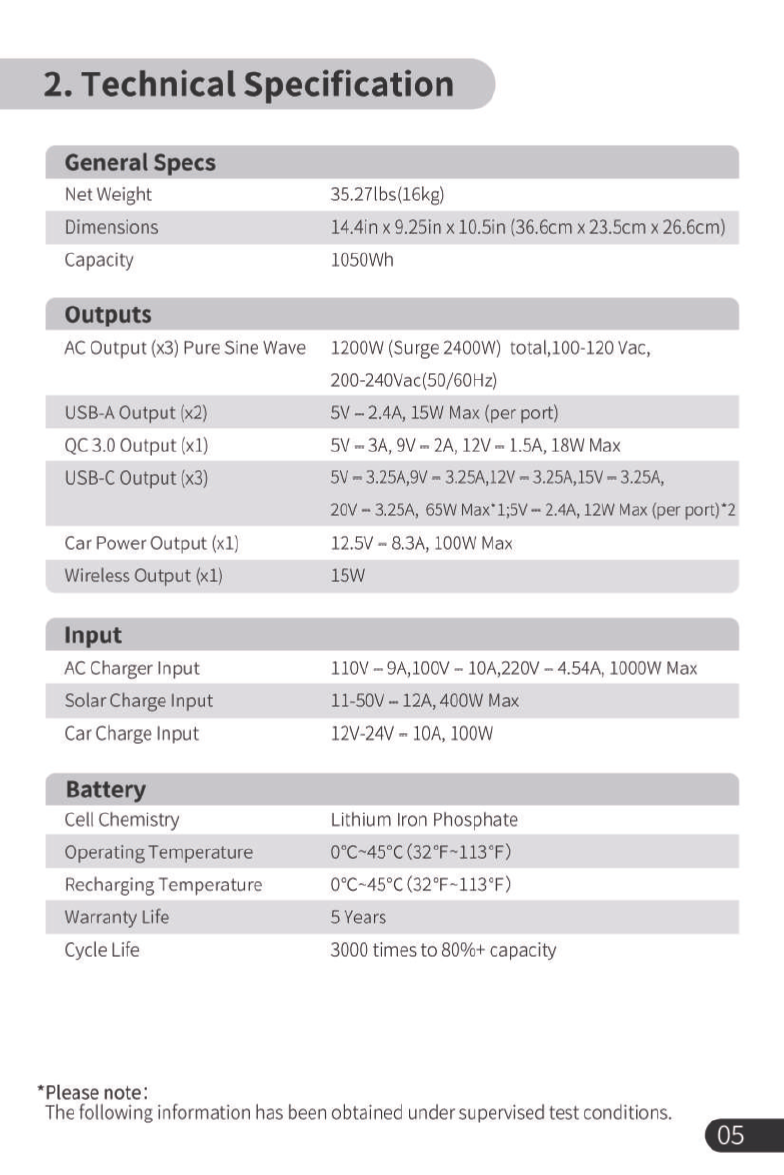

Net
Weight
35.27Ibs(16kg)
Dimensions
14.4in
x9.25in
x
10.5in
(36.6cm
x
23.5cm
x
26.6cm)
Capacity
1050Wh
AC
Output
(x3)
Pure
Sine
Wave
~
1200W
(Surge
2400W)
total,100-120
Vac,
200-240Vac(50/60Hz)
USB-A
Output
(x2)
5V~
2.4A,
15W
Max
(per
port)
QC
3.0
Output
(x1)
5V
=3A,9V
=
2A,
12V
-
1.5A,
18W
Max
USB-C
Output
(x3)
5V
=
3.25A,9V
=
3.25A,12V
=
3.25A,15V
=
3.25A,
20V~
3.25A,
65W
Max*
15V
=
2.4A,
12W
Max
(per
port)*2
Car
Power
Output
(x1)
12.5V
=
8.3A,
100W
Max
Wireless
Output
(x1)
15W
AC
Charger
Input
110V
=
9A,100V
=
10A,220V
=
4.54A,
1000W
Max
Solar
Charge
Input
11-50V
-
12A,
400W
Max
Car
Charge
Input
12V-24V
-
10A,
100W
Cell
Chemistry
Lithium
Iron
Phosphate
Operating
Temperature
0°C~45°C(32°F~113°F)
Recharging
Temperature
0°C~45°C
(32°F~113°F)
Warranty
Life
5Years
Cycle
Life
3000
times
to
80%+
capacity
*Please
note:
The
following
information
has
been
obtained
under
supervised
test
conditions.
fl

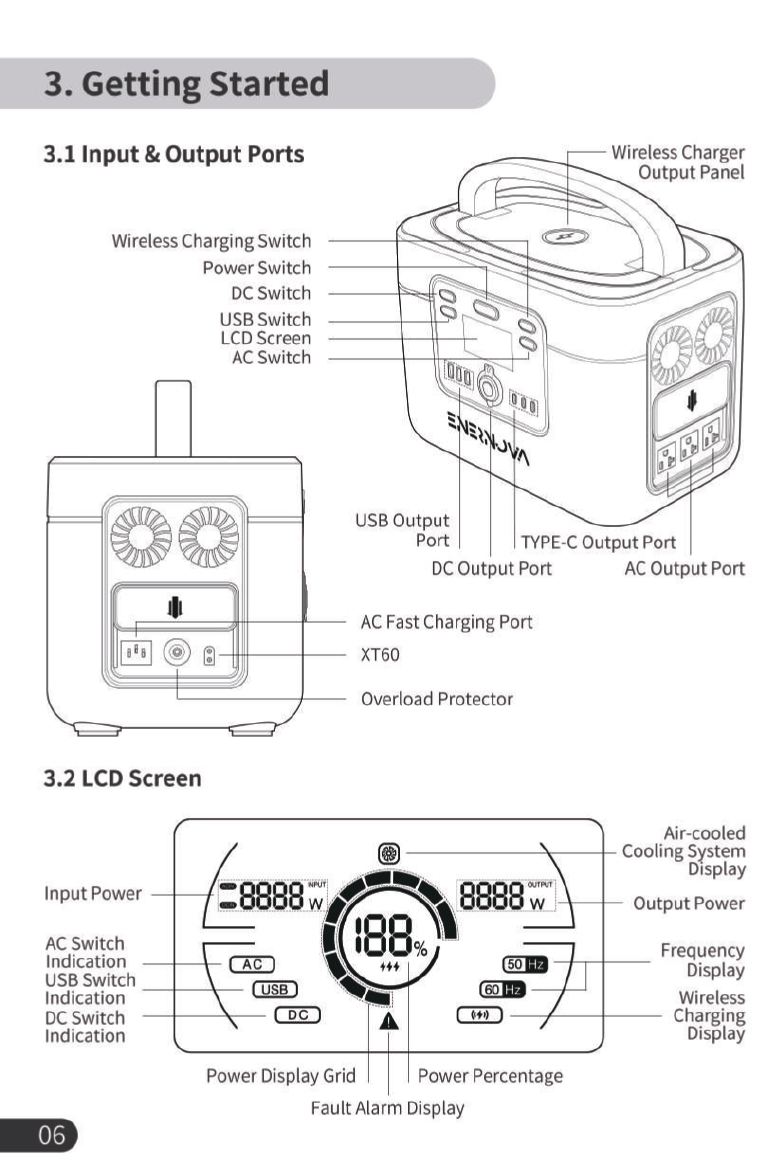

3.
Getting
Started
3.1
Input
&
Output
Ports
Wireless
Charging
Switch
Power
Switch
DC
Switch
USB
Switch
LCD
Screen
AC
Switch
3.2LCD
Screen
USB
Output
Port
DC
Output
Port
AC
Fast
Charging
Port
XT60
f——
Overload
Protector
TYPE-C
Output
Port
Input
Power
—1
AC
Switch
Indication
—
USB
Switch
|
Indication
DC
Switch
—
Indication
~
Power
Display
Grid
‘
Power
Percentage
Fault
Alarm
Display
Wireless
Charger
Output
Panel
AC
Output
Port
Air-cooled
-
Cooling
System
Display
{—
Output
Power
Frequency
Display
Wireless
t———
Charging
Display
3.3
Battery
Cells
3.3.1
Power
Reserve:
The storage
capacity
of
the
power
supply
is
the
rated
value.
The
rated
power
storage
of
the
power
Station
is
shown
in
the
parameter
label
in
the
power
station
manual,
which
is
usually
marked
directly
*Wh,
and
the
rated
voltage
(V)
and
rated
capacity (mAh)
are
also
marked,
and
the
power
storage
(Wh)
=
rated
voltage
*
rated
capacity
(mAh)
/
1000.
3.3.2
The
Actual
Power
Discharged
From
the
Power
Station:
The
actual
power
discharged
by
the
power
station
is
related
to
the
fol-
lowing
parameters:
1)
Ambient
Temperature
The
ambient
temperature
has
a
great
influence
on
the
power
dischar-
ged
from
the
battery,
for
example,
the
range
of
electric
vehicles
will
be
shortened
when
they
are
used
in
cold
areas.
Generally speaking,
with
the
rated
25°C(77°F)
as
the
base,
for
every
10°C(50°F)
decrease
above
0
°C(32°F),
the
power
discharged
will
be
reduced
by
10-15%.
For
every
10
°C(50°F)
lower
than
0°C,
the
power
discharged
will
be
reduced
by
30%.
2)
Efficiency
During
the
discharge
process,
the
battery
voltage
needs
to
be
transfor-
med,
which
inevitably
brings
energy
loss,
especially
the
inverter
(AC
output)
part,
which
is
influenced
by
the
ambient
temperature
and
the
power
level
of
the
equipment
running,
and
the
loss
varies
from
5-15%.
Therefore,
the
measured
power
released
from
the
output
side
under
full
load
is
only
85%-95%
of
the
rated
capacity.
3.3.3
Power
Station
with
Load
Time:
Operating
time
=
1050Wh
*
0.85
/
your
device's
operating
power.
(15%
loss).
The
duration
of
our
devices
is
based
on
laboratory
data
and
may
vary
for
specific
device
use.
3.4
The
Output
Power
of
the
Power
Station
3.4.1
Definition
of
Rated
Power:
The
rated
output
power
of
the
power
station
refers
to
the
rated
output
power
of
the
inverter
(AC
output)
part,
and
the
rest
of
the
power
is
ge-
nerally
not
marked
because
the
power
is
relatively
small
compared
to
the
inverter
(AC
output).
Power
station can
be
AC
part
of
the
full
power
and
other
ports
full
power
output
at
the
same
time.
3.4.2
Notes
on
the
Power
of
Connected
Devices:
For
such
devices
with very
high
starting
current
(3-5
times
the
rated
power)
and
long
starting
time
(about
10S),
for
example:
hair
curlers,
laser
printers,
with
motors
and
non-inverter
type
loads
(air
conditio-
ners,
washing
machines,
etc.).
The
display
of
the
output
will
exceed
a
lot,
this
is
normal.
Please
pay
extra
attention
to
the
fact
that
the
rated
power
of
the
power
station
should
be
3-5
times
greater
than
the
rated
power
of
these
appliances.
3.4.3
Display
of
Output:
Some
appliances
may
be
marked
with
their
rated
power,
which
itself
also
needs
to
calculate
the
actual
operating
efficiency
or
slightly
diffe-
rent
according
to
the
output
voltage,
so
if
the
power
displayed
by
the
power
station
itself
is
not
much
different
from
the
rated
power
of
the
device
itself
(e.g.
20%),
it
is
generally
a
normal
phenomenon.
If it
exce-
eds
more,
you
need
to
verify
the
power
of
the
equipment
or
need
to
confirm
the
existence
of
power
or
load
failure.
3.5
Alarm
Function
When
the
power
station
triggers
the
protection
mechanism,
it
will
au-
tomatically
cut
off
all
outputs
and
enter
the
alarm
reminder,
while
the
screen
icon
will
flash
synchronously
and
continue
to
alarm
for
60
se-
conds
until
the
user
manually
turns
off
the
power.
3.6
EPS
and
Bypass
Function
When
your
ETA
Pro
is
plugged
into
the
wall,
anything
plugged
into
it
gets
power
from
the
grid,
not
its
battery.
If
power
from
the
grid
stops,
ETA
Pro
automatically
switches
to
its
battery
supply
mode
within
30
milliseconds.
3.7
Auto
Power
Off
3.7.1
When
all
outputs
of
DC/AC/USB/Wireless
charger
are
off,
the
display
will
enter
hibernation
mode
after
50
seconds
and
will
shut
down
automatically
after
1
minute.
3.7.2
If
the
AC/DC/USB/Wireless
charging
ports
are
all
open
or
one
of
them
is
open,
the
display
will
not
automatically
shut
down.
3.8Fan
When
the
temperature
of
the
power
station
exceeds
45°C,
the
fan
will
start
to
run
and
accelerate
as
the
temperature
rises
to
better
help
the
power
station
dissipate
heat.
If
the
product
is
still
hot
inside
after
the
load
is
removed,
the
fan
will
continue
to
run
and
dissipate
heat
to
extend
the
life
of
the
power
sta-
tion.
Typically,
the
fan
will
stop
spinning
after
about
10
minutes
of
ope-
ration
(depending
on the
load
power
and
site
temperature).

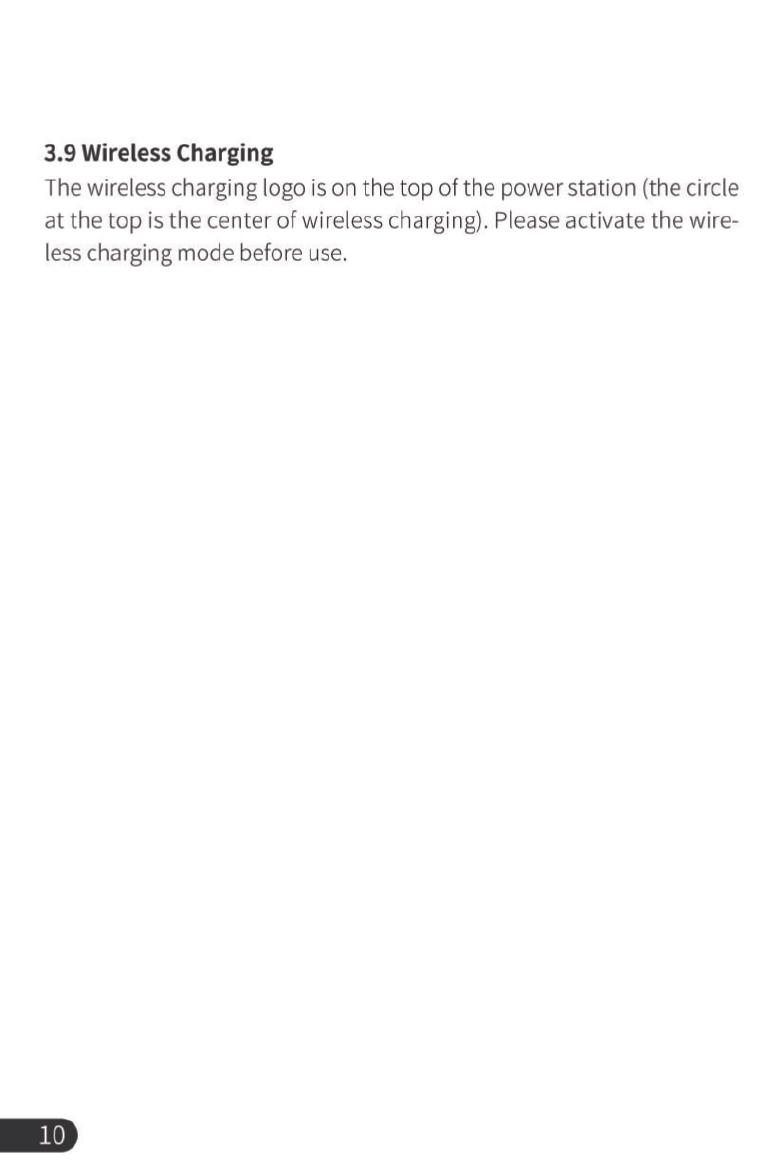

3.9
Wireless
Charging
The
wireless
charging
logo
is
on
the
top
of
the
power
station
(the
circle
at
the
top
is
the
center
of
wireless
charging).
Please
activate
the
wire-
less
charging
mode
before
use.
10
4.
Recharging
The
product
has
a
charging
protection
function,
once
the
productis
fully
charged,
it
will
automatically
stop
charging.
It
is
recommended
to
disconnect
the
charging
connection
in
time
after
the
product
shows
that
it
is
fully
charged.
4.1
Solar
Charging
The
XT60
charging
port
on
the
ETA
Pro
can
be
connected
to
a
solar
panel
for
charging
(requires
the
use
of
an
XT60
adapter
cable
in
the
solar
panel).
The
product
is
equipped
with
an
internal
MPPT
system.
When
connec-
ted
to
the
solar
panel,
the
product
will
automatically
start
charging
and
the
battery
icon
will
scroll
while
the
screen
will
show
the
charging
power.
The
power
of
the
solar
panel
is
greatly
affected
by
light,
so
the
input
power
may
fluctuate,
which
is
normal.
fl
| |
@
4.2
AC
Charging
Plug
the
AC
input
port
of
the
charging
cable
into
the
AC
power
supply.
Plug
the
output
port
of
the
charging
cable
into
the
mains
charging
port
on
the
side
of
the
power
supply
and
the
battery
icon
starts
to
scroll
while
the
charging
power
is
displayed.

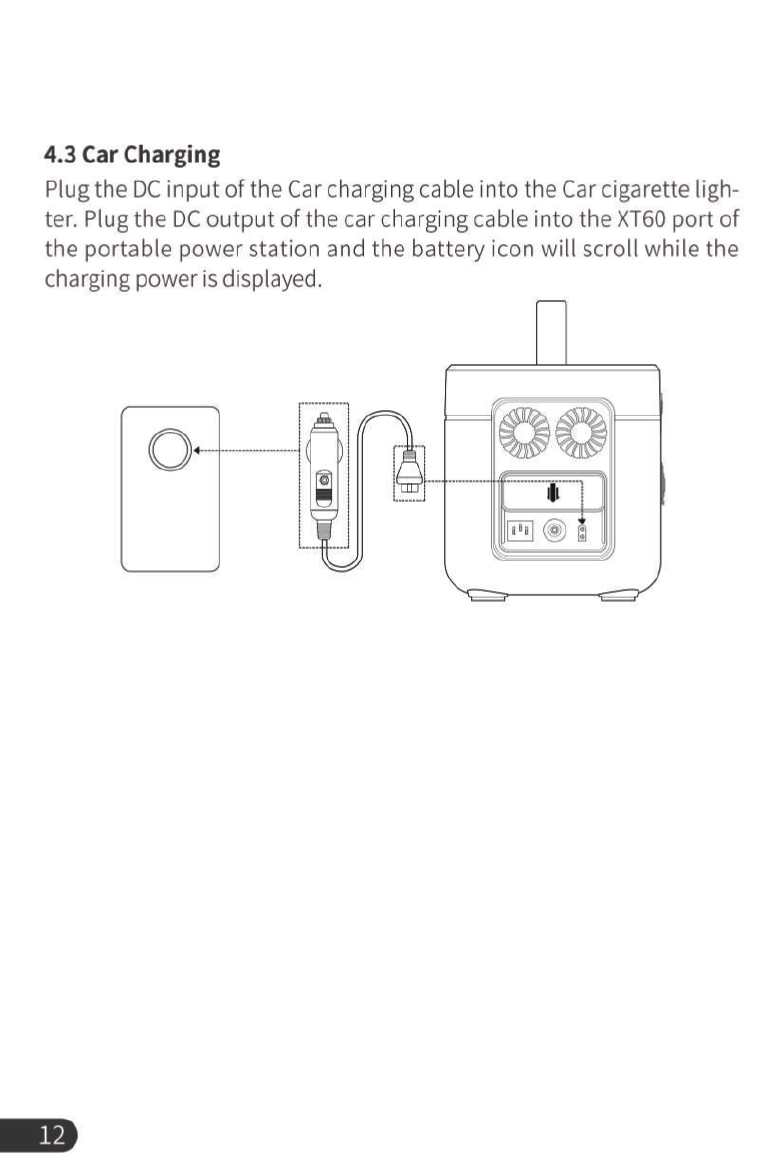

4.3
Car
Charging
Plug
the
DC input
of
the
Car
charging
cable
into
the
Car
cigarette
ligh-
ter.
Plug
the
DC
output
of
the
car
charging
cable
into
the
XT60
port
of
the
portable
power
station
and
the
battery
icon
will
scroll
while
the
charging
power
is
displayed.
5.
Troubleshooting
5.1
Charging
Failure
5.1.1
The
charging
cable
is
not
plugged
into
place.
Please
insert
the
input
and
output
of
the
charging
cable
into
place.
5.1.2
The
ambient
temperature
is
too
high.
It
is
dangerous
to
use
the
lithium
battery
at
temperatures
above
the
specified
temperature,
so
if
the
ambient
temperature
is
low
or
high,
the
product's
internal
tempe-
rature
protection
will
stop
charging
and
discharging.
In
this
case,
please
wait
for
the
product
temperature
to
recover
before
using
it.
5.1.3
Please
make
sure
that
the
voltage
version
of
the
purchased
power
station
meets
your
local
utility
power
standard
(110V
in
the US,
100V
in
Japan,
230V
in
Europe).
5.2
Automatic
Shutdown
When
Loading
5.2.1
The
power
of
the
rear
stage
load
exceeds
the
specified
value
(after
the
load
is
connected,
the
power
is
turned
on
and
the
alarm
icon
on
the
display
will
light
up
after
the
output
is
automatically
cut
off).
Please
note
that
some
loads
have
a
high
starting
current
although
the
nominal
power
is
small,
which
will
also
cause
the
product
to
enter
the
overload
protection
state.
5.2.2
Short-circuit
fault
exists
in
the
rear
load:
Confirming
this
fault
requires
a
professional
to
measure
it
with
special
tools
(such
as
using
a
multimeter
to
measure
the
resistance
of
the
rear
device).
Overload
or
short-circuit
fault
can
be
confirmed
with
a
normal
low-power
load.
If
there
is
no
problem
with
a
slightly
lower-power
load,
it
is
usually
a
rear
load
overload
or
short-circuit
fault.
5.2.3
The
display
protection
mark
lights
up
during
operation,
no
output:
the
internal
temperature
of
the
inverter
may
be
too
high,
the
power
station
stops
output,
normal
ambient
temperature,
normal
load
generally
does
not
appear
this
situation,
if
it
appears,
please
check
ac-
cording
to
the
following
recommendations.
First,
whether
the
ambient
temperature
is
too
high
resulting
in
the
internal
temperature
rise
of
the
power
station
exceeds
the
specified
value;
second,
both
sides
of
the
power
station
have
heat
dissipation
holes,
you
need
to
leave
at
least
20cm
of
space
for
air
circulation
heat
dissipation,
pay
attention
not
to
place
some
light
paper,
plastic
film,
cloth
and
other
soft
materials,
be-
cause
the
fan
will
form
suction
when
turning,
these
materials
are
ad-
sorbed
will
greatly
affect
the
power
station
heat
dissipation
resulting
in
internal
protection.
After
eliminating
the
above
abnormalities,
the
power
station
can
be
used
again
after
cooling
for
a
period
of
time.
5.2.4
Product
failure.
If
the
above
abnormalities
are
excluded
and
the
product
still
does
not
work
properly,
the
power
station
itself
may
be
malfunctioning
and
needs
to
be
repaired.
5.3
Automatic
Shutdown
After
Outputting
In
order
to
save
power
consumption
and
avoid
no
power
available
at
the
time
of
need,
the
device
will
rest
at
50
seconds
when
no
output
port
switch
is
turned
on,
and
then
automatically
shut
down
after
60
se-
conds.
If
you
need
to
use
it
at
this
time,
you
need
to
restart
the
power
station.
5.4
Unable
to
Power
On
5.4.1
Ambient
temperature
exceeds
the
specified
temperature
power
internal
protection.
Lithium-ion
batteries
over
the
specified
tempera-
ture
use
is
very
easy
to
dangerous,
so
if
the
ambient
temperature
is
very
low
or
very
high,
the
product's
internal
temperature
protection
will
not
respond
to
the
power
on
in
the
off
state,
if it
has
been turned
on
will
stop
charging
and
discharging.
In
this
case,
please
wait
for
the
product
temperature
to
recover
before
using.
5.4.2
If
the
ambient
temperature
is
normal,
the
battery
may
have
been
stored
for
too
long
causing
the
battery
to
run
out
of
power,
please
plug
in
the
charging
cable
to
charge
for
at
least
1
hour
before
use.
5.4.3
If
the
power
station
still
cannot
be
turned
on after
taking
the
above measures,
and
there
is
no
response
when
you
press
any
button,
the
power
station
needs
professional
repair.
5.5
Short
Discharge
Time
5.5.1
The
ambient
temperature
has
a
large
impact
on
the
battery
discharge
time,
especially
when
the
ambient
temperature
is
below
0
degrees.
5.5.2
The
product
has
a
high
number
of
cycles.
The
battery's
capacity
will
gradually
decay
as
the
number
of
cycles
increases.
Generally,
when
the
rated cycle
life
is
reached,
the
capacity
is
only
80%
of
the
rated
ca-
pacity.
This
is
a
normal
phenomenon
and
can
continue
to
be
used,
but
the
discharge
time
will
be
shortened
accordingly.
5.6
Wireless
Charging
Failure
5.6.1
Please
turn
on the
wireless
charging
mode
before
use.
5.6.2
Wrong
position:
Please
move
the
phone
to
the
corresponding
position.
5.6.3
In
order
to
wireless
charging
function
properly,
please
do
not
use
more
than
3-5mm
thick
phone
case.
5.6.4
The
surface
is
hot:
Because
the
coil
of
wireless
charging
is
hot,
so
there
will
be
a
little
heat
at
the
wireless charger.
But
please
pay
extra
attention
to
the
back
of
the
phone
can
not
have
metal
substances,
which
will
lead
to
abnormal
heating
and
can
not
be
charged
properly.
5.7
Product
Overheating
When
the
power
station
with
a
larger
load,
the
inverter
at
the top
and
the
battery
at
the
bottom
will
generate
a
certain
amount
of
heat,
the
cooling
fan
will
start
to
dissipate
heat,
even
so,
the
shell
will
still
have
a
certain
temperature
rise,
the
temperature
of
the
shell
will
reach
about
40
degrees
in
the
area
where
the
heat
is
concentrated
at
full
load
(rela-
ted
to
the
ambient
temperature),
this
situation
is
normal.

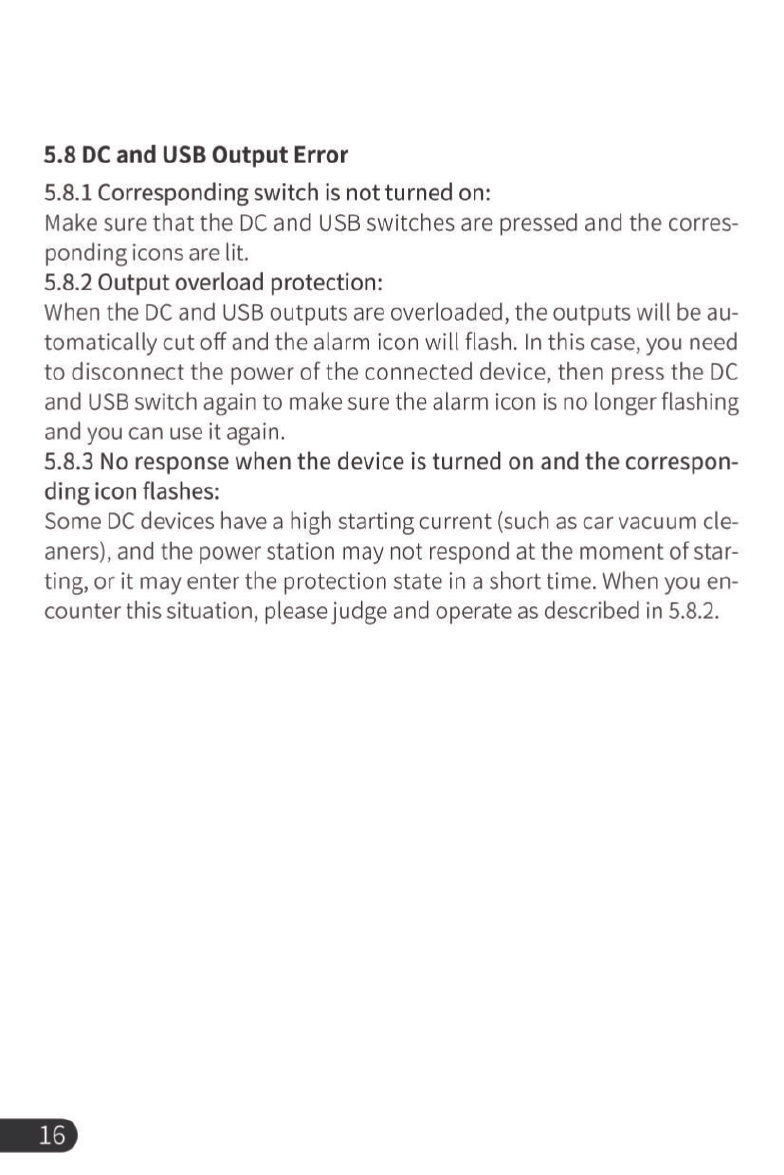

5.8
DC
and
USB
Output
Error
5.8.1
Corresponding
switch
is
not
turned
on:
Make
sure
that
the
DC
and
USB
switches
are
pressed
and
the
corres-
ponding
icons
are
lit.
5.8.2
Output
overload
protection:
When
the
DC
and
USB
outputs
are
overloaded,
the
outputs
will
be
au-
tomatically
cut
off
and
the
alarm
icon
will
flash.
In
this
case,
you
need
to
disconnect
the
power
of
the
connected
device,
then
press
the
DC
and
USB
switch
again
to
make
sure
the
alarm
icon
is
no
longer
flashing
and
you
can
use
it
again.
5.8.3
No
response
when
the
device
is
turned
on
and
the
correspon-
dingicon
flashes:
Some
DC
devices
have
a
high
starting
current
(such
as
car
vacuum
cle-
aners),
and
the
power
station
may
not
respond
at
the
moment
of
star-
ting,
or
it
may
enter
the
protection
state
in
a
short
time.
When
you
en-
counter
this
situation,
please
judge
and
operate
as
described
in
5.8.2.
Table of contents
Other Enernova Power Supply manuals
Popular Power Supply manuals by other brands
Cosel
Cosel PBA300F instruction manual
Analytic Systems
Analytic Systems PWS1000-110-12 Installation & operation manual
Extech Instruments
Extech Instruments 382260 user guide
TDK-Lambda
TDK-Lambda RKY Series manual
Tannoy
Tannoy VNet manual
Moxa Technologies
Moxa Technologies DRP-240 Series Hardware installation guide
