GW Instek PEL-3000 Series User manual

DC Electronic Load
PEL-3000 Series
USER MANUAL
VERSION: 1.14
ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

Table of Contents
1
Table of Contents
SAFETY INSTRUCTIONS ................................................... 3
GETTING STARTED ........................................................... 8
PEL-3000 Series Introduction ............... 10
Accessories .......................................... 12
Appearance .......................................... 15
First Time Use Instructions ................. 24
OPERATION.................................................................... 48
Basic Operation ................................... 51
Basic Configuration ............................. 63
Advanced Configuration Settings ......... 70
Step Resolution Configuration ............. 77
Protection Settings .............................. 80
System Settings ................................... 86
Go-NoGo ............................................. 89
Program ............................................... 92
Sequence ........................................... 100
Save Recall......................................... 119
EXTERNAL CONTROL ....................................................133
Analog Control ................................... 134
Parallel Operation .............................. 152
REMOTE CONTROL .......................................................159
Interface Configuration ...................... 160
FAQ ...............................................................................171
APPENDIX .....................................................................173
Replacing the Dust Filter ................... 175

PEL-3000 User Manual
2
Replace the Clock Battery ................... 176
GPIB Installation................................ 177
PEL-3000 Default Settings .................. 178
Frame Control Connector Contacts .... 181
Operating Mode Description.............. 186
Operating Area................................... 191
PEL-3000 Specifications ..................... 195
PEL-3000 Dimensions ........................ 207
Declaration of Conformity .................. 210
INDEX............................................................................211

SAFETY INSTRUCTIONS
3
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to insure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the instrument or to
other properties.
DANGER High Voltage
Attention Refer to the Manual
Earth (ground) Terminal
Frame or Chassis Terminal
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.

PEL-3000 User Manual
4
Safety Guidelines
General
Guideline
CAUTION
Do not place any heavy object on the
instrument. Note: Only 2 units can be stacked
vertically.
Avoid severe impact or rough handling that
leads to damaging the instrument.
Do not discharge static electricity to the
instrument.
Use only crimped wires, not bare wires, for the
terminals.
Do not block the cooling fan opening.
Do not disassemble the instrument unless you
are qualified.
The equipment is not for measurements
performed for CAT II, III and IV.
(Measurement categories) EN 61010-1:2010 specifies the
measurement categories and their requirements as follows. The
instrument falls under category II.
Measurement category IV is for measurement
performed at the source of low-voltage
installation.
Measurement category III is for measurement
performed in the building installation.
Measurement category II is for measurement
performed on the circuits directly connected to
the low voltage installation.
Measurement category I is for measurements
performed on circuits not directly connected to
Mains.

SAFETY INSTRUCTIONS
5
Power Supply
WARNING
AC Input voltage range:
100~120VAC/200~240VAC
(90~132VAC/180~250VAC)
Frequency: 47~63Hz
Power:
PEL-3021: 90VA Max
PEL-3041: 110VA Max
PEL-3111: 190VA Max
PEL-3211: 230VA Max
To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.
Cleaning
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Temperature: 0°C to 40°C
Humidity: 0 to 85% RH

PEL-3000 User Manual
6
(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees
and their requirements as follows. The instrument falls under
degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry,
non-conductive pollution occurs. The pollution
has no influence.
Pollution degree 2: Normally only non-
conductive pollution occurs. Occasionally,
however, a temporary conductivity caused by
condensation must be expected.
Pollution degree 3: Conductive pollution occurs,
or dry, non-conductive pollution occurs which
becomes conductive due to condensation which
is expected. In such conditions, equipment is
normally protected against exposure to direct
sunlight, precipitation, and full wind pressure,
but neither temperature nor humidity is
controlled.
Storage
environment
Location: Indoor
Temperature: -20°C to 70°C
Humidity: <90% RH
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

SAFETY INSTRUCTIONS
7
Power cord for the United Kingdom
When using the instrument in the United Kingdom, make sure the
power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.

PEL-3000 User Manual
8
GETTING STARTED
This chapter provides a brief overview of the
PEL-3000, the package contents, instructions for
first time use and an introduction to the front
panel, rear panel and GUI.
PEL-3000 Series Introduction .......................................... 10
Model Line Up ......................................................................................................... 10
Main Features........................................................................................................... 11
Accessories ..................................................................... 12
Package Contents..................................................................................................... 14
Appearance ..................................................................... 15
PEL-3000 Front Panel ............................................................................................ 15
(PEL-3021/PEL-3041).............................................................................. 15
(PEL-3111).................................................................................................. 15
(PEL-3211 Booster Pack) ......................................................................... 16
Rear Panel ................................................................................................................. 20
PEL-3021 / PEL-3041.............................................................................. 20
(PEL-3111).................................................................................................. 20

GETTING STARTED
9
(PEL-3211 Booster Pack) .........................................................................21
Display....................................................................................................................... 23
First Time Use Instructions ............................................. 24
Rack Mount Kits......................................................................................................24
Power Up and Self Test ..........................................................................................27
Load Default Settings.............................................................................................. 28
Setting the Date and Time......................................................................................28
Load Wiring.............................................................................................................. 29
Load Wire Connections ..........................................................................................32
Using the Front Panel Input Terminals................................................................33
Using the Rear Panel Input Terminals.................................................................. 34
Using the Terminal Cover ...................................................................................... 35
Remote Sense ...........................................................................................................38
Firmware Update ..................................................................................................... 39
Conventions..............................................................................................................41
Help Menu................................................................................................................47

PEL-3000 User Manual
10
PEL-3000 Series Introduction
The PEL-3000 Series is a family of high performance DC electronic
loads positioned to test a wide range of different power sources.
The DC electronic loads are fully programmable to simulate
anything from basic static loads to complex dynamic loads. With
the ability to operate independently or in parallel, the PEL-3000
Series is extremely robust and capable of molding to any test
environment.
Please note that throughout this manual the term ―PEL-3000‖ refers
to any one of the models in the series lineup, unless specifically
stated otherwise.
Model Line Up
There are a total of 3 DC electronic load models and 1 booster pack
model.
Model
Operating Voltage (DC)
Current
Power
PEL-3021
1.5V~150V
35A
175W
PEL-3041
1.5V~150V
70A
350W
PEL-3111
1.5V~150V
210A
1050W
Booster Model
Operating Voltage (DC)
Current
Power
PEL-3211
1.5V~150V
420A
2100W

GETTING STARTED
11
Main Features
Performance
High slew rates of up to 16A/μS(PEL-3111) for a
fast response speed
High capacity when used in parallel:
5250W, 1050A (PEL-3111 x 5)/
9450W, 1890A (PEL-3111 + PEL-3211 x 4)
High resolution –16 bit
Features
7 operating modes: CC, CV, CR, CP, CC+CV,
CR+CV, CP+CV
Independent and parallel operation
Fully programmable with normal and fast
sequences
Soft start
Dynamic mode
OCP, OVP and other protection features
Remote sense
Integrated meter
Rack-mountable
Load booster
Interface
USB, RS232 and GPIB
External voltage or resistance control
Front panel trigger out BNC
Front panel current monitoring BNC
Analog external control

PEL-3000 User Manual
12

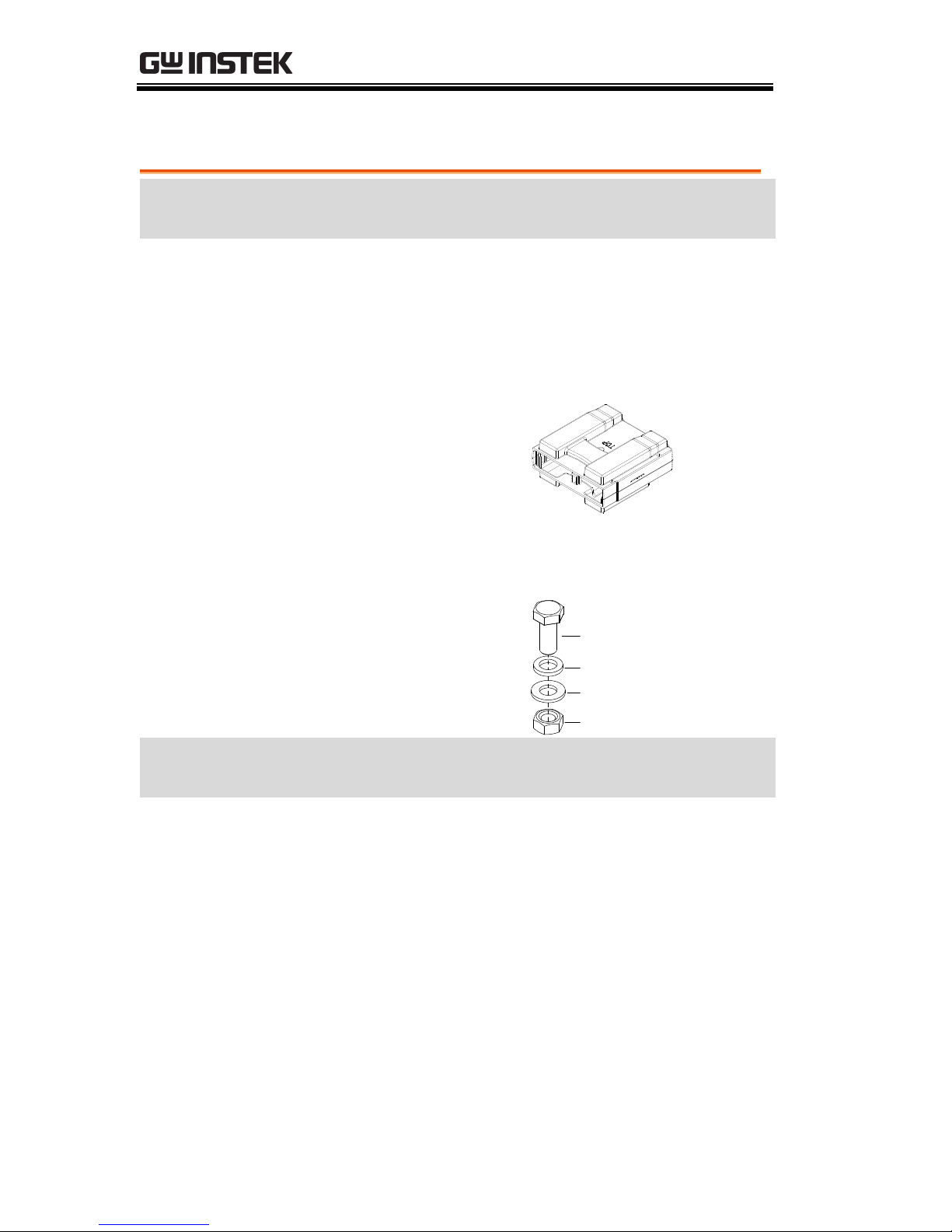

Accessories
Standard
Accessories
Part number
Description
82EL-31110MB1
Quick Start Guide
82EL-31110EB1
User / Programming
manual CD
Region dependant
Power cord
PEL-011
Load input terminal Cover
PEL-012
Terminal fittings: 2 sets of
bolts/nuts/springs/washers
(type: M8)
M8 x 20
Spring washer
Flat washer
M8 nut
Optional
Accessories
Part number
Description
3813-030D0501
CR123A 3V lithium battery
for clock.
GRA-413
Rack mount bracket for
booster PEL-3211 (EIA +
JIS)
GRA-414-E
Rack mount frame for PEL-
3021, PEL-3041, PEL-
3111/EIA
GRA-414-J
Rack mount frame for PEL-
3021, PEL-3041, PEL-
3111/JIS

GETTING STARTED
13
GTL-255
300mm Frame Link Cable
(for linking units that are
stacked)
GTL-248
GPIB cable, 2.0m
GTL-246
USB cable, Type A - Type B
PEL-010
Dust Filter
PEL-004
GPIB option

PEL-3000 User Manual
14
Package Contents
Check the contents before using the instrument.
Opening the box
Contents
(single unit)
Main unit
Quick Start manual
User / Programming
manual CD
Terminal fittings
Power cord x1 (region
dependent)
Calibration certificate

GETTING STARTED
15
Appearance
PEL-3000 Front Panel
(PEL-3021/PEL-3041)
I MON OUT TRIG OUT
1.5 - 150V
175W
0 - 35A
P0
P1
P4
P7
CAL.
P2
P5
P8
Lock
P3
P6
P9
Utility
Local
File
0
1
4
7
2
5
8
3
6
9
EnterClear
Shift
Preset
Load On/
Off
Main
Help
FUNC
Short
Air inlet LCD Display Power key
FUNC/File
Help/Utility
Short
Load On/Off
USB Port, Preset
and Shift keys
Number pad, Clear/
Lock and Enter keys
Main/Local
Scroll wheel
Function keys
Input
terminals
I MON OUT,
TRIG OUT
(PEL-3111)
P0
P1
P4
P7
CAL.
P2
P5
P8
Lock
P3
P6
P9
Utility
Local
File
0
1
4
7
2
5
8
3
6
9
EnterClear
Shift
Preset
Load On/
Off
Main
Help
FUNC
Short
TRIG
OUT
I MON
OUT
1.5 - 150V
1050W
0 - 70A

PEL-3000 User Manual
16

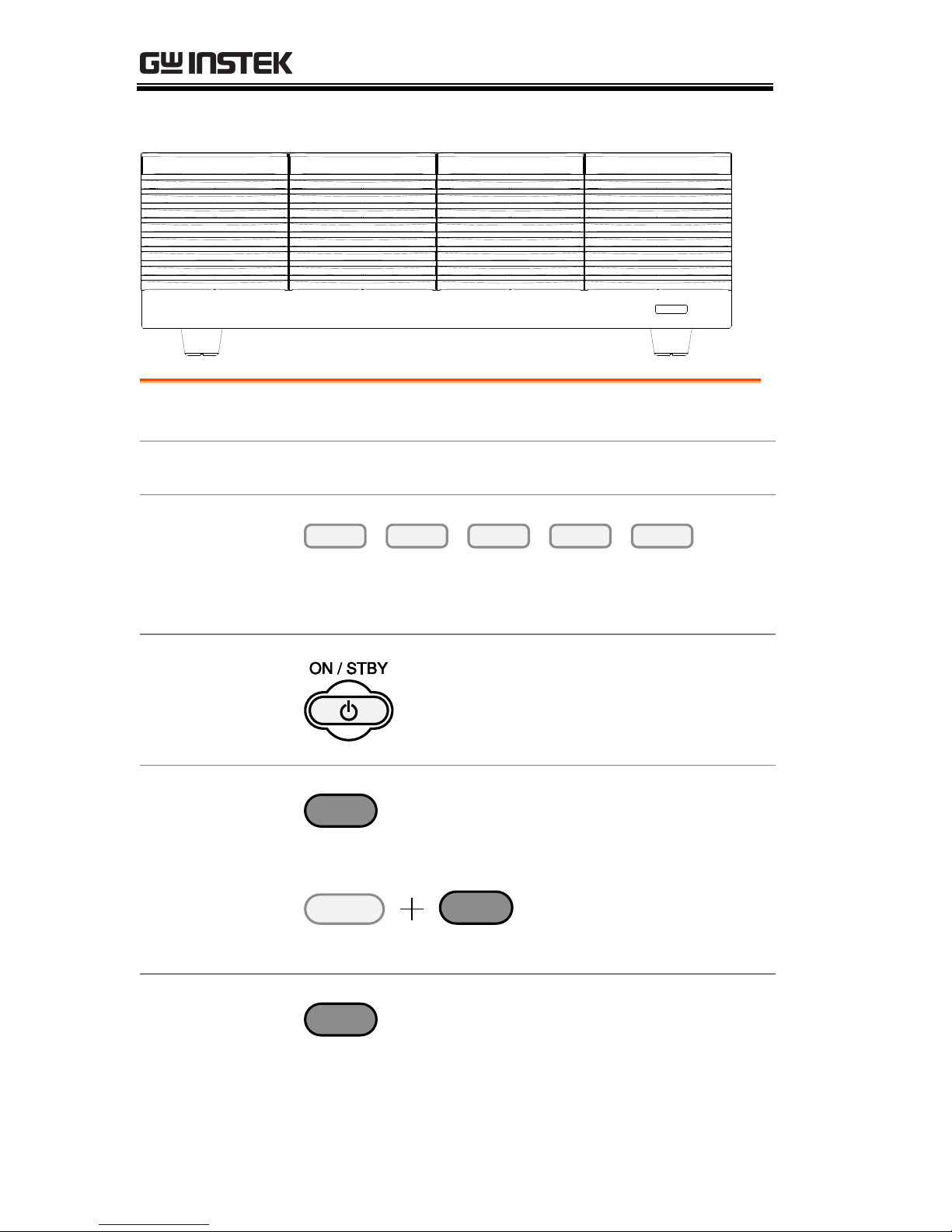

(PEL-3211 Booster Pack)
LINK STBY
Air Inlet
The air inlet has a removable dust filter
LCD display
3.5 inch LCD display
Function keys
The function keys directly correspond to the soft
menu keys at the bottom of the display.
ON/STBY
Turns the unit on or puts the unit
into standby mode. Use the power
switch on the rear panel to turn
the unit off.
Main/Local
Main
Main: Sets the operating mode:
CC, CV, CR, CP mode.
Local
Main
Shift
Local (Shift + Main): Puts
the instrument back into
local mode from remote
mode.
FUNC/File
FUNC
FUNC: Sets the program function,
sequence function or other special
functions.

GETTING STARTED
17
File
FUNC
Shift
File (Shift + FUNC):
Accesses the file system.
Help/Utility
Help
Help: Access the help menu.
Utility
Help
Shift
Utility (Shift + Help):
Access the utility menu.
Short
Short
Pressing the Short key will
simulate shorting the input
terminals.
The Short key will be lit when
active.
Load on/off
Load On/
Off
Turns the load on or off.
The Load On/Off key will be lit
when active.
Scroll wheel
Use the scroll wheel to navigate
the menu system or to edit
parameters. See page 41 for usage
details.
Enter
Enter
Press the Enter key to select
highlighted menu items.

PEL-3000 User Manual
18

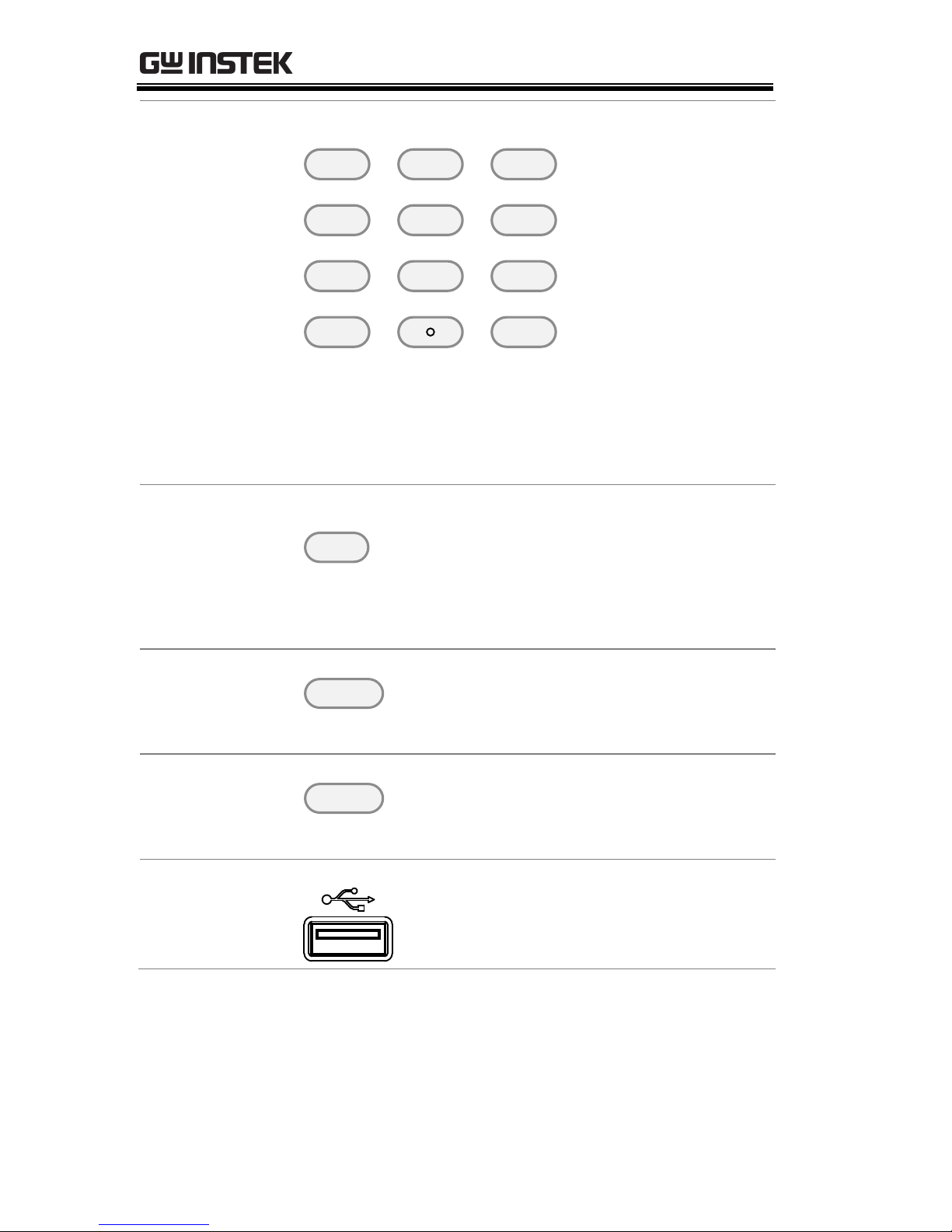

Number pad
P0
P1
P4
P7
CAL.
P2
P5
P8
Lock
P3
P6
P9
0
1
4
7
2
5
8
3
6
9
Clear
Number pad: Used to enter numerical values.
P0~P9 (Preset + Number keys): Loads one of 10
preset settings.
Clear/Lock
Lock
Clear
Clear: Clears the current
parameter values.
Lock (Shift + Clear): Locks the
front panel keys and selector knob.
Shift
Shift
Shift: Used in conjunction with
other keys to select secondary
functions.
Preset
Preset
Used in conjunction with the
number pad to save or load preset
settings P0 to P9.
USB Port
USB A port. Used for save and
recall functions.
