ENERpower SW102 User manual

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
OPERATING MANUAL

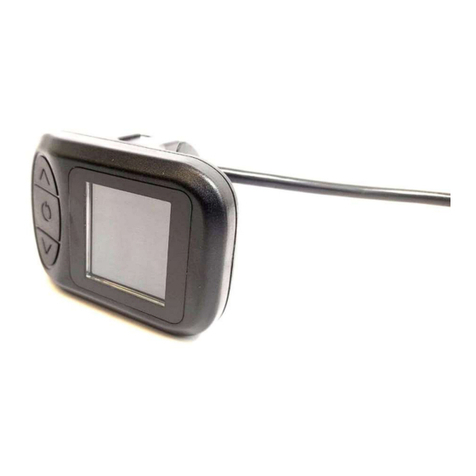

Product SW102 display for Tongsheng central motor
Model SW102

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
Dimensions

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
General information
Product
 Short description: Intelligent OLED display for Tongsheng e-bike motors
 Model name: SW102
Product introduction
 Minimalist design, assembled without screws.
 Super high-contrast 1.3-inch monochromatic OLED screen.
 IP65 waterproof.
Application
 Suitable for electric bikes according to the EN15194 standard.
Technical highlights
 Power supply: DC 24V/36V/48V
 Rated current: 12mA@36V
 Shutdown leakage current: <1uA
 Screen specifications: 1.3" OLED (64*128 dots)
 Communication method: UART (default)
 Operating Temperature: -20℃ ~ 60℃
 Storage Temperature: -30℃ ~ 80℃
 Protection class: IP65

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
Main features
 Only 4 buttons, easy to operate.
 Password (optional).
 Select distance units between km and miles.
 Speed display: real-time speed (SPEED); maximum speed (MAX); Average Speed
(AVG)
 Five levels of support (1-5)
 Lighting Indicator: Headlight on/off status indicator (requires information from
controller).
 Mileage display: Total trip kilometres (TRIP); All-time total Kilometres (ODO).
 Trip time (TRIP TIME) display.
 6 km/h walking (pushing) assistance.
 Display of errors codes.
Assembly
 Open the screen lock clip, put the screen on the left handlebar (Standard
handlebar size: Φ22.2).
 Set an easy-to-operate position and gently tighten the screw with the M3 hex.
NOTE: damage caused by excessive tightening is not covered by the warranty!
 Connect the display to the motor using the 6-pin connector
button function
 On / off switch
M Menu / selection / save button
 
Control / adjust / toggle buttons

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
Display
Basic display
1. Assistance level: 0-5 assistance levels, power from low to high are:
0, 1, 2, 3, 4, 5 (0 = OFF = no assistance)
2. Current speed and unit show the current riding speed.
3. Mileage / Kilometrage
4. Headlight symbol shows when the headlight is on.
5. Battery charge indicator (1-5). When flashes, the battery is empty.

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
After powering on, press and hold the M button for 10 seconds to see the display in
other modifications.
Function I:
The journey time is displayed instead of the mileage
Function II:
Here the average speed (AVG) and the maximum speed (MAX) replace the value of the
current speed.

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
General operation
Switching On / Off 
1. Hold down the on/off button for about 2 seconds and the display goes on in the
basic interface. Hold down for 2 seconds again to switch off the display.
2. When the display is on and the bike is not used, the display will automatically
turn off after a certain time (can be individually defined, see below).
Support level  
1. The control buttons toggle between 5 different support levels 1, 2, 3, 4, 5 and 0
(0 = OFF = no support).
2. Level 1 is the default at power up.

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
Information on journey data, speed, etc. M
1. With a short press of the button M you can switch between trip kilometres
(TRIP), trip time (TRIP TIME), average speed (AVG), maximum speed (MAX) and
total kilometres (ODO).
6 km/h walk mode (walking/pushing assistance)
1. Press the control button  for 2 seconds.
2. The walking assistance starts with the display of the icon on
top and remains so as long as the button is pressed.
3. Release the button and the bike will go back to the last
saved setting.

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [e-mail]
Lighting on / off
1.
To turn on the headlight, press the control button

for
approx. 1 second until the lighting icon is displayed.
2.
To turn off the light, press the

button for 1 second.
Battery Level Indicator / state of charge (SOC)
The battery level indicator has 6 levels as shown in the image below.
When the battery is empty, the empty battery symbol (with no bars) blinks.

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
Individual settings
To change the individual settings, the display must first be on within 10 seconds.
Press the M button for 2 seconds to go into the menu.
Press the M button for 2 seconds to exit the menu (the data remains saved).
Briefly press the M button to select a setting and to save previous programming.
With the control buttons  and  you can toggle between the parameters.
SET (settings menu)
With the control buttons  and  you can browse between the menu items. Briefly
press the M button to select the setting you wish to change.

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
UNIT (distance units)
Select between Km and Mile: Use the control buttons  and  the M button to
select and save the desired setting.
Short press on M at "Exit" to return to the main settings menu.

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [e-mail]
WHEEL (wheel size)
With the control buttons

and

toggle between the options.
Short press on the
M
button at “Exit” to go back to the main
settingsmenu.
PASSWORD (define password)
With the control buttons

and

go to Off / ON and with
a
short press on the
M
button switch from OFF to ON (= password function is on).
Define a 4-digit password from left to right. Toggle between the digits using the control
buttons

and

and short press on the
M
to
save the column. At the end of the
entry, save with a short press on the
M
button
.
Important: After saving your password you must turn the display off and on again.
Otherwise, the display switches off automatically!!!

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [e-mail]
AUTO OFF (automatic shutdown)
Use the control buttons

and

to select an automatic switch-off
between 1 minute and 10 minutes.
Short press on the
M
button to save.
The factory default is 5 minutes.
SPEED (speed limit)
This display is pre-set at the factory to 25 km/h and cannot be changed.
BATTERY (battery level indicator)
In this parameter, the display shows the charge status in in % in
addition to the bar graph and the voltage. The number of charging and
discharging cycles (Cycle NO.) does not apply to batteries without
communication function.

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
INFO (system information)
Data such as firmware and hardware are displayed here.
Short press on the M button to return to the main settings menu.
RESET
Caution: Only use this function if you want to
discard all previous settings.
Use the control buttons  and  to navigate to
YES and NO. With a short press on the M button
toggle between YES and NO. Press the M to select
YES and the display will delete the individual settings
and will reset itself to the factory settings.

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [e-mail]
CLEAN (delete collected values)
Use this function ONLY to delete the following data:
1. Average speed (AVG SP)
2. Maximum speed (MAX SP)
3. Trip distance (TRIP)
4. TRIP TIME
To log in, you need to turn on the display and wait at least 10 seconds. The speed must
be 0 (function cannot be used while riding). Long press on the
M
button (at least 2
seconds) will take you to the menu.
Use the control buttons

and

to select the desired parameter.
With the
M
button confirm the deletion of the individual parameters.

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
ERROR (Error indication)
If there is an error in the system, the display can show it.
The following table presents the different error codes and their meanings.
Error code Error description
"04" displayed at SPEED Not relevant
"05" displayed at SPEED Throttle problem
"07" displayed at SPEED Overload
"08" displayed at SPEED Hall sensor problem
"09" displayed at SPEED Phase wire problem
"10" displayed at SPEED Temperature problem
"11" is displayed at SPEED Failure of the temperature sensor in the motor
"12" is displayed at SPEED Power failure
"13" is displayed at SPEED Not relevant
"14" is displayed at SPEED Controller is too warm
"15" displayed at SPEED Controller temperature sensor failure
"21" is displayed at SPEED Speed sensor failure
"23" is displayed at SPEED Failure of the light
"24" displayed at SPEED Light sensor failure
"25" is displayed at SPEED Problem with the torque sensor
"26" is displayed at SPEED Problem with the torque sensor
"30" displayed at SPEED Communication error
"--" is displayed with speed BMS (Battery Management System) communication error

Only positive energy
Distributed by
ENERdan GmbH | Max-Planck-Strasse 7, D-12489 Berlin, Germany | enerpower.de | enerprof.de
Phone: [phone] | Fax: [phone] | [email protected]
Manufacturer
Suzhou Tongsheng Electrical Appliances Co.,Ltd
1875-8 Tongda Road, Wuzhong District, Suzhou
China 215124
tsbicycle.net
Distributor
ENERdan GmbH
Max-Planck-Strasse 7D-12489 BerlinGermany | Germany
Tel: [phone] Fax: [phone] Email: [email protected]
enerdan.de | energpower.de| Online shop:enerprof.de
