Engcon R05 User manual

User manual

Ripper

R05-R30

Article 9000662 | Version 1.1

Original Instructions

Preface

Dear Customer,

Thank you for choosing a product from engcon.

engcon is the market leader in tiltrotators and tools for excavators. We represent

innovation, knowledge and experience, and we develop our products with a focus on the

customer's needs. Please visit our website for contact information and details about the

rest of our product range.

www.engcon.com

2

Table of Contents

1. Introduction

1.1. General............................................................................................................ 4

1.2. Scrapping and recycling.................................................................................. 4

1.3. Warranty.......................................................................................................... 5

1.4. Technical support and spare parts.................................................................. 5

2. Safety

2.1. General............................................................................................................ 6

3. Design and function

3.1. General............................................................................................................ 7

4. Maintenance

4.1. Replacing the ripper........................................................................................ 8

5. Technical data

5.1. Ripper.............................................................................................................. 9

3

1 Introduction

1. Introduction

1.1. General

This user manual contain important information about your product's functions and

characteristics, and how to use it in the best way. Before you begin using the product, it is

important that you read and understand the content of these instructions, especially the

sections that address safety.

In addition to these instructions, you must study and understand the applicable safety

information for the relevant base machine as well as any other equipment involved.

The user manual is supplied with supplementary documentation providing more detailed

descriptions of the installation, fitting, operation and maintenance of control systems and

custom modifications for your specific product.

Information, images, illustrations and specifications used in the instructions are based

on product information that was available at the time of going to press. Images and

illustrations used in the instructions are typical examples and not intended to be exact

depictions of various part of the product. We reserve the right to make changes without

prior notice.

Always store the user manual together with any other supplementary information in a safe

manner and such that it is always available.

1.2. Scrapping and recycling

engcon makes constant efforts to reduce its environmental impact. engcon's products

comprise at least 99 per cent recyclable material. All assembly and service work must

take place in compliance with legislation and ordinances governing the environment,

health and occupational safety. This refers to all work with residual materials including

handling, storage and processing. To prevent contamination of soil and water, spillages

must be avoided. Should a spillage occur, it must be dealt with.

Hazardous waste may only be disposed of by those authorised to do so. All waste

produced must be disposed of in compliance with applicable legislation and ordinances:

- Metal and plastics to be recycled.

- Hydraulic hoses are normally used for energy recovery (sort as hazardous waste).

- Oils and greases are normally used for energy recovery (sort as hazardous waste).

- Electronic components to be recycled for materials (sort as hazardous waste).

- Packaging to be sorted at source and recycled for materials.

- Paper to be sorted at source and recycled for materials.

If in doubt, contact the environmental manager at engcon.

4

1 Introduction

1.3. Warranty

This product was designed, dimensioned and manufactured by engcon. It is forbidden

to modify, alter or convert this product such that it no longer corresponds to the

manufacturer's specifications. When replacing parts or making repairs, contact an

authorized workshop.

Warranty: One (1) year providing the product has not been subjected to abuse or other

abnormal operation.

1.4. Technical support and spare parts

Contact information for support and spare parts can be found at www.engcon.com.

5

2 Safety

2. Safety

2.1. General

It is important that you read and understand all warnings prior to installation work on this

product or before you use it and any accessories supplied. The warning texts highlight

potential risks and describe how to avoid them. The following warning levels are used in

this user manual:

DANGER

Indicates that an accident will occur if the regulation is

not followed. Risk of personal injury or death.

WARNING

Indicates that an accident may occur if the regulation

is not followed. Risk of personal injury or death.

CAUTION

Indicates that an accident may occur if the regulation

is not followed. Risk of personal injury.

IMPORTANT

Indicates that an accident may occur if the regulation is

not followed. Risk of damage to property, process or the

surroundings.

REMARKS

Specifies additional information that may make performance or

understanding of specific operations easier.

6

3 Design and function

3. Design and function

3.1. General

engcon's ripper allows you to penetrate hard, frozen ground without difficulty. The ripper,

a.k.a. 'frost hook ' , is optimised for the best ripping force and breakout torque in hard

material.

DANGER

Do not exceed tipping load limits. The weight of the

product and the increased reach may impair stability.

Risk of personal injury and damage to property.

7

4 Maintenance

4. Maintenance

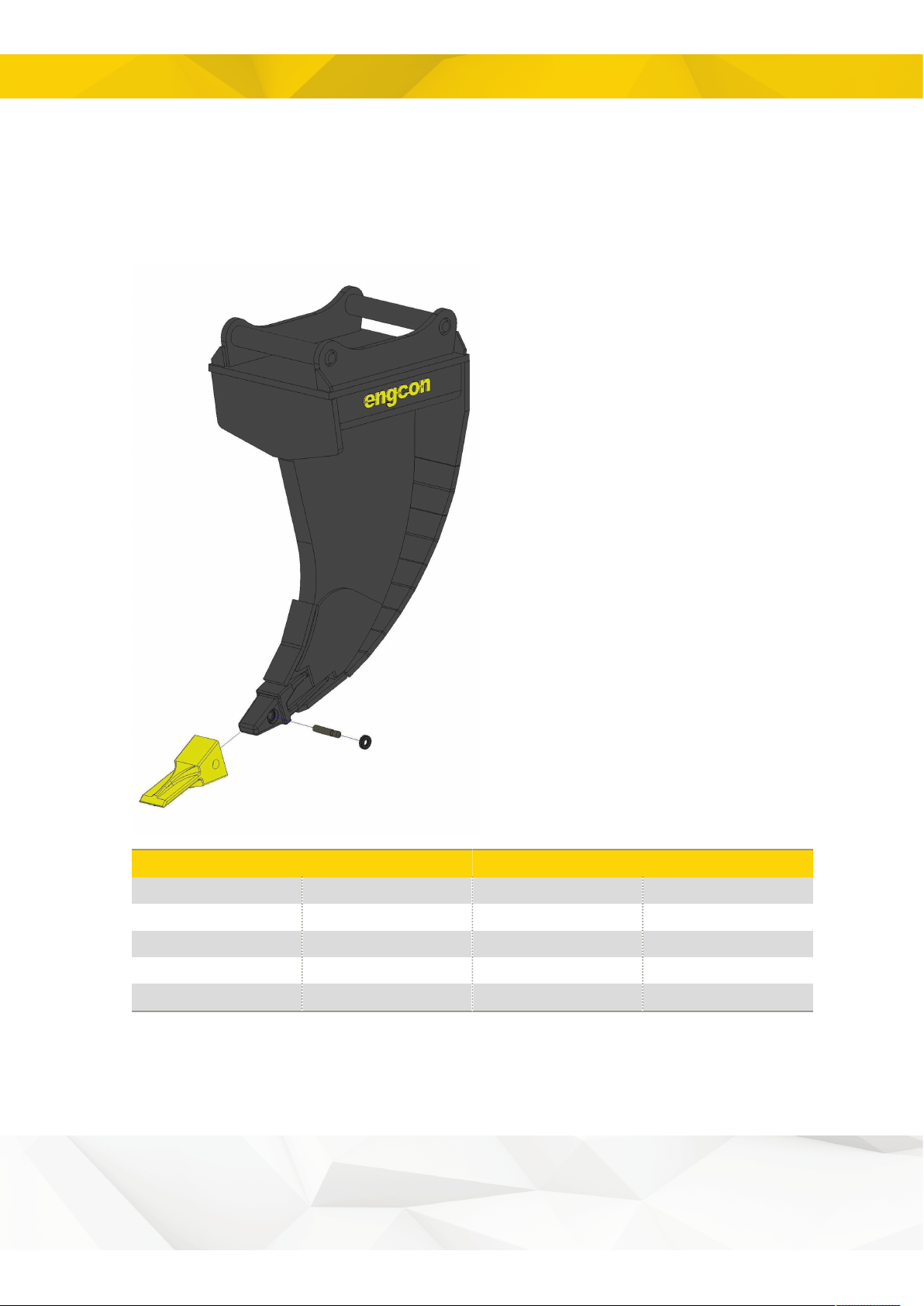

4.1. Replacing the ripper

When replacing the ripper, refer to the table below for suitable parts.

Size

Ripper

Locking pin

Locking ring

R05

1004614

1004748

1004750

R10

1004751

1004753

1004755

R15

1004760

1004763

1004764

R20

1004760

1004763

1004764

R30

1004774

1004777

1004778

8

5 Technical data

5. Technical data

5.1. Ripper

Type

Height (mm)

Weight (kg)

Attachment

point

Base machine

weight (t)

R05

600

50

S30

1,5-6

R05

600

65

S40

1,5-6

R10

700

110

S45

6-11

R10

700

110

S50

6-11

R15

900

170

S60

11-18

R20

1200

370

S60

11-30

R20

1200

410

S70

11-30

R20

1200

390

S1

11-30

R30

1400

680

S70

18-33

R30

1400

720

S80

18-33

R30

1400

690

S2

18-33

9
