Engel SR70F-G4-GL User manual

REFRIGERATOR
OWNER'S MANUAL
MODEL
SR70F-G4-GL
ST90F-G4-B
SR48F-G4-WH
STR100F-G4-B
STF100F-G4-B

- 1 -
Thank you for purchasing an ENGEL refrigerator. Read this
manual carefully before starting to use it. Keep this manual
in a safe place for future reference. If the product is resold,
this operating manual must accompany it.
1 . Explanation of symbols
2 . Safety instructions
3 . Intended use
4 . Controller and display
5 . Installation – general precaution
6 . Operation
7 . Maintenance of refrigerator
8 . Trouble shooting
9 . Disposal
10. Warranty
11. Before initial use
12. Technical data
5.1 Ventilation
6.1 Connection to 220V-240V AC
6.2 Connection to 12V or 24V DC battery

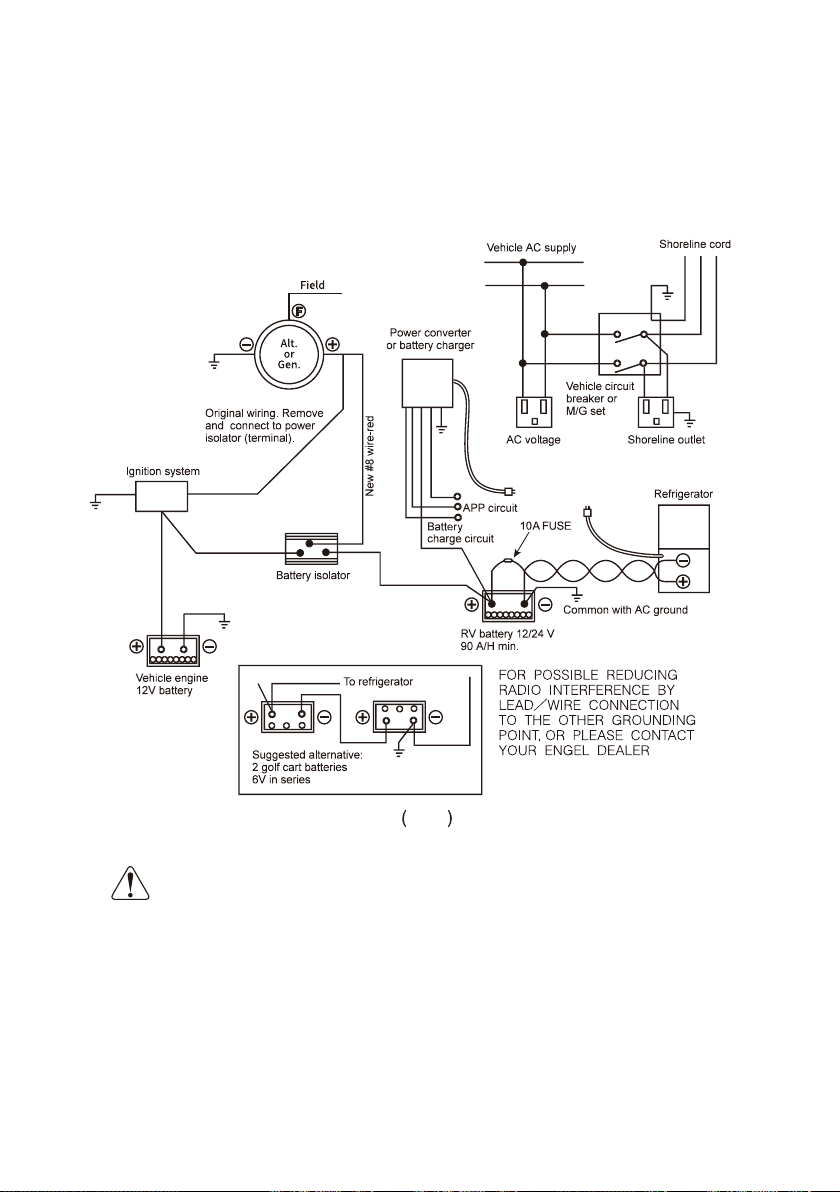

6.3 Wiring diagram of dual battery hookup
7.1 Cleaning interior and door
7.2 Defrosting
11.1 Reversing door-swing direction – SR70F, SR48F
11.2 Reversing door-swing direction – ST90F, STR100F, STF100F
11.3 Changing door panel
CONTENTS
............................................................ 2
.................................................................... 2
............................................................................8
.............................................................8
............................................. 9
....................................................................... 10
................................................................................ 11
........................................... 12
.............................. 12
........................... 15
.................................................... 16
............................................... 16
........................................................................ 16
..................................................................... 17
.................................................................................. 18
.................................................................................. 18
..................................................................... 19
......... 19
....... 20
..................................................... 21
......................................................................... 22
• This refrigerator can be used by children age 8 and above
and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of
the refrigerator in a safe way and understand the hazards
involved.
• Children shall not play with the refrigerator. Always keep and
use the refrigerator out of the reach of children.
• Cleaning and user maintenance shall not be made by
children without supervision.
• Do not store explosive substances such as aerosol cans
with a flammable propellant in this refrigerator.
• Never expose the refrigerator to rain.
• The refrigerator is suitable for camping use.
• Do not put a water-filled container. Water if spilled will
degrade the insulation of electric components and may lead
to a fire from electric leak.
• If the cable is damaged, it must be replaced to prevent the
possibility of electric shock. It must be replaced with a new
cord (ENGEL genuine products).
• Do not touch the inside and other metal parts of the cabinet
with wet hands, as this may cause frostbit.
• Do not contact metal part with positive terminal of battery.
• Cyclopentane is used as in the insulation. The gases in
insulation material require a special disposal procedure with
the applicable disposal regulations.
• Never disassemble the refrigerator by yourself. Inadequate
repairs may lead to considerable hazards.
• To avoid burnout of wiring from battery to the refrigerator
when a short circuit, install 10A fuse in the wiring circuit,
nearby the battery.
•This refrigerator runs on both AC i.e. from wall outlet and DC
such as battery. Do not attempt to run it on any voltage
above the specified voltage, nor use it with any power source
not specified here. Failing to comply will result in product
failure or lead to a fire.
• When operating on AC, do not plug in to an extension cable
or put too many plugs into one socket. Failure to comply will
result in electric shock or a fire.
• When operating on AC, be sure to plug in securely. Poor
connection will result in electric shock or a fire.
• Clean the AC cord plug to remove dust from the terminals
and their base. Dust on the plug will lead to a fire or electric
shock from degraded insulation.
• Be sure that no part of the refrigerator body is pushing its
power cable to bend it hard. The cable, when bent hard,
may get damaged and lead to overheat and a fire.
•When positioning the appliance, ensure the supply cord is
not trapped or damaged.
•Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• Avoid using flammable sprays near the refrigerator. The
electric contacts may catch a fire.
• Do not store objects that require precise temperature control
such as medicine and scientific specimens. This refrigerator
is not suited to store such types of objects.
• When there is a leak of utility gas around you, do not touch
the refrigerator or its cable plug. Open the windows and
maintain good ventilation. Failing to do so may lead to a fire
and/or a burn from explosion.
• When operating on a floor, securely fix the refrigerator so
that it would not fall and cause injuries when encountering
vibration such as earth quake.
• While the refrigerator is in operation, do not use a quick
charger to charge the battery that is supplying power to the
refrigerator. The high voltages generated from the charger
may damage the refrigerator and lead to a fire.
• Do not damage or modify or bend hard or pull or twist or
bundle the power cable. Do not have the power cable
caught under or pinched with heavy objects. Doing so may
damage the cable and possibly lead to a fire or electric
shock.
• Do not use the refrigerator if its power cable is damaged or
the catch of its plug is loose. Failing to comply may lead to
an electric shock or short or fire.
• Do not use the refrigerator near a heated object or gas
equipment. Doing so not only reduces cooling performance
but would cause a fire when leakage of the utility gas.

- 2 -
1. Explanation of symbols
WARNING
CAUTION
2. Safety instructions
The following symbols are used in this OWNER'S MANUAL or
on the refrigerator.
Read this manual carefully before starting to use the refrigerator.
These instructions are safety measures for preventing accidents.
• This refrigerator can be used by children age 8 and above
and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of
the refrigerator in a safe way and understand the hazards
involved.
• Children shall not play with the refrigerator. Always keep and
use the refrigerator out of the reach of children.
Failure to observe this instruction
can cause fatal or serious injury.
Failure to observe this instruction
can lead to injury.
Failure to observe this instruction
can cause material damage and
impair the function of the product.
Risk of fire insulation blowing
gas.(CYCLOPENTANE)
WARNING
NOTICE
WARNING
• Cleaning and user maintenance shall not be made by
children without supervision.
• Do not store explosive substances such as aerosol cans
with a flammable propellant in this refrigerator.
• Never expose the refrigerator to rain.
• The refrigerator is suitable for camping use.
• Do not put a water-filled container. Water if spilled will
degrade the insulation of electric components and may lead
to a fire from electric leak.
• If the cable is damaged, it must be replaced to prevent the
possibility of electric shock. It must be replaced with a new
cord (ENGEL genuine products).
• Do not touch the inside and other metal parts of the cabinet
with wet hands, as this may cause frostbit.
• Do not contact metal part with positive terminal of battery.
• Cyclopentane is used as in the insulation. The gases in
insulation material require a special disposal procedure with
the applicable disposal regulations.
• Never disassemble the refrigerator by yourself. Inadequate
repairs may lead to considerable hazards.
• To avoid burnout of wiring from battery to the refrigerator
when a short circuit, install 10A fuse in the wiring circuit,
nearby the battery.
•This refrigerator runs on both AC i.e. from wall outlet and DC
such as battery. Do not attempt to run it on any voltage
above the specified voltage, nor use it with any power source
not specified here. Failing to comply will result in product
failure or lead to a fire.
• When operating on AC, do not plug in to an extension cable
or put too many plugs into one socket. Failure to comply will
result in electric shock or a fire.
• When operating on AC, be sure to plug in securely. Poor
connection will result in electric shock or a fire.
• Clean the AC cord plug to remove dust from the terminals
and their base. Dust on the plug will lead to a fire or electric
shock from degraded insulation.
• Be sure that no part of the refrigerator body is pushing its
power cable to bend it hard. The cable, when bent hard,
may get damaged and lead to overheat and a fire.
•When positioning the appliance, ensure the supply cord is
not trapped or damaged.
•Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• Avoid using flammable sprays near the refrigerator. The
electric contacts may catch a fire.
• Do not store objects that require precise temperature control
such as medicine and scientific specimens. This refrigerator
is not suited to store such types of objects.
• When there is a leak of utility gas around you, do not touch
the refrigerator or its cable plug. Open the windows and
maintain good ventilation. Failing to do so may lead to a fire
and/or a burn from explosion.
• When operating on a floor, securely fix the refrigerator so
that it would not fall and cause injuries when encountering
vibration such as earth quake.
• While the refrigerator is in operation, do not use a quick
charger to charge the battery that is supplying power to the
refrigerator. The high voltages generated from the charger
may damage the refrigerator and lead to a fire.
• Do not damage or modify or bend hard or pull or twist or
bundle the power cable. Do not have the power cable
caught under or pinched with heavy objects. Doing so may
damage the cable and possibly lead to a fire or electric
shock.
• Do not use the refrigerator if its power cable is damaged or
the catch of its plug is loose. Failing to comply may lead to
an electric shock or short or fire.
• Do not use the refrigerator near a heated object or gas
equipment. Doing so not only reduces cooling performance
but would cause a fire when leakage of the utility gas.

- 3 -
• This refrigerator can be used by children age 8 and above
and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of
the refrigerator in a safe way and understand the hazards
involved.
• Children shall not play with the refrigerator. Always keep and
use the refrigerator out of the reach of children.
• Cleaning and user maintenance shall not be made by
children without supervision.
• Do not store explosive substances such as aerosol cans
with a flammable propellant in this refrigerator.
• Never expose the refrigerator to rain.
• The refrigerator is suitable for camping use.
• Do not put a water-filled container. Water if spilled will
degrade the insulation of electric components and may lead
to a fire from electric leak.
• If the cable is damaged, it must be replaced to prevent the
possibility of electric shock. It must be replaced with a new
cord (ENGEL genuine products).
• Do not touch the inside and other metal parts of the cabinet
with wet hands, as this may cause frostbit.
• Do not contact metal part with positive terminal of battery.
• Cyclopentane is used as in the insulation. The gases in
insulation material require a special disposal procedure with
the applicable disposal regulations.
• Never disassemble the refrigerator by yourself. Inadequate
repairs may lead to considerable hazards.
• To avoid burnout of wiring from battery to the refrigerator
when a short circuit, install 10A fuse in the wiring circuit,
nearby the battery.
•This refrigerator runs on both AC i.e. from wall outlet and DC
such as battery. Do not attempt to run it on any voltage
above the specified voltage, nor use it with any power source
not specified here. Failing to comply will result in product
failure or lead to a fire.
• When operating on AC, do not plug in to an extension cable
or put too many plugs into one socket. Failure to comply will
result in electric shock or a fire.
• When operating on AC, be sure to plug in securely. Poor
connection will result in electric shock or a fire.
• Clean the AC cord plug to remove dust from the terminals
and their base. Dust on the plug will lead to a fire or electric
shock from degraded insulation.
• Be sure that no part of the refrigerator body is pushing its
power cable to bend it hard. The cable, when bent hard,
may get damaged and lead to overheat and a fire.
•When positioning the appliance, ensure the supply cord is
not trapped or damaged.
•Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• Avoid using flammable sprays near the refrigerator. The
electric contacts may catch a fire.
• Do not store objects that require precise temperature control
such as medicine and scientific specimens. This refrigerator
is not suited to store such types of objects.
• When there is a leak of utility gas around you, do not touch
the refrigerator or its cable plug. Open the windows and
maintain good ventilation. Failing to do so may lead to a fire
and/or a burn from explosion.
• When operating on a floor, securely fix the refrigerator so
that it would not fall and cause injuries when encountering
vibration such as earth quake.
• While the refrigerator is in operation, do not use a quick
charger to charge the battery that is supplying power to the
refrigerator. The high voltages generated from the charger
may damage the refrigerator and lead to a fire.
• Do not damage or modify or bend hard or pull or twist or
bundle the power cable. Do not have the power cable
caught under or pinched with heavy objects. Doing so may
damage the cable and possibly lead to a fire or electric
shock.
• Do not use the refrigerator if its power cable is damaged or
the catch of its plug is loose. Failing to comply may lead to
an electric shock or short or fire.
• Do not use the refrigerator near a heated object or gas
equipment. Doing so not only reduces cooling performance
but would cause a fire when leakage of the utility gas.

- 4 -
• This refrigerator can be used by children age 8 and above
and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of
the refrigerator in a safe way and understand the hazards
involved.
• Children shall not play with the refrigerator. Always keep and
use the refrigerator out of the reach of children.
• Cleaning and user maintenance shall not be made by
children without supervision.
• Do not store explosive substances such as aerosol cans
with a flammable propellant in this refrigerator.
• Never expose the refrigerator to rain.
• The refrigerator is suitable for camping use.
• Do not put a water-filled container. Water if spilled will
degrade the insulation of electric components and may lead
to a fire from electric leak.
• If the cable is damaged, it must be replaced to prevent the
possibility of electric shock. It must be replaced with a new
cord (ENGEL genuine products).
• Do not touch the inside and other metal parts of the cabinet
with wet hands, as this may cause frostbit.
• Do not contact metal part with positive terminal of battery.
• Cyclopentane is used as in the insulation. The gases in
insulation material require a special disposal procedure with
the applicable disposal regulations.
• Never disassemble the refrigerator by yourself. Inadequate
repairs may lead to considerable hazards.
• To avoid burnout of wiring from battery to the refrigerator
when a short circuit, install 10A fuse in the wiring circuit,
nearby the battery.
•This refrigerator runs on both AC i.e. from wall outlet and DC
such as battery. Do not attempt to run it on any voltage
above the specified voltage, nor use it with any power source
not specified here. Failing to comply will result in product
failure or lead to a fire.
• When operating on AC, do not plug in to an extension cable
or put too many plugs into one socket. Failure to comply will
result in electric shock or a fire.
• When operating on AC, be sure to plug in securely. Poor
connection will result in electric shock or a fire.
• Clean the AC cord plug to remove dust from the terminals
and their base. Dust on the plug will lead to a fire or electric
shock from degraded insulation.
• Be sure that no part of the refrigerator body is pushing its
power cable to bend it hard. The cable, when bent hard,
may get damaged and lead to overheat and a fire.
•When positioning the appliance, ensure the supply cord is
not trapped or damaged.
•Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• Avoid using flammable sprays near the refrigerator. The
electric contacts may catch a fire.
• Do not store objects that require precise temperature control
such as medicine and scientific specimens. This refrigerator
is not suited to store such types of objects.
• When there is a leak of utility gas around you, do not touch
the refrigerator or its cable plug. Open the windows and
maintain good ventilation. Failing to do so may lead to a fire
and/or a burn from explosion.
• When operating on a floor, securely fix the refrigerator so
that it would not fall and cause injuries when encountering
vibration such as earth quake.
• While the refrigerator is in operation, do not use a quick
charger to charge the battery that is supplying power to the
refrigerator. The high voltages generated from the charger
may damage the refrigerator and lead to a fire.
• Do not damage or modify or bend hard or pull or twist or
bundle the power cable. Do not have the power cable
caught under or pinched with heavy objects. Doing so may
damage the cable and possibly lead to a fire or electric
shock.
• Do not use the refrigerator if its power cable is damaged or
the catch of its plug is loose. Failing to comply may lead to
an electric shock or short or fire.
• Do not use the refrigerator near a heated object or gas
equipment. Doing so not only reduces cooling performance
but would cause a fire when leakage of the utility gas.

- 5 -
• This refrigerator can be used by children age 8 and above
and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of
the refrigerator in a safe way and understand the hazards
involved.
• Children shall not play with the refrigerator. Always keep and
use the refrigerator out of the reach of children.
• Cleaning and user maintenance shall not be made by
children without supervision.
• Do not store explosive substances such as aerosol cans
with a flammable propellant in this refrigerator.
• Never expose the refrigerator to rain.
• The refrigerator is suitable for camping use.
• Do not put a water-filled container. Water if spilled will
degrade the insulation of electric components and may lead
to a fire from electric leak.
• If the cable is damaged, it must be replaced to prevent the
possibility of electric shock. It must be replaced with a new
cord (ENGEL genuine products).
• Do not touch the inside and other metal parts of the cabinet
with wet hands, as this may cause frostbit.
• Do not contact metal part with positive terminal of battery.
• Cyclopentane is used as in the insulation. The gases in
insulation material require a special disposal procedure with
the applicable disposal regulations.
• Never disassemble the refrigerator by yourself. Inadequate
repairs may lead to considerable hazards.
• To avoid burnout of wiring from battery to the refrigerator
when a short circuit, install 10A fuse in the wiring circuit,
nearby the battery.
•This refrigerator runs on both AC i.e. from wall outlet and DC
such as battery. Do not attempt to run it on any voltage
above the specified voltage, nor use it with any power source
not specified here. Failing to comply will result in product
failure or lead to a fire.
• When operating on AC, do not plug in to an extension cable
or put too many plugs into one socket. Failure to comply will
result in electric shock or a fire.
• When operating on AC, be sure to plug in securely. Poor
connection will result in electric shock or a fire.
• Clean the AC cord plug to remove dust from the terminals
and their base. Dust on the plug will lead to a fire or electric
shock from degraded insulation.
• Be sure that no part of the refrigerator body is pushing its
power cable to bend it hard. The cable, when bent hard,
may get damaged and lead to overheat and a fire.
•When positioning the appliance, ensure the supply cord is
not trapped or damaged.
•Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• Avoid using flammable sprays near the refrigerator. The
electric contacts may catch a fire.
• Do not store objects that require precise temperature control
such as medicine and scientific specimens. This refrigerator
is not suited to store such types of objects.
• When there is a leak of utility gas around you, do not touch
the refrigerator or its cable plug. Open the windows and
maintain good ventilation. Failing to do so may lead to a fire
and/or a burn from explosion.
• When operating on a floor, securely fix the refrigerator so
that it would not fall and cause injuries when encountering
vibration such as earth quake.
• While the refrigerator is in operation, do not use a quick
charger to charge the battery that is supplying power to the
refrigerator. The high voltages generated from the charger
may damage the refrigerator and lead to a fire.
• Do not damage or modify or bend hard or pull or twist or
bundle the power cable. Do not have the power cable
caught under or pinched with heavy objects. Doing so may
damage the cable and possibly lead to a fire or electric
shock.
• Do not use the refrigerator if its power cable is damaged or
the catch of its plug is loose. Failing to comply may lead to
an electric shock or short or fire.
• Do not use the refrigerator near a heated object or gas
equipment. Doing so not only reduces cooling performance
but would cause a fire when leakage of the utility gas.
• Disconnect the refrigerator from the AC before cleaning and
servicing it as well as after each use.
• Do not put living things such as pets in the refrigerator.
• Do not attempt to open or close the refrigerator door while
driving a car. It may lead to an accident due to distracted
driving.
• This refrigerator is suitable for cooling food. If you wish to
cool medicines, check if the cooling capacity of the
refrigerator is enough.
• Never use a battery charger or transformer or rectifier or
battery eliminator or AC/DC converter to power the
refrigerator. Doing so may damage the refrigerator.
• Never connect the refrigerator directly to an engine
generator set regardless of whether its output is AC or DC.
Doing so will lead to poor cooling and may also damage the
refrigerator due to the high voltages and surge pulse from
the generator set. Utilize an automatic voltage regulator for
the refrigerator. Contact your ENGEL dealer if there is any
question regarding the use of engine generator set to power
the refrigerator.
• Do not put a bagged cold pack whose inner material is
leaking. Some of off-the-shelf bagged ice packs contain a
type of chemical that corrodes the metal parts of the
refrigerator. If such chemical is spilled in the refrigerator
interior, wipe it off with a wet, soft cloth and wipe off again
with a dry cloth.
• It is recommended to turn off the refrigerator when the
vehicle engine is shut off so as to keep the battery from
running out.
• Take extra caution when transporting the refrigerator.
• Check if the voltage noted on the type plate on the
refrigerator matches the one applied by an external power
source.
• If the voltage at the DC input terminals of the refrigerator
falls below 11V, cooling performance will immediately
decrease. Always keep the battery in good condition to
ensure it is fully charged.
• If used onboard a vehicle, fix the refrigerator firmly to the
interior of the vehicle. Failing to do so may lead to injuries
from a falling or moving fridge during abrupt acceleration and
breaking.
• Never use this refrigerator inside a refrigerated compartment
of a refrigeration truck, where condensation easily occurs
and water would drip onto the refrigerator and damage it.
• Careful putting glass bottles in the refrigerator.This may
result in breakage of bottles due to external shock or
vibration.
• Do not set the temperature setting knob at “5” except when
storing frozen products such as frozen food, ice cream and
ice. Doing so may result not only in beverages being
undrinkable but explosion of cans and possible injuries.
• Do not use a knife, a driver or any sharp object to remove
frost from the refrigerator.
• Do not pour water in the refrigerator. Doing so will result in
failure from water ingress into the insulation material or
mechanical and electrical components. If water collects in
the cabinet, wipe it off with a soft cloth.
• The refrigerator needs an adequate ventilation for optimized
cooling performance. Insufficient space between the
refrigerator and adjacent walls may reduce the cooling
performance.
• Food shall be kept in its original package or put in other
suitable container when stored in the refrigerator.
• Overstuffing the refrigerator will result in insufficient cooling
from poor circulation of cool air and may spoil the stored
foods. Keep some spaces between the foods.
• Hot or warm food such as boiled product shall be stored
after it gets cool enough.
• It is recommended to pack watery food or products with
excessive fragrance when putting in the refrigerator.
• Pre-cool the food and drinks before putting into the
refrigerator. This refrigerator is not capable of cooling food
and drink in a short time. It is also recommended to pre-cool
inside the refrigerator cabinet before putting in any food.
• When the refrigerator is in operation, do not touch food or its
containers, especially those made of metal, stored there with
a wet hand. Doing so may lead to frostbite or other injury.
CAUTION

- 6 -
• This refrigerator can be used by children age 8 and above
and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of
the refrigerator in a safe way and understand the hazards
involved.
• Children shall not play with the refrigerator. Always keep and
use the refrigerator out of the reach of children.
• Cleaning and user maintenance shall not be made by
children without supervision.
• Do not store explosive substances such as aerosol cans
with a flammable propellant in this refrigerator.
• Never expose the refrigerator to rain.
• The refrigerator is suitable for camping use.
• Do not put a water-filled container. Water if spilled will
degrade the insulation of electric components and may lead
to a fire from electric leak.
• If the cable is damaged, it must be replaced to prevent the
possibility of electric shock. It must be replaced with a new
cord (ENGEL genuine products).
• Do not touch the inside and other metal parts of the cabinet
with wet hands, as this may cause frostbit.
• Do not contact metal part with positive terminal of battery.
• Cyclopentane is used as in the insulation. The gases in
insulation material require a special disposal procedure with
the applicable disposal regulations.
• Never disassemble the refrigerator by yourself. Inadequate
repairs may lead to considerable hazards.
• To avoid burnout of wiring from battery to the refrigerator
when a short circuit, install 10A fuse in the wiring circuit,
nearby the battery.
•This refrigerator runs on both AC i.e. from wall outlet and DC
such as battery. Do not attempt to run it on any voltage
above the specified voltage, nor use it with any power source
not specified here. Failing to comply will result in product
failure or lead to a fire.
• When operating on AC, do not plug in to an extension cable
or put too many plugs into one socket. Failure to comply will
result in electric shock or a fire.
• When operating on AC, be sure to plug in securely. Poor
connection will result in electric shock or a fire.
• Clean the AC cord plug to remove dust from the terminals
and their base. Dust on the plug will lead to a fire or electric
shock from degraded insulation.
• Be sure that no part of the refrigerator body is pushing its
power cable to bend it hard. The cable, when bent hard,
may get damaged and lead to overheat and a fire.
•When positioning the appliance, ensure the supply cord is
not trapped or damaged.
•Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• Avoid using flammable sprays near the refrigerator. The
electric contacts may catch a fire.
• Do not store objects that require precise temperature control
such as medicine and scientific specimens. This refrigerator
is not suited to store such types of objects.
• When there is a leak of utility gas around you, do not touch
the refrigerator or its cable plug. Open the windows and
maintain good ventilation. Failing to do so may lead to a fire
and/or a burn from explosion.
• When operating on a floor, securely fix the refrigerator so
that it would not fall and cause injuries when encountering
vibration such as earth quake.
• While the refrigerator is in operation, do not use a quick
charger to charge the battery that is supplying power to the
refrigerator. The high voltages generated from the charger
may damage the refrigerator and lead to a fire.
• Do not damage or modify or bend hard or pull or twist or
bundle the power cable. Do not have the power cable
caught under or pinched with heavy objects. Doing so may
damage the cable and possibly lead to a fire or electric
shock.
• Do not use the refrigerator if its power cable is damaged or
the catch of its plug is loose. Failing to comply may lead to
an electric shock or short or fire.
• Do not use the refrigerator near a heated object or gas
equipment. Doing so not only reduces cooling performance
but would cause a fire when leakage of the utility gas.
• Disconnect the refrigerator from the AC before cleaning and
servicing it as well as after each use.
• Do not put living things such as pets in the refrigerator.
• Do not attempt to open or close the refrigerator door while
driving a car. It may lead to an accident due to distracted
driving.
• This refrigerator is suitable for cooling food. If you wish to
cool medicines, check if the cooling capacity of the
refrigerator is enough.
• Never use a battery charger or transformer or rectifier or
battery eliminator or AC/DC converter to power the
refrigerator. Doing so may damage the refrigerator.
• Never connect the refrigerator directly to an engine
generator set regardless of whether its output is AC or DC.
Doing so will lead to poor cooling and may also damage the
refrigerator due to the high voltages and surge pulse from
the generator set. Utilize an automatic voltage regulator for
the refrigerator. Contact your ENGEL dealer if there is any
question regarding the use of engine generator set to power
the refrigerator.
• Do not put a bagged cold pack whose inner material is
leaking. Some of off-the-shelf bagged ice packs contain a
type of chemical that corrodes the metal parts of the
refrigerator. If such chemical is spilled in the refrigerator
interior, wipe it off with a wet, soft cloth and wipe off again
with a dry cloth.
• It is recommended to turn off the refrigerator when the
vehicle engine is shut off so as to keep the battery from
running out.
• Take extra caution when transporting the refrigerator.
NOTICE
• Check if the voltage noted on the type plate on the
refrigerator matches the one applied by an external power
source.
• If the voltage at the DC input terminals of the refrigerator
falls below 11V, cooling performance will immediately
decrease. Always keep the battery in good condition to
ensure it is fully charged.
• If used onboard a vehicle, fix the refrigerator firmly to the
interior of the vehicle. Failing to do so may lead to injuries
from a falling or moving fridge during abrupt acceleration and
breaking.
• Never use this refrigerator inside a refrigerated compartment
of a refrigeration truck, where condensation easily occurs
and water would drip onto the refrigerator and damage it.
• Careful putting glass bottles in the refrigerator.This may
result in breakage of bottles due to external shock or
vibration.
• Do not set the temperature setting knob at “5” except when
storing frozen products such as frozen food, ice cream and
ice. Doing so may result not only in beverages being
undrinkable but explosion of cans and possible injuries.
• Do not use a knife, a driver or any sharp object to remove
frost from the refrigerator.
• Do not pour water in the refrigerator. Doing so will result in
failure from water ingress into the insulation material or
mechanical and electrical components. If water collects in
the cabinet, wipe it off with a soft cloth.
• The refrigerator needs an adequate ventilation for optimized
cooling performance. Insufficient space between the
refrigerator and adjacent walls may reduce the cooling
performance.
• Food shall be kept in its original package or put in other
suitable container when stored in the refrigerator.
• Overstuffing the refrigerator will result in insufficient cooling
from poor circulation of cool air and may spoil the stored
foods. Keep some spaces between the foods.
• Hot or warm food such as boiled product shall be stored
after it gets cool enough.
• It is recommended to pack watery food or products with
excessive fragrance when putting in the refrigerator.
• Pre-cool the food and drinks before putting into the
refrigerator. This refrigerator is not capable of cooling food
and drink in a short time. It is also recommended to pre-cool
inside the refrigerator cabinet before putting in any food.
• When the refrigerator is in operation, do not touch food or its
containers, especially those made of metal, stored there with
a wet hand. Doing so may lead to frostbite or other injury.

- 7 -
• Check if the voltage noted on the type plate on the
refrigerator matches the one applied by an external power
source.
• If the voltage at the DC input terminals of the refrigerator
falls below 11V, cooling performance will immediately
decrease. Always keep the battery in good condition to
ensure it is fully charged.
• If used onboard a vehicle, fix the refrigerator firmly to the
interior of the vehicle. Failing to do so may lead to injuries
from a falling or moving fridge during abrupt acceleration and
breaking.
• Never use this refrigerator inside a refrigerated compartment
of a refrigeration truck, where condensation easily occurs
and water would drip onto the refrigerator and damage it.
• Careful putting glass bottles in the refrigerator.This may
result in breakage of bottles due to external shock or
vibration.
• Do not set the temperature setting knob at “5” except when
storing frozen products such as frozen food, ice cream and
ice. Doing so may result not only in beverages being
undrinkable but explosion of cans and possible injuries.
• Do not use a knife, a driver or any sharp object to remove
frost from the refrigerator.
• Do not pour water in the refrigerator. Doing so will result in
failure from water ingress into the insulation material or
mechanical and electrical components. If water collects in
the cabinet, wipe it off with a soft cloth.
• The refrigerator needs an adequate ventilation for optimized
cooling performance. Insufficient space between the
refrigerator and adjacent walls may reduce the cooling
performance.
• Food shall be kept in its original package or put in other
suitable container when stored in the refrigerator.
• Overstuffing the refrigerator will result in insufficient cooling
from poor circulation of cool air and may spoil the stored
foods. Keep some spaces between the foods.
• Hot or warm food such as boiled product shall be stored
after it gets cool enough.
• It is recommended to pack watery food or products with
excessive fragrance when putting in the refrigerator.
• Pre-cool the food and drinks before putting into the
refrigerator. This refrigerator is not capable of cooling food
and drink in a short time. It is also recommended to pre-cool
inside the refrigerator cabinet before putting in any food.
• When the refrigerator is in operation, do not touch food or its
containers, especially those made of metal, stored there with
a wet hand. Doing so may lead to frostbite or other injury.

- 8 -
• Check if the voltage noted on the type plate on the
refrigerator matches the one applied by an external power
source.
• If the voltage at the DC input terminals of the refrigerator
falls below 11V, cooling performance will immediately
decrease. Always keep the battery in good condition to
ensure it is fully charged.
• If used onboard a vehicle, fix the refrigerator firmly to the
interior of the vehicle. Failing to do so may lead to injuries
from a falling or moving fridge during abrupt acceleration and
breaking.
• Never use this refrigerator inside a refrigerated compartment
of a refrigeration truck, where condensation easily occurs
and water would drip onto the refrigerator and damage it.
• Careful putting glass bottles in the refrigerator.This may
result in breakage of bottles due to external shock or
vibration.
• Do not set the temperature setting knob at “5” except when
storing frozen products such as frozen food, ice cream and
ice. Doing so may result not only in beverages being
undrinkable but explosion of cans and possible injuries.
• Do not use a knife, a driver or any sharp object to remove
frost from the refrigerator.
• Do not pour water in the refrigerator. Doing so will result in
failure from water ingress into the insulation material or
mechanical and electrical components. If water collects in
the cabinet, wipe it off with a soft cloth.
• The refrigerator needs an adequate ventilation for optimized
cooling performance. Insufficient space between the
refrigerator and adjacent walls may reduce the cooling
performance.
• Food shall be kept in its original package or put in other
suitable container when stored in the refrigerator.
• Overstuffing the refrigerator will result in insufficient cooling
from poor circulation of cool air and may spoil the stored
foods. Keep some spaces between the foods.
• Hot or warm food such as boiled product shall be stored
after it gets cool enough.
• It is recommended to pack watery food or products with
excessive fragrance when putting in the refrigerator.
• Pre-cool the food and drinks before putting into the
3. Intended use
The refrigerator is suitable for use in cars, boats, caravans or RVs
and is designed to operate an angle of less than 30°off level.
refrigerator. This refrigerator is not capable of cooling food
and drink in a short time. It is also recommended to pre-cool
inside the refrigerator cabinet before putting in any food.
• When the refrigerator is in operation, do not touch food or its
containers, especially those made of metal, stored there with
a wet hand. Doing so may lead to frostbite or other injury.
4. Controller and display
SR70F,
SR48F
ST90F
ST90F, STR100F,
STF100F
Temp setting knob
and Indicator Light
Open door to access
temp setting knob
Temp setting knob Ice Storage
Door
Door
Pocket
FREEZER
Shelf
Mounting rail

- 9 -
Turn the temperature setting knob to change the air temperature
inside the refrigerator.
*at an ambient temperature of 30℃with the refrigerator door closed
5. Installation – general precaution
The refrigerator shall be used in a dry area where there is no
chance of being exposed to water splash or other types of liquids or
direct sunlight or heat conducted from hot pipes, warm air outlets,
cookers, etc.
The refrigerator should be positioned and secured on a solid surface
in the vehicle.
Keep the refrigerator away from direct sunlight or a gas stove or
heater or heat-generating refrigerator.
Avoid installing your refrigerator close to hot water lines or warm air
ducts.
Adequate ventilation for the rear-mounted condenser and suitable
distance from each wall specified at section 5.1 is necessary to
enable optimized cooling performance and minimized power
consumption.
ST90F
Shelf
Temp setting knob
2
4
OFF
Temperature setting
Temp
setting
position
0
1
3
5
Inside temperature*
SR48F,SR70F
ST90F,STR100F STF100F
Approx. 0℃
Approx. -6℃
Approx. -5℃
Approx. -15℃
OFF (Stop)
ON
0
1
3
5

- 10 -
The refrigerator shall be used in a dry area where there is no
chance of being exposed to water splash or other types of liquids or
direct sunlight or heat conducted from hot pipes, warm air outlets,
cookers, etc.
The refrigerator should be positioned and secured on a solid surface
in the vehicle.
Keep the refrigerator away from direct sunlight or a gas stove or
heater or heat-generating refrigerator.
Avoid installing your refrigerator close to hot water lines or warm air
ducts.
Adequate ventilation for the rear-mounted condenser and suitable
distance from each wall specified at section 5.1 is necessary to
enable optimized cooling performance and minimized power
consumption.
5.1 Ventilation
The cooling fan in the rear will be turned on only when the
ambient temperature is approximately 95°F or above.
NOTICE
Do not remove the bottom rails from the refrigerator cabinet.
They intend to provide enough space under the cabinet for
sufficient ventilation. Failing to keep enough ventilation for
cooling will result in reduced product life, poor cooling
performance, and excessive current draw from the battery
and will also invalidate the warranty.
Refer to the picture below to find the correct ventilation for
each corresponding model.
CAUTION

- 11 -
6. Operation
Connect only to either of the following power sources:
• 220-240V AC from wall outlet (the mains)
• 12V or 24V DC battery.
Either of the following pair of ventilation
openings shall be made: A-D, A-I, A-J,
B-C, B-F, B-H, C-D, C-I, C-J, D-F, D-H,
F-I, F-J, G-I, G-J, H-I, H-J. Maintain the
airflow volume specified for each opening
shown above.
The switches of other electric appliances or their power
cables shall not be connected to the power cables that
connect the refrigerator with the battery or other power
source. Those external devices may damage the power
supply unit of the refrigerator due to the high voltage pulses
generated from them. Do not use an extension cord.
The longer the power cable to the refrigerator becomes, the
wider the cable’s cross section is required. Insufficient cross
section will result in voltage drop and lead to poor cooling
performance. Refer to the following chart for the
SR70F,
SR48F
A
B
C
D
E
F
G
H
I
J
Air
outlet
Air
inlet
Rails
Fan*
ST90F, STR100F,
STF100F
Rear
Typical
Enclosure
Typical
Opening
3”×8.3”
(On 25 SQ IN)
Front
Outlet
Opening
160cm2Min
25in2Min
Opening
190cm2Min
30in2Min
Inlet
Opening
190cm2Min
25in2Min
①
②
Outlet
Opening
160cm2Min
25in2Min
①
①
②②
③
Screw securely to the floor
AC and DC voltages may be connected simultaneously, when AC
will be automatically selected if both voltages are applied.

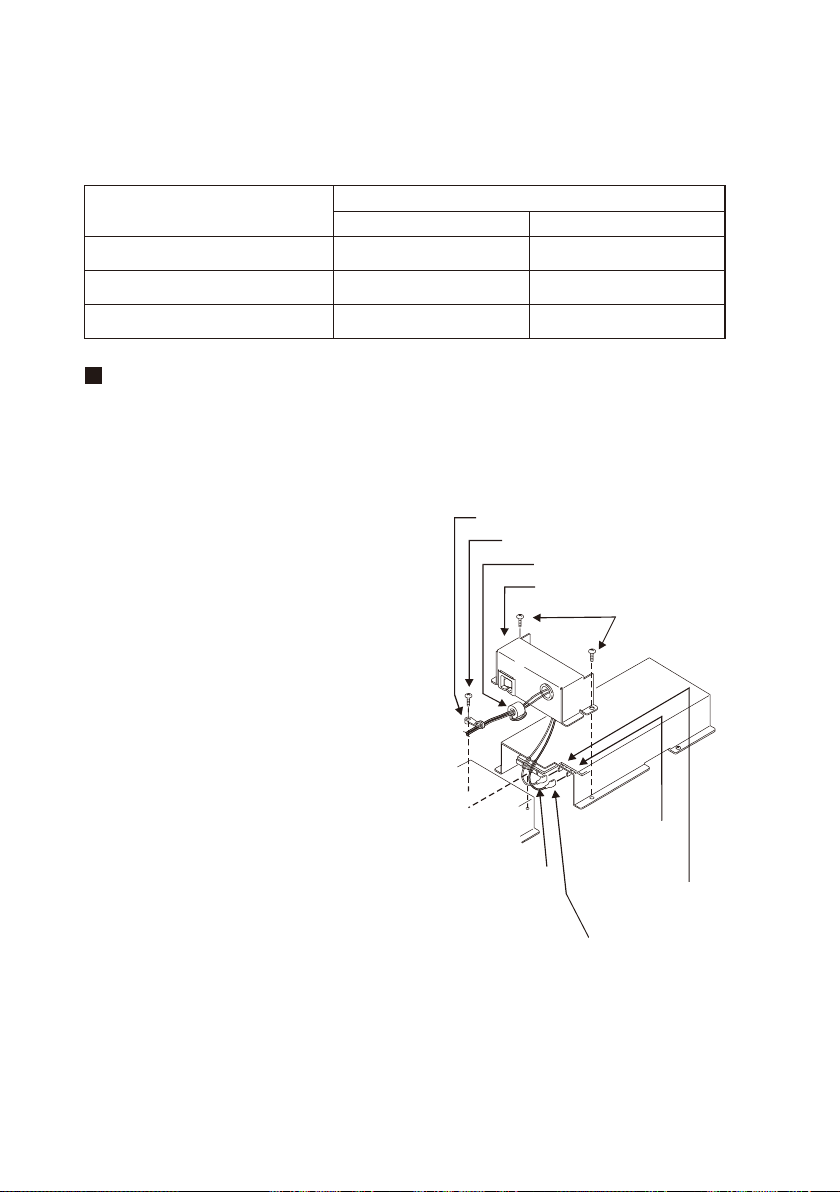

recommended cross section or wire gauge and the fuse
amperage.

- 12 -
6.1. Connection to 220V-240V AC
Connect only to either of the following power sources:
• 220-240V AC from wall outlet (the mains)
• 12V or 24V DC battery.
Before starting to use your new refrigerator, its interior as well
as exterior shall be thoroughly cleaned with a wet cloth to avoid
hygienic issue.
This refrigerator can be connected to a standard domestic power
source by using the three-core lead accompanying the refrigerator.
First, set the temperature setting knob to "0" (OFF). Then, set it
anywhere between 1 and 5 and the green LED will go on. Turn
the temperature setting knob to a required setting.
6.2 Connection to 12V or 24V DC battery
This refrigerator can operate on both 12V and 24V DC. Make
sure the battery voltage matches with the voltage stated on the
refrigerator label. If the battery voltage is too high it will damage
the refrigerator.
NOTICE
The switches of other electric appliances or their power
cables shall not be connected to the power cables that
connect the refrigerator with the battery or other power
source. Those external devices may damage the power
supply unit of the refrigerator due to the high voltage pulses
generated from them. Do not use an extension cord.
The longer the power cable to the refrigerator becomes, the
wider the cable’s cross section is required. Insufficient cross
section will result in voltage drop and lead to poor cooling
performance. Refer to the following chart for the
CAUTION
AC and DC voltages may be connected simultaneously, when AC
will be automatically selected if both voltages are applied.
recommended cross section or wire gauge and the fuse
amperage.

- 13 -
The switches of other electric appliances or their power
cables shall not be connected to the power cables that
connect the refrigerator with the battery or other power
source. Those external devices may damage the power
supply unit of the refrigerator due to the high voltage pulses
generated from them. Do not use an extension cord.
The longer the power cable to the refrigerator becomes, the
wider the cable’s cross section is required. Insufficient cross
section will result in voltage drop and lead to poor cooling
performance. Refer to the following chart for the
recommended cross section or wire gauge and the fuse
amperage.
Follow the procedures below to connect the cables from the
power source to the power supply unit of the refrigerator.
-Unscrew the two screws from
the Junction cover and open it.
Refer to the picture on the
right.
-Put the DC input wires through
the ferrite core included in the
refrigerator. Make two-turn
loop through the ferrite core.
-Then, put the DC input wires
through the bushing of the
Junction cover and insert their
terminals into the DC input
terminals of the power supply
unit. Make sure the polarity of
each terminal matches the
other.
-Screw the junction cover to close it.
-Put the Fastener over the cables and screw it to the refriger-
ator cabinet.
Distance to Fridge
12 to 20 feet
Above 20 feet
Less than 12 feet
Wire Gauge
16 AWG
Fuse Amperage (A)
Wire Gauge
10
14 AWG 10
12 AWG 10
Connection inside power supply unit
Fastener
Screw
Ferrite core
Junction cover
Screws
DC input
terminal
(+):(0.250)
DC input terminal
(-):(0.187)
DC input terminal
from battery (-)
DC input wire
from battery (+)

- 14 -
If you choose to connect the refrigerator to a battery together
with a battery charger, they shall be connected in parallel as
shown in the picture below. Do not connect a battery charger
alone with the refrigerator. If you choose to connect a DC
converter with the refrigerator, a 10000μF capacitor shall be
connected in parallel with the converter as shown below. Failing
to comply with these will result in damage to the power supply
unit of the refrigerator.
To further reduce the radio interference during DC operation,
twist the negative and positive cables (use separate cables)
together into a spiral form between the battery and the DC power
source as shown below.
The switches of other electric appliances or their power
cables shall not be connected to the power cables that
connect the refrigerator with the battery or other power
source. Those external devices may damage the power
supply unit of the refrigerator due to the high voltage pulses
generated from them. Do not use an extension cord.
The longer the power cable to the refrigerator becomes, the
wider the cable’s cross section is required. Insufficient cross
section will result in voltage drop and lead to poor cooling
performance. Refer to the following chart for the
recommended cross section or wire gauge and the fuse
amperage.
10000μF Capacitor
Twisting lead wire

- 15 -
wiring diagram shown below is recommended for dual battery
hookup. (See Fig 4)
6.3 Wiring diagram of dual battery hookup
Fig.4
CAUTION
To avoid damage to the refrigerator in the event of reverse
polarity or short circuit, install a 10A fuse in the wiring circuit
nearer to the battery.
SHUT OFF THERMOSTAT WHEN
BATTERIES ARE “QUICK CHARGED”

- 16 -
7. Maintenance of refrigerator
Always disconnect the refrigerator from the power source before
you clean or service it.
Never use a brush, powder soap, cleanser, acid, benzene,
gasoline, or mineral thinners to clean the refrigerator, as these
tend to leave scratches on the plastic coating and painting.
Due to the humidity within the cabinet, frost will form on the
evaporator surface after it has been used for a while.
Frost with as thick as 6mm or more (1/4in) will reduce cooling
efficiency. To avoid this, the evaporator needs to be defrosted
regularly.
To defrost, turn off and unplug the refrigerator to allow for complete
removal of frost from the evaporator.
• Clean the interior with a cloth moistened with warm water and wipe
again with a dry cloth.
• Clean the door of the refrigerator with a wet cloth.
• Clean the interior condenser to remove dirt (dust etc.) at regular
intervals.
7.1 Cleaning interior and door
7.2 Defrosting
NOTICE

- 17 -
8. Trouble shooting
Fault Possible cause Action
Interior not cold
Compressor not
working
No power supplied Check if power is supplied to
electronic unit.
Battery in poor condition. Check fuse.
Defrost evaporator.
(see 7.2 Defrosting)
Faulty electronic unit.
Electronic unit failure
Check polarity of connectors
and cables.
Ambient temperature too
high.
Keep refrigerator sufficiently
ventilated.
Insufficient ventilation Frost
on evaporator
Condenser clogged Clean condenser.
If the problem still persists after going through the chart above, consult an ENGEL
service agent or dealer near you.
Never disassemble the refrigerator by yourself. Inadequate repairs can lead to
considerable hazards.

- 18 -
The statutory warranty period applies.
If the refrigerator is found to be defective, contact either of the
agents whose contact information is found on the last page of this
manual or the ENGEL dealer near your location.
For repair and warranty processing, have the following documents
accompany the refrigerator.
• A copy of the receipt with purchasing date
• Reason for the claim and/or description of the failure
9. Disposal
10. Warranty
WARNING
・To prevent the risk of child entrapment inside the
refrigerator, do the following before discarding it:
- Remove the door from the refrigerator.
・This refrigeratorshould not be mixed with household waste
when being disposed of.
If you wish to dispose of this refrigerator, contact your local
authorities and ask for the correct method of disposal, or
specialist dealer for details about how to do this in
accordance with the applicable disposal regulations.
Cyclopentane is used in the insulation, which requires a
special disposal procedure. Contact your local authorities
to find the environmentally safe disposal of the refrigerator.

- 19 -
11. Before initial use
11.1 Reversing door-swing direction
– SR70F, SR48F
- Tighten the screw to the Hinge
insert.
5. Put the door back to the refrigerator
and reinstall the bottom hinge by
tightening the two screws.
1. Remove the door from the
refrigerator by removing the
two bolts each from the bottom
hinge and the upper hinge.
2. Remove the bolts from the door
latch plate.
3. Install the upper hinge and the
latch plate to the opposite side
4. Switch the latch position by
following the procedures
below.
-Unscrew the screw from the
Hinge insert.
-Remove the Hinge insert,
Latch handle, Latch pin and
Coli spring from the door.
-Unscrew the Latch handle pin
and screw it into the opposite
hole of the Latch pin.
-Turn the Latch handle upside
down and put it over the Latch
handle pin.
-Install the Coil spring , Latch
handle, and Hinge insert onto
the opposite side of the door.
Make sure the angled face of
the Latch pin faces the cabinet.
Boltes
Door
hinge
Door latch plate
Boltes
Coil spring
Latch handle
Latch handle pin
Latch pin
Hinge insert
Screw
1. Remove the door from the refrig-
erator by removing the two bolts
each from the bottom Door
hinge and the upper Door hinge.
2. Remove the bolts from the Door
latch plate.
3. Install the upper hinge and the
latch plate to the opposite side
4. Switch the latch position by
following the procedures below.
- Unscrew the screw from the
Latch handle to take apart the
Latch pin and Coil spring.
- Unscrew the Set screw and
screw it on the opposite side of
the Latch pin.
- Insert the Coil spring and Latch
pin to the opposite side of the
door while making sure the
angled face of the Latch pin
faces the cabinet.
- Tighten the Screw to install the
Latch handle.
5. Put the door back to the refrigera-
tor and reinstall the bottom hinge
by tightening the two screws.
Make sure the door gasket touch-
es the cabinet flat and tight when
the door is closed.
