ESR9855G
300Mbps Multimedia Enhanced Wireless N Gaming Router with Gigabit
Turbo boost your gaming experience without lags
ESR9855G 300Mbps Wireless
N Gaming Router with Gigabit
is designed to provide superior
range and blazing wireless
speed.
ESR9855G 300Mbps applies
StreamEngine™ technology to
detect and prioritize VoIP,
gaming, movie streaming, and
media packets to optimize
multimedia streaming
connectivity and enjoy reliable
and real-time multimedia
entertainment application.
With QoS technology, it
essentially avoids lags for
hardcore gamers while playing
online games.
Supports wireless data
encryption WEP/WPA/WPA2
to protect your data and
networking activity.
The embedded 3dBi high gain
antenna extends the range,
facilitates superior connections,
and eases upgradeability.
WIRELESS 802.11N TECHNOLOGY
The most advanced wireless networking technology
for the best range and speed
GIGABIT ETHERNET SWITCH
Eliminates bottlenecks between wired and wireless
devices and provides super-fast connectivity
between wired devices
STREAMENGINE™ TECHNOLOGY
Prioritize latency-sensitivity data to ensure
multimedia playing without lags.
802.11E QOS (WMM)
Optimized multimedia streaming for gaming
consoles, HD TV, music, VoIP, and other home
entertainment applications.
SECURITY & MANAGEMENT
Secure Push-Button Setup
Policy Based Parental Control for safe browsing
Power saving management (Green Technology)
Auto Firmware Recovery
Wi-Fi Protected Access (WPA2/WPA)
Powerful SPI Firewall
Wireless MAC Address Filtering
HIGH GAIN ANTENNA DESIGN
Embedded 3dBi Antenna facilitates high-speed
connection and superior coverage.
With external connector for upgradeable antenna.
2.4GHz
Key Differentiators
One-Touch
Setup
WDS
Power
Saving
WEP, WPA
WPA2
WiFi
Multi
media
HACKER
SHIELD Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range can vary
depending on many factors including network conditions, environmental factors, distance between
devices, radio interference in the operating environment, and mix of devices in the network
ADSL/Cable Modem
ADSL/Cable Modem
ADSL/Cable Modem Network
Printer
Network
Printer
Network
Printer
PC
PC
PC USB Dongle
USB Dongle
USB Dongle Gaming Consoles
Gaming Consoles
Gaming Consoles Notebook
Notebook
Notebook
INTERNET
ESR9855G
06_ESR-9855G DataSheet.qxd 6/14/2010 6:37 PM Page 1

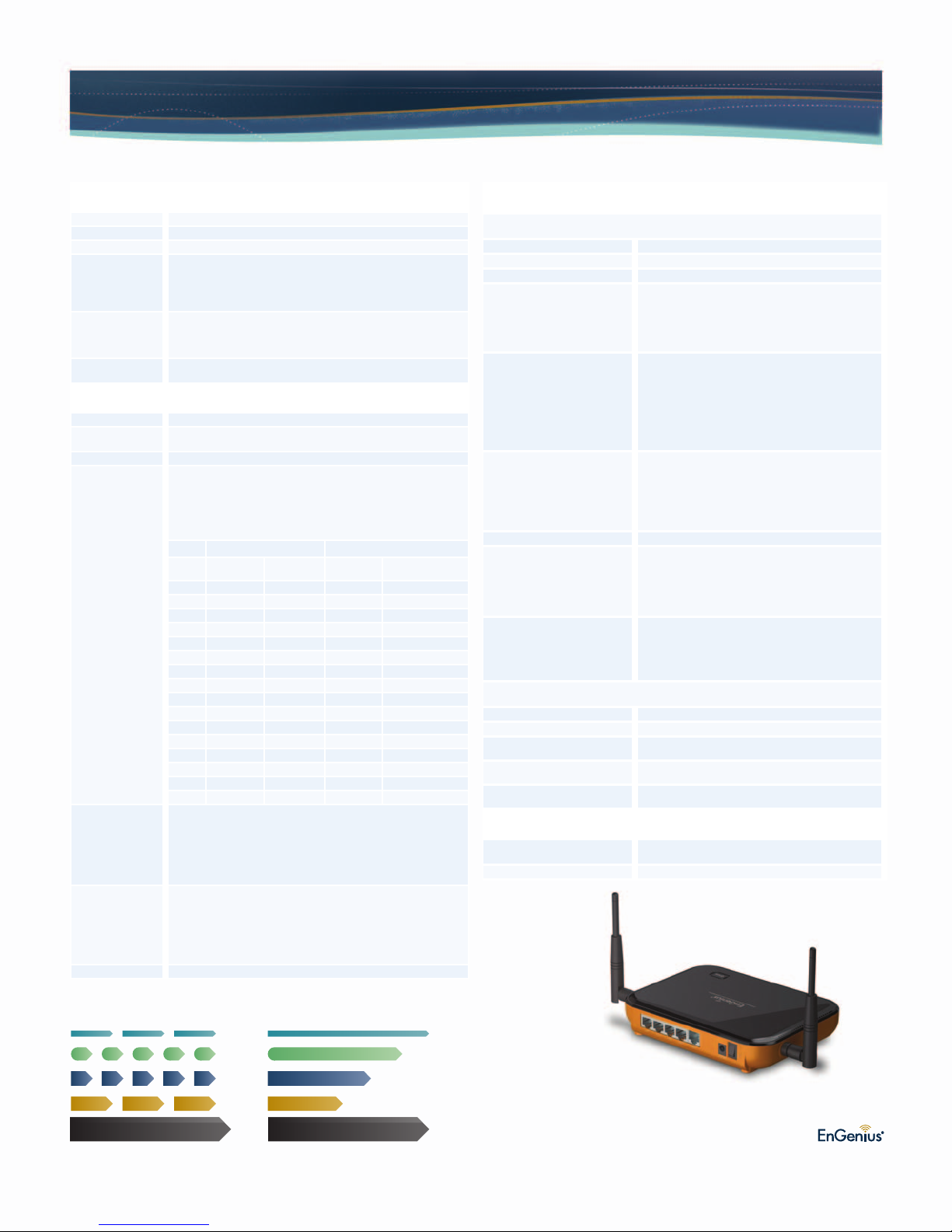

www.engeniustech.com
THE LEADER IN LONG RANGE WIRELESS HOME NETWORKING
ESR9855G
HARDWARE SPECIFICATION
CPU/MAC/BB Ubicom IP7K
RF Atheros AR9223
Antenna 3dBi Dipole Antenna* 2
Physical Interface
WAN: One 10/100/1000 Fast Ethernet RJ-45
LAN: Four 10/100/1000 Fast Ethernet RJ-45
Rest button
Power Jack
WPS (WiFi Protected Setup) Button
LEDs Status
Power Status
WAN (Internet connection)
10/100/1000LAN1~LAN4
WLAN (Wireless connection)
Power Requirements Power Supply: 200 to 240 VDC ± 10% (ETSI) 100 to 120 VDC ± 10% (FCC)
Device: 12V/1A
RF SPECIFICATION
Frequency Band 2.400 –2.484 GHz
Modulation Technology OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Operation Channels 11 for North America, 13 for Europe
Wireless Settings
Operation Mode: AP Router
Wireless Mode - 11b/ 11g /11n
Channel Selection (Setting varies by Country)
Channel Bandwidth (Auto, 20Mhz, 40Mhz)
Transmission Rate
-11g: Best. 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps
-11n:
Guard Interval 800ns Guard Interval 400ns
MCS
Index
20MHz
(Mbps)
40MHz
(Mbps)
20MHz
(Mbps)
40MHz
(Mbps)
06.5 13.5 7. 2 15
113 27 14.4 30
219.5 40.5 21.7 45
326 54 28.9 60
439 81 43.3 90
552 108 57.8 120
658.5 121.5 65 13 5
765 135 72.2 15 7. 5
813 27 14.4 30
926 54 28.9 60
10 39 81 43.3 90
11 52 108 57.8 120
12 78 162 86.7 180
13 104 216 115.6 240
14 117 243 130 270
15 130 270 144.4 300
Receive Sensitivity (Typical)
22..44GGRRaaddiioo((bb//gg//nn))
IEEE802.11n
MCS 0~15 @ optimal -90 dBm
IEEE802.11g
6~54 Mbps @ optimal -90 dBm
IEEE802.11b
1~11 Mbps @ optimal -93 dBm
Available Transmit Power
22..44GGRRaaddiioo((bb//gg//nn))
IEEE802.11n
MCS 0~15 @ up to 18 dBm
IEEE802.11g
6~54 Mbps @ up to 18 dBm
IEEE802.11b
1~11 Mbps @ up to 20 dBm
Regulation Certifications FCC Part 15, ETSI 300/328/CE
Technical Specifications Specifications may change without notice.
EnGenius Technologies
1580 Scenic Avenue
Costa Mesa, CA 92626 •USA
888.735.7888
SOFTWARE FEATURES
Router and Gateway
Topology Infrastructure
Operation Mode AP/ Router
LAN DHCP Server • Static IP • DNS • UPNP
WAN
Static IP
DHCP Client
PPPoE
PPTP
Clone MAC address
DNS Relay
DDNS-8 Verified Services Support
Router
NAT/ NAPT
Static Routing- RIPv2
Dynamic Routing
Virtual server mapping
IP address mapping
Port Forwarding
Port Triggering
MAC address Filtering
ALG (Application Layer Gateway) support
(RTP/RTSP, AOL, FTP, ICMP, WMP/MMS, NetMeeting, SIP)
Firewall
Block ICMP Ping
SPI (Stateful Packet Inspection)
Rule Based (IP Address Ranges, Port Ranges & Schedule)
DMZ (Demilitarized Zone) Host Support
Policy Based Parental Controls
Time Based Internet Access
Port Range / Service Filtering
Internet Domain Restriction
VPN VPN pass-through (PPTP, L2TP, IPSEC)
Wireless
64/128 bit WEP Encryption
WPA Personal (WPA-PSK using TKIP or AES)
WPA Enterprise (WPA-EAP using TKIP)
802.1x Authenticator
Hide SSID in beacons
Wi-Fi Protection Setup (WPS)
Auto Channel Selection
QoS
Stream Engine
WMM
Intelligent Stream Handling/Wireless Intelligent Stream Handling
Automatic Traffic Classification & Prioritization
Dynamic Traffic Shaping & Packet Fragmentation
Automatic Configuration
Management
Configuration Web-based configuration (HTTP)
Firmware Upgrade Upgrade firmware via web-browser
Administrator Setting Administrator password change
Idle time out
Reset Setting
Reboot
Reset to Factory Default
Systemmonitoring Status and Statistics, Time Zone & NTP Client,
Event Log, Email Alarm
ENVIRONMENT &PHYSICAL
Temperature Range Operating: 0°C to 40°C (32°F to 104°F)
Storage: -10°C to 60°C (14°F to 140°F)
Humidity (non-condensing) 15% – 95% typical
PRIORITIZATION
ONELINE GAMING
VOIP
WEB BROWSING
FILE SHARING
CLASSIFICATION
STREAM ENGINE™
REAR VIEW
