User Manual
Sierra - 5
Thank you for choosing our infrared sauna!
Congratulations on the purchase of your brand new infrared sauna. Please
carefully review and read through this material. Keep this manual and your
proof of purchase for future reference and service calls.

2
WELCOME FRIENDS!
We are so delighted that you have decided to take control of your life and invest in the most important
thing –your health. Soon you will discover there is more to sauna then just “sweating”. But first, allow
us to introduce our company, what we do, why we do it and what you can expect from us.
We began our journey a decade ago with one goal in mind… To create an Optimal Health Product. We
knew that general surface health treatments combined with inner cleansing could benefit many and
provide many positive health results.
However, thorough cleansing methods we have tested, many of us have experienced headaches during
a detox diet as well as lacking the ability to properly detoxify our system. There it hit us…What if we
can increase our ability to sweat to detoxify the system faster and more efficiently without the
unwelcome side effects? And how can we go about it?
Saunas have been in wide use for centuries, but the true breakthrough happened when the power of
Infrared Light was introduced into the unique health industry, specializing in detoxification and
cleansing. After much research and testing, we realized the benefits of infrared light are far more
reaching than just on the surface, or slightly underneath the skin. This was truly an extraordinary
discovery for us and we have devoted our primal business focus on exclusive manufacturing of infrared
sauna that would maximize healing potential and maintain an optimal healthy physique. The
understanding became a connection of dot –to- dot and we fell in love with our product so much, our
team uses infrared saunas daily.
We wish to share this technology and to show our passion for what we sell and believe in. It is truly part
of our personal journey, healing and inner belief that infrared saunas are safe and incredibly effective
sources for personal detoxification and more.
Please let us know if there is anything you need. We are here to help.
Happy Detox!
Enlighten Sauna Team

3
Electrical Components/Requirements
Please Read Carefully!
Each sauna will require a dedicated circuit when plugged into an outlet according to the chart below.
A “dedicated circuit” requires that no other appliance should share the outlet/circuit with the sauna.
Failure to comply with this requirement may cause an electrical interruption and/or a diminished
performance. To avoid any potential electrical hazards, it is recommended that only a qualified
electrician installs your dedicated electrical wiring for a proper sauna functionality. Please make sure
that the sauna is properly grounded. Serious injury may result if the proper electrical requirements are
not met.
WARNING! Keep the sauna away from any potential hazards, including any water source or liquids.
Select a dry, suitable location for sauna installation. Do not expose the heater elements to any water
source or liquids as it may cause electrical shock. Should you have any questions, please do not hesitate
to contact the supplier.
Power Plugs
Please read the following directions carefully.
Power Usage/AMPS
Wattage: 4000w
Voltage: 220/240 Volt
Near/Mid IR Wavelengths: 0 to 5
Far IR Wavelengths: 6 to 12
Amperage: 20 Amp

4
Plug: NEMA 6-20p
Sauna Installation Instructions
Please read the following directions carefully.
The sauna installation requires a minimum of 2 people. You should not try to install the sauna on your
own as damage may easily occur.
Caution
1. No plumbing or plumbing fixtures should be placed in the sauna.
2. Keep all liquids away from the heating panels.
3. Install the sauna on a completely leveled surface.
4. Flammable objects and corrosive chemical substances should be kept far away from the sauna.
Your infrared sauna will come packaged in five boxes (seven boxes for peak roof saunas). Please
make sure that you open the boxes FACE-UP. Please be very careful when opening the boxes!
BOXES CONTAIN FRAGILE PARTS AND GLASS!
Connecting the Panels:
Each sauna offers two types of panel-locking systems to connect the different sides of the sauna.
Please use the instructions below as a reference guide on how to connect the sauna panels.
Inner-Locking System:
The inner-locking system is designed to be completely invisible when the sauna is installed. The locks
are built on the side of each panel and they connect by sliding one over the other (Figure G-2).
To connect two panels, follow these few steps:

5

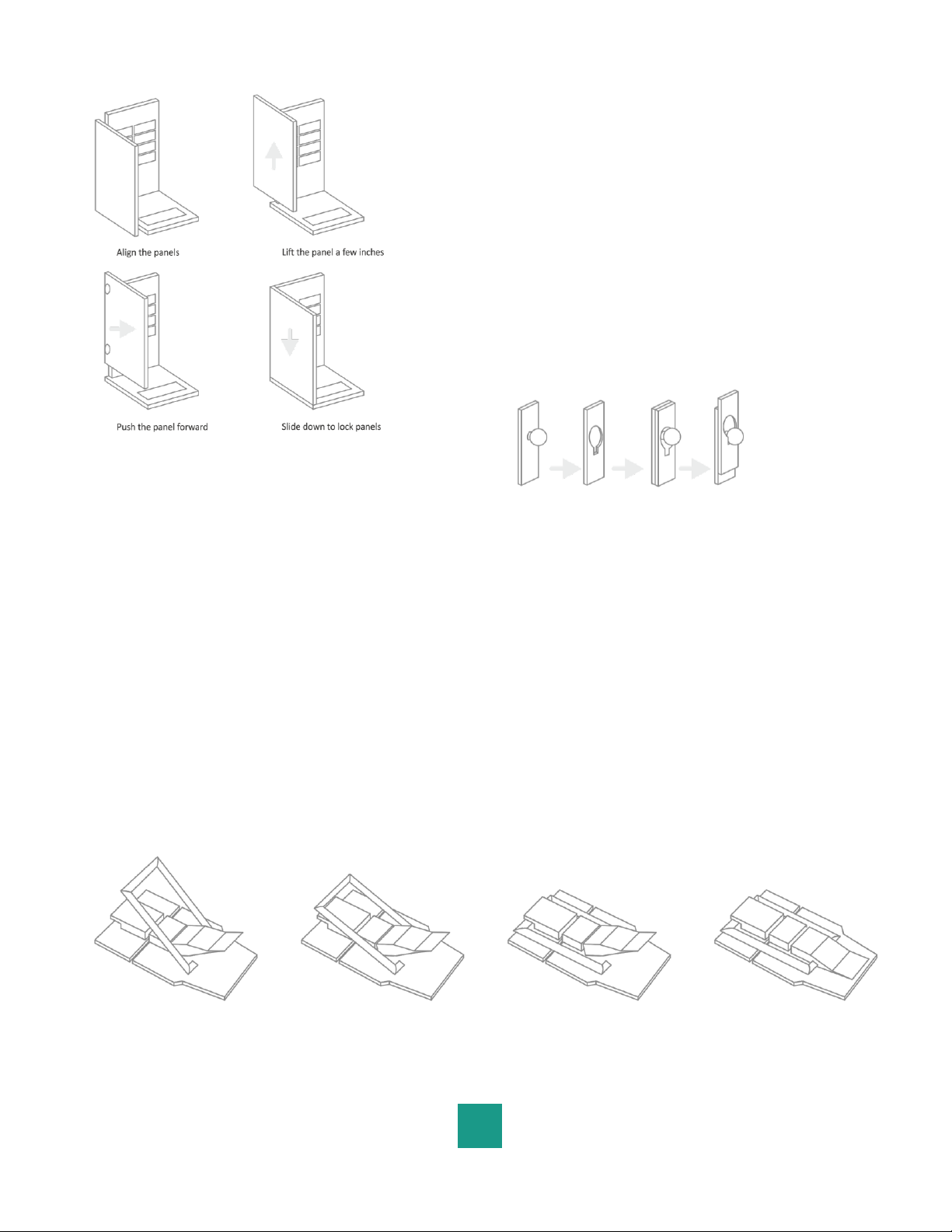

Figure G-1: Connect panels, inner
lock system
1. Lift the panel with the male locks a few inches.
2. Push it against the opposite panel; make sure to
apply pressure around the top and bottom
corners.
3. Slide the panel down to lock it in place. Make sure
all the locks are connected (top and bottom).
4. Inspect the panels and make sure they are leveled
(the top of the panel is flat and matching).
Figure G-2: Inner-Locking System
Latch System:
The Latch Locking System is two brackets that lock together bypassing the main loop over the
opposite side and locking latch (Figure G-3).
Figure G-3: Latch Locking System

6
Where to Start:
Lay the boxes flat on the ground and open them carefully. The accessories, user manual, and smaller
parts are located in the box that includes the top and bottom panels (Figure G-4).
Figure G-4: Open the Boxes

7
ASSEMBLY INSTRUCTIONS –General Guide for:
FLOOR PANEL Placement:
Place the floor panel flat on the desired location. Make sure to leave a space around the sidewalls for
one person to stand and install the side panels (Figure C-1). You can slide the sauna once it’s
complete next to a wall.
Tips:
●An “X” mark will point to the back of the sauna and the heater (on some models) point to the front
of the sauna.
Figure C-1: Floor Panel

8

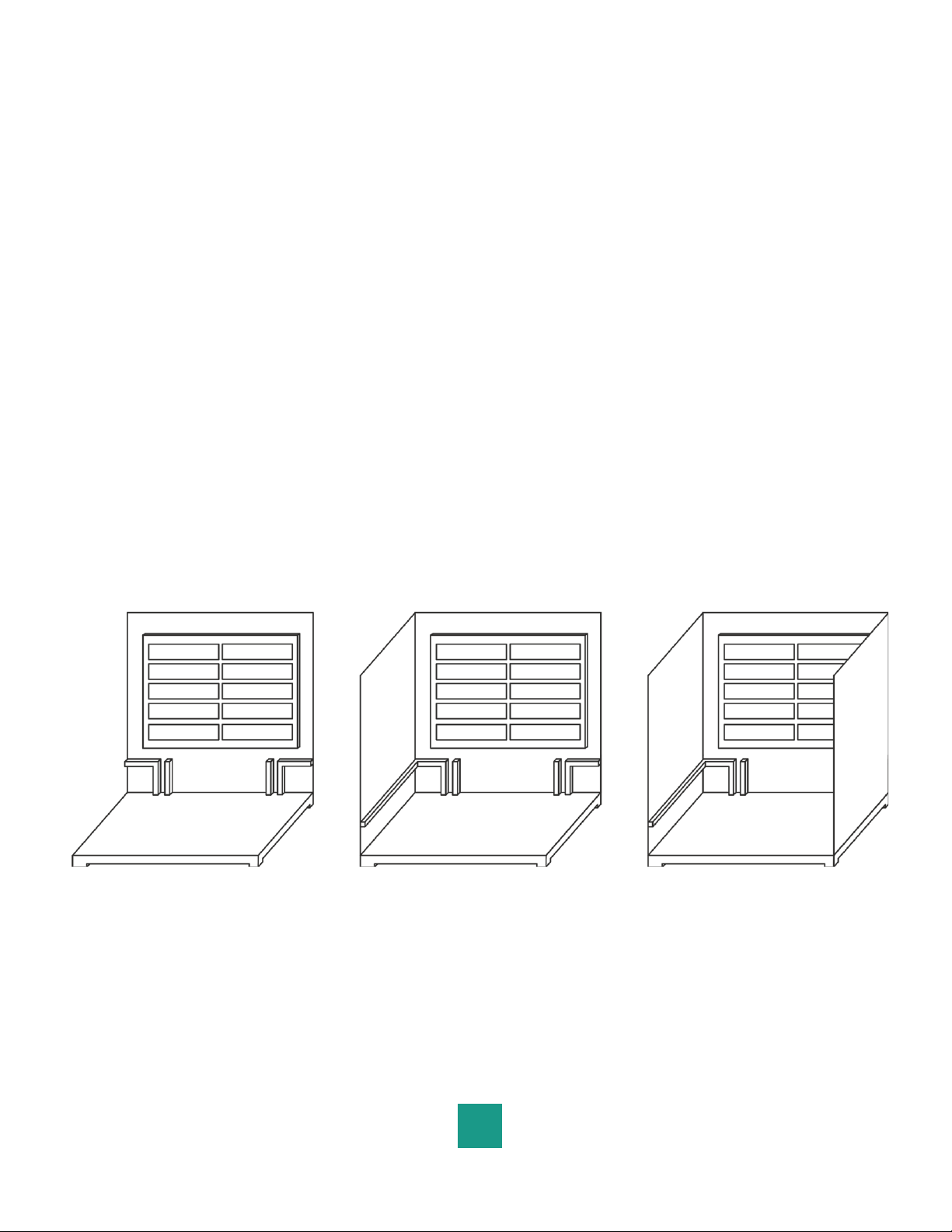

REAR PANEL Placement:
Place the rear panel on the back end of the floor panel. At this point, someone should hold the rear
panel until the next connection is made.
SIDE PANELS Placement:
Connect the side panels to the back panel as in the image below (Figure C-2, Page 8).
Refer to “Connecting the Panels” section (page 5) on how to lock the panels together.
Figure C-2: Rear and Side Panels

9
BENCH Placement
Some saunas will include square bench support. Place it in front of the windows (Figure C-3).
Figure C-3: Bench Support

10

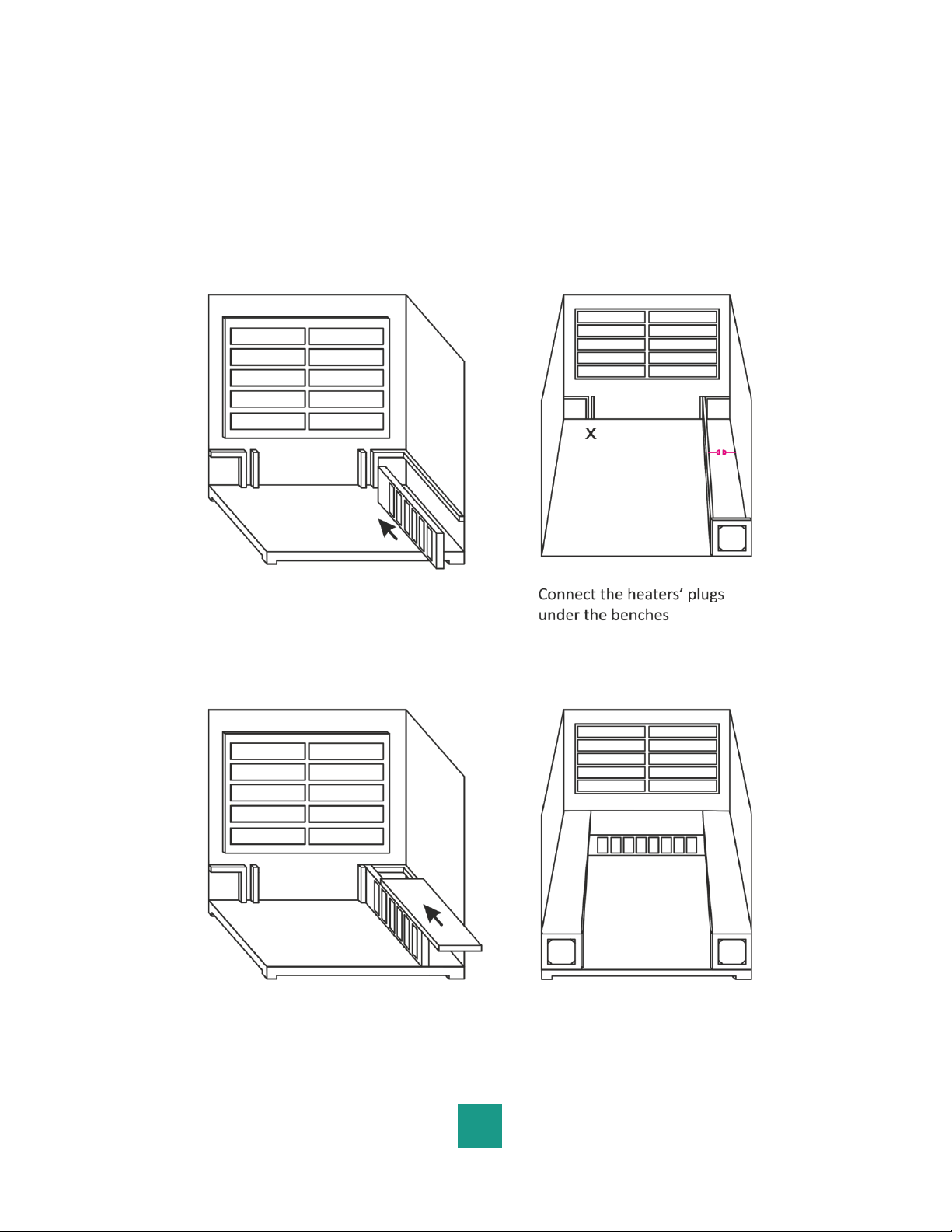

Step 1. Place the bench stand panels by lining up its side with the vertical guides on the rear panel.
After placing the bench stand panel, connect the heaters’ plugs.
Step 2. Slide the benchtop panel over the horizontal guide on the side panels. Make sure the smooth
and finished side is facing up and forward (Figure C-4, Page 21).
Step 3. Install the door handle at this point, before installing the front panel.
Figure C-4: Installing the Bench

11
TOP PANEL Placement:
Step 1. Raise the top panel over the sauna body. Insert the wires for the control panel, temperature
sensor, and heaters through the openings in the ceiling.
Step 2. Connect the control panel wire (white ribbon) and the heat sensor (2-pin wire) on top of the
sauna.
Step 3. Connect the heaters’ plugs into the control box. Even though the heaters’ plugs might be
labeled, they can connect into any sockets on the control box (Figure A-6).
Figure A-6: Top Panels and Connections
Note: Accessories installation instructions continue below the outdoor models.

12

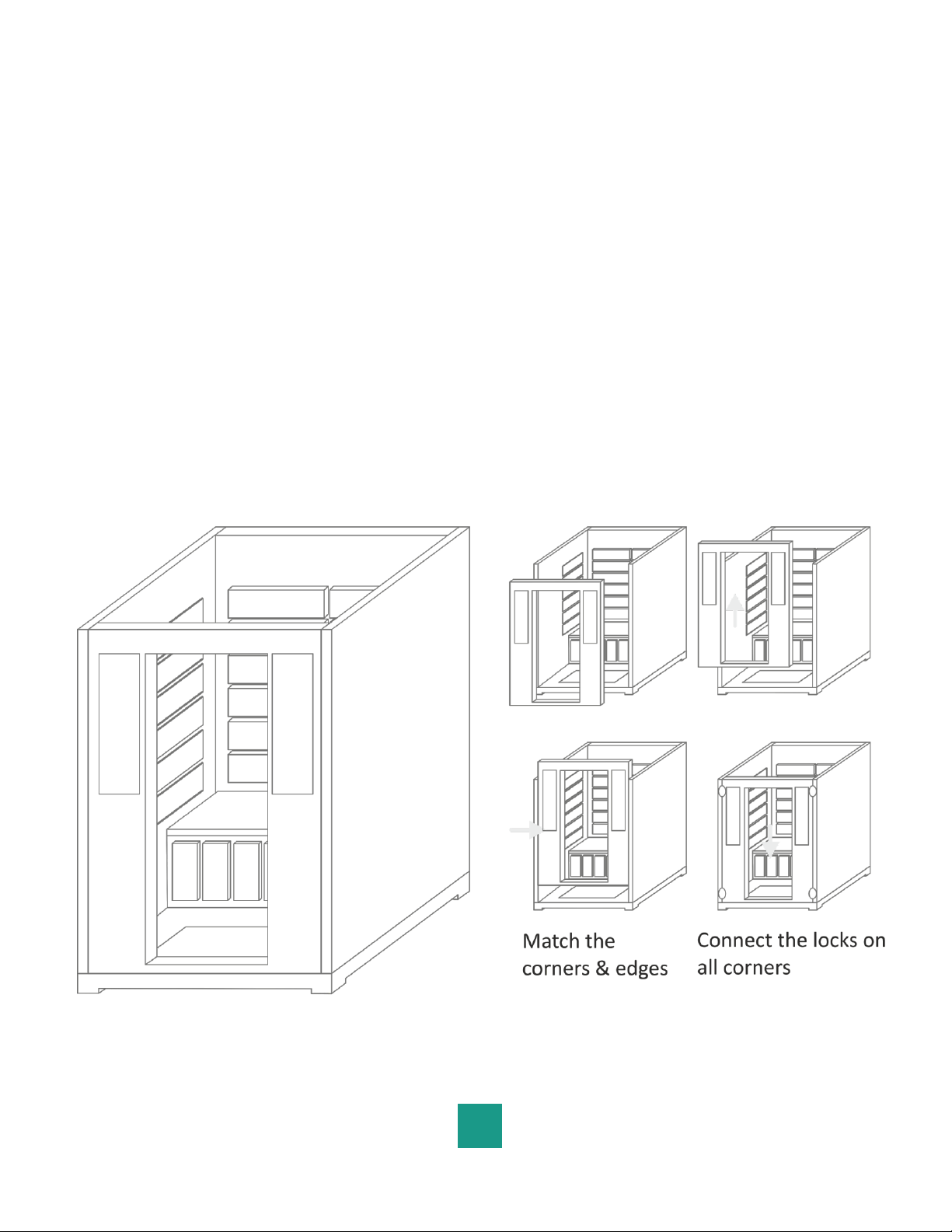

FRONT PANEL Placement:
(Note: Install the door handle before installing the front panel.)
Connect the front panel to both side panels as in the image below (Figure C-5, Page 22). Refer to
“Connecting the Panels” section (page 6) on how to lock the panels together
Tips:
●Make sure to align the corners of the two side panels and the edges of the front panel.
●If the lower locks are not connecting, make sure the bench stand is not blocking the panel by
aligning it with the vertical guide.
●The front panel is heavy because of the glass door. At least two people are needed to lift it.
●For the inner locking system, a person can stand inside the sauna to align the edges and corners of
the panels.
●For the inner locking system, make sure to put pressure on the top and bottom corners of each
side to ensure the locks are connecting.
Figure C-5: Front Panel

13
OUTDOOR SAUNAS ASSEMBLY INSTRUCTIONS:
Installation steps start at the section “Assembly Instructions – General Guide”. Then continue
after placing the top panel.
Main Support
Place the roof bottom section on top of the sauna and screw the center support beam (Figure D-1).
The illustration below will not include the sauna’s body, but the roof should be installed on top of the
sauna.
Figure D-1: Roof bottom section and center support beam

14

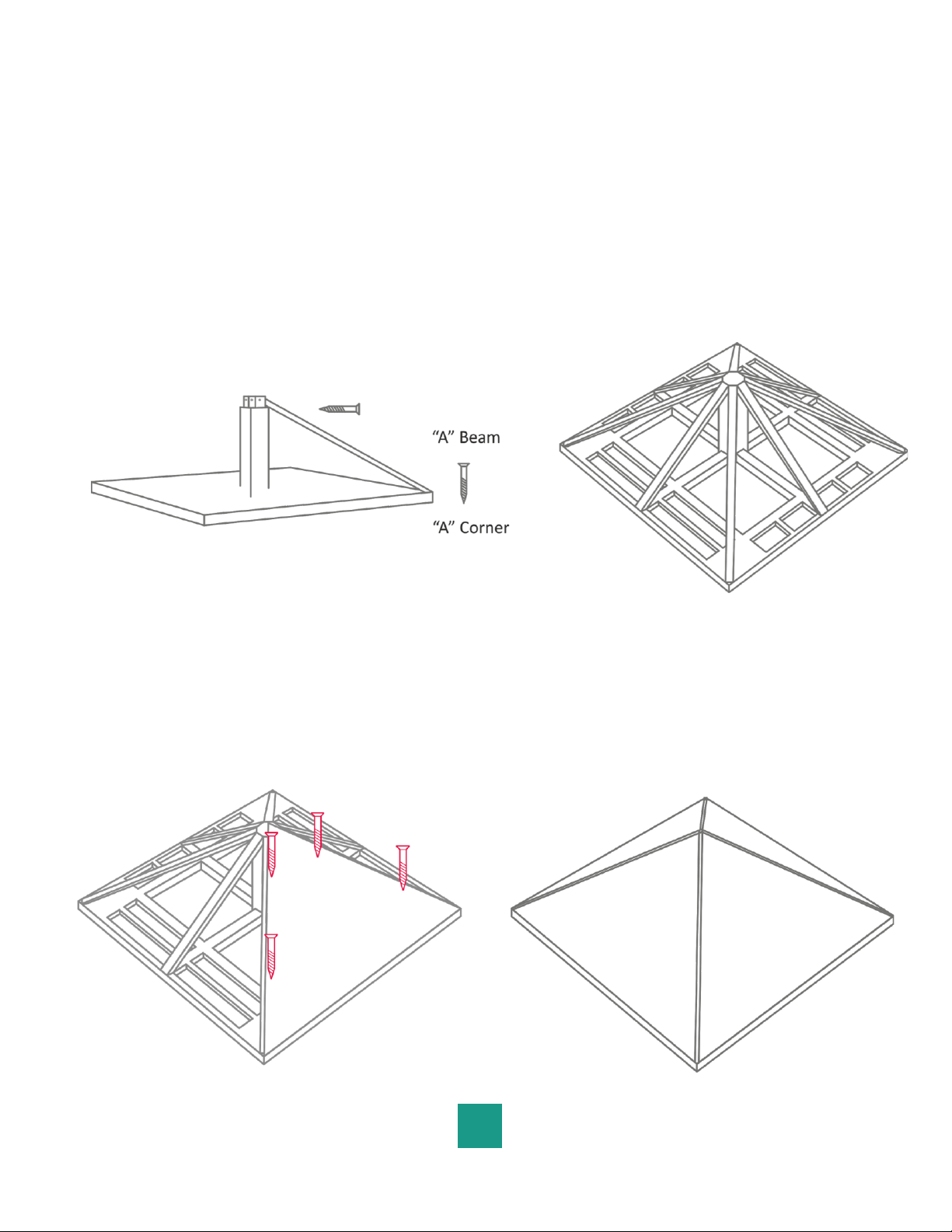

Roofing Shingles Support
Install the roofing shingles support beams around the top. Each beam is labeled alphabetically to a
matching corner or side (Figure D-2, Page 25). For example, the beam marked with “A” should be
screwed into the “A” corner. Repeat for all the corners and sides (based on the model, you might have
eight or six supporting beams).
Figure D-2: Shingles Support Beams
Screw the triangular roofing shingles on the supporting beams (Figure D-3). Repeat for all sides.

15
Figure D-3: Roofing Shingles

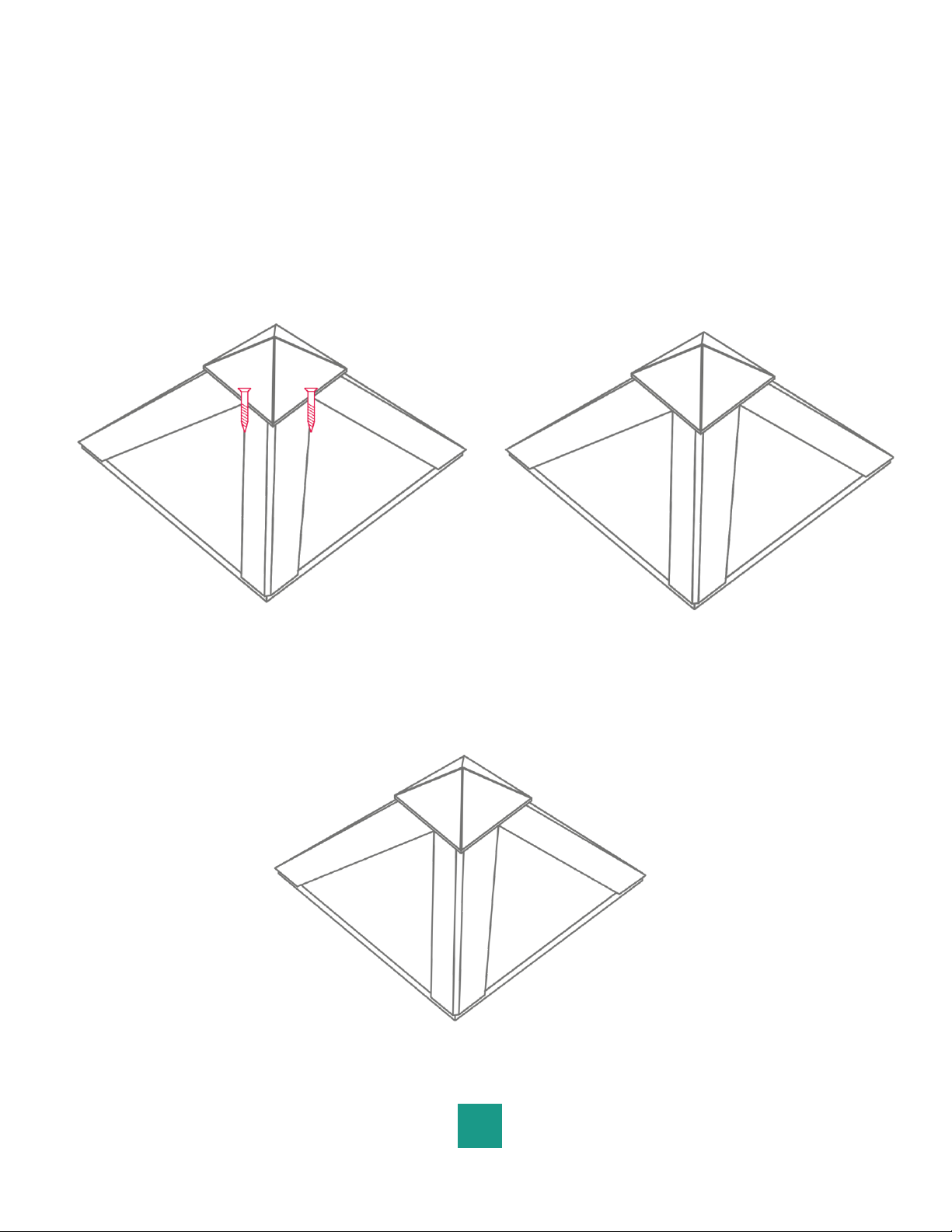

Roof Sealing
Screw the corner roof shingles around all corners. Each corner will have two shingles curved upward
to easily identify the position of the screws (Figure D-4).
Figure D-4: Corner Roof Shingles
After screwing in the corners, flatten the curved shingles and place the pyramid roof shingles on top
(Figure D-5).

16
Figure D-5: Pyramid Roof Shingles

17
Slope Roof
CAUTION!
BEFORE PLACING THE SLOPE ROOF, MAKE SURE THAT EVERYTHING IS WORKING AND
CONNECTED PROPERLY ON THE CEILING.
If you had something damaged or had any issues, please call our technical department and wait till
you get everything resolved and working properly before placing the roof. The roof is heavy and it
will be hard to remove it in order to install parts.

18
ACCESSORIES
Oxygen Ionizer (Recommended)
Locate the ionizer plug which is extended out of the sauna ceiling (1-pin
plug). Connect the oxygen ionizer and screw it into the back panel.
Cup Holder (Optional)
The cup holder is a small wooden table that can be screwed in one of the
front corners (either right or left, based on the user preferences). Make
sure not to install the cup holders on or in front of the heaters. Some
models with a glass front or corner saunas will not include the cup holder.
Magazine Holder (Optional)
The magazine holder can be installed either on the front wall (in front of
the window) or in the sidewall (next to the legs) (the placement of the
magazine holder is optional based on the user preferences). Do NOT
install the magazine holder in front of the heaters. The magazine holder
size might vary based on the model.
Towel Rack (Optional)
For models with full glass doors, the towel rack can be installed either on
the front wall or on the sidewall (the placement of the towel rack is
optional based on the user preferences). Do NOT install the towel rack in
front of the heaters.
For models with glass and wooden frame doors or wooden doors, install
the towel rack in the middle of the door frame and use it as a door handle.
AM/FM RADIO/MP3 player, BLUETOOTH The MP3 player will be pre-
installed on the sauna. There are two parts to help to remove the MP3 player if
needed (2 L-shaped metallic pieces –image on the right).

19
Color Therapy Lights (Recommended)
Some models will include color therapy lights (or chromo lights aka
chromotherapy). Color therapy lights function as light therapy for
physical and mental health. Scientists have determined that each color
emits a frequency.
Our body consists of Seven Layers of the Auric Field and the Seven
Chakras (energy centers of the body). Each layer looks different and each
has its own particular function. Each layer of our Aura is associated with
a chakra (1st layer with 1st chakra, and so on). See a chart below:
Chakra –Root Chakra (RED)
Location: The end of the spine, between the anus
and the sexual organs
Function/Qualities: Security/Safety, Stability
Function when disturbed/unhealthy: Fear, insecurity. Life feels like a burden. Feeling of not belonging.
Physical Health: Weak constitution, elimination problems. Reduced
physical and mental resistance.
2nd Chakra –Sacral Chakra (ORANGE)
Location: The Sexual Organs
Function: patience, Healthy/Positive Emotions towards Sexuality, Creativity, Responsible Relations
Function when disturbed/unhealthy: Rigid emotions, frigidity, guilt, no boundaries.
Physical Health: Problems with reproductive organs, kidneys.
3rd Chakra –Navel (YELLOW)
Location: Navel Point –Solar Plexus
Function/Qualities: Center of personal power and commitment;
Self-esteem, dignity, identity, judgment.
Place of inner balance and inspiration. Function when disturbed/unhealthy: Anger, greed, shame,
despair;
No strength or spontaneity. Conforming in order to be recognized;
Suppressing one's own wishes/emotions to please others.
Physical Health: Problems with digestion, the liver, gallbladder, the pancreas.
4th Chakra –Heart Chakra (GREEN)

20
Location: The middle of the chest on the breast bone.
Function/Qualities: Compassion, kindness, forgiveness, service, love
Function when disturbed/unhealthy: Grief, Attachment, Easily Hurt. Emotional dependence on others.
Heartlessness.
Physical Health: Heart problems, lung problems, blood pressure problems.
5th Chakra –Throat Chakra (LIGHT BLUE)
Location: The throat
Function/Qualities: Language; Ability to communicate effectively; Authenticity; Inspiring, teaching.
Function when disturbed/unhealthy: Lethargy, weakness in expressive abilities; Shyness, voice
problems, insecurity, fear of others’ judgments/opinions.
Physical Health: Throat, neck, thyroid problems.
6th Chakra –Third Eye (INDIGO BLUE)
Location: Between the eyebrows.
Function/Qualities: High Intuition; Clairvoyance; Visualizing; Fantasizing; Concentration and
determination; Self-Initiation; Power of projection; Understanding your purpose.
Function when disturbed/unhealthy: Confusion, Depression. Rejection of spirituality; Over-
intellectualizing.
Physical Health: Depression, Panic, Mental Disorders.
7th Chakra –Crown Chakra (VIOLET)
Location: Crown of the head.
Function/Qualities: Spiritual Connection; Connection to the Higher Self; Unity; Enlightenment;
Universal Awareness
Function when disturbed/unhealthy: Grief; Feeling of being separated from existence/abundance.
Fear of death. Mental Health: Complete separation and dis-illusion from oneself; grief, sadness,
false/limiting beliefs.
8th Chakra –Aura (WHITE)
Location: The electromagnetic field (contains all colors above)
Function/Qualities: Aura combines all the effects of the chakras and offers their projection. Aura
projects and protects.
Function when disturbed/unhealthy: Shy, withdrawn, vulnerable.
Physical/Mental Health: Overall weakness in mind and body.
Operating Instructions:
