2-Port Modbus RTU/ASCII To Modbus TCP Gateway
WPC-832-2-Modbus
User Manual
v.201812b
http://www.tcpipweb.com
*** this user manual is subject to change without prior notice.

2
Table of Contents
Introduction----------------------------------------------------------------------------------------------------------------------------------3
Overview -------------------------------------------------------------------------------------------------------------------------------------4
Package Check List -------------------------------------------------------------------------------------------------------------------------5
Product Specifications ---------------------------------------------------------------------------------------------------------------------6
Product Panel iews -----------------------------------------------------------------------------------------------------------------------8
Antenna Side -----------------------------------------------------------------------------------------------------------------------------8
Serial Interface Side --------------------------------------------------------------------------------------------------------------------8
LED Indicators ----------------------------------------------------------------------------------------------------------------------------9
Wiring Architecture ---------------------------------------------------------------------------------------------------------------------- 10
Configuration------------------------------------------------------------------------------------------------------------------------------ 11
IP Search Utility Setup --------------------------------------------------------------------------------------------------------------- 2
Web Browser Configuration -------------------------------------------------------------------------------------------------------- 4
1. System Setup ------------------------------------------------------------------------------------------------------------------ 14
2. Network setup ---------------------------------------------------------------------------------------------------------------- 16
3. Serial Port page --------------------------------------------------------------------------------------------------------------- 20
4. Gateway page (Serial port over T P/IP) --------------------------------------------------------------------------------- 21
Testing erification----------------------------------------------------------------------------------------------------------------------- 23
Hyper Terminal for TCP/IP----------------------------------------------------------------------------------------------------------- 23
Hyper Terminal for COM Port ------------------------------------------------------------------------------------------------------ 26
Reset (if needed) -------------------------------------------------------------------------------------------------------------------------- 27
Pin Assignment---------------------------------------------------------------------------------------------------------------------------- 28

3
Introduction
WPC-832-2-Modbus RTU/ASCII to TCP Gateway provides the easy way of connecting
Modbus Serial devices to Wireless and Ethernet LAN in Modbus TCP and RTU/ASCII
networks at the same time. The wireless supports 802.11 b/g/n in AP/Station mode with
WEP/WPA/WPA2 encryption for data transmission security. Ethernet support 10/100 Mbps
auto-detecting communication speeds. This Gateway is designed to operate 2 Serial ports
(RS-232 and RS-422/485 respectively) over wireless and Ethernet network. It allows users
to integrate Modbus/RTU and Modbus/ASCII Serial devices to the TCP/IP network-based
devices from host to remote site with 8 TCP Masters simultaneously and 32 requests
simultaneous per Master.
WPC-832-2-Modbus 2-Port Modbus RTU/ASCII To Modbus TCP Gateway is a
high performance design composed with carefully selecting qualified components from
reliable and certified sources. This operation manual will guide you to configure functions
step by step.
The following topics are covered in this chapter:
Overview
Package Checklist
Product Features
Hardware Specifications

4
Overview
WPC-832-2-Modbus 2-Port Modbus RTU/ASCII To Modbus TCP Gateway provides a
perfect solution to make your industrial Serial devices connect to Internet instantly via
Wireless and Ethernet LAN.
WPC-832-2-Modbus embedded with MT7688AN MIPS chipset makes it become the
ideal device for transmitting the data from your RS-232 or RS-422/485 Serial interface
devices, such as PLCs, various Meters and/or Sensors to an IP-based Wi-Fi LAN, and
making it possible for your software to access Serial interface devices anywhere and
anytime.
WPC-832-2-Modbus provides TCP Server Mode, TCP Client Mode, and UDP Mode for
selection. It supports manual configuration via web browser and support various
protocols including TCP, IP, UDP, HTTP, DHCP, ICMP, and ARP. These are the best
solution to coordinate your Serial interface devices.

5
Package Check List
WPC-832-2-Modbus 2-Port Modbus RTU/ASCII To Modbus TCP Gateway product
attached with the following items:
1 unit of Serial to WPC-832-2-Modbus Gateway
1 unit of Power Adaptor (12V DC, 1A) is an option
1 unit of dipole antenna(2.0dBi)
Documentation & Utility CD
NOTE: Inform your sales representative if any of the above items missing or damaged.

6
Product Specifications
System
CPU : MT7688AN MIPS CPU, 580 MHz
RAM : 128M Bytes DDR2 RAM
ROM : 32M Bytes Flash ROM
OS : OpenWrt Linux OS
TCP to RTU support 8 simultaneous TCP Master, 32 simultaneous requests per Master.
RTU to TCP support 8 TCP Slaves on each port.
Ethernet
Port Type : RJ-45 Connector
Speed : 10 /100 M bps ( Auto Detecting )
Protocol : ARP , IP , ICMP , UDP , TCP , HTTP , DHCP
Protocol：NTP, FTP
Mode : TCP Server / TCP Client / UDP
Setup : HTTP Browser Setup (IE, Chrome, Firefox)
Security : Setup Password
Protection : Built-in 1.5KV Magnetic Isolation
WiFi port
Support AP / Station
Standard : 2.4G IEEE 802.11b/g/n
Data Rate : 11/54/72.2 Mbps @ 20Mhz Band Width
Modulation : DSSS; OFDM
Frequency : 2.4GHz
Tx Power 11b : Max. 22dBm
Tx Power 11g/n : Max. 19dBm
Rx Sensitivity : -76dBm @ 54Mbps; -89.5dBm @ 11Mbps
Tx Rate : Max. 54Mbps with auto fallback
Tx Distance : Up to 100m
Security : WEP 64-bit / 128-bit data encryption, WPA / WPA2 personal
Antenna : 2 dBi ; RP-SMA connector
Network Mode: Infrastructure; Soft AP (for Setup)
Mode : TCP Server / TCP Client / UDP / Virtual Com / Pairing
Setup : HTTP Browser Setup (IE, Chrome, Firefox)
Security : Login Password
Serial Ports *2
Port : RS-232 *1 ( RS-232 with RX/TX/GND only )
Port : RS-422 / 485 *1 ( Surge Protect )
Speed：300 bps ~ 230.4 K bps
Parity：None , Odd , Even , Mark , Space
Data Bit：5 , 6 , 7 , 8
Stop Bit : 1 , 2
RS-232 Pins : Rx , Tx , GND
RS-422 : Rx+ , Rx- , Tx+ , Tx- ( Surge Protect )
RS-485 : Data+ , Data- ( Surge Protect )
15KV ESD for all signals
Power
DC 9~32 V, 1000mA@12V
support DC Jack & Terminal Block Input
Mechanical and Environment
Operating Temperature : -20℃〜70℃
Storage Temperature: -25℃〜80℃
Dimensions : 110 * 90 * 26 mm ( W * D * H )

7
Weight : 110 ±5gm
Housing: plastic.
Other Features
Led Lamp : SYS, WiFi, RX, TX, LAN
RTC : Real Time Clock
Watch Dog Function
Software : TCP TO RTU Slave, RTU Master TO TCP Slave ,
TCP TO ASCII Slave, ASCII Master TO TCP Slave
Warranty
Warranty period : 1 year.

8
Product Panel Views
Antenna Side
Serial Interface Side
DC-IN Power Outlet
(DC Jack)
Antenna
DC-IN Power Outlet
(Terminal Block)
Reset Button
(beneath the
antenna)
Ethernet LAN port
RS-422/485
RS-232

9
DC-IN Power Outlet
The Serial to Ethernet+WiFi Converter is powered by a single 12V DC (Inner positive, outer negative)
power supply and 1A Current. Connect the power adaptor to the AC power socket and put the DC
Jack plug into the outlet of device. The “SYS” green color LED will be ON when power is properly
supplied. Terminal Block 2 wires power supply is an option.
DC Power outlet
Reset Button
If any chance you forgot the login password or have incorrect settings making this Device inoperable,
upon the power is on and the “SYS” LED light on, use a point tip to press this button and hold it for
more than 20 seconds the release the point tip. The Device will reboot and all the parameters will be
reset to the factory default.
LED Indicators
SYS (Green):
Power indicator. When the power is on, the LED will be on and blink per second.
WiFi (Red):
WiFi indicator. When the WiFi is working, this LED will be blinking.
Tx (Green):
Data sending indicator. When data sending to the device from LAN or WiFi, this LED will blink.
Rx (Red):
Data received indicator. When data sending to the device from Serial ports, this LED will blink.
Antenna Connector
The connector for antenna is a standard reverse SMA jack. Simply connect it to a 2.0dBi dipole
antenna (Standard Rubber Duck). It is 50 Ohms impedance and can support 2.4GHz frequency.
Ethernet Port
The connector for network is the usual RJ45. Simply connect it to your network switch or Hub. When
the connection is made, the green color LED of Ethernet port will blink. When data traffic (Rx/Tx)
occurs on the network, yellow color LED will blink during data transferring.
DC-IN Power Outlet
The Device is powered by a 12V DC (Inner positive, outer negative) , 1.0A power supply. Plugging
the power adaptor to the AC power socket and put the DC Jack plug into the outlet of the Device.
The “SYS” green color LED will be ON when power is properly supplied. Terminal Block 2 wires
power supply is an option.

10
Serial Port of RS-232/RS-422/RS-485
Connect the Serial data cable between the device and the Serial interface device. Follow the
procedure of web page configuration to set up parameters.
Wiring Architecture
1. RS-232
2. RS-422/RS-485
When you finish the steps mentioned above and the LED indicators are as shown, the
converter is installed correctly. You can check the Software Setup CD to find IP
Search Utility. To proceed with the parameters setup, please use a web browser (IE
or Chrome) to continue the detailed settings.

11
Configuration
When setting up your Gateway for the first time, the first thing you should do is to
configure the IP address.
The following topics are covered in this chapter:
IP Search Utility Setup
Web Browser Configuration

12
IP Search Utility Setup
1. Copy “CvIotFinder Setup.exe” from CD ROM to your host computer.
2. “CvIotFinder” is a self-extract-install program. Double click it to install this Wi-Fi IP Searching
tool into host computer.
3. Upon running IP search tool (CvIotFinder), if a firewall warning pop up, please click to
accept the program pass through firewall.
4. CvIotFinder will pop up on the screen after installation or you may double click the icon on desk
top of host computer to open this tool.
5. Click on “Find” button. It will scan the network and show up the IP of Gateway.

13
6. Click “Setup” button will pop up a window. You may change Name, Description, IP, Netmask of
device. Click “Setup” to save setup. The device’s IP must be same subnet with host PC/NB
enable to use web browser open configuration page.
7. Click “Goto” button will open a web page of configuration. (default ID: admin; password: admin).
Login:
User: “admin”
Password: (none or “admin”)
8. Follow #5 step, now you have successfully connected to the Gateway.

14
Web Browser Configuration
There are 4 setup pages as “System”, “Network”, “Serial” and “Over TCP/IP”.
1. System Setup

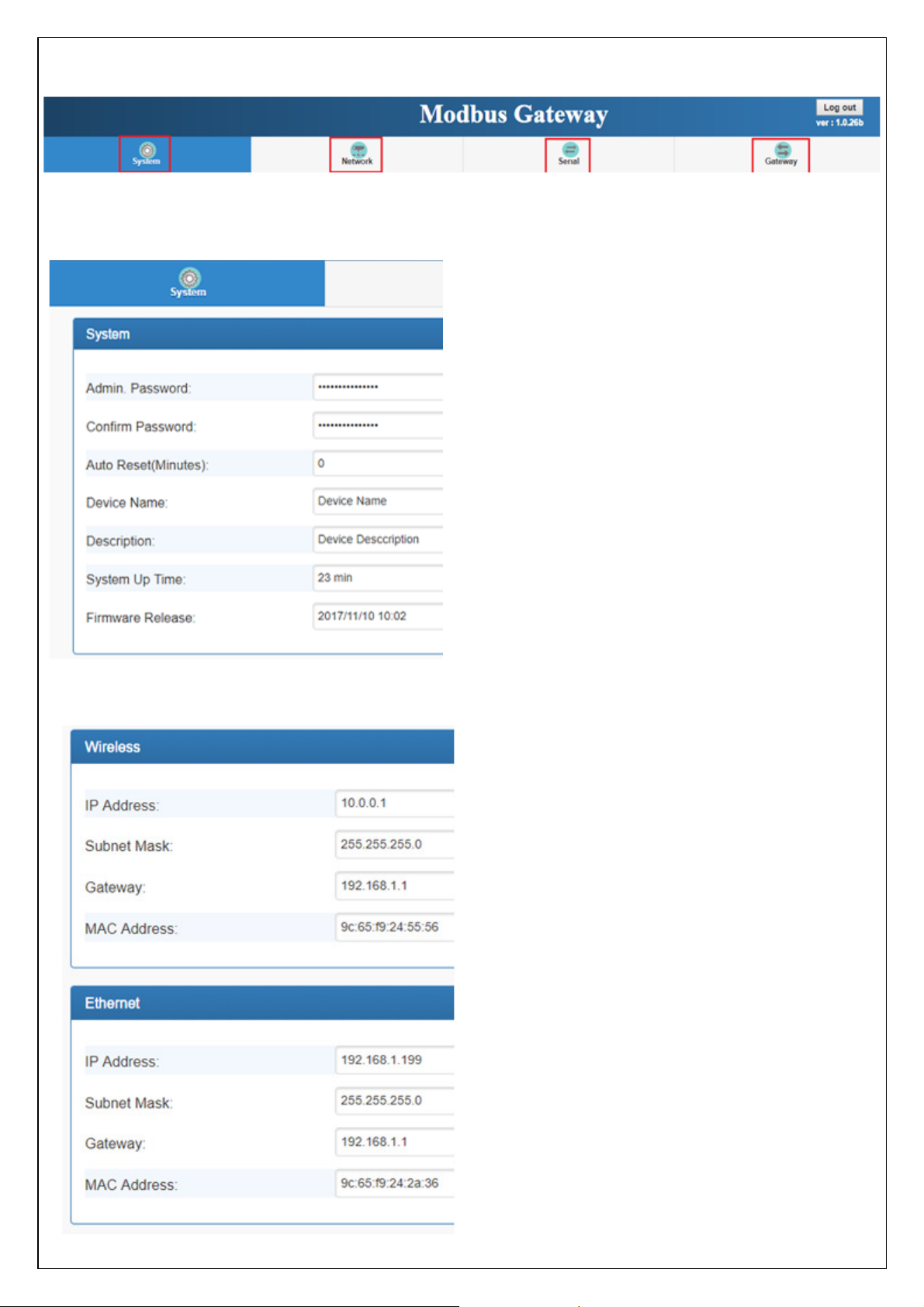

1.1 System: where you can change Password, set up Auto Reset time and modify Device Name,
Description of device.
1.2 Appearance of Wireless and Ethernet setup.

15
1.3 NTP: Enable / Disable NTP function; Set up NTP server and Time Zone.
1.4 Firmware update:
If necessary, click “Browse” to open file manager.
Then, select the file with specified version and click “open” button.
When the selected file name appears on the input column, click “Update” button.
1.5Up to now, Setup is successfully configured. Please click “Save” and go to other pages for
configuration or click “Save and Restart” to run new configuration.

16
2. Network setup
2.1 Wireless section:
2.1.1 Type: Click to select “Access Point” or “Infrastructure”. “Infrastructure” is for connecting to a
local Router.
2.1.2 If select “ACCESS POINT”, input password for the AP and assign IP address with “DHCP” or
“STATIC”.

17
2.1.3 When selected “ACCESS POINT”, this Device acts as an Access Point which is allowed to be
connected by PC /NB /Smart Phone/ PAD. It supports DHCP server function. Soft AP
broadcasts its SSID “CVIoT_XX_XX_XX_XX_XX_XX”. PC /NB /Smart Phone/PAD should
connect to this SSID and then able to open web browser with default IP of this Device.
2.1.4 Password: Key in selected AP log in password
2.1.5 Encrypt
2.1.6 Mode: select “DHCP” to let AP assign IP address to itself,
or select “STATIC” to input assigned IP address, Subnet Mask manually.

18
2.1.7 If The Type selected with “Infrastructure”, set SSID of Router and the other inputs.
2.1.8 Go to item SSID, click “Scan” will get list of available SSID of Access Points, select the one in
your network to link. For example:
2.1.9 On the NB/PC, choose same SSID to link. NB/PC must close Ethernet in advance otherwise
the data transmission would not work.

19
2.2 Ethernet section: select “STATIC” or “DHCP” to assign IP address.
2.3 Gateway and DNS section: check with MIS for right IP address of Ethernet or Wi-Fi. The
Gateway must be set with correct IP enable to connect with other devices.
2.4 Up to now, Setup is successfully configured. Please click “Save” for this page temporarily and go
to other pages for configuration or click “Save and Restart” to run this Device with new settings.

20
3. Serial Port page
Please clearly set each parameters from Serial 1 to Serial 2 (default 9600,n,8,1).
3.1 Baud Rate: 300 bps to 921.6K bps
3.2 Parity: None, Even, Odd
3.3 Data Bits: 5, 6, 7, 8
3.4 Stop Bits: 1, 2
3.5 Flow Control: None, XON/XOFF
3.6 RxDelay(ms)
3.7 TxDelay(ms)
3.8 Up to now, Setup is successfully configured. Please click “Save” for this page temporarily and go
to other pages for configuration or click “Save and Restart” to run this Device with new settings.
