Ensemble Designs BrightEye 72 User manual

www.ensembledesigns.com BrightEye 72 - Page 1
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
3G/HD/SD SDI
to HDMI Converter
User Guide
TM
BrightEye 72
Revision 1.1 SW v1.0.0

www.ensembledesigns.com BrightEye 72 - Page 2
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
Contents
PRODUCT OVERVIEW AND FUNCTIONAL DESCRIPTION 4
Use with any HDMI Monitor 4
SDI Input 4
Test Signal Generator 4
Video Proc Amp and Color Corrector 4
Audio Metering Overlay and Disembedding 5
Graticule Overlay 5
Closed Caption Decoding 6
Timecode Reader 6
Horizontal and Vertical Shift 7
BLOCK DIAGRAM 8
APPLICATIONS 10
REAR CONNECTORS 11
Power Connection 11
USB Connector 11
HDMI Out 11
Audio Out 11
3G/HD/SD SDI In 12
3G/HD/SD SDI Out 12
MODULE CONFIGURATION AND CONTROL 13
Front Panel Controls and Indicators 13
Status Indicators 13
Adjusting Parameters from the Front Panel 14
Front Panel Control and On-Screen Display 14
Examples of Using the Front Panel in Conjunction with On-Screen Display 15

www.ensembledesigns.com BrightEye 72 - Page 3
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
USING THE BRIGHTEYE CONTROL APPLICATION 18
Software version requirement 18
Input Menu 19
Proc Menu 20
Color Correct Menu 21
Audio Menu 22
Cong Menu 23
Captions Menu 24
Timecode Menu 25
SOFTWARE UPDATING 26
WARRANTY AND FACTORY SERVICE 26
Warranty 26
Factory Service 26
SPECIFICATIONS 27
GLOSSARY 29

www.ensembledesigns.com BrightEye 72 - Page 4
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
PRODUCT OVERVIEW AND FUNCTIONAL DESCRIPTION
The BrightEye 72 turns any High Denition Multimedia Interface (HDMI) display into a monitoring
solution with professional monitoring features. With the BrightEye 72, you can monitor any type of
digital video signal, including 3 Gb/s signals.
Use with any HDMI Monitor
The BrightEye 72 can be used with any HDMI monitor. Because there is a wide range of HDMI monitors
available, you have a lot of choices when it comes to selecting which particular HDMI monitor you
want to use.
SDI Input
The BrightEye 72 has an SDI input and a reclocked loopback SDI output. The input can be 1.5 or
3 Gb/s HD SDI or SD SDI. The loopback SDI output is a copy of the SDI input. The key features, such as
on-screen display of audio and open captions, are output through the HDMI output.
Test Signal Generator
The built-in test signal generator, useful for troubleshooting, inserts the signal at the front of the
signal path, so its behavior is functionally the same as cabling a test signal generator into a BNC input.
This path is fully adjustable so that you can compensate for the performance of the particular HDMI
monitor to which the BrightEye 72 is connected.
The test signal generator provides several test patterns including SMPTE bars with PLUGE, which is
useful for monitor alignment.
Video Proc Amp and Color Corrector
The Proc Amp and Color Corrector functions provide precise control over the output video levels. A
variety of controls are provided for making exact adjustments to produce correct luminance and color
rendition on the monitor and can be used with the built-in test signals. Adjustments are performed at
full 10-bit SDI resolution.

www.ensembledesigns.com BrightEye 72 - Page 5
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
Audio Metering Overlay and Disembedding
The BrightEye 72 has a sophisticated audio metering overlay capability that
uses four groups of four-channel on-screen VU meters. It includes a hanging
peak level indicator and a user-adjustable peak (headroom) indicator. You can
disembed and visually monitor up to sixteen channels of audio. Up to eight
channels of audio can be passed through the HDMI output.
HDMI monitor output example illustrating audio metering overlay, graticule overlay, closed caption
decoding, and timecode reader.

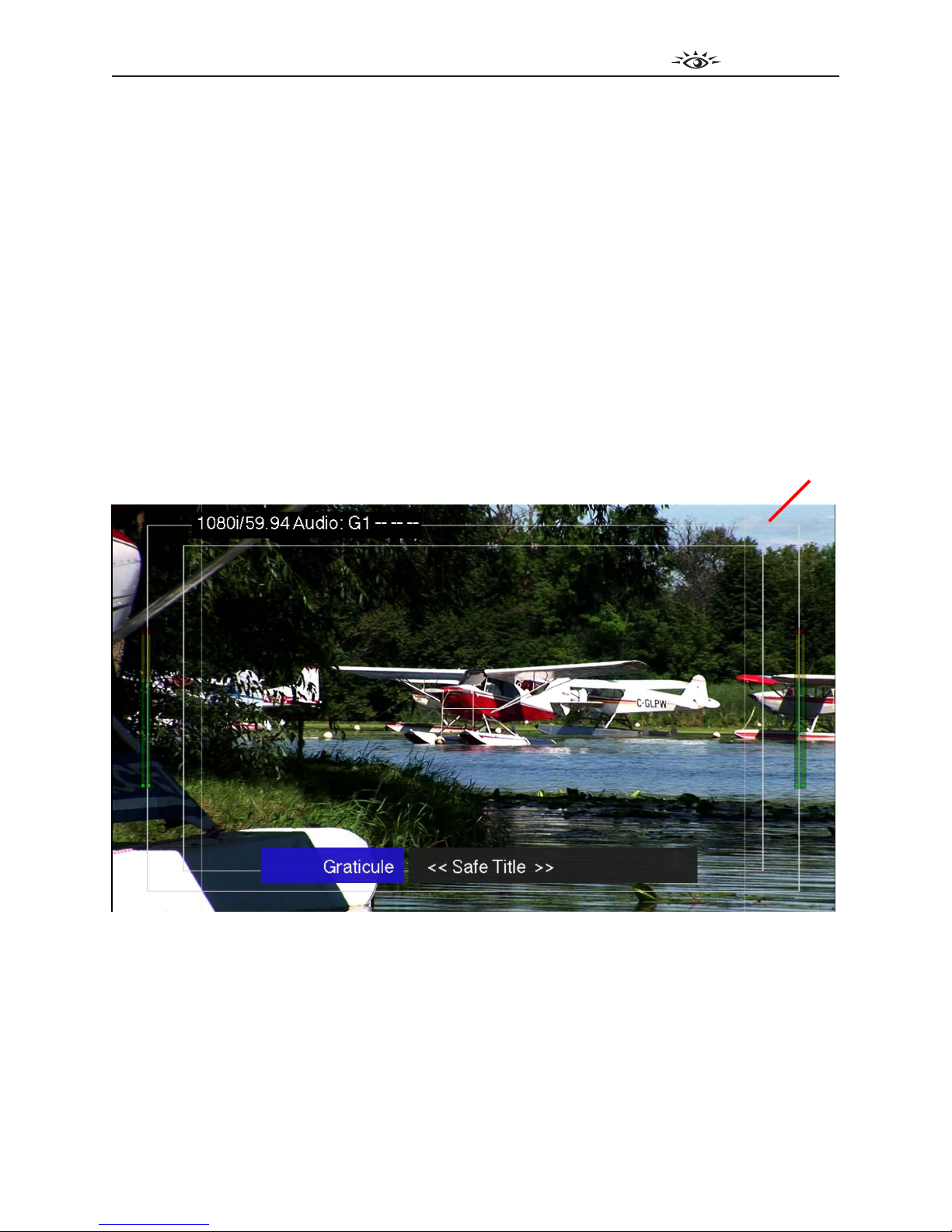

Graticule Overlay
A built-in graticule generator puts up Safe Title and Safe Action reference markers as well as SD Safe
markers on HD signals. There are thin lines running from top to bottom that indicate the SD protect
area. These graticule reference markers aid in seeing how content is aligned, facilitating lm transfer,
post production and quality control measurements relating to picture location for both the 4:3 and
16:9 aspect ratios. Safe Title displays the safe title boxes. SD Protect Only displays only the SD Protect
area without displaying the safe title boxes. You can adjust the color and intensity of the graticules or
turn graticules o.
Audio metering
overlay
Audio MetersOpen Captions TimecodeGraticule

www.ensembledesigns.com BrightEye 72 - Page 6
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
Closed Caption Decoding
The BrightEye 72 has a caption reader in the video path that decodes caption data. After being
decoded, a character generator system in the BrightEye 72 overlays the captions onto the video
which is then sent through the HDMI output to be displayed on screen. This is useful for compliance
monitoring to be sure that all the captions are present in the broadcast signal.
The CEA-608 and CEA-708 standards for closed captions are specic to NTSC-based television systems.
Accordingly, they are supported for these input signals:
Standard Denition 525/59.94
High Denition 1080i/59.94
High Denition 720p/59.94
Under U.S. federal law, all consumer television receivers above a certain display size sold in the U.S.
must include decoding and display of closed caption data. However, that requirement is only for
over the air (or cable) broadcast signals received through the tuner input. The HDMI input of these
displays is not required to support closed captions. In fact, the HDMI standard provides no support for
captions in ‘closed’ form. BrightEye 72 is able to deliver open captions to an HDMI display by rendering
them as actual image content with its built-in character generator.
Timecode Reader
The video path includes a timecode reader. BrightEye 72 can read and
display running timecode from either DVITC (Digital Vertical Interval
Time Code) on SD SDI inputs, or ATC (Ancillary Time Code) on
HD SDI inputs. Timecode display

www.ensembledesigns.com BrightEye 72 - Page 7
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
Horizontal and Vertical Shift
The BrightEye 72 can shift images horizontally and/or vertically to enable inspection of content in the
horizontal and vertical intervals outside of the picture itself, such as embedded audio, closed caption
data blocks, and blanking edges of the signal.

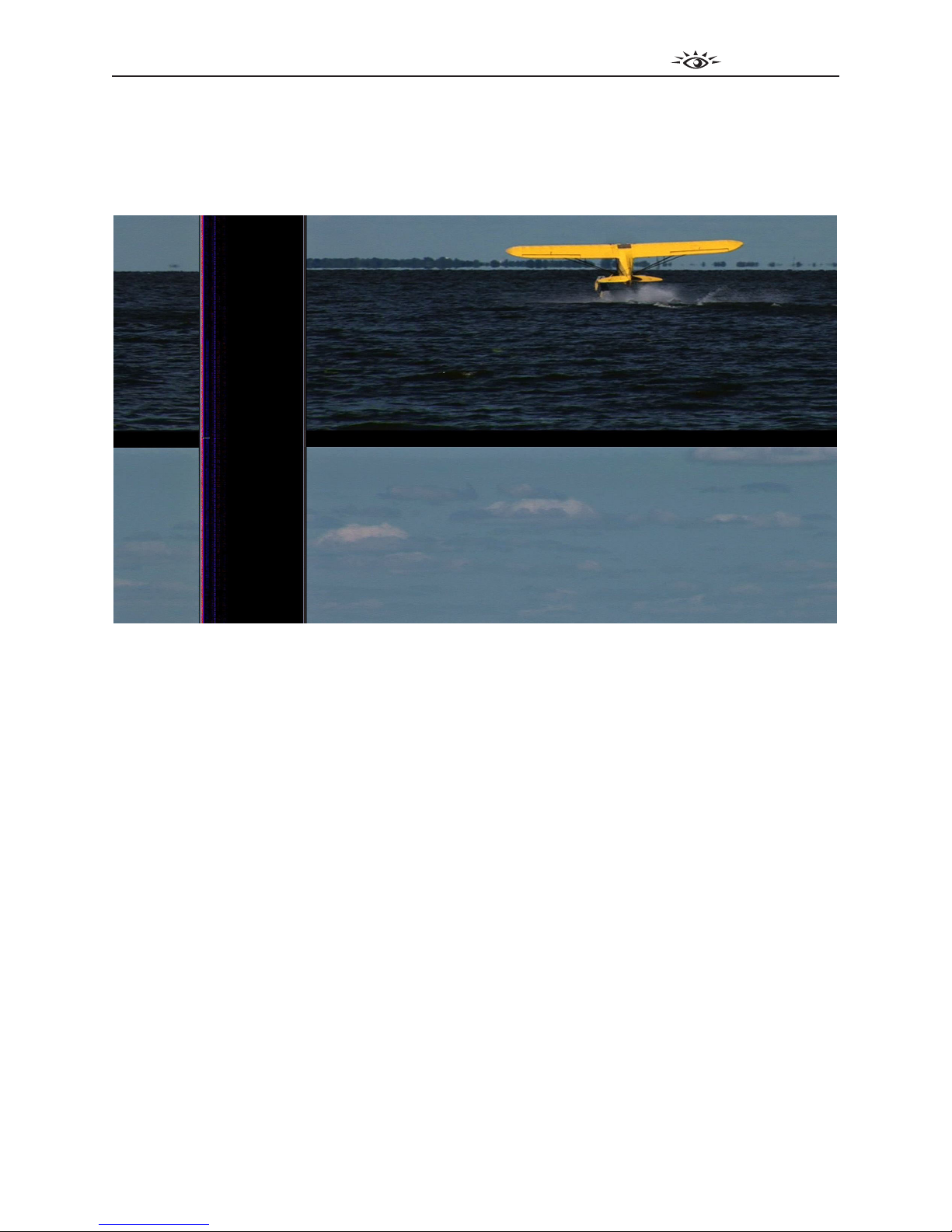

HDMI monitor output example illustrating Horizontal shift. H and V shift enables inspection of content in
the horizontal and vertical intervals.

www.ensembledesigns.com BrightEye 72 - Page 8
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
BrightEye 72 Functional Block Diagram, Portrait View
BLOCK DIAGRAM
For your reference, see the functional block diagram on this page and the following page. The diagram
appears twice, rst in a portrait view, then larger as a landscape view.
Video Proc
& Color
Corrector
Audio Meter
Overlay
Audio Out
Selection
16 Chan
Audio Demux
Test Signal
Gen On Screen Controls
Input Status Display
Graticule Gen
Timecode
Window Gen
3G/HD/SD SDI
In
3G/HD/SD SDI
Loopback
Caption
Reader
H & V
Delay
Overlay
Combiner
Timecode
Reader
HDMI Out
Analog
Audio Out
Open Caption
Decoding

www.ensembledesigns.com BrightEye 72 - Page 9
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
BrightEye 72 Functional Block Diagram, Landscape View
Video Proc
& Color
Corrector
Audio Meter
Overlay
Audio Out
Selection
16 Chan
Audio Demux
Test Signal
Gen On Screen Controls
Input Status Display
Graticule Gen
Timecode
Window Gen
3G/HD/SD SDI
In
3G/HD/SD SDI
Loopback
Caption
Reader
H & V
Delay
Overlay
Combiner
Timecode
Reader
HDMI Out
Analog
Audio Out
Open Caption
Decoding

www.ensembledesigns.com BrightEye 72 - Page 10
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
APPLICATIONS
Use BrightEye 72 with any HDMI monitor in broadcast production and distribution, QC, engineering,
post production, and the control room. In addition to video, you can also monitor ancillary data such
as closed captions, timecode, and audio. Graticules are available to align titles. Use the BrightEye 72 in
studio applications where you need to adjust the color temperature of on-set monitors so they look
right on camera.
The BrightEye 72 converts 3G/HD/SD SDI video signals to HDMI to provide professional monitoring
capabilities using an HDMI display. In the example below, the program feed from a server goes into
the SDI Input BNC connector of the BrightEye 72 and loops back out through the 3G/HD/SD SDI
Output BNC connector to the router. The input SDI signal is converted to HDMI and sent out through
the HDMI Out connector to an HDMI monitor.
BrightEye 72 HDMI
monitor
HDMI
output
3G/HD/SD
SDI input
Reclocked
loopback
SDI output
Routing
Switcher
Video
Server

www.ensembledesigns.com BrightEye 72 - Page 11
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72

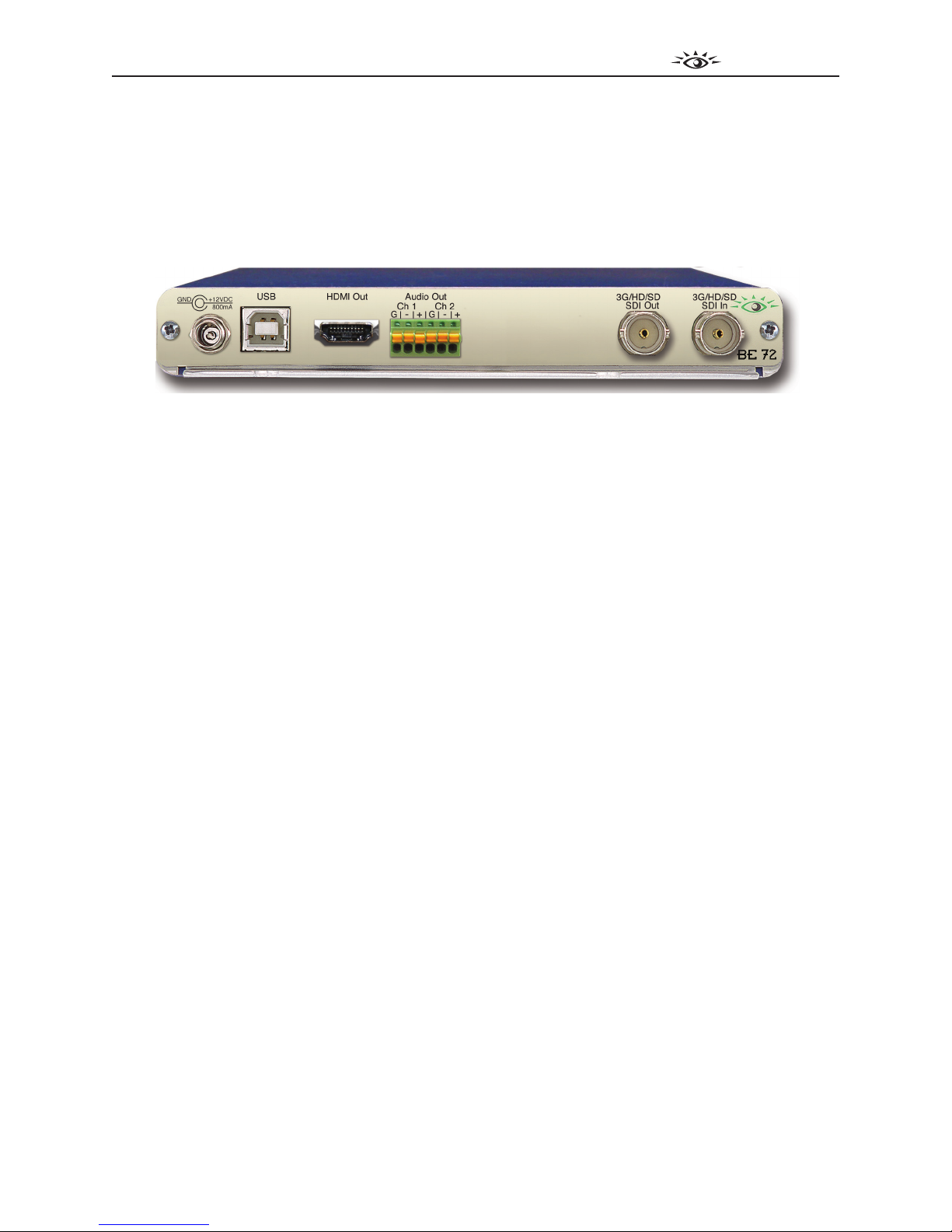

REAR CONNECTORS
All connections to the BrightEye 72 are made on the rear of the unit. Refer to the illustration below
for a reference of the rear connectors. A more detailed explanation of the rear connectors follows
immediately below.
Power Connection
Connect the modular power supply to the 12-volt DC power input connection on the far left of the
unit. Use the locking ring to secure it. If you don’t have the power supply already, contact Ensemble
Designs to purchase one.
USB Connector
Connect the USB port to a PC or Mac running BrightEye software for more comprehensive control,
diagnostics, and upgrades to the unit. BrightEye PC/Mac Control application software is included on
the CD that came with your unit, or the application can be downloaded here:
http://www.ensembledesigns.com/support/brighteye-support/
HDMI Out
The High Denition Multimedia Interface (HDMI) is an uncompressed, all-digital interface that
transmits digital video and eight channels of digital audio. HDMI is a bit-serial interface that carries
the video content in digital component form over multiple twisted-pairs. The HDMI interface standard
supports limited cable length as compared to SD and HD SDI. The use of cables over 10m (30 feet) is
not recommended. Connect the HDMI output to your video monitor.
Audio Out
The Audio Out connector provides two channels of balanced analog audio. This connector is tted
with a pluggable terminal block that accepts bare wire leads. Wires can be inserted into the small
round holes. Depress the orange tab to release them.
Follow the legend to connect the Ground (G), Positive (+), and Negative (-) connections for each signal.
Ch 1 corresponds to the left channel in a stereo system, and Ch 2 corresponds to the right channel.
If connecting to an unbalanced (single-ended) destination, such as a consumer speaker amplier, with
shielded coaxial style audio cable, connect the center conductor to the Positive (+) terminal. Then
connect the outer conductor to both the Ground (G) and Negative (-) terminals. Analog reference
levels can be congured from the BrightEye Control application.

www.ensembledesigns.com BrightEye 72 - Page 12
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
3G/HD/SD SDI In
This BNC input accepts SD SDI, HD SDI, or 3 Gb/s HD SDI video signals with or without embedded
audio.
3G/HD/SD SDI Out
The SDI Out BNC provides reclocked loopback output of the input video signal. Connect this BNC to a
video destination such as a router, production switcher, or broadcast monitor.

www.ensembledesigns.com BrightEye 72 - Page 13
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
MODULE CONFIGURATION AND CONTROL
There are two methods for controlling and operating the BrightEye 72:
From the front panel (with or without on-screen display on the HDMI out);1.
With the BrightEye PC or Mac Control application.2.
When controlling the module from the front panel, most, but not all of the control settings and
parameter choices will be available. For comprehensive control, use the BrightEye PC or Mac Control
application.
Front Panel Controls and Indicators
The front panel shown in the gure below provides status indicators and control over video and audio
output.
Status Indicators
The following status indicators are provided on the front panel:
In• – Illuminates green when there is a valid input signal detected.
Adjust• – Choices include Bright, Contrast, Chroma, and Hue. The LED will be green when the
parameter is set to its nominal setting. The LED will turn red when the parameter is adjusted
away from the nominal setting.
Display• – Choices include CC (closed caption), Aud VU (Audio VU), TC (timecode), and
Graticule. The LED will be green if the parameter is turned on. The LED will extinguish if the
parameter is turned o.
Enable• – Choices include Test (test signals) and H/V (horizontal and/or vertical shift). The LED
will be green if the parameter is turned on. The LED will extinguish if the parameter is turned
o.
Audio• – Choices include Gain and VU.
The Gain LED will be green when the parameter is set to its nominal setting. The LED will turn
red when the parameter is adjusted away from the nominal setting.

www.ensembledesigns.com BrightEye 72 - Page 14
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
The VU LED indicates the output audio level of the sum of channels 1 and 2. The LED will be
green when the audio level is at or below the digital reference level. The LED lights yellow
when the audio level is between the digital reference level and the peak threshold. The LED
lights red when the peak threshold is reached. Note that the digital reference level (sometimes
referred to as 0 VU) may be set by the user to -20 dBFS or -18 dBFS. Similarly, the user may set
the peak headroom between -2 dBFS and -10 dBFS. These two parameters are adjustable using
the BrightEye PC or Mac Control application.
Pwr (Power)• – Illuminates green when the BrightEye unit has power and the internal voltage
regulator is functioning correctly.
Adjusting Parameters from the Front Panel
From the front panel, use the Mode, Left Arrow, and Right Arrow buttons to select and adjust
parameters.
Pressing the Mode button cycles through the parameters that can be modied from the front panel.
The LED of the currently selected parameter will blink. A quick press of the Mode button advances to
the next editable parameter. A longer press of the Mode button will back up to the previous editable
parameter.
Pressing the Right Arrow or Left Arrow advances or backs up through the choices for the currently
selected parameter, or increases (Right Arrow) or decreases (Left Arrow) the value of the selected
parameter.
Pressing the Right Arrow and Left Arrow simultaneously restores the selected parameter to its
default value.
Front Panel Control and On-Screen Display
By default, on-screen display is enabled. There are two controls in the BrightEye PC or Mac Control
application that enable aspects of the on-screen display.
The rst control is the1. OSD Enable drop-down control in the Cong menu in the BrightEye PC or
Mac Control application. The available selections for this control are the following:
O• – Turns o the on-screen display.
Input Status• – Displays the input status only. Input status is shown near the upper left
corner of the monitor. Input status shows the input format, frequency, and embedded
audio presence in terms of group 1 (G1), group 2 (G2), group 3 (G3) and group 4 (G4).
Control Adjust• – Displays the value of the currently selected front panel control at the
lower center portion of the monitor. For example, when the Bright control is selected on
the front panel, the on-screen display (on the HDMI output) might read“Bright 100 pcnt”
indicating it is set to 100%.
All• – (Default selection) Displays both the input status and the current control value.
The second control relating to on-screen display is2. Include in OSD in the Color Correct menu in
the BrightEye PC or Mac Control application. If you want to be able to adjust the Red, Green and

www.ensembledesigns.com BrightEye 72 - Page 15
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72

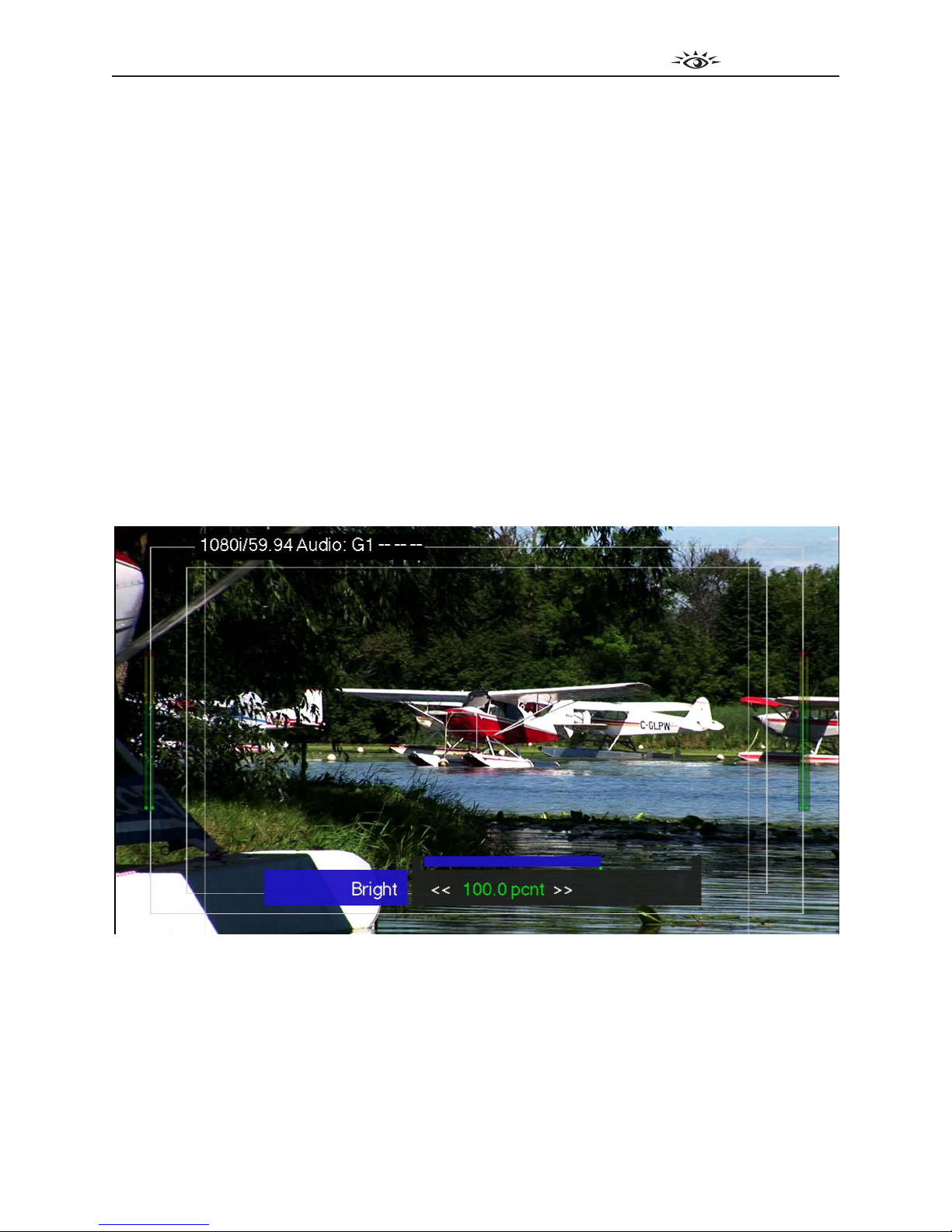

Example of on-screen display while adjusting the Bright control from the front panel
Examples of Using the Front Panel in Conjunction with On-Screen Display
Example 1
The image below is showing the Bright control. This example shows what you would see if you
pressed the Mode button on the front panel until the Bright LED started blinking. The Bright control
is indicated in the blue box. To the right of that is the specic parameter setting that you can adjust.
Pressing the Left Arrow decreases the value while pressing the Right Arrow increases the value.
Notice also that the input status is displaying in the upper left area of the monitor image, indicating
input format, frequency, and the presence of embedded audio. This example also includes graticule
lines and audio meters.
Blue Oset and Gain controls from the front panel, you must turn on Include in OSD.
NOTE: There are no LEDs on the front panel to blink to indicate that any of these six Color
Correction controls are selected, but the on-screen display will show each of these controls as you
move through them by pressing the Mode button on the front panel.

www.ensembledesigns.com BrightEye 72 - Page 16
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
Example of on-screen display while adjusting the Caption Display control from the front panel
Example 2
The image below is showing the Caption Display control. This example shows what you would see if
you pressed the Mode button on the front panel until the CC LED started blinking.
NOTE: If the control Include in OSD in the Color Correct menu has been turned on, you will need to
press the Mode button an additional six times to move from the Hue control to the Caption Display
control. These additional six presses will step through the six Color Correction adjustments in the on-
screen display, although no LEDs will blink on the front panel for these six controls.
Just like in the previous example, the editable parameter section is indicated in the blue box. To the
right of that is the specic value that you can adjust. Pressing the Left Arrow decreases the value
while pressing the Right Arrow increases the value.
Again, this example is displaying the input status in the upper left area of the monitor, indicating input
format, frequency, and the presence of embedded audio. This example also includes graticule lines
and audio meters.

www.ensembledesigns.com BrightEye 72 - Page 17
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
Example of on-screen display while adjusting the Graticule control from the front panel
Example 3
The image below is showing the Graticule control. This example shows what you would see if you
pressed the Mode button on the front panel until the Graticule LED started blinking. Graticule lines
are overlayed on top of the video, white graticule is shown below.
NOTE: If the control Include in OSD in the Color Correct menu has been turned on, you will need to
press the Mode button an additional six times to move from the Hue control to the Caption Display
control. These additional six presses will step through the six Color Correction adjustments in the on-
screen display, although no LEDs will blink on the front panel for these six controls.
Just like in the previous example, the editable parameter section is indicated in the blue box. To the
right of that is the specic value that you can adjust. Pressing the Left Arrow decreases the value
while pressing the Right Arrow increases the value.
Again, this example is displaying the input status in the upper left area of the monitor, indicating input
format, frequency, and the presence of embedded audio. This example also includes audio meters.
Graticule

www.ensembledesigns.com BrightEye 72 - Page 18
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
USING THE BRIGHTEYE CONTROL APPLICATION
The BrightEye PC and BrightEye Mac applications included on CD-ROM are designed to allow you to
congure and control the BrightEye 72 from a personal computer. Instructions for installing and using
this software application are given in the PDF manual on the CD-ROM.
Software version requirement
BrightEye PC or BrightEye Mac version 2.0 or later is required.
BrightEye PC/Mac Control application software is included on CD that came with your unit, or the
application can be downloaded here:
http://www.ensembledesigns.com/support/brighteye-support/
If the BrightEye 72 is connected to a computer running this software, the menus described in the
following pages are available for controlling and monitoring the unit.

www.ensembledesigns.com BrightEye 72 - Page 19
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72

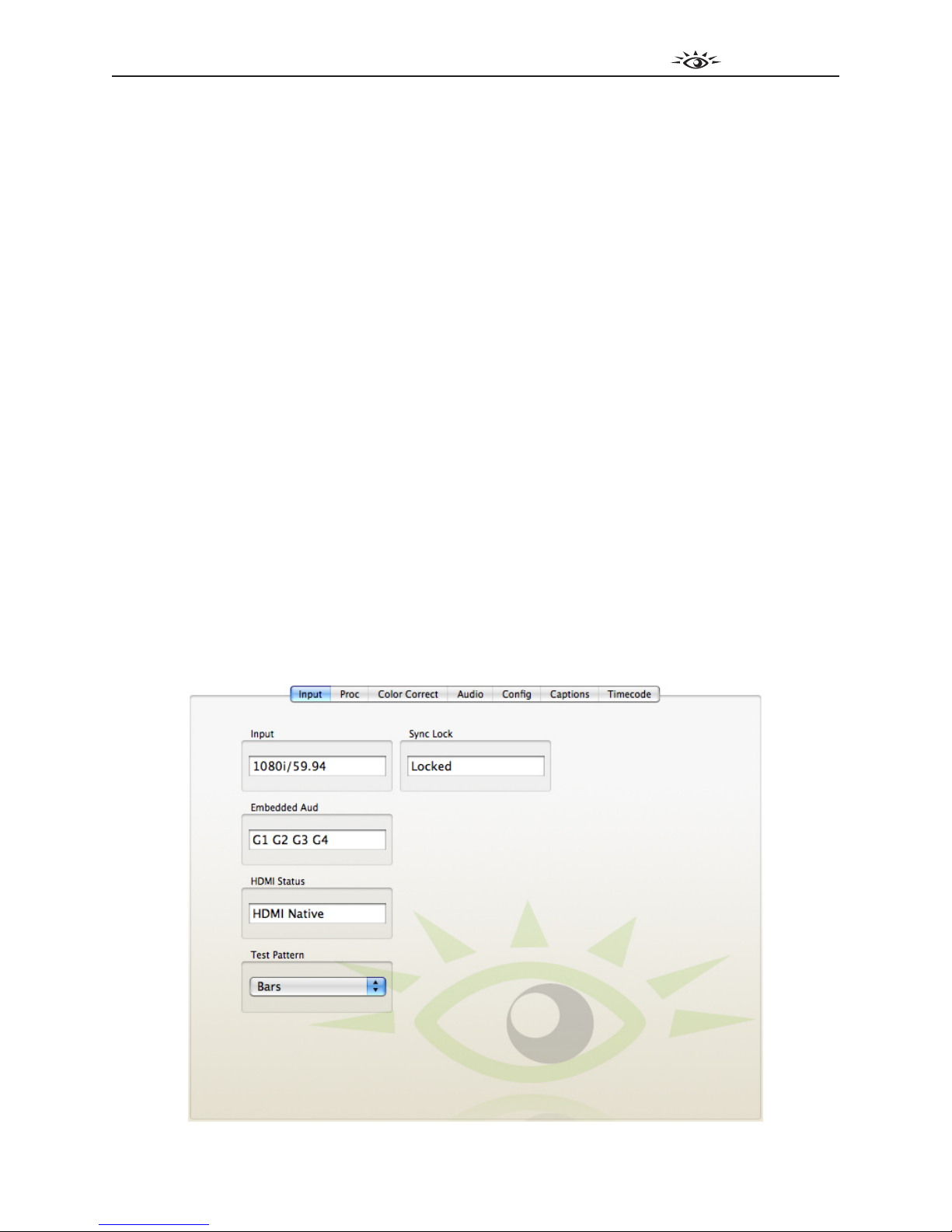

Input Menu
The Input menu indicates whether an input is detected and whether there is sync lock. It also shows
which groups of audio channels are being used, whether there is an HDMI monitor detected and the
Test Pattern selected.
Input• – shows whether or not there is an input signal detected. Types of input signals that the
BrightEye 72 will accept are:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz
3 Gb/s Level A or Level B (SMPTE 424M, 425M)
525i, 625i (SMPTE 259M)
Sync Lock• – indicates whether or not the BrightEye 72 is sync locked to a reference signal.
Embedded Aud• – shows which groups of audio channels, if any, are embedded in the input.
HDMI Status• – indicates whether or not there is an HDMI monitor present. When an HDMI
monitor is connected, this eld will show“HDMI Native.”When there is no HDMI monitor
connected, this eld will show“No Display.”
Test Pattern• – reects the selected Test Pattern. Choices include: O, Bars, Black, Flat 20,
Flat 80, Window 20/80, 10 Step, Bars Blue Only, and Dig Blanking.

www.ensembledesigns.com BrightEye 72 - Page 20
3G/HD/SD SDI to HDMI Converter User Guide
TM
BrightEye 72
Proc Menu
The Processor menu oers controls for Bright and Chroma amplitude, Contrast level, and Hue. This is
an NTSC-style Hue rotation. It can be used to make small adjustments in colorimetry.
The nominal settings for all of these controls are 100% of overall Brightness and Chroma, zero
adjustment to Contrast, and zero degrees of Hue rotation.
You can change these values by clicking and dragging on the slider control, by using the up and down
arrow buttons, or by entering values directly into the elds.
Bright• – adjusts the percentage of brightness (range is 0 to 150, default is 100).
Chroma• – adjusts the percentage of chroma amplitude (range is 0 to 150, default is 100).
Contrast• – adjusts the contrast level of the signal in IRE (range is -30 to 30, default is 0).
Hue• – adjusts the hue of the signal ± 180 degrees (range is -180 to 180, default is 0).
