This user guide provides detailed information for using the BrightEye 93
HD cross converter. The information is organized into the following sections:
• Product Overview
• Functional Description
• Applications
• Rear Connectors
• Operation
• Front Panel Controls and Indicators
• Using the BrightEye Control Application
• Warranty and Factory Service
• Specifications
• Glossary
TM
BrightEye 93
HD Cross Converter
User Guide
Revision 2.4 SW v1.2.3

BrightEye 93 HD Cross Converter
BrightEye 93 - Page 2
PRODUCT OVERVIEW
BrightEye 93 cross converts between a variety of HD standards, whether 720p or
1080i. BrightEye 93 auto-senses the input format and cross converts it, based on
the user’s selection of output format. The user only needs to select the preferred
output format. BrightEye 93 will then accept any video input and perform the
proper video conversion as needed. The built-in frame synchronizer handles any
asynchronous signals fed to the unit.
All vertical interval data and closed captioning is faithfully passed. Up to sixteen
channels of embedded audio are supported. If the incoming video has embedded
audio, the audio will be safely bypassed around the video processing and lipsync
will be preserved.
The rear-panel HDMI output connector is compatible with many LCD monitors
and allows confidence monitoring of signal feeds.
Basic controls are accessed on the front panel. BrightEye PC and BrightEye
Mac Control applications provide access to video processing functions, input and
output, and audio mixer controls that are not available from the front panel.
FUNCTIONAL DESCRIPTION
As shown in the following diagrams, when a high definition serial digital video
input is fed to the BrightEye 93, the signal enters the serial digital receiver and is
frame synchronized to the reference input. Audio is disembedded and passed around
the video processing. The video is cross converted to the selected HD standard.
The video and audio signals are joined in the embedder. This embedded signal
passes through a serializer to a pair of HD SDI outputs. The HDMI output
provides confidence monitoring of the same signal that is on the two HD SDI
output BNCs. A pair of audio channels, selected by the user from the Audio Out
menu, can be monitored on the headphone jack.
BrightEye 93 is powered by a 12 volt DC universal power supply. This power
supply can accept an input voltage between 100 and 230 volts, at 50 or 60 Hertz.
It uses a standard IEC line cord and can be used anywhere in the world. It is
normal for the converter to be quite warm to the touch when operating.
p
T
ri-Level Ref In
Genlock
HD SDI
Video In
Audio
Demux
HDMI Out
Headphone
Jack
HDMI
Xmtr
Monitor
Amp
Provides embedded pass through of all 16 audio channels
Crossconversion Audio Mux
HD SDI Out
SDI Driver
SDI
Receiver

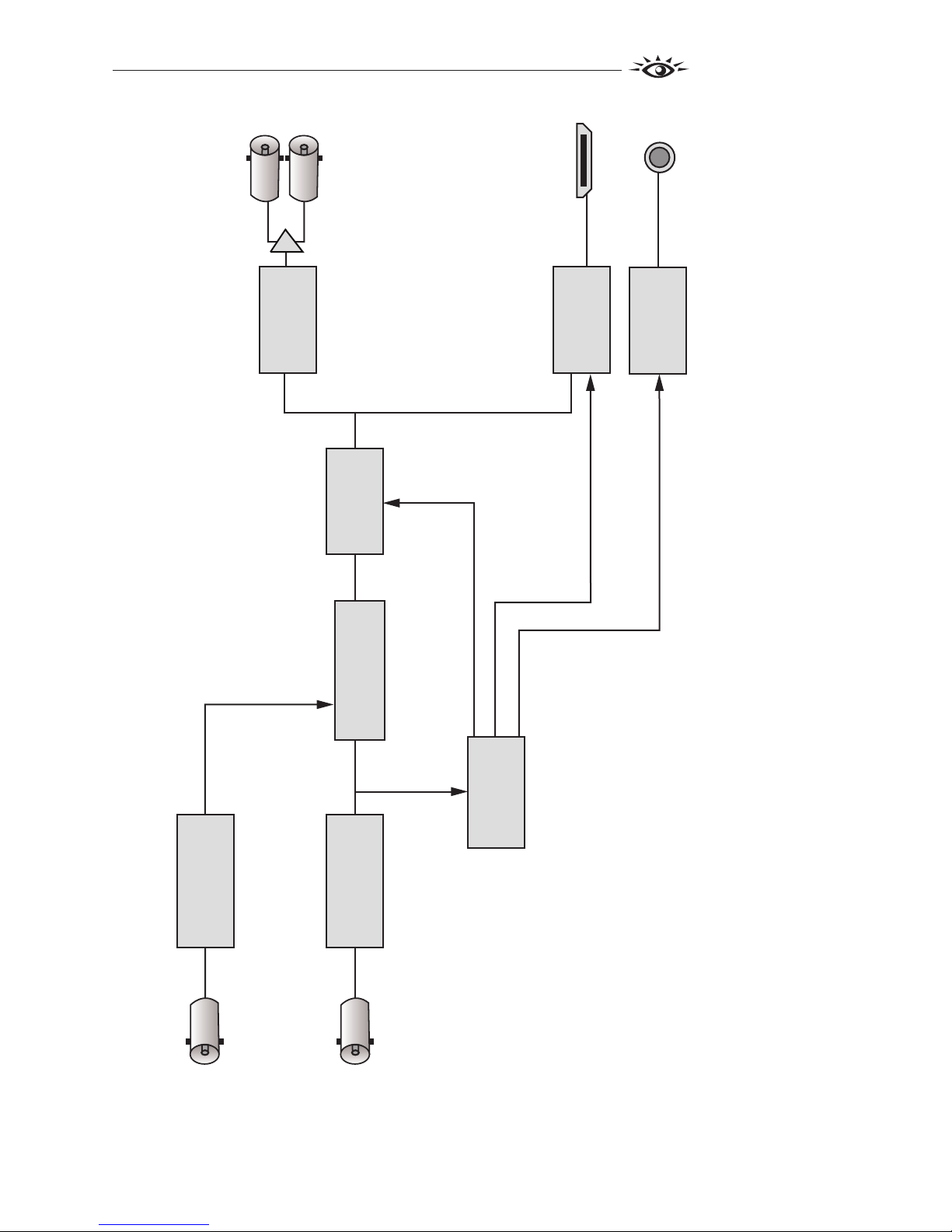

BrightEye 93 Functional Block Diagram, portrait view

TM
BrightEye 93
BrightEye 93 - Page 3
Composite or
T
ri-Level Ref In
Genlock
HD SDI
Video In
Audio
Demux
HDMI Out
Headphone
Jack
HDMI
Xmtr
Monitor
Amp
Provides embedded pass through of all 16 audio channels
Crossconversion Audio Mux
HD SDI Out
SDI Driver
SDI
Receiver

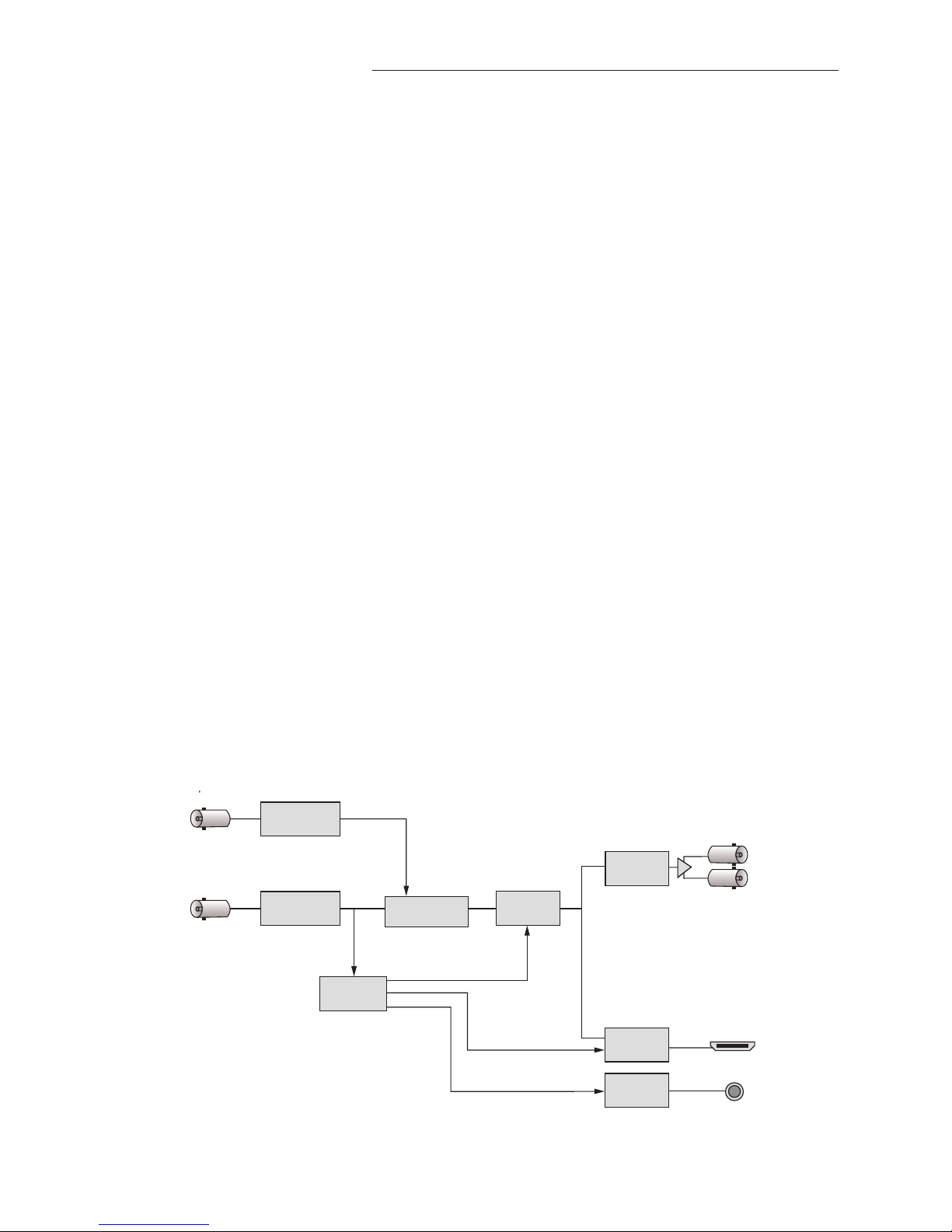

BrightEye 93 Functional Block Diagram, landscape view

BrightEye 93 HD Cross Converter
BrightEye 93 - Page 4
PERFORMANCE ADVANTAGES OF THE BRIGHTEYE SERIES
When images are converted between different formats, color spaces, and
resolution geometries, the need for accuracy and fidelity are extremely important.
Whether upconverting from standard definition to HD formats, converting
between different HD formats, or downconverting to SD, extra care must be paid
to every aspect of the signal and the content of the images. The BrightEye series
of up, down, and cross converters were designed specifically with this in mind and
provide the highest possible level of signal processing quality.
Key aspects of this design are:
1) The Standard Definition analog inputs and outputs feature 12-bit
quantization, with 4-times oversampling and 4:4:4 internal processing.
This allows for better separation of real image content from artifacts.
2) The RF aspects of the electrical performance of the SDI inputs and outputs
have been carefully optimized for reliable and dependable SDI I/O
performance even under adverse conditions.
3) Input signals are upsampled to 4:4:4 spatial resolution in RGB colorspace
and adaptively de-interlaced. This enables all of the geometrical conversions
of the image to be performed in the Progressive domain. This enhancement
to the temporal resolution of the image is a key contributor to final image
quality, even if the final output is interlaced.
4) The colorspace and geometrical conversions of the signal are performed at
up to 16 bits of resolution.
5) The final output signal is built from this intermediate progressive
workspace, which is the most uncompromised version of the image possible.
It provides the best possible starting point from which to create the final
output signal.

TM
BrightEye 93
BrightEye 93 - Page 5
APPLICATIONS
HD Cross Conversion
The BrightEye 93 can perform cross conversion between two different types of HD signals.
As shown here, the 1080i input from an HD network feed is sent to the BrightEye 93
where the format is converted to 720p as required for input to an HD router.
BE 93
Cross
Conversion
Network
Feed
HD
Router
1080i 720p

BrightEye 93 HD Cross Converter
BrightEye 93 - Page 6
REAR CONNECTORS
All connections to the BrightEye 93 are made on the rear of the unit. Refer to the
photo below.
Power Connection
Connect a modular power supply to the 12 volt DC power input connection on the
far left of the unit. Use the locking ring to secure it.
USB Connector
Connect a PC or Mac to the USB connector to enable more comprehensive control,
diagnostics, and upgrades to the BrightEye 93. Use the BrightEye PC or Mac
application included on CD-ROM to make adjustments as described in the
OPERATION section of this user guide.
HDMI Out
Connect an LCD monitor to this port for confidence monitoring of a video feed.
Audio Monitor
Connect a headset to this 3.5 mm mini jack to monitor the pair of audio channels
selected from the Mon Assign control on the Audio Out menu.
Input/Output BNCs
There are four rear BNC connectors used as inputs and outputs as follows:
HD SDI Out
This BNC outputs a timed high definition SDI video signal with embedded audio.
HD SDI Out
This BNC also outputs a timed HD SDI video signal with embedded audio.
HD SDI In
This BNC input accepts an HD SDI serial digital video signal with or without
embedded audio.
BrightEye 93 Rear Connectors

TM
BrightEye 93
BrightEye 93 - Page 7
Ref In
This BNC accepts an analog composite video signal or Tri-Level Sync reference
which is used as the genlock and timing reference for the internal Frame
Synchronizer. Typically the reference signal is Color Black or Color Bars fed from
a master sync generator (such as the BrightEye 55).
OPERATION
Control and operation of the BrightEye 93 is performed from the front panel or
remotely from a networked PC with the BrightEye PC or BrightEye Mac Control
application.
Some control settings are only available with BrightEye PC or Mac. These parameters
cannot be monitored or controlled from the front panel.
Front Panel Controls and Indicators
The front panel of the BrightEye 93, shown below, provides status and control
indicators for the module.
Status Indicators
The following status indicators and controls are provided on the front panel:
Embed In
Illuminates green when an embedded audio stream is detected on the HD SDI In
video input BNC.
Mon Vol (Monitor Volume)
Illuminates green when audio monitor volume is set to unity, or red when
set to other than unity. This control affects the audio headset jack output.
NOTE:

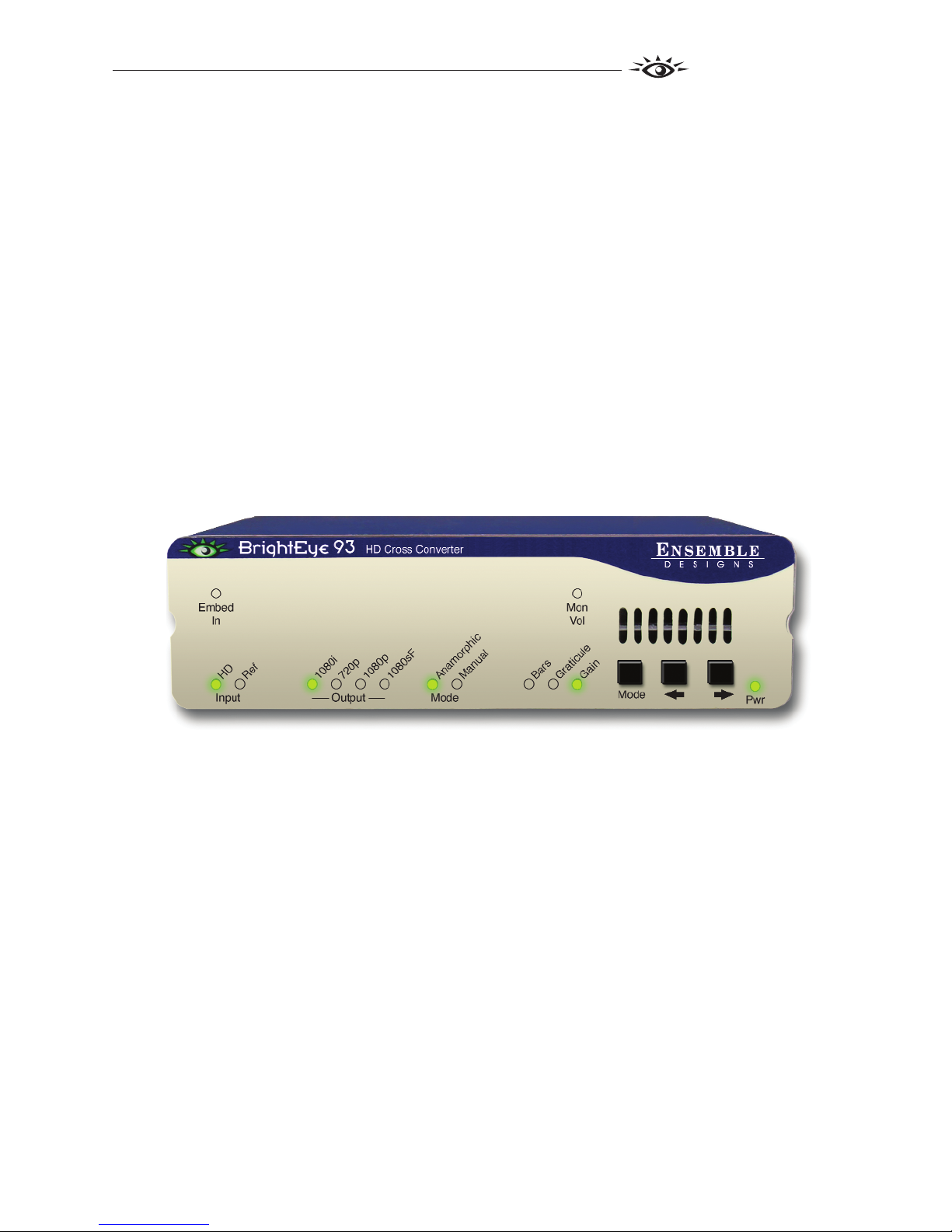

BrightEye 93 Front Panel

BrightEye 93 HD Cross Converter
BrightEye 93 - Page 8
Input
Illuminates green when a valid HD video signal is detected on the HD SDI
In video input BNC. Ref (Reference) illuminates when a valid composite or
Tri-Level Sync reference is detected on the Ref input BNC.
Output
Indicates the type of video signal selected on the HD/SD SDI Out BNC.
Choices are 1080i,720p, 1080p, 1080sF or SD.
Mode
Indicates the output aspect ratio of the output signal. Choices are:
• Anamorphic – original material is converted as needed to 4:3.
•Manual – illuminates green when the output aspect ratio has been set
manually.
Bars
Illuminates green when color bars are selected for the output.
Graticule
Illuminates green when the on-screen aspect ratio graticule is displayed.
Gain
Illuminates green when video gain is set to unity, or red when set to other
than unity.
Pwr (Power)
Illuminates green when power is applied to the unit and the internal
voltage regulator is functioning correctly.
ADJUSTING PARAMETERS FROM THE FRONT PANEL
Use the Mode, Right Arrow, and Left Arrow buttons to select and adjust
parameters from the front panel.
Pressing the Mode button activates the front panel for editing and tabs between
each section of editable parameters.
Pressing the Right Arrow or Left Arrow advances the selection within a given
section of parameters, or increases (Right Arrow) or decreases (Left Arrow) the
value of a selected parameter.
The LED of an edited parameter will blink for 15 seconds, after which time its value is
stored in memory. If power is interrupted before this 15 second timeout period has
elapsed, the edited state will not be not saved.
NOTE:

TM
BrightEye 93
BrightEye 93 - Page 9
USING THE BRIGHTEYE CONTROL APPLICATION
The BrightEye PC and BrightEye Mac applications are designed to allow you to
configure and control the BrightEye 93 from a personal computer. BrightEye
PC/Mac Control application software is included on CD that came with your unit,
or the application can be downloaded here:
http://www.ensembledesigns.com/support/brighteye-support/
If the BrightEye 93 is connected to a computer running this software, the
following menus are available for controlling and monitoring the unit.
Video In
• Input Pres – indicates the status of the video input (720p/50, 720p/59.94,
720p/60, 1080i/50, 1080i/59.94, 1080i/60, 1080p/25, 1080p/23.98, 1080p/24,
1080sF/25, 1080sF/23.98, 1080sF/24, No Input, or Unknown.).
• Captions In – indicates the presence of closed captioned material on the
input signal (None, Line 21, CEA 708). During cross conversion, the
BrightEye 93 carries across closed caption data using the CEA-708
standard.
• Ref Source – use this control to set the reference input source. Video In
Ref indicates that the SD video output will be locked to the incoming video
signal. Ext Ref indicates that the SD video output will be locked to the
external reference input.
• Reference – indicates the status of a reference video presence
(Ref Mismatch, Ref Unlocked, Ref TLS Lock, No Reference, Ref 525
Lock, Ref 625 Lock).

BrightEye 93 HD Cross Converter
BrightEye 93 - Page 10
Mode
• HD Cross – indicates the mode in which the unit is running
(Anamorphic, Manual). The mode is determined by the output selection
made in the Format menu.
• Format – use this control to set the desired output format (1080i, 720p,
1080p, 1080sF). Note that closed captions are not supported for 1080p and
1080sF outputs. The unit automatically detects the input standard.

TM
BrightEye 93
BrightEye 93 - Page 11

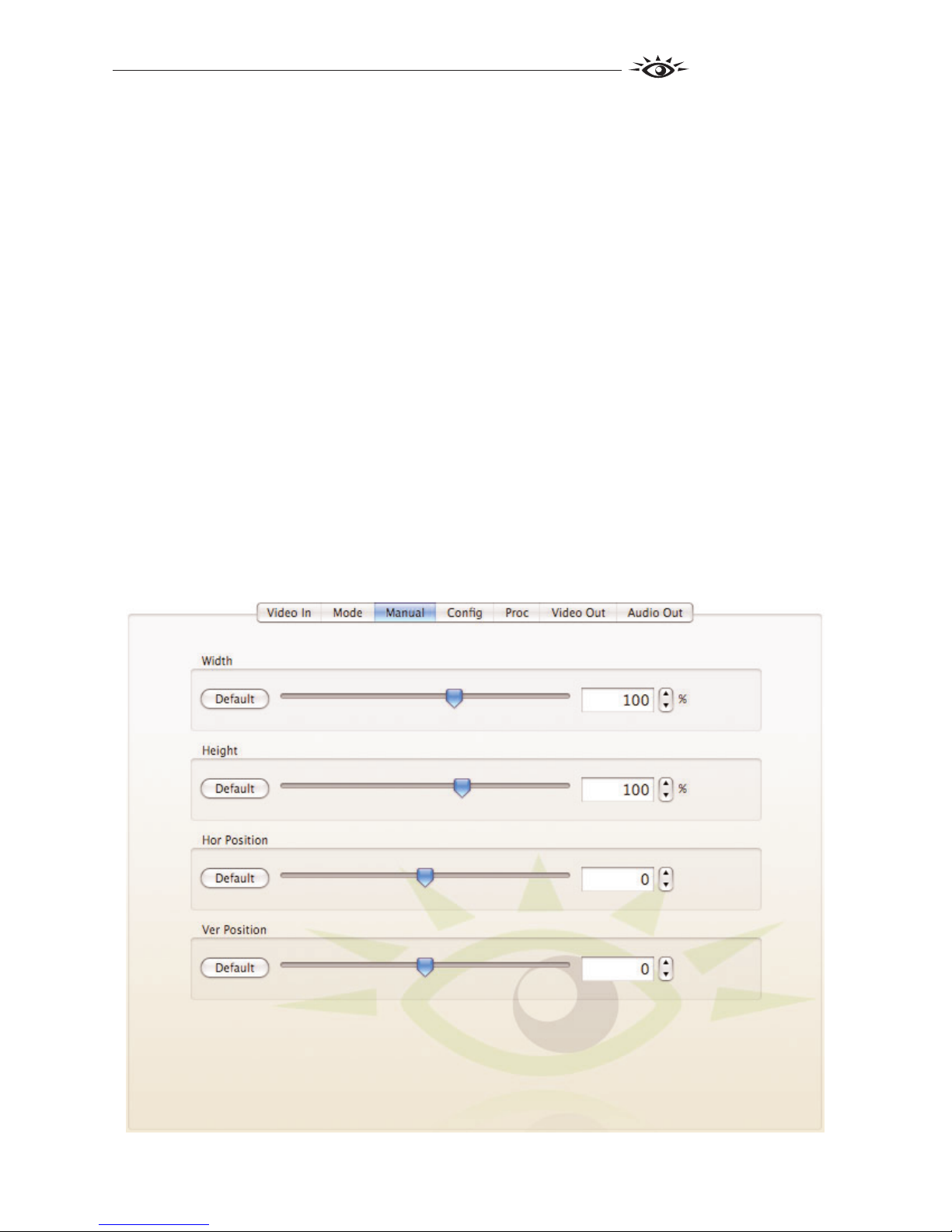

Manual
• Width – sets the aspect ratio width in percent (range is 30 to 145%,
default is 100%).
•Height – sets the aspect ratio height in percent (range is 30 to 140%,
default is 100%).
•Hor Position – sets the horizontal position of the output (range is -100 to
100, default is 0).
•Ver Position – sets the vertical position of the output (range is -100 to
100, default is 0).
Make adjustments by clicking and dragging the slider controls, by using the up
and down arrow buttons, or by entering a value directly into the field. Click the
Default buttons to return settings to their default values.

BrightEye 93 HD Cross Converter
BrightEye 93 - Page 12

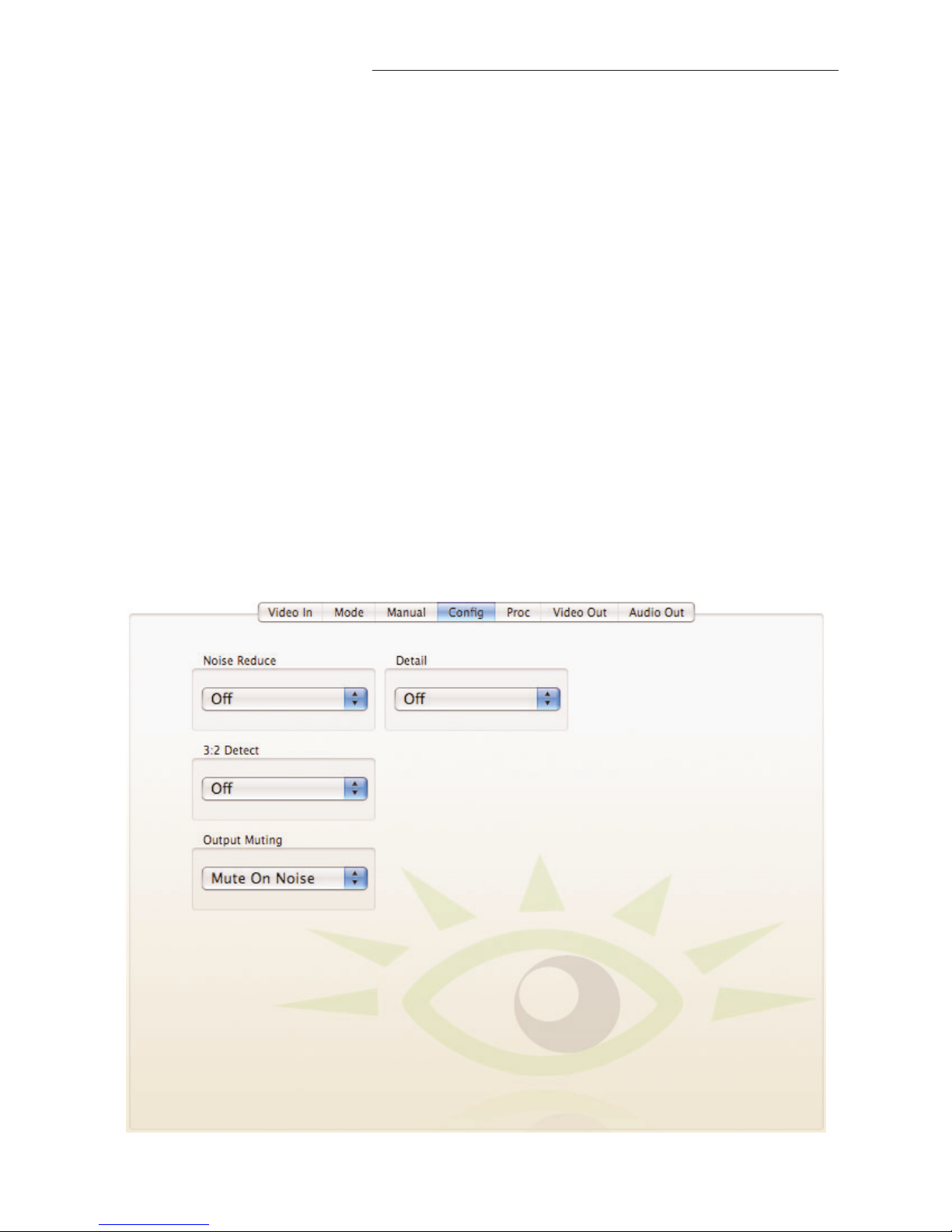

Config
•Noise Reduce – adjusts the amount of noise reduction on the output signal
from Off, Low, Medium, or High. The typical setting for this parameter is
Off or Low.
•Detail – adjusts the amount of picture detail enhancement on the output from
Off, Low, Medium, or High. The typical setting for this parameter is Off
or Low.
•3:2 Detect – turns the control to detect video that has been converted from filmOn
or Off. Use this only for film applications. The typical setting for this parameter isOff.
• Cpst Setup – turns Setup on the composite output On or Off (525 only).
Set this to On if your material has Setup on it.
• Vert Blanking – sets the blanking mode to Narrow (lines 1-9 are blanked
in NTSC, lines 1-6 in PAL) or Wide (lines 1-20 in NTSC, lines 1-22 in PAL).
• Output Muting – set to either Mute On Noise or Off. Mute On Noise
means that the module will mute the video output (output a black signal)
when the module detects that the video quality is unacceptable. Off allows
the video to pass through to the output regardless of video quality.

TM
BrightEye 93
BrightEye 93 - Page 13
Proc
•Gain – adjusts the percentage of overall gain (luminance and chrominance)
(range is 0to 150%, default is 100%).
•Chroma – adjusts the percentage of chroma amplitude (range is 0to 150%,
default is 100%).
•Pedestal – adjusts the pedestal (black) level of the signal in IRE (range is
-30 to 30 IRE, default is 0 IRE).
•Hue – adjusts the hue of the signal in degrees (range is ±180 degrees,
default is 0 degrees).
Make adjustments by clicking and dragging the slider controls, by using the up
and down arrow buttons, or by entering a value directly into the field. Click the
Default buttons to return settings to their default values.

BrightEye 93 HD Cross Converter
BrightEye 93 - Page 14
Video Out
• Hor Timing – use this control to adjust the horizontal timing of the output
signal to place the leading edge of sync coincident with other sources (range
is -2000 to 2000 clocks, default is 0 clocks).
• Vert Timing – sets the vertical timing to a typical setting of 0 lines (range
is -1000 to 1000 lines, default is 0 lines).
• Test Pattern – select On or Off. On enables the test pattern to be sent to
the video output. Off disables the test pattern from being sent to the video
output.
• HDMI Status – reports the status of a monitor or a display connected to
the HDMI output (No Display, DVI Display, Unknown HDMI,
HDMI Non-Compat, HDMI Native, HDMI Compatible). Status information
comes from the display itself. Some displays may not work with the
BrightEye 93, depending on the formats that the display supports. For best
results, use a display that is HDMI Native.
• Captions Out – use this control to enable or disable closed captioning (if
present on the input source material). On enables closed captioning by con-
tinuously transmitting captions (including any null or empty caption
packets). Off disables closed captioning by stripping captions from the
source material. The BrightEye 93 translates between CEA-608 and
CEA-708 standards for closed captioning as needed. Note that closed
captions are not supported for 1080p and 1080sF outputs.
• Graticule – use this control to display on-screen graticule lines. These
alignment markers facilitate film transfer, post production and quality
control measurements relating to picture location for both the 4:3 and 16:9
aspect ratios. Safe Title displays the safe title boxes. SD Protect Only
displays only the SD Protect area without displaying the safe title boxes.
Off disables graticules.
• Target – use this control to select the monitor on which graticule lines are
displayed. Choices are All Outputs, Main Only (the unit’s output BNCs),
or HDMI Only.
• Hor Flip – Horizontal Flip is a special Mirror Output Mode that is useful
for flipping the image left-to-right for use with on-screen talent or with
prism lens cameras. Select On to flip the output image left to right. Select
Off (after Reset) to turn Mirror Output Mode off. Power down the module
and turn it back on for the Off selection to take effect.
• Color – use this control to set the color of the graticule lines. Choices are:
White, Gray, Black, Red, Blue and Green.
• Transparency – use this control to adjust the transparency of the graticule
lines from 0 (completely transparent) to 100 (no transparency).
See Video Out diagram on next page
NOTE:

TM
BrightEye 93
BrightEye 93 - Page 15

BrightEye 93 HD Cross Converter
BrightEye 93 - Page 16

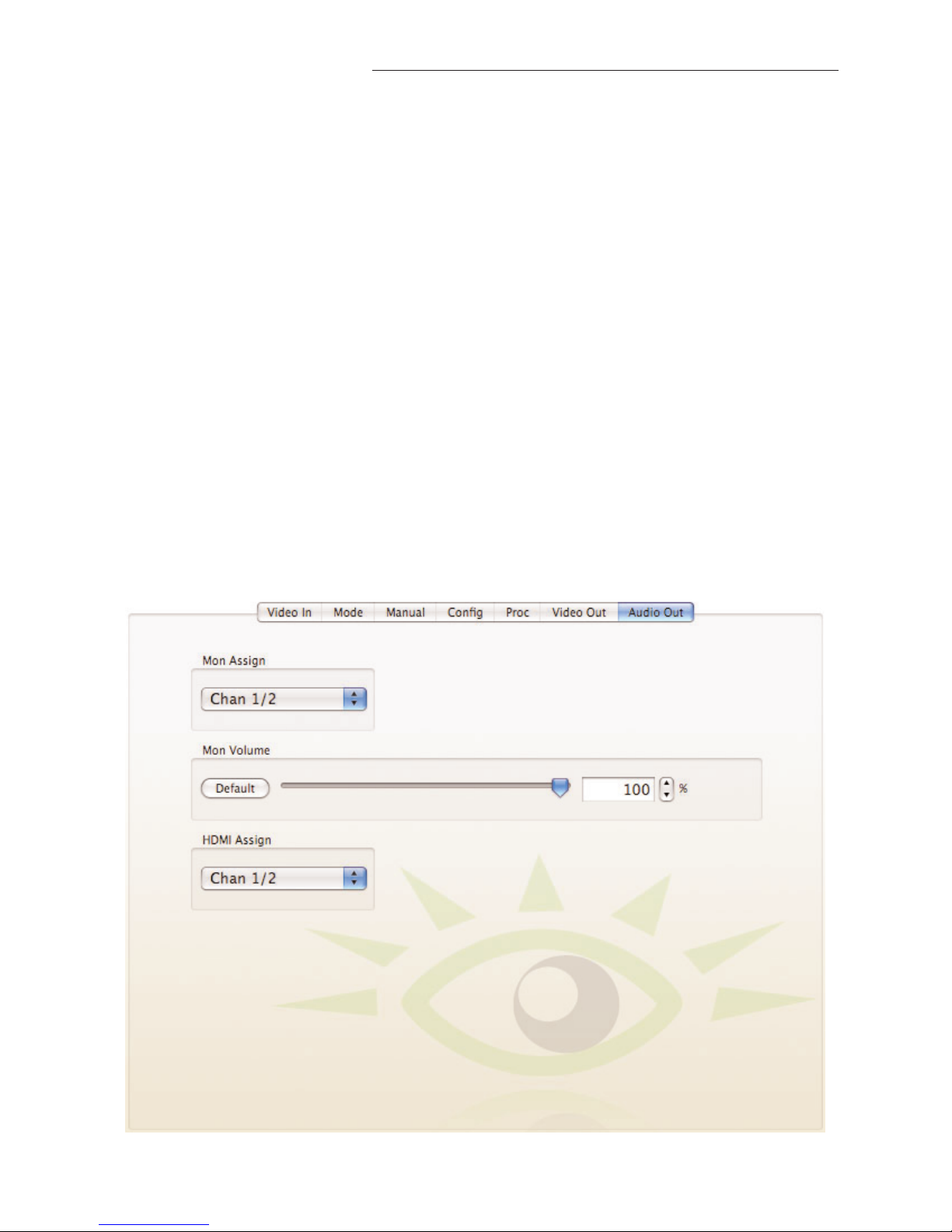

Audio Out
•Mon Assign – choose the audio pair that you want to send to the Audio
Monitor headphone jack. Choices are: Chan 1/2, Chan 3/4, Chan 5/6, Chan
7/8, Chan 9/10, Chan 11/12, Chan 13/14, Chan 15/16.
•Mon Volume – sets the volume level sent to the headphone jack from 0 to
100% by moving the slider control, using the up down arrows, or entering a
desired level directly in the field and pressing the Enter key on your
computer. Press the Default button to return to the default setting
of 100%.
•HDMI Assign – selects the audio pair that is output on the HDMI Out port.
The HDMI port carries both audio and video signals. Choices are: Chan 1/2,
Chan 3/4, Chan 5/6, Chan 7/8, Chan 9/10, Chan 11/12, Chan 13/14,
Chan 15/16.

TM
BrightEye 93
BrightEye 93 - Page 17
WARRANTY AND FACTORY SERVICE
Warranty
Ensemble Designs, Inc. warrants this product to be free from defect in material
and workmanship for a period of 5 years from the date of delivery. During this 5
year warranty period, Ensemble Designs, Inc. will repair any defective units at
Ensemble’s expense if the unit should be determined to be defective after con-
sultation with a factory technician.
This warranty is not transferable. Any implied warranties expire at the expiration
date of this warranty.
This warranty does not cover a defect that has resulted from improper or unreasonable
use or maintenance as determined by us. This warranty is void if there is any
attempt to dissemble or adjust factory set presets without factory authorization.
Factory Service
If you require service (under warranty or not), please contact Ensemble Designs
and ask for Customer Service before you return the unit. This will allow the
service technician to provide any other suggestions for identifying the problem
and recommend possible solutions.
You may also refer to the technical support section of the Ensemble web site for
the latest information on your equipment at the URL below:
http://www.ensembledesigns.com/support
If you return equipment for repair, please get a Return Material Authorization
Number (RMA) from the factory first.
Ship the product and a written description of the problem to:
Ensemble Designs, Inc.
Attention: Customer Service RMA #####
870 Gold Flat Rd.
Nevada City, CA 95959 USA
[phone]
Fax: [phone]
[email protected]
http://www.ensembledesigns.com
Be sure to put your RMA number on the outside of the box.

BrightEye 93 HD Cross Converter
BrightEye 93 - Page 18
Specifications
Serial Digital Input
Number One
Signal Type HD Serial Digital 1.485 Gb/s SMPTE 274M, 292M, 296M
Impedance 75 Ω
Return Loss >15dB
Max Cable Length 100 meters for 1.485Gb/s HD
Automatic Input Cable Equalization
Reference Input
Number One
Type 1 V P-P Composite Video
PAL or NTSC
or Tri-Level Sync
Impedance 75 Ω
Return Loss >40 dB
Serial Digital Output
Number Two
Type HD Serial Digital 1.485 Gb/s SMPTE 274M, 292M, 296M
Delay Adjustable from 1 field to 1 frame
Processing 12 and 16 bit
Impedance 75 Ω
Return Loss >15 dB
Max Cable Length 100 meters for 1.485Gb/s HD (Belden 1694A)
HD Standards Supported
1080i 50,59.94 or 60 Hz SMPTE 274M -4,5,6
720p 50,59.94 or 60 Hz SMPTE 296M -1,2,3
1080p 23.98,24 or 25 Hz SMPTE 274M -9,10,11
1080sF 23.98,24 or 25 Hz RP211 -14,15,16
Monitor Output
Number One
Connector HDMI
Type Follows SDI out
Audio Monitoring Output
Number One (for monitoring a pair of audio channels)
Connector 3.5mm stereo mini jack
General Specifications
Size 5.625” W x 1.7” H x 5.5” D (143 mm x 40 mm x 140 mm)
including connectors
Weight 1 lb 7 oz
Power 12 volts, 11 watts
(100-230 VAC modular power supply not included)
Temperature Range 0 to 40˚ C ambient
Relative Humidity 0 to 95%, non-condensing
Due to ongoing product development, all specifications subject to change.

TM
BrightEye 93
BrightEye 93 - Page 19
BRIGHTEYE POWER SUPPLY INFORMATION
Below is a list of power supplies and optional items that may have come with your
BrightEye.
BEPS
BrightEye Individual Power Supply.
BEPS6
Spider Power Supply. This powers 6 single high BrightEyes or 3 double high
BrightEyes.
BEPS6-RP
Redundant Power Supply for Spider.
BERKMT
BrightEye Rack Mount. This holds 6 single high BrightEyes or 3 double high
BrightEyes, or a combination.
BEBP
BrightEye Blank Panel. Single high, for empty slots in Rack Mount.
BEAC
Analog Audio Breakout Cable.

BrightEye 93 HD Cross Converter
BrightEye 93 - Page 20
GLOSSARY
AES/EBU
The digital audio standard defined as a joint effort of the Audio Engineering
Society and the European Broadcast Union. AES/EBU or AES3 describes a serial
bitstream that carries two audio channels, thus an AES stream is a stereo pair.
The AES/EBU standard covers a wide range of sample rates and quantizations
(bit depths). In television systems, these will generally be 48 KHz and either 20
or 24 bits.
AFD
Active Format Description is a method to carry information regarding the aspect
ratio of the video content. The specification of AFD was standardized by SMPTE
in 2007 and is now beginning to appear in the marketplace. AFD can be included
in both SD and HD SDI transport systems. There is no legacy analog implementa-
tion. (See WSS).
ASI
A commonly used transport method for MPEG video streams, ASI or
Asynchronous Serial Interface, operates at the same 270 Mb/s data rate as SD
SDI. This makes it easy to carry an ASI stream through existing digital television
infrastructure. Known more formally as DVB-ASI, this transport mechanism can
be used to carry multiple program channels.
Aspect Ratio
The ratio of the vertical and horizontal measurements of an image. 4:3 is the
aspect ratio for standard definition video formats and television and 16:9 for high
definition. Converting formats of unequal ratios is done by letterboxing
(horizontal bars) or pillar boxing (vertical pillars) in order to keep the original
format's aspect ratio.
Bandwidth
Strictly speaking, this refers to the range of frequencies (i.e. the width of the band
of frequency) used by a signal, or carried by a transmission channel. Generally,
wider bandwidth will carry and reproduce a signal with greater fidelity and
accuracy.
Beta
Sony Beta SP video tape machines use an analog component format that is
similar to SMPTE, but differs in the amplitude of the color difference signals. It
may also carry setup on the luminance channel.
Bit
A binary digit, or bit, is the smallest amount of information that can be stored or
transmitted digitally by electrical, optical, magnetic, or other means. A single bit
can take on one of two states: On/Off, Low/High, Asserted/ Deasserted, etc. It is
represented numerically by the numerals 1 (one) and 0 (zero). A byte, containing 8
bits, can represent 256 different states. The binary number 11010111, for
example, has the value of 215 in our base 10 numbering system. When a value is
carried digitally, each additional bit of resolution will double the number of
different states that can be represented. Systems that operate with a greater
