entegris NT 4150 User manual

NT®PRESSURE TRANSDUCER
FOR VACUUM APPLICATIONS
User Guide
ENTEGRIS, INC.
Corporate Headquarters
3500 Lyman Boulevard
Chaska, Minnesota 55318 USA
Customer Service Tel. [phone]
Toll Free 877-503-0200
Customer Service Fax [phone]
www.entegris.com
www.entegrisfluidhandling.com
Entegris®and Flaretek®are registered trademarks of Entegris, Inc.
NT®is a registered trademark of NT International, an Entegris Company .
Kalrez®and Viton®are registered trademarks of DuPont Dow Elastomers.
©2004 Entegris, Inc.
Printed in USA
P/N 1088 (Rev B 07/04)
3960-1587MAX-0704
The materials integrity management company

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDE
Table of Contents
Introduction .................................. 2
Ordering Information .................. 3
Identifying Nonstandard
Product Configurations .......... 5
Installation .................................... 6
Mechanical Installation ............. 6
Electrical Installation ................ 7
Power Supply Requirements ..... 8
Load Resistance:
Current Output ....................... 9
Unit Operation ............................ 10
Operating Environment ........... 10
Process Connections ................ 10
Pressure Transducer
Cover Assembly ..................... 10
Temperature Requirements .... 10
Pressure Limits ......................... 10
Pressure Reference
Accuracy ................................ 10

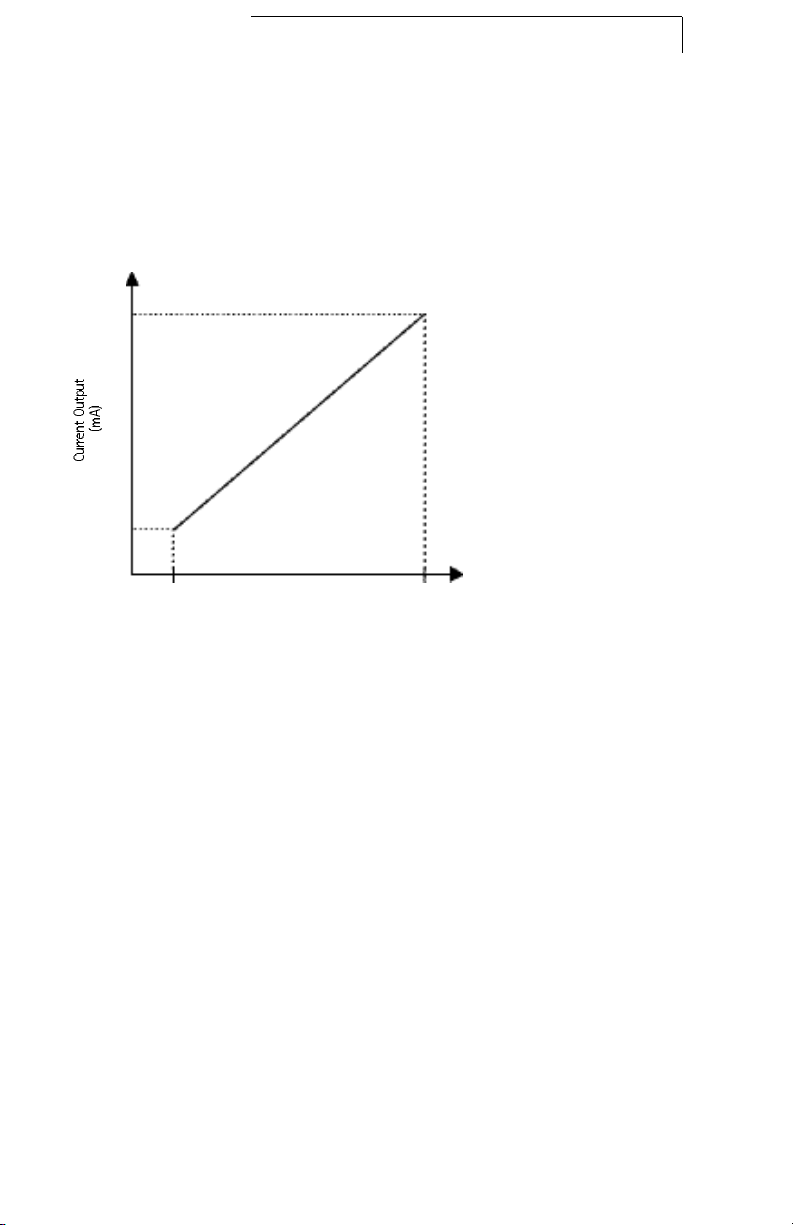

Linear Output Signal ............... 11
Troubleshooting .......................... 12
Reference ..................................... 13
Physical Specifications ............ 13
Electrical Specifications ......... 13
Performance Specifications .... 13
Certifications .............................. 14
CE Compliance ......................... 14

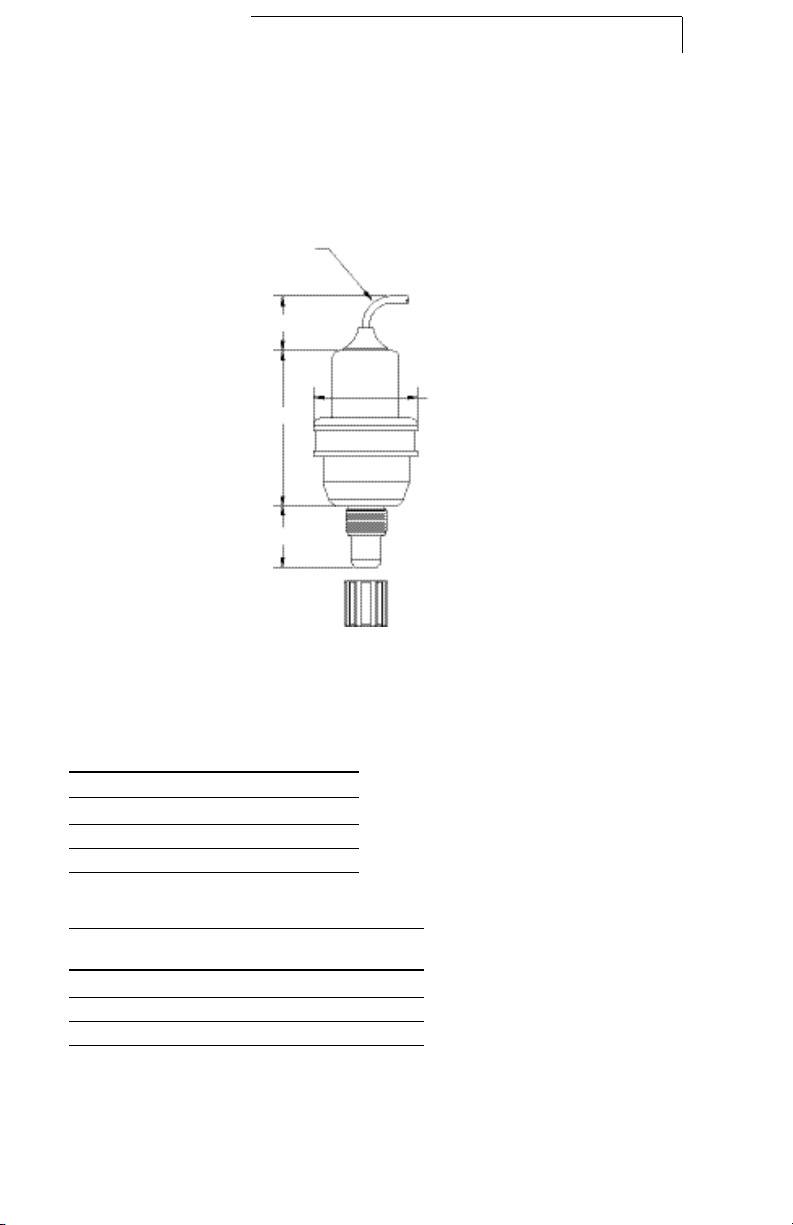

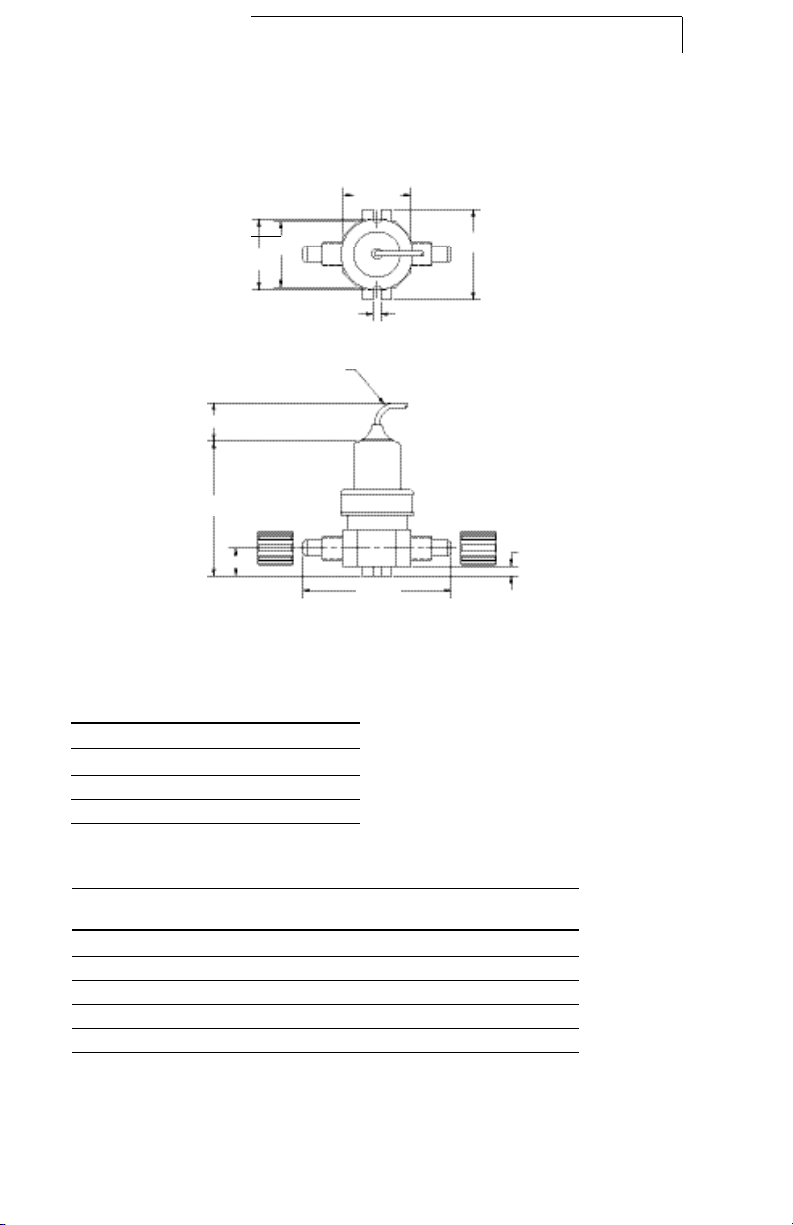

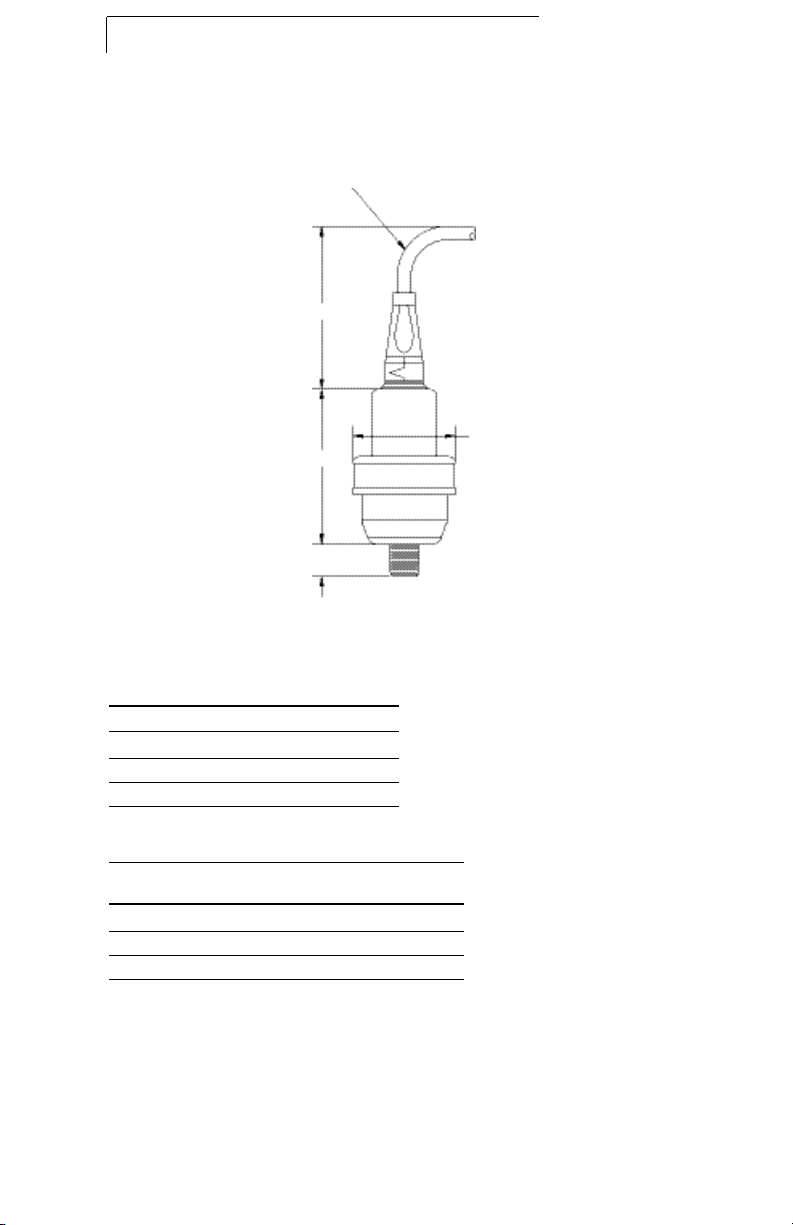

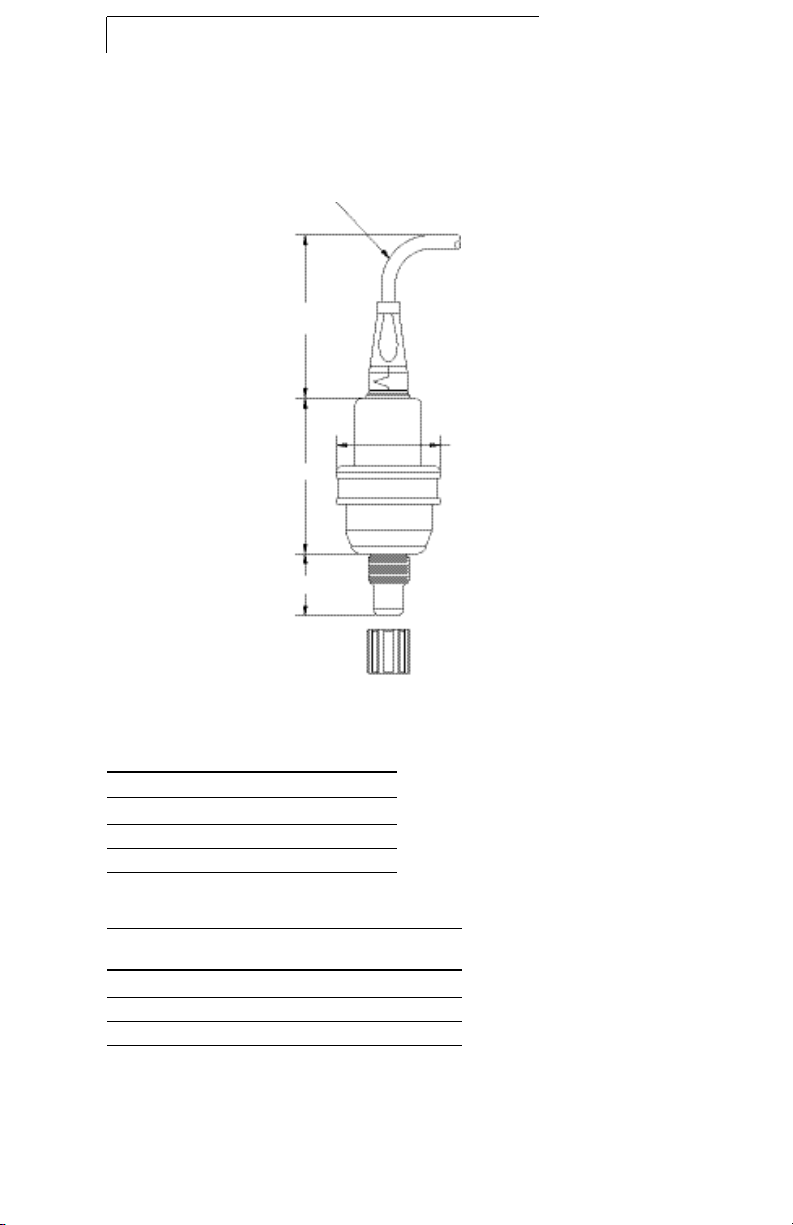

Dimensions .................................. 15
Repair and Warranty Service .... 21

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
2Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
Introduction
This manual is for use with NT®
Pressure Transducers for vacuum
applications, single-port and flow-
through models 4150 and 4250.
These instruments have been
designed for use in high purity
applications in the semiconductor
industry and are compatible with
highly corrosive processes.
These products feature no moving
parts and no filled cavities, which
reduces the possibility of a contami-
nated process. The wetted parts of
these nonmetallic transducers are
constructed with PTFE, sapphire
or other similar high purity inert
materials.
Ordering Information
CODE BASE MODEL
4150 Single-Port Vacuum Pressure Transducer
CODE PRESSURE RANGE
030V -12 to 30 PSIG (-83 to 207 kPa)
060V -12 to 60 PSIG (-83 to 414 kPa)
100V -12 to 100 PSIG (-83 to 690 kPa)
CODE INLET/OUTLET PORT CONNECTION TYPE
F02 1/4″Flaretek®
F03 3/8″Flaretek®
F04 1/2″Flaretek®
N02 1/4″FNPT
N04 1/2″FNPT
M02 1/4″MNPT
CODE ELECTRICAL CONNECTOR TYPE
B06 FEP-jacketed 6′pigtail electrical cable
B12 FEP-jacketed 12′pigtail electrical cable
B30 FEP-jacketed 30′pigtail electrical cable
D00 3-pin polypropylene connector
D06 3-pin polypropylene connector and 6′PVC-jacketed mating cable
D12 3-pin polypropylene connector and 12′PVC-jacketed mating cable
D30 3-pin polypropylene connector and 30′PVC-jacketed mating cable
CODE ELECTRICAL OUTPUTS
A 4-20 mA (12-28 VDC input)
CODE PRIMARY/SECONDARY SEAL
U1 Kalrez® 4079/Viton® (default)
U2 Kalrez® 1050/Viton®
U3 Kalrez® 6375 UP/Viton®
S1 Kalrez® 4079/Kalrez® 4079
S2 Kalrez® 1050/Kalrez® 1050
S3 Kalrez® 6375 UP/Kalrez® 6375 UP

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
2Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
Introduction
This manual is for use with NT®
Pressure Transducers for vacuum
applications, single-port and flow-
through models 4150 and 4250.
These instruments have been
designed for use in high purity
applications in the semiconductor
industry and are compatible with
highly corrosive processes.
These products feature no moving
parts and no filled cavities, which
reduces the possibility of a contami-
nated process. The wetted parts of
these nonmetallic transducers are
constructed with PTFE, sapphire
or other similar high purity inert
materials.
Ordering Information
CODE BASE MODEL
4150 Single-Port Vacuum Pressure Transducer
CODE PRESSURE RANGE
030V -12 to 30 PSIG (-83 to 207 kPa)
060V -12 to 60 PSIG (-83 to 414 kPa)
100V -12 to 100 PSIG (-83 to 690 kPa)
CODE INLET/OUTLET PORT CONNECTION TYPE
F02 1/4″Flaretek®
F03 3/8″Flaretek®
F04 1/2″Flaretek®
N02 1/4″FNPT
N04 1/2″FNPT
M02 1/4″MNPT
CODE ELECTRICAL CONNECTOR TYPE
B06 FEP-jacketed 6′pigtail electrical cable
B12 FEP-jacketed 12′pigtail electrical cable
B30 FEP-jacketed 30′pigtail electrical cable
D00 3-pin polypropylene connector
D06 3-pin polypropylene connector and 6′PVC-jacketed mating cable
D12 3-pin polypropylene connector and 12′PVC-jacketed mating cable
D30 3-pin polypropylene connector and 30′PVC-jacketed mating cable
CODE ELECTRICAL OUTPUTS
A 4-20 mA (12-28 VDC input)
CODE PRIMARY/SECONDARY SEAL
U1 Kalrez® 4079/Viton® (default)
U2 Kalrez® 1050/Viton®
U3 Kalrez® 6375 UP/Viton®
S1 Kalrez® 4079/Kalrez® 4079
S2 Kalrez® 1050/Kalrez® 1050
S3 Kalrez® 6375 UP/Kalrez® 6375 UP

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
4Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
Identifying Nonstandard
Product Configurations
CODE BASE MODEL
4250 Flow-Through Vacuum Pressure Transducer
CODE PRESSURE RANGE
030V -12 to 30 PSIG (-83 to 207 kPa)
060V -12 to 60 PSIG (-83 to 414 kPa)
100V -12 to 100 PSIG (-83 to 650 kPa)
CODE INLET/OUTLET PORT CONNECTION TYPE
F02 1/4″Flaretek®
F03 3/8″Flaretek®
F04 1/2″Flaretek®
F06 3/4″Flaretek®
F08 1″Flaretek® (030G, 060G types only)
CODE ELECTRICAL CONNECTOR TYPE
B06 FEP-jacketed 6′pigtail electrical cable
B12 FEP-jacketed 12′pigtail electrical cable
B30 FEP-jacketed 30′pigtail electrical cable
D00 3-pin polypropylene connector
D06 3-pin polypropylene connector and 6 ′PVC-jacketed mating cable
D12 3-pin polypropylene connector and 12′PVC-jacketed mating cable
D30 3-pin polypropylene connector and 30′PVC-jacketed mating cable
CODE ELECTRICAL OUTPUTS
A 4-20 mA (12-28 VDC input)
CODE PRIMARY/SECONDARY SEAL
U1 Kalrez® 4079/Viton® (default)
U2 Kalrez® 1050/Viton®
U3 Kalrez® 6375 UP/Viton®
S1 Kalrez® 4079/Kalrez® 4079
S2 Kalrez® 1050/Kalrez® 1050
S3 Kalrez® 6375 UP/Kalrez® 6375 UP
This User Guide applies to product
manufactured as standard NT®
Pressure Transducers single-port
and flow-through models 4150 and
4250. Entegris also manufactures
nonstandard product to meet the
needs of specific applications.
Nonstandard product may have
different materials of construction,
accuracy specifications, performance
and other specifications that differ-
entiate the nonstandard product
from the standard offering.
NOTE: Nonstandard pressure
transducers may be identified by
the model number found on the
product label.
Nonstandard single-port pressure
transducers, model 4150 product
line, are identified with a “P” fol-
lowed by a number code.
For example, part number
4150-030V-F02-B06-A-P04
the “P04” designates the product as a
nonstandard product manufactured
to certain specifications designated
under the “P04”code.
Nonstandard flow-through pressure
transducers, model 4250 product
line, are identified with a “T” fol-
lowed by a number code.
For example, part number
4250-030V-F02-B06-A-T02
the “T02” designates the product as a
nonstandard product manufactured
to certain specifications designated
under the “T02” code.

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
4Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
Identifying Nonstandard
Product Configurations
CODE BASE MODEL
4250 Flow-Through Vacuum Pressure Transducer
CODE PRESSURE RANGE
030V -12 to 30 PSIG (-83 to 207 kPa)
060V -12 to 60 PSIG (-83 to 414 kPa)
100V -12 to 100 PSIG (-83 to 650 kPa)
CODE INLET/OUTLET PORT CONNECTION TYPE
F02 1/4″Flaretek®
F03 3/8″Flaretek®
F04 1/2″Flaretek®
F06 3/4″Flaretek®
F08 1″Flaretek® (030G, 060G types only)
CODE ELECTRICAL CONNECTOR TYPE
B06 FEP-jacketed 6′pigtail electrical cable
B12 FEP-jacketed 12′pigtail electrical cable
B30 FEP-jacketed 30′pigtail electrical cable
D00 3-pin polypropylene connector
D06 3-pin polypropylene connector and 6 ′PVC-jacketed mating cable
D12 3-pin polypropylene connector and 12′PVC-jacketed mating cable
D30 3-pin polypropylene connector and 30′PVC-jacketed mating cable
CODE ELECTRICAL OUTPUTS
A 4-20 mA (12-28 VDC input)
CODE PRIMARY/SECONDARY SEAL
U1 Kalrez® 4079/Viton® (default)
U2 Kalrez® 1050/Viton®
U3 Kalrez® 6375 UP/Viton®
S1 Kalrez® 4079/Kalrez® 4079
S2 Kalrez® 1050/Kalrez® 1050
S3 Kalrez® 6375 UP/Kalrez® 6375 UP
This User Guide applies to product
manufactured as standard NT®
Pressure Transducers single-port
and flow-through models 4150 and
4250. Entegris also manufactures
nonstandard product to meet the
needs of specific applications.
Nonstandard product may have
different materials of construction,
accuracy specifications, performance
and other specifications that differ-
entiate the nonstandard product
from the standard offering.
NOTE: Nonstandard pressure
transducers may be identified by
the model number found on the
product label.
Nonstandard single-port pressure
transducers, model 4150 product
line, are identified with a “P” fol-
lowed by a number code.
For example, part number
4150-030V-F02-B06-A-P04
the “P04” designates the product as a
nonstandard product manufactured
to certain specifications designated
under the “P04”code.
Nonstandard flow-through pressure
transducers, model 4250 product
line, are identified with a “T” fol-
lowed by a number code.
For example, part number
4250-030V-F02-B06-A-T02
the “T02” designates the product as a
nonstandard product manufactured
to certain specifications designated
under the “T02” code.

NT® PRESSURE TRANSDUCER USER GUIDE
6Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC. ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDE
CAUTION!
The NT® Pressure Transducer
has been factory sealed. Do not
attempt to remove the cover
of the pressure transducer. Any
attempt at removal of the
pressure transducer cover will
void the warranty and damage
the unit.
CAUTION!
Do not tighten the nuts that
protect the process connections
during shipment. Do not tighten
the nuts unless the proper
tubing has been installed.
Tightening these nuts may result
in damage to the pressure trans-
ducer process connections.
Installation Electrical Installation
The pressure transducer provides
an analog (4-20 mA) electrical
output proportional to the pressure
measured.
NOTE: The white wire is not
required, please refer to the
wiring diagram below.
Pressure transducer
4-20 mA output version
+24 VDC GND
RED
WHITE
BLACK 4-20 mA pressure signal
no connection
display
or PLC
Mechanical Installation
NT®Pressure Transducers utilize
Flaretek®flared tube connections
and must be used with the proper
tubing size and coupling nut.
When installing flared tubing to the
pressure transducer, the flared tube
is pushed over the transducer’s
fitting until the fitting reaches the
smaller tube diameter. The amount
of torque required to tighten the
coupling nut is dependent upon the
size of the fitting.
Care should be taken when installing
flared tubing onto the pressure
transducer. Do not use excessive
torque or subject the transducer to
high heat during installation. The
transducer should be firmly mounted
to a solid surface to ensure stability.
Verify that the pressure transducer
and the signal cable are free from
mechanical stress or excessive bend-
ing from the surrounding equipment.
FITTING SIZE 1/4˝ 3/8˝ 1/2˝ 3/4˝ 1˝
Torque (in•lbs) 5 8 11 14 30

NT® PRESSURE TRANSDUCER USER GUIDE
6Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC. ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDE
CAUTION!
The NT® Pressure Transducer
has been factory sealed. Do not
attempt to remove the cover
of the pressure transducer. Any
attempt at removal of the
pressure transducer cover will
void the warranty and damage
the unit.
CAUTION!
Do not tighten the nuts that
protect the process connections
during shipment. Do not tighten
the nuts unless the proper
tubing has been installed.
Tightening these nuts may result
in damage to the pressure trans-
ducer process connections.
Installation Electrical Installation
The pressure transducer provides
an analog (4-20 mA) electrical
output proportional to the pressure
measured.
NOTE: The white wire is not
required, please refer to the
wiring diagram below.
Pressure transducer
4-20 mA output version
+24 VDC GND
RED
WHITE
BLACK 4-20 mA pressure signal
no connection
display
or PLC
Mechanical Installation
NT®Pressure Transducers utilize
Flaretek®flared tube connections
and must be used with the proper
tubing size and coupling nut.
When installing flared tubing to the
pressure transducer, the flared tube
is pushed over the transducer’s
fitting until the fitting reaches the
smaller tube diameter. The amount
of torque required to tighten the
coupling nut is dependent upon the
size of the fitting.
Care should be taken when installing
flared tubing onto the pressure
transducer. Do not use excessive
torque or subject the transducer to
high heat during installation. The
transducer should be firmly mounted
to a solid surface to ensure stability.
Verify that the pressure transducer
and the signal cable are free from
mechanical stress or excessive bend-
ing from the surrounding equipment.
FITTING SIZE 1/4˝ 3/8˝ 1/2˝ 3/4˝ 1˝
Torque (in•lbs) 5 8 11 14 30

NT® PRESSURE TRANSDUCER USER GUIDE
8Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC. ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDE
Power Supply Requirements
Figure 1. Power Required for a 4-20 mA Loop
Load Resistance: Current Output
(4-20 mA Configuration)
If a load resistor, RLoad, is used in
series with the current output, the
value of RLoad is dependent on the
supply voltage and the meter resis-
tance and is calculated from the
following formula.
where:
RLoad = maximum load
resistance (ohms)
VPS = power supply voltage (volts)
Rmeter = meter resistance (ohms)
(typically not used, therefore Rmeter = 0)
Rwire = resistance of
interconnecting wire
RLoad = - (Rmeter + Rwire)
VPS - 12 V
0.020A
Operating
region
Power Supply Voltage
(VPS)
12 24 28
800
0
The pressure transducer requires a
12-28 volt DC power supply with less
than 2% ripple at 100 or 120 Hz. The
required power supply voltage varies
with the load resistance (RLoad),
please refer to the diagrams below
and the formulas on page 9.
The power supply must provide
clean power and must be used only
to power similar measurement-type
devices. The power supply must not
be used to power inductive loads,
such as motors, relays or solenoids.
These devices may produce tran-
sients that may affect the pressure
transducer measurements when the
inductive device is powered-up or
powered down.
NOTE: Be sure to ground the
shield of the cable to local ground.

NT® PRESSURE TRANSDUCER USER GUIDE
8Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC. ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDE
Power Supply Requirements
Figure 1. Power Required for a 4-20 mA Loop
Load Resistance: Current Output
(4-20 mA Configuration)
If a load resistor, RLoad, is used in
series with the current output, the
value of RLoad is dependent on the
supply voltage and the meter resis-
tance and is calculated from the
following formula.
where:
RLoad = maximum load
resistance (ohms)
VPS = power supply voltage (volts)
Rmeter = meter resistance (ohms)
(typically not used, therefore Rmeter = 0)
Rwire = resistance of
interconnecting wire
RLoad = - (Rmeter + Rwire)
VPS - 12 V
0.020A
Operating
region
Power Supply Voltage
(VPS)
12 24 28
800
0
The pressure transducer requires a
12-28 volt DC power supply with less
than 2% ripple at 100 or 120 Hz. The
required power supply voltage varies
with the load resistance (RLoad),
please refer to the diagrams below
and the formulas on page 9.
The power supply must provide
clean power and must be used only
to power similar measurement-type
devices. The power supply must not
be used to power inductive loads,
such as motors, relays or solenoids.
These devices may produce tran-
sients that may affect the pressure
transducer measurements when the
inductive device is powered-up or
powered down.
NOTE: Be sure to ground the
shield of the cable to local ground.

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
10 Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
Operating Environment
The pressure transducer is to be
mounted in a well vented and con-
trolled environment. Refer to the
Reference section on page 13 for
additional specifications.
Process Connections
To avoid possible pressure leaks,
make sure all process connections
have been performed in accordance
with the Mechanical Installation
guidelines on page 6.
Pressure Transducer
Cover Assembly
NT®Pressure Transducer covers
are factory sealed and should not be
tampered with or opened. Opening
the cover shall void the product
warranty.
NOTE: Any attempt to remove or
tamper with the transducer cover
will void the warranty and damage
the unit.
Temperature Requirements
The pressure transducer is rated
for use with fluids at process
temperatures between 50° to 95°F
(10° to 35°C) under normal
operating conditions.
Pressure Limits
TRANSDUCER MAX. PRESSURE LIMIT
RANGE @73°F (23°C)
-12 to 30 PSIG 45 PSIG
(-83 to 207 kPa) (310 kPa)
-12 to 60 PSIG 90 PSIG
(-83 to 414 kPa) (621 kPa)
-12 to 100 PSIG 150 PSIG
(-83 to 690 kPa) (1034 kPa)
WARNING!
The pressure limits for NT®
Pressure Transducers models
4150 and 4250 decrease sig-
nificantly for temperatures
above 95°F (35°C) Please
consult the factory.
Pressure Reference Accuracy
The accuracy of the pressure trans-
ducer output is ±1% of span. For
example, a -12 to 30 PSIG ranged
pressure transducer has a span of
42 PSIG and an accuracy of ±0.42
PSIG. This accuracy includes the
effects of linearity, hysteresis and
repeatability, measured at room
temperature.
Unit Operation Linear Output Signal
The output signal of the NT®Pressure
Transducer is a linear function pro-
portional to the applied pressure.
Pressure measurement
-12 PSIG Full scale
20 mA
4 mA

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
10 Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
Operating Environment
The pressure transducer is to be
mounted in a well vented and con-
trolled environment. Refer to the
Reference section on page 13 for
additional specifications.
Process Connections
To avoid possible pressure leaks,
make sure all process connections
have been performed in accordance
with the Mechanical Installation
guidelines on page 6.
Pressure Transducer
Cover Assembly
NT®Pressure Transducer covers
are factory sealed and should not be
tampered with or opened. Opening
the cover shall void the product
warranty.
NOTE: Any attempt to remove or
tamper with the transducer cover
will void the warranty and damage
the unit.
Temperature Requirements
The pressure transducer is rated
for use with fluids at process
temperatures between 50° to 95°F
(10° to 35°C) under normal
operating conditions.
Pressure Limits
TRANSDUCER MAX. PRESSURE LIMIT
RANGE @73°F (23°C)
-12 to 30 PSIG 45 PSIG
(-83 to 207 kPa) (310 kPa)
-12 to 60 PSIG 90 PSIG
(-83 to 414 kPa) (621 kPa)
-12 to 100 PSIG 150 PSIG
(-83 to 690 kPa) (1034 kPa)
WARNING!
The pressure limits for NT®
Pressure Transducers models
4150 and 4250 decrease sig-
nificantly for temperatures
above 95°F (35°C) Please
consult the factory.
Pressure Reference Accuracy
The accuracy of the pressure trans-
ducer output is ±1% of span. For
example, a -12 to 30 PSIG ranged
pressure transducer has a span of
42 PSIG and an accuracy of ±0.42
PSIG. This accuracy includes the
effects of linearity, hysteresis and
repeatability, measured at room
temperature.
Unit Operation Linear Output Signal
The output signal of the NT®Pressure
Transducer is a linear function pro-
portional to the applied pressure.
Pressure measurement
-12 PSIG Full scale
20 mA
4 mA

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
12 Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
Troubleshooting the NT®Pressure
Transducers may be accomplished
by measuring the output signal of
the pressure transducer with a
battery powered current/voltage
meter. The meter may be placed in
series with the pressure transducer
to measure the current output or it
may be used to directly measure the
voltage output.
Using the battery powered current/
volt meter is an effective method to
determine whether the device or the
on-site data acquisition system is not
functioning properly.
Troubleshooting
The following lists the specifications
for NT®Pressure Transducers,
models 4150 and 4250. Consult the
factory for product specifications
manufactured for nonstandard
applications.
NOTE: Specifications are subject
to change without notice. Please
consult the factory for the most
current information.
Reference
CONSTRUCTION MATERIALS
Wetted parts:
Body: PTFE
Sensor Interface: Sapphire
O-Ring: Kalrez®4079, Kalrez®1050 or Kalrez® 6375 UP
Nonwetted parts: Polypropylene, polyethylene and PVDF
(In addition to materials listed above)
Connection type: Flaretek®
Physical Specifications
Electrical Specifications
Input power: 24 VDC (12-28 VDC)
Pressure signal output ranges: 4-20 mA
Electrical connection: 6′, 12′, 30′FEP-coated pigtail or polypropylene
3-pin connector with PVC cable
Reference accuracy: ±1% of span (includes linearity, hysteresis
and repeatability) at 73°F (23°C)
Process temperature: 50° to 95°F (10° to 35°C)
Performance Specifications

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
12 Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
Troubleshooting the NT®Pressure
Transducers may be accomplished
by measuring the output signal of
the pressure transducer with a
battery powered current/voltage
meter. The meter may be placed in
series with the pressure transducer
to measure the current output or it
may be used to directly measure the
voltage output.
Using the battery powered current/
volt meter is an effective method to
determine whether the device or the
on-site data acquisition system is not
functioning properly.
Troubleshooting
The following lists the specifications
for NT®Pressure Transducers,
models 4150 and 4250. Consult the
factory for product specifications
manufactured for nonstandard
applications.
NOTE: Specifications are subject
to change without notice. Please
consult the factory for the most
current information.
Reference
CONSTRUCTION MATERIALS
Wetted parts:
Body: PTFE
Sensor Interface: Sapphire
O-Ring: Kalrez®4079, Kalrez®1050 or Kalrez® 6375 UP
Nonwetted parts: Polypropylene, polyethylene and PVDF
(In addition to materials listed above)
Connection type: Flaretek®
Physical Specifications
Electrical Specifications
Input power: 24 VDC (12-28 VDC)
Pressure signal output ranges: 4-20 mA
Electrical connection: 6′, 12′, 30′FEP-coated pigtail or polypropylene
3-pin connector with PVC cable
Reference accuracy: ±1% of span (includes linearity, hysteresis
and repeatability) at 73°F (23°C)
Process temperature: 50° to 95°F (10° to 35°C)
Performance Specifications

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT ® PRESSURE TRANSDUCER USER GUIDE
Installation Drawings
Dim A
Ø 1.88″(47.8 mm)
1.00″(25.4 mm)
Dim B
3 conductor FEP-jacketed cable,
pigtail connection (BXX)
(Cable length up to 30 feet)
4150 FEP-jacketed Electrical Cable Connection, Single-port
WIRE 4-20 MA OUTPUT VERSION
Red 24 VDC (+) 4-20 mA
Black Ground (-) 4-20 mA
White Not used
INLET/OUTLET
PORT CONNECTION DIM A DIM B
1/4″Flaretek® 2.90″(73.7 mm) 0.99″(25.2 mm)
3/8″Flaretek® 2.90″(73.7 mm) 1.06″(26.9 mm)
1/2″Flaretek® 2.90″(73.7 mm) 1.14″(29.0 mm)
ELECTRICAL CONNECTOR INFORMATION
NT® PRESSURE TRANSDUCER USER GUIDE
14 Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
CE Compliance
Entegris products have been tested
to various test standards required by
the EMC 89/336/EEC directive. The
results of this testing are on file at
Entegris and are available upon
request.
Please contact the factory for the
latest information. The most current
specifications may be found on the
Internet at:
http://www.nt-intl.com/ce_etl-info.cfm.
Certifications

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT ® PRESSURE TRANSDUCER USER GUIDE
Installation Drawings
Dim A
Ø 1.88″(47.8 mm)
1.00″(25.4 mm)
Dim B
3 conductor FEP-jacketed cable,
pigtail connection (BXX)
(Cable length up to 30 feet)
4150 FEP-jacketed Electrical Cable Connection, Single-port
WIRE 4-20 MA OUTPUT VERSION
Red 24 VDC (+) 4-20 mA
Black Ground (-) 4-20 mA
White Not used
INLET/OUTLET
PORT CONNECTION DIM A DIM B
1/4″Flaretek® 2.90″(73.7 mm) 0.99″(25.2 mm)
3/8″Flaretek® 2.90″(73.7 mm) 1.06″(26.9 mm)
1/2″Flaretek® 2.90″(73.7 mm) 1.14″(29.0 mm)
ELECTRICAL CONNECTOR INFORMATION
NT® PRESSURE TRANSDUCER USER GUIDE
14 Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
CE Compliance
Entegris products have been tested
to various test standards required by
the EMC 89/336/EEC directive. The
results of this testing are on file at
Entegris and are available upon
request.
Please contact the factory for the
latest information. The most current
specifications may be found on the
Internet at:
http://www.nt-intl.com/ce_etl-info.cfm.
Certifications

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
16 Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
4150 FEP-jacketed Electrical Cable Connection, Single-port (NPT version)
1.00″(25.4 mm)
Dim A
Dim B
Ø 1.88″(47.8 mm)
3 conductor FEP-jacketed cable,
pigtail connection (BXX)
(Cable length up to 30 feet)
4150 Polypropylene Connector Connection, Single-port
3.00″(76.2 mm)
Dim A
Dim B
Ø 1.88″(47.8 mm)
3 conductor connector/cable (DXX)
(Cable length up to 30 feet)
WIRE 4-20 MA OUTPUT VERSION
Black Ground (-) 4-20 mA
Red 24 VDC (+) 4-20 mA
White Not used
INLET/OUTLET
PORT CONNECTION DIM A DIM B
1/4″Flaretek® 2.90″(73.7 mm) 0.99″(25.2 mm)
3/8″Flaretek® 2.90″(73.7 mm) 1.06″(26.9 mm)
1/2″Flaretek® 2.90″(73.7 mm) 1.14″(29.0 mm)
ELECTRICAL CONNECTOR INFORMATION
WIRE 4-20 MA OUTPUT VERSION
Red 24 VDC (+) 4-20 mA
Black Ground (-) 4-20 mA
White Not used
INLET/OUTLET
PORT CONNECTION DIM A DIM B
1/4″MNPTMALE 2.90″(73.7 mm) 0.59″(15.0 mm)
1/4″FNPTFEMALE 3.24″(82.3 mm) –
1/2″FNPTFEMALE 3.50″(88.9 mm) –
ELECTRICAL CONNECTOR INFORMATION

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
16 Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
4150 FEP-jacketed Electrical Cable Connection, Single-port (NPT version)
1.00″(25.4 mm)
Dim A
Dim B
Ø 1.88″(47.8 mm)
3 conductor FEP-jacketed cable,
pigtail connection (BXX)
(Cable length up to 30 feet)
4150 Polypropylene Connector Connection, Single-port
3.00″(76.2 mm)
Dim A
Dim B
Ø 1.88″(47.8 mm)
3 conductor connector/cable (DXX)
(Cable length up to 30 feet)
WIRE 4-20 MA OUTPUT VERSION
Black Ground (-) 4-20 mA
Red 24 VDC (+) 4-20 mA
White Not used
INLET/OUTLET
PORT CONNECTION DIM A DIM B
1/4″Flaretek® 2.90″(73.7 mm) 0.99″(25.2 mm)
3/8″Flaretek® 2.90″(73.7 mm) 1.06″(26.9 mm)
1/2″Flaretek® 2.90″(73.7 mm) 1.14″(29.0 mm)
ELECTRICAL CONNECTOR INFORMATION
WIRE 4-20 MA OUTPUT VERSION
Red 24 VDC (+) 4-20 mA
Black Ground (-) 4-20 mA
White Not used
INLET/OUTLET
PORT CONNECTION DIM A DIM B
1/4″MNPTMALE 2.90″(73.7 mm) 0.59″(15.0 mm)
1/4″FNPTFEMALE 3.24″(82.3 mm) –
1/2″FNPTFEMALE 3.50″(88.9 mm) –
ELECTRICAL CONNECTOR INFORMATION

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
18 Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
1.86″(47.2 mm)
1.75″(44.5 mm)
1.75″(44.5 mm)
2.36″(59.9 mm)
0.20″(5.1 mm) (2)
Dim A
Dim B
0.25″(6.4 mm)
Dim C
1.00″(25.4 mm)
3 conductor FEP-jacketed cable,
pigtail connection (BXX)
(Cable length up to 30 feet)
4250 FEP-jacketed Electrical Cable Connection, Flow-through
INLET/OUTLET
PORT CONNECTION DIM A DIM B DIM C
1/4″Flaretek® 3.53″(89.7 mm) 3.72″(94.5 mm) 0.73″(18.5 mm)
3/8″Flaretek® 3.53″(89.7 mm) 3.87″(98.3 mm) 0.67″(17.0 mm)
1/2″Flaretek® 3.78″(96.0 mm) 4.03″(102.4 mm) 0.85″(21.6 mm)
3/4″Flaretek® 4.11″(104.4 mm) 4.27″(108.5 mm) 1.00″(25.4 mm)
1″Flaretek® 4.43″(112.5 mm) 4.75″(120.7 mm) 1.20″(30.5 mm)
3.00″(76.2 mm)
Dim A
Dim B
Ø 1.88″(47.8 mm)
3 conductor connector/cable (DXX)
(Cable length up to 30 feet)
4150 FEP-jacketed Electrical Cable Connection, Single-port (NPT Version)
WIRE 4-20 MA OUTPUT VERSION
Black Ground (-) 4-20 mA
Red 24 VDC (+) 4-20 mA
White Not used
INLET/OUTLET
PORT CONNECTION DIM A DIM B
1/4″MNPTMALE 2.90″(73.7 mm) 0.59″(15.0 mm)
1/4″FNPTFEMALE 3.07″(78.0 mm) –
1/2″FNPTFEMALE 3.33″(84.6 mm) –
ELECTRICAL CONNECTOR INFORMATION
WIRE 4-20 MA OUTPUT VERSION
Red 24 VDC (+) 4-20 mA
Black Ground (-) 4-20 mA
White Not used
ELECTRICAL CONNECTOR INFORMATION

ENTEGRIS, INC. Customer Service Tel. [phone] Customer Service Fax [phone]
NT® PRESSURE TRANSDUCER USER GUIDENT® PRESSURE TRANSDUCER USER GUIDE
18 Customer Service Tel. [phone] Customer Service Fax [phone] ENTEGRIS, INC.
1.86″(47.2 mm)
1.75″(44.5 mm)
1.75″(44.5 mm)
2.36″(59.9 mm)
0.20″(5.1 mm) (2)
Dim A
Dim B
0.25″(6.4 mm)
Dim C
1.00″(25.4 mm)
3 conductor FEP-jacketed cable,
pigtail connection (BXX)
(Cable length up to 30 feet)
4250 FEP-jacketed Electrical Cable Connection, Flow-through
INLET/OUTLET
PORT CONNECTION DIM A DIM B DIM C
1/4″Flaretek® 3.53″(89.7 mm) 3.72″(94.5 mm) 0.73″(18.5 mm)
3/8″Flaretek® 3.53″(89.7 mm) 3.87″(98.3 mm) 0.67″(17.0 mm)
1/2″Flaretek® 3.78″(96.0 mm) 4.03″(102.4 mm) 0.85″(21.6 mm)
3/4″Flaretek® 4.11″(104.4 mm) 4.27″(108.5 mm) 1.00″(25.4 mm)
1″Flaretek® 4.43″(112.5 mm) 4.75″(120.7 mm) 1.20″(30.5 mm)
3.00″(76.2 mm)
Dim A
Dim B
Ø 1.88″(47.8 mm)
3 conductor connector/cable (DXX)
(Cable length up to 30 feet)
4150 FEP-jacketed Electrical Cable Connection, Single-port (NPT Version)
WIRE 4-20 MA OUTPUT VERSION
Black Ground (-) 4-20 mA
Red 24 VDC (+) 4-20 mA
White Not used
INLET/OUTLET
PORT CONNECTION DIM A DIM B
1/4″MNPTMALE 2.90″(73.7 mm) 0.59″(15.0 mm)
1/4″FNPTFEMALE 3.07″(78.0 mm) –
1/2″FNPTFEMALE 3.33″(84.6 mm) –
ELECTRICAL CONNECTOR INFORMATION
WIRE 4-20 MA OUTPUT VERSION
Red 24 VDC (+) 4-20 mA
Black Ground (-) 4-20 mA
White Not used
ELECTRICAL CONNECTOR INFORMATION
