Enterasys Matrix VSER-RPU-SYS Manual

P/N 9033948
Matrix V-Series
VSER-RPU-SYS
Redundant Power Supply
Hardware Installation Guide

i
NOTICE
ENTERASYS NETWORKS reserves the right to make changes in specifications and other
information contained in this document and its web site without prior notice. The reader should
in all cases consult ENTERASYS NETWORKS to determine whether any such changes have
been made.
The hardware, firmware, or software described in this document is subject to change without
notice.
IN NO EVENT SHALL ENTERASYS NETWORKS BE LIABLE FOR ANY INCIDENTAL,
INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING
BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS
DOCUMENT, WEB SITE, OR THE INFORMATION CONTAINED IN THEM, EVEN IF
ENTERASYS NETWORKS HAS BEEN ADVISED OF, KNEW OF, OR SHOULD HAVE
KNOWN OF, THE POSSIBILITY OF SUCH DAMAGES.
Enterasys Networks, Inc.
50 Minuteman Road
Andover, MA 01810
2004 Enterasys Networks, Inc. All rights reserved.
Printed in Taiwan
Release Date: March 2004
ENTERASYS NETWORKS, ENTERASYS MATRIX, LANVIEW,MATRIX, NETSIGHT,
WEBVIEW, and any logos associated therewith, are trademarks or registered trademarks of
Enterasys Networks, Inc. in the United States and other countries.
All other product names mentioned in this manual may be trademarks or registered trademarks
of their respective companies.
Matrix V-Series Documentation URL: http://www.enterasys.com/support/manuals
ELECTRICAL HAZARD: Only qualified personnel should
perform installation procedures.

Notice
ii
Regulatory Compliance Information
Federal Communications Commission (FCC) Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a class A
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment uses, generates, and can radiate radio frequency
energy and if not installed in accordance with the operator’s manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause interference in which case the user will be required to correct the interference at his
own expense.
WARNING: Changes or modifications made to this device which are not expressly approved
by the party responsible for compliance could void the user’s authority to operate the
equipment.
Industry Canada Notice
This digital apparatus does not exceed the class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la class A prescrites dans le Règlement sur le
brouillage radioélectrique édicté par le ministère des Communications du Canada.

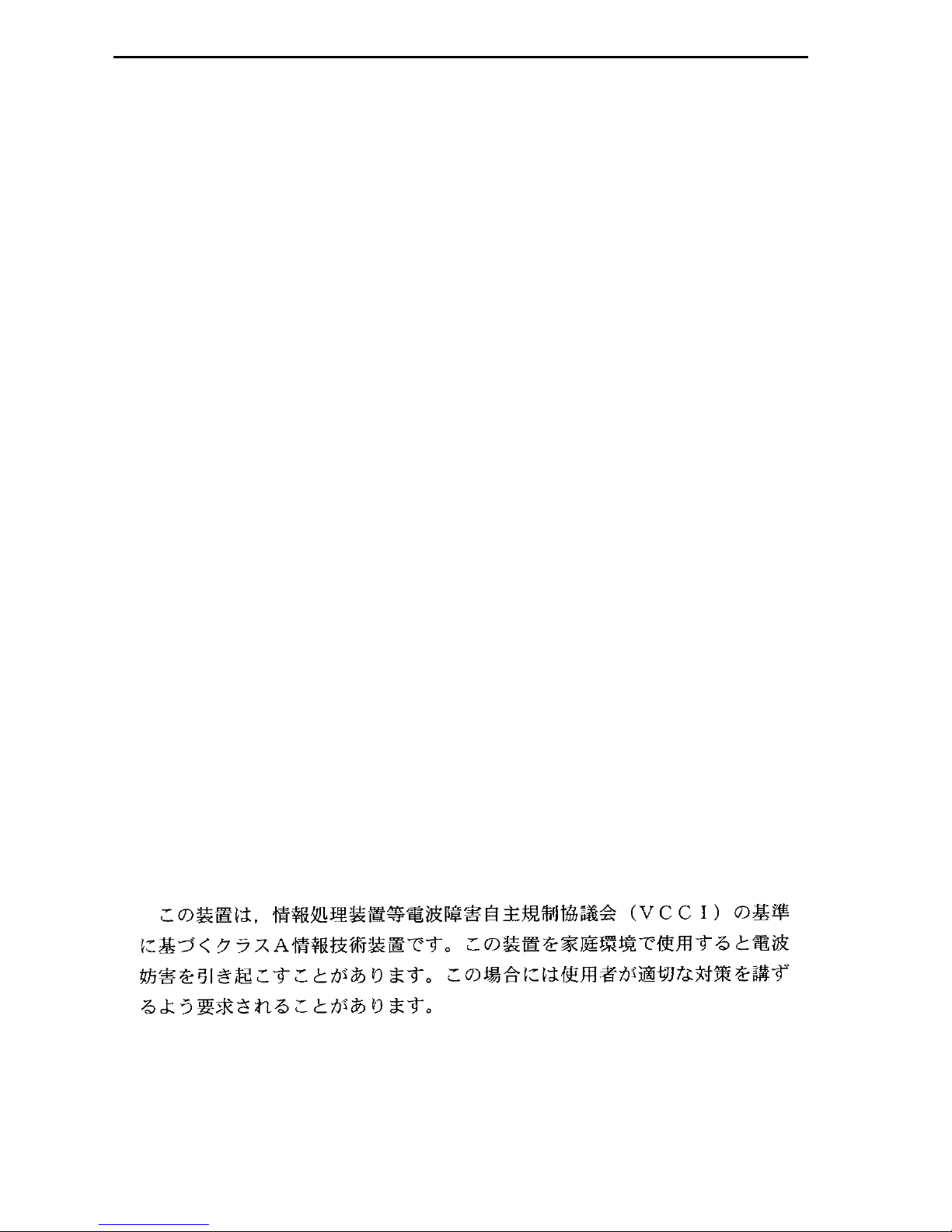

VCCI NOTICE
This is a class A product based on the standard of the Voluntary Control Council for Interference
by Information Technology Equipment (VCCI). If this equipment is used in a domestic
environment, radio disturbance may arise. When such trouble occurs, the user may be required
to take corrective actions.
Class A ITE Notice
WARNING: This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.

Notice
iii
BSMI EMC Statement — Taiwan
This is a class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
Safety Compliance
Please read the following safety information carefully before installing the
RPS:
WARNING: Installation and removal of the unit must be carried out by qualified personnel only.
• The unit must be connected to an earthed (grounded) outlet to comply with international
safety standards.
• Do not connect the unit to an A.C. outlet (power supply) without an earth (ground)
connection.
• The appliance coupler (the connector to the unit and not the wall plug) must have a
configuration for mating with an EN 60320/IEC 320 appliance inlet.
• The socket outlet must be near to the unit and easily accessible. You can only remove power
from the unit by disconnecting the power cord from the outlet.
• This unit operates under SELV (Safety Extra Low Voltage) conditions according to
IEC 60950. The conditions are only maintained if the equipment to which it isconnected also
operates under SELV conditions.
France and Peru only
This unit cannot be powered from IT†supplies. If your supplies are of IT type, this unit must be
powered by 230 V (2P+T) via an isolation transformer ratio 1:1, with the secondary connection point
labelled Neutral, connected directly to earth (ground).
†Impédance à la terre

Notice
iv
Veuillez lire à fond l'information de la sécurité suivante avant d'installer le
RPS:
AVERTISSEMENT: L’installation et la dépose de ce groupe doivent être confiés à un personnel
qualifié.
• Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu'il n'y a pas de
connexion de mise à la terre (mise à la masse).
• Vous devez raccorder ce groupe à une sortie mise à la terre (mise à la masse) afin de respecter les
normes internationales de sécurité.
• Le coupleur d’appareil (le connecteur du groupe et non pas la prise murale) doit respecter une
configuration qui permet un branchement sur une entrée d’appareil EN 60320/IEC 320.
• La prise secteur doit se trouver à proximité de l’appareil et son accès doit être facile. Vous ne
pouvez mettre l’appareil hors circuit qu’en débranchant son cordon électrique au niveau de cette
prise.
• L’appareilfonctionne à une tension extrêmement basse de sécurité qui est conforme à la norme IEC
60950. Ces conditions ne sont maintenues que si l’équipement auquel il est raccordé fonctionne
dans les mêmes conditions.
Power Cord Set
U.S.A. and Canada The cord set must be UL-approved and CSA certified.
The minimum specifications for the flexible cord are:
- No. 18 AWG - not longer than 2 meters, or 16 AWG.
- Type SV or SJ
- 3-conductor
The cord set must have a rated current capacity of at least 10 A
The attachment plug must be an earth-grounding type with NEMA 5-15P
(15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
Denmark The supply plug must comply with Section 107-2-D1, Standard DK2-1a
or DK2-5a.
Switzerland The supply plug must comply with SEV/ASE 1011.
U.K. The supply plug must comply with BS1363 (3-pin 13-amp) and be fitted
with a 5 A fuse which complies with BS1362.
The mains cord must be <HAR> or <BASEC> marked and be of type
HO3VVF3GO.75 (minimum).
Europe The supply plug must comply with CEE7/7 (“SCHUKO”).
The mains cord must be <HAR> or <BASEC> marked and be of type
HO3VVF3GO.75 (minimum).
IEC-320 receptacle.

Notice
v
France et Pérou uniquement:
Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si vos alimentations sont
du type impédance à la terre, ce groupe doit être alimenté par une tension de 230 V (2 P+T) par le
biais d’un transformateur d’isolement à rapport 1:1, avec un point secondaire de connexion portant
l’appellation Neutre et avec raccordement direct à la terre (masse).
Bitte unbedingt vor dem Einbauen des Switches die folgenden Sicherheitsan-
weisungen durchlesen:
WARNUNG: Die Installation und der Ausbau des Geräts darf nur durch Fachpersonal erfolgen.
• Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose angeschlossen werden.
• Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche die internationalen
Sicherheitsnormen erfüllt.
• Der Gerätestecker (der Anschluß an das Gerät, nicht der Wandsteckdosenstecker) muß einen
gemäß EN 60320/IEC 320 konfigurierten Geräteeingang haben.
• Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein. Die Stromversorgung
des Geräts kann nur durch Herausziehen des Gerätenetzkabels aus der Netzsteckdose unterbrochen
werden.
• Der Betrieb dieses Geräts erfolgt unter den SELV-Bedingungen (Sicherheitskleinstspannung)
gemäß IEC 60950. Diese Bedingungen sind nur gegeben, wenn auch die an das Gerät
angeschlossenen Geräte unter SELV-Bedingungen betrieben werden.
Cordon électrique - Il doit être agréé dans le pays d’utilisation
Etats-Unis et Canada: Le cordon doit avoir reçu l’homologation des UL et un certificat de la
CSA.
Les spe'cifications minimales pourla corde flexible sont AWG No.18,ou
AWG No. 16 pour une longueur infe'rieure a` 2 me'tres:
- type SV ou SJ
- 3 conducteurs
Le cordon doit être en mesure d’acheminer un courant nominal d’au
moins 10 A.
La prise femelle de branchement doit être du type à mise à la terre (mise
à la masse) et respecter la configuration NEMA 5-15P (15 A, 125 V) ou
NEMA 6-15P (15 A, 250 V).
Danemark: La prise mâle d’alimentation doit respecter la section 107-2 D1 de la
norme DK2 1a ou DK2 5a.
Suisse: La prise mâle d’alimentation doit respecter la norme SEV/ASE 1011.
Europe La prise secteur doit être conforme aux normes CEE 7/7 (“SCHUKO”)
LE cordon secteur doit porter la mention <HAR> ou <BASEC> et doit
être de type HO3VVF3GO.75 (minimum).

Notice
vi
•
Declaration of Conformity
Application of Council Directive(s): 89/336/EEC
73/23/EEC
Manufacturer’s Name: Enterasys Networks, Inc.
Manufacturer’s Address: 50 Minuteman Road
Andover, MA 01810
USA
European Representative Address: Enterasys Networks, Ltd.
Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG14 2PZ, England
Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 55024
EN 60950
Equipment Type/Environment: Networking Equipment, for use in
a Commercial or Light Industrial
Environment.
Enterasys Networks, Inc. declares that the equipment packaged
with this notice conforms to the above directives.
Stromkabel. Dies muss von dem Land, in dem es benutzt wird geprüft werden:
Schweiz Dieser Stromstecker muß die SEV/ASE 1011Bestimmungen einhalten.
Europe Das Netzkabel muß vom Typ HO3VVF3GO.75 (Mindestanforderung)
sein und die Aufschrift <HAR> oder <BASEC> tragen.
Der Netzstecker muß die Norm CEE 7/7 erfüllen (”SCHUKO”).

vii
Contents
Chapter 1: About the Redundant Power Supply 1-1
Overview 1-1
Features and Benefits 1-1
Front and Rear Panels 1-1
LEDs 1-2
Chapter 2: Installing the Redundant Power Supply 2-1
Installation 2-1
Selecting a Site 2-1
Equipment Checklist 2-1
Package Contents 2-2
GettingHelp 2-2
Optional Rack-Mounting Equipment 2-3
Mounting 2-3
Rack Mounting 2-3
Desktop or Shelf Mounting 2-5
Connecting Switches to the RPS 2-5
Appendix A: Troubleshooting A-1
Diagnosing RPS Indicators A-1
Power and Cooling Problems A-1
Installation A-1
Appendix B: Specifications B-1
Physical Characteristics B-1
Compliances B-2
Index

viii
Tables
Table 1-1. Port Status LEDs 1-2
Table A-1. Troubleshooting Chart A-1

ix
Figures

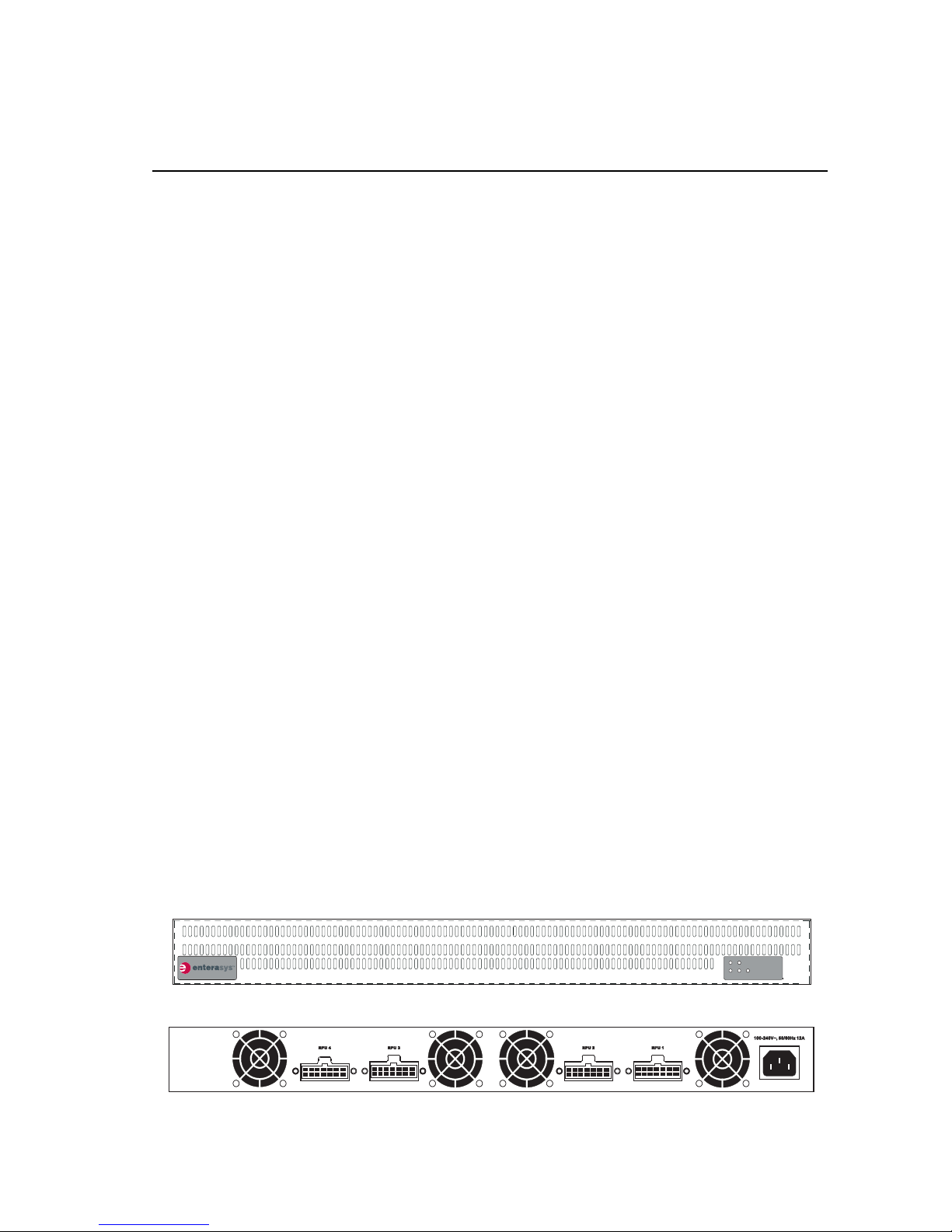

Figure 1-1. Front and Rear Panels 1-1
Figure 1-2. LEDs 1-2
Figure 2-1. Attaching the Brackets 2-4
Figure 2-2. Installing the RPS in a Rack 2-4
Figure 2-3. Attaching the Adhesive Feet 2-5
Figure 2-4. Power Receptacle 2-5
Figure 2-5. Connecting Several Switches to an RPS 2-6

x
Figures

1-1
Chapter 1:
About the Redundant Power Supply
Overview
Note: The VSER-RPU-SYS is compatible with V2H124-24 and V2H124-24T only.
This VSER-RPU-SYS External Redundant Power Supply (RPS) can supply 600
Watts of backup power to four switching devices in the event of an AC loss or failure
of an internal power supply.
The system operates in a parallel capacity with a switch’s internal power supply. If a
switch's internal power supply fails, the RPS will support the full load of the switch
without affecting network operation.
Features and Benefits
• Supports four switching devices with 12V DC output
• Easy management LEDs located on the front panel
• AC line cord can draw power from a different supply circuit
• DC line cord provides backup power to the attached device
• The power supply will operate under a no-load condition.
Front and Rear Panels
Four power indicators (LEDs) and one fan indicator are located on the RPS’s front
panel. The AC supply and DC backup receptacles are located on the RPS’s rear
panel.
Figure 1-1. Front and Rear Panels
Fan
12
4
3
VSER-RPU-SYS
Rear Panel

About the Redundant Power Supply
1-2
1
LEDs
The following diagram and table describe the functions of the LEDs on the Front
Panel.
Figure 1-2. LEDs
Table 1-1. Port Status LEDs
LED Condition Status
RPS 1, 2, 3, 4 On Green Power is being supplied to the RPS, the unit is functioning
normally, and the RPS port is connected to a switch.
Flashing Green Power is being supplied to the RPS, the unit is functioning
normally, but no switch is connected to the RPS port.
Off Power is off, or a failure has occurred.
Fan On Green The fans are functioning normally.
Flashing Red One or more fans have failed.
Off The unit is not connected to an AC power source.
Fan
12
4
3
VSER-RPU-SYS

2-1
Chapter 2:
Installing the Redundant Power Supply
Installation
Note: The VSER-RPU-SYS is compatible with V2H124-24 and V2H124-24T only.
The RPS may be placed on a desktop or mounted in a rack.
Caution: DO NOT place the RPS on the floor as the case is not waterproof. It is
recommended that this RPS be installed in a network equipment rack.
Selecting a Site
RPS units can be mounted in a standard 19-inch equipment rack or on a flat surface.
Be sure to follow the guidelines below when choosing a location.
• The site should:
• be at the center of all the devices you want to link and near a power outlet.
• be able to maintain its temperature within 0 to 40 °C (32 to 104 °F) and its
humidity within 5% to 95%, non-condensing
• provide adequate space (approximately two inches) on all sides for proper air
flow
• be accessible for installing, cabling and maintaining the devices
• allow the status LEDs to be clearly visible
• Make sure that a separate grounded power outlet that provides 100 to 240
VAC, 50-60 Hz, is within 2.44 m (8 feet) of each device and is powered from an
independent circuit breaker. As with any equipment, using a filter or surge
suppressor is recommended.
Equipment Checklist
After unpacking the RPS, check the contents to be sure you have received all the
components. Then, before beginning the installation, be sure you have all other
necessary installation equipment.

Installing the Redundant Power Supply
2-2
2
Package Contents
• Redundant Power Supply Unit
• One AC Supply Power Cord — US, Continental Europe or UK
• Four DC Backup Power Cords with IEC connectors on both ends (length 152 cm
[60 in.] each)
• Rack Mounting Kit containing brackets and screws
• Adhesive feet
• This Manual
• User Agreement Envelope
• Registration Card
GettingHelp
For additional support related to the RPS or this document, contact
Enterasys Networks using one of the following methods:
/
Before contacting Enterasys Networks for technical support, have the
following information ready:
• Your Enterasys Networks service contract number
• A description of the failure
• A description of any action(s) already taken to resolve the problem (e.g.,
changing mode switches, rebooting the unit, etc.)
• The serial and revision numbers of all involved Enterasys Networks products in
the network
• A description of your network environment (layout, cable type, etc.)
• Network load and frame size at the time of trouble (if known)
Web http://www.enterasys.com/support
Phone [phone]
1-800-872-8440 (toll-free in U.S. and Canada)
For the Enterasys Networks Support toll-free number in your country:
http://www.enterasys.com/support/gtac-all.html
Internet mail [e-mail]
To expedite your message, please type [eth] in the subject line.
To send comments or suggestions concerning this document to the Technical Writing
Department: [e-mail]
To expedite your message, please type [techwriting] in the subject line, and include
the document Part Number in the email message.

Mounting
2-3
2
• The device history (i.e., have you returned the device before, is this a recurring
problem, etc.)
• Any previous Return Material Authorization (RMA) numbers
Optional Rack-Mounting Equipment
If you plan to rack-mount the RPS, be sure to have the following equipment
available:
• Four mounting screws for each device you plan to install in a rack—these are not
included
• A screwdriver (Phillips or flathead, depending on the type of screws used)
Mounting
RPS units can be mounted in a standard 19-inch equipment rack or on a desktop or
shelf. Mounting instructions for each type of site follow.
Rack Mounting
Before rack mounting the unit, pay particular attention to the following factors:
• Temperature: Since the temperature within a rack assembly may be higher than
the ambient room temperature, check that the rack-environment temperature is
within the specified operating temperature range.
• Mechanical Loading: Do not place any equipment on top of a rack-mounted unit.
• Circuit Overloading: Be sure that the supply circuit to the rack assembly is not
overloaded.
• Grounding: Rack-mounted equipment should be properly grounded. Particular
attention should be given to supply connections other than direct connections to
the mains.

Installing the Redundant Power Supply
2-4
2
To rack-mount devices:
1. Attach the brackets to the device using the screws provided in the Rack
Mounting Kit.
Figure 2-1. Attaching the Brackets
2. Mount the device in the rack, using four rack-mounting screws (not provided).
Figure 2-2. Installing the RPS in a Rack
Fan
12
4
3
VSER-RPU-SYS
Fan
12
4
3
VSER-RPU-SYS

Connecting Switches to the RPS
2-5
2
Desktop or Shelf Mounting
1. Attach the four adhesive feet to the bottom of the first RPS unit.
Figure 2-3. Attaching the Adhesive Feet
2. Set the device on a flat surface near an AC power source, making sure there
are at least two inches of space on all sides for proper air flow.
Connecting Switches to the RPS
Caution: DO NOT connect the RPS to an AC power source until DC power cords have
been connected to the supported switches.
To connect switches to the RPS, refer to Figure 2-4 and Figure 2-5 and proceed as
follows:
1. Power up the switch by connecting one end of the AC cord to the AC receptacle
on the supported switch, and the other end to a grounded power outlet.
Figure 2-4. Power Receptacle
2. Connect one end of a DC cord to the redundant power receptacle on the
supported switch and the other end to an available receptacle on the RPS.
3. Repeat steps 1 and 2 for connecting up to four supported switches to the RPS.
Rear Panel

Installing the Redundant Power Supply
2-6
2
4. Power up the RPS by connecting one end of the AC cord to the AC receptacle
on the RPS, and the other end to a grounded power outlet.
5. Check the LEDs on the RPS to ensure proper operation. The Fan LED and the
RPS LED for connected switches should light up. If the LEDs indicate
otherwise, see "Troubleshooting" on page A-1 for more information.
Figure 2-5. Connecting Several Switches to an RPS
Note: For International use, you may need to change the AC line cord. You must use a
line cord set that has been approved for the receptacle type in your country.
RPS output port
Stack
RPS input port
AC Power
Supply No.1
AC Power
Supply No.2
RPS Unit
100-240V, 50/60Hz 12.5A
