Entree BB-2D-60 User manual

Back Bar Bottle Cooler
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage! Inspect all components immediately. See page 2.
I M P O R T A N T I N F O R M A T I O N
R E A D B E F O R E U S E
PLEASE SAVE THESE INSTRUCTIONS!

Service and Installation Manual
2 For warranty service, call 866-417-6140
CONTENTS
RECEIVING & INSPECTING EQUIPMENT………………………………………..…………………2
SPECIFICATIONS…………………………………………………….……………………….………3
INSTALLATION………………………………………………………………………….…………..….4
OPERATION………..……………………………………………………………………..……………5
MAINTENANCE……………………………………………………………………….……………….7
CIRCUIT DIAGRAM…………………………………………………………………………………9
All rights reserved. Reproduction without written permission is prohibited.
is a registered trademark of The Entree Company.
SERIAL NUMBER INFORMATION
The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand
side near the top on the wall.
Always have the serial number of your unit available when calling for parts or service.
This manual covers standard units only. If you have a custom unit, consult the customer service department
at the number listed on the last page.
RECEIVING AND INSPECTING THE EQUIPMENT
Even though most equipmentis shipped crated, care should be taken during unloading so the equipment is not
damaged while being moved into the building.
1. Visually inspect the exterior of the package and skid or container. Any damage should be noted and reported
to the delivering carrier immediately.
2. If damaged, open and inspect the contents with the carrier.
3. In the event that the exterior is not damaged, yet upon opening, there is concealed damage to the equipment,
notify the carrier. Notification should be made verbally as well as in written form.
4. Request an inspection by the shipping company of the damaged equipment. This should be done within 10
days from receipt of the equipment.
5. Be certain to check the compressor compartment housing and visually inspect the refrigeration package. Be
sure lines are secure and base is still intact.
6. Freight carriers can supply the necessary damage forms upon request.
7. Retain all crating material until an inspection has been made or waived.

ServiceandInstallationManual
For warranty service, call 866-417-6140 3
SPECIFICATION
BACK BAR BOTTLE COOLER
MODEL#
V/Hz/Ph
AMPS
STORAGE
CAPACITY
Cu-ft
HP
BTU
CHARGE
OZ
SHIP
WEIGHT
LBS
NEMA
PLUG
BB-2D-60
115/60/1
4.5
13.8
3/8
3200
8.5
302
5-15P
BB-2D-70
115/60/1
4.5
14.5
3/8
3200
8.5
355
5-15P
BB-3D-90
115/60/1
6.0
25.3
1/2
5800
9.5
412
5-15P
BB-2D-60-G
115/60/1
4.5
13.8
3/8
3200
8.5
353
5-15P
BB-2D-70-G
115/60/1
4.5
14.5
3/8
3200
8.5
395
5-15P
BB-3D-90-G
115/60/1
6.0
25.3
1/2
5800
9.5
474
5-15P

Service and Installation Manual
4 For warranty service, call 866-417-6140
INSTALLATION
Location
Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor
strong enough to support the total weight of the cabinet and contents.Afully loaded unit can weigh as much as
1500 pounds. Reinforce the floor as necessary to provide for maximum loading. For the most efficient
refrigeration, be sure to provide good air circulation inside and out.
Inside cabinet:
Do not pack refrigerator so full that air cannot circulate. The refrigerated air is discharged at the top rear of the
unit. It is important to allow for proper air flow from the top rear to the bottom of the unit. Obstructions to this air
flow can cause evaporator coil freeze ups and loss of temperature or overflow of water from the evaporator drain
pan.The shelves have a rear turn up on themto prevent this. However, bags and other items can still be located
to the far rear of the cabinet.Air is brought into the evaporator coil with fans mounted to the front of the coil.
Prevent obstruction by locating large boxes and tall stacks of product to the bottom of the cabinet.
Outside cabinet:
Be sure that the unit has access to ample air.Avoid hot corners and locations near stoves and ovens.
It is recommended that the unit be installed no closer than 2" from any wall with at least 12" of clear space above
the unit. Should it become necessary to lay the unit on its side or back for any reason, allow at least 24 hours
before start-up so as to allow compressor oil to flow back to the sump. Failure to meet this requirement can
cause compressor failure and unit damage.
Leveling
Alevel cabinet looks better and will perform better because the doors will line up with the frames properly, the
cabinet will not be subject to undue strain and the contents of the cabinet will not move around on the shelves.
Use a level to make sure the unit is level from front to back and side to side. Units supplied with legs will have
adjustable bullet feet to make the necessary adjustments. If the unit is supplied with casters, no adjustments are
available. Ensure the floor where the unit is to be located is level.
Stabilizing
Models are supplied on casters for your convenience, ease of cleaning underneath and for mobility. It is very
important, however, that the cabinet be installed in a stable condition with the front wheels locked while in use.
Standard warranties will be voided due to improper installation procedures.
Electrical connection
Refer to the amperage data on page 3, the serial tag, your local code or the National Electrical Code to be sure
the unit is connected to the proper power source.Aprotected circuit of the correct voltage and amperage must
be run for connection of the line cord, or permanent connection to the unit.
The ON/OFF switch must be turned to OFF and the unit disconnected from
the power source whenever performing service, maintenance functions or
cleaning the refrigerated area.

ServiceandInstallationManual
For warranty service, call 866-417-6140 5
OPERATION
Do not throw items into the storage area. Failure to heed these recommendations could result in damage to
the interior of the cabinet.
Do not throw items into the storage area. Failure to heed these recommendations could result in damage to
the interior of the cabinet.
Refrigerators: The factory setting for temperature range is 36-38F
On/Off Switch:
An on/off switch is located on the front of the bottom shroud. When the unit is on, the switch will glow green.
Light Switch:
Alight switch is located next to on/off switch on the front of the bottom shroud.
Defrosting: This unit will automatically go into defrost six times every 24 hour period. To put the unit into manual
defrost see instructions below.

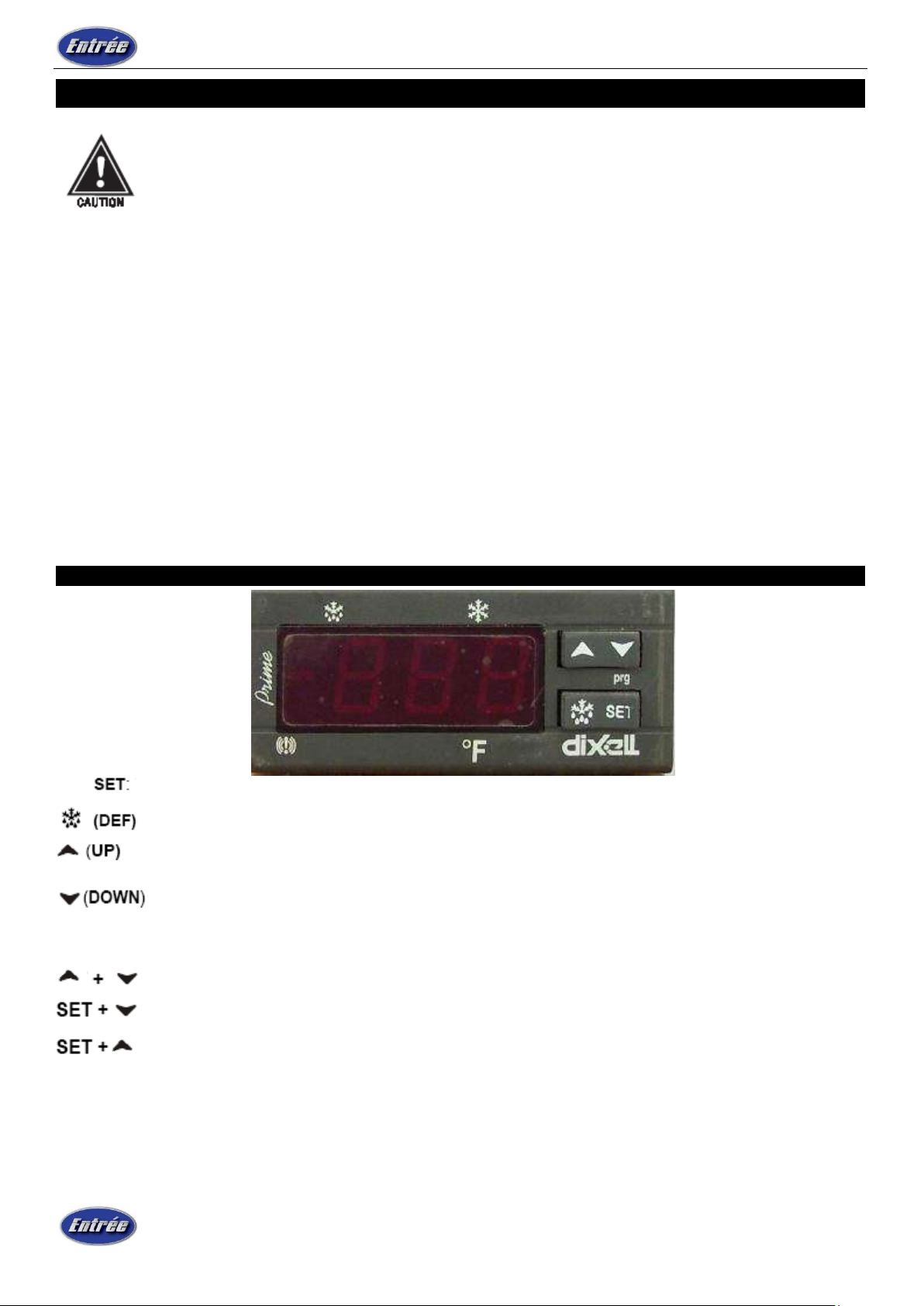

SOLID-STATE THERMOSTAT DESCRIPTIONS
1. FRONTPANELCOMMANDS
To display target set point; in programming mode it selects a parameter or confirms an operation.
To start a manual defrost
To view the last alarm occurrence; in programming mode, it browses the parameter
codes or increases the display value
To view the last alarm occurrence; in programming mode, it browses the parameter
codes or decreases the display value
KEY COMBINATION
To lock & unlock the keyboard
To enter in programming mode
To return to the room temperature display

Service and Installation Manual
6 For warranty service, call 866-417-6140
OPERATION
1.1 Function of LEDS
2. MAIN FUNCTIONS
2.1 HOW TO SEE THE SETPOINT
1. Push and immediately release the SET key: the display will show the set point value.
2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
2.2 HOW TO CHANGE THE SETPOINT
1. Push the SET key for more than 2 seconds to change the set point value.
2. The value of the set point will be displayed and the LED starts blinking.
3. To change the set value push the or key within 10s.
4. To set new point value, push the SET key again or wait 10s.
2.3 HOW TO START A MANUAL DEFFROST
Push the key for more than 2 seconds and a manual defrost will start
2.4 HOW TO LOCK THE KEYBOARD
1. Hold the and keys for more than 3s.
2. The “POF”message will be displayed and the keyboard will be locked. At this point, it will be possible only
to see the set point or the MAX or Min temperature stored.
3. If a key is pressed more than 3s the ”POF”message will be displayed.
2.5 HOW TO UNLOCK THE KEYBOARD
Hold the and keys together for more than 3s, till the “POF”message is displayed.
3. ALARMSIGNALS
HOW TO SEE THE ALARM AND
RESET THE RECORDED ALARM
1. Hold the or key to
display the alarm signals.
2. When the signal is displayed, hold
the SET key until the “rst”message
is displayed. Push the SET key
again. The “rst”message will start
blinking and the normal temperature
will be displayed again.

ServiceandInstallationManual
For warranty service, call 866-417-6140 7
MAINTENANCE
The power switch must be turned OFF and the unit disconnected from the power source
whenever performing service, maintenance functions or cleaning the refrigerated area.
Refrigerators and Freezers
The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and
water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless
steel to avoid marring the finish.
Do not use an abrasive cleaner because it will scratch the stainless steel and plastic and can damage the
breaker strips and gaskets.
Cleaning the Condenser Coil
The condenser coil requires regular cleaning. Cleaning is recommended every 90 days. In some instances,
you may find that there is a large amount of debris and dust or grease accumulated prior to the 90 day time
frame. In these cases the condenser coil should be cleaned every 30 days.
If the build up on the coil consists of only light dust and debris, the condenser coil can be cleaned with a simple
brush. Heavier dust build-up may require a vacuum or even compressed air to blow through the condenser
coil.
If heavy grease is present, there are de-greasing agents available for refrigeration use and specifically for the
condenser coils. The condenser coil may require cleaning with the de-greasing agent and then blown through
with compressed air.
Failure to maintain a clean condenser coil can initially cause high temperatures and excessive run times.
Continuous operation with dirty or clogged condenser coils can result in compressor failures. Neglecting the
condenser coil cleaning procedures will void any warranties associated with the compressor or cost to replace
the compressor.
Never use a high pressure water wash for this cleaning procedure as water can damage the
electrical components located near or at the condenser coil.
In order to maintain proper refrigeration performance, the condenser fins must be cleaned of dust, dirt and
grease regularly. It is recommended that this be done at least every three months. If conditions are such that
the condenser is totally blocked in three months, the frequency of cleaning should be increased. Clean the
condenser with a vacuum cleaner or stiff brush. If extremely dirty, a commercial-grade condenser cleaner may
be required.
Stainless Steel Care and Cleaning
To prevent discoloration of rust on stainless steel, several important steps need to be taken. First, we need to
understand the properties of stainless steel. Stainlesssteel contains 70-80% iron which will rust. It also contains
12-30% chromium which forms an invisible passive film over the steels surface which acts as a shield against
corrosion.As long as the protective layer is intact, the metal is still stainless. If the film is broken or
contaminated, outside elements can begin to breakdown the steel and begin to form rust of discoloration.
Proper cleaning of stainless steel requires soft cloths or plastic scouring pads,
NEVER USE STEEL PADS, WIRE BRUSHES OR SCRAPERS!

Service and Installation Manual
8 For warranty service, call 866-417-6140
MAINTENANCE
Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will
damage the protective film of the stainless steel. Chlorides are commonly found in hard water, salts, and
household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse and dry
thoroughly.
Routine cleaning of stainless steel can be done with soap and water. Extreme stains or grease should be
cleaned with a non-abrasive cleaner and plastic scrub pad. It is always good to rub with the grain of the steel.
There are also stainless steel cleaners available which can restore and preserve the finish of the steels
protective layer.
Early signs of stainless steel breakdown can consist of small pits and cracks. If this has begun, clean
thoroughly and start to apply stainless steel cleaners in attempt to restore the passivity of the steel.
Never use an acid based cleaning solution！Many food products have an acidic content
which can deteriorate the finish. Be sure to clean the stainless steel surfaces of ALL food
products.
Gasket Maintenance
Gaskets require regular cleaning to prevent mold and mildew build up and also to keep the elasticity of the
gasket. Gasket cleaning can be done with the use of warm soapy water. Avoid full strength cleaning
products on gaskets as this can cause them to become brittle and prevent proper seals. Do not use sharp
tools or knives to scrape or clean the gasket which could possibly tear the gasket and rip the bellows.
Gaskets can easily be replaced and don’t require the use of tools or authorized service technicians. The
gaskets are "Dart" style and can be pulled out of the grove in the door and replaced by pressing the new one
back into place.
Doors/Hinges
Over time and with heavy use, door hinges may become loose. If the door is beginning to sag, tighten the
screws that mount the hinge brackets to the frame of the unit. If the doors are loose or sagging this can
cause the hinge to pull out of the frame which may damage to both the doors and the door hinges.
Drain Maintenance
Each unit has a drain located inside the unit which removes the condensation from the evaporator coil and
evaporates it into an external condensate evaporator pan. Each drain can become loose or disconnected from
moving or bumping the drain. If you notice excessive water accumulation on the inside of the unit, be sure the
drain tube is connected from the evaporator housing to the condensate evaporator drain pan. If water starts to
collect underneath the unit, you may want to check the condensate evaporator drain tube to be sure it is still
located inside the drain pan. The leveling of the unit is important as the units are designed to drain properly
when on a level surface. If your floor is not level this can also cause drain problems. Be sure all drain lines are
free of obstructions because this may cause water to back up and overflow the drain pans.

ServiceandInstallationManual
For warranty service, call 866-417-6140 9
CIRCUITDIAGRAM
MODEL: BB-2D-60/BB-2D-70/ BB-2D-60-G/BB-2D-70-G
MODEL: BB-3D-90/ BB-3D-90-G

Service and Installation Manual
10 For warranty service, call 866-417-6140
STANDARD TWO-YEARWARRANTY
（TWO-YEARPARTS&LABORWARRANTYForproductsproducedafterserialnumber1301ENTH00001.）
NTRÉE L.L.C. warrants to the original purchaser of every new refrigerated unit, the cabinet and all parts thereof,
to be free from defects in material or workmanship, under normal and proper use and maintenance service as
specified by ENTRÉE LLC and upon proper installation in accordance with the Owner’s Manual supplied with
each Entrée L.L.C. unit. Entrée L.L.C. obligation under this warranty is limited to a period of two (2) years from
the date of original purchase or thirty 30 months after shipment date from Entree, whichever occurs first. Any
model of refrigeration equipment installed in a non-permanent structure, such as a mobile kitchen and/or trailer
shall have a thirty (30) days limited warranty from the date of purchase. Proof of purchase required.
Any part covered under this warranty that is determined by Entrée to have been defective within two (2) years of
original purchase or thirty (30) months after shipment date from manufacturer, whichever occurs first, is limited to
the repair or replacement, including labor charges, of defective parts or assemblies. The labor warranty shall
include standard straight time labor charges only and the established flat rate trip charges.
Warranty does not cover standard wear parts which include door gaskets, incandescent bulbs or fluorescent
bulbs, loosened fasteners of door or lid hinges. Warranty also does not cover issues caused by improper
installation or lack of basic preventative maintenance which includes regular cleaning of condenser coils.
ADDITIONAL THREE-YEAR COMPRESSOR WARRANTY
In addition to the Two (2) year warranty stated above, Entrée L.L.C. warrants its hermetically sealed compressor
to be free from defects in both material and workmanship under normal and proper use and maintenance service
for a period of three (3) additional years from the date of original installation but not to exceed five (5) years and
three (3) months after shipment from the manufacturer. Removal or defacement of the original Serial Number or
Model Number from any Unit shall be deemed to release Entree from all obligations hereunder or any other
obligations, express or implied.
IF THE CUSTOMER IS USING A PART THAT RESULTS IN A VOIDED WARRANTY AND AN ENTREE
AUTHORIZED REPRESENTATIVE TRAVELS TO THE INSTALLATION ADDRESS TO PERFORM WARRANTY
SERVICE, THE SERVICE REPRESENTATIVE WILL ADVISE CUSTOMER THE WARRANTY IS VOID. SUCH
SERVICE CALLS WILL BE BILLED TO CUSTOMER AT THE AUTHORIZED SERVICE CENTER'S THEN
APPLICABLE TIME AND MATERIALS RATES.
If shipment of a replacement part is requested by the end user prior to the arrival in the Entree factory of the part
claimed to be defective, the Original Purchaser must accept delivery of the replacement part of a C.O.D. basis,
with credit being issued after the part has been received and inspected at Entree's plant and determined by
Entree to be within this warranty.
Compressors determined by Entrée L.L.C. to have been defective within this extended time period will, at Entrée
L.L.C. option, be either repaired or replaced with a compressor or compressor parts of similar design and capacity.
The freight charges for sending a replacement compressor are not covered by this warranty. Replacement of a
defective Compressor is limited to one (1) Compressor by us during the three years period.
The three (3) year extended compressor warranty applies only to hermetically sealed parts of the compressor
and does not apply to any other parts or components, including, but not limited to: cabinet, paint finish,
temperature control, refrigerant, metering device, driers, motor starting equipment, fan assembly or any other
electrical component, etcetera.

ServiceandInstallationManual
For warranty service, call 866-417-6140 11
STANDARD TWO-YEARWARRANTY
（TWO-YEARPARTS&LABORWARRANTYForproductsproducedafterserialnumber1301ENTH00001.）
404A/134A COMPRESSOR WARRANTY
The compressor warranty detailed above will be voided if the following procedure is not carefully adhered to:
1. If the refrigerator/freezer does not cool within 1 hour/60 minutes, turn the unit off and call for service. If the
refrigeration system is void of Freon and the compressor is allowed to run more than an hour damage will occur
to the compressor and will cause it to fail. Failure/replacement of the compressor in this manner is not covered by
this warranty.
2. Drier replacement is very important and must be changed when a system is opened for servicing. The new
drier must also be the same capacity as the drier being replaced.
3. Micron level vacuums must be achieved to insure low moisture levels in the system. 500 microns or lower
must be obtained.
WARRANTY CLAIMS
All requests for must be called into 866-417-6140 to obtain and agree to service dispatch with Warranty Claim
Payment Terms. All claims for labor or parts must be made directly through Entrée L.L.C.
All claims should include: Dispatch number, model number of the unit, the serial number of the cabinet, proof of
purchase, date of installation, and all pertinent information supporting the existence of the alleged defect.
In case of warranty compressor, the compressor warranty form must be filled out by a qualified refrigeration
technician. This form can be obtain by down load from our website: www.entree.biz. This form must be emailed,
in its completion, with a copy of the original proof of purchase to: [email protected].
WHAT IS NOT COVERED BY THIS WARRANTY
Entrée L.L.C. sole obligation under this warranty is limited to either repair or replacement of parts, subject to the
additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations
other than those expressly covered by this warranty. Travel beyond 50 miles round trip and more than 2 hours
round trip.
NO CONSEQUENTIAL DAMAGES. ENTRÉE L.L.C. IS NOT RESPONSIBLE FOR ECONOMIC LOSS; PROFIT
LOSS; OR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION,
LOSSES OR DAMAGES ARISING FROM FOOD OR PRODUCT SPOILAGE CLAIMS WHETHER OR NOT ON
ACCOUNT OF REFRIGERATION FAILURE.
WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original
purchaser/user to whom delivered. ANY SUCH ASSIGNMENT OR TRANSFER SHALL VOID THE
WARRANTIES HEREIN MADE AND SHALL VOID ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IMPROPER USAGE. ENTRÉE L.L.C. ASSUMES NO LIABILITY FOR PARTS OR LABOR COVERAGE FOR
COMPONENT FAILURE OR OTHER DAMAGES RESULTING FROM IMPROPER USAGE OR INSTALLATION
OR FAILURE TO CLEAN AND/OR MAINTAIN PRODUCT AS SET FORTH IN THE OWNER’S MANUAL
PROVIDED WITH THE UNIT.
RELOCATION OF CABINET FOR REPAIR: Entrée L.L.C. is not responsible for the cost to move a cabinet for
any reason from its position of operation on the customer's premises to make a warranty repair.

Service and Installation Manual
12 For warranty service, call 866-417-6140
STANDARD TWO-YEARWARRANTY
（TWO-YEARPARTS&LABORWARRANTYForproductsproducedafterserialnumber1301ENTH00001.）
RESIDENTIALAPPLICATIONS: Entrée L.L.C. assumes no liability for parts or labor coverage for component
failure or other damages resulting from installation in non-commercial or residential applications.
ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION,
FIRE, FLOOD, ACTS OF GOD. Entrée L.L.C. is
not responsible for the repair or replacement of any parts that Entrée L.L.C. determines have been subjected
after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation,
fire, flood, or act of God.
IMPROPER ELECTRICAL CONNECTIONS. ENTRÉE L.L.C. IS NOT RESPONSIBLE FOR THE REPAIR OR
REPLACEMENT OF FAILED OR DAMAGED COMPONENTS RESULTING FROM INCORRECT SUPPLY
VOLTAGE, THE USE OF EXTENSION CORDS, LOW VOLTAGE, OR UNSTABLE SUPPLY VOLTAGE. THE
USE OF PIERCING VALVES IS PROHIBITED AND IF LEFT IN THE SYSTEM VOIDS ALL WARRANTIES.THIS
EQUIPMENT IS INTENDED FOR INDOOR USE ONLY.
NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE: THERE
ARE NO OTHER WARRANTIES, EXPRESSED, IMPLIED OR STATUTORY, EXCEPT THE TWO (2) YEAR
PARTS & LABOR WARRANTY AND THE ADDITIONAL THREE (3) YEAR COMPRESSOR WARRANTY AS
DESCRIBED ABOVE. THESE WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES,
INCLUDING IMPLIED WARRANTY AND MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF.
OUTSIDE U.S.: This warranty does not apply to, and Entrée L.L.C. is not responsible for, any warranty claims
made on products sold or used outside the United States and Canada.

ServiceandInstallationManual
For warranty service, call 866-417-6140 13
ENTRÉE LLC
4673 OSBORNE DR., SUITE I
EL PASO, TX 79922
www.entree.biz
