Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1
Congratulations on purchasing your Kramer MultiTOOLS®FC-31xl UXGA
to DVI Converter, which is ideal for:
that are clearly
defined by function.
•Home theater, presentation and multimedia applications
•Rental and staging
The package includes the following items:
•FC-31xl UXGA to DVI Converter
•Power adapter (12V DC output)
•This user manual2
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high performance high resolution cables3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories
and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com
3 The complete list of Kramer cables is available from http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2

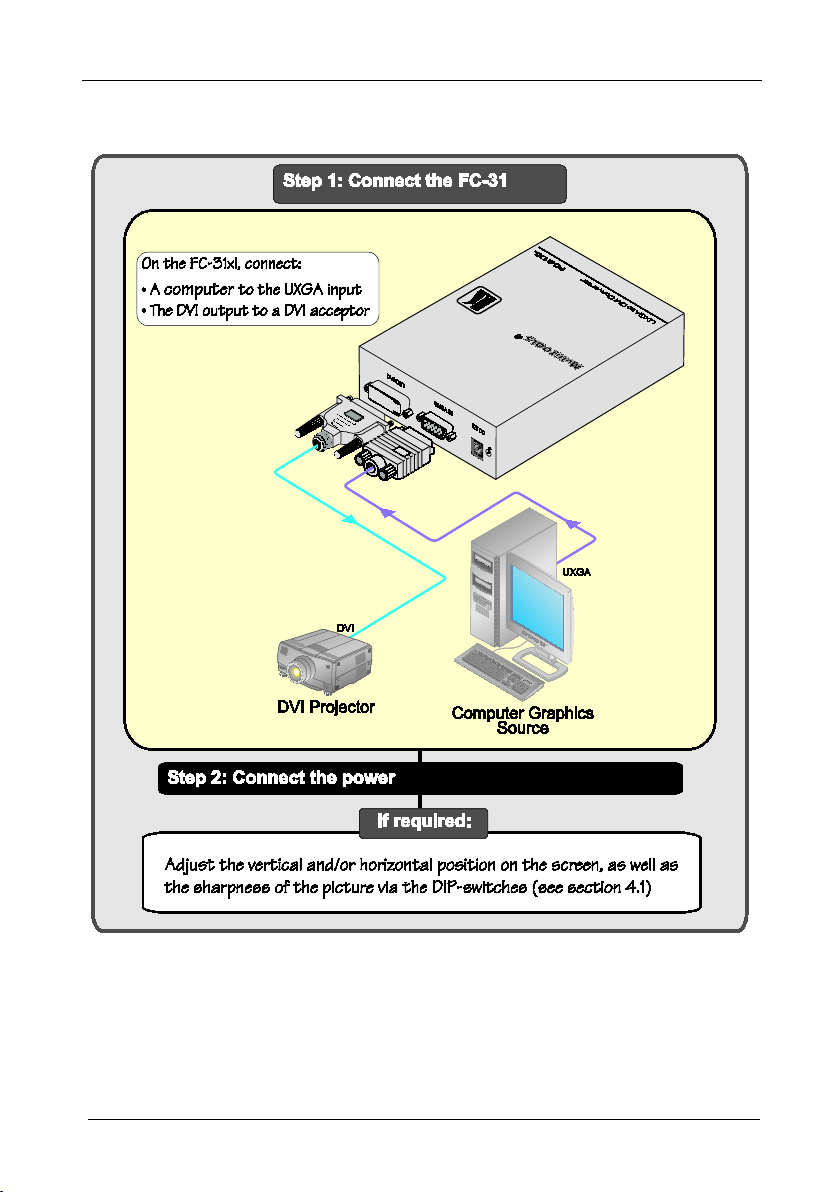

2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

Overview
3
3 Overview
The Kramer MultiTOOLS®FC-31xl UXGA to DVI Converter is a high
quality converter for converting an analog computer graphics signal on a
15-pin HD connector to a digital DVI-D signal.
Table 1lists the resolutions supported by the FC-31xl.
Table 1: FC-31xl Resolutions
Resolution Frequency [Hz] Resolution Frequency [Hz]
640x480 60, 72, 75, 85 1280x1024 60, 75, 85
720x400 70, 85 1360x768 60
800x600 56, 60, 72, 75, 85 1400x1050 60 (RB), 75
848x480 60 1440x900 60
1024x768 60, 72, 75, 85 1440x1050 60
1152x864 75 1600x1200 60
1280x768 60 (RB3F
1), 75, 85
1680x1050 60
1280x800 60 1920x1080 60
1280x960 60, 85 1920x1200 60 (RB)
In particular, the FC-31xl:
•Includes DIP-switches that let you adjust the horizontal position, the
vertical position, and/or the sharpness of the image
•Is 12V DC fed
Achieving the best performance means:
•Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and
elevated noise levels (often associated with low quality cables)
•Avoiding interference from neighboring electrical appliances and
positioning your FC-31xl away from moisture, excessive sunlight and
dust
1 Reduced blanking

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your FC-31xl UXGA to DVI Converter
4
4 Your FC-31xl UXGA to DVI Converter
Figure 1and Table 2define the FC-31xl.

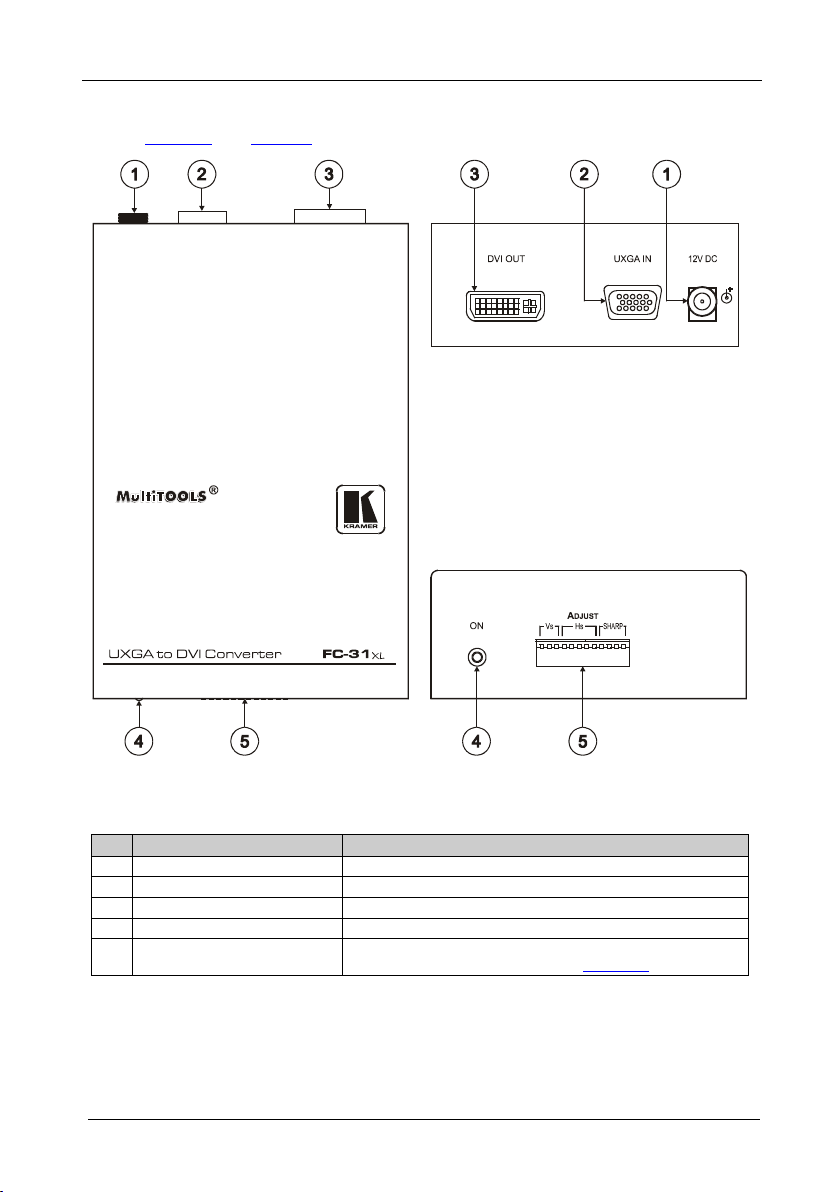

Figure 1: FC-31xl UXGA to DVI Converter
Table 2: FC-31xl UXGA to DVI Converter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 UXGA IN 15-pin HD Connector Connects to the computer graphics source
3 DVI OUT Connector Connects to the DVI acceptor
4 ON LED Illuminates when receiving power
5 ADJUST DIP-switches Set to adjust the vertical and/or horizontal position on the screen,
and/or the sharpness of the picture (see Section 4.1)

Your FC-31xl UXGA to DVI Converter
5
4.1 DIP-switch Settings
Figure 2and Table 3define the DIP-switches.
Figure 2: DIP-switch Definitions
Table 3: DIP-switch Definitions
DIP-switches Set to adjust the:
1 to 3 (Vs) Vertical position on the screen
4 to 8 (Hs) Horizontal position on the screen
9 to 12 (SHARP) Sharpness of the picture
To adjust the vertical position of the image, set the DIP-switches as
required, according to Table 4.
Table 4: (Vs) Vertical Positioning DIP-switch Settings
In this state: 1 2 3
Shift Down (4 steps) OFF OFF OFF
Shift Down (3 steps) ON OFF OFF
Shift Down (2 steps) OFF ON OFF
Shift Down (1 step) ON ON OFF
No shift OFF OFF ON
Shift Up (1 step) ON OFF ON
Shift Up (2 steps) OFF ON ON
Shift Up (3 steps) ON ON ON
To adjust the horizontal position of the image, set the DIP-switches as
required, according to Table 5.
Table 5: (Hs) Horizontal Positioning DIP-switch Settings
In this
state: 4 5 6 7 8 In this state: 4 5 6 7 8
Shift Left
(16 steps)
OFF OFF OFF OFF OFF No Shift OFF OFF OFF OFF ON
Shift Left
(15 steps)
ON OFF OFF OFF OFF Shift Right (1
step)
ON OFF OFF OFF ON
Shift Left
(14 steps)
OFF ON OFF OFF OFF Shift Right (2
steps)
OFF ON OFF OFF ON
Shift Left
(13 steps)
ON ON OFF OFF OFF Shift Right (3
steps)
ON ON OFF OFF ON
Shift Left
(12 steps)
OFF OFF ON OFF OFF Shift Right (4
steps)
OFF OFF ON OFF ON
Shift Left
(11 steps)
ON OFF ON OFF OFF Shift Right (5
steps)
ON OFF ON OFF ON
Shift Left
(10 steps)
OFF ON ON OFF OFF Shift Right (6
steps)
OFF ON ON OFF ON
Shift Left
(9 steps)
ON ON ON OFF OFF Shift Right (7
steps)
ON ON ON OFF ON
Shift Left
(8 steps)
OFF OFF OFF ON OFF Shift Right (8
steps)
OFF OFF OFF ON ON

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your FC-31xl UXGA to DVI Converter
6
In this
state: 4 5 6 7 8 In this state: 4 5 6 7 8
Shift Left
(7 steps)
ON OFF OFF ON OFF Shift Right (9
steps)
ON OFF OFF ON ON
Shift Left
(6 steps)
OFF ON OFF ON OFF Shift Right
(10 steps)
OFF ON OFF ON ON
Shift Left
(5 steps)
ON ON OFF ON OFF Shift Right
(11 steps)
ON ON OFF ON ON
Shift Left
(4 steps)
OFF OFF ON ON OFF Shift Right
(12 steps)
OFF OFF ON ON ON
Shift Left
(3 steps)
ON OFF ON ON OFF Shift Right
(13 steps)
ON OFF ON ON ON
Shift Left
(2 steps)
OFF ON ON ON OFF Shift Right
(14 steps)
OFF ON ON ON ON
Shift Left
(1 step)
ON ON ON ON OFF Shift Right
(15 steps)
ON ON ON ON ON
The SHARPNESS DIP-switch setting controls the phase of the sampling
clock, as defined in Table 6.
Table 6: SHARPNESS DIP-switch Settings
9 11 10 12
OFF OFF OFF OFF
ON OFF OFF OFF
OFF ON OFF OFF
ON ON OFF OFF
OFF OFF ON OFF
ON OFF ON OFF
OFF ON ON OFF
ON ON ON OFF
OFF OFF OFF ON
ON OFF OFF ON
OFF ON OFF ON
ON ON OFF ON
OFF OFF ON ON
ON OFF ON ON
OFF ON ON ON
ON ON ON ON

Connecting the FC-31xl UXGA to DVI Converter
7
5 Connecting the FC-31xl UXGA to DVI Converter
To connect your FC-31xl UXGA to DVI Converter, as the example in
Figure 3illustrates, do the following1
1. Connect a computer graphics source (for example, a computer) to the
UXGA IN connector.
:
2. Connect the DVI OUT connector to a DVI projector.
3. Connect the 12V DC power adapter (wall transformer) to the 12V DC
socket and connect the transformer to the mains electricity (not shown
in Figure 3).
Figure 3: Connecting the FC-31xl UXGA to DVI Converter
6 EDID
The FC-31xl is shipped with a fixed, factory default EDID (see Section 8).
1 Switch off the power on each device before connecting it to your FC-31xl. After powering up your FC-31xl, switch on the
power on each device

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
8
7 Technical Specifications
Table 7lists the technical specifications of the FC-31xl.
Table 7: Technical Specifications1
INPUT:
of the FC-31xl UXGA to DVI Converter
1 UXGA on a 15-pin HD connector
OUTPUT: 1 DVI
2
SUPPORTED
RESOLUTIONS:
, 1.2Vpp on a DVI Molex 24-pin female connector; DDC signal 5Vpp (TTL)
640x480 @60Hz/72Hz/75Hz/85Hz; 720x400 @70Hz/85Hz;
800x600 @56Hz/60Hz/72Hz/75Hz/85Hz; 848x480 @60Hz; 1024x768
@60Hz/72Hz/75Hz/85Hz; 1152x864 @75Hz; 1280x768 @60Hz (RB)/75Hz/85Hz;
1280x800 @60Hz; 1280x960 @60Hz/85Hz; 1280x1024 @60Hz/75Hz/85Hz; 1360x768
@60Hz; 1400x1050 @60Hz(RB)/75Hz; 1440x900 @60Hz; 1440x1050 @60Hz;
1600x1200 @60Hz; 1680x1050 @60Hz; 1920x1080 @60Hz; 1920x1200 @60Hz(RB)
DVI BANDWIDTH: 1.65GHz
CONTROLS: DIP-switches
COUPLING: DC
POWER SOURCE: 12V, 180mA
DIMENSIONS: 10.7cm x 4.0cm x 15.9cm (4.20" x 1.59" x 6.26") W, D, H
WEIGHT: 0.15kg. (0.55lbs.) approx.
ACCESSORIES: Power supply
8 EDID Factory Default Data
Time: 8:56:25 AM
Date: 07 December, 2010
EDID Manager Version: 1.0.0.14
___________________________________________________________________
Block 0 (EDID Base Block), Bytes 0 - 127, 128 BYTES OF EDID CODE:
0 1 2 3 4 5 6 7 8 9
000 | 00 FF FF FF FF FF FF 00 2E 4D
010 | 02 00 9C 03 00 00 27 14 01 03
020 | 78 58 32 78 EF EE 91 A3 54 4C
030 | 99 26 0F 50 54 A5 6F 00 D1 C0
040 | B3 00 95 00 90 40 A9 40 81 00
050 | 81 40 81 C0 02 3A 80 18 71 38
060 | 2D 40 58 2C 45 00 12 2C 21 00
070 | 00 1E 66 21 50 B0 51 00 1B 30
080 | 40 70 36 00 12 2C 21 00 00 1E
090 | 28 3C 80 A0 70 B0 23 40 30 20
100 | 36 00 12 2C 21 00 00 1E 48 3F
110 | 40 30 62 B0 32 40 40 C0 13 00
120 | 12 2C 21 00 00 1E 00 1A
(8-9) ID Manufacture Name : KRM
(10-11) ID Product Code : 0002
(12-15) ID Serial Number :
(16) Week of Manufacture : 39
(17) Year of Manufacture : 2010
(18) EDID Version Number : 1
(19) EDID Revision Number: 3
(20) Video Input Definition: Analog
0.700, 0.000 (0.700 V p-p)
Separate Syncs
1 Specifications are subject to change without notice
2 On a DVI-I connector. Note that only the digital signal (DVI-D) is available on the DVI connector

EDID Factory Default Data
9
(21) Maximum Horizontal Image Size: 88 cm
(22) Maximum Vertical Image Size : 50 cm
(23) Display Gamma : 2.20
(24) Power Management and Supported Feature(s):
Standby, Suspend, Active Off/Very Low Power, RGB Color, sRGB, Preferred Timing Mode, Default GTF
Supported
(25-34) Color Characteristics
Red Chromaticity : Rx = 0.636 Ry = 0.330
Green Chromaticity : Gx = 0.300 Gy = 0.596
Blue Chromaticity : Bx = 0.150 By = 0.056
Default White Point: Wx = 0.312 Wy = 0.329
(35) Established Timings I
720 x 400 @ 70Hz (IBM, VGA)
640 x 480 @ 60Hz (IBM, VGA)
640 x 480 @ 75Hz (VESA)
800 x 600 @ 60Hz (VESA)
(36) Established Timings II
800 x 600 @ 75Hz (VESA)
832 x 624 @ 75Hz (Apple, Mac II)
1024 x 768 @ 60Hz (VESA)
1024 x 768 @ 70Hz(VESA)
1024 x 768 @ 75Hz (VESA)
1280 x 1024 @ 75Hz (VESA)
(37) Manufacturer's Timings (Not Used)
(38-53) Standard Timings
1920x1080 @ 60 Hz (16:9 Aspect Ratio)
1680x1050 @ 60 Hz (16:10 Aspect Ratio)
1440x900 @ 60 Hz (16:10 Aspect Ratio)
1400x1050 @ 60 Hz (4:3 Aspect Ratio)
1600x1200 @ 60 Hz (4:3 Aspect Ratio)
1280x800 @ 60 Hz (16:10 Aspect Ratio)
1280x960 @ 60 Hz (4:3 Aspect Ratio)
1280x720 @ 60 Hz (16:9 Aspect Ratio)
(54-71) Detailed Descriptor #1: Preferred Detailed Timing (1920x1080 @ 60Hz)
Pixel Clock : 148.5 MHz
Horizontal Image Size : 530 mm
Vertical Image Size : 300 mm
Refresh Mode : Non-interlaced
Normal Display, No Stereo
Horizontal:
Active Time : 1920 Pixels
Blanking Time : 280 Pixels
Sync Offset : 88 Pixels
Sync Pulse Width: 44 Pixels
Border : 0 Pixels
Frequency : 67 kHz
Vertical:
Active Time : 1080 Lines
Blanking Time : 45 Lines
Sync Offset : 4 Lines
Sync Pulse Width: 5 Lines
Border : 0 Lines
Digital Separate, Horizontal Polarity (+), Vertical Polarity (+)
Modeline: "1920x1080" 148.500 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync
(72-89) Detailed Descriptor #2: Detailed Timing (1360x768 @ 60Hz)
Pixel Clock : 85.5 MHz
Horizontal Image Size : 530 mm
Vertical Image Size : 300 mm
Refresh Mode : Non-interlaced
Normal Display, No Stereo
Horizontal:
Active Time : 1360 Pixels
Blanking Time : 432 Pixels

KRAMER: SIMPLE CREATIVE TECHNOLOGY
EDID Factory Default Data
10
Sync Offset : 64 Pixels
Sync Pulse Width: 112 Pixels
Border : 0 Pixels
Frequency : 47 kHz
Vertical:
Active Time : 768 Lines
Blanking Time : 27 Lines
Sync Offset : 3 Lines
Sync Pulse Width: 6 Lines
Border : 0 Lines
Digital Separate, Horizontal Polarity (+), Vertical Polarity (+)
Modeline: "1360x768" 85.500 1360 1424 1536 1792 768 771 777 795 +hsync +vsync
(90-107) Detailed Descriptor #3: Detailed Timing (1920x1200 @ 60Hz)
Pixel Clock : 154 MHz
Horizontal Image Size : 530 mm
Vertical Image Size : 300 mm
Refresh Mode : Non-interlaced
Normal Display, No Stereo
Horizontal:
Active Time : 1920 Pixels
Blanking Time : 160 Pixels
Sync Offset : 48 Pixels
Sync Pulse Width: 32 Pixels
Border : 0 Pixels
Frequency : 74 kHz
Vertical:
Active Time : 1200 Lines
Blanking Time : 35 Lines
Sync Offset : 3 Lines
Sync Pulse Width: 6 Lines
Border : 0 Lines
Digital Separate, Horizontal Polarity (+), Vertical Polarity (+)
Modeline: "1920x1200" 154.000 1920 1968 2000 2080 1200 1203 1209 1235 +hsync +vsync
(108-125) Detailed Descriptor #4: Detailed Timing (1600x1200 @ 60Hz)
Pixel Clock : 162 MHz
Horizontal Image Size : 530 mm
Vertical Image Size : 300 mm
Refresh Mode : Non-interlaced
Normal Display, No Stereo
Horizontal:
Active Time : 1600 Pixels
Blanking Time : 560 Pixels
Sync Offset : 64 Pixels
Sync Pulse Width: 192 Pixels
Border : 0 Pixels
Frequency : 75 kHz
Vertical:
Active Time : 1200 Lines
Blanking Time : 50 Lines
Sync Offset : 1 Lines
Sync Pulse Width: 3 Lines
Border : 0 Lines
Digital Separate, Horizontal Polarity (+), Vertical Polarity (+)
Modeline: "1600x1200" 162.000 1600 1664 1856 2160 1200 1201 1204 1250 +hsync +vsync
(126-127) Extension Flag and Checksum
Extension Block(s) : 0
Checksum Value : 26

11
LIMITED WARRANTY
WHOIS PROTECTED?
WHAT IS COVEREDAND WHAT IS NOT COVERED
WH AT WE W ILLPAY FOR AND W HAT WE WI LL NO T PAY FO R
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OFIMPLIEDWARRANTIES
EXCLUSIONOF DAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
Kramer
HOW LONGIS THE WARRA NTY
Labor and parts are warranted for three years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items. We will notpay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
Thiswarranty gives you specific legalrights, and you may alsohave other rights, which varyfrom place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
Thisequipment has been tested todetermine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility(EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility(EMC) generic immunity standard.
Part 1: Residential, commercial and lightindustry environment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attemptedrepair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presentedto the carrier)
v) Removal or installationof the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessoriesused in conjunction with the product
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss ofuseof the product, loss
of time, commercialloss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations andexclusions may not apply to you.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
IF reattached, removed or otherwise interfered with.
* FCC andCE approved using STP cable (for twisted pair products)
NOTE:
Part 1:

Kramer Electronics, Ltd.
Solid Signal
22285 Regency Dr
Novi, MI 48375
For the latest information on our products and a list
of Kramer distributors, visit solidsignal.com
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
