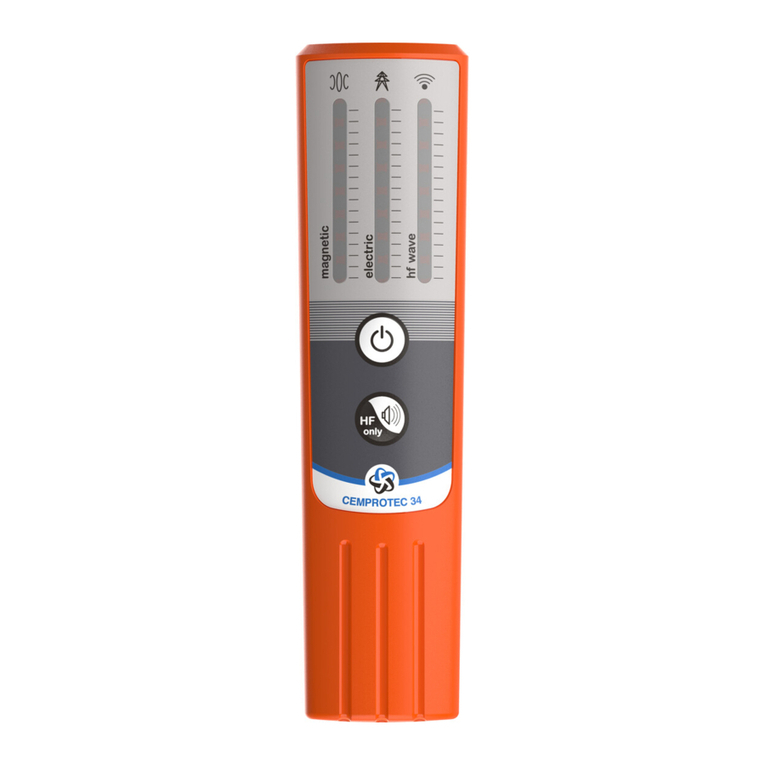

Epe conseil Cemprotec 34 User manual

Electro-Smog (EMF) Detector –Radio Frequency detection with enhanced sensitivity –High

frequency –Low frequency –Magnetic field - 1 MHz to 10 GHz frequency range –Detection 3G / 4G /

EPE Conseil would like to thank you for purchasing CEMPROTEC, before using it, please read this guide in its entirety, particularly the "Warnings" section.

This section specifically indicates the terms of use so that CEMPROTEC is used safely and within the warranty limitations.

What is Electro-Smog ?

We refer to Electro-Smog as Electro-Magnetic Fields (EMF) produced by technology. EMFs are “generated in the radiofrequency

bands (RF/EMF) by popular wireless devices like cell phones, cordless phones, baby monitors, tablets, Wi-Fi enabled computer

equipment, cell phone towers/ antenna arrays, radio/television broadcast facilities, and wireless smart meters among others. EMFs

are also emitted in the extremely low frequency band (ELF/EMF) by electrical appliances, electrical wiring, and power lines”.

(source: https://emfscientist.org)

Operating your detector : the battery

Insert / changing : when putting the battery in place, please ensure the cable is not placed underneath the battery, but it is

placed to the side of it.

Failure to comply with these instructions can damage the cable and cause the compartment lid to not close properly.

Turning on the device : Upon start up the battery level is displayed for 3 seconds then the following functions are set : Loud

speaker : active / Peak : disactivated

Battery level check: Upon start up the battery level is displayed for 3 seconds in the middle field row; the 2 other rows are off at this

point. This bar indicates the battery level with a full green bar representing a full battery.

Battery saving mode : to save the battery the device will switch itself off automatically after 20 minutes.

Push buttons :

·POWER button: press to switch on the device

·HF only button/loud speaker : press to active the Peak function

·HF only button/ loud speaker : press and hold for loud speaker

The following table gives further details on the functions :

Initial state

Action

End state

Device off

Press the on-off button

Device is turned on

Device on

Press the on-off button

Device is turned off

Peak function off

Press the select button

Peak function on

Press the select button

Peak function off

Loud speaker on

Hold the select button

Loud speaker is turned off

Loud speaker off

Hold the select button

Loud speaker is turned on

Display values for detection levels:

The 3 meter views display the levels of disturbance received for the following 3 types of sensors:

·Magnetic

·Electric

·High resolution

The display is as follows:

·If no disturbance the first green LED will stay lit:

·If a disturbance is detected the level is transcribed with one to two LEDs lit, giving a double level reading. The 8 LEDs therefore allow for

14 levels in total (see standard mode table). Display example :

Technical details :

Battery powered 9V, non-rechargeable.

Maximum current : 50mA

Dimensions : 179,5 x 46 x 32,2 mm

Weight of the device : 80g

Ideal temperature usage : -10°C +50°C

Cleaning recommendations : To clean, use a soft slightly damp cloth with rubbing alcohol.

Warning : CEMPROTEC is by no means a measuring device. CEMPROTEC is a detection device that gives tendances and approximations in relation to radiation.

The human body is likely to directly affect the detection. For a more precise detection, hold the device at least 50 cm away from you.

The devices are calibrated in an environment at a temperature of 20 ° C and a level of air humidity of 45%.

Store CEMPROTEC in a dry place with low humidity.

All modifications to this device are not authorized and will void the warranty.

Keep out of reach of children.

Quick start guide

Detect ambient electro-smog (i.e. electric fields from electric cables and appliances (such as computers, fuse boards, lamps and power

supplies), magnetic fields from high voltage lines, transformers and inverters, or Hyper Frequencies resulting from cell towers,

WiFi/WiMax networks or cordless landline phones, etc.)

1. Press the “on-off” button once to switch on the device in standard mode.

2. Hold the device at arm length away from your body.

3. Move slowly around to detect ambient electro-smog (the device performs a new detection every two seconds).

NB: to switch the sound on or off, press and hold the “on-off” button.

Detect ambient Radio Frequencies (RF) smog with enhanced sensitivity (detecting peak values) (i.e. Radio Frequencies resulting from

cell towers, WiFi/WiMax networks or cordless landline phones, radio and TV broadcasting, etc.)

1. Press the “on-off” button once to switch on the device in standard mode.

2. Press the “select” button once to enter high-resolution RF mode. LED 1 and 2 will stay lit.

3. Hold the device at arm length away from your body.

4. Move slowly around to detect ambient electro-smog (the device performs a new detection every two seconds).

NB: In this mode, all 24 LEDs show RF radiation. The LEDs at the bottom indicate the lowest radiation level while the LEDs at the top show the

highest level of radiation.

Standard mode table (indicative field strength is shown with each row of 8 LEDs)

Low frequency magnetic and electric field (detection range : 10 Hz - 5 kHz ; detection on all three dimensions (3D) and RF field (radio waves)

(detection range : 1 MHz - 10 GHz)

Levels

CEMPROTEC lights

+ Y1

Y1 +

Y2 +

Y3 +

R1 +

R2 +

[BF] –Alternating

electric field in V/m

(volt per meter)

CEMPROTEC

[RF] –Radio [µW/m²]

(microwatt per

square meter)

110

150

200

300

500

750

1000

1250

1500

1750

2000

Alternating magnetic

field in [nT]

(Nanotesla)

100

140

180

220

300

400

650

1000

1500

2000

2500

3000

High-resolution RF mode table (enhanced sensitivity) When the Peak function is activated only the RF is detected (indicative field strength is

shown by all of the 24 LEDs). Detection range : 1 MHz - 10 GHz) values in µW/m² (Microwatt per square meter).

Levels

High frequency [µW/m²]

CEMPROTEC

2,5

100

140

180

225

Levels

High frequency [µW/m²]

CEMPROTEC

300

400

550

750

1000

1250

1500

1750

2000

2250

2500

2750

*Peak values are detected. Actual values may vary slightly from the values specified in this table as a result of differences in individual electronic components.

Exposure limits depend on individual sensitivities. The values measured are purely indicative and shall not engage the liability of E.P.E. Conseil.

Standard mode graph with thresholds (indicative field is shown with each row of 8 LEDs)

RF:0 V/m

0,08 V/m

0,12 V/m

0,19 V/m

0,27 V/m

0,34 V/m

0,43 V/m

0,53 V/m

0,61 V/m

0,69 V/m

0,75 V/m

∞

RF:0 µW/m²

15 µW/m²

40 µW/m²

100 µW/m²

200 µW/m²

300 µW/m²

500 µW/m²

750 µW/m²

1000 µW/m²

1250 µW/m²

1500 µW/m²

EF:0 V/m

6 V/m

15 V/m

20 V/m

25 V/m

30 V/m

35 V/m

40 V/m

50 V/m

60 V/m

70 V/m

MF:0 nT

20 nT

80 nT

120 nT

160 nT

200 nT

300 nT

400 nT

1000 nT

1500 nT

2000 nT

Indicative field strengths for Radio Frequencies (RF) in Volt per meter (V/m) and Microwatt per square meter (µW/m²), Electric Fields (EF) in Volt per meter (V/m)

and Magnetic Fields (MF) in Nanotesla (nT), depending on the colour of the LEDs that light up. The thresholds mentioned above are recommendations and norms

from the corresponding sources (see below).

RF: Bio-Initiative (2012) et Conseil de l’Europe (Résolution 1815, court terme (2011))

MF: TCO 99 norm (1999) et NCRP (USA-1995)

EF:TCO 99 norm (1999) et NCRP (USA-1995)

RF:Conseil de l’Europe (Résolution 1815, moyen terme (2011))

EF:Baubiologie, SBM (2015)

MF: Baubiologie, SBM (2015)

RF: Baubiologie, SBM (2015)

Baubiologie MAES-SBM. (2015). Indicative values in Baubiologie for rest rooms. In addition to the stanard measuring technique in baubiologie SBM-2015. Retrieved December 2, 2015, from http://baubiologie.fr/IMG/pdf/valeurs_sbm-

2015_fr.pdf. (recommendation)

BioInitiative. (2012). BioInitiative Report 2012. In A Rationale for Biologically-based Exposure Standards for Low-Intensity Electromagnetic Radiation. Retrieved November 16, 2015, from http://www.bioinitiative.org/table-of-contents/.

(recommendation)

Council of Europe. (2011). Resolution 1815 (2011) Final version. In The potential dangers of electromagnetic fields and their effect on the environment. Retrieved November 16, 2015, from http://assembly.coe.int/nw/xml/XRef/Xref-

XML2HTML-en.asp?fileid=17994&. (recommendation)

NCRP, (1995) “Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields”, NCRP Report No.86, Bethesda, Maryland, USA. (norm)

TCO Development. (2012). TCO-Certified-Displays-6.0. In TCO Development. Retrieved November 16, 2015, from http://tcodevelopment.com/files/2013/04/TCO-Certified-Displays-6.0.pdf#page=28. (norm)
