Epever SHI2000 User manual

SHI Series Pure Sine Wave Inverter
(SHI2000 AND SHI3000)
The information presented in this document does not form
part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
User’s Manual
Before using the inverter, you need to read and save the safety instructions.

CONTENTS
1. Introduction.................................................1
2. Important Safety Instructions ...................2
3. Inverter Operation......................................4
4. Functions....................................................5
5. Troubleshooting.......................................12
6. Maintenance and Warranty....................14
7. Technical Specification............................15

1
1. Introduction
Thanks for purchasing SHI series inverters. The product is a pure
sine wave inverter which can convert 24/48Vdc to 220/230Vac
50/60Hz based on full digital and intelligent design. It features high
reliability, high efficiency, concise outline, small volume, full
protection functions, easy installation and operation. The inverter
can be applied in many fields, such as household appliances,
electric tools and industrial devices etc, especially for solar
photovoltaic power system.
Features:
Complete isolation-type inverter technology.
Adoption of advanced SPWM technology, pure sine wave
output.
Dynamic current loop control technology to ensure inverter
reliable operation.
Wide DC input voltage range.
Low output harmonic distortion (THD≤3%).
LED indicators for input voltage range, load power range,
normal output & failure state.
Optional energy saving mode.
The output voltage and frequency can be switched.
Extensive protections: short-circuit, overload, under/over input
voltage, over-temperature, and inverter‟s inner fault
identification protections.
Wide working temperature range (industrial level).
Continuous operation at full power.

2
2. Important Safety Instructions
As an AC power supply equipment, the inverter‟s output voltage is
with the same level as that of household power plug. Mind the AC
output terminals, or you may get an electric shock and result in life
danger!
Attentions:
Connect the DC input according to the requirement strictly. The
power inverter has a relatively wide input range, but too high or
too low input may cause problems even destroy the inverter.
The surge input voltage can‟t exceed 40V for 24V inverters,
80V for 48V inverters, or the inverters will be damaged.
A reverse polarity connection will blow the fuses in the inverter
and may damage the unit.
Do not expose the inverter to humid, flammable, explosive or
dust environment.
Keep the inverter out of children touch.
Inverter input is recommended to connect to battery, the min.
capacity of battery(expressed inAH) should be calculated in the
following way: 5times of the rated power of the inverter/battery
voltage. If for testing purpose, user should select DC power
supply current at least twice greater than that of the inverter
rated input to keep inverter normal operation. Use DC power
supply for testing may cause the damage of the inverter.
When the inverter works continuously, its surface may became
very hot, please make sure the air ventilation clearance around
the inverter is more than 10cm. Keep away from the material or
device which may suffer from high temperature when the
inverter is working. Do not install the inverter in airproof location

3
and keep enough space around the inverter.
The protective grounding must be connected to the ground. The
cross section of wire should not be less than 4mm2.
A fuse or breaker should be used between battery and inverter,
the value of fuse or switch should be twice of the inverter rated
input current.
The wire connects between battery and inverter should be
shorter than 3m, the current density should be less than
3.5A/mm2while the output of inverter is fully loaded. If the wire
longer than 3m, the current density should be reduced.
Do not connect the battery charger or similar devices to the
input terminal of the inverter.
Do not put the inverter close to the flooded lead-acid battery
because the sparkle in the terminals may ignite the hydrogen
released by the battery.
It‟s an off-grid inverter, do not connect the AC output terminals
to the grid or electrical source, otherwise the inverter may be
damaged.
This inverter can only be used singly, parallel connection or in
series will damage the inverters.
Risk of electric risk, don‟t touch output port when the inverter is
working. The output is forbidden to connect other power,
otherwise the inverter will be damaged. The inverter must be in
off, when connecting load.
Do not attempt to repair the fault inverter yourself, otherwise it
may lead to a serious accident. Please contact the manufacture‟
s engineer.

4
3. Inverter Operation
Connect the input and output terminals accurately. Turn on the
power using the ON / OFF switch on the front panel. In order to
avoid the protections resulted from the surge power, please turn on
AC loads one by one after the output of the inverter is normal.
Please check it as below:
Set the power switch to the „OFF‟position. Insert the load‟s plug
into the inverter‟s output outlet.
Connect the protective grounding to the ground.
Make sure the fuse or breaker use between battery and inverter
is off.
Connect the battery („+‟ terminal with red line, „-‟with black line).
Do not connect them by contraries, or the power inverter will be
damaged.
Switch on the fuse or breaker. Switch the inverter to ON and then
turn on the loads one by one. Check the operation state of both
power inverter and loads. „Green‟ of the failure LED indicator
means the state is normal.
If there are different loads, it is suggested that turn on the load
with large startup current first, such as television, then turn on the
load such as lamp when the inverter works stable.
If the failure LED indicator is „Red‟ and the buzzer alarms or no
output when you turn on devices, switch off the loads and
power inverter immediately. Check the system by referring to the
troubleshooting guide. Turn on the devices again according to
the operation methods after the failure is removed.

5

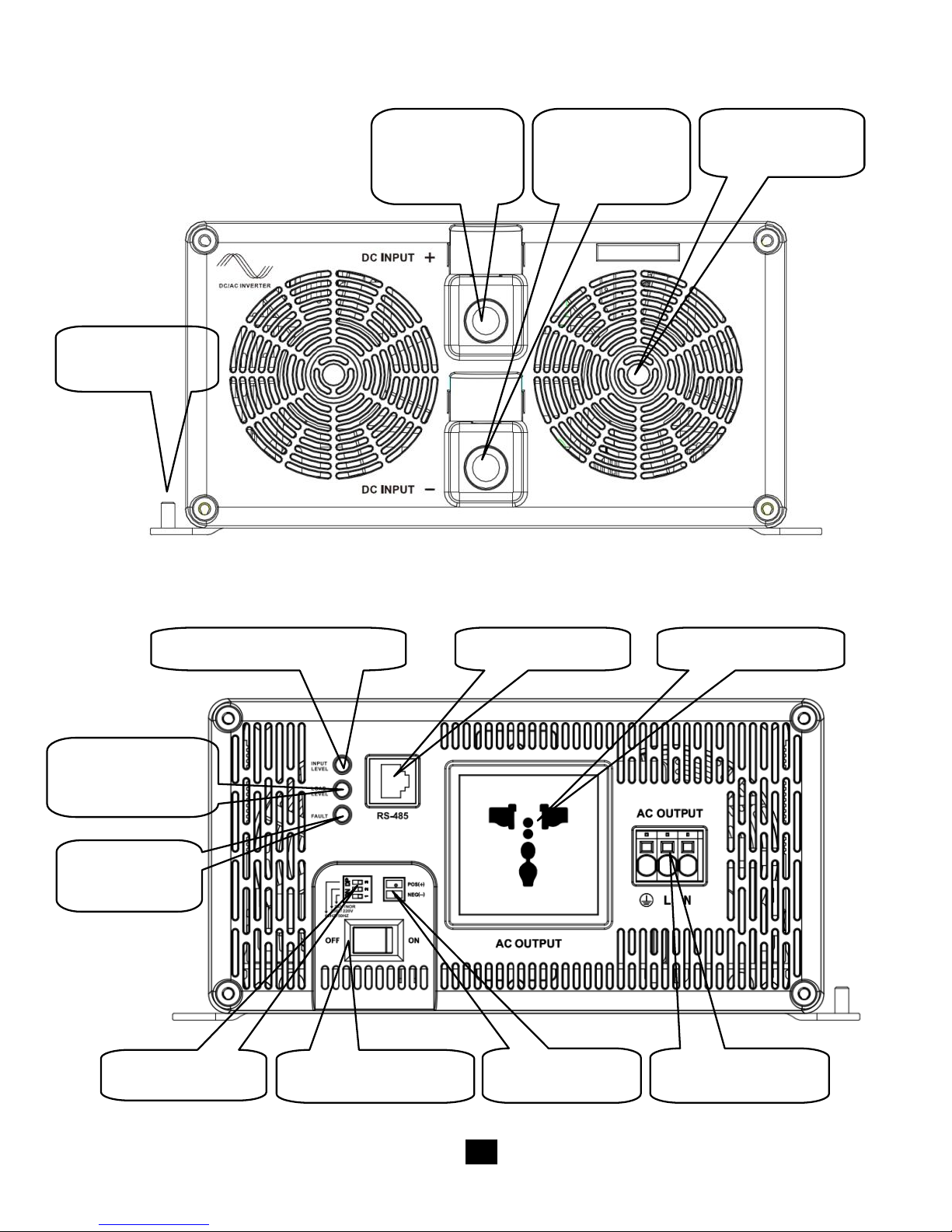

4. Functions
DC Input Panel
AC Output Panel
Protective
Grounding
Fan
Ventilation
DC Input
Terminal
Negative
DC Input
Terminal
Positive
Fault
Indicator
AC Outlet②
ON/OFF Switch
Switch Node
RS485 Port
Input Level Indicator
Load Level
Indicator
Mode Switch
AC Outlet①

6
Note：1.When the load current is less than 10A, use "AC outlet ①"
or “AC outlet ②"; If the load current is greater than 10A, must use
“AC outlet ②".
2.The cross section of wire should not be more than 4mm2, and it
is recommended to use stranded wire, when using "AC outlet ②".
3.Stop inverter working firstly, insert a sharp tool to the " AC outlet
②" at the top of the holes and then remove the wire.

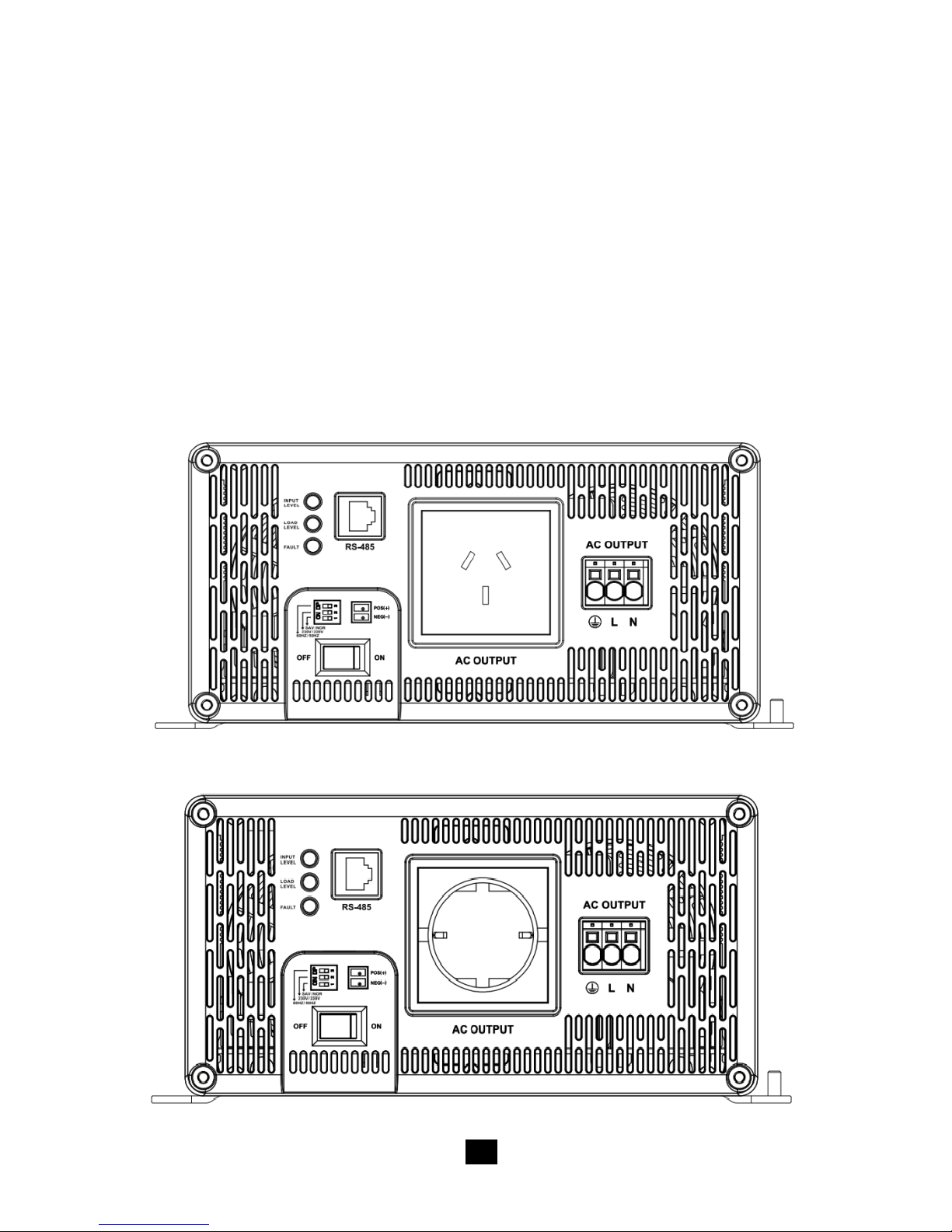

The Optional Outlet
Australia/New Zealand
European

7
Input Level: Display Input Voltages
LED Status
24V
48V
RED Slow Blink
＜21
＜42
RED
21～22
42～44
ORANGE
22～24
44～48
GREEN
24～29
48～58
ORANGE Fast Blink
29～32
58～64
RED Fast Blink
＞32
＞64
Load Level: Display AC Loads
LED Status
AC Load
ORANGE
＜20%
GREEN
20%～75%
RED
＞75%
RED Slow Blink
Overload
RED Fast Blink
Short Circuit
Output & Fault Status
LED Status
Status
GREEN
Output Normal
RED Fast Blink
Overload or Short circuit, No Output
RED Slow Blink
Over or Low input voltage, No Output
ORANGE Fast Blink
Over temperature, No Output
ORANGE OR RED
Inverter Fault, No Output
OFF
Saving mode, Power Off，No Output

8
Alarms
Alarms
Status
Buzzer
Sounds
Overload or Short circuit, No Output
Over or Low input voltage, No Output
Over temperature, No Output
Inverter Fault, No Output
The buzzer stops after 20S.
Protections
Overload or Output Short Circuit Protection
Overload
Character
125%
150%
200%
230%
＞250%
Continuance
60S
10S
3S
＜0.2S
＜
0.01S
Recover 3
times
Space 5 seconds for the first time, 10 seconds
for the second time, and 15 seconds for the
third time
If the overload or short circuit status still remains when the inverter
tries to recover for 3 times, you should reduce or clear the loads
and then restart the inverter manually. Load over than 250% will be
treated as output short circuit.

9
Input Low Voltage Protection
The output is switched off when the input voltage is lower than low
voltage protect value, and auto-switched on when the input voltage
reach low voltage recover value. User can also manually restart the
inverter to switch on output by the „ON/OFF switch‟, when the input
voltage is higher than low voltage protect value.
24V
48V
Low Voltage Protect Value
21.6
43.2
Low Voltage Recover Value
25
50
Input Over Voltage Protection
The output is switched off when the input voltage is higher than ov-
er voltage shut off value, also the output is auto-switched on when
the input voltage drops below over voltage recover value.
24V
48V
Over Voltage Shut Off Value
32
64
Over Voltage Recover Value
29
58
Fault Protection
The inverter will shut down when the output voltage is error or when
the inverter has inner fault.
Over Temperature Protection
The inverter will shut off when the internal temperature is over-

10
heating.And it automatic restarts when the temperature recovers to
the normal level.
Others
Saving Mode
When the switch is on “Saving” side, the inverter will enter into the
Saving Mode. It will shut off the output if the loads value is less than
50VA. Then restart and detect the power of the load again after 10s.
If the load is more than 50VA, the inverter will turn on the output.
Otherwise it will shut off output again. It cycles like this. So please
don‟t use the saving mode if the load is smaller than 50VA.
Mode Switch
The output mode can be changed by the mode switch. When the
switch No.1 is on the ON side, the inverter will enter into the saving
Mode. This mode can be switched online.
When the switch No.2 is on the ON side, the output voltage is
230Vac, otherwise is 220Vac.When the switch No.3 is on the ON
side, the output frequency is 60Hz，otherwise is 50Hz. Both the
output frequency and the output voltage change availability after
restart the inverter.

11
Switch Node
The inverter can be control by the other equipment through the
switch node. When the switch node is link, it equal to ON/OFF
switch is on. The connection between the switch node and the
ON/OFF switch as follow diagram:
POS(+) NEG(-)
ON/OFF
Switch
If need to use the switch node, a relay should be used. The rating
current of the relay should not be less than 5A. The cross section of
wire needs 1mm2.

12
5. Troubleshooting
WARNING：
High voltage is inside the inverter, do not open or
disassemble it! Attempting to service the unit yourself
may cause the risk of electrical shock or fire!
Problem
Possible
Cause
Solution
Input LED blink,
fault red LED
slow blink
Input voltage is
too high or too
low
Measure the input
voltage. The inverter
recovers when the input
becomes normal.
Load LED blink,
fault red LED fast
blink
Overload or load
short
Check out if the AC load
is within the rated power
or whether there is load
short.
Fault orange
LED fast blink
Over
temperature
inside the
inverter
Improve the quality of
ventilation and do not
block the vent. Restart
the inverter when it is
cool down.
Fault red LED
Inverter
abnormal
Remove all the
connected plugs then
restart. If inverter works
well, please check the

13
load and line. If the LED
keeps red, the inverter
has inside faults and
should be returned to the
factory.
Fault orange
LED
Inverter
abnormal
Made sure the DC input
terminals is tight, the
input voltage between
21.6V and 30V
(43.2~60V for 48V
product) and restart the
inverter. If the LED keeps
orange the inverter has
inside faults and should
be returned to the
factory.

14
6. Maintenance and Warranty
The casing of the inverters may be cleaned regularly with a damp
cloth (not wet) to prevent accumulation of dust and dirt. The screws
on the DC input terminals must be tightened.
The warranty period of the inverter is 2 year since the date of origin-
al shipping. Within the period, we will repair the product or replace
the defective product for free. Return the defective with shipping
cost prepaid. And provide proof of purchasing date. We will pay the
return shipping charges within warranty period.
The warranty doesn‟t apply under the following conditions:
1. Damaged by accident, negligence, abuse, improper use
2. Input voltage exceed the nominal input voltage of inverter
3. Unauthorized modification or attempted repair

15
7. Technical Specification
Technical Data
Types
SHI2000-22
SHI2000-42
Nominal Battery
Voltage
24V
48V
Input Voltage
Range
21.6 ~32Vdc
43.2 ~64Vdc
No Load Current
≤0.7A(24Vdc)
≤0.5A(48Vdc)
Output Wave
Pure Sine Wave
Output Voltage
220Vac±3% / 230Vac±10%
Continuous Power
2000W
Power 10 sec
3000W
Power 3 sec
4000W
Surge Power
4600W
Frequency
50/60Hz±0.2%
Distortion THD
≤ 3%( resistive load)
Efficiency at Rated
Power
≥93%
≥94%
Max. Efficiency
≥95%
≥95%
Terminal
50mm2
Dimensions
436×249×116mm
Installation
236×220mm
Hole Size
Φ6mm
Net Weight
6.0kg

16
Types
SHI3000-22
SHI3000-42
Nominal Battery
Voltage
24V
48V
Input Voltage
Range
21.6 ~32Vdc
43.2 ~64Vdc
No Load Current
≤1.0A(24Vdc)
≤0.7A(48Vdc)
Output Wave
Pure Sine Wave
Output Voltage
220Vac±3% / 230Vac±10%
Continuous Power
3000W
Power 10 sec
4500W
Power 3 sec
6000W
Surge Power
6900W
Frequency
50/60Hz±0.2%
Distortion THD
≤ 3%( resistive load)
Efficiency at Rated
Power
≥93%
≥94%
Max. Efficiency
≥95%
≥95%
Terminal
50mm2
Dimensions
507×249×116mm
Installation
236×270mm
Hole Size
Φ6mm
Net Weight
7.6kg

17
Environmental Parameters
Working Temperature
-20℃~+50℃
Storage Temperature
-35℃~ +70℃
Humidity
< 95%(N.C.)
Altitude
< 5000 m (Derating to operate according to
IEC62040 at a height exceeding 1000 m)
Others
Insulation Resistance
Between DC input terminals and metal case:
≥550MΩ;
Between AC output terminals and metal case:
≥550MΩ.
Dielectric Strength
Between DC input terminals and metal case:
Test voltage AC1500V, 1 minute
Between AC output terminals and metal case:
Test voltage AC1500V, 1 minute
Version No. : V1.1

BEIJING EPSOLAR TECHNOLOGY CO., LTD.
Tel:[phone]
Fax:[phone]
E-mail:[e-mail]
Website:http://www.epever.com/
