Epever IPower-Plus Series User manual

IP350-Plus, IP500-Plus
IP1000-Plus, IP1500-Plus
IP2000-Plus, IP3000-Plus
IP4000-Plus, IP5000-Plus
Pure sine wave inverter
USER MANUAL

Contents
Important safety instructions 1
1 Overview 5
2 Appearance 7
3 Naming rule 11
4 Connection diagram 13
5 Remote meter 15
5.1 Appearance 15
5.2 Buttons 15
5.3 LCD interface 16
5.3.1 Real-time interface 16
5.3.2 Parameters setting 16
5.3.3 Power Saving Mode 16
5.3.4 Parameters user define 18
5.4 Error code 19
6 Installation 20
6.1 Attentions 20
6.2 Wire size and circuit breaker 20
6.3 Mounting 23
6.4 Rotate the LCD 28
7 Protections 29
8 Troubleshooting 33
9 Maintenance 34
10 Specifications 35
Appendix 1 Disclaimers 44

1
Important safety instructions
Please reserve this manual for future review.
This manual contains all safety, installation, and operation instructions for the IPower-Plus series
high-frequency pure sine wave inverter ("inverter" referred to in this manual).
1. Explanation of symbols
Please read related literature accompanying the following symbols to efficiently use the product and
ensure personal and property safety.
The entire system should be installed by professional and technical personnel.
Symbol
Definition
TIP
Indicate any practical advice for reference.
IMPORTANT: Indicates a critical tip during the operation, if ignored, may cause the
device to run in error.
CAUTION: Indicates potential hazards, if not avoided, may cause the device
damaged.
WARNING: Indicates the danger of electric shock, if not avoided, would cause
casualties.
WARNING HOT SURFACE: Indicates the risk of high temperature, if not avoided,
would cause scalds.
Read the user manual carefully before any operation.
WARNING
The entire system should be installed by professional and technical personnel.
2. Requirements for professional and technical personnel
Professionally trained；
Familiar with related safety specifications for the electrical system;
Read this manual carefully and master related safety cautions.
3. Professional and technical personnel is allowed to do
Install the inverter to a specified location.
Conduct trial operations for the inverter.

2
Operate and maintain the inverter.
4. Safety cautions before installation
IMPORTANT
When you receive the inverter, check whether there is any damage in
transportation. Contact the transportation company, our local distributor, or our
company for any problem.
CAUTION
When placing or moving the inverter, follow the instructions in the manual.
When installing the inverter, evaluate whether the operation area exists arc
danger.
The inverter needs to be connected to a battery. The battery's minimum
capacity (Ah) is recommended to be five times the current that equals the
inverter's rated output power divided by the battery's voltage.
WARNING
Keep the inverter out of the reach of children.
This inverter is an off-grid type. It is strictly prohibited to connect the inverter to
the grid. Otherwise, the inverter will be damaged.
This inverter is only allowed for stand-alone operation. It is prohibited to
connect multiple units in parallel or series. Otherwise, the inverter will be
damaged.
5. Safety cautions for mechanical installation
WARNING
Before installation, ensure the inverter has no electrical connection.
Confirm enough heat dissipation space for the inverter before installation. Do not
install the inverter in a harsh environment such as humid, salt spray, corrosion,
greasy, flammable, explosive, or dust accumulation.
6. Safety cautions for electrical connection
CAUTION
Check whether wiring connections are tight to avoid the danger of heat
accumulation due to loose connections.
The protective grounding is connected to the ground. The cross-section of the
wire should not be less than 4mm2.
The DC input voltage must strictly follow the parameter table. Too high or too low
DC input voltage will affect the inverter's normal operation and damage it.
It is recommended that the connection length between the battery and the

3
inverter be less than 3 meters. If greater than 3 meters, please reduce the current
density of the connection wire.
A fuse or breaker should be used between battery and Inverter; the fuse or
breaker's rated current should be twice the inverter rated input current.
DO NOT install the inverter close to the flooded lead-acid battery because the
terminals' sparkle may ignite the hydrogen released by the battery.
WARNING
The AC output terminal is only for the load connection. Do NOT connect it to
another power source or utility. Otherwise, the inverter will be damaged. Turn off
the inverter when connecting loads.
It is strictly forbidden to connect a transformer or a load with a surge power (VA)
exceeding the overload power at the AC output port. Otherwise, the damage will
be caused to the inverter.
Do not connect battery chargers or other similar products to the input terminal of
the inverter. Otherwise, the inverter will be damaged.
7. Safety cautions for controller operation
WARNING
HOT
SURFACE
When the inverter is working, the cover temperature is very high because of the
accumulated heat; please do not touch it.
CAUTION
When the inverter is running, please do not open the cabinet.
WARNING
The inverter's AC output is of high voltage, do not touch the wiring connection to
avoid electric shock.
8. Dangerous operations which would cause electric arc, fire or explosion
Touch the wire end that hasn't been insulation treated and maybe electriferous.
Touch the wiring copper row, terminals, or internal modules of the inverter that may be electriferous.
The connection of the power cable is loose.
Screw or other spare parts inadvertently falls into the inverter.
Improper operations by untrained non-professional or technical personnel.

4
WARNING
Once an accident occurs, it must be handled by professional and technical personnel.
Improper operations would cause more serious accidents.
9. Safety cautions for stopping the inverter
After the inverter stop running for five minutes, the internal conductive modules could be touched.
The inverter is allowed to restart after removing the faults, which affects safety performance.
There are no serviceable parts inside. If any maintenance service is required, please contact our
service personnel.
WARNING
Do NOT touch or open the shell after the inverter is powered off within ten minutes.
10. Safety cautions for inverter maintenance
It is recommended to check the inverter with testing equipment to ensure there is no voltage and
current.
When conducting electrical connection and maintenance, post a temporary warning sign or put up
barriers to prevent unrelated personnel from entering the electrical connection or maintenance area.
An improper operation of the inverter may cause personal injury or equipment damage.
Please wear an anti-static wrist strap to prevent static damage or avoid unnecessary contact with
the circuit board.

5
1 Overview
IPower-Plus is a new generation of pure sine wave inverter compatible with the lithium battery system.
This new inverter adopts surge current suppression technology to effectively prevent the surge current
from damaging the lithium battery cells and BMS (Battery Management System). Also, adopting the
voltage and current double closed-loop control algorithm brings the inverter a faster response and better
resistance to the load impact. The inverter selects key components with a high power density and long
lifespan to provide a stable and reliable power guarantee. The optional communication solutions allow
users to monitor the real-time status or change the parameters wherever.
The inverter can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV
power supply, security monitoring system, emergency lighting system, field power system, household
power system, etc. With an excellent EMC (Electro Magnetic Compatibility) characteristic, the inverter is
also suitable for occasions with high power quality requirements.
Features:
Completely electrically isolated design for input and output
Full digital double closed-loop control
Excellent EMC characteristic, widely applied to higher quality power system
Advanced SPWM technology and pure sine wave output.
Input surge current suppression technology, applying to the lithium battery system
Outstanding load resistance to impact, applying to the air conditioners, washing machines,
refrigerators, etc.
High power density and high-quality components to ensure the reliability
Output power factor up to 1
Low loss of zero loads and standby. Low THD (Total Harmonic Distortion). High conversion
efficiency
Extensive protections: input reverse polarity/under voltage/over voltage, output overload/short
circuit/overheating
Air cooling is controlled by temperature and load
Rotatable LCD meter to simplify the system wiring①
Friendly LCD meter to simply monitor and parameter configure①
Remote control by the phone Apps and PC software
Configurable output voltage, output frequency and baud rate②
Enable power saving mode(PSE) conveniently②
Charging mobile phones, DC fans, and other electrical equipment by the USB port③

6
Support a variety of options by connecting with the RS485 com. port④
External switch contact design to allow remote control
EN/IEC62109, EN61000-6-1/3, RoHS, ETL and FCC approved
①There is no LCD meter for the IP350-Plus series.
②Configure the parameters via the local LCD meter (no including the IP350-Plus series),
remote LCD meter, phone Apps, or PC software.
③This function is unavailable for inverters with 48V input voltage.
④There is no communication isolation design for inverters with 12V/24 input voltage. This
function(communication isolation design) is just for inverters with 48V input voltage.

7
2 Appearance
IP350-xx-Plus
Appearance with decorative cover is suitable for AC output of T-terminal / C-Chinese
dual socket / N-North America
Appearance without decorative cover is suitable for AC output of A-Australia /
E-European / F-French / UK-United Kingdom
IP500-xx-Plus
Appearance with decorative cover is suitable for AC output of T-terminal / C-Chinese
dual socket / N-North America

8
Appearance without decorative cover is suitable for AC output of A-Australia /
E-European / F-French / UK-United Kingdom
IP1000-xx-Plus
IP1500-xx/IP2000-2x/IP2000-4x/IP3000-42-Plus

9
IP2000-1x-Plus
IP3000-1x-Plus
IP3000-2x-Plus

10
IP3000-41/IP4000-4x/IP5000-4x-Plus
❶
DC input terminal positive
❻
RS485 communication port
❷
DC input terminal negative
❼
USB output port 5VDC/Max.1A③
❸
Cooling fan①
❽
External switch port
❹
LCD
❾
Inverter switch
❺
AC output port②
❿
Grounding terminal
①Cooling fan
Conditions to start the cooling fan:
Heat sink temperature is higher than 45℃or
The internal inverter temperature is higher than 45℃or
The output power is higher than 50% of the rated power
IPower-Plus full range
Conditions to stop the cooling fan:
Heat sink temperature is lower than 40℃and
The internal inverter temperature is lower than 40℃and
The output power is lower than 30% of the rated power
IPower-Plus 500W and below
products
Heat sink temperature is lower than 40℃and
The internal inverter temperature is lower than 40℃and
The output power is lower than 40% of the rated power
IPower-Plus 1000W and
above products
② The AC output port varies with different products. Please refer to chapter 3 Naming rule for the
specific supported types.
③USB output port is not available for inverters with 48V input voltage.

11
3 Naming rule

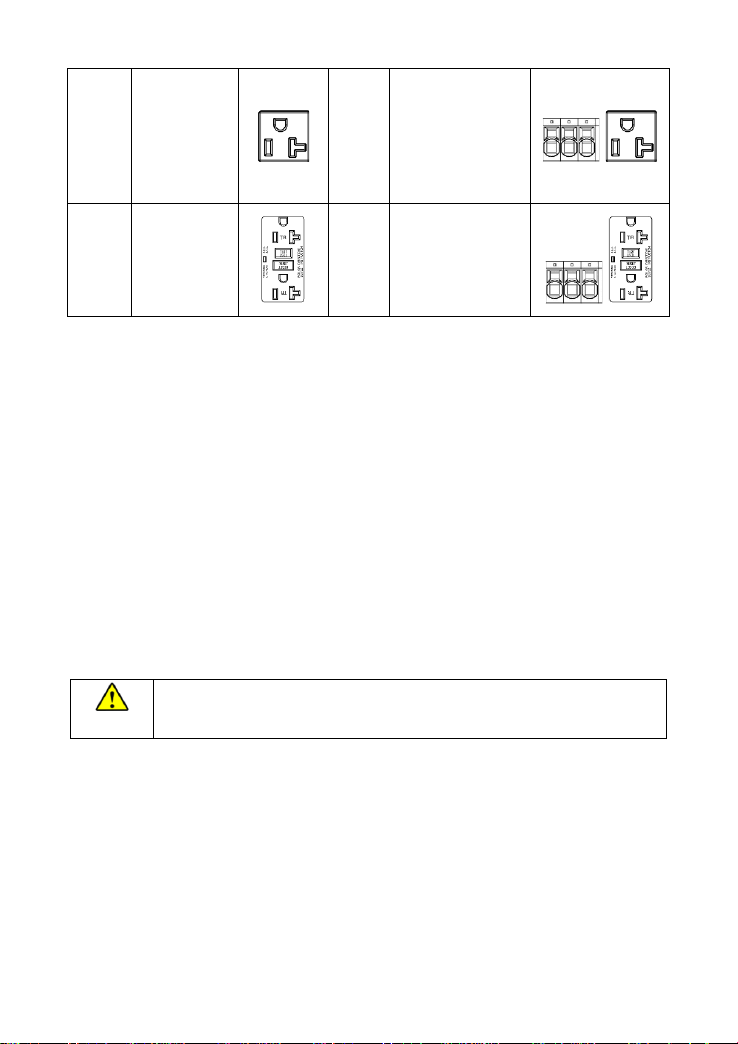

Explanations for the AC output port:
Suffix
Instruction
Figure
Suffix
Instruction
Figure
T
Terminal
---
C
Chinese
dual-socket
TC
Terminal + Chinese
E
European
socket
TE
Terminal +
European
A
Australia
socket
TA
Terminal + Australia
UK
United
Kingdom
socket
TUK
Terminal + United
Kingdom
F
French
socket
TF
Terminal + French
N
American
Socket
(Applicable to
1500W and
below
products)
TN
Terminal +
American(Applicable
to 1500W and below
products)

12
American
socket
(Applicable to
2000W and
above
products)
Terminal +
American(Applicable
to 2000W and above
products)
GFCI
American
socket
(Ground Fault
Circuit
Interrupt)
TGFCI
Terminal + American
GFCI outlets need to be tested after power-on to ensure proper operation.
Preparation
Connect a circuit breaker and an AC load (it is recommended to use a night light to observe the status
conveniently) to the GFCI outlet. Turn on the inverter after confirming the wiring.
Testing
1) If the red LED is ON solid, it indicates that the GFCI outlet is damaged; please replace a new one.
2) If the LED is green ON after it flashes in red three times, connect the circuit breaker, and the night light
will be turned on. Then, press the "TEST" button to observe the testing status:
① The "TEST" button always pops up, and the night light keeps ON solid. It indicates that the GFCI
wiring is an error; please correct the wrong wiring.
② The "TEST" button goes down, while the "RESET" button pops up. The LED and the night light are
turned off, indicating the GFCI outlet is normal (Note: Press the "RESET" button again to
recover the load output).
CAUTION
For detailed product model Vs. AC output port; please refer to the “IPower-Plus
Model List”.

13

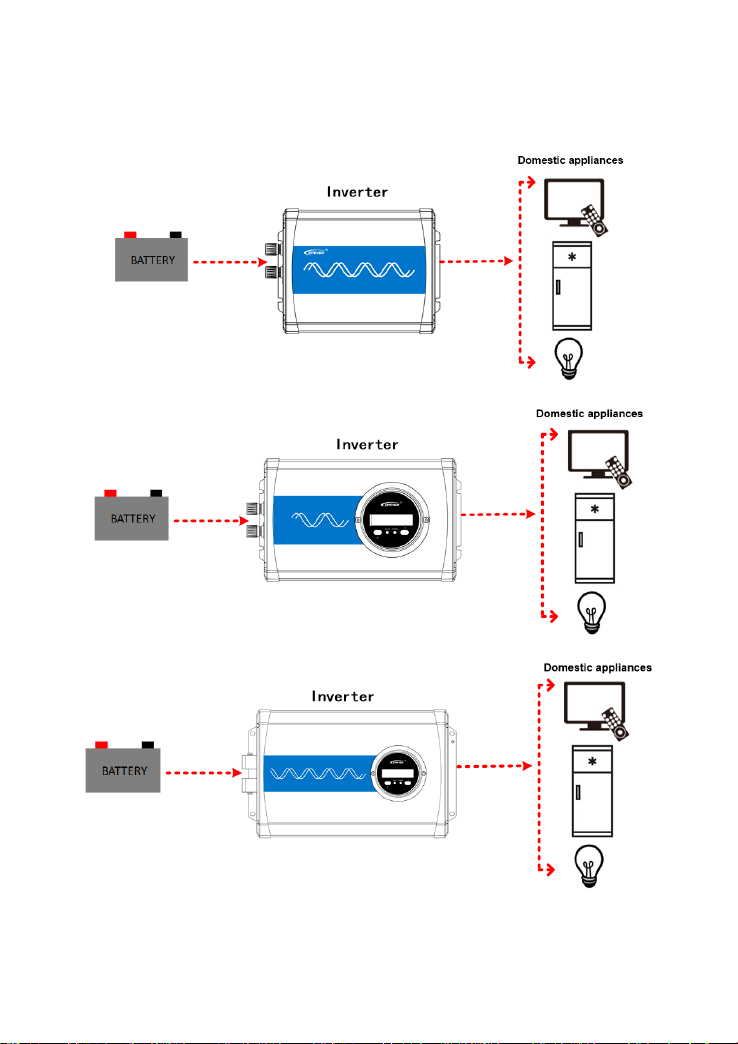

4 Connection diagram
IP350-xx-Plus (take the “Appearance with decorative cover” as an example)
IP500-xx-Plus(take the “Appearance with decorative cover” as an example)
IP1000-xx/IP1500-xx/IP2000-2x/IP2000-4x/IP3000-42-Plus

14
IP2000-1x-Plus
IP3000-1x-Plus
IP3000-2x/IP3000-41/IP4000-4x/IP5000-4x-Plus
CAUTION
It is recommended to connect the inverter DC input terminal to the battery terminal
directly. DO NOT connect it to the charge source terminal. Otherwise, the charging
voltage spikes of the charge source may cause over-voltage protection of the inverter.

15
5 Remote meter
5.1 Appearance
❶
LCD
❹
Power indicator(Blue)
❷
UP/Setting button
❺
DOWN/Enter button
Output ON/OFF button
❸
Fault indicator(red)
❻
Fixing screws
The LCD display can be viewed clearly when the angle between the end-user's horizontal
sight and the LCD screen is within 90°. If the angle exceeds 90°, the LCD display cannot be
viewed clearly.
5.2 Buttons
Click
Move up/parameter increase
Press for 2s
In the real-time interface, press it for 2s to enter the
setting interface.
In the setting interface, press it for 2s to enter the
parameters configuration interface.
Click
Move down/parameter decrease
Press for 2s
Press it to turn on/off the load output (default ON) in the
real-time interface.
Confirm the settings
+
Click
In the setting interface, click them to exit the parameters
configuration interface.
Press for 2s
In the real-time interface, press them for 2s to clear the
faults.

16
CAUTION
The long buzzer beeps for the parameter confirming and short beeps for other button
operations.
5.3 LCD interface
5.3.1 Real-time interface
Click or to browse the real-time interface.
5.3.2 Parameters setting
Operation:
Step1: In the real-time interface, press for 2s to enter the parameter setting interface.
Step2: Click or to select the parameter to be configured.
Step3: Press for 2s to enter the configuration interface of the specified parameter.
Step4: Click or to configure the parameter value.
Step5: Press for 2s to confirm the configuration.
Step6: Click + to exit the current interface.
5.3.3 Power Saving Mode
Users can enable the power saving mode and set the PSI/PSO value by the / button (The
Battery voltage
Load voltage
Load current
Load frequency
Load power

17
minimum power step is 1VA).
When the actual load power is lower than the PSI (the power to enter the power saving mode), the
system will automatically switch to the power saving mode, and then the device output is turned on for 1s
and turned off for 5s.
When the actual load power exceeds the PSO (the power to exit the power saving mode), the inverter
will automatically exit the power saving mode and resume work.
1) Enable power saving mode (PSE)
Step1: In the real-time interface of the remote meter, press and hold the button to enter the
parameters setting interface.
Step2: Click the or button to select the PSE parameter.
Step3: Press and hold the button until the PSE parameter (OFF default) flashes.
Step4: Click the or button to set the PSE status.
Select ON to enable the power saving mode.
Select OFF to disable the power saving mode.
Step5: Press and hold the button to confirm.
2) Set the power to exit the power saving mode (PSO)
Step1: In the parameters setting interface, click the or button to select the PSO parameter.
Step2: Press and hold the button until the PSO value flashes.
Step3: Click the or button to set the PSO parameter.
Click the button to decrease the PSO value by 1.
Click the button to increase the PSO value by 1.
Press and hold the button to increase the PSO value by 10. After ten adding, the PSO
value will increase by 100 each time. When the button is released, press and hold it
again to repeat the above operation (Note: The setting parameter cannot exceeds the user
define, or it will back to the initial value to start the loop).
Step4: Press and hold the button to confirm.
3) Set the power to enter the power saving mode (PSI)
