Epever UP1000 User manual

Inverter/charger
User Manual
Models：
UP1000/UP1500
UP2000/UP3000
UP5000

Important Safety Instructions
Please reserve this manual for future review.
Please reserve this manual for future review. This manual contains all instructions about safety,
installation, and operation for the inverter/charger.
Read all the instructions and warnings carefully in the manual before installation.
Non-safety voltage exists inside the inverter/charger; users must not dismantle it by
themself, contact professional maintenance personnel of our company for maintenance.
Keep the inverter/charger out the reach of children.
Do not place the inverter/charger in a damp, oily, inflammable, and explosive or severe
environment with a large amount of dust accumulation.
The utility input and AC output have high voltage; please don't touch wire connections.
Install the inverter/charger in well-ventilated places. Its shell may produce heat during
operation.
It is suggested to install appropriate external fuses/breakers.
Make sure to switch off all connections with the PV array and the fuse/breakers close to the
battery before inverter/charger installation and adjustment.
Make sure all connections remain tight to avoid excessive heat from a loose connection.
It's an off-grid inverter/charger, not for an on-grid system.
This inverter/charger can only be used singly. Parallel or series connections will damage the
devices.
Explanation of symbols：To enable users to use the product efficiently and ensure personal and
property safety, please read related literature accompanying the following symbols.
TIPs: Indicates any practical advice for reference.
IMPORTANT: Indicates a critical tip during the operation, if ignored, may cause the device to
run in error.
CAUTION: Indicates potential hazards, if not avoided, may cause the device damaged.
WARNING: Indicates the danger of electric shock, if not avoided, would cause casualties.
WARNING HOT SURFACE: Indicates the risk of high temperature, if not avoided, would
cause scalds.
Read the user manual carefully before any operation.

CONTENTS
1. General Information........................................................................1
1.1 Overview..........................................................................................1
1.2 Characteristics................................................................................2
1.3 Designations of models.................................................................3
1.4 Schematic Diagram for Connections...........................................4
2. Installation Instructions .................................................................5
2.1 General Installation Notes.............................................................5
2.2 Wire Size& breaker........................................................................5
2.3 Mounting..........................................................................................7
3. Interface Instruction .....................................................................11
3.1 Indicator.........................................................................................11
3.2 Buttons...........................................................................................12
3.3 Real-time interface.......................................................................12
3.4 Setting interface............................................................................15
3.5 Other function...............................................................................17
4. Protection......................................................................................19
5. Troubleshooting............................................................................20
5.1 Fault...............................................................................................20
5.2 Troubleshooting............................................................................20
6. Maintenance..................................................................................21
7. Technical Specifications ..............................................................22

1
1. General Information
1.1 Overview
UPower is a new energy storage inverter/charger that integrates utility charging, solar charging,
and AC output. The high-performance multi-core chip in the product with the advanced control
algorithm brings intelligent management of the system.
As a reliable industrial standard equipment, UPower has quick response speed and excellent high
transfer efficiency.
Intelligent adjustment of total charging current from both solar and utility, automatic adjustment is
realized via different working modes selection, which ensures to provide power energy supply
maximally.
The PV charging module adopts the up-to-date optimized MPPT tracking technology; it can quickly
track the PV array's maximum power point in any environment. The MPPT tracking speed and
energy transfer efficiency are quite high. The PV and AC charge current can be adjusted manually,
which can meet the total charge current limit function. PV & utility charge current ratio distribution.
Full electronic protection functions are available.
With a fully digital double closed-loop control, the AC-DC charging unit has extremely high
response speed and stability. Awide AC input voltage and charge current limitation can be set. This
module has complete protection functions at input and output.
The DC-AC inverter module is based on full digital and intelligent design. It adopts the advanced
SPWM technology, outputs the pure sine wave, and converts 24/48VDC to 220/230VAC, suitable
for AC loads of household appliances, electric tools, commercial units, electronic audio, and video
devices, etc.
With the Utility by-pass charging function, the utility module can provide a power supply to load
directly and charge the battery simultaneously. Under utility charge status, the user can choose
by-pass mode or inverter output mode. UPower series provides multiple power supply modes, such
as solar and utility, to maximize the use of green energy while ensuring electricity supply.

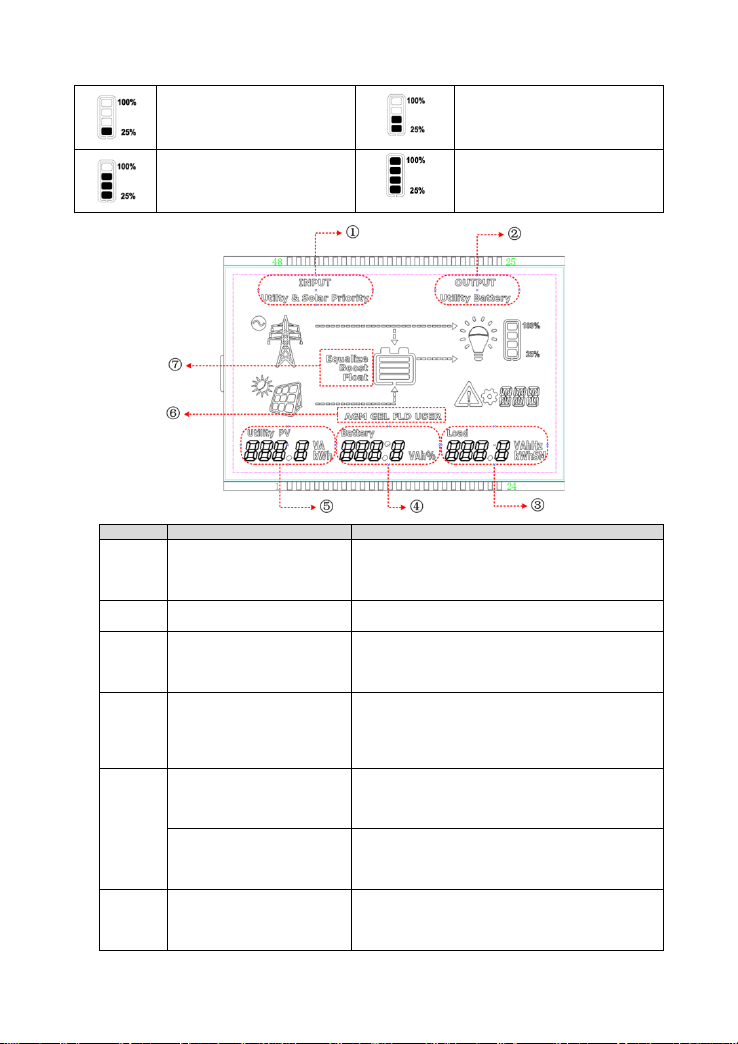

The display module is key for communication. The 4.2 inch LCD presents system status and
real-time data; the user can set work parameters easily by four buttons.
Features：
Full intelligent digital energy storage equipment
Adjustment function of Utility & Solar charging ratio to meet various applications
Advanced MPPT tracking technology, Max. tracking efficiency 99.5 %, Max. conversion
efficiency 98.5 %
Advanced all-digital control AC-DC charging modules to realize wide voltage input, high
efficiency, and high stability
Advanced SPWM technology to ensure maximum efficiency up to 95 %①, and full load efficiency
up to 93 % ①
High output voltage stability: when full load working in the working voltage range of battery,
output voltage
220V/230V±5%②, frequency 50/60±0.1 Hz; voltage& frequency optional
Advanced voltage, current, and power multi-loop control makes the DC-AC unit has good
dynamic response capability, high resistance to surge power, and high operational reliability
With the function of Utility & Solar charging ratio selection, and total charging current setting

2
Four charging modes: Utility priority, Solar priority, Utility & Solar and Solar only
Two output modes: Battery and Utility
Utility charging and inverter output can work at the same time, which avoids the impact of the
unstable Utility voltage on the load
Rich set of options: charging current, battery type, battery voltage threshold, etc

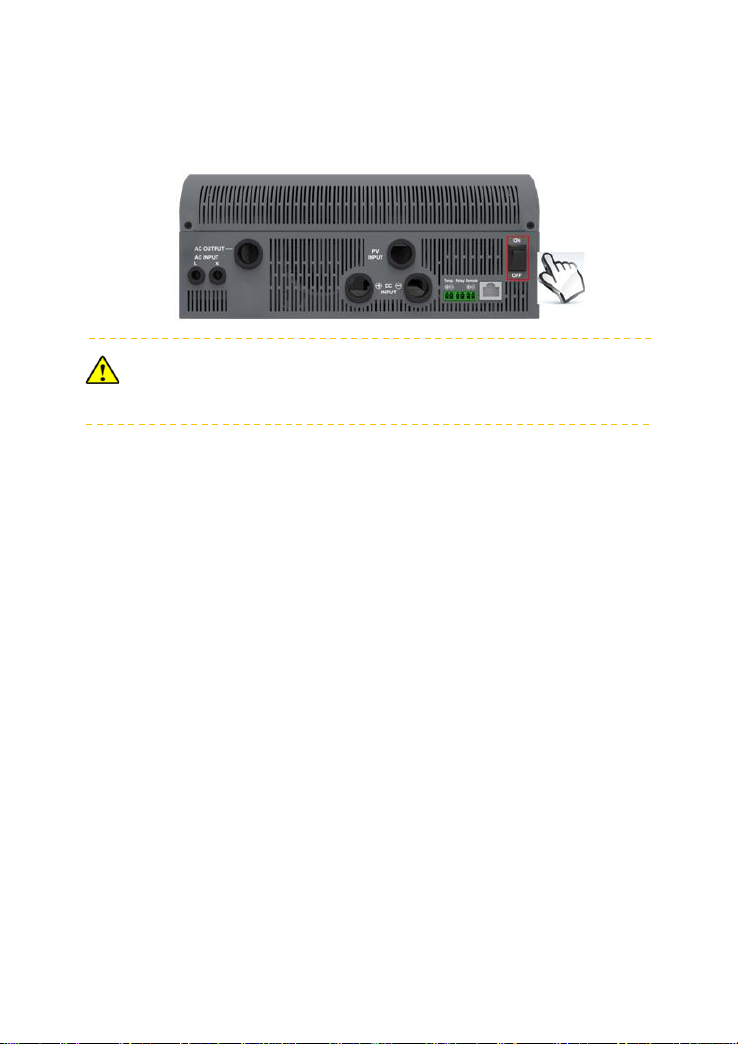

AC output one-key control, which can switch Utility or inverter output on and of, keeping the
output of mode can make it convenient while wiring and maintaining on electric-distributions,
reducing the standby loss
Support cold start and soft start
RS485 isolated communication interface with 5V 200mA output, it is easy to access
communication devices such as WIFI module

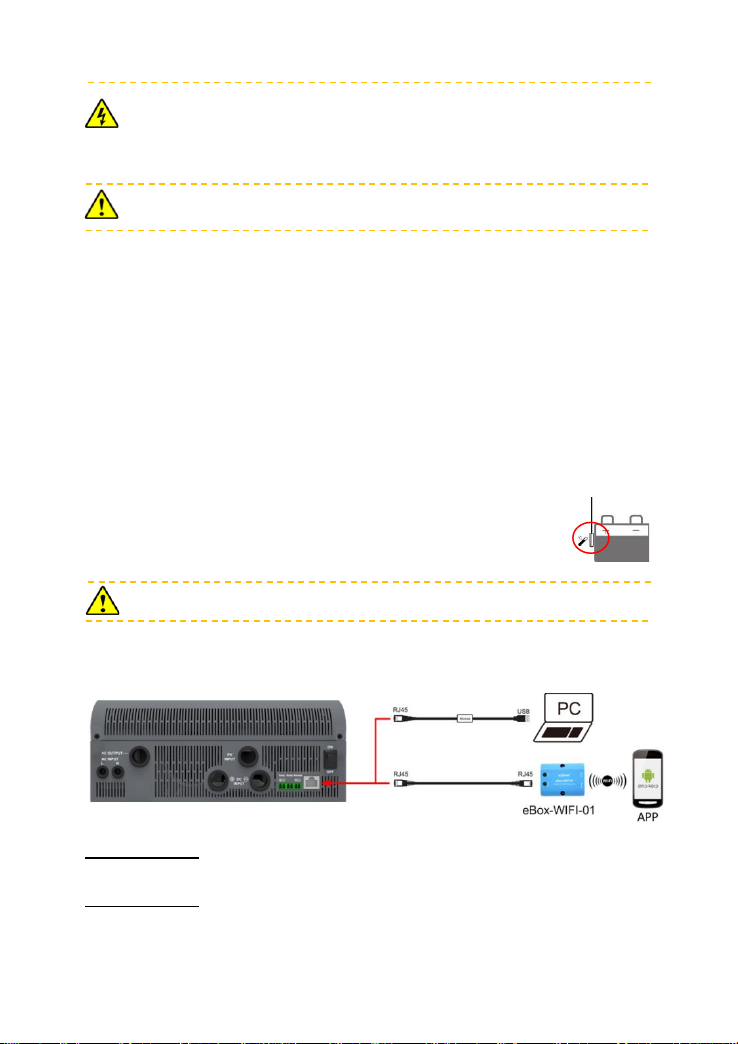

PC or mobile phone APP can be used for remote monitoring, management, and setting to meet
various remote use of users
Optional backlight and buzzer warning selection via PC software
With PV reverse polarity, Charging power limit, short circuit, battery reverse polarity protection
With Utility input/AC output over-voltage, battery low voltage, power limit, over-current, and short
circuit protections
With battery low/over voltage protection and temperature compensation etc
With internal over-temperature protection and intelligent start-stop function of the fan
A variety of accessories can be selected according to the user's requirements
①UP1500 and above models: testing result under 25℃environment temperature, rated
input voltage, and resistive load
②In battery discharging mode Output tolerance is 220V ±5% or 230V -10%~+5% for 24V
and 48V input; and 220V -6%~+5% or 230V -10%~+5% with 12V battery input
1.2 Characteristics

3
❶
Ventilation
❼
Dry contact interface
❷
M4 Screw (2 pcs)
❽
Remote interface
❸
AC output terminals
❾
RS485 interface(5VDC/200mA)
❹
Utility input terminals
❿
Inverter/charger switch
❺
Battery input terminals
⓫
PV input terminals
❻
RTS★interface
⓬
Terminals cover
（Model:RT-MF58R47K3.81A）
★Connect the temperature sensor, the inverter/charger is compensated according to the
ambient temperature.

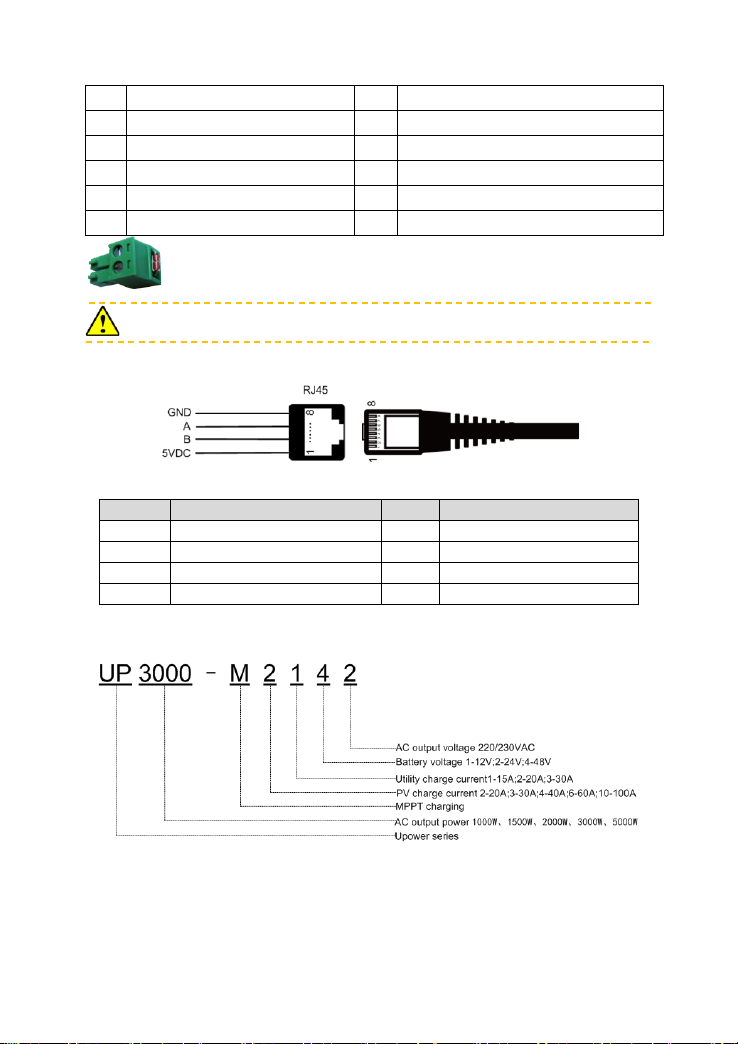

RS485 Interface
RJ45 interface pin define is shown below：
Pins
Define
Pins
Define
1
5VDC
5
RS-485-A
2
5VDC
6
RS-485-A
3
RS-485-B
7
GND
4
RS-485-B
8
GND
1.3 Designations of models
Temperature Sensor

4

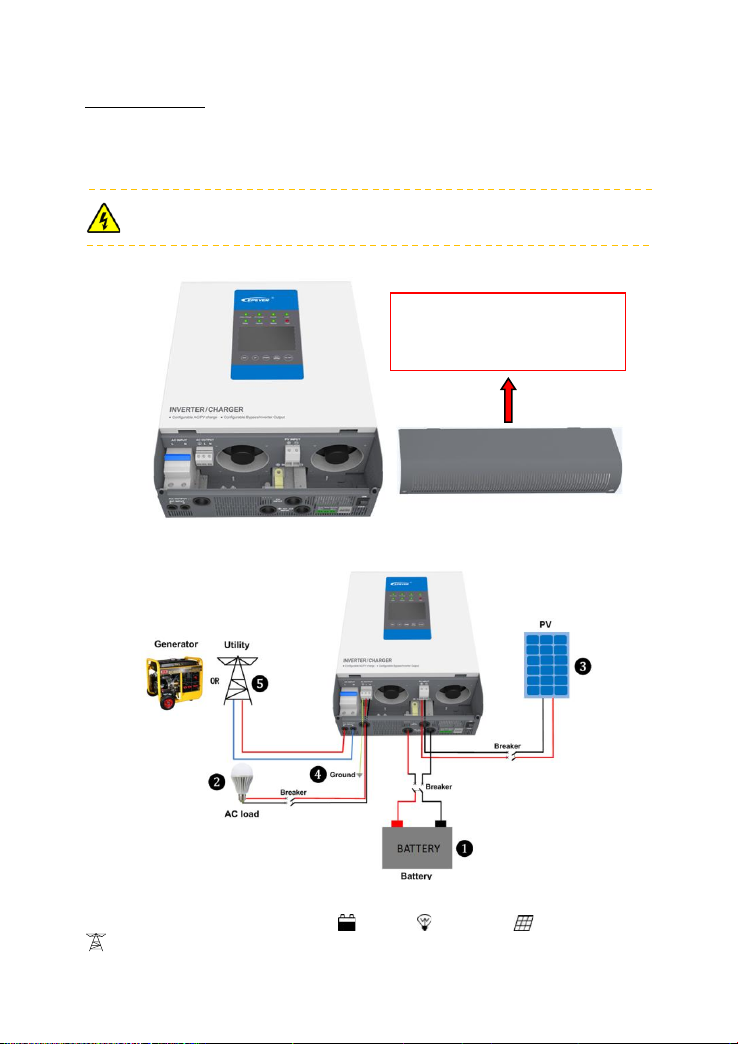

1.4 Schematic Diagram for Connections
❶Utility power supply and ❷Battery power supply can not be carried out simultaneously.
Confirm the AC load power compatible with the power of the inverter/charger. AC load
selected exceeding the maximum output power of the inverter/charger is prohibited.

5
2. Installation Instructions
2.1 General Installation Notes
Please read the entire installation instructions to get familiar with the installation steps before
installation.
Be very careful when installing the batteries, especially flooded lead-acid batteries. Please wear
eye protection, and have fresh water available to wash and clean if any battery acid contact.
Keep the battery away from any metal objects, which may cause a short circuit of the battery.
Explosive acid battery gases may come out from the battery during charging, so make sure
ventilation condition is good.
Ventilation is highly recommended if mounted in an enclosure. Never install the inverter/charger
in a sealed enclosure with flooded batteries! Battery fumes from vented batteries will corrode and
destroy the inverter/charger circuits.
The lead-acid battery is only recommended. For other kinds, please refer to the battery
manufacturer.
Loose connections and corroded wires may result in high heat that can melt wire insulation, burn
surrounding materials, or even cause a fire. Ensure tight connections and use cable clamps to
secure cables and prevent them from swaying in motion.
Select the system cables according to 5A/mm2or less current density followingArticle 690 of the
National Electrical Code, NFPA 70.
For outdoor installation, keep out of the direct sunshine and rain infiltration.
High voltage still exists inside the inverter/charger after switching off the power switch. Do not
turn on or touch the internal units and conduct the associated operation only after discharging
the electric capacity.
Do not place the inverter/charger in a damp, oily, inflammable, and explosive or severe
environment with a large amount of dust accumulation.
Prohibit reverse connection at DC input end; otherwise, it may damage the equipment, or
unpredictable danger will occur.
The utility input and AC output are of high voltage, do not touch the wire connection.
2.2 Wire Size& breaker
The wiring and installation methods must follow all national and local electrical code requirements.
Recommended wire and circuit breaker of PV
Model
PV wire size
Breaker
UP1000-M3212
10mm2/8AWG
2P—63A
UP1000-M3222
10mm2/8AWG
2P—63A

6
UP1500-M3222
10mm2/8AWG
2P—63A
UP2000-M3322
10mm2/8AWG
2P—63A
UP3000-M3322
10mm2/8AWG
2P—63A
UP3000-M6322
16mm2/5AWG
2P—100A
UP3000-M2142
6mm2/10AWG
2P—32A
UP3000-M6142
16mm2/5AWG
2P—100A
UP5000-M6342
16mm2/5AWG
2P—100A
UP5000-M8342
25mm2/4AWG
2P—125A
UP5000-M10342
25mm2/4AWG
2P—125A
NOTE: When the PV modules are connected in series, the PV array's open-circuit voltage must not
exceed the max. PV input voltage at 25℃environment temperature.
Recommended wire of Utility
Model
Utility wire size
UP1000-M3212
2.5mm2/14AWG
UP1000-M3222
2.5mm2/14AWG
UP1500-M3222
2.5mm2/14AWG
UP2000-M3322
4mm2/12AWG
UP3000-M3322
6mm2/10AWG
UP3000-M6322
6mm2/10AWG
UP3000-M2142
6mm2/10AWG
UP3000-M6142
6mm2/10AWG
UP5000-M6342
10mm2/8AWG
UP5000-M8342
10mm2/8AWG
UP5000-M10342
10mm2/8AWG
NOTE: The utility input has the circuit breaker already, and there is no need to add any more.
Recommended wire and circuit breaker of battery
Model
Battery wire size
Breaker
UP1000-M3212
16mm2/6AWG
2P—100A
UP1000-M3222
16mm2/6AWG
2P—100A
UP1500-M3222
16mm2/6AWG
2P—100A
UP2000-M3322
25mm2/4AWG
2P—125A
UP3000-M3322
35mm2/2AWG
2P—200A
UP3000-M6322
35mm2/2AWG
2P—200A
UP3000-M2142
16mm2/6AWG
2P—100A
UP3000-M6142
16mm2/6AWG
2P—100A
UP5000-M6342
35mm2/2AWG
2P—200A
UP5000-M8342
35mm2/2AWG
2P—200A
UP5000-M10342
35mm2/2AWG
2P—200A
NOTE: Type of circuit breaker is selected based on the inverter's non-independent connection at
the battery end where there is no anther inverter connected.

7
Recommended wire and circuit breaker for AC output
Model
AC wire size
Breaker
UP1000-M3212
2.5mm2/14AWG
2P—10A
UP1000-M3222
2.5mm2/14AWG
2P—10A
UP1500-M3222
2.5mm2/14AWG
2P—10A
UP2000-M3322
2.5mm2/14AWG
2P—16A
UP3000-M3322
4mm2/12AWG
2P—25A
UP3000-M6322
4mm2/12AWG
2P—25A
UP3000-M2142
4mm2/12AWG
2P—25A
UP3000-M6142
4mm2/12AWG
2P—25A
UP5000-M6342
6mm2/10AWG
2P—40A
UP5000-M8342
6mm2/10AWG
2P—40A
UP5000-M10342
6mm2/10AWG
2P—40A
The wire size is only for reference. Suppose a long-distance exists between the PV
array and the inverter/charger or between the inverter/charger and the battery. In that
case, larger wires shall be used to reduce the voltage drop and improve the system
performance.
The above wire and the circuit breaker size are recommended only; please choose the
appropriate wire and circuit breaker according to the practical situation.
NOTE：The cable lugs refer to the cardboard in the package.
2.3 Mounting
Figure2-1 Mounting

8
Installation steps：
Step1：Determination of Installation Location and heat-dissipation Space
When installing the inverter/charger, ensure enough air flowing through the heat sink. Please leave
at least 150mm clearance away from the upper and lower edges. Please see Figure 2-1: Mounting.
WARNING: Risk of explosion!
Never install the inverter/charger with flooded batteries in a sealed enclosure! Do not
install the device in a confined area where battery gas can accumulate.
Step 2：Take down the terminal protective cover
Step 3：Wiring
Connect the system in order of battery load PV array GroundUtility
following Figure 2-3: Wiring Diagram. Disconnect the system in reverse order.
Figure 2-3Wring Diagram
※Screw off the screws and take
down the terminal protective
cover of the inverter/charger
before wiring.
Figure2-2 Take down the cover

9
Danger, High-voltage! Utility input, AC output, and PV array will produce dangerous
voltage. Ensure to disconnect the circuit breaker/ fuse before wiring.
Do not turn on the circuit breaker/ fuse when wiring, and at the same time, ensure that
the poles’wirings are correctly connected.
A circuit breaker must be installed at the battery end. For selection, refer to Section 2.3,
"Wire and Circuit Breaker."
If the inverter/charger is to be used in an area with frequent lightning strikes, installing an
external surge arrester at the PV input is recommended.
Grounding
A grounding connection must be made when the utility is connected to the inverter/charger. The
inverter/charger has a dedicated grounding terminal, as shown in Fig. 2-3, and the grounding must
be reliable. The grounding wire has to stay consistent with Recommended wire for AC output. The
grounding point shall be as close as possible to the inverter/charger; the grounding wire shall be as
short as possible.
AC output, Ground, and PV wiring terminal use way:
①When wiring, do not close the circuit breaker. It is necessary to use a slotted screwdriver to
unscrew the screws for connecting their corresponding wires.
②When removing the wirings, first the integrated machine must stop working. Then the screws
shall be unscrewed by using a slotted screwdriver to dismantle their corresponding wires.
Step 4：Install the terminal protective cover
Step 5：Connect accessory
Connect the remote temperature sensor cable (model: RTS300R47K3.81A)
Connect one end of the remote temperature sensor cable to the interface⑥
and place the other end close to the battery.
Connect the temperature sensor, the inverter/charger is compensated according to the
ambient temperature.
Connect the remote temperature sensor cable (model: RTS300R47K3.81A)
Connect the accessories, monitor the system status, and set the parameters via PC
software or APP software.
(1)PC software
www.epever.com——Inverter Monitor(UP)
(2)MobileAPP software (Android)
www.epever.com——UPower
Step 6：Recheck if the wire connection is correct
Step 7：Power on the inverter/charger

10
①Connect the circuit breaker at the battery end.
②Turn on the switch, then the inverter indicator is on.
③Turn on the breaker of PV array and Utility.
④Turn on the AC load when the AC output is normal.
When supplying power for different AC loads, it is recommended to turn on the load
with a large impulse current. And then turn on the load with a smaller impulse current
after the load output is stable.
If the inverter/charger is not operating properly or the LCD or the indicator shows an
abnormality, please refer to 5 "Troubleshooting" or contact our after-sales personnel
NOTE：The installation steps and accessory list also refer to the cardboard in the package.

11
3. Interface Instruction
3.1 Indicator
Indicator
Color
Status
Instruction
Green
OFF
No utility input
On Solid
Utility connection normal but no
charging
Slowly Flashing(0.5Hz)
Utility charging
Fast Flashing(2.5Hz)
Utility charge module fault
Green
OFF
No PV input
On Solid
PV connection normal but no
charging
Slowly Flashing(0.5Hz)
PV charging
Fast Flashing(2.5Hz)
PV charge module fault
Green
OFF
Inverter turns off
On Solid
Inverter turns on
By-pass
Slowly Flashing(0.5Hz)
Inverter output
Fast Flashing(2.5Hz)
Inverter fault
Green
OFF
No-load output
On Solid
Load output
Green
OFF
Dry contact turns off
On Solid
Dry contact turns on
Green
OFF
Input voltage(3.3～12VDC)
On Solid
No Input voltage
Green
OFF
Inverter output
Slowly Flashing(0.5Hz)
Utility output
Red
OFF
Device normal
On Solid
Device fault

12
3.2 Buttons
Operation
Instruction
Press the button
Exit the current interface
Press the button and hold on 2s
Clear the faults
Press the / button
Browse interface：Up/Down
Setting interface：Up/Down
Press the button
Switch to "Browse Parameter Column"
Confirm the setting parameters
Press the button and hold on 2s
Switch the" Real-Time Interface" over to "Set
Browse Interface"
Switch the "Set Browse Interface" over to
"Parameter Setting Interface"
Press the button and hold on 2s
Inverter ON/OFF
3.3 Real-time interface
Icon
instruction
Icon
instruction
Utility connecting and input
PV connecting and input
No Utility connecting
Utility connecting but no input
No PV connecting
PV connecting but no input
Load ON
Load OFF

13
Load power 8～25%
Load power 25～50%
Load power 50～75%
Load power 75～100%
Item
Setting
Content
①
INPUT
Solar priority
Utility priority
Utility & solar
Solar
②
OUTPUT
Battery
Utility
③
Load
AC output voltage
AC output current
AC output power
AC output frequency
④
Battery
Battery voltage
Max. charging current
(PV charging current+ Utility charging current)
Battery temperature
Battery SOC
⑤
PV
PV input voltage
PV charging current
PV charging power
PV charge energy
Utility
Utility input voltage
Utility charging current
Utility charging power
Utility charge energy
⑥
Battery Type
AGM
GEL
FLD
USER

14
⑦
Battery charging stage
Float
Boost
Equalize(28th each month)
①INPUT
★Solar priority(Default)
The battery is charged in solar priority mode. When the battery voltage is lower than "Auxiliary
Module ON Voltage(VAON)," the utility starts charging. When the battery voltage reaches
"Auxiliary Module OFF Voltage(VAOF)," the utility stops charging.
★Utility priority
The battery is charged in utility priority mode. When the battery voltage is lower than the
"Auxiliary Module ON Voltage (VAON)," the solar starts charging the battery. And when the battery
voltage reaches the "Auxiliary Module OFF Voltage(VAOF)," the solar stops charging.
★Utility &solar ★Solar
Utility &solar charge the battery Solar charge the battery
②OUTPUT
★Battery
VBAT＜VAON
VBAT＞VAOF
VBAT＜VAON
VBAT＞VAOF

15

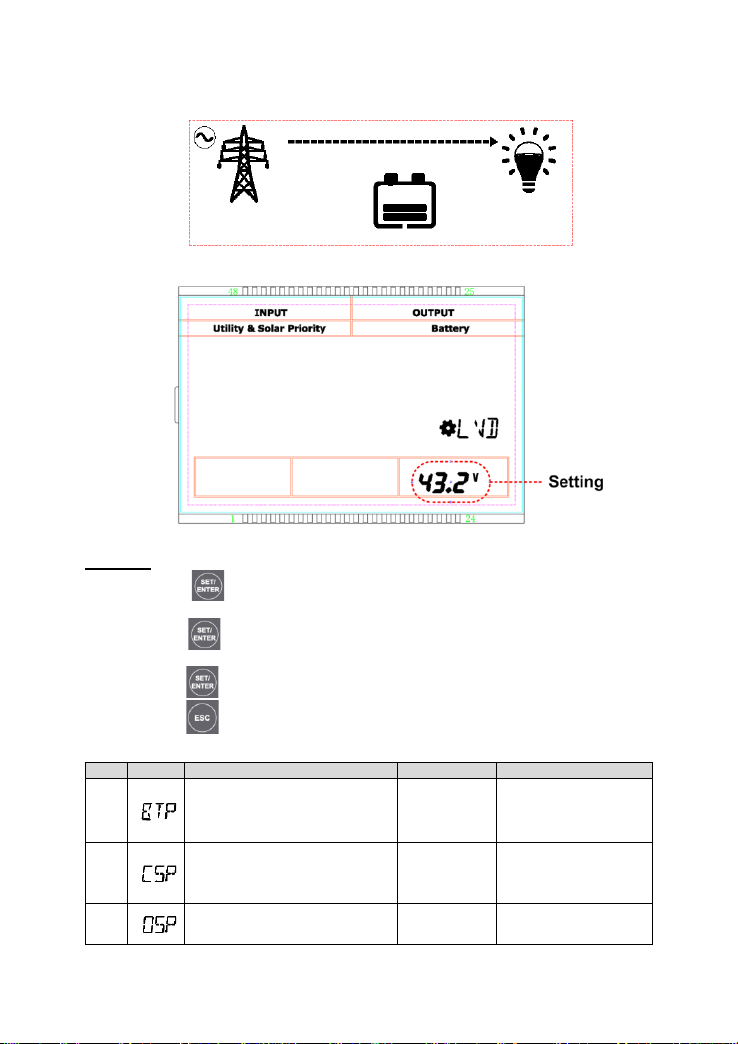

★Utility(Default)
3.4 Setting interface
1) Common interface for common user
Operation:
Step1: Press the button and hold on 2s at the real-time interface to go to the common
interface.
Step2: Press the button and hold on 2s at the setting parameter interface and choose the
parameters.
Step3: Press the button to set the parameter, and press this button again for confirmation.
Step4: Press the button to exit the setting interface.
Setting：
Item
LCD
Instruction
Default
Range
1
Battery type
AGM
AGM
GEL
FLD
USER
2
Charge source priority
Solar priority
Solar priority
Utility priority
Utility & solar
Solar
3
Output source priority
Utility
Battery
Utility
