Epever LD150S-N1 User manual

- 1 -
LD150S-N1/N1R
LD150S-N2/N2R
LD150S-N3/N3S
LD150S-N4/N4R
PORTABLE SOLAR POWER SYSTEM
USER MANUAL

Contents
Important Safety Instructions .................................................................. 1
1. Product Overview................................................................................ 2
2. System composition............................................................................ 3
3. Name definition................................................................................... 4
4.Classification........................................................................................ 4
5. Portable solar power supply................................................................ 6
5.1 LD150S-N1/N1R........................................................................ 6
5.2 LD150S-N2/N2R........................................................................ 6
5.3 LD150S-N3/N3S........................................................................ 7
5.4 LD150S-N4/N4R........................................................................ 8
5.5 Radio instruction.......................................................................10
6. PV array requirement.........................................................................12
7. Lithium battery configuration..............................................................12
7.1 Attention of using the lithium battery.........................................12
7.2 Lithium battery requirement ......................................................12
7.3Lithium battery parameters ........................................................12
7.4 Lithium battery control voltage parameters...............................13
8. Utility charge function.........................................................................13
9. Operation instruction..........................................................................14
9.1 LD150S-N1/N1R operation instruction......................................14
9.2 LD150S-N2/N2R operation instruction......................................14
9.3 LD150S-N3/N3S operation instruction......................................15
9.4 LD150S-N4/N4R operation instruction......................................15

10. Protection.........................................................................................16
10.1 LD150S- N1/N1R/N2/N2R/N4/N4R/N4S protection................16
10.2 LD150S- N3/N3S protection....................................................16
11. Troubleshooting ...............................................................................17
11.1 LD150S-N1/N1R/N2/N2R troubleshooting..............................17
11.2 LD150S-N3/N3S troubleshooting............................................18
11.3 LD150S-N4/N4R troubleshooting............................................19
12. Technical Specifications...................................................................20
13. Disclaimer........................................................................................22
Annex I Mechanical Dimension Diagram ...............................................23

1
Important Safety Instructions
Please reserve this manual for future review.
This manual contains all the instructions about safety, installation, and operation for the
EZPOWER series portablesolar power system (hereinafter referred to as the solar
system).
Read all the instructions and warnings carefully before installation.
No user-serviceable component inside the solar system. DO NOT disassemble or
attempt to repair the solar system.
Do not place the device in humid, greasy, flammable, explosive, dust accumulative
or other severe environments.
Place the device at well-ventilated places, the devicemay become very hot during
working.
Avoid fire or the high-temperature environment during use.
Avoid direct sunlight, high temperature and do NOT install the device at locations
where water can get in.
Do NOT use non-compliant parts or electronics.
Fully charge the Lithium battery for the first time operation,
Turn off the equipment while not using it on rainy days.
Fully charge the Lithium battery monthly while not using it for the long term.
Avoid drop and collision while moving.
Over-temperature protection rule: when the system detects the Lithium battery is
overheated, it will stop charging or discharging until the temperature drops to
normal. To avoid over-temperature protection, reduce the power output is
recommended.

2
1. Product Overview
EZPower DC portable system is a functional off-grid power supply for home and business
use, which includes LED light, USB port,cigarette lighter, FM radio in rich interface
connection to fit the customer demands. It’s also an efficient energy solution nowadays.
Features：
Select the configuration according to your requirements.
Support different PV panel power 20W-150W and the max. PV open circuit is less
than 30V
Smart dimension, but long life span. It supportsLiFePO4(10～20Ahavailable) and
Li(NiCoMn)O2(10～38Ahavailable)battery type
All models are DC output, especially used for LED light, fans, phone charging, and
some other small DC appliance.
USB 5V 2.1A output, charging mobilephones and other small USB-powered devices
LED indicators display the system running status
Low power consumption and industrial design to reduce loss.
Multiple protection features to ensure system security and reliability.
Utility charging function, more convenient for power storage.
Packed with a solar FM radio with MP3 playback to stay up-to-date on important
news or listen to music
Embedded LED light 1W for emergency use
Cigarette lighter for bigger current output usage
Lightweight 3-8kgs, users can put anywhere they want

3
2.System composition

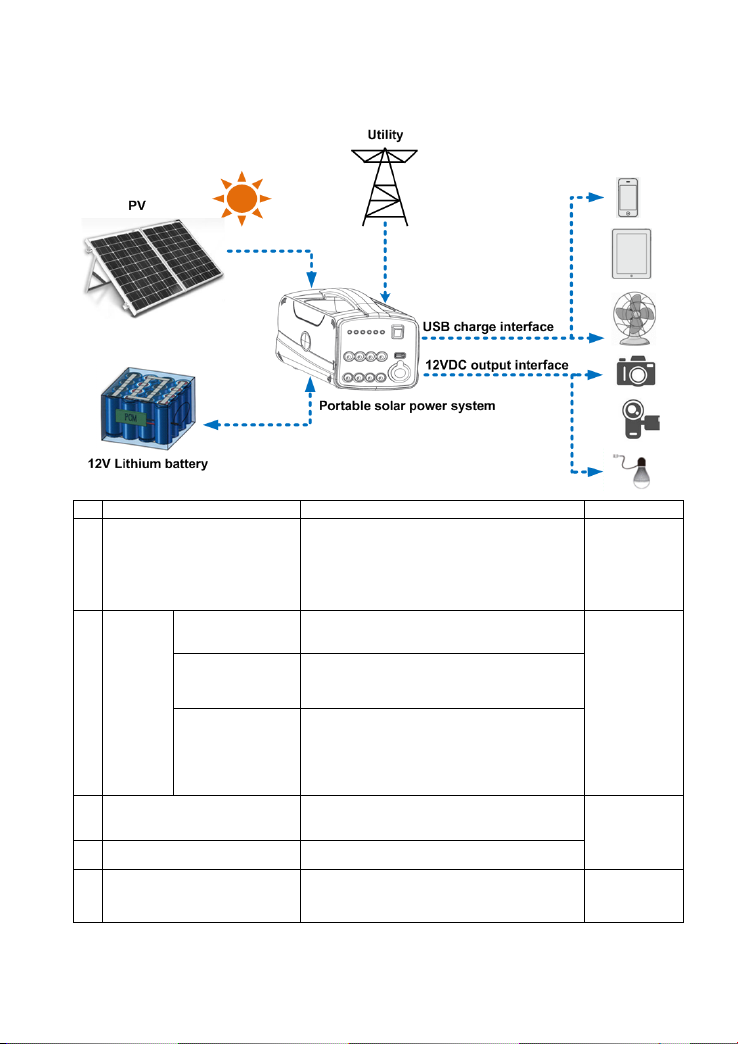

No.
Parts names
Specifications
Note
1
PV array
Max. PV open circuit voltage:Voc＜
30Vdc
PV power:W＜150Wp(except
N4≤60Wp)
PV array with stent
2
Portable
solar
power
system
Solar charge
controller
Input voltage range:12Vdc
Charge current:10A except N4≤5A
The
utility
charge
module
is
optional
Utility charge
module
Utility input voltage: 220/230Vac
Utility input frequency: 50/60Hz
Utility charging current: 3A±0.3A，
Lithium battery
Voltage class:12Vdc
Li(NiCoMn)O2lithium batterycapacity:
10/16/38AH
LiFePO4 lithium batterycapacity:
12/18AH
3
LEDlamp
1.2W/12V, connection cable with the
switch①(5m)
Cable length
can be
customized
4
USB charge cable②
All-in-one USB charge cable (1m)
5
DC output cable③
12V/5A output cable(2m length can be
customized), Both ends are DC5525
plugs
Optional

4
①Connection cable with the switch
②USB charge cable
③DC output cable
3. Name definition
4.Classification
Model
Instruction
LD150S-N1
8-way DC12V3A, max. output
is120W
1-wayUSB5V2.1A output
1pcs DC12V10A cigarette lighter
LD150S-N1R
8-wayDC12V3A, max. output is
120W
1-way USB5V2.1A output
1pcs DC12V10A cigarette lighter
Silver radio

5
LD150S-N2
8-wayDC12V3A, max. output is
120W
2-wayUSB5V2.1A output
LD150S-N2R
8-wayDC12V3A, max. output is
120W
2-wayUSB5V2.1A output
Silver radio
LD150S-N3
4-wayDC12V3A, max. output is
120W
2-wayUSB5V2.1Aoutput
1pcs DC12V1W LED lamp
LD150S-N3S
4-way DC12V3A, max. output is
120W
2-way USB5V2.1Aoutput
1pcs DC12V1W LED lamp
1-way utility input, AC220V,3A±
0.3A
LD150S-N4
4-way DC12V3A(total output
current is3A)
2-way USB5V2.1Aoutput
LD150S- N4R
4-way DC12V3A(total output
current is 3A)
2-way USB5V2.1Aoutput
Silver radio

6

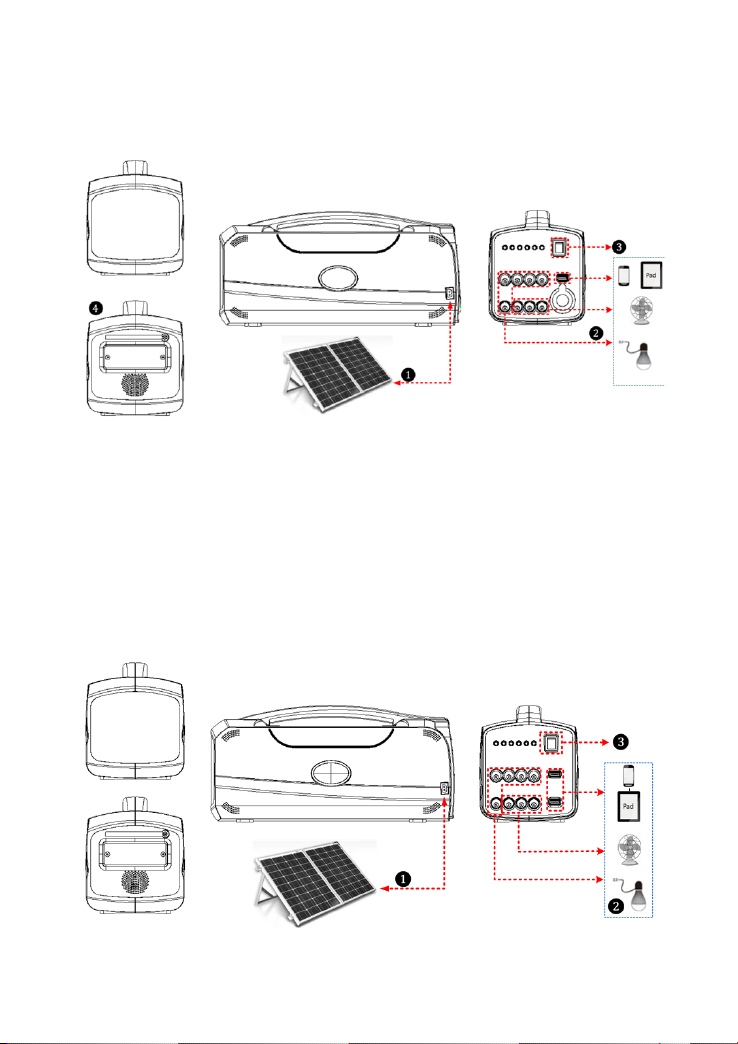

5. Portable solar power supply

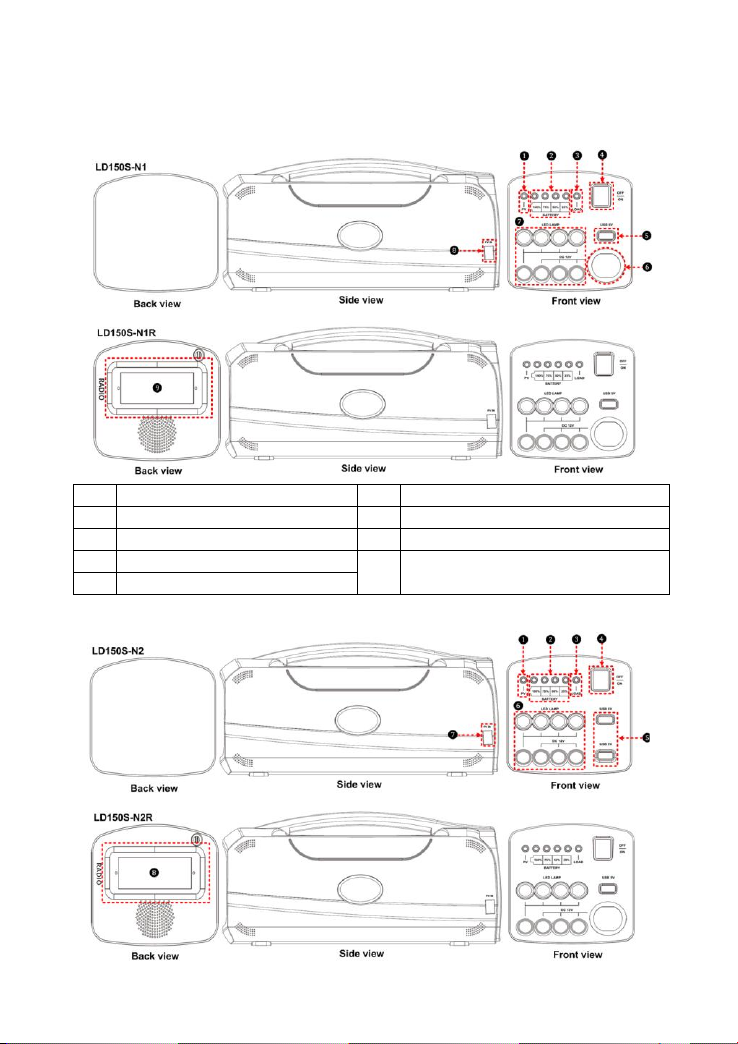

5.1 LD150S-N1/N1R
❶
PV Charge indicator
❻
Cigarette lighterport(DC12V10A)
❷
Battery capacity indicator
❼
8-way DC input(12VDC/3A)
❸
Load status indicator
❽
PV input charge port
❹
System switch
❾
Silver radio with remote control meter
❺
USB charge interface(5VDC/2.1A)
5.2 LD150S-N2/N2R

7
1）Characteristicsinstruction
❶
PV Charge indicator
❺
2-way USB charge port(5VDC/2.1A)
❷
Battery capacity indicator
❻
8-way DC input port(12VDC/3A)
❸
Load status indicator
❼
PV input charge port
❹
System switch
❽
Silver radio with remote control meter
2）Indicatorinstruction
Indicator
Color
Status
Instruction
Green
OFF
Not connect the PV or no sunlight
Green
On Solid
Connect the PV
L1~L4
yellow
All OFF
Not connect the battery
L1~L4
yellow
On Solid
Battery capacity: from left to right ≤25%、
25%~50%、50%~75%、75%~100%
Red
OFF
Load overload
Load short circuit
Red
On Solid
DC output is normal

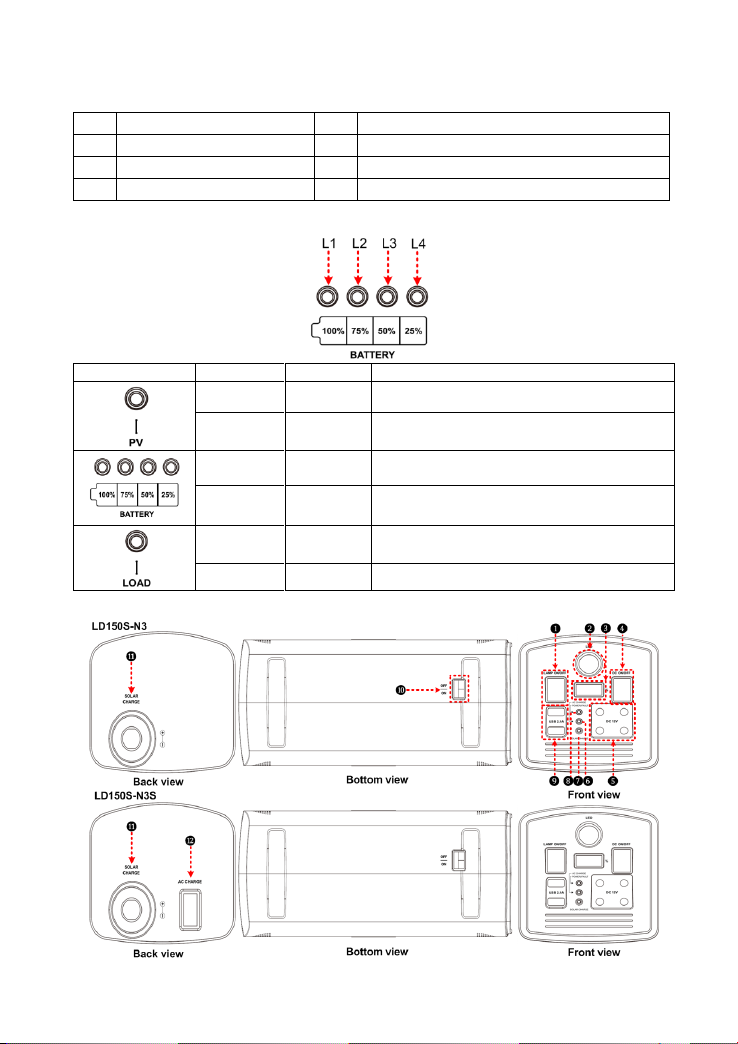

5.3 LD150S-N3/N3S

8
1）Characteristicsinstruction
❶
LED lamp switch
❼
PV Charge indicator
❷
LED lamp(12VDC/1W)
❽
System Status indicator
❸
Nixie tube display battery capacity
❾
2-way USB charge port (5VDC/2.1A)
❹
DC output switch
❿
System switch
❺
4-way DC input port(12VDC/3A)
➀
PV input port
❻
Utility charge indicator
➁
Utility input port
2）Indicatorinstruction
Indicator
Color
Status
Instruction
System Status
indicator
Green
OFF
No DC output
Green
On Solid
DC output is normal
Red
On Solid
Fault
Utility charge
indicator
Green
OFF
No utility
Green
On Solid
utility is normal
PV Charge
indicator
Green
OFF
Not connect the PV or no sunlight
Green
On Solid
Connect the PV
3）Nixie tube display
Lithium battery
capacity display
1-100 step size
1%
The buzzer sounds
when the battery
capacity is less than 5%
battery capacity.
Fault display
E01
Short circuit
E02
Overload
E03
Overtemperature
E04
Overvoltage

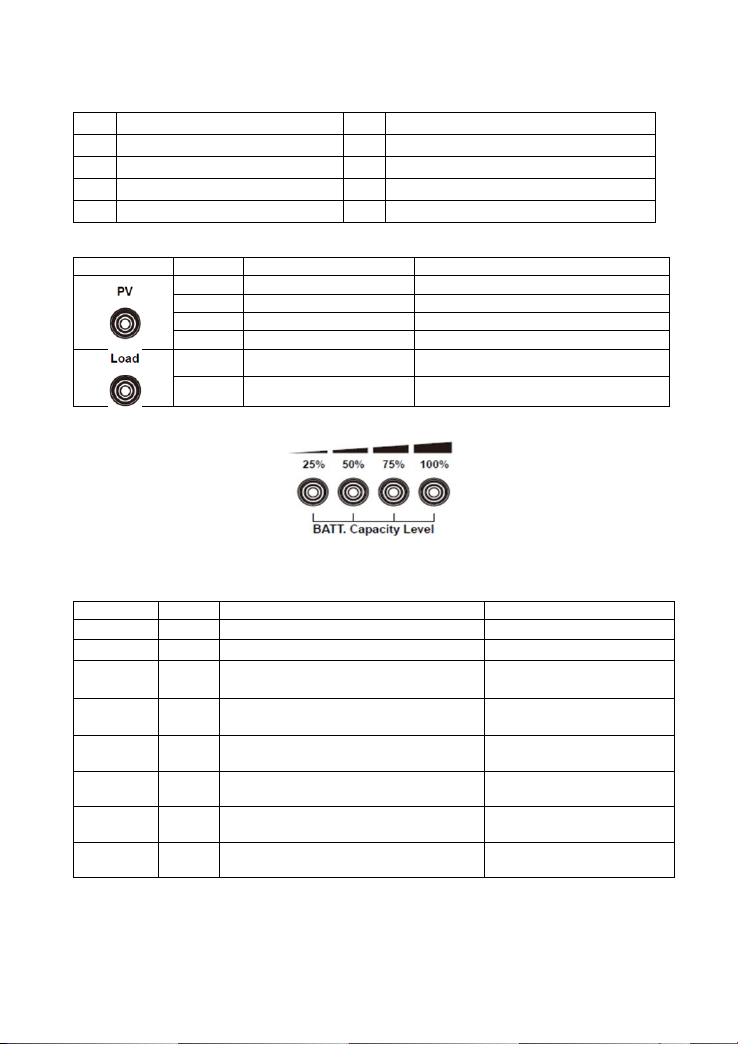

5.4 LD150S-N4/N4R

9
1）Characteristicsinstruction
❶
Battery capacity indicator
❻
PV input port
❷
PV Charge indicator
❼
4-way DC input port(12VDC/3A)
❸
Load status indicator
❽
2-way USB charge port (5VDC/2.1A)
❹
System fuse(10A/32VDC)）
❾
DC output switch
❺
System switch
❿
Silver radio with remote control meter
2）PV charge indicator and load indicatorinstruction
Indicator
Color
Status
Instruction
Green
On Solid
Connect the PV
Green
OFF
Not connect the PV or no sunlight
Green
slowly flashing (1Hz)
In charging
Green
fast flashing (4Hz)
PV overvoltage
Green
On Solid
The load output
Green
OFF
The load no output
3）Battery capacity levelindicatorinstruction
“○”indicatorOFF；“●”indicatorOn Solid；“☆”indicator slowly flashing；“★”indicator
fast flashing。
Battery Capacity Level(BCL)
Indicator
Color
Status
Instruction
★○○○
Red
25% indicator fast flashing
Over discharged
☆○○○
Red
25% indicator slowly flashing
0< BCL<25%
●☆○○
Red
50% indicator slowly flashing；25%
indicatorOn Solid
25%≤BCL<50%
●●☆○
Red
75% indicator slowly flashing；
25%,50% indicatorOn Solid
50%≤BCL<75%
●●●☆
Red
100% indicator slowly flashing;
25%,50%,75% indicatorOn Solid
75%≤BCL<100%
●●●●
Red
25%,50%,75%,100% indicatorOn
Solid
100%
★★★★
Red
25%,50%,75%,100% indicatorfast
flashing
Battery overvoltage
○○○○
OFF
25%,50%,75%,100% indicator OFF
Battery low voltage
Battery connection error
4）Button
Output Switch button can control USB and 12VDC port output, the USB and 12VDC port
is default ON when the power on.

10

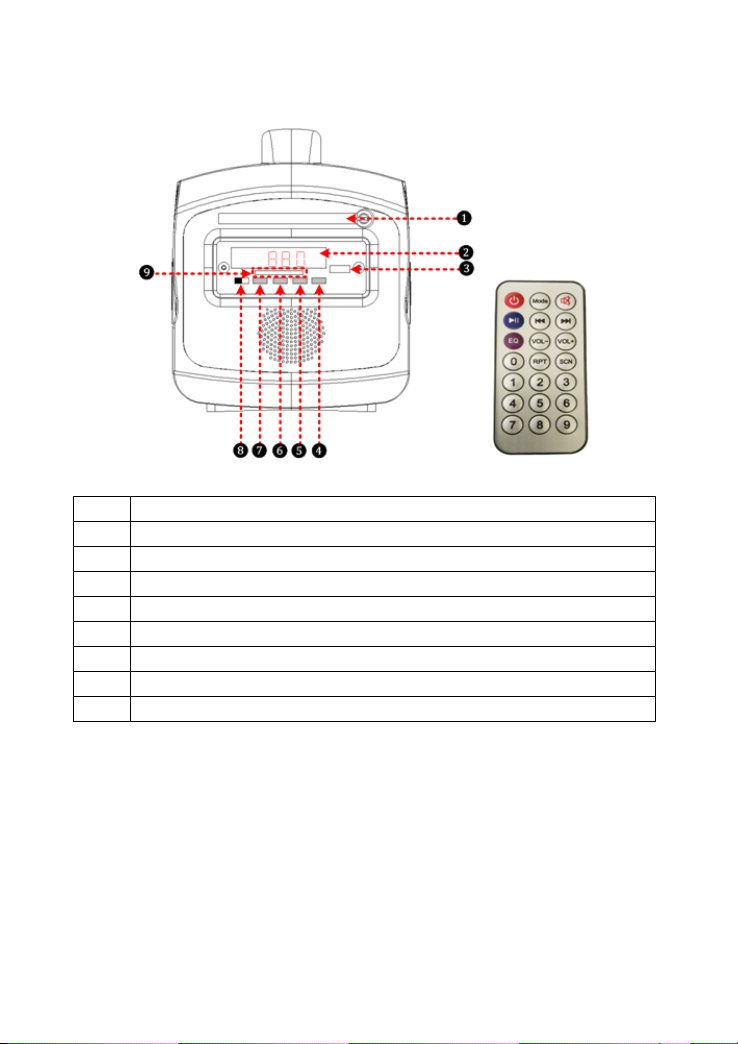

5.5Radio instruction
1）Radio function
❶
Radio antenna
❷
LCD(time and mode display),AUX external audio file playback, FM radio
❸
USB/U disk broadcast,U disk support up to 32G
❹
MODEmodel
❺
▶▶I/V+ Down/Volume+
❻
▶▶IIPause
❼
I◀◀/V- Up/Volume-
❽
OFF/ON power switch
❾
SD big card slot, up to 32G
2）Radio operation instruction
Step1: Pull-out the radio antenna;
Step2: Power on the radio;
Step3: Press the MODE button;
Step4: PressI◀◀or ▶▶I button to select the station.
NOTE：
①The radio varies by location and environment, and may not be picked up where the
signal is weak.
②Firstly,pressthe I◀◀/V- button, secondly, press ▶▶IIbutton, the radio channel will be
searched automatically.

11
Setting the time via the remote meter
Operation:
Press the button to display the time status;
Long press the button, the hour of the time is flashing;
Press the or button to change the hour of the time;
Press the button to change the minute of the time;
Press the or button to change the minute of the time;
Press the button to save the change.
3）The remote meter
Turn ON/OFF
UP(press the button)
Fast reverse(long press the button)
Mode(Radio/Music/Line)
Down(press the button)
Fast forward(long press the button)
Mute button
Volume-
Play/Pause
Volume+
POP/ROC/CLA/JA2/COU/NOR and so on
～button
When U disk or SDcard broadcast, the number can broadcast the music.
“ONE”song cycle;“ALL”all cycle;“LAN”order play, “FOND” random play.
Long press the button, the hour is flashing,press the or button to set. Press
the button to change the minute setting, the way follow the above. The setting
mode exit when waiting for 3s.

12
6. PV array requirement
PV array type
Monocrystalline panel
Polycrystalline panel
Max. PV Open Circuit Voltage
＜30V
PV array power
≤150Wp(N4≤60Wp)
7. Lithium battery configuration
7.1 Attention of using the lithium battery
Technician required for maintenance and repairing, do NOT disassemble and
repair the equipment personally.
The operation of overload may cause the battery to be damaged or safety
accidents.
Turn off the equipment after useto save battery life and avoid any problem or
accident caused by heating during standby mode.
Fully charge the battery monthly to ensure the life of the battery, if the equipmentis
not used in the long term,
The equipment should be stored in a cool, dry, and ventilated room, also away
from direct sunlight, inflammable, and explosives.
Keep the equipment away from water, which may cause device failure, short circuit,
or safety accidents.
Do NOT throw lithium batteries into water or fire, which may cause the battery
damaged or safety accidents.
Keep the lithium battery away from children.
Do NOT disassemble the lithium battery or try to penetrate it with sharp metal
objects, which may cause fire or explosion.
Do NOT throw the wasted battery away randomly,and send it to the battery
recycling department.
7.2 Lithium battery requirement
Lithium battery capacity: 10～38AH/12V;
Lithium battery type:Li(NiCoMn)O2or LiFePO4 selectable;
Inside lithium battery size:222mm×120×70mm(L*W*H).
7.3Lithium battery parameters
Model
Battery type
Battery capacity
LD150S-N1/N1R
Li(NiCoMn)O2
16Ah/38Ah
LD150S-N2/N2R
Li(NiCoMn)O2
10Ah/16Ah
LD150S-N3/N3S
LiFePO4
18Ah

13
LD150S-N4/N4R
LiFePO4
12Ah
7.4 Lithium battery control voltage parameters
control voltage parameters
LiFePO4
Li(NiCoMn)O2
Over Voltage Disconnect Voltage
15.6V
12.9V
Over Voltage Reconnect Voltage
14.5V
12V
Equalize Charging Voltage
14.5V
12.3V
Boost Charging Voltage
14.5V
12.3V
Float Charging Voltage
13.8V
11.8V
Boost Voltage Reconnect Voltage
13.2V
12.1V
Low Voltage Reconnect Voltage
12.4V
10.5V
Under Voltage Warning Recover Voltage
12.2V
10.4V
Under Voltage Warning Voltage
12.0V
10V
Low Voltage Disconnect Voltage
11.1V
9.4V
Discharging Limit Voltage
10.8V
9.4V
NOTE: Above parameters are default value, the parameters can be set according to the
user’s requirement.
8. Utility charge function
OnlyLD150S-N3S has the utility function, follow the parameter：
Utility input voltage range
176～264VAC
Utility input frequency
50/60Hz
Utility charge current
3A±0.3A

14
9.Operation instruction
9.1LD150S-N1/N1R operation instruction
❶Connect the PV array;
❷Connect the DC load;
❸Turn on the system switch, battery capacity levelindicatorand PV indicator flash once
time, after the battery capacity level, PVand load indicator enter the actual status.
❹Power on the radio, pull out the antenna to receive the programs; or insert the U disk or
SD card to play music.
9.2LD150S-N2/N2R operation instruction
❶Connect the PV array;
❷Connect the DC load;
❸Turn on the system switch;
❹Power on the radio, pull out the antenna to receive the programs; or insert the U disk
or SD card to play music.

15
9.3LD150S-N3/N3S operation instruction
❶Connect the PV array;
❷Connect the utility;
❸Connect the DC load;
❹Turn on the system switch;
❺Turn on the DC load switch;
❻Turn on the lamp switch(according to the requirement).
9.4LD150S-N4/N4R operation instruction
❶Connect the PV array;
❷Connect the DC load;
❸Turn on the system switch;
❹Turn on the DC load switch;
❺Power on the radio, pull out the antenna to receive the programs; or insert the U disk
or SD card to play music.

16
10. Protection
10.1 LD150S-N1/N1R/N2/N2R/N4/N4R/N4Sprotection
PV Reverse
Polarity
When the polarity of the PV array is reversed, the device may not
be damaged and can continue to operate normally after the
polarity is corrected.
LithiumBattery
Reverse Polarity
Fully protected against battery reverse polarity; no damage will
occur to the battery. Correct the miswire to resume normal
operation.
Lithium Battery
Over Voltage
When the battery voltage reaches the overvoltage disconnect
voltage(OVD), it will automatically stop battery charging to prevent
battery damagecaused by over-charging.
LithiumBattery
Over Discharge
When the battery voltage reaches the low voltage disconnect
voltage, it will automatically stop battery discharging to prevent
battery damage caused by over-discharging.
Load Overload
When the overload current is ≥ 1.5 times the rated load current,
the device will automatically cut off the output.
Load Short Circuit
When the load is short circuit the device will automatically cut off
the output.
High Voltage
Transients
The internal circuitry of the device is designed with Transient
Voltage Suppressors (TVS) which can only protect against
high-voltage surge pulses with less energy. If the controller is to
be used in an area with frequent lightning strikes, it is
recommended to install an external surge arrester.
10.2LD150S-N3/N3S protection
Lithium Battery
Over Voltage
When the battery voltage reaches the overvoltage disconnect
voltage(OVD), it will automatically stop battery charging to prevent
battery damagecaused by over-charging.
Lithium Battery
Over Discharge
When the battery voltage reaches the low voltage disconnect
voltage, it will automatically stop battery discharging to prevent
battery damage caused by over-discharging.
Lithium Battery
Overheating
If the battery temperature is higher than 45℃, the device will stop
charging, the restore temperature is 38℃; the temperature is
higher than 60℃, the device will stop discharging，the restore
temperature is 48℃.
Load Overload
When the overload current is ≥ 1.2 times(≥9.6A) the rated load
current, the device will automatically cut off the output.
Load Short Circuit
When the load is short circuit (≥ 4 times the rated load
current,)thedevice will automatically cut off the output.
High Voltage
Transients
The internal circuitry of the device is designed with Transient
Voltage Suppressors (TVS) which can only protect against
high-voltage surge pulses with less energy. If the controller is to
be used in an area with frequent lightning strikes, it is
recommended to install an external surge arrester.
