EPOX BT-PA02A User manual

EPoX USB PRINTER ADAPTER
BT-PA02A
~ User’s Guide ~
DISCLAIMER OF WARRANTIES
There are no warranties which extend beyond the
description on the face of the EPoX limited warranty. EPoX
expressly excludes all other warranties, express or implied,
regarding its products; including any implied warranties of
merchantability, fitness for a particular purpose or
non-infringement. This disclaimer of warranties shall apply to
the extend allowed by state laws in the states of United States
in which state laws do not allow or limit the exclusion of the
implied warranties.
Document No : PA02AA0 REV 1.0

PA02AA0 REV 1.0 602A002P2A100
~
2
~
USER’S GUIDE
Thank you for purchasing an EPoX Bluetooth USB Printer
Adapter! Your printer will soon be Bluetooth enabled, allowing you to
print remotely from desktop PCs, notebook computers, PDAs,
Pocket PCs and many other Bluetooth devices without any cables.
A. ITEMS INCLUDED IN THIS PACKAGE
1 EPoX Bluetooth USB Printer Adapter
1 User Guide
1 AC/DC Power Adapter
B.FEATURES & SPECIFICATION
 Bluetooth Profile Supported: Serial Port
 Printer Speed: Up to 115,200bps
 Printer InterfaceUSB 1.1 compliant
 Chipset: CSR BlueCore 02
 Buffer Memory: 32K Bytes SRAM
 Power Consumption: 0.7 Watt, 6 Vdc
 Power AdapterInput AC 100~240 Volts
: Output DC 6V @ 1A
 Frequency Range: 2.4-2.4835 GHz
 Antenna: Build-In
 Receive Sensitivity: From –80dBm to –85dBm
 RangeAround 100 Meters(Line of sight)
 Operation System Supported Windows 98SE/ME/2000/XP

PA02AA0 REV 1.0 602A002P2A100
~
3
~
C. PRINTER ADAPTER HARDWARE INSTALLATION
Plug the EPoX USB Printer adapter into the USB printer port of
your printer as shown below. Now, your printer has become
Bluetooth enabled. Congratulations!!
1.Plug BT-PA02A into the printer port.
2.Plug the power into the BT-PA02A
"Note: Please do not use any other power adaptor with the
EPoX USB Printer Adaptor (BT-PA02A). If you have
problems, contact your dealer for a replacement.
D. ESTABLISHING A CONNECTION
To establish the Bluetooth connection, you have to configure
the serial port setting on the Bluetooth device. If your Bluetooth
device is an EPoX BT-MB02B or BT-DG02 or BT-DG03 or BT-DG02A,
after the Widcomm protocol stack is installed, then follow the steps
below. If your Bluetooth device is other than EPoX, please contact
your manufacturer to obtain more information.
D.1: Checking the COM port used by BT-PA02A EPoX Bluetooth
USB Printer Adapter:

PA02AA0 REV 1.0 602A002P2A100
~
4
~
1 Double click the Bluetooth icon to enter the My Bluetooth
window.
2 By double-clicking on the Entire Bluetooth Neighborhood
icon, you will find all the local Bluetooth enabled devices
nearby.

PA02AA0 REV 1.0 602A002P2A100
~
5
~
3 Find the EPoX BT-PA02A XXXXXX and double-click on it, the
Cable Replacement icon be shown along with all the services
offered by the printer adapter.
4 By double-clicking on the Cable Replacement icon, the “Cable
Replacement” prompt window appears. It will show the COM
port the EPoX Printer adapter will be using. Please make note of
it and remember it.
"Note: The COM port is automatic assigned and cannot be
overridden.

PA02AA0 REV 1.0 602A002P2A100
~
6
~
D.2. Specifying the COM port on your printer:
 If you haven’t installed the printer driver yet, please install it
now.
1. By clicking the window Start button, select Setting and,
then Printers, the printer setup window will display on the
screen.
2. By double-clicking on the Add Printer icon, you will
proceed with the printer driver installation for the Bluetooth
enabled printer.

PA02AA0 REV 1.0 602A002P2A100
~
7
~

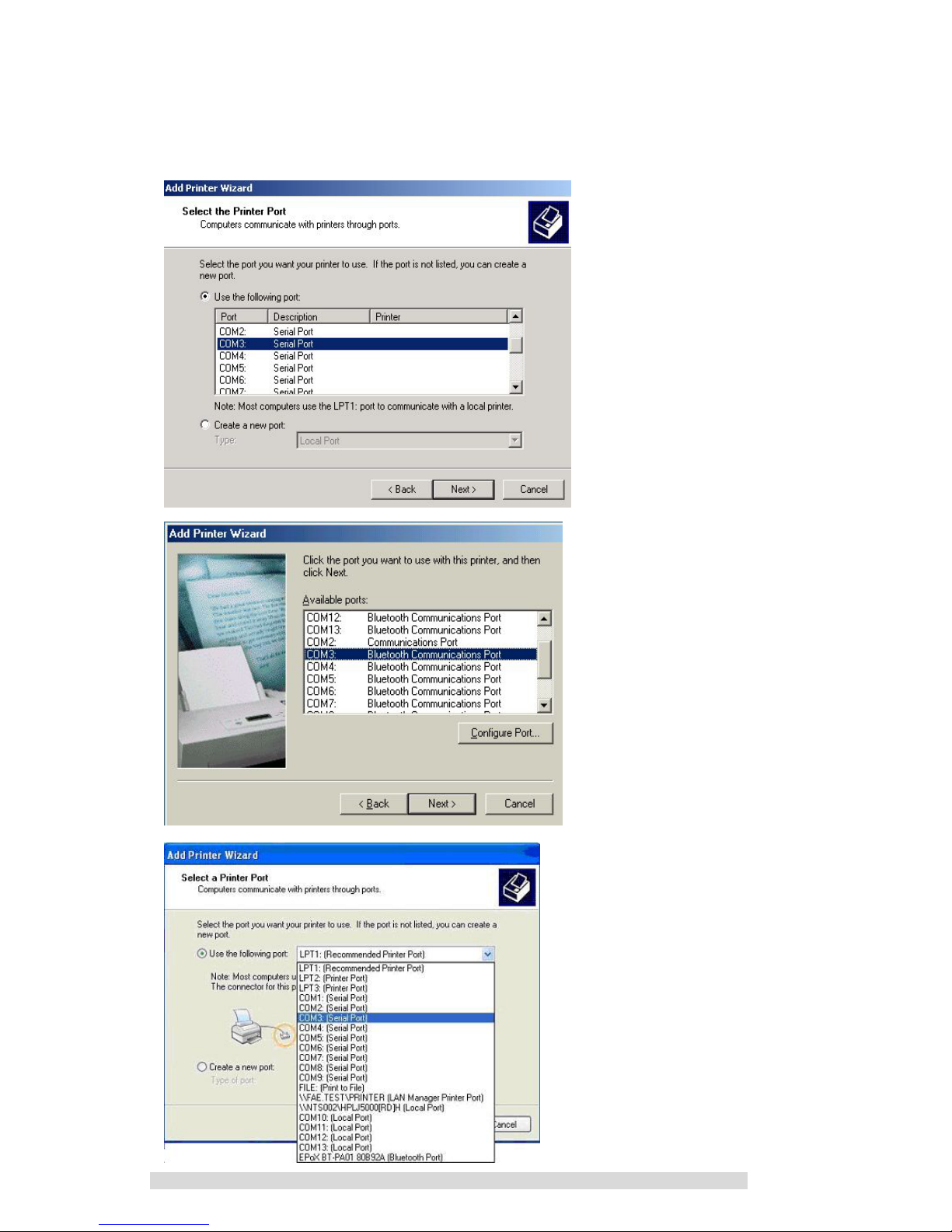

3. Follow the installation steps to set up the printer. When
choosing the printer port, please set the COM port as same
as the BT-PA02A (Reference D.1 4).
Windows 2000
Windows 98SE/ME
Windows XP

PA02AA0 REV 1.0 602A002P2A100
~
8
~
 If your printer is already installed with its driver, please change the
com port to the same BT-PA02A, and following the steps below:
1. By clicking the Start button, select Setting, and then click
on Printers the printer setup window will be displayed.
2. Please select the printer connected to the BT-PA02A, and
right-click on its icon, and then select Properties to enter
the properties window.

PA02AA0 REV 1.0 602A002P2A100
~
9
~
3. If your system is running Window 2000/XP, select the Ports
tab. Choose the COM port that is being used by the
BT-PA02A and press OK. You are done!
If your system is running Window 98SE/ME, and select the
Details tab. Choose the COM port that is being used by the
BT-PA02A and press OK. You are done!

PA02AA0 REV 1.0 602A002P2A100
~
10
~
D.3: Important items to check
Whether your printer drivers are installed or not, check the
printer’s Properties (Please reference above).
 If your system is running Window 2000/XP, and click on the
Ports tab and check the following two items:
1. Uncheck Enable bidirectional support.
2. Click on the Configure Port. Button, then the COM X
Properties prompt window will be shown and chose the
115200 port speed under the Bits per second drop down
menu.

PA02AA0 REV 1.0 602A002P2A100
~
11
~
3. Afterwards, click the OK button, which will take you back to
the Properties prompt window, then click the Apply
button and finally, click the OK button.
 If your system is running Window 98SE/ME, and select the
Details tab.
1. Click on the Spool Setting button, please select Disable
bi-directional support for this printer and click on the
OK button which will take you back to the Properties
prompt window like above, and please go to the next step
below.

PA02AA0 REV 1.0 602A002P2A100
~
12
~
2. Click on the Port Setting.. button, and then the COM X
Properties prompt window will be shown and chose
115200 port speed under the Bits per second drop down
menu.
3. Afterwards, click the OK button, which will take you back to
the Properties prompt window, then click the Apply button
and finally, click the OK button.
Congratulations!! You finish setting for BT-PA02A.

PA02AA0 REV 1.0 602A002P2A100
~
13
~
E.CONNECTIVITY
This section will help you verify the connectivity of the
BT-PA02A.
1. If you have more that one printer, please set the one with
BT-PA02A as the default printer.
Window 98SE/ME Window 2000/XP
2. Please double click the Bluetooth icon , and open the My
Bluetooth Places (Widcomm Bluetooth Software) window at
your computer screen.

PA02AA0 REV 1.0 602A002P2A100
~
14
~

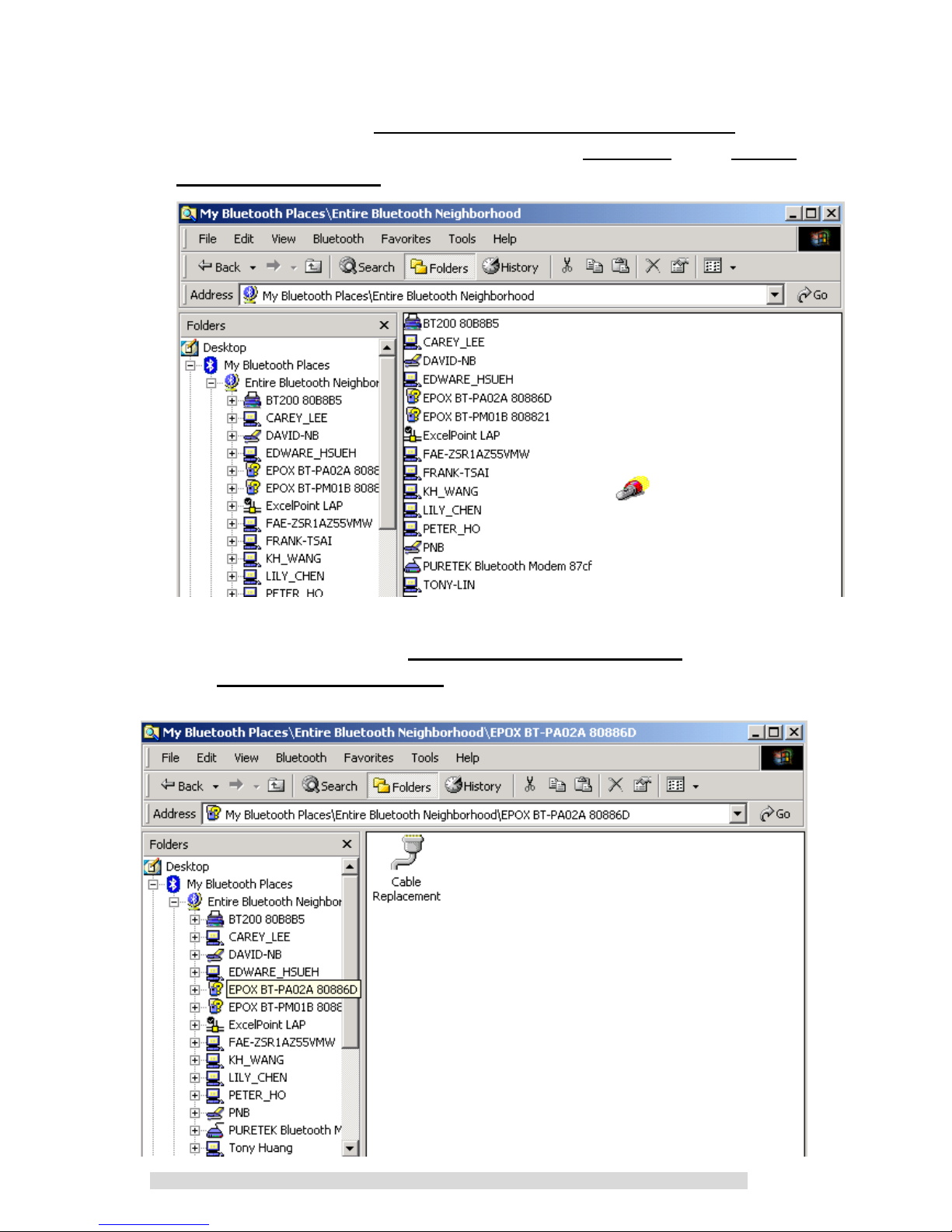

3. Double click on the Entire Bluetooth Neighborhood icon, and
right click on your mouse, then choose Refresh. The EPoX
BT-PA02A xxxxxx should appear.
4. By double-clicking the EPoX BT-PA02A xxxxxx icon, and then
the Cable Replacement icon should be shown at the right
window.

PA02AA0 REV 1.0 602A002P2A100
~
15
~
5. Please double click on the Cable Replacement icon. Afterwards,
its color should change to green when it has successfully
connected.
& Note1: If your Bluetooth device is set to high security, the
default PIN code is “0000”.
F. TROUBLESHOOTING
If you are unable to print from your laptop or other device to
the BT-PA02A, then check the following:
1. Make sure that the Cable Replacement icon turns to green
before using the BT-PA02A. If the icon is not shown as green
in cooler, then there is no Bluetooth wireless connection.
Please refer to steps E. 4. & 5. Make sure the printer’s power
is on.
2. If the icon turned to green after double-clicking on the Cable
Replacement icon and you cannot print, check the
BT-PA02A physical connection to the printer. Also make sure
that there is enough paper on the printer for printing.
3. If everything checks out ok, but you still cannot print. Please
reset the BT-PA02A and unplug the power to the printer. This
will reset both devices at the same time.
4. The BT-PA02A emulates a serial port, therefore the printer
driver must support printing to a hardwired serial port. Check
with your printer manufacturer in this is the case.

PA02AA0 REV 1.0 602A002P2A100
~
16
~
G. PRINTERS THAT ARE TESTED AND VERIFIED TO
WORK WITH THE EPoX BT-PA02A
HP EPSON CANON OTHERS
LaserJet 2200D Stylus Photo 1290 BJC 2100SP Xerox Phaser 7700
DeskJet 1120C Stylus C60 S900 Compaq ij600
DeskJet 930C Stylus C61 S200SP
Photo Smart P1100 Stylus 480SXU
DeskJet 1125C Stylus Color 980
DeskJet 1220C Stylus C41
DeskJet 3420 Stylus 790
DeskJet 5550 Stylus Photo 750
DeskJet 640C
H.NOTICES
FCC-B Radio Frequency Statement
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at hi own expense.
Notice 1
The changes or modifications not expressly approved by party responsible for compliance
could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cable and A.C. power cord, if any, must be used in order to comply with the
emission limits.
Tested To comply With FCC Standards
FOR HOME OR OFFICE USE

PA02AA0 REV 1.0 602A002P2A100
~
17
~
EPoX USB PRINTER ADAPTER
BT-PA02A
~ Handbuch ~
HAFTUNGSAUSSCHLUSS
Der Hersteller haftet lediglich im Rahmen der Produkthaftung
gemäss der gesetzlichen Vorschriften. Es wird keine
weitergehende Haftung, weder ausdrücklich noch konkludent,
für das Produkt gewährleistet. Ausgeschlossen wird die
Garantie für die Zusicherung der Handelsüblichkeit, die
Eignung für einen bestimmten Zweck oder die Verletzung von
Rechten Dritter. Dieser Haftungsausschluss findet in dem
Maße Anwendung, wie die örtlichen Gesetze des Landes, in
dem das Produkt gekauft wurde, den Haftungsausschluss
konkludenter Garantien zulassen.
Nummer des Dokuments: PA02AA0 Version 1.0

PA02AA0 REV 1.0 602A002P2A100
~
18
~
HANDBUCH
Danke, dass Sie sich für den EPoX Bluetooth USB Printer Adapter
entschieden haben! Ihr Drucker wird bald Bluetooth-fähig sein.
Dadurch können Sie in Zukunft von Ihrem PC, Notebook, PDA,
Pocket PC und von vielen anderen Bluetooth-Geräten aus kabellos
auf Ihren Drucker zugreifen.
A. LIEFERUMFANG
1 EPoX Bluetooth USB Printer Adapter
1 Handbuch
1 Netzteil
B. LEISTUNGSMERKMALE
 Unterstütztes Bluetooth-Profil: serieller Port
 Drucker-Schnittstelle: kompatibel zu IEEE1284-B
 Übertragungsgeschwindigkeit: Bis zu 115200 Bits/Sek.
 Chipsatz: CSR BlueCore 02
 Stromverbrauch: 0,7 Watt, 6 Volt
 Netzteil: Eingangsspannung 100 - 240 Volt (Wechselstrom)
Ausgangsspannung 6 Volt (Gleichstrom) bei 1A
 Frequenzbereich: 2,4 - 2,4835 Gigahertz
 Antenne: Integriert
 Reichweite: zirka 100 Meter (zirka 300 Meter bei direkter
Sichtverbindung)
 Mindestens Pentium III Prozessor oder besser.
Microsoft™ Windows 98SE, ME, 2000 or XP

PA02AA0 REV 1.0 602A002P2A100
~
19
~
C. INSTALLATION DER PRINTER ADAPTER-HARDWARE
Stecken Sie den EPoX USB Printer Adapter in die parallele
Schnittstelle Ihres Druckers (siehe Abbildung unten). Dadurch wird
Ihr Drucker Bluetooth-fähig.
Stecken Sie den BT-PA02A in die
parallele Schnittstelle des
Druckers
Stecken Sie den Netzteilstecker
in den BT-PA02A, um das Gerät
mit Strom zu versorgen
"Achtung: Bitte benutzen Sie ausschließlich das mitgelieferte
Original-Netzteil. Kontaktieren Sie bei Problemen zuerst
Ihren Fachhändler.
D. HERSTELLUNG DER FUNKVERBINDUNG
Um eine Bluetooth-Verbindung herzustellen, müssen Sie den
seriellen Ports des Bluetooth-Geräts konfigurieren. Wenn Ihr
Bluetooth-Gerät ein EPoX-Dongle BT-MB02 oder BT-DG02 oder
BT-DG03 oder BT-DG02A ist, folgen Sie der unten stehenden
Anleitung. Wenn Sie keinen Bluetooth-Dongle von EPoX einsetzen,
wenden Sie sich bei Problemen an den Hersteller Ihres
Bluetooth-Gerätes.

PA02AA0 REV 1.0 602A002P2A100
~
20
~
D.1: Stellen Sie fest, welchen COM-Port der BT-PA02A
Bluetooth Printer Adapter benutzt
1 Doppelklicken Sie unter “Arbeitsplatz” auf das Bluetooth-Symbol
. Dadurch öffnet sich das My Bluetooth -Fenster.
2 Wenn Sie auf das Symbol Entire Bluetooth Neighborhood
klicken, erscheint eine Übersicht über alle installierten
Bluetooth-fähigen Peripherie-Geräte.
