Epson RC+ 7.0 User manual

Rev.5 EM216S4608F
EPSON RC+ 7.0 Option
Part Feeding 7.0
Hopper & Hopper Controller

EPSON RC
+ 7.0 Option Part Feeding 7.0 Hopper & Hopper Controller Rev.5

Part Feeding 7.0 Hopper & Hopper Controller Rev.5 i
EPSON RC+ 7.0 Option
Part Feeding 7.0 Hopper & Hopper Controller
Rev.5
Copyright 2020-2021 SEIKO EPSON CORPORATION. All rights reserved.

ii Part Feeding 7.0 Hopper & Hopper Controller Rev.5
FOREWORD
Thank you for purchasing our robot system.
This manual contains the information necessary for the correct use of the EPSON RC+
PartFeeding option.
Please carefully read this manual and other related manuals before installing the robot
system.
Keep this manual handy for easy access at all times.
The robot system and its optional parts are shipped to our customers only after being
subjected to the strictest quality controls, tests, and inspections to certify its compliance with
our high performance standards. Please note that the basic performance of the product will
not be exhibited if our robot system is used outside of the usage conditions and product
specifications described in the manuals.
This manual describes possible dangers and consequences that we can foresee. Be sure to
comply with safety precautions on this manual to use our robot system safety and correctly.
TRADEMARKS
Microsoft, Windows, Windows logo, Visual Basic, and Visual C++ are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other
countries. Other brand and product names are trademarks or registered trademarks of the
respective holders.
TRADEMARK NOTATION IN THIS MANUAL
Microsoft® Windows® 8 Operating system
Microsoft® Windows® 10 Operating system
Throughout this manual, Windows 8 and Windows 10 refer to above respective operating
systems. In some cases, Windows refers generically to Windows 8 and Windows 10.
NOTICE
No part of this manual may be copied or reproduced without authorization.
The contents of this manual are subject to change without notice.
Please notify us if you should find any errors in this manual or if you have any comments
regarding its contents.
MANUFACTURER
CONTACT INFORMATION
Contact information is described in “SUPPLIERS” in the first pages of the following
manual:
Robot System Safety Manual Read this manual first

Table of Contents
Part Feeding 7.0 Hopper & Hopper Controller Rev.5 iii
Hardware (Hopper)
1. Technical data 3
2. Safety instructions 5
3. Construction and function of the linear feeder 8
4. Transport and mounting 9
5. Starting 10
5.1 Adjustment .........................................................................................10

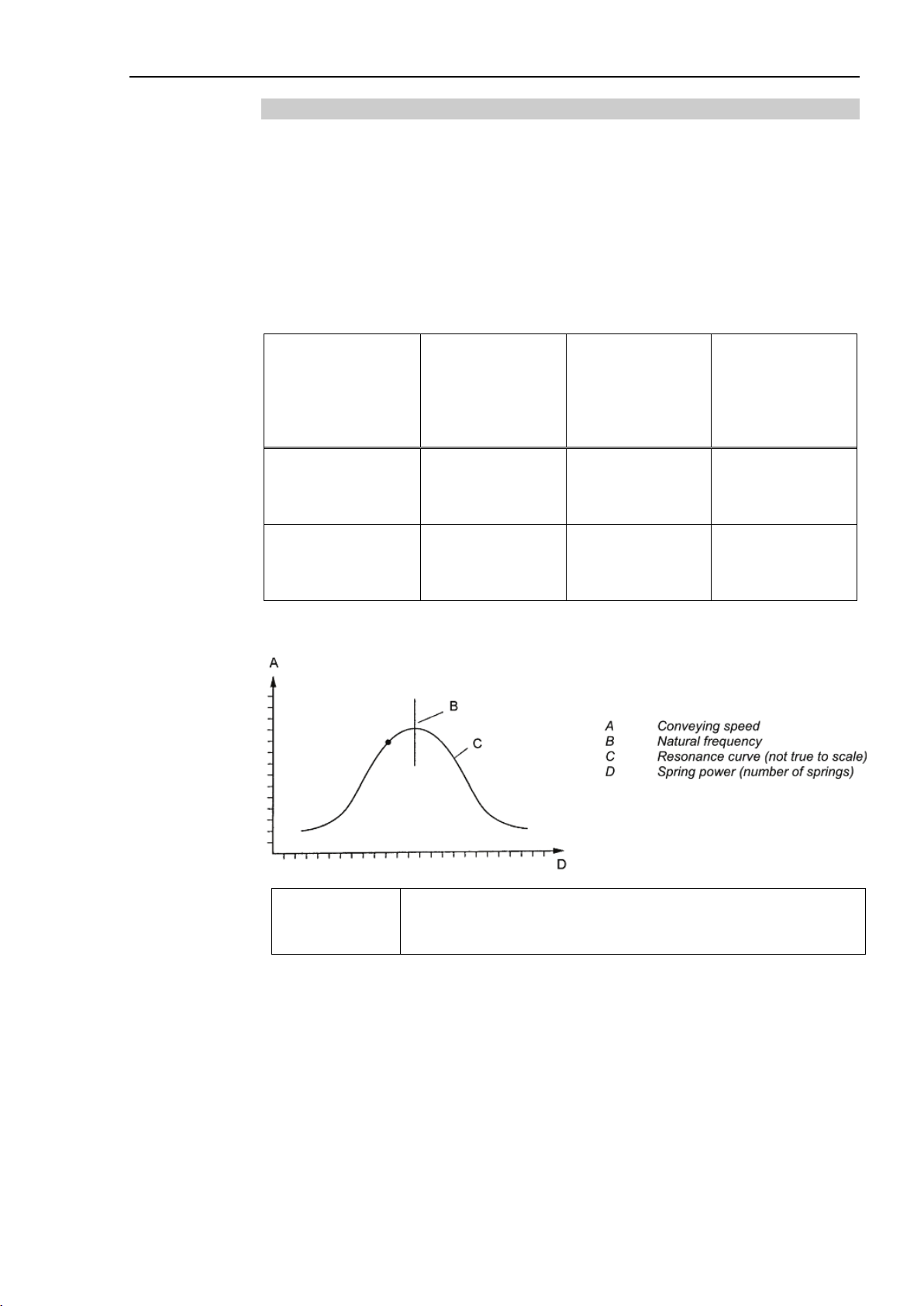

5.1.1 Adjusting the required running speed.........................................11

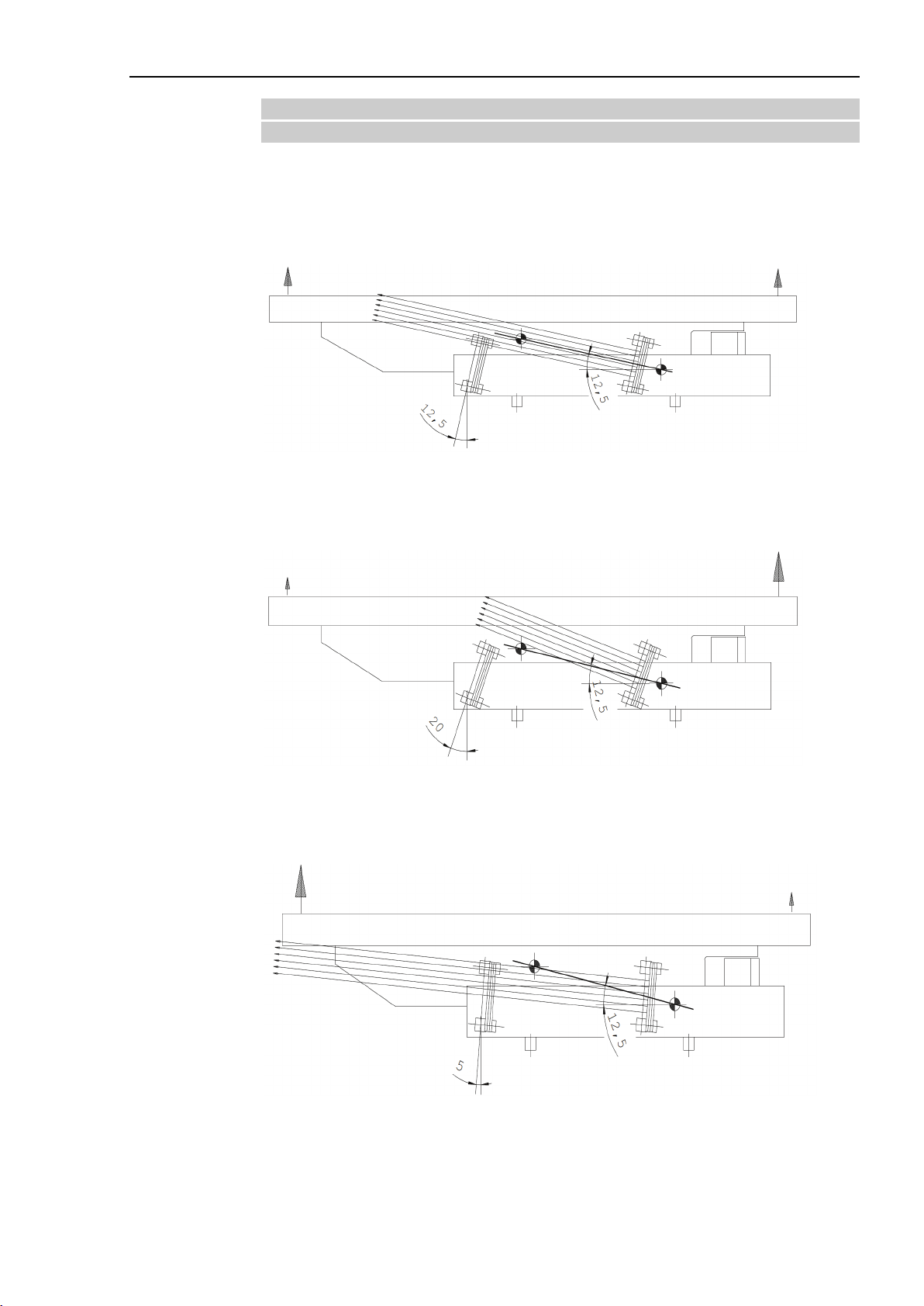

5.1.2 Adjusting the required running behavior or the synchronism of the
linear feeder track..................................................................................13
6. Maintenance 16
7. What to do, if... (Instructions for trouble-shooting) 17

Table of Contents
iv Part Feeding 7.0 Hopper & Hopper Controller Rev.5
Hardware (Hopper Controller)
1. Technical data 19
1.1 Functional description........................................................................ 19
1.2 Technical data.................................................................................... 19
2. Safety notes 20
3. Information for starting 21
3.1 AC Power Cable ................................................................................ 22
3.2 Explanations on the term OPERATING MODE ................................ 23
3.3 Switching over to a different mains voltage....................................... 23
3.4 Setting the minimum and maximum output voltage .......................... 24
3.5 Changing the soft start time............................................................... 24
4. Plan showing the position of the operating elements on the
boards 25
5. Scale drawing 26
6. Connecting diagram 26

Hardware
(Hopper)

1. Technical data
Part Feeding 7.0 Hopper & Hopper Controller Rev.5 3
1. Technical data

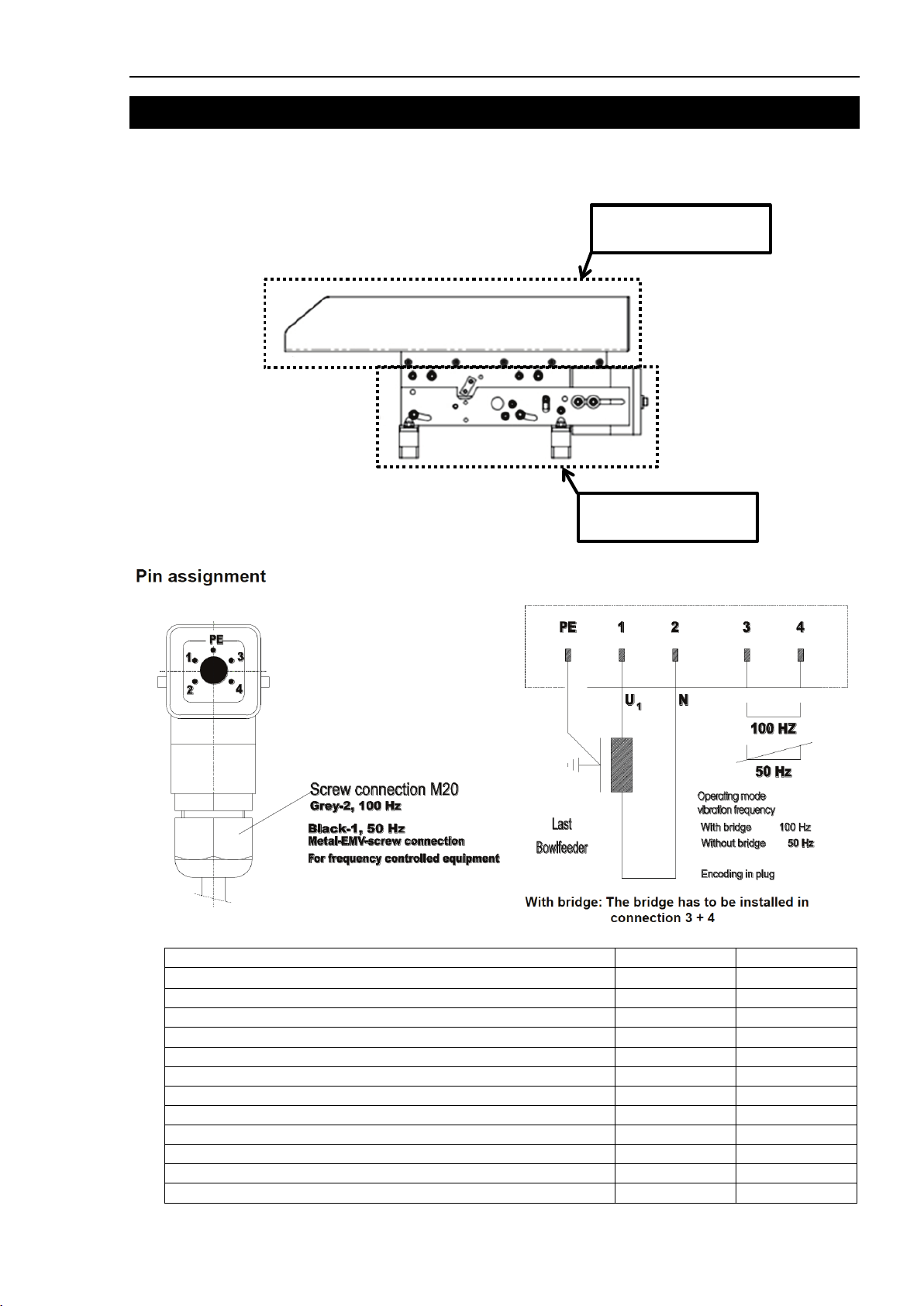

Hopper consists of a “Loading parts” on which parts to be put into the feeder are placed and
a “Linear feeder” that generates vibration.
Loading parts
Linear feeder
Linear feeder type
SLL 400-400
SLL400-600
Dimensions L × B 2) × H (mm)
430 × 84 × 103
630 ×84 ×103
Weight
6,5
8
Insulation type
IP54
IP54
Connecting cable length (m)
1,5
1.5
Power consumption 1) (VA)
120
120
Current consumption 1) (A)
0,6
0,6
Magnet nominal voltage 1) / Frequency (V / Hz)
200 / 50
200 / 50
Number of magnets
1
1
Magnet type
WZAW 040
WZAW040
Magnet color
black
black
Air gap (mm)
1,0
1, 0
Vibration frequency Hz 1)
100 Hz
100Hz

1. Technical data
4 Part Feeding 7.0 Hopper & Hopper Controller Rev.5
Number of spring assemblies
2
2
Standard no. of springs
Number per spring assembly
2 ×2,0
3 × 3,0
2 ×20
4 ×3.0
Spring dimensions (mm)
Length (gauge for boreholes) × width
70(56) × 40(18)
70(56) ×40(18)
Spring size (mm)
2,0 und 3,0
2.0 and 3.0
Quality of the spring fastening screws
8.8
8.8
Tightening moment of the spring fastening screws
15 N·m
15 N·m
Max. weight of the oscillating units (linear track) dependent on the
mass moment of inertia and required running speed
ca. 5 kg
ca.6kg
Max. track length (mm)
700
900
Useful weight of the linear feeder dependent on the mass moment
of inertia and required running speed
1,5 – 2 kg
1.5 - 2 kg
1) At special connecting values (voltage/frequency see type plate at the magnet
2) Width dimension for design b (= wide)

2. Safety instructions
Part Feeding 7.0 Hopper & Hopper Controller Rev.5 5
2. Safety instructions
The conception and production of our linear feeders has been carried out very carefully, in
order to guarantee trouble-free and safe operation. You too can make an important
contribution to job safety. Therefore, please read these short operating instructions
completely before starting the machine. Always observe the safety instructions.
Make sure that all persons working with or at this machine carefully read and observe the
following safety instructions.
This hand points to information that gives you useful tips for
the operation of the linear feeder.
WARNING
This warning triangle marks the safety instructions.
Non-observance of these warnings can result in serious or
fatal injuries.
Dangers occurring at the machine
-The most dangerous parts of the machine are the electrical installations of the linear
feeder. In case the linear feeder gets wet, there is the danger of an electric shock.
-Make sure that the protection ground of the electric power supply is in perfect condition.
Intended use
The intended use of the linear feeder is the actuation of conveying tracks. These are used
for linear transport and feeding of correctly positioned mass-produced parts, as well as for
the proportioned feeding of bulk material.The intended use also includes the observance
of the operating and servicing instructions.
Please take the technical data of your linear feeder from the table described in 1. Technical
data. Make sure that the connected load of the linear feeder, control unit and power supply
is compatible.
The linear feeder may only be operated in perfect condition.
The linear feeder may not be operated in the explosive or wet area.
The linear feeder may only be operated in the configuration drive unit, control unit and
oscillating unit, as specified by the manufacturer.
No additional loads may act upon the linear feeder, apart from the material to be transported,
for which the special type is designed.
WARNING
It is
strictly prohibited to put any safety devices out of
operation.

NOTE

NOTE

2. Safety instructions
6 Part Feeding 7.0 Hopper & Hopper Controller Rev.5
Demands on the user
-For all activities (operation, maintenance, repair, etc.) the details of the operating
instructions must be observed.
-The operator must avoid any working method which would impair the safety of the
linear feeder.
-The operator must take care that only authorized personnel works at the linear feeder.
-The user is obliged to inform the operator immediately about any changed conditions at
the linear feeder that could endanger safety.
WARNING
The linear feeder may only be installed, put into operation and
serviced by expert personnel.
DANGER
Since the electromagnet-field may have an impact on persons
with pacemakers it is recommended to keep a minimum
distance of 25 cm.
DANGER
-Unplug the main power plug when plugging / unplugging the
cord.
-Unplug the main power plug when performing adjustment
and maintenance.
Noise emission
The noise level at the place of operation depends on the complete equipment and the material
to be transported. The determination of the noise level according to the EC-Regulations
“Machinery” can therefore only be carried out at the place of operation.
If the noise level at the place of operation exceeds the limit permitted, noise prediction hoods
may be used, which we offer as accessory parts (see catalogue).
Standards and regulations
The device was built according to the following standards and regulations:
-Low voltage directive 2014/35/EU
-EMC directive 2014/30/EU
We assume that our product is to be integrated in a fixed machine. The provisions of the
EMC directive 2014/30/EU must be considered by the user.
-Applied harmonized Standards
EN 60204-1
WARNING
When transporting and shipping, please take actions to prevent
accidents for transporting and shipping.

2. Safety instructions
Part Feeding 7.0 Hopper & Hopper Controller Rev.5 7
WARNING
Build a safety system that shuts off the Hopper power when the
machine or mechanical system protection enclosure is opened.
WARNING
Attach protective equipment* to the power supply line to the
hopper controller.
*: fuse, shutting down equipment for wires (MCCB), etc.
WARNING
When removing hopper from the machine or machine system,
after unplugging the main power plug of the machine or machine
system, and disconnect cable connection between hopper and
hopper controller, remove the hopper.
WARNING
Carry out inspections and maintenance considering safety.
WARNING
Before detaching protective equipment* of the
machine or
machine system, unplug the main power plug of the machine or
machine system, and turn off the power.
*: fuse, shutting down equipment for wires (MCCB), etc.
WARNING
When detached protective equipment* of the
machine or
machine system, before turning on the power, attach protective
equipment again.
*: fuse, shutting down equipment for wires (MCCB), etc.
WARNING
Before assembling the machine or machine system, adjusting,
maintenance and repair, turn off the power by using proper power
deactivation equipment, and it must be fixed so that it does not
turn on again. If necessary, attach the sign* on the power
deactivation equipment so that it can be recognized clearly.
*: For example, “Do not turn the power on”
WARNING
Be sure to comply with safety precautions of manual for the
equipment used in the machine or machine system.
WARNING
-Products with 50Hz specifications cannot be
used by
connecting to a 60Hz power supply.
-Products with 6
0Hz specifications cannot be used by
connecting to a 50Hz power supply.

3. Construction and function of the linear feeder
8 Part Feeding 7.0 Hopper & Hopper Controller Rev.5
3. Construction and function of the linear feeder
Linear feeders are used for the actuation of conveying equipment. The actuation takes place
by an electromagnet. The following schematic diagram shows the function of a linear
feeder:
The linear feeder is a device of the family of vibratory bowl feeders. It is, however, equipped
with a linear conveyor. Electromagnetic vibrations are converted into mechanical vibrations
and are used for conveying material B. If magnet D, which is securely connected with the
counter mass F, is supplied with current, it generates a power that, dependent on the
vibration frequency of the mains supply, attracts and releases armature E. Within a period
of the 50 Hz of the A.C. network the magnet achieves its maximum power of attraction
twice, as this is independent of the direction of the current conduction. The vibration
frequency therefore is 100 Hz. In case a half-wave is locked, it is 50 Hz. Please take the
vibration frequency of your linear feeder of the table described in 1. Technical data.
A linear feeder is a resonant system (spring-mass-system). The result is that the adjustment
made at the factory will rarely meet your requirements. Chapter 5 describes in detail how
your linear feeder is adapted to your requirements.
Controlling of the linear feeder takes place by a low loss electronic control unit type ESG
1000. At its front panel it is provided with a 7-pole plug-in connection, by which it is
connected to the linear feeder.
The pin assignment of the socket is shown in the table described in 1. Technical data.
For more information on the complete range of control units,
please refer to Hardware (Hopper Controller).
All control units have got two main operating elements:
-By the mains switch the linear feeder is switched on or off.
-By the turning knob the conveying capacity of the transport unit is set.

NOTE

4. Transport and mounting
Part Feeding 7.0 Hopper & Hopper Controller Rev.5 9
4. Transport and mounting
Transport
Take care that the linear feeder cannot dash against other things
during transport.
The weight of the linear feeder is taken from the table described in 1. Technical data.
Mounting
The linear feeder should be mounted on a stable substructure (available as an accessory part)
at the place where it is used. The substructure must be dimensioned in a way that no
vibrations of the linear feeder can be carried away.
The following table will give you a summary of the bore data of the various types:
Linear feeder type
Length in mm
Width in mm
Mounting screws
SLL 400 – 400
200
140
M8
SLL 400 - 600
300
220
M6
Make sure that the linear feeder cannot come into contact with other devices during
operation.
For further details on the control unit (bore plan, etc.), refer to Hardware (Hopper
Controller).
WARNING
Be careful not to get hand, fingers, or feet caught and/or have
equipment damaged by a fall of the hopper or the hopper-
controller. When working, please wear Protective equipment
such as safety shoes.

NOTE

5. Starting
10 Part Feeding 7.0 Hopper & Hopper Controller Rev.5
5. Starting
Ensure that the frame (stand, base, frame etc.) is connected
with the ground wire (PE). If necessary, prediction earthing
on spot should be provided.
Check, whether
-the linear feeder stands in an isolated position and does not come in securely with a
solid body
-the linear track is screwed down and adjusted
-the connecting cable of the linear feeder is plugged in at the control unit.
WARNING
The electric connection of the linear feeder may only be made
by trained personnel (electricians). In case modifications are
made at the electric connection, it is necessary to observe the
operating “Hardware (Hopper Controller)”.
-The available supply voltage (frequency, voltage, output) is in accordance with the
connection data of the control unit (see type plate at the control unit).redf
Plug in the mains cable of the control unit and switch on the control unit by the mains switch.
The optimal operative range of the linear feeder is at a controller position of 80% at the
control unit. In case of higher deviations (>=±15%) a readjustment should be carried out.
5.1 Adjustment
With spring assemblies for a conveying track weight, which is approx. 25 % lower than the
maximum track weight described in 1. Technical data, and a running speed of 4 - 6 m/min.
In case heavier or lighter conveying tracks are installed or considerably faster or slower
conveying speeds are required, the spring assemblies must be modified. For that the
following basic rules must be observed:
At first a rough adjustment of the conveying speed
(adjustment of the natural frequency) must be made, which is
followed by the adjustment of the running behavior. Finally
you adjust the conveying speed (natural frequency).

NOTE

NOTE

5. Starting
Part Feeding 7.0 Hopper & Hopper Controller Rev.5 11
5.1.1 Adjusting the required running speed
In case the required running speed is not achieved with the standard spring assembly, the
current adjustment range of the oscillating system must at first be found out, either natural
frequency below 50 or 100 Hz or natural frequency above 50 or 100 Hz.
For that one or two plates are dismounted from the movable counterweight for a trial. If a
change in the running speed on the conveying track is recognized, it can be taken from the
table below, whether springs must be installed or removed. The controller position at the
control unit may not be changed during this trial. In the factory the different sizes are
equipped.
Change of the
running speed on
the conveying
track after
dismounting the
counterweight
Required running
speed is to be
increased
Required running
speed is to be
reduced
Position of the
natural frequency
Slower
1.Install counter
weight
2. Dismount
springs
1.Install counter
weight
2. Install springs > 50 or 100 Hz
Faster
1.Install counter
weight
2. Install springs
1.Install counter
weight
2. Dismount
springs
< 50 or 100 Hz
The following graphic chart shows the resonance curve of a linear feeder:
The resonance curve of the linear feeder may not correspond
to the mains frequency.
When exchanging the springs the valency of the various leaf spring sizes must be considered.
As the spring size enters into the spring power in square, the following examples must be
observed:
-2.5 mm spring size = 6.25 spring power
-3.0 mm spring size = 9.0 spring power
-3.5 mm spring size = 12.25 spring power
A 3.5 mm leaf spring has about the same valency as two 2.5 mm leaf springs. For that
reason, it is recommendable to carry out the final or fine adjustment always with thin leaf
springs.

NOTE

5. Starting
12 Part Feeding 7.0 Hopper & Hopper Controller Rev.5
When changing the masses of counter and oscillating weights
(installation or dismounting of counter or additional weights)
the running speed or the natural frequency of the linear feeder
is changed. If necessary leaf springs must be added or
removed.
Changing the spring assembly for linear feeder’s type SLL 400
Unscrew the 4 or 6 upper lateral spring fastening screws (“C”) (M6 DIN 912). The complete
oscillator with mounted track can now be lifted upwards. Remove the desired spring pack
by releasing the lower lateral spring fastening screws (“D”) (M6 DIN 912).
Before removing the spring pack, the protective conductor on the feeding side must be taken
out from the lower spring fixture.
Screw the removed spring pack into the mounting device for fitting springs size 400 and
fasten it in a vise. When installing and removing the laminated springs, make sure there are
little distance plates between the springs.
If you do not have a mounting device for spring packs, proceed as follows:
Fix the dismounted spring pack horizontally in a parallel vise with smooth clamping jaws
and perform the desired adjustments. When tightening the spring packs, make sure they are
in parallel alignment.
The mounting device aligns the two spring fixtures to one another. The fastening screws of
the springs are to be tightened with a torque of 12.5 Nm.
Reinstall the complete spring pack
To restore the former alignment of the linear feeder, the adjusting bore on the upper counter
mass end (“E”) must be aligned to the oscillator with a pin (6 mm in diameter with a
minimum length of 70 mm).
On the feeding side, the oscillator is aligned near the counterweight by inserting another pin
(6 mm in diameter with a minimum length of 70 mm) into the adjusting bore (“I”).
After having adjusted the spring angle to the desired position, the lateral fixing screws are
tightened again with a torque of 12.5 Nm.
Before putting into operation again, please remember to remove the centering pins.

NOTE

5. Starting
Part Feeding 7.0 Hopper & Hopper Controller Rev.5 13
5.1.2 Adjusting the required running behavior or the synchronism of the
linear feeder track
In order to achieve synchronism of the linear feeder track, the spring angle must be adjusted
the same as the gravity center angle. The gravity center angle is determined by the position
of the two gravity centers of oscillating and counterweight.
Example with a gravity center angle of 12.5 °
Spring angle equals gravity center angle
The force direction of the springs is initiated exactly on the gravity center of the vibrator.
Consequence: The height amplitude is the same at the feeding and at the discharge side.
Spring angle larger than the gravity center angle
The force direction of the springs is initiated before the gravity center of the vibrator.
Consequence: The height amplitude is higher in the feeding area than in the discharge area.

5. Starting
14 Part Feeding 7.0 Hopper & Hopper Controller Rev.5
Spring angle is smaller than the gravity center angle
The force direction of the springs is initiated behind the gravity center of the vibrator.
Consequence: The height amplitude is smaller in the feeding area than in the discharge area.
In case the angles are not the same, the conveying tracks are running unsteadily. In case of
very high deviations of this angle the conveying track can even show lateral deflections
(oscillations).
The gravity centers or angles can be influenced by the following measures:
-Add or displace counterweight (“F”)
-Choose the track position and height in a way that a favorable gravity center is achieved
-Keep the track weight as low as possible, in order to keep the vibrator gravity center as
low as possible.
-Install an additional counterweight in the vibrator discharge area (“G”).
-Adjust the spring angle to the gravity center angle
The spring angle of the linear feeder’s type SLL 400 can be adjusted between 5° and 25°.
If the gravity center angle is outside this area, synchronism of this track is impossible. In
this case modifications must be made at the counter and oscillating weight gravity centers
according to the points listed above.
Spring angle adjustment
Fix the vibrator towards the counter mass (refer to 5.1 Adjustment). After that the four
lateral spring fastenings (“C” + “D”) can be loosened, in order to swing the spring assembly
into the desired spring angle. After that fasten the spring fastening screws with the
permissible tightening torque (refer to 1. Technical data) and remove the adjusting screws,
distance plates or bolts.
Adjustment of the magnet air gap
The air gap between armature and magnet adjusted in the factory can be taken from 1.
Technical data.
The adjustment of the air gap can be made from the outside without dismounting any
component parts. Slightly loosen both armatures fastening screws (“A” or “A” + “B”) (M5
DIN 912 at linear feeder type SLL 400:). In both bore holes in the oscillating profile (“H”)
a round pin (Φ1mm, 80 mm long at SLL400; ) must be stuck through. By pressing both
armature fastening screws against running direction and subsequent tightening the specified
magnetic gap is adjusted (refer to 1. Technical data). After that pull out the round pins. In
case there are no round pins, the magnetic gap can be adjusted from below (perhaps after
dismounting the complete linear feeder from the supporting structure or from the supporting
table) by means of a feeler gauge or distance pieces according to the prescribed magnetic
gap.
At a turning knob position of 100% at the control unit and a
correctly adjusted magnetic gap the magnet may not dash
against the armature. In case this happens, proceed
according to point 5.1 Adjustment (remove springs).

NOTE
