Epson ColorPage EPL-C8200 User manual

EPSONColorPage-C8200
Color Laser Printer
SEPG99-003
®


Notice

All ri
g
hts reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted in any form or by any means electronic,
mechanical, photocopyin
g
, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION.

All effort have been made to ensure the accuracy of the contents of this manual. However, should any errors be detected, SEIKO EPSON would
g
reatly appreciate bein
g
informed of them.

The contents of this manual are subject to chan
g
e without notice.

All effort have been made to ensure the accuracy of the contents of this manual. However, should any errors be detected, SEIKO EPSON would
g
reatly appreciate bein
g
informed of them.

The above not withstandin
g
SEIKO EPSON CORPORATION can assume no responsibility for any errors in this manual or the consequences
thereof.
EPSON is a re
g
istered trademark of SEIKO EPSON CORPORATION.
General Notice: Other product names used herein are for identification purpose only and may be trademarks or re
g
istered trademarks of their
respective owners. EPSON disclaims any and all ri
g
hts in those marks.
Copyri
g
ht © 1999 SEIKO EPSON CORPORATION. Printed in Japan.

PRECAUTIONS
Precautionary notations throu
g
hout the text are cate
g
orized relative to 1)Personal injury and 2) dama
g
e to equipment.
DANGER
Si
g
nals a precaution which, if i
g
nored, could result in serious or fatal personal injury. Great caution should be exercised in
performin
g
procedures preceded by DANGER Headin
g
s.
WARNING
Si
g
nals a precaution which, if i
g
nored, could result in dama
g
e to equipment.
The precautionary measures itemized below should always be observed when performin
g
repair/maintenance procedures.
DANGER
1. ALWAYS DISCONNECT THE PRODUCT FROM THE POWER SOURCE AND PERIPHERAL DEVICES PERFORMING ANY
MAINTENANCE OR REPAIR PROCEDURES.
2. NO WORK SHOULD BE PERFORMED ON THE UNIT BY PERSONS UNFAMILIAR WITH BASIC SAFETY MEASURES AS DICTATED
FOR ALL ELECTRONICS TECHNICIANS IN THEIR LINE OF WORK.
3. WHEN PERFORMING TESTING AS DICTATED WITHIN THIS MANUAL, DO NOT CONNECT THE UNIT TO A POWER SOURCE UNTIL
INSTRUCTED TO DO SO. WHEN THE POWER SUPPLY CABLE MUST BE CONNECTED, USE EXTREME CAUTION IN WORKING ON
POWER SUPPLY AND OTHER ELECTRONIC COMPONENTS.
WARNING
1. REPAIRS ON EPSON PRODUCT SHOULD BE PERFORMED ONLY BY AN EPSON CERTIFIED REPAIR TECHNICIAN.
2. MAKE CERTAIN THAT THE SOURCE VOLTAGES IS THE SAME AS THE RATED VOLTAGE, LISTED ON THE SERIAL NUMBER/
RATING PLATE. IF THE EPSON PRODUCT HAS A PRIMARY AC RATING DIFFERENT FROM AVAILABLE POWER SOURCE, DO NOT
CONNECT IT TO THE POWER SOURCE.
3. ALWAYS VERIFY THAT THE EPSON PRODUCT HAS BEEN DISCONNECTED FROM THE POWER SOURCE BEFORE REMOVING OR
REPLACING PRINTED CIRCUIT BOARDS AND/OR INDIVIDUAL CHIPS.
4. IN ORDER TO PROTECT SENSITIVE MICROPROCESSORS AND CIRCUITRY, USE STATIC DISCHARGE EQUIPMENT, SUCH AS
ANTI-STATIC WRIST STRAPS, WHEN ACCESSING INTERNAL COMPONENTS.
5. REPLACE MALFUNCTIONING COMPONENTS ONLY WITH THOSE COMPONENTS BY THE MANUFACTURE; INTRODUCTION OF
SECOND-SOURCE ICs OR OTHER NONAPPROVED COMPONENTS MAY DAMAGE THE PRODUCT AND VOID ANY APPLICABLE
EPSON WARRANTY.

About this manual
This manual describes basic functions, theory of electrical and mechanical operations, maintenance and repair procedures of the EPSON EPL-
C8200. The instructions and procedures included herein are intended for the experienced repair technicians, and attention should be
g
iven to the
precautions on the precedin
g
pa
g
e.
Manual Configuration
This manual consists of six chapters and Appendix.
CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a
g
eneral overview and specifications of the
product.
CHAPTER 2. OPERATING PRINCIPLES
Describes the theory of electrical and mechanical
operations of the product.
CHAPTER 3. DISASSEMBLY / ASSEMBLY AND ADJUSTMENT
Describes the step-by-step procedures for
disassemblin
g
/assemblin
g
and adjustin
g
the product.
CHAPTER 4. DIAGNOSTICS
Provides Epson-approved methods for dia
g
nostics.
CHAPTER 5. TROUBLESHOOTING
Provides the step-by-step procedures for
troubleshootin
g
.
CHAPTER 6. MAINTENANCE
Provides preventive maintenance procedures and the
lists of Epson-approved lubricants and adhesives
required for servicin
g
the product.
APPENDIX Provides the followin
g
additional information for
reference:
• Connector pin assi
g
nments
• Electric circuit boards components layout
• Exploded dia
g
ram
• Electrical circuit boards schematics
Symbols Used in this Manual
Various symbols are used throu
g
hout this manual either to provide
additional information on a specific topic or to warn of possible dan
g
er
present durin
g
a procedure or an action. Be aware of all symbols when
they are used, and always read NOTE, CAUTION, or WARNING
messa
g
es.
Indicates an operatin
g
or maintenance procedure, practice
or condition that, if not strictly observed, could result in
injury or loss of life.
Indicates an operatin
g
or maintenance procedure, practice,
or condition that, if not strictly observed, could result in
dama
g
e to, or destruction of, equipment.
May indicate an operatin
g
or maintenance procedure,
practice or condition that is necessary to accomplish a task
efficiently. It may also provide additional information that is
related to a specific subject, or comment on the results
achieved throu
g
h a previous action.
W ARNING
CAUTIO N
CHECK
PO INT
NOTE

Abbreviation
ADC = Automatic Density Control
AG = Analo
g
Ground
ASSY = Assembly
AUX. = Auxiliary
B/W = Black and White
BCR = Bias Char
g
e Roll
Bk = Black
BK = Black
BTR = Bias Transfer Roll
BUR = Back Up Roll
C = Cyan
CART. = Cartrid
g
e
CCW = Counterclockwise
CL. = Clutch
CLN = Cleanin
g
(or Cleaner)
CLK = Clock
CONT. = Controller
CR = Char
g
e Roll
CRU = Customer Replaceable Unit
CRUM = CRU Monitor
CW = Clockwise
DB = Developin
g
Bias
DEVE. = Developer
DIAG. = Dia
g
nostic
dpi = dots per inch
DTS = Detach Saw
ELEC. = Electric
EP = Electrophoto
g
raphy
FDR = Feeder
FG = Frame Ground
FRU = Field Replaceable Unit
GND = Ground
H/R = Heat Roll
Hex = Hexadecimal
HVPS = Hi
g
h Volta
g
e Power Supply
I/F = Interface
IBT = Intermediate Belt Transfer
ID = Ima
g
e Density (or Identification)
L = Left
L/H = Left Hand
L/P = Low Paper
LD = Laser Diode
LEF = Lon
g
Ed
g
e Feed
LVPS = Low Volta
g
e Power Supply
M = Ma
g
enta
MAG. = Ma
g
netic
MCU = Machine Control Unit
MECH. = Mechanical
MOT. = Motor
MSI = Multi Sheet Inserter
N/F = Normal Force
N/P = No Paper
NVM = Non Volatile Memory
O/H = Option Hin
g
e
OHP = Overhead Projector
(In this manual, OHP means OHP film)
OPC = Or
g
anic Photo Conductor
P/H = Paper Handlin
g
P/R = Pressure Roll
PCDC = Pixel Count Dispense Control
Pixel = Picture Cell
PPM = Prints Per Minute
PV = Print Volume
PWB = Printed Wirin
g
Board
R = Ri
g
ht
R/H = Ri
g
ht Hand
REGI. = Re
g
istration
ROS = Raster Output Scanner
RTN = Return
SEF = Short Ed
g
e Feed
SG = Si
g
nal Ground
SNR = Sensor
SOL. = Solenoid
SOS = Start Of Scan
SPI = Scans Per Inch
SYNC. = Synchronous
TC = Toner Concentration
TEMP. = Temperature
TR = Transfer
TRANS. = Transport
WDD = Wide Ran
g
e Dynamic Damper
XERO. = Xero
g
raphic
Y = Yellow
YMCBk = Yellow, Ma
g
enta, Cyan, Black

Safety Information
To prevent accidents durin
g
a maintenance procedure, strictly observe
the Warnin
g
s and Cautions. Do not do anythin
g
that is dan
g
erous or not
within the scope of this document.
Do not do anythin
g
that is dan
g
erous even if not specifically described
in this manual. In addition to the descriptions below and those
g
iven in
this manual, there are many situations and circumstances that are
dan
g
erous. Be aware of these when you are workin
g
with the printer.
Power Supply
Before startin
g
any service procedure, switch off the printer power and
unplu
g
the power cord from the wall outlet. If you must service the
printer when the power is applied, be aware of the potential for electrical
shock and do all tasks by followin
g
the procedures in this manual.
W ARNING
Do not touch any live part unless you are instructed to
do so by a service procedure. The LVPS power supply
switch/inlet part is live even when the power switch has
been turned off. Do not touch any live part.

Mechanical Components
If you service a drivin
g
assembly (e.
g
.,
g
ears), first turn off the power
and unplu
g
the power cord. Then manually rotate the assembly.
Safety Components
The printer is equipped with safety components (e.
g
., interlock
switches, fuses, thermostat) and safety switches for protectin
g
users
and service personnel from injury and the equipment from dama
g
e.

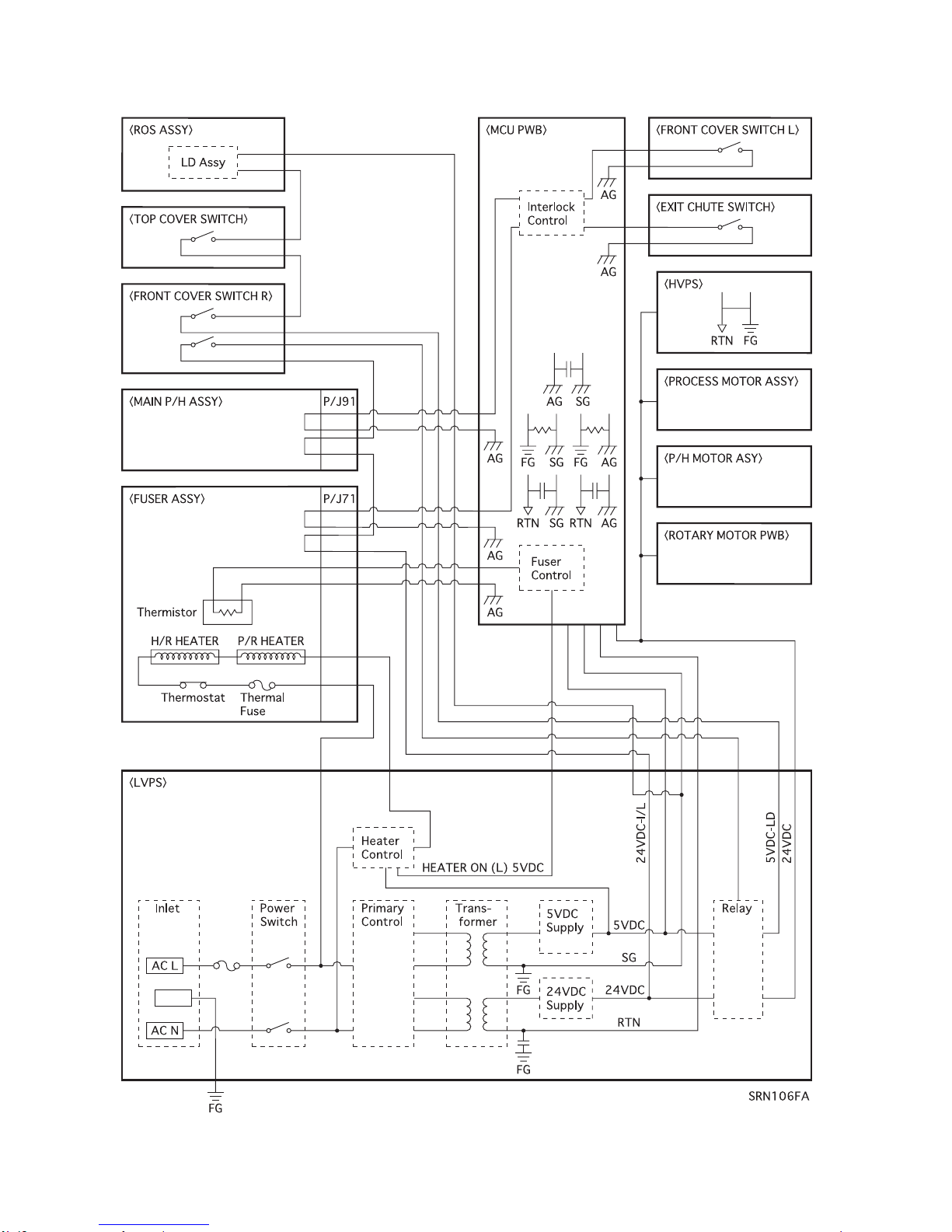

The printer has two interlock switches, two safety switches and two
interlock connectors that serve as the main safety mechanism.

Front Cover Switch R
This switch is turned off when the Front Cover Assembly is opened.
It cuts off the power supply (24VDC, 5VDC-LD) from the power
supply unit to stop all operations and disconnects the output (5VDC-
LD) circuit from the power supply and stops the laser beam
emission.
This switch consists of the followin
g
two switches:

A switch that cuts off the power supply (24VDC, 5VDC-LD) to
the control circuits and related parts.

A switch that directly cuts off the power supply circuit (5VDC-LD)
to the laser beam output circuit.

Front Cover Switch L
This is a safety switch. This switch is turned off when the Front
Cover Assembly is opened, causin
g
the printer without control units
to stop operatin
g
.

Top Cover Switch
This is an interlock switch that directly cuts off the power supply
(5VDC-LD) circuit to the laser beam output circuit. This switch is
turned off when the Top Cover Assembly is removed, cuttin
g
off the
output (5VDC-LD) circuit from the power supply unit and stoppin
g
the laser beam emission.
W ARNING
Do not touch the driving part (e.g., gears) while the
assembly (printer) is being driven.


Exit Chute Switch
This switch is a safety switch. This switch is turned off when the Exit
Upper Assembly (the cover on the upper left side of the printer) is
opened.

P/J91 (Connector that connects the Main Harness Assembly and
Re
g
istration Harness Assembly)
This is an interlock connector that cuts off the power supply
(24VDC, 5VDC-LD) to the control circuit and related parts.
This connector is disconnected when the Main P/H Assembly (pull-
out type unit on the ri
g
ht side of the printer) is pulled out, cuttin
g
off
the output (24VDC, 5VDC-LD) from the power supply and stoppin
g
the printer operation without control units.

P/J71 (Connector that connects the Fuser Connector and Fuser
Harness Assembly)
This is an interlock connector that cuts off the power supply
(24VDC, 5VDC-LD) to the control circuit and related parts.
This connector is disconnected when the Fuser Assembly (pull-out
type unit on the left side of the printer) is pulled out, cuttin
g
off the
output (24VDC, 5VDC-LD) from the power supply and stoppin
g
the
printer operation without control units.

Laser Beam
The printer has two interlock switches: the Front Cover Switch R and
the Top Cover Switch. The purpose of these switches is to turn off the
laser beam emission if any of the printer covers have been opened; this
protects the user or service personnel from exposure to the laser beam
from the ROS Assembly.
A laser beam may be emitted durin
g
a maintenance operation. Do not
turn on these interlock switches simultaneously under any
circumstances except in a normal operation.
NOTE:The laser beam has a narrower frequency band and more
coherent phases than any other light (sunlight, electric light).
It has excellent monochromaticity and convergence. A thin
laser beam reaches long distances. Because of its
convergence characteristic, the laser beam converges into
one point, causing high density and high temperature. A
laser beam is harmful to the human body.
NOTE:The laser beam in this printer is invisible.
W ARNING

Do not expose yourself to the laser beam to prevent
injury (blindness).

Do not open the cover that has the laser beam
warning label.

If you disassemble or assemble the printer, turn off
the power.

If you need to work on the printer with power applied,
strictly follow the instructions in this manual.

If you have to activate the printer while pressing the
Front Cover Switch R by hand or with a tool, remove
the Top Cover. (Do not turn on these interlock
switches simultaneously under any circumstances
except in a normal operation.)

Understand how the laser beam functions and take
maximum precautions not to injure yourself or anyone
around you.

High Temperature Assembly
To prevent you from becomin
g
injured or burned, do the followin
g
:
Before workin
g
with a hi
g
h temperature Assembly (e.
g
., Fuser
Assembly), turn off the power, unplu
g
the power cord and wait until it
cools down.
Parts
To prevent you from becomin
g
injured, keep the followin
g
in mind:

When handlin
g
heavy parts (includin
g
the printer itself), use
g
ood
posture to protect your back whenever you lift, move or place parts.

Be careful not to injure yourself with the sharp ed
g
es of the parts.

Do not work with wet or oily hands-you may drop a part or injure
yourself. Dry your hands first.

When pullin
g
out a part (includin
g
a harness), do not use too much
force. Pull out the part carefully and slowly step by step.
W ARNING
The high temperature Assembly is very hot
immediately after any printer operations. Wait at least
40 minutes before you start working on the printer.
W ARNING
Do not lift, move or place heavy parts in a body posture
that is likely to cause injury to yourself or cause the
part to drop.

Consumables
Some parts may cause a particulate explosion or fire if handled
improperly. Do not handle these parts near fire or throw into a fire.
Some materials (e.
g
., Developer or Fuser Oil) may cause bodily injury.
Do not swallow or inhale these materials or allow them to come in
contact with the eyes.
Help to protect those around you and follow the prohibitions a
g
ainst
swallowin
g
or inhalin
g
those materials. Be careful to protect the eyes at
all times.
Place a sheet inside or under the printer so that the floor or workbench
is protected.
If the Developer or Fuser Oil
g
ets on your clothin
g
, dry itwith a cloth and
wash with clean water.
NOTE:The printer has the following consumable parts:
• Drum Cartridge • Waste Toner Box
• Oil Roll Assembly • Toner Cartridge Y
• Toner Cartridge M • Toner Cartridge C
• Toner Cartridge Bk
Improper Printer Use
Modifyin
g
, revisin
g
, tamperin
g
with the printer, especially to the safety
mechanism, is strictly prohibited in all circumstances.

Manual Contents
Revision Status
Chapter 1 Product Descriptions
Chapter 2 Operating Principles
Chapter 3 Disassembly and Assembly / Adjustment
Chapter 4 Diagnostics
Chapter 5 Troubleshooting
Chapter 6 Maintenance
Appendix
Revision Issued Date Description
(Preliminar
y
revision)



PRODUCTDESCRIPTIONS

Table of Contents
Features.................................................................................................. 1
Specifications........................................................................................ 3
Basic Specifications.......................................................................... 3
Paper Specification........................................................................... 8
Reliability and Durability.................................................................. 11
Operating Environment................................................................... 13
Environmental Conditions for Storage and Transportation............. 14
Electrical Specification.................................................................... 14
Process Specifications.................................................................... 15
Applicable Standards...................................................................... 16
Options and Consumable Products ................................................ 16
Toner cartridge 17
Drum Cartridge 18
Fuser Oil Roll 18
Waste Toner Box 19
Regularly Replaced Parts ............................................................... 19
Exterior Dimensions........................................................................ 19
Controller Specifications ................................................................. 20
Controller Board Jumper Settings................................................... 21
Interface Specifications ...................................................................... 21
Parallel Interface Specification........................................................ 22
Ethernet Interface ........................................................................... 24
Type B Interface.............................................................................. 25
Control Panel....................................................................................... 26
Appearance and Descriptions......................................................... 26
LED Description 27
Button Functions............................................................................. 28
Service Functions................................................................................ 30
Hex Dump Mode............................................................................. 30
Support Mode ................................................................................. 30
EEPROM Initialization..................................................................... 30
Formatting the Flash ROM Module................................................. 31
Updating the Program ROM ........................................................... 31
ROM Module Copy ......................................................................... 31
Panel Setting Initialization............................................................... 31
Maintenance Mode ......................................................................... 31
Error Recovery Operation............................................................... 32
Panel Setting........................................................................................ 33
Setting Methods.............................................................................. 33
OneTouch mode 33
SelecType mode 33
SelecType Setting Menu List.......................................................... 35
Details of Menus and Settings........................................................ 39
RAM Expansion.............................................................................. 45

EPSON ColorPage EPL-C8200 Revision A
Chapter 1 Product Descriptions 1-1
1.1 Features
The EPSON ColorPage EPL-C8200 is a non-impact color page printer
that is designed based on the EPL-C8000. This printer is mainly
improved on a controller basis. The main features of the printer are as
follows:
Engine features (Same as for EPL-C8000)
1. Designed for performance in true business environments. Supports
sizes from A5 to A3W. Printing speed (on A4/Letter) is 4ppm for
color printing, 16ppm for monochrome printing.
2. Supports high-resolution full color (True 600dpi).
3. Can generate high-quality prints on special (dedicated) paper.
4. Supports thick sheets and OHP (dedicated OHP sheets).
5. Easy to maintain for a color laser printer.
6. The printer is equipped with the 2 standard paper feed bins; Paper
tray (150 sheets; A3W) and standard universal cassette (250
sheets: A3).
7. Installing an optional 500-Sheet Paper Cassette Unit provides 4
bins with a maximum capacity of 900 sheets.
With a Large Capacity Paper Unit installed, the printer has 5 bins
holding up to 1150 sheets.
8. Standard paper ejection is face down (up to 250 sheets). Face-up
ejection is also available (up to 150 sheets).
Controller features (Specific to EPL-C8200)
1. Newly developed high-speed controller
 New 64-bit RISC CPU: R5000- 200MHz
 64-bit high speed memory: SDRAM DIMM
(Same as EPL-C8000)
 64MB RAM standard: expandable up to 256MB (2 expansion
slots) (Same as EPL-C8000)
2. Color management technology
Enhanced ASIC supported
 Color management technology included in hardware for faster
image manipulation
 AcuLaser Color Halftoning and CRIT (Color RIT) supported
 New compression technology enables further reduction in RAM
use compared to EPL-C8000.
3. Monochrome print technology
 AcuLaser Color Halftoning (for Color Copy Station 8200) and
RIT supported
4. Two standard interfaces
 Bi-directional parallel I/F: IEEE1284 compliance, ECP
 Ethernet interface (100Base -TX/10Base-T)
5. installation of expansion RAM (DIMMs) improves the following:
 AcuLaser Color Halftoning drawing area
 Print data processing speed
 Resolution
6. Toner save mode for both black and monochrome prints enabled.
7. ROM update function with a flash DIMM installed (for RCC)
8. HDD (Hard Disk Drive) can be installed.

EPSON ColorPage EPL-C8200 Revision A
Chapter 1 Product Descriptions 1-2
Software features
1. ESC/Page-Color increases AcuLaser Color Halftoning speed.
2. Bidirectional EJL and MIB can retrieve printer status and monitor the
printer environment.
3. Remote panel function using the Web browser (for JAVA JSSK1.1)
4. Electrical sort system with an optional HDD
Expanded I/F data buffer size (for Ethernet I/F only)
Font registration in the PostScript3 mode
5. Full compatibility with the EPL-N2700:
LJ4, GL2, 1239X, ESC/Page (monochrome)
6. Supports PostScript3 when used with an optional EPSON RIP
Station XXXX or Adobe PostScrip 3 Module.
7. Used with SC6000 (optional), color copy (EPSON Color Copy
Station) is enabled.
8. Font Management function by the EPSON FONT Manager
Supports 96 screen fonts, including 31 fonts supported by the
printer.
Figure 1-1. Exterior View of the EPL-C8200

EPSON ColorPage EPL-C8200 Revision A
Chapter 1 Product Descriptions 1-3
1.2 Specifications
This section describes specifications for this printer.
1.2.1 Basic Specifications
 Method: Semi-conductive laser beam scanning and
dry electrophotographic process
 Resolution: 600 DPI
 Print mode:
 B/W mode: Standard monochrome print mode that
supports the fastest speed.
 Color mode: Color mode which uses the color toner of Y,
M, C, and BK.
 Speed mode:
 Standard mode: Transports paper at the highest speed
supported by the printer.
 Half speed mode: Low speed mode that enables better fusing
for thick paper (over 105g/m2) envelopes, and
OHP sheet.
 Print speed: See Table 1-1.
 First print*:
 Face-up: B/W: 20 seconds or less (LT/A4 LEF)
Color: 42.6 seconds or less (LT/A4 LEF)
 Face-down: B/W: 24.9 seconds or less (LT/A4 LEF)
Color: 47.6 seconds or less (LT/A4 LEF)
NOTE: First print is defined as the duration taken after receiving the
start command until outputting the first print. It is applicable
when a feeder is selected in the standard mode. (Not
applied during the process control operation.)
 Warm-up time: Within 300 seconds
(at 22 °C, 55% Rh, rated voltage)
Table 1-1. Speed Mode
Print mode Speed mode LT/A4 LEF*1 2UP *2
*1: [LEF, or Long Edge Feed]
The longer edge of the paper is the top toward the paper feed direction.
[SEF, or Short Edge Feed]
The shorter edge of the paper is the top toward the paper feed direction.
*2: In this mode, the printer prints two print images on the IBT belt and the images
are transferred in sequence onto two sheets of paper. It is available for LT/A4
(LEF) or smaller.
B(LD)/A3 SEF*1
B/W Standard mode 16 PPM or more 8PPM or more
Half speed mode 2.7 PPM or more 1.3PPM or more
Color Standard mode 4 PPM or more 2PPM or more
half speed mode 1.8 PPM or more 0.9PPM or more

EPSON ColorPage EPL-C8200 Revision A
Chapter 1 Product Descriptions 1-4
 Paper handling: See Table 1-2.
*1: Change the side guide position in the MSI tray for paper whose width is more than 304.8mm (12”)
*2: Each casssettes is equipped with the side guide and end guide that also serve to detect paper size. They are set by the user. With an optional
Large Capacity Paper Unit installed, 4 cassettes (maximum) can be used and, including a standard tray, up to 1150 sheets can be set.
*3: Composed of 3 paper cassetts (each holds 250 sheets). Each paper cassette unit is compatible with a standard universal cassette and can
be set in any slot.
*4: Composed of 2 paper cassetts (each holds 250 sheets). Each paper cassette unit is compatible with a standard universal cassette and can
be inserted in any slot.
*5: Note the following points when setting envelopes:
- Open flaps and set them facing to the tailing side.
- Set envelopes with the longer edges first. Length (excluding flap) must be shorter than width.
- The minimum length with a flap open must be 143mm.
- The minimum width must be 90mm.
*6: Paper out condition is detected.
*7: Paper out and paper near empty conditions are detected for each cassette.
Paper near empty condition: 40 sheets ± 30 sheets (condition: Fuji Xerox L paper, 64g/m
2
)
 Paper size: See Table 1-3 .
Table 1-2. Paper Feeding
Paper source Available feeder Capacity
(Thickness) Paper size Available paper thickness
Standard Tray (MSI)*1 *6

150 sheets
(16mm) 90 x 139.7 - 330.2 x 457.2 mm 60 - 105g/m2, 16 - 20 lb (Normal paper, Recommended paper)
75 sheets 90 x 139.7 - 330.2 x 457.2 mm
OHP sheet/Labels/Thick paper 105 - 220g/m2 (Thick paper, Special paper)
20 sheets Envelopes *5
Monarch, C10, DL, C6
Cassette
Unit*2*7Standard universal
cassette Standard feeder 250 sheets (28mm) B5 LEF, Letter LEF, A4 LEF, B4, A3, Legal, Executive LEF,
Ledger (B)
60 - 105g/m2(Normal paper,
Recommended paper)
Optional A3W cassette Standard feeder 250 sheets
(28mm) A3W (304.8 x 420 - 328 x 453 mm) 60 - 105g/m2(Normal paper, Recommended paper)
Optional Large
Capacity Paper Unit *3250 x 3 feeder
(option) 250 sheets (28mm) Letter LEF, A4LEF, B4, A3, Legal LEF, Executive LEF,
Ledger (B)
60 - 105g/m2(Normal paper,
Recommended paper)
Optional 500-Sheet
Paper Cassette Unit *4250 x 2 feeder
(option)

EPSON ColorPage EPL-C8200 Revision A
Chapter 1 Product Descriptions 1-5
Table 1-3. Paper Size / 2-UP Mode Availability
Paper Size Paper setting orientation 2UP mode
availability Notes
Standard tray
(MSI) Standard cassette A3W cassette
Normal paper
• LEF: Long edge is loaded first.
• SEF: Short edge is loaded first.
• 2UP is available only for paper size of LT(LEF) or
smaller. For custom size paper, paper length along
the loading direction must be 8.5 inch or shorter. As
for envelopes, the total length including the opened
flap part must be 8.5 inch or shorter.
• The minimum size of paper set in the standard
universal paper cassette is EXE (LEF).
• The maximum size of paper set in the MSI tray is
330.2 x 457.2 mm (13” x 18”).
• When setting envelopes (LEF*), open their flaps and
set the rear ends of the flaps toward paper feeding
direction.
• A3W cassette have capability for only A3W paper.
A3W 328 x 453mm SEF SEF Unavailable
A3 297 x 420mm SEF SEF Unavailable
A4 210 x 297mm LEF LEF Available
A5 148 x 210mm LEF Available
B4 257 x 364mm SEF SEF Unavailable
B5 182 x 257mm LEF Available
I-B5 176 x 250 LEF Available
LT 8.5 x 11”
(215.9 x 279.4mm) LEF LEF Available
HLT 5.5 x 8.5”
(139.7X215.9mm) LEF Available
LG 8.5 x l4”
(215.9X355.6mm) SEF SEF Unavailable
EXE 7.25 x 10.5”
(184.15X266.7mm) LEF LEF Available
GLG 8.5 x 13”
(215.9X330.2mm) SEF Unavailable
GLT 8 x 10.5”
(203.2 x 266.7mm) LEF Available
B (LD) 11 x 17”
(279.4 x 431.8mm) SEF SEF Unavailable
F4 210 x 330 SEF Unavailable
Special paper
OHP Sheet 8.5 x 11”
(210 x 297mm) LEF Available
MON 3 7/8” x 71/2”
(98.43 x 190.5mm) LEF* Available
C10 41/8 x 91/2
(104.78 x 241.3mm) LEF* Available
DL 110 x 220mm LEF* Available
C6 114 x 162 LEF* Available
