Equator AF 500 User manual

Please read the instructions carefully and keep for future reference

Installation - e.g. Insufficient spacing around appliance
.
Mishandling - e.g. Breakage of knobs, accessories or handle
Most work is covered. The defining factor is, has the machine
malfunctioned (Equator Appliances is responsible) or has the
customer omitted or done something to cause the appliance to
malfunction (customer is responsible). Some States do not allow
the exclusion or limitations of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
Maintenance - e.g. Cleaning the appliance using solvents
Equator Appliances undertakes to the consumer/owner to repair or,
at our option, to replace any part of this product which proves to be
defective in workmanship or material under normal personal, family
or household use in USA and Canada, for a period of one year from
the date of original purchase. During this period, we will provide all
labor and parts necessary to correct such defect, free of charge, if
the appliance has been installed and operated in accordance with
the written instructions with the appliance.

1. Open Smart Phone
2. Open Photo
3. Scan QR Code
either
QR Code
:

To prevent electric shock, unplug from the outlet when not in use and
before cleaning. Allow cooling before cleaning or handling.
Do not touch hot surfaces.
To protect against electric shock, do not place any part of the appliance
in water or other liquids.
Do not use if cord, plug or appliance is damaged.
Do not let the cord hang over the edge of the table or countertop,
where it could be pulled.
Do not place appliance on or near a hot gas or electric burner.
Use only oven safe cookware.
To avoid burns, use extreme caution when removing items from
appliance or disposing of hot grease.
Do not place any of the following materials in the appliance: paper,
cardboard, plastic, and similar products.
Do not cover the drip/crumb tray or any part of the oven with metal foil.
This will cause overheating of the oven.
To prevent fire, do not operate around flammable materials and keep
away from items such as curtains. Do not store any items on top of the
appliance when in operation.
Do not use the outdoors.
Do not operate under wall cabinets.
NEVER leave the appliance unattended during use.
Do not place cooking utensils or baking dishes on the glass door.
Do not move the appliance if it contains any cooked items.
Always unplug the unit from the electrical outlet prior to storing.
Children should be supervised to ensure that they do play with
the appliance.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction.
!
1

Parts and Accessories
Air Fry Basket: Use for french fries, chicken wings, onion rings.
Wire Rack: Use for barbecue, bread slices, pizza.
Baking Tray: Use for baking cookies, roasting vegetables.
Drip/Crumb Tray: Removable tray collects food debris.
Rotisserie Cage: Use for small bite-size food (shrimp, meatballs).
Rotisserie Fork: Use for chicken, and other meat that requires turning.
Handle: Use to lift and remove the Fork.
There are 3 grooves for the Air Fry Basket, Wire Rack and Baking
Tray. The Rotisserie Fork and Rotisserie Cage are positioned in the
middle slots on the sides.
Air Fry Basket Wire Rack Baking Tray
Rotisserie Cage
LED Control Panel
Door Handle
Viewable Glass Window
Drip/Crumb Tray
HandleRotisserie Fork
2
Suggested Uses

3
Place the appliance on a smooth flat surface, and ensure the top,
back and sides of the appliance are at least 4 inches (10 cm) away
from the walls and cabinets.
Peel off the film from the front of the appliance.
Check the power supply, socket, etc. Confirm it meets the
requirements and then connect the power supply.
The first time in use, the appliance may emit odor or smoke. This is
a normal phenomenon. It is suggested that the appliance is empty
when used for the first time. Set the maximum temperature of 400°F
for about 20 minutes to sterilize and remove the odor.
Installation
4"
(10cm)

ControlPanel
Left Knob:
Turn the left knob to adjust the temperature or time.
Right Knob:
Turn the right knob to select the food to be cooked.
Press the knob to start cooking. To pause cooking, press again and
press one more time to resume cooking.
Temperature Button:
Press the TEMP button to set the temperature. The display will flash.
Turn the Left Knob to select the desired temperature.
Time Button:
Press the TIME button to set the time. The display will flash. Turn the
Left Knob to select the desired time.
Rotate Button:
The ROTATE button is lit and activated automatically only when the
Air Fry mode is selected along with the “Chicken” icon. The Rotate
function turns the Rotisserie Fork when cooking the whole chicken.
Air Fry Button:
Press the AIR FRY button to choose from 7 pre-set items.
Oven Button:
Press the OVEN button to choose from 7 pre-set items.
Light Button:
Press the LIGHT button to turn on or off the light in the appliance.
The light is on when the door is open. After 3 minutes the light
automatically goes off. When the door is closed, the light goes off
automatically after 30 seconds.
4

5
Operation
Air Fryer:
Press the AIR FRY button to choose from 7 pre-set items. The panel
with a row of 7 Air Fry icons lights up.
Rotate the Right Knob to select the item. The selected icon flashes.
The time and temperature are already pre-set. Press the Right Knob
to start cooking.
To manually set the time and temperature, press AIR FRY for 3 secs.
Select the time and temperature using the Left Knob. If not manually
set, the default time is 10 minutes, and the default temperature is 392°F.
Oven:
Press the OVEN button to choose from 7 pre-set items. The panel
with a row of 7 Oven icons lights up.
Rotate the Right Knob to select the item. The selected icon flashes.
The time and temperature are already pre-set.
Press the Right Knob to start cooking.
To manually set the time and temperature, press OVEN for 3 seconds.
Select the time and temperature using the Left Knob. If not manually
set, the default time is 15 minutes, and the default temperature is 347°F.
Press the TIME button to set the time. The display will flash A for am
and P for pm. Turn the Left Knob to select either A or P, then press
the TIME button again.
The display will then flash the hour. Turn the Left Knob to select the
desired hour, then press the TIME button again.
The display will then flash the minutes. Turn the Left Knob to select
the desired minutes, then press the TIME button again.
The clock is now set.
Setting the Time/Clock
The fan continues to operate for 20 seconds after the oven and air fry
cooking is completed.

The time and temperature guide are only for reference and can be
adjusted according to different ingredients, recipes and taste
requirements.
Cooking Guide
6
AF 500
0.93 cu.ft (26L)
Model
19 lbs
15" x 15.7" x 16.2"
68 F - 428 F
120V - 60Hz
1700WPower Rating

7
Before cleaning, ensure the oven is turned off by removing the power
plug from the power outlet. Allow the oven and all accessories to cool
completely before disassembling and cleaning.
The outer surface of the appliance, the door, interior, drip tray and
other accessories should all be cleaned after each use.
Do not clean with metal scouring pads or abrasive materials.
Wipe the outer surface with a soft, damp sponge. A non-abrasive
liquid cleaner or mild spray solution may be used to avoid the
build-up of stains. Apply the cleaner to the sponge, not the appliance
surface, before cleaning.
To clean the glass door, use a glass cleaner or mild detergent and
a soft, damp sponge or soft plastic scouring pad. Do not use an
abrasive cleaner or metal scouring pad.
Wipe the control panel with a soft damp cloth.
The walls on the inside of the oven feature a non-stick coating for
easy cleaning. To clean any splattering that may occur while cooking,
wipe the walls with a soft, damp sponge. Avoid touching the heating
elements.
To remove baked-on grease from the accessories or drip tray, soak
the item in warm soapy water then wash with a soft sponge or soft
plastic scouring pad. Rinse and dry thoroughly.
To extend the life of your accessories, we do not recommend that
these be placed in the dishwasher.
Let all surfaces dry thoroughly before inserting the power plug into
a power outlet and turning the appliance on.
Cleaning and Maintenance

WARNING: This product contains chemical known to the State of California
to cause cancer and birth defects or other reproductive harm.
California Proposition 65
Note: Before changing the light, make sure the appliance has been
unplugged and fully cooled before it can be replaced. Use a 25-watt
bulb.
Replacement of light bulb
Step 1: Rotate the light cover counter clockwise
and remove
Step 2: Twist and pull out the old light bulb
Step 3: Insert the new 25-watt light bulb
Step 4: Replace the light cover by turning it
clockwise until tightened
Safe Disposal
Before discarding the appliance, remove the door.
Please dispose of this appliance in accordance with local regulations.
8

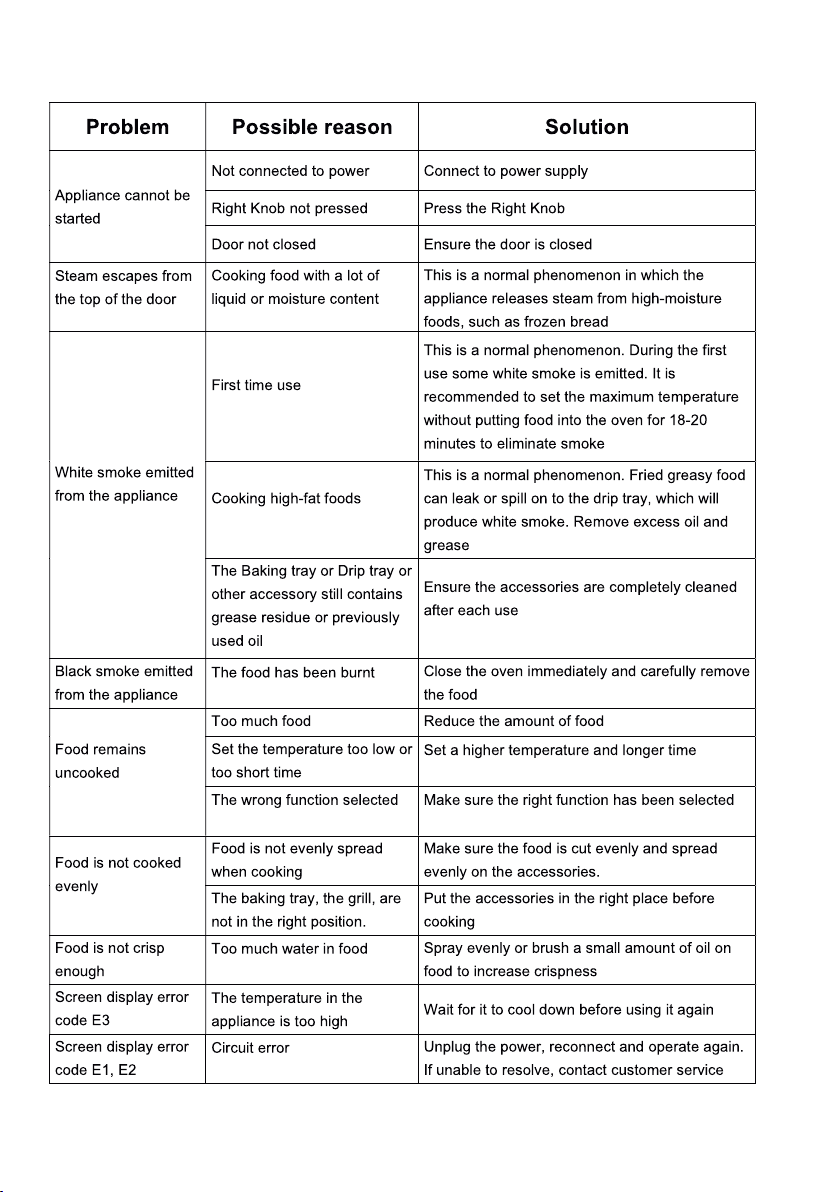

Troubleshooting
9
