Equinox Systems EQ-TM- 4001 User manual

Hot-Wire
Air Velocity Meter
User’s Manual
EQ-TM- 4001
24. BATTERY R EPLACEMENT
Turn off the power and unplug all cables, remove
the battery and replace into the new battery.
Please use the correct specification of the battery
and correctly installed in the battery holder.
25. END OF LIFE
Caution: This symbol indicates
that equipment and its
accessories shall be subject to a
separate collection and correct
disposal.
WARNING
If the LCD displays””symbol, please
replace the battery immediately.
WARNING
If not using the meter, please remove the
battery to avoid possible damage.

1. PREFACE
Thank you for purchasing out product.
Please, read the operating instructions in
details before you use this Hot-Wire Velocity
meter, so you will operate the meter correctly.
This meter can be operated in industry and
home.
WARNING
Non-compliance warning and/or
operating instructions may damage
the instrument or its parts or injuring
the operator.
2. GENERAL DESCRIPTION
Fast response prob e.
Air flow volume.(Use platinum-resistors sensor)
Telescoping pr obe.
Instant/ AVG/ 2/3V MAX flow measurement.
Max/AVG/Min & data hold function.
Low batter indication “ ”.
LCD triple display with LED backlight.
Manual data memory and read function
(99 records). (TM-4001)
Auto power off with disable function.
21. COMPUTER GR ADE
z CPU：Pentium Ⅲ1000MHZ.
z RAM：SDRAM 256MB.
z Hard d isk：200MB.
z OS：Windows 2000，Windows XP.
z Dispal y : 800×600 256 color.

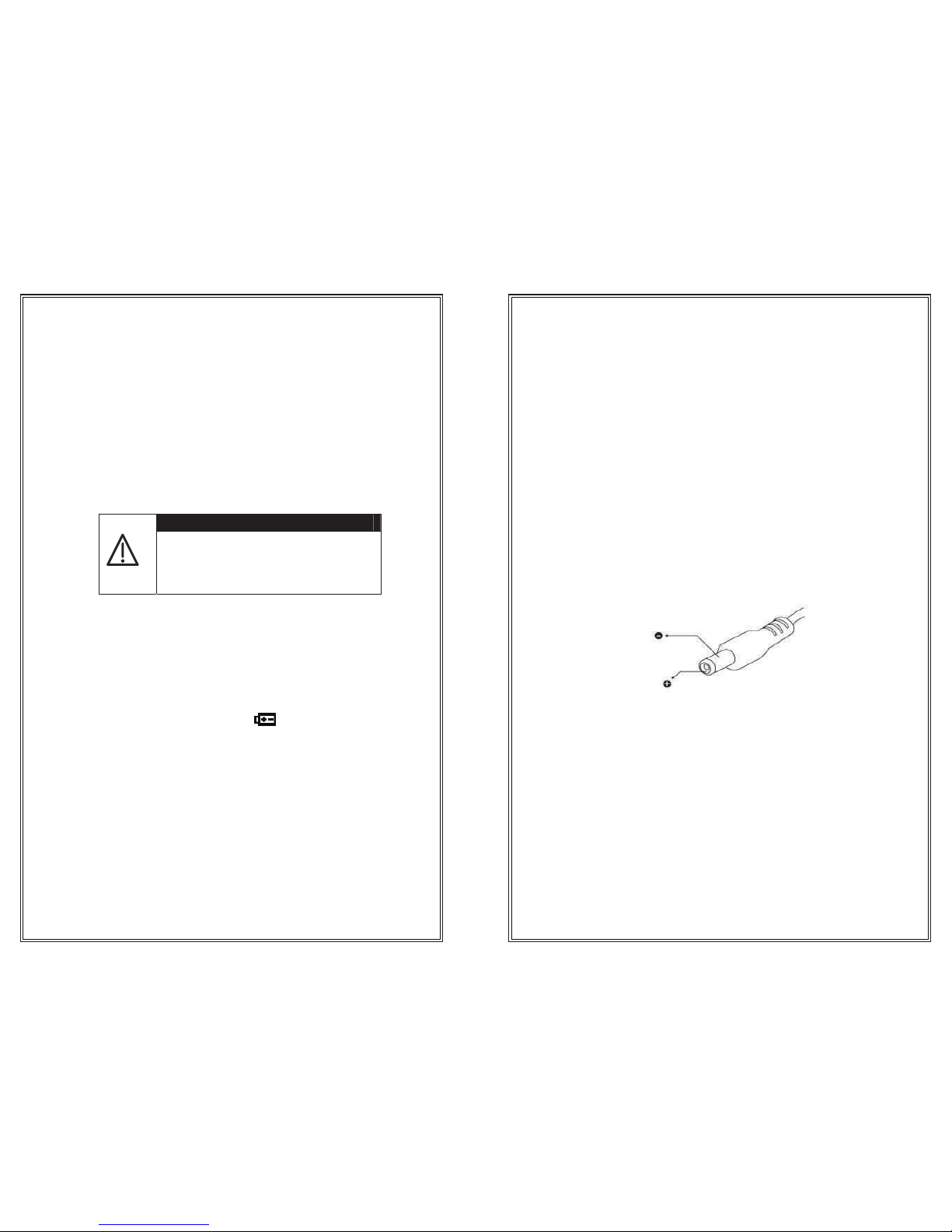

22. EXTERNAL DC POWER
External AC to DC adapter: Voltage 9VDC.
Socket: Pin positive, Ground casing negative.
External diameter 5.5mm internal diameter
2.1mm
23. SAFETY AND MAINTENANCE
STANDARDS
• Do not put this device in direct sunlight or
where it is hot and/or damp.
• Operatign altitude: below 2,000m.

3. SPECIFICATIONS (23? ± 5?)
Air Velocity Measurement:
Unit Range Resolution
m/s 0.01~25.00 0.01
±3%of
reading
±1.6%FS
Km/hr(kph) 0.02~90.00 0.1
mph 0.12~55.9 0.1
Knots(kts) 0.11~48.6 0.01
Ft/min(fpm) 0~4921.0 0.1
Beaufort 1~10 1 -
Air Flow(volume) Calculate:
Unit Range Resolution
CMM 0~9999 0.1 -
CFM 0~9999 0.1 -
Temperature Measurement:
Unit Range Resolution
?-20~50 0.1 ±1?
?-4~122 0.1 ±1.8?
Accuracy
Accuracy
Accuracy
interference (EMI) which may cause erratic
readings.
Please turn off the meter to avoid the sensor
burned when you have finished testing the high
wind speed (more than 20m/s) and remove the
probe.
To extend the probe, hold the handle in one
hand while pulling on the probe tip with the
other hand. Do not hold the cable while
extending the probe.
Remove the sensor protective cover, make
sure the sensor window is fully exposed and
the orientation is facing upstream.
To retract the probe, hold the handle in one
hand while pushing on the probe tip with the
other hand. If the probe antenna binding,
please gently straightened probe, and then the
rest of the extension of section pressure back
and don’t pull the cable.
20. SOFTWARE INSTALLATION(TM-4001)
Please refer to the TM-4003 installation CD
execution.

• Meter Dimension : 156x73x35mm(LxW x H).
• Probe Dimension :
Wire length : 160cm
Probe length : 128cm
Probe diameter of tip : 1.6cm
Probe diameter of base : 3.2cm
• Meterweight : 250g.(without batteries)
• Probe Weight : 240 g.
• Power supply : UM-4(AAA)1.5V*6PCS or
AC100~240V DC9V/0.5A(9mm).
• Battery life : 10 hours.
• Operating Temperature & Humidity:
-20°C to +50°C, <80 %RH.
• Storage Temperature & Humidity :
-10°C to +50°C, <70 %RH.
• Data output : USB PC serial interface. (TM-4003)
• Display : 60mm(W) x 47mm(L) monochrome
LCD and backlight.
• Standard Accessories :
UM-4 (AAA)1.5V battery X 6 Pcs
33.0%RH.
The duration of calibration time is 10 minutes.
After end of the 33.0%RH calibration, you can
press button to shut down or press
button to into 75%RH calibration.
D. Humidity calibration (75%RH)
Put the probe in the 75%RH chamber and
press button to select the 75%RH and
press button to start 75%RH calibration.
The duration of calibration time is 10 minutes.
After end of the 75%RH calibration, then will be
into the normal display.
E. Temperature calibration (25.0 )
1. Press button to select the 25.0 and
press button to start 25.0 calibration.
2. Confirm with the standard value of the error,
press the and button to adjust the
temperature and the display will flash.
3. Press to complete the adjustment
and into the normal display.
19. PRECAUTIONS
• Keep the meter away from electromagnetic

Press buttonto select the project would you
want calibration. ( Select the order of
0.00m/s→10.00m/s→33.00%RH→75.00%RH→
25.00 )
A. Wind speed calibration (0.00m/s)
Press buttonto select the 0.00m/s and
press button to start and the 0.00m/s is
blinking.
The duration of calibration time is 5 minutes.
After end of the 0m/s calibration, you can press
button to shutdown or press
button to into 10 m/s calibration.
B. Wind speed calibration (10.00m/s)
Put the probe into the standard 10m/s wind
tunnel, and press button to select the
10.00m/s and press button to start
calibration 10m/s.
The duration of calibration time is 5 minutes.
After end of the 10m/s calibration, then will be
into the normal display.
C. Humidity calibration (33.0%RH)
Put the probe in the 33.0%rh chamber and
press button to select the 33.0%RH and
press button to start calibration

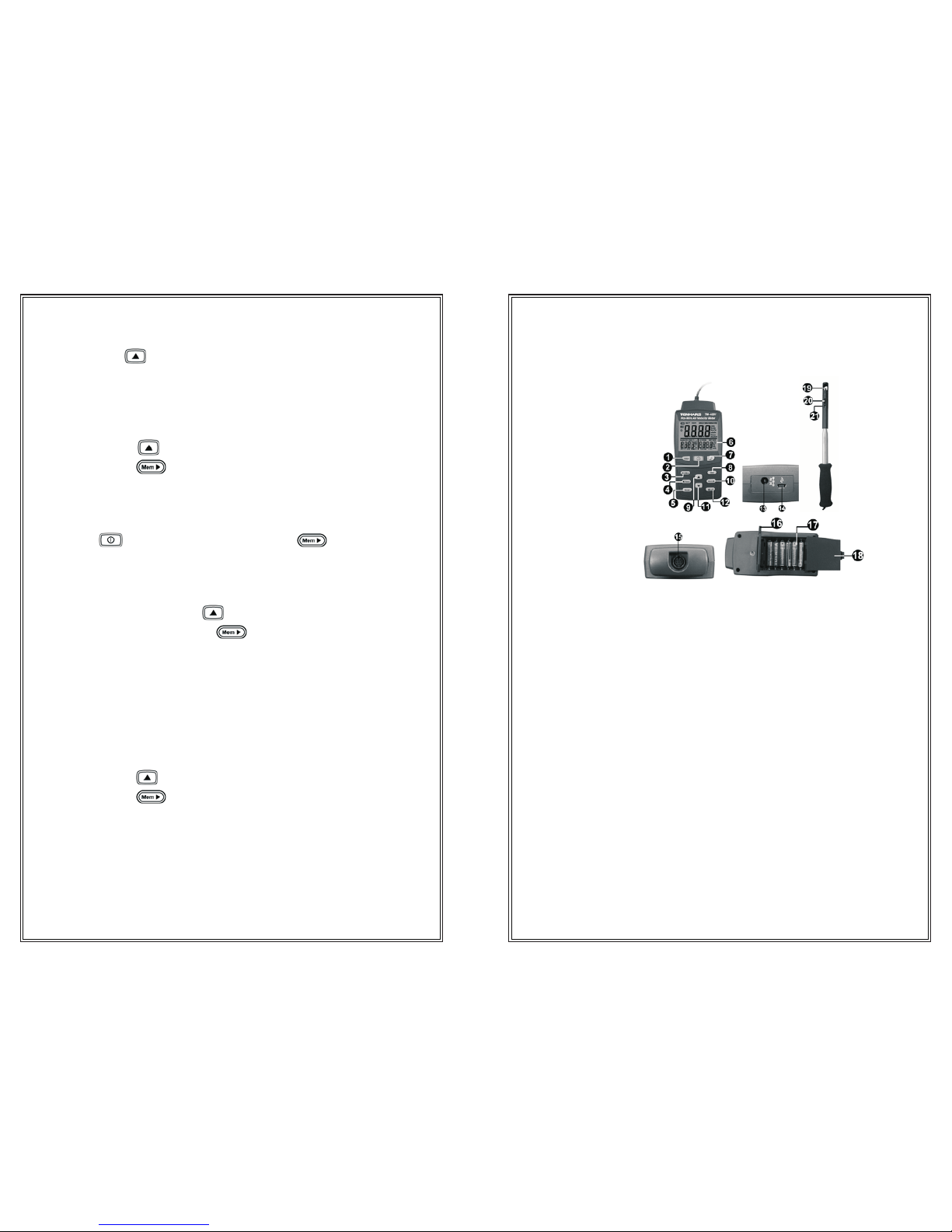

4. INSTRUMENT DESCRIPTION
12. Enter Button
13. DC power
14. USB
15. Probe Jack
16. Holder
17. Battery Holder
18. Battery Cover
19. Hot-wire Sensor
20. Humidity Sensor
21. Temperature sensor
1. HOLD Button
2. Power Button
3. MAX / MIN Button
4. Left / read Button
5. Mode button
6. Display
7. Backlight button
8. Unit Button
9. Up Button
10. Right / Record button
11. Down Button

15. SINGLE DATA RECORD
Press buttonto record the current
measured result.
16. VIEWING OR CLEARING DATA
RECORDS
Press buttonto read the data records and
press orwait 15 second to exit.
Press buttonfor more than 2 seconds to
clear the data records.
?The Viewing or cleared Data Records
function will be unavailable if calibration,
MAX/MIN, HOLD function is enabled.
17. MAX/MIN/AVG
Press buttonsimultaneously lockup data
maximum and minimum and average value of
measuring data.
Press buttonfor more than 2 seconds to
disable this feature.
18. CALIBRATION
Please shut down the meter first, then hold and
press , button and pr ess button
to enter into calibration mode. It will show 0.00
m/s on the upper display.
5. LCD DESCRIPTION
First window: Air velocity display
• SET: Setting mode indication.
REC : Recordmode indication.
HOLD : Data hold indication.
MAX : Maximum measured display indication.
MIN : Minimum measured display indication.
AVG : Average measured display indication.
] : Low battery indication.
[ ] : Auto power off indication.
m/s: Meters per second.
Knost : knots.
km/hr : Kilometers per hou.r
mile/hr : Milesper hour.
tf/min : Feet per minute.
Beau for : Beaufort.
Second window: Temperature, Humidity, Air
•
•
•
•
•
•
•
••
•
•
•
•
•

Time constant setting mode operation:
1. Press to into time constant setting mode.
2. In the setting the time constant setting mode
that can press , , , button to
change the digit and press to confirm.
13. AIR FLOW SETTING MODE
Press button to select Area and press
button to into the air flow setting mode and press
to exit the air flow setting mode.
Air flow setting mode operation:
1. Press button or button to
selected Area or the area of a circle, square
area, and press button to into setting the
size of area.
2. In the setting the size of area that can press
, , , button to change the digit
and press to confirm.
14. DATA H OLD
Press buttonto enable or disable hold
function.
?The HOLD function will be unavailable if
calibration function is enabled.
%RH: humdi ity indication.
ºC: Degree Celsius.
ºC: Degree Fahrenheit.
hPa: Hectopascal indication.
inHg: Inch of mercury.
mmHg: Millimeter of mercury.
CFM: Cubic feet per minute.
CMM: Cubic meters per minute.
2/3V MAX : 2/3V Maximum mode is selected
indication.
×10: Multiply reading by ten
×100: Multiply reading by hundred.
×1000: Multiply reading by thousand.
Third window: Air flow setting and record display
Sample: Sampling indication.
INTV: Sample interval indication.
Area: Duct area indication.
TC: Average time constant indication.
AVG: Average mode is selected indication.
K: Number of records by one thousand.
[ ]: Round duct diameter dimension
Velocity and Absolute Pressure Display.
WET: Wet bulb temperature indication.
DEW: Dew point temperature indication.

INDICATION.
[ ]: Rectangle duct XY dimension
indication.
h : Hour indication.
m : Minute indication.
S : Second indication.
in : Inches indication.
cm : Centimeterindication.
ft2: Square feet indication.
m 2: Square meters indication.
6. POWER ON/OFF
Press buttonto turn on or turn off the power.
7. Auto power off
The duration of auto power off time is 15 minutes.
If you want disable auto power off, please hold
button and press buttonat the power
shutdown mode. When you see the “n-SL” display
on the LCD, that means the auto power off
function is off. If you want enable auto power off,
please restart the meter.
8. BACKLIGHT
Press buttonto turn on the backlight, pres
this button again to turn it off.
The backlight time is 15 seconds.
9. CHANGE AIR VELOCITY UNIT
Press buttonto change the air velocity
unit.
m/s→knots→km/hr→mile/hr→ft/min→Beaufort
10. CHANGE UNIT
Press button and button tochange
unit.
＜＝＞ , m＜＝＞ft
11. CHANGE FUN CTION
Press button and button to change
function.
12. TIME CONSTANT SETTING MODE
Press button to select TC and press
button to into the time constant setting mode and press
to exit the time constant setting mode.
