Equipex SODIR BAR100 User manual

OPERATION MANUAL
FOR
SODIR
SNACK TOASTERS
MODEL BAR100, BAR200
765 Westminster Street• Providence, Rhode Island 02903 • US.A.
Tel: (401)273-3300 Fax: ( 4 0 1 ) 2 7 3-3 3 2 8 e-maiI:equipex@compuserve.com

EQUIPEX
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all the instructions before use.
2. Do not touch hot surfaces. Use handles or knobs.
3. To avoidelectrical shock, do not immerse the power cord, plug or connection box in
water or other liquid.
4. Close supervision is necessary when any appliance is used or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before
installing or removing parts, and before cleaning.
6. Do not operate any appliance with a damaged cord or plug or after appliance
malfunctions, or after damage of any kind. Return appliance to the nearest
authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer
may cause injury.
8. Do not use outdoors.
9. Do not allow cord to hang over edge of table or counter. Do not allow cord to touch
hot surfaces.
10. Do not place on or near a burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil.
12. Always attach plug to appliance before plugging cord into the wall outlet. To
disconnect, turn all controls to "OFF" then remove plug from the wall outlet
13. Do not use appliance other than for its intended use.
14. SAVE THESE INSTRUCTIONS.

INTRODUCTION
The SODIR Model # BAR-100 and # BAR-200 countertop snack toasters offer speedy
toasting and finishing. The units are designed for commercial applications, especially
when small footprint is an issue. The snack toasters are constructed of stainless steel
and are equipped with quartz heating elements, a 4-position switch, a 15-minute timer
with hold position and a red pilot light. Model # BAR-100 comes with one wire rack, while
# BAR-200 comes with two of wire racks. Each unit is equipped with an easily removable
rack handle.
SPECIFICATIONS
Model Electrical Plug Configuration
BAR100/1 120V, 1PH, 1.7KW, 14A NEMA-5-15P
BAR100 208/240V, 1PH, 1.7KW,7/8A NEMA-6-15P
BAR200 208/.240V, 1PH, 2.6KW, 11/13A NEMA-6-15P
INSTALLATION
The SODIR snack toasters need to be connected to a grounded outlet of proper voltage
(208/240V or 120V) depending on the model. DO NOT place the unit in a damp area or
near steam source. Make sure that the back panel of the snack toaster is not blocked.
OPERATION
The snack toasters are simple to operate. Turn the toaster on by rotating the switch to
one of the three following positions: "ALL ELEMENTS ON", "TOP ELEMENTS ON", or
"BOTTOM ELEMENTS ON". Turn the tinier knob clockwise to select the desired time. By
turning the timer knob to the "HOLD" position indicated by the marking "C" on the time
dial, operate the unit in continuous mode. To take the wire rack out of the toaster, attach
the handle provided with the unit to it. Always use the drip tray.

INTRODUCTION
The SODIR Model # BAR-100 and # BAR-200 countertop snack toasters offer speedy
toasting and finishing. The units are designed for commercial applications, especially
when small footprint is an issue. The snack toasters are constructed of stainless steel and
are equipped with quartz heating elements, a 4-position switch, a 15-minute timer with
hold position and a red pilot light. Model # BAR-100 comes with one wire rack, while #
BAR-200 comes with two of wire racks. Each unit is equipped with an easily removable
rack handle.
SPECIFICATIONS
Model Electrical Plug Configuration
BAR100/1 120V, 1PH, 1.7KW, 14A NEMA-5-15P
BAR100 208/240V, 1PH, 1.7KW,7/8A NEMA-6-15P
BAR200 208/240V, 1PH, 2.6KW, 11/13A NEMA-6-15P
INSTALLATION
The SODIR snack toasters need to be connected to a grounded outlet of proper voltage
(208/240Vor 120V) depending on the model. DO NOT place the unit in a damp area or
near steam source. Make sure that the back panel of the snack toaster is not blocked.
OPERATION
The snack toasters are simple to operate. Turn the toaster on by rotating the
switch to one of the three following positions: "ALL ELEMENTS ON", "TOP
ELEMENTS ON”, or "BOTTOM ELEMENTS ON”. Turn the timer knob clockwise to
select the desired time. By turning the timer knob to the "HOLD" position indicated
by the marking "C" on the time dial, operate the unit in continuous mode. To take
the wire rack out of the toaster, attach the handle provided with the unit to it.
Always use the drip tray.

SODIR SNACK TOASTERS
MODEL BAR100

EQUIPEX, LTD.
25-Aug-OO SPBAR-100-02
765 Westminster Street, Providence, RI 02903
tel: (401)273-3300 fax: (401)273-3328
Toll free: 1-800-649-7885
SODIR Model BAR 100 Snack Toaster(120V/60/1Phase) / BAR 100 Snack Toaster (208-240V/60/1 Phase)

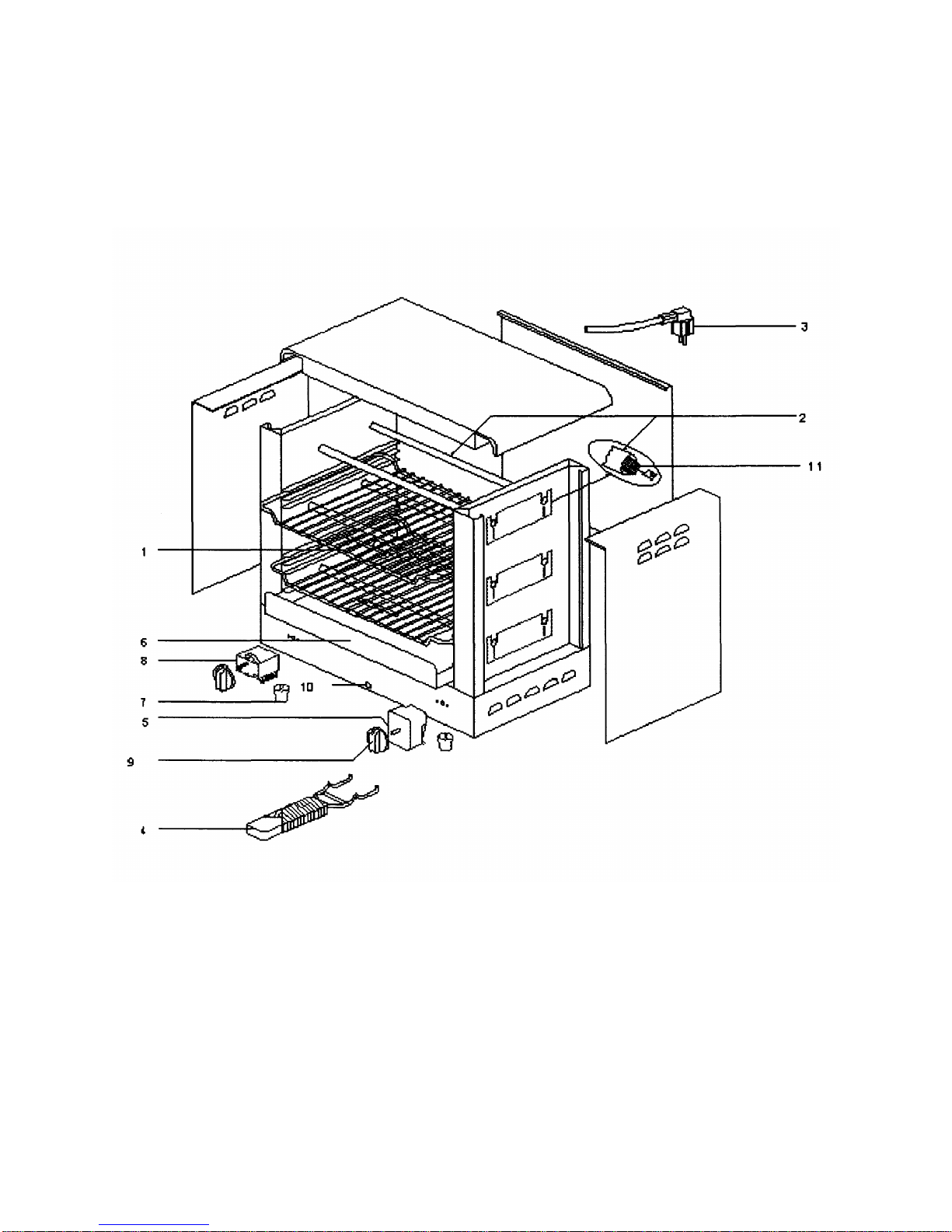

Drawing # Part Number Quantity
Description Old Part Number
1F01011 1Wire Shelf P-S1170Q1
2DO4Q05 4Quartz Tube P-S601011
3OEM0011 1Power Cord, 120V (no plug) n/a
3OEM0012 1Power Cord, 220V (no plug) n/a
4F010251Handle P-S601025
5A02008 1Timer P-S102001
6300091208 1Crumb Tray P-S544108
7A13001 4Foot P-S113001
8A01001 1Rotary Switch P-S101001
9A14042BAR 2Knob P-S114029
10 A08002 1Red Pilot Light, 120V P-S108005
10 A08008 1Red Pilot Light, 220V P-S108015
11 D01043 4Heating Element, 120V n/a
11 D01003-220 4Heating Element, 220V P-S401003

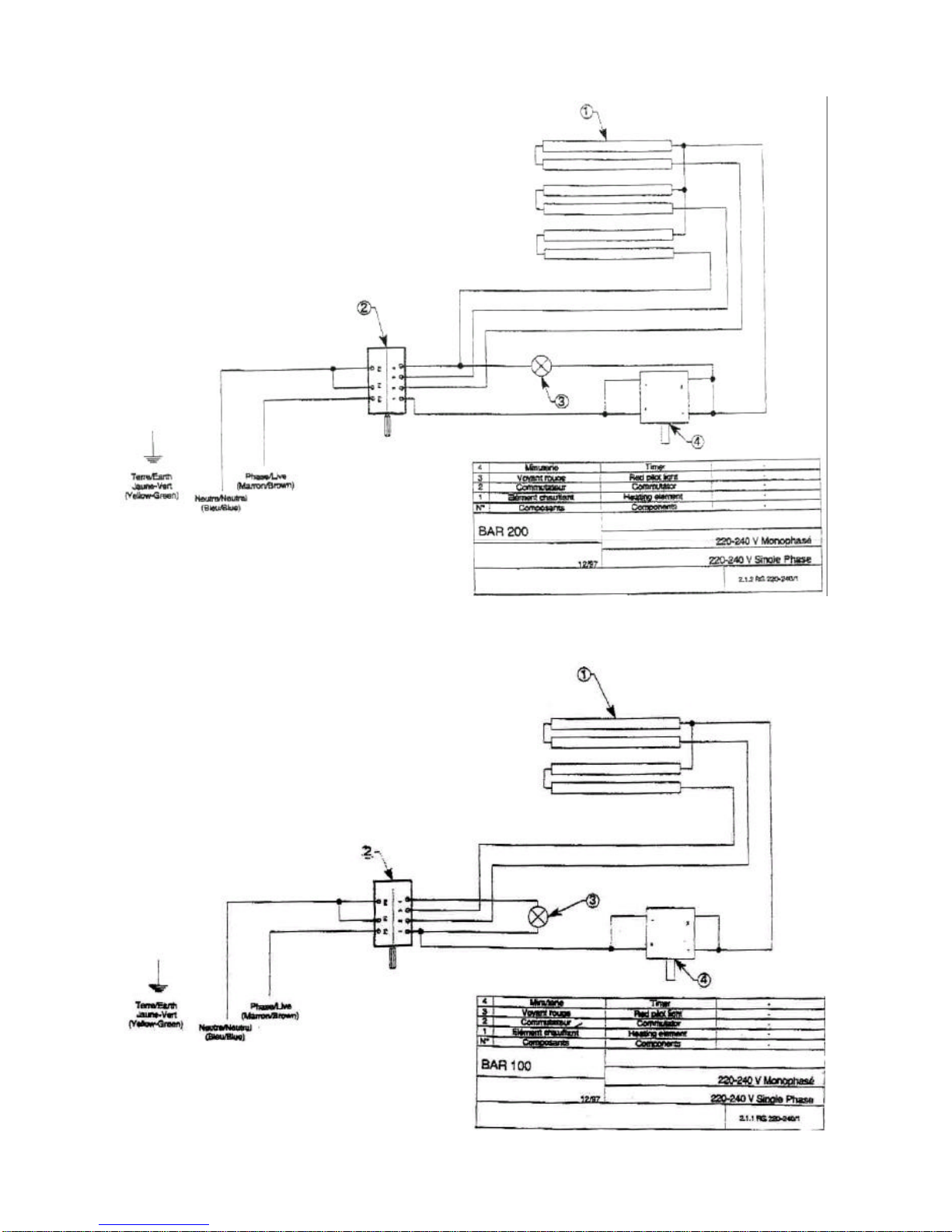

SODIR SNACK TOASTERS
MODEL BAR200

EQUIPEX, LTD.
25-Aug-OO SPBAR-200-02
765 Westminster Street, Providence, Rl 02902
i
tel: (401) 273-3300 fax: (401) 273-3328
Toll free: 1-800-649-7885
SODIR Model BAR 200 Snack Toaster (208-24OV/60/1 Phase)
Drawing # Part Number Quantity Description Old Part Number
1F01011 2Wire Shelf P-S117001
2D04005 6Quartz Tube P-S601011
3OEM0012 1Power Cord, 220V (no plug) n/a
4F01025 1Handle P-S601025
5A02008 1Timer P-S102001
6300091208 1Crumb Tray P-S544108
7A13001 4Foot P-S113001
8A01001 1Rotary Switch P-S101001
9A14042BAR 2Knob P-S114029
10 A08008 1Red Pilot Light, 220V P-S108015
11 D01003-220 6Heating Element, 220V P-S401003


LIMITED WARRANTY
Your new EQUiPEX product is warranted to the original purchaser for a period of one year from the date of
purchase.
This limited warranty is against defects from original factory imperfections in material and/or workmanship
and includes labor for replacement of defective parts, provided repairs are performed by an authorized
service agency. Our obligation under this warranty is limited to repairing or replacing any part or parts
thereof. The CUSTOMER must inform the Service Agency of warranty coverage and provide a copy of the
dated sales or delivery receipt BEFORE WARRANTY REPAIRS BEGIN. Replacement parts and
accessories are warranted for ninety (90) days from the date of purchase when purchased separately and
will be verified by dated sales receipt or packing slip for that item. All parts or accessories replaced under
warranty must be returned to the Service Agency.
This warranty applies only to equipment under normal use and service in the U.S.A. and Canada. It does
not apply to any item which has been repaired or altered in any way so as, in the judgement of EQUiPEX, to
affect its reliability.
THE FOLLOWING ARE NOT COVERED UNDER WARRANTY:
1. Damage caused by abuse, misuse, dropping or other similar incidental damage caused by or as a
result of customer failure to follow assembly, operating, cleaning, user maintenance or storage
instructions.
2. Labor to replace inoperative parts such as bulbs, plugs or racks due to normal use or abuse.
3. Materials or labor to repair scratched, stained, chipped, pitted, dented or discolored surfaces,
attachments or accessories.
4. Transportation charges to or from a service agency for repair of your machine. If you should have
questions relating to this issue, please call the factory at 1-800-649-7885.
5. Labor charges to install or test attachments or accessories, which are replaced for any reason.
6. SHIPPING DAMAGES. Visible and hidden damages are the responsibility of the freight carrier. The
consignee must file the claim promptly against the carrier. KEEP ALL ORIGINAL CONTAINERS AND
PACKING MATERIALS FOR CARRIER INSPECTION.
7. Products placed or stored in the equipment are not subject to this warranty and no responsibility is
assumed thereof.
THIS WARRANTY IS GIVEN EXPRESSLY AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, FOR MERCHANTABILTTY AND FOR FITNESS TOWARD A PARTICULAR PURPOSE
AND CONSTITUTES THE ONLY WARRANTY MADE BY EQUIPEX, LTD. IT NEITHER ASSUMES, NOR
AUTHORIZES ANY PERSON TO ASSUME FOR US, ANY OTHER LIABILITY IN CONNECTION WITH
THE SALE OF THE SUBJECT EQUIPMENT.
Please call EQUiPEX for service at 1-800-649-7885
765 Westminster Street • Providence, Rhode Island 02903 • U S A
Tel: (401)273-3300 Fax: (401)273-3328

TERMS AND CONDITIONS OF SALE
Acceptance: Orders are subject to acceptance by Home Office.
Price Changes: All prices are subject to change without notice.
Shipment: All equipment shipped F.O.B. factory. All weights shown are approximate only.
Damaged Merchandise: Inspect merchandise immediately on receipt and-notify carrier if shipment is
damaged. All claims must be filed with carrier.
Cancellation: Cancelled special or custom orders within one week of scheduled shipment are subject to a
cancellation charge of 10% -25%, depending on the specifics of the order.
RETURN POLICY
EQUiPEX will consider the return of equipment under the following terms and conditions:
•Must be pre-approved by customer service department in writing.
•RMA number must be assigned, then noted on the shipping label and bill of lading. This
is extremely important.
•Must be new and unused, preferably in the original packaging, freight prepaid.
•Must be returned within 45 days of the original shipment.
•Must be of current design.
If a return is approved, the following charges will apply:
•A restocking charge of 25%on all products.
•Applicable freight charges.
•Freight-damages (if any)
•Refurbishing to new for resale, including testing and re-packaging.
EQUiPEX reserves the right to refuse return of any piece of equipment.
QUOTATION POLICY
Quotations are subject to acceptance within 30 days and for shipment within 3 months from the date of the
quotation, for extended price protection beyond 3 months, please contact the Home Office. Optional
accessories on equipment shown in photographs are not included in list price.
EQUiPEX pursues a continuous research program of design and product improvement. Therefore,
modification in materials and specifications may be made at any time without notice.
765 Westminster Street • Providence, Rhode Island 02903 • U S A
Tel: (401)273-3300 Fax: (401)273-3328
