Era Pro storm Technical manual

To identify the equipment intended to be used in

countries having a warm damp equable climate

   



C    



Axial fan

Осьтік электр желдеткіші

Электровентилятор осевой

Passport / Operation instruction

Паспорт / Қолдану бойынша

нұсқаулығы

Паспорт/ Инструкция по эксплуатации

ООО «ЭРА»

390047, Россия, г. Рязань,

Новоселковская д.17, тел. (4912) 24-16-00,

e-mail: [email protected], www.era.trade

«ERA»LLC

390047, Novoselkovskaya street, 17,

Ryazan city, Russia tel. (4912) 24-16-00,

e-mail: [email protected], www.era.trade

«ЭРА» ЖШҚ

390047, Ресей, Рязань қ.,

Новоселковская 17, тел. (4912) 24-16-00,

e-mail: [email protected], www.era.trade

STORM

KZENAR RU

Thank you for purchasing our product! / Біздің өнімді сатып алғаныңыз үшін рахмет! / Благодарим за покупку нашего продукта!

Please read the instructions carefully. Pay particular attention to the operating requirements/ Нұсқаулықты мұқият

оқып шығыңыз, пайдалану талаптарына ерекше назар аударыңыз / Пожалуйста, внимательно ознакомьтесь с

инструкцией. Обратите особое внимание на требования к эксплуатации.

English



Русский

ERA TV

www.era.trade 8 (800) 500-11-23

15 F

LXADdEF

STORM 200 125 260 310228 200 735

STORM 250135320 370278 2507 35

STORM 300 145 380 430 335300 10 48

STORM 350165435 485385 3501050

STORM 400 185490 540 430 4001063

STORM 450 195 520 575480 4501070

15 F

LXADdEF

STORM 200 125 260 310228 200 735

STORM 250135320 370278 2507 35

STORM 300 145 380 430 335300 10 48

STORM 350165435 485385 3501050

STORM 400 185490 540 430 4001063

STORM 450 195 520 575480 4501070

200250 300350 400 450

0,25 0,36 0,66 0,61 0,82 1,1

62 120162 150235 315

890 1100 2300 2600 3830 4800

25502480 2350 140014001300

110120 115120 130120

50 60 61 62 63 64

222444

3,03,8 5,06,9 8,1 9,8

220-240V

200250 300350 400 450

0,25 0,36 0,66 0,61 0,82 1,1

62 120162 150235 315

890 1100 2300 2600 3830 4800

25502480 2350 140014001300

110120 115120 130120

50 60 61 62 63 64

222444

3,03,8 5,06,9 8,1 9,8

220-240V

DESIGNATION

Axial electric fan STORM is designed for use in ventilation systems of industrial, public

and residential buildings. Installed in window and wall openings. Axial wall (ceiling) fan

STORM is designed to provide supply and exhaust ventilation of commercial premises

requiring rapid pumping of large amounts of air (sanitary equipment, vulcanization, paint

shop, production shops, kitchens of cafes and restaurants, stores with a large number of

cold rooms, etc.). The housing of the fan is made of steel, painted with polymer paint in

black. Installation is carried out in window openings, walls, ceilings, as well as directly on

the units that require blowing.

Security requirements

According to the type of protection against electric shock fans belong to Class 1 devices

according to GOST 12.2.007.0-75. Type of climatic version of the fans UHL4 according

to GOST 15150-69. The degree of protection of electrical equipment enclosure against

penetration of solid objects and water in accordance with GOST 14254-2015 (IEC

60529:2013): IPX4

ATTENTION!

This device is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

or knowledge, unless they have been given supervision or instruction

concerning use of the device by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the

device.

ATTENTION!

All actions related to connection, adjustment, maintenance and repair of

the product should be performed only when the mains voltage is o (S1

in OFF position). The fans are connected by qualiﬁed electricians who are

authorized to perform the work.

Before installation, it is necessary to check that there is no visible damage

to the impeller, housing, grid, as well as that there are no foreign objects

that can damage the impeller blades. The wiring diagram of the fan and the

connection to the electric network is shown in Figure 3.

Do not install the fan in the same ventilation duct as the ﬂue from devices

with fuel burners.

Before using the device, be sure to read these instructions!

BASIC TECHNICAL SPECIFICATIONS

Fans are manufactured in accordance with TU 28.25.20-011-96059883-2022, current

norms and standards.

Depending on the model, two- or four-pole asynchronous motors on ball bearings are

used. For models Ø200, Ø250, Ø300 mm — two-pole motors, for models Ø350, Ø400,

Ø450 mm — four-pole motors.

Fan STORM is available in several sizes, depending on the diameter of the impeller. Fans:

STORM 200; STORM 250; STORM 300; STORM 350; STORM 400; STORM 450;

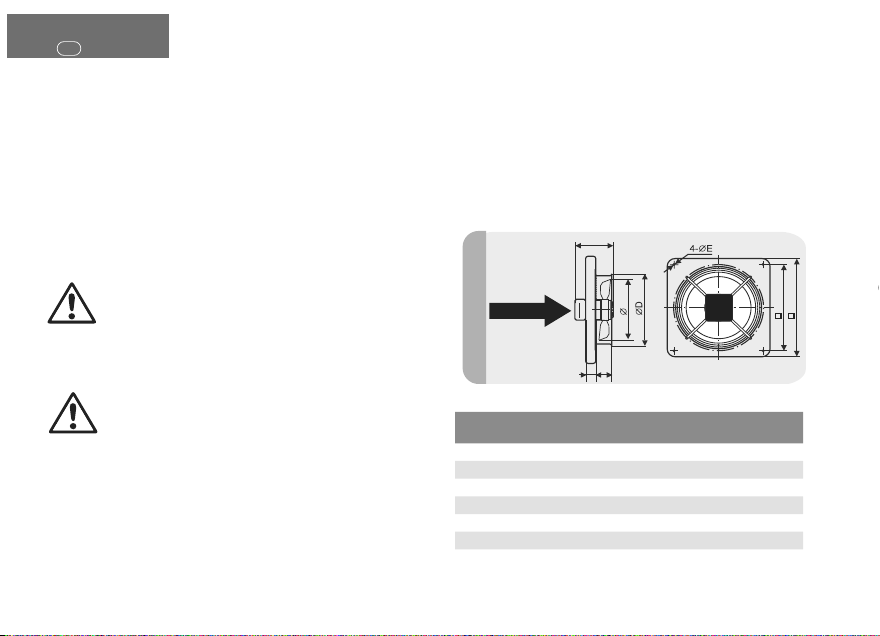

Appearance of the fan, the main dimensions and technical characteristics are shown in

Figure 1 and in Tables 1, 2.

Figure 1

15 F

Table 1

Type Dimensions, mm

L X A D d E F

STORM 200 125 260 310 228 200 7 35

STORM 250 135 320 370 278 250 7 35

STORM 300 145 380 430 335 300 10 48

STORM 350 165 435 485 385 350 10 50

STORM 400 185 490 540 430 400 10 63

STORM 450 195 520 575 480 450 10 70

AIR FLOW

The fans are designed to be connected to AC 220–240 V 50/60 Hz. When the fans

are connected to 60 Hz AC power, the speciﬁcations may change. Check with the

manufacturer. Temperature of transported air from -30 to +60 °C

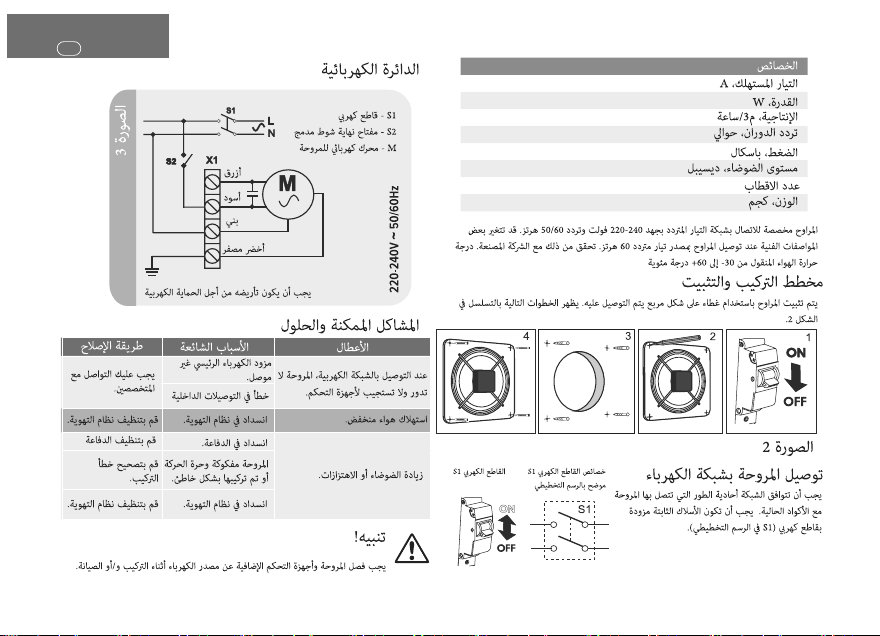

Installation chart

The fans are installed with a square connection housing. The sequence of steps is shown

in Figure 2.

Speciﬁcations 200 250 300 350 400 450

Consumption current, A 0,25 0,36 0,66 0,61 0,82 1,1

Power, W 62 120 162 150 235 315

Capacity, m3/h 890 1100 2300 2600 3830 4800

Rate of rotation, rpm 2550 2480 2350 1400 1400 1300

Pressure, Pa 110 120 115 120 130 120

Noise level, dB 50 60 61 62 63 64

Number of Poles 2 2 2 4 4 4

Weight, kg 3,0 3,8 5,0 6,9 8,1 9,8

Connecting fan to network

BASIC TECHNICAL SPECIFICATIONS

Fans are manufactured in accordance with TU 28.25.20-011-96059883-2022, current

norms and standards.

Depending on the model, two- or four-pole asynchronous motors on ball bearings are

used. For models Ø200, Ø250, Ø300 mm — two-pole motors, for models Ø350, Ø400,

Ø450 mm — four-pole motors.

Fan STORM is available in several sizes, depending on the diameter of the impeller. Fans:

STORM 200; STORM 250; STORM 300; STORM 350; STORM 400; STORM 450;

Appearance of the fan, the main dimensions and technical characteristics are shown in

Figure 1 and in Tables 1, 2.

Table 1

The fans are designed to be connected to AC 220–240 V 50/60 Hz. When the fans

are connected to 60 Hz AC power, the speciﬁcations may change. Check with the

manufacturer. Temperature of transported air from -30 to +60 °C

Installation chart

The fans are installed with a square connection housing. The sequence of steps is shown

in Figure 2.

Figure 3

Speciﬁcations 200 250 300 350 400 450

Consumption current, A 0,25 0,36 0,66 0,61 0,82 1,1

Power, W 62 120 162 150 235 315

Capacity, m3/h 890 1100 2300 2600 3830 4800

Rate of rotation, rpm 2550 2480 2350 1400 1400 1300

Pressure, Pa 110 120 115 120 130 120

Noise level, dB 50 60 61 62 63 64

Number of Poles 2 2 2 4 4 4

Weight, kg 3,0 3,8 5,0 6,9 8,1 9,8

Table 2

Figure 2

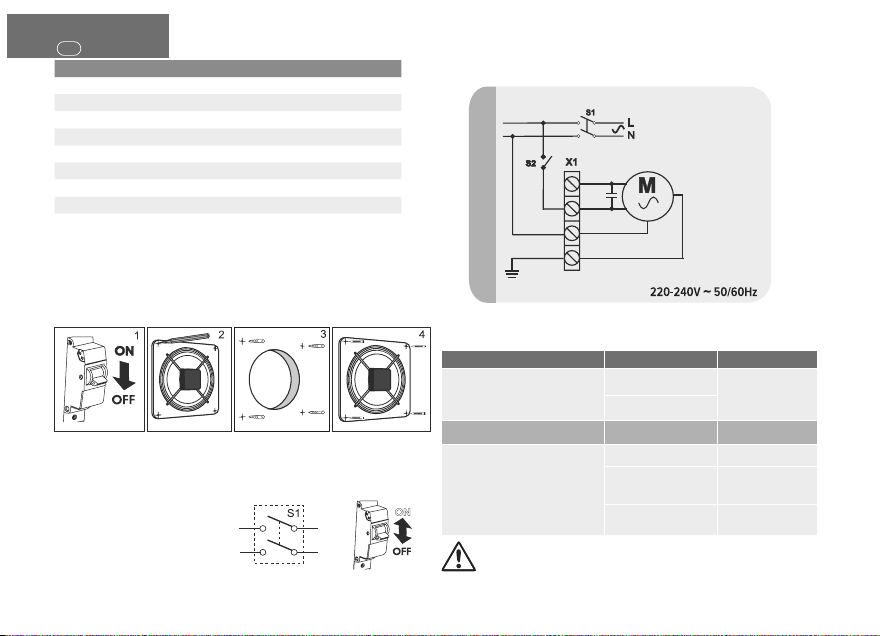

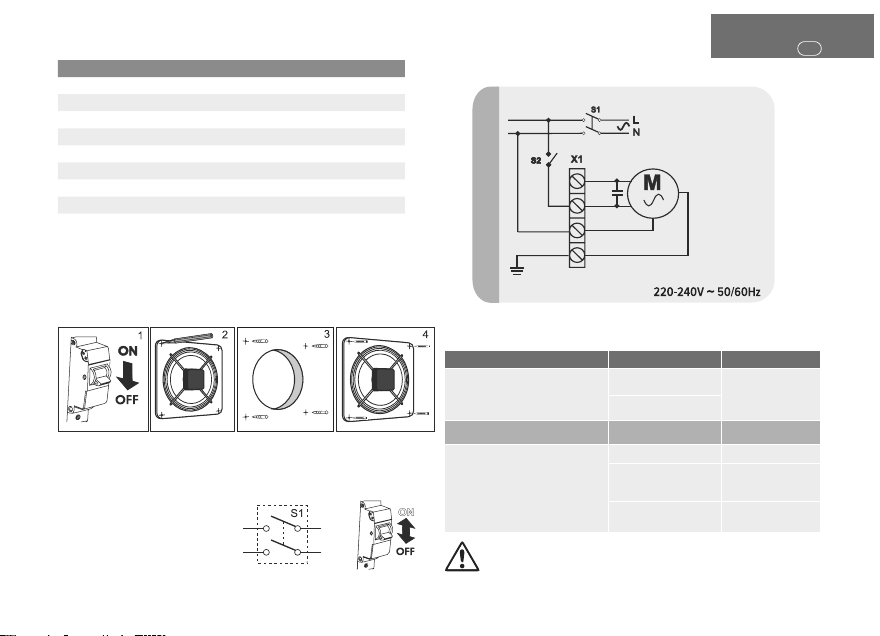

Connecting fan to network

The designation of the

circuit breaker S1 in the

diagram

Circuit breaker S1

Wiring connection diagram

220-240V

The single-phase network to which the

fan is connected must comply with current

regulations. The ﬁxed wiring must be

equipped with a circuit breaker (S1 on the

diagram).

Fault Probable cause Remedy

When connected to the network,

the fan does not rotate, does not

respond to the controls.

Power supply is not

connected. It is necessary to

contact a specialist.

Faulty internal

connection.

Low air ﬂow. Clogged ventilation

system.

Clean the ventilation

system.

Increased noise or vibration.

Clogged impeller. Clean the impeller.

The fan is loose or

incorrectly installed.

Eliminate the

installation error.

Clogged ventilation

system.

Clean the ventilation

system.

ATTENTION! The fan and auxiliary monitoring equipment must be isolated from the power

supply during installation and/or maintenance.

Possible problems and troubleshooting

S1 —  

S2 —   

M —   

- M     

 

BLACK

BROWN

BLUE

YELLOW-GREEN

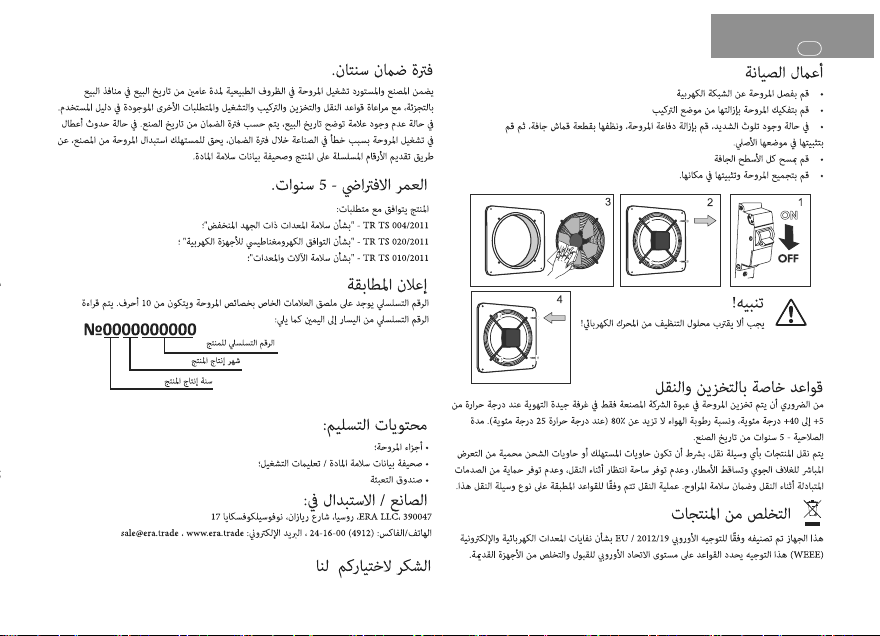

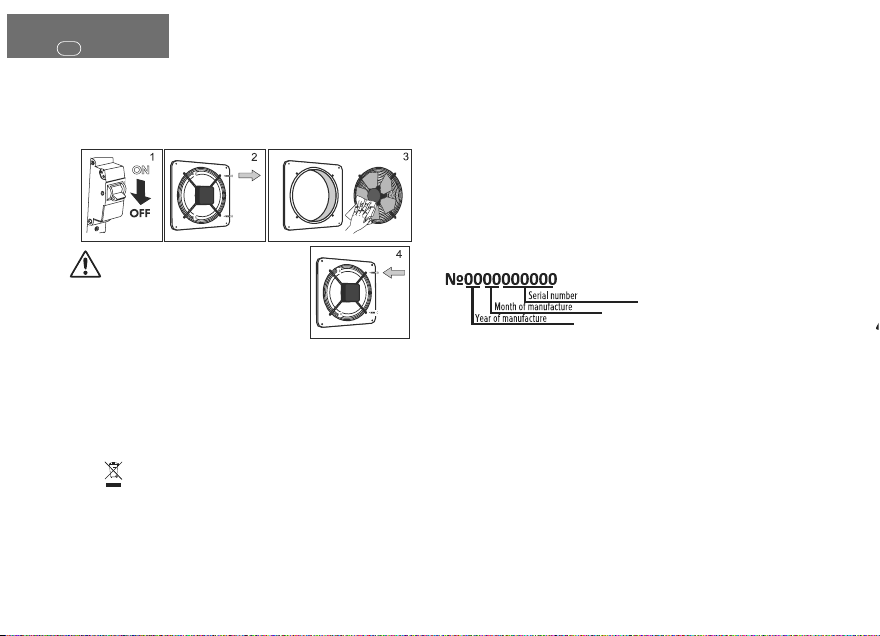

Maintenance

• Disconnect the fan from the network

• Dismantle the fan by removing it from its place of installation

• In case of heavy clogging, remove the fan impeller, clean it with a dry rag, reinstall it in its original position.

• Wipe all surfaces dry

• Assemble the fan and install it in place

Rules of storage and transportation

The fan must be stored only in the packaging of the manufacturer in a ventilated room at a

temperature of +5°C to +40°C and relative humidity of no more than 80% (at T = 25°C). Shelf

life — 5 years from the date of manufacture.

Devices are transported by any mode of transport provided that the consumer or transport

packaging is protected from direct exposure to atmospheric precipitation, no displacement

of transport places during transportation, no mutual shocks during transportation and ensure

the safety of fans. Transportation is carried out in accordance with the rules in force for this

type of transport.

Disposal

This device is marked according to European Directive 2012/19/EU on the disposal of waste

electrical and electronic equipment (WEEE). This directive deﬁnes the EU-wide rules for the

reception and disposal of devices.

Warranty period — 2 years.

The manufacturer guarantee the normal operation of the fan for 2 years from the date of sale

in the retail trade network, provided that the rules of transportation, storage, installation,

operation and other requirements of this manual are followed.

If the date of sale is not marked, the warranty period is calculated from the date of

manufacture. In case of any malfunction of the fan due to the manufacturer’s fault during the

warranty period, the consumer has the right to have the fan replaced by the manufacturer

provided that the serial numbers on the product and in the data sheet match.

Shelf life — 5 years.

The product meets the following requirement:

TR CU 004/2011 — «On safety of low-voltage equipment»;

TR CU 020/2011 — «Electromagnetic Compatibility of Technical Devices»;

TR CU 010/2011 — «On safety of machines and equipment»;

Declaration of Conformity EEU N RU Д-RU.РА03.В.76917/22. Valid from May 25,

2022 to May 24, 2027 inclusive.

Explanation of serial numbers. The serial number is located on the fan data label

and consists of 10 digits. The serial number reads from left to right as follows:

Supply package:

• Fan in assembly;

• Data sheet / Operation manual;

• Package.

Manufacturer / Replacements are carried out at: LLC «ERA», 390047, Russia,

Ryazan, Novoselkovskaya st. 17

Tel./Fax: (4912)24-16-00, E-mail: [email protected], www.era.trade

ATTENTION!

Do not allow cleaning solution to come into contact

with the electric motor!

МАҚСАТЫ

STORM осьтік электр желдеткіші өнеркәсіптік, қоғамдық және тұрғын үй

ғимараттарының желдету жүйелерінде қолдануға арналған. Терезелер және

қабырғалар ойықтарына орнатылады. STORM осьтік қабырғалық (төбелік) желдеткіші

көп мөлшерде ауаны тез сорып алуды талап ететін коммерциялық орынжайлардың

(ТҚС, вулканизация, бояу цехы, өндірістік цехтар, дәмханалар мен мейрамханалар

асүйлері, тоңазытқыш камераларының саны көп дүкендер және т.б.) ағынды-сорғылы

желдетуді қамтамасыз етуге арналған. Желдеткіш корпусы полимер бояумен қара

түске боялған болаттан жасалған. Монтаждау терезе ойықтарына, қабырғаларда,

төбелік арқалықтарға, сондай-ақ тікелей үрлеуді қажет ететін қондырғыларда жүзеге

асырылады.

Қауіпсіздік талаптары

Электр тогымен зақымданудан қорғау типі бойынша желдеткіштер ГОСТ 12.2.007.0-75

бойынша І класының аспаптарына жатады. ГОСТ 15150-69 бойынша желдеткіштердің

климаттық орындалу түрі УХЛ4. ГОСТ 14254-2015 (IEC 60529:2013) сәйкес электр

жабдығы қабығының қатты заттар мен судың енуінен қорғау дәрежесі: IPX4

НАЗАР АУДАРЫҢЫЗ!

Аспап физикалық, психикалық немесе ақыл-ой қабілеттері төмен

адамдардың (балаларды қоса алғанда) немесе олардың тәжірибесі

немесе білімі болмаған кезде, егер олар бақылауда болмаса немесе

олардың қауіпсіздігіне жауапты адамның аспапты пайдалануы туралы

нұсқау берілмеген болса, пайдалануға арналмаған.

Балалар аспаппен ойнауды болдырмау үшін бақылауда болуы керек.

НАЗАР АУДАРЫҢЫЗ!

Бұйымды қосуға, теңшеуге, қызмет көрсетуге және жөндеуге

байланысты барлық іс-әрекеттерді желінің кернеуі алынған кезде

жүргізіңіз (S1 OFF күйінде). Желдеткіштерді қосуды орындалатын

жұмыстарға арнайы рұқсаты бар электрик мамандар жүргізеді.

Орнатпас бұрын, қалақты аспаптың, корпустың, тордың көрінетін

зақымдалмағанына, сондай-ақ қалақты аспаптың қалақтарын

зақымдауы мүмкін бөгде заттардың жоқтығына көз жеткізу керек.

Желдеткіштің электр схемасы және электр желісіне қосылу схемасы

3-суретте көрсетілген.

Желдеткішті отын жанарғылары бар құрылғылардан түтін шығаратын құбыры бар бір

желдету магистраліне орнатуға тыйым салынады.

Аспапты пайдаланар алдында міндетті түрде осы нұсқау-

лықтың мазмұнымен танысыңыз!

Thank you for choosing us!
