Ercogener GenLoc 41e User manual

http://www.ercogener.com Dct_427_02
User Guide
GenLoc 41e
Reference : EG_GenLoc41e_1055_UG_003_UK
Revision : 003
Date : 18/05/2018

EG_GenLoc41e_1055_UG_003_UK
Page 2 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
Document History
Rev.
Modifications
Author
Date
Validation
Date
000
001
CREATION
YST
13/12/2011
002
Add additional information.
Update the DECLARATION OF
CONFORMITY
YST
07/11/2012
PBR
14/11/2012
003
§ 7.2.2.4 Indication of presence/absence of
the external power supply
1 becomes indication of absence of
external power supply
0 becomes indication of presence of
external power supply.
§ 8.2.4.2 Open collector output (O1)Erreur !
Source du renvoi introuvable. correcting
output kind.
Add information § 8.2.12 Bus I2C
Update Dct_427_02, Warning
YST
18/05/2018
PBR
31/10/18
The main modifications of this document compared to the previous version are easily identifiable on a screen
by the blue color of the text.

EG_GenLoc41e_1055_UG_003_UK
Page 3 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
TABLE OF CONTENTS
PRESENTATION............................................................................................................................................... 6
WARNING ......................................................................................................................................................... 7
COPYRIGHT ..................................................................................................................................................... 8
1 REFERENCES ............................................................................................................................................... 9
1.1 REFERRED DOCUMENTS ................................................................................................................................. 9
1.2 ABBREVIATIONS ............................................................................................................................................. 9
1.3 SYMBOLS..................................................................................................................................................... 11
2 PACKAGING................................................................................................................................................ 11

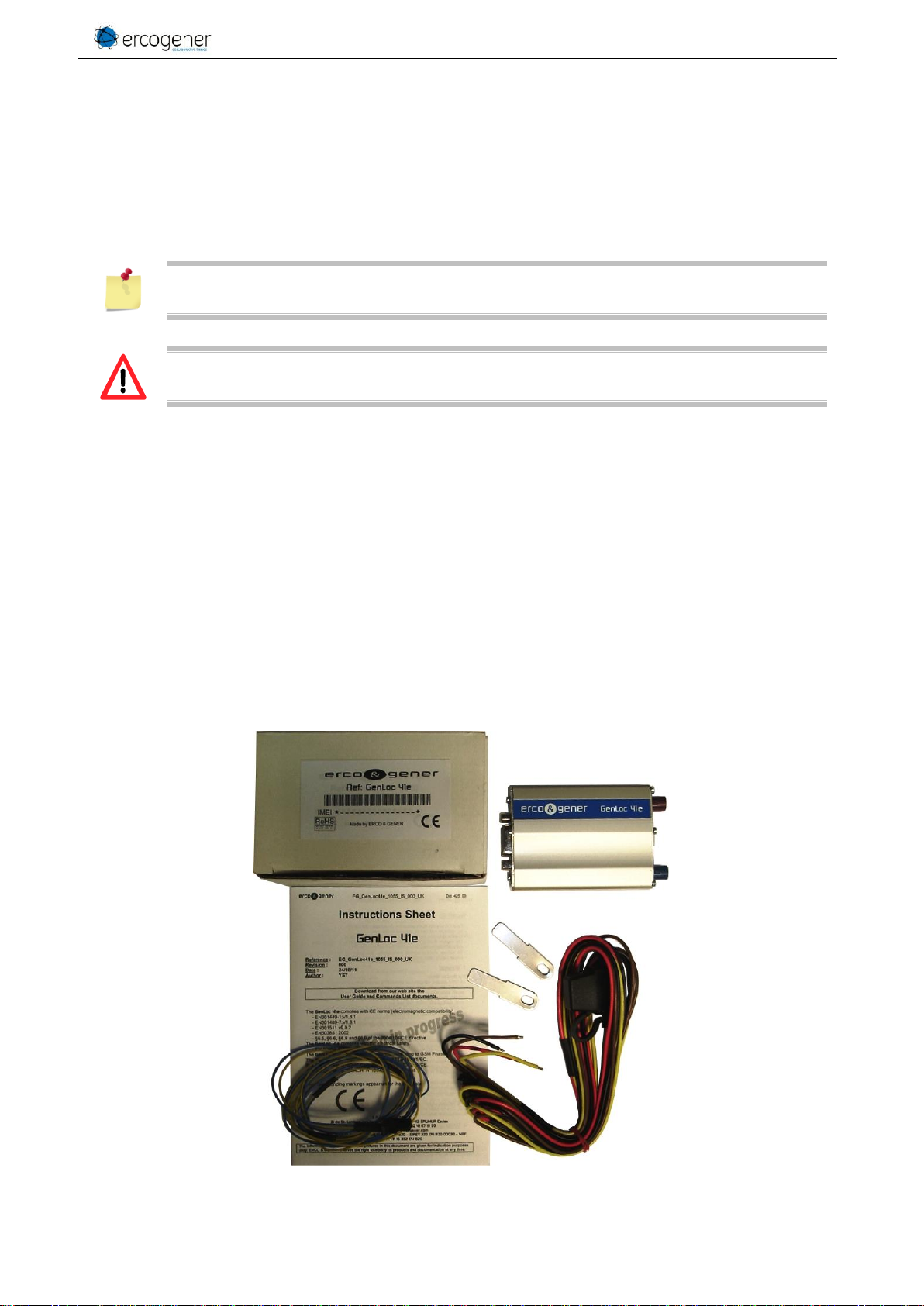

2.1 CONTENT..................................................................................................................................................... 11
2.2 PACKAGING ................................................................................................................................................. 12
2.3 MODEM LABELS............................................................................................................................................ 12
3 GENERAL PRESENTATION....................................................................................................................... 13
3.1 DESCRIPTION............................................................................................................................................... 13
3.2 EXTERNAL CONNECTIONS............................................................................................................................. 14
3.2.1 Connections................................................................................................................................... 14
3.2.1.1 Antenna connectors................................................................................................................ 14
3.2.1.2 Micro FIT connectors.............................................................................................................. 14
3.2.1.3 15-pin Sub D HD connector.................................................................................................... 15
3.2.2 Cables............................................................................................................................................ 16
3.2.2.1 4-wire micro FIT cable............................................................................................................ 16
3.2.2.2 2-wire micro FIT cable............................................................................................................ 17
4 CHARACTERISTICS AND SERVICES ....................................................................................................... 18
5 USING THE MODEM ................................................................................................................................... 19
5.1 STARTING WITH THE MODEM ......................................................................................................................... 19
5.1.1 Mounting the modem ..................................................................................................................... 19
5.1.2 Installation of the modem............................................................................................................... 20
5.1.3 Checking the communication with the modem.............................................................................. 21
5.1.3.1 Without Library........................................................................................................................ 21
5.1.3.2 With EGM standard library ..................................................................................................... 22
5.1.3.3 The application ERCOGENER EaseLoc-Vx .......................................................................... 22
5.1.3.4 The owner application ............................................................................................................ 22

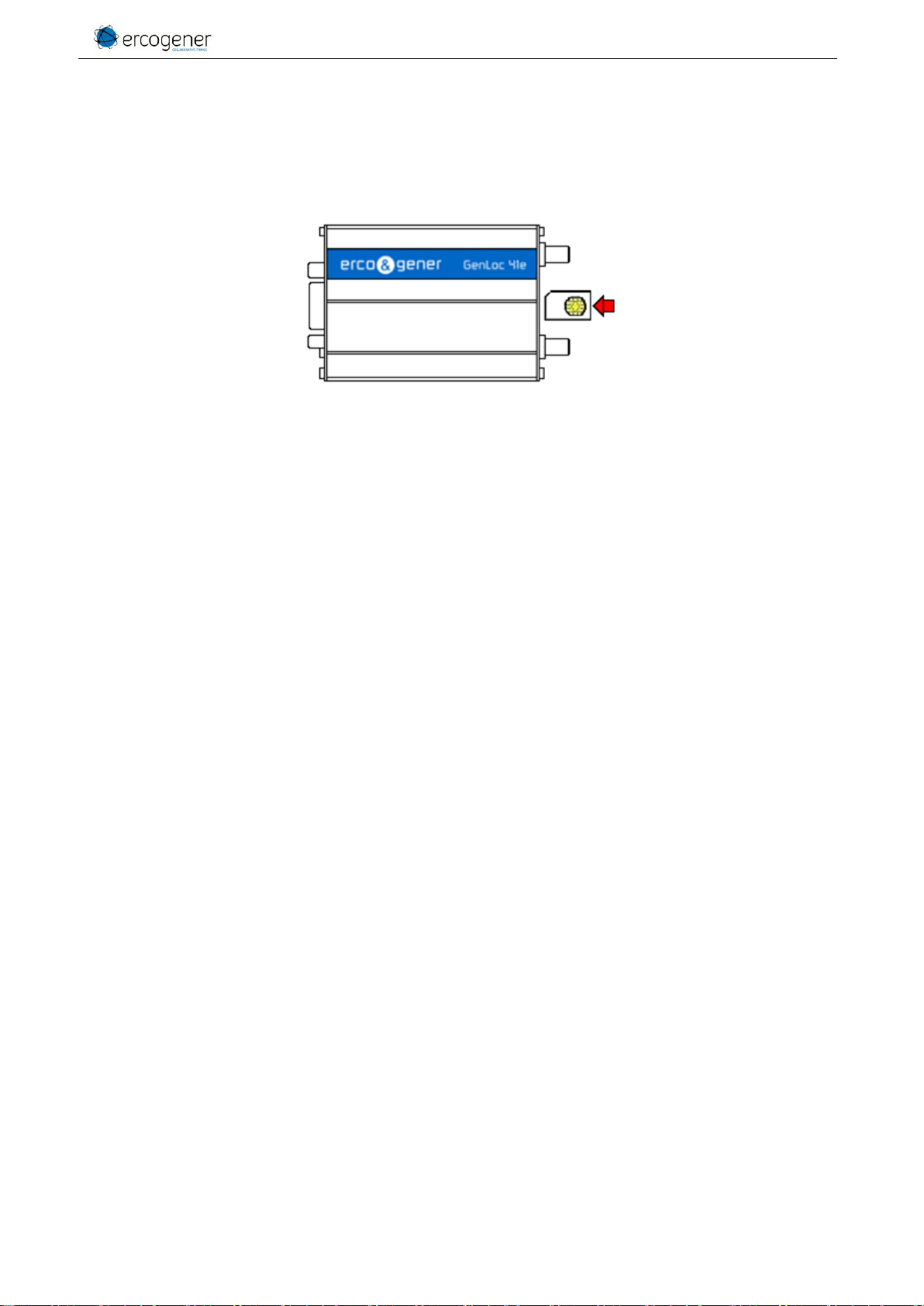

5.1.4 SIM card extraction........................................................................................................................ 23
5.1.5 Hardware reset of the modem ....................................................................................................... 23
5.2 SPECIFIC RECOMMENDATIONS FOR THE USE OF THE MODEM IN VEHICLES........................................................ 23
5.2.1 Recommended connection on the battery of a truck..................................................................... 24
5.2.2 Technical constraints in trucks....................................................................................................... 25
5.3.1 GSM led......................................................................................................................................... 26
5.3.1.1 Without library......................................................................................................................... 26
5.3.1.2 With EGM standard library ..................................................................................................... 26
5.3.1.3 The application ERCOGENER EaseLoc-Vx .......................................................................... 26
5.3.1.4 The owner application ............................................................................................................ 26
5.3.2 GPS led.......................................................................................................................................... 26
5.4 ECHO FUNCTION OF AT COMMANDS DEACTIVATED......................................................................................... 27
5.5 CHECKING THE QUALITY OF THE GSM RECEPTION SIGNAL.............................................................................. 27
5.6 VERIFICATION OF THE PIN CODE................................................................................................................... 28
5.7 VERIFICATION OF THE MODEM REGISTRATION ON THE GSM NETWORK............................................................ 29
5.8 READING A CURRENT POSITION GIVEN BY THE GPS ....................................................................................... 29
5.9 MAIN AT COMMANDS (HAYES) .................................................................................................................... 31
5.10 TURNING OFF THE MODEM .......................................................................................................................... 32
5.11 UPDATING PROCEDURE OF THE MODEM....................................................................................................... 32
6 TROUBLE SHOOTING................................................................................................................................ 33
6.1 PROBLEM OF COMMUNICATION BETWEEN THE MODEM AND THE RS232 LINK (V24).......................................... 33
6.2 "ERROR" MESSAGE .................................................................................................................................... 34
6.3 "NO CARRIER" MESSAGE........................................................................................................................... 35

EG_GenLoc41e_1055_UG_003_UK
Page 4 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
7 FUNCTIONAL DESCRIPTION..................................................................................................................... 36
7.1 ARCHITECTURE............................................................................................................................................ 36
7.2 POWER SUPPLY ........................................................................................................................................... 36
7.2.1 General presentation ..................................................................................................................... 36
7.2.2 Internal battery option .................................................................................................................... 37
7.2.2.1 Presentation of internal battery option.................................................................................... 37
7.2.2.2 Specifications of the internal battery option............................................................................ 37
7.2.2.3 Charge voltage and supply voltage........................................................................................ 38
7.2.2.4 Indication of presence/absence of the external power supply ............................................... 38
7.2.2.5 Instruction and restrictions of use........................................................................................... 39
7.2.3 Protections of the power supply..................................................................................................... 39
7.3 RS232 SERIAL LINK...................................................................................................................................... 39
7.3.1 General Presentation..................................................................................................................... 39
7.3.2 Pins description.............................................................................................................................. 40
7.3.4 Output +3.8V.................................................................................................................................. 41
7.4 INPUTS/OUTPUTS FUNCTIONING.................................................................................................................... 42
7.5 BOOT......................................................................................................................................................... 43
7.6 RESET....................................................................................................................................................... 43
7.6.1 General presentation ..................................................................................................................... 43
7.6.2 RESET sequence .......................................................................................................................... 43
7.7WATCHDOG................................................................................................................................................. 44
7.8 AUDIO ......................................................................................................................................................... 44
7.8.1 Microphone inputs.......................................................................................................................... 45
7.8.2 Loud-speaker outputs (Speaker) ................................................................................................... 45
7.8.3 Buzzer outputs............................................................................................................................... 45
7.9 GPS MODULE .............................................................................................................................................. 46
7.10 DIRECT GPS MODE (ANALOG SWITCH) ....................................................................................................... 46
7.11 INTERNAL PROCESSOR ............................................................................................................................... 47
7.11.1 EGM presentation........................................................................................................................ 47
7.11.2 EGM Architecture......................................................................................................................... 47
8 TECHNICAL CHARACTERISTICS ............................................................................................................. 48
8.1 MECHANICAL CHARACTERISTICS ................................................................................................................... 48
8.2 ELECTRICAL CHARACTERISTICS..................................................................................................................... 49
8.2.1 consumption................................................................................................................................... 49
8.2.2 Max consumption........................................................................................................................... 52
8.2.3 Audio interface............................................................................................................................... 52
8.2.3.1 Microphone............................................................................................................................. 53
8.2.3.2 Loudspeaker........................................................................................................................... 54
8.2.3.3 Buzzer..................................................................................................................................... 55
8.2.4 Inputs/Output ................................................................................................................................. 56
8.2.4.1 Opto-coupled Inputs (I1, I2, I3)............................................................................................... 56
8.2.4.2 Open collector output (O1)..................................................................................................... 57
8.2.4.3 Analog input - ANA1 (0 - 10V) on INPUT2............................................................................. 58
8.2.4.4 Analog Input - ANA2 (0 - 10V) on SPKN................................................................................ 58
8.2.4.5 Input/Output (0 –3.3 V) direct on INPUT2, INPUT3 .............................................................. 59
8.2.4.6 Bus One Wire (0 - 3.3V) on INPUT3 ...................................................................................... 60
8.2.4.7 Bus One Wire (0 - 3.3V) multi-salves Dallas on INPUT3....................................................... 61
8.2.5 SIM interface.................................................................................................................................. 62
8.2.6 RESET signal................................................................................................................................. 62
8.2.7 RF GSM/DCS characteristics ........................................................................................................ 62
8.2.7.1 RF functioning......................................................................................................................... 62
8.2.7.2 GSM external antenna............................................................................................................ 63
8.2.8 GPS characteristics ....................................................................................................................... 63
8.2.8.1 GPS functioning...................................................................................................................... 63
8.2.8.2 GPS external antenna ............................................................................................................ 64
8.2.8.3 Installation of the GPS external antenna................................................................................ 64
8.2.9 Characteristics of the accelerometer ............................................................................................. 65
8.2.10 Characteristics of the serial link (UART)...................................................................................... 65
8.2.11 ON/OFF commande of the power supply .................................................................................... 66
8.2.12 Bus I2C (Option) .......................................................................................................................... 67
8.3 ENVIRONMENTAL CHARACTERISTICS.............................................................................................................. 68
8.4 STANDARDS/CONFORMITIES......................................................................................................................... 68

EG_GenLoc41e_1055_UG_003_UK
Page 5 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
9 SECURITY RECOMMENDATIONS............................................................................................................. 69
9.1 GENERAL SECURITY ..................................................................................................................................... 69
9.2 SECURITY IN A VEHICLE ................................................................................................................................ 70
9.3 CARE AND MAINTENANCE.............................................................................................................................. 70
9.4 YOUR RESPONSIBILITY.................................................................................................................................. 70
10 RECOMMENDED ACCESSORIES ........................................................................................................... 71
11 CLIENT SUPPORT .................................................................................................................................... 71

EG_GenLoc41e_1055_UG_003_UK
Page 6 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
Presentation
Entirely dedicated to geo-localization and embedded data services, the modem GenLoc 41e combines both
GSM/GPRS and GPS functions in the same robust case.
The GPS data can be transmitted by SMS or data GSM/GPRS communication.
This product includes the GPS function 50 channels Hypersense and its sensitivity ensures the GPS data
collection in difficult environmental conditions.
The modem is Quad-Bands 850/900/1800/1900 MHz and GSM/GPRS Class 10.
The GenLoc 41e has 3 operating modes:
▪External mode (standard): The driving is made by an external application. The modem is used with
the AT commands set (see EG_EGM_CL_xxx_yy of ERCOGENER).
▪Autonomous mode (optional): Once configured, the modem is autonomous; it cyclically registers the
positions and transmits them automatically to the client’s application via different services: SMS,
GSM Data, TCP socket GPRS (see EG_EaseLoc_01_CL_xxx_yy of ERCOGENER).
▪Specific development mode: the EGM development tool allows to develop a personalized embedded
application. For more information concerning the tools and the training, please contact our sales
department.
The GenLoc 41e provides digital inputs/outputs allowing the creation of embedded telematic solutions with
high added value.
This document describes the modem and provides the following information:
- General presentation,
- Functional description,
- Available basic services,
- Installation and use of the modem (first level),
- Trouble shooting,
- Recommended accessories for the use of the modem.
- Options, contact us.
For more information concerning this document, ERCOGENER puts at your disposal the following elements:
- Commands List
External mode EG_EGM_CL_xxx_yy
Autonomous mode EG_EaseLoc_01_xxx_yy
- Application Note EG_GenLoc41e_1055_AN_xxx_yy
- Release Note EG_GenLoc41e_1055_RL_xxx_yy
- Certificate of Origine, Conformity …
- Client support (Hot-Line)
These different documents are available on our website www.ercogener.com in the download
area of the product concerned..

EG_GenLoc41e_1055_UG_003_UK
Page 7 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
Warning
The GenLoc 41eis dedicated to 'Machine To Machine' (M2M) applications only.
ERCOGENER recommends the use of SIM card subscriptions of the 'Machine To Machine'
(M2M) type.
Video, VoIP (Voice over IP) transfer requires the payment of additional royalties.
ERCOGENER advises to read carefully all the documents concerning the GenLoc 41e (User Guide,
Application Notes, Command List)that can be download on our website www.ercogener.com.
ERCOGENER cannot be held responsible for:
- The problems due to an inappropriate use of the GenLoc 41e.
- The problems due to a wrong configuration
- The problems due to a wrong use of an embedded software application developed or
supplied by a third party.
- Dysfunctions due to the absence or a bad coverage or termination of the GSM, GPRS and
GPS networks.
- The dysfunctions if the product is used for the watching of physical persons where human
life is engaged.
ERCOGENER reserves the right to modify the functions of its products "GenLoc 41e" and
"EaseLoc" without previous notice.
- In order to avoid any risk of electrocution, do not open the casing.
- For any functioning, the casing must be closed.
- No internal part can be repaired by the user. The GenLoc 41e must be returned to the factory for any repair
the RMA request (Return Material Authorization).
- The GenLoc 41e must be placed in a normally ventilated area, out of sources of heat.
- In order to guarantee the electromagnetic compatibility, the length of the serial cable, the supply cable and
the inputs/outputs cable must not exceed 3 meters.
- The GenLoc 41e must not be connected directly to the mains supply; a voltage adapter must be used.
This marking on the product, accessories, packaging or literature indicates that the product
and its electronic accessories (e.g. cable etc.) should not be disposed of with other household
waste.

EG_GenLoc41e_1055_UG_003_UK
Page 8 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
Copyright
The reproduction, transfer, distribution or storage of part or the totality of the contents of this document, in
any form, without the prior written authorization of ERCOGENER is strictly prohibited.
GenLoc 41e is a trademark of ERCOGENER.
Hayes is a registered trademark of Hayes Microcomputer Product Inc. The names of products and
companies mentioned in this document may be names or trademarks of their respective holders.
The use of some products or services described in this document may require a paying subscription. The
availability of some products or services described in this document may change, depending on the
configurations and the materials.
In some countries, restrictions of use of the devices may be applied. For more information, thank you to
contact your nearest legally qualified local government representative.
ERCOGENER follows a method of continuous development. Consequently, ERCOGENER reserves the right
to change and improve any of its products described in this document, without notice.
The contents of this document are provided “as it is”. Except for the applicable obligatory laws, no guarantee
in any form, explicit or implicit, including but without being limited to it the implicit guarantees of aptitude to
marketing and of appropriateness to a particular use, is granted concerning the precision, the liability or the
contents of this document. ERCOGENER reserves the right to revise or withdraw this document at any time
and without previous notice.
ERCOGENER cannot be held responsible for any loss of data or income, as well as particular damage,
incidental, consecutive or indirect.

EG_GenLoc41e_1055_UG_003_UK
Page 9 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
1 References
1.1 Referred documents
Commands List of
Standard library of ERCOGENER ......................................: EG_EGM_CL_xxx_yy
the embedded application EaseLoc of ERCOGENER ....... : EG_EaseLoc_01_CL_xxx_yy
Application Notes GenLoc 41e of ERCOGENER........................ : EG_GenLoc41e_1055_AN_xxx_yy
GSM reference documents:
3GPP TS 27.007 Technical Specification Group Core Network and Terminals; AT command
set for User Equipment (UE)
3GPP TS 27.005 - Technical Specification Group Terminals; Use of Data Terminal Equipment -
Data Circuit terminating Equipment (DTE-DCE) interface for Short Message Services (SMS)
and Cell Broadcast Service (CBS)
3GPP TS 27.010 - Terminal Equipment to User Equipment (TE-UE) multiplexer protocol
(Release 1999)
1.2 Abbreviations
Abbreviations Definition
AC
Alternative Current
ACM
Accumulated Call Meter
AMR
Adaptive Multi-Rate
AT
Attention (prefix for modem commands)
BTS
Base Transceiver Station
CLK
ClocK
CMOS
Complementary Metal Oxide Semiconductor
CS
Coding Scheme
CTS
Clear To Send
dB
Decibel
dBc
Decibel relative to the Carrier power
dBi
Decibel relative to an Isotropic radiator
dBm
Decibel relative to one milliwatt
DC
Direct Current
DCD
Data Carrier Detect
DCE
Data Communication Equipment
DCS
Digital Cellular System
DSR
Data Set Ready
DTE
Data Terminal Equipment
DTMF
Dual Tone Multi-Frequency
DTR
Data Terminal Ready
EEPROM
Electrically Erasable Programmable Read-Only Memory
EFR
Enhanced Full Rate
EGM
Erco Gener Middleware
E-GSM
Extended GSM
EMC
ElectroMagnetic Compatibility
EMI
ElectroMagnetic Interference
ESD
ElectroStatic Discharges
ETSI
European Telecommunications Standards Institute

EG_GenLoc41e_1055_UG_003_UK
Page 10 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
FIT
Series of connectors (micro-FIT)
FR
Full Rate
FTA
Full Type Approval
FTP
File Transfert Protocol
GCF
Global Certification Forum
GND
GrouND
GPIO
General Purpose Input Output
GPRS
General Packet Radio Service
GPS
Global Positioning System
GSM
Global System for Mobile communications
HR
Half Rate
I
Input
IEC
International Electrotechnical Commission
IMEI
International Mobile Equipment Identification
I/O
Input / Output
LED
Light Emitting Diode
LLC
Low Level Command
MAX
MAXimum
ME
Mobile Equipment
MIC
MICrophone
Micro FIT
Family of connectors from Molex
MIN
MINimum
MNP
Microcom Networking Protocol
MO
Mobile Originated
MS
Mobile Station
MT
Mobile Terminated
NOM
NOMinal
O
Output
Pa
Pascal (for speaker sound pressure measurements)
PBCCH
Packet Broadcast Control Channel
PC
Personal Computer
PCL
Power Control Level
PDP
Packet Data Protocol
PIN
Personal Identity Number
PLMN
Public Land Mobile Network
PUK
Personal Unblocking Key
PWM
Pulse Width Modulation
RF
Radio Frequency
RFI
Radio Frequency Interference
RI
Ring Indicator
RMS
Root Mean Square
RTS
Request To Send
RX
Receive
SIM
Subscriber Identification Module
SMA
SubMiniature version A RF connector
SMB
SubMiniature version B RF connector
SMS
Short Message Service
SNR
Signal-to-Noise Ratio
SNTP
Simple Network Time Protocol
SPI
Serial Peripheral Interface
SPL
Sound Pressure Level
SPK
SpeaKer
SRAM
Static RAM
TCP/IP
Transmission Control Protocol / Internet Protocol
TDMA
Time Division Multiple Access
TU
Typical Urban fading profile
TUHigh
Typical Urban, High speed fading profile

EG_GenLoc41e_1055_UG_003_UK
Page 11 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
TX
Transmit
TYP
TYPical
UTC
Universal Time Clock
VSWR
Voltage Stationary Wave Ratio
1.3 Symbols
The following symbols are used to highlight the important information of this userguide.
A symbol for the essential information concerning the module integration and performance.
A warning symbol indicates the actions that could harm or damage the module
2 Packaging
2.1 Content
The GenLoc 41e is supplied with:
- a GenLoc 41e cardboard packaging,
- a modem GenLoc 41e,
- 2 fixing brackets,
- A 4-wire cable
Red/Black/Orange/Green stripped with fuse 5x20 of 2.5A/250V
or depending on supplying
Red/Black /Yellow/Brown stripped with fuse mini Blade 2A/32V
- A 2-wire cable (Blue/Yellow) stripped.
- A technical sheet (Instructions Sheet).

EG_GenLoc41e_1055_UG_003_UK
Page 12 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
2.2 Packaging
External dimensions of the modem packaging:
- Width : 54.5 mm,
- Height: 68 mm,
- Length: 108 mm.
An identification label is put on the top of the packaging. It shows :
- The ERCOGENER logo,
- The product reference: GenLoc 41e,
- The CE mark,
- The IMEI bar code with 15 digits.
Dimensions of the label:
- Height: 37 mm,
- Length: 70 mm.
2.3 Modem labels
On the standard casing, there are 2 labels placed on the back part of the modem:
▪A production label indicating the following information:
- The CE mark,
- The crossed wheelie-bin mark (DEEE standards),
- The direct current mark (VDC),
- The mark R40,
- The IMEI bar code with 15 digits.
▪A label of the markings: ROHS (2002/95/CE).

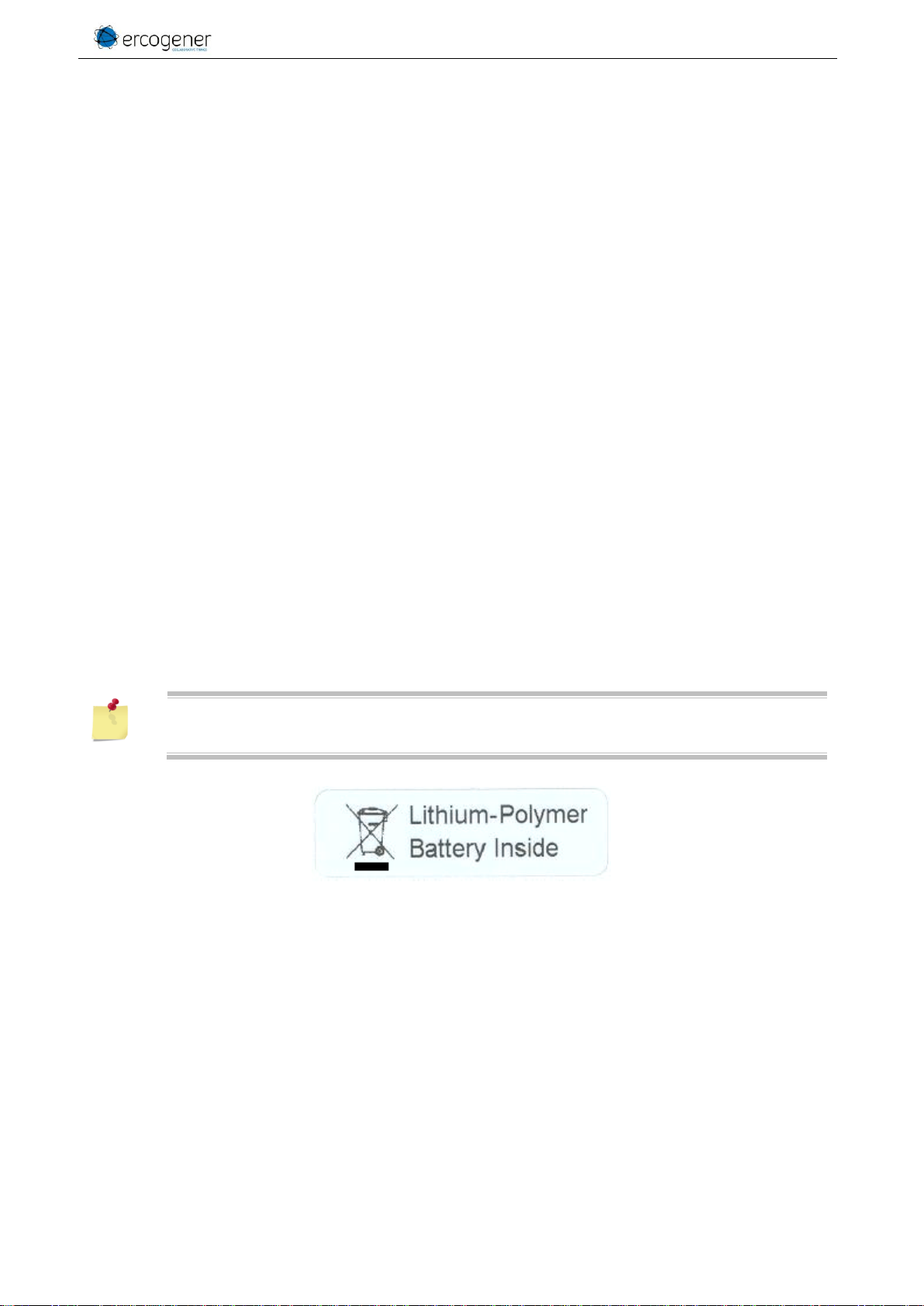

If the internal battery option has been mounted during production, the modem has the
following label: Lithium-Polymer Battery Inside.

EG_GenLoc41e_1055_UG_003_UK
Page 13 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
3 General Presentation
3.1 Description
Description of the modem GenLoc 41e :
Front side
Back side
2 brackets to fix the modem on a support.
Connector
Micro-Fit 4pts/M
Connector
Sub HD 15pts/F
Connector
Micro-Fit 2pts/M
Fixing brackets
Connector
FAKRA-D
GSM Antenna
Connector
FAKRA-C
GPS Antenna
GPS LED
GSM LED
SIM card cover

EG_GenLoc41e_1055_UG_003_UK
Page 14 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
3.2 External connections
3.2.1 Connections
3.2.1.1 Antenna connectors
GSM antenna connector:
The GSM antenna connector is FAKRA-D female with a 50Ω impedance.
GPS antenna connector:
The GPS antenna connector is FAKRA-C male with a 50Ω impedance.
3.2.1.2 Micro FIT connectors
Female Micro FIT Connector with 4 male pins:
This connector of the GenLoc 41e is used for the external DC supply and the GPIOs (the 2 signals Input and
Output).
The pins 3 and 4 are used for the Input/Output functions. The modem can only be powered
by the pins 1 (+VDC) and 2 (GND).
Female Micro FIT connector with 2 male pins:
This connector of the GenLoc 41e is used for the GPIO (2 Input signals).
Pin N°
Standard
name
Circuit
I/O
Option
I/O
Option
I/O
Option
I/O
1
INPUT 3
Opto
5 / 35 V
I
Input/Output
0-3V non opto
(GPIO)
I/O
INPUT One
Wire Dallas
0-3V non opto
I/O
INPUT One Wire
multi-slaves 0-3V
I/O
2
INPUT 2
Opto
5 / 35 V
I
Input/Output
0-3V non opto
(GPIO)
I/O
Analog Input
ANA-1 0-10V
I
Pin N°
Signal
1
+VDC
2
GND
3
INPUT 1(E1)
4
OUTPUT (S1)

EG_GenLoc41e_1055_UG_003_UK
Page 15 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
3.2.1.3 15-pin Sub D HD connector
The female 15-pin high density Sub D connector is used for:
- The RS232 serial link connection,
- The audio line connection (microphone and loud-speaker),
- The BOOT and RESET signals.
Pin N°
Standard name
Circuit
(V24 –RS232C)
I/O
Option
I/O
Option
I/O
1
Buzzer 1
Open collector
O
109 –DS –DCD
O
2
Data emission
103 –ED –TXD
I
3
Boot
BOOT
I
4
Microphone +
MICP
I
5
Microphone -
MICN
I
6
Data reception
104 –RD –RXD
O
7
Data set ready
107 –PDP –DSR
O
Frames NMEA/UBX
O
Output Clock
I2C (TWCK) 2
O
8
Data Terminal Ready
108/2 –TDP –DTR
I
Frames UBX
I
ON/OFF of
power supply
I
9
Signalization ground
102 –TS –GND
-
10
Loudspeaker +
SPKP
O
11
Clear to send
106 –PAE –CTS
O
12
Request To Send
105 –DPE –RTS
I
Data signal
I2C (TWD) 2
O
13
Power supply 1
3,8V –4.2V / 100
mA
O
125 –IA –RI
O
14
Reset
RESET
I
15
Loudspeaker -
SPKN
O
Input ANA-2 0-10V
I
(1)Please note that by default:
- The pin 1 is the Buzzer output (wiring of the output 109/DCD optional).
- The pin 13 is a tension (to power accessories like GenBlue 15e) of
3,8V fixed / 100mA witout battery option
3.3 - 4.2 V / 100 mA with battery option.
(wiring of the output 125/RI optional).
(2)Contact us

EG_GenLoc41e_1055_UG_003_UK
Page 16 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
3.2.2 Cables
3.2.2.1 4-wire micro FIT cable
One of the 2 following cables is supplied:
The 4-wire micro FIT cable allows to power the modem and to use the 2 signals Input and Output.
Component
Characteristics
4-pin Micro FIT connector
Supplier : MOLEX
Cable
Length ≈ 1.5m
Wire
Tinned copper 24 x 0.2 mm
Section : 0.75 mm²
Fuse
F2.5A L250V
Component
Characteristics
4-pin Micro FIT connector
Cable
Length ≈ 1.5m
Wire
Tinned copper 24 x 0.2 mm
Section : 0.75 mm²
Fuse
mini N 2A 32V RAPIDE
(grey)

EG_GenLoc41e_1055_UG_003_UK
Page 17 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
3.2.2.2 2-wire micro FIT cable
The 2-wire micro FIT cable allows to use the 2 supplementary inputs.
Component
Characteristics
2-pin Micro FIT connector
Supplier : MOLEX
Cable
Length ≈ 1.5m
Wire
Section : 0.5 mm²

EG_GenLoc41e_1055_UG_003_UK
Page 18 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
4 Characteristics and Services
The GenLoc 41e is:
A class10 GSM/GPRS modem dedicated to asynchronous binary data transmission, SMS, voice, and
Fax Group 3 Class2.0.
A GPS module dedicated to position tracking.
The modem characteristics and the available services are summarized in the table below.
GSM Functions
- Quad-Bands GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz
- ETSI GSM Phase 2+ Classe 4 (2W @ 850 / 900 MHz - 33 dBm)
Classe 1 (1W @ 1800 / 1900 MHz - 30 dBm)
- SIM Toolkit
Voice FUNCTIONS
- Voice (GSM mode)
- Telephony, Emergency call 112
- Full Rate, Enhanced Full Rate, Half Rate and AMR (FR/EFR/HF/AMR)
- Echo cancelation and noise reduction
- Full Duplex Free-hand
DATA Functions
- GPRS Class 10 (up to 4Rx / 2Tx)
- PBCCH/PCCCH supported, Coding scheme : CS1 to CS4
- Library TCP/IP (UDP Socket*, TCP*)
- CSD 9600 kbs (Max.)
- SMS Text, PDU, point to point MT/MO and SMS Cell Broadcast
GPS Functions
- Civil frequency L1 (1575,42MHz)
- 50 channel receiver
- Precision : 2.5m CEP (DGPS 2m CEP)
- Sensitivity : -160dB
- Protocols : NMEA-0183, UBX Binary
- A-GPS compatible
Interfaces
- GSM Antenna : connector FAKRA-D
- GPS Antenna : connector FAKRA-C
- Management of GPS antenna active 3.3V
- Power supply : +6.5 ≤ +VDC ≤ +32 VDC (micro-FIT connector)
- RS232 (300 to 115200bds) + Audio through the female 15-pin Sub-D
- AT commands : 3GPP TS 27.007 / 27.005 / 27.010
- Specific AT commands for GPS (DSR and DTR multiplexing / NMEA Position )
- SIM reader (SIM 3V –1,8V)
- 3 opto-coupled Inputs and 1 open-collector Output
- External auto-supply via pin RI
- Buzzer output via pin DCD

EG_GenLoc41e_1055_UG_003_UK
Page 19 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
* contact us
5 Using the modem
5.1 Starting with the modem
5.1.1 Mounting the modem
To mount the modem on a support, use the fixing brackets as described below.
The aluminum casing of the modem is connected to the 0V (GND) of the power supply and to
the 0V of the RS232 serial link. To avoid any risk of conduction of the ground plane to other
equipments, the modem must be electrically insulated from its mechanical support.
Accessories supplied
- Fixing brackets (x2)
- 4-wire Micro FIT cables (Power supply, Input and Output)
- 2-wire Micro FIT cables (2 Inputs)
Options / Accessories *
- Back-up battery
- Management of battery charge
- Command ON/OFF of external supply by soft
- Command ON/OFF of external supply by DTR
- Power down of the RS232 by soft
- Backup Real Time Clock (if option backup battery)
- Bus I2C (instead of signals DSR and RTS)
- 3-axis accelerometer
- Analog input (instead of opto-coupled input E2)
- Analog input (instead of output SPKN)
- Gen 10400 : Adapter RS232 / Digital Tachograph
- GenBlue 15e : Adapter Bluetooth® / RS232 auto-supplied
- 1 port ONE_WIRE
- Software development kit : cdrom SDK EGM
- Accessories: Antennas, cables, power supply... (consult our website)
- Must be fixed on a flat surface.
- Max. height of the screw head : 2 mm.

EG_GenLoc41e_1055_UG_003_UK
Page 20 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCOGENER reserves the right to make any modifications. Dct_427_02
5.1.2 Installation of the modem
To install the modem, it is recommended to do the following operations with the modem turned off:
- Remove the SIM card cover on the back side.
- Carefully insert the SIM card into the reader.
- Push the SIM card until hearing a "clic" that ensures its correct positioning.
- Put the SIM cover back.
- Connect the GSM antenna to the connector FAKRA-D.
- Connect the GPS antenna to the connector FAKRA-C.
- For the connection to the DTE, connect the V24 link via the 15-pin Sub HD cable.
- Connect the supply cable to the continuous and regulated power source (for an automobile
application, see the paragraph 5.2).
- Connect the supply cable to the modem and turn on the external power supply.
The modem is now ready.
There are different cases depending on the application installed inside the equipment:
- Without library: corresponds to the Bootloader.
- With EGM standard library
- The application ERCOGENER EaseLoc-Vx.
- The owner application.
We may obtain different display. See the following paragraph.
Way of insertion
of the SIM card
