ERGO-INNOVATE EI6151 User manual

V1.0
Full-Motion TV Wall Mount
Instruction Manual
Model: EI6151
Thank you for choosing this ERGO-INNOVATE product! At
ERGO-INNOVATE we strive to provide you with the best quality
products and services in the industry. Should you have any issues,
please don't hesitate to contact us at
[email protected] (US/CA)

01

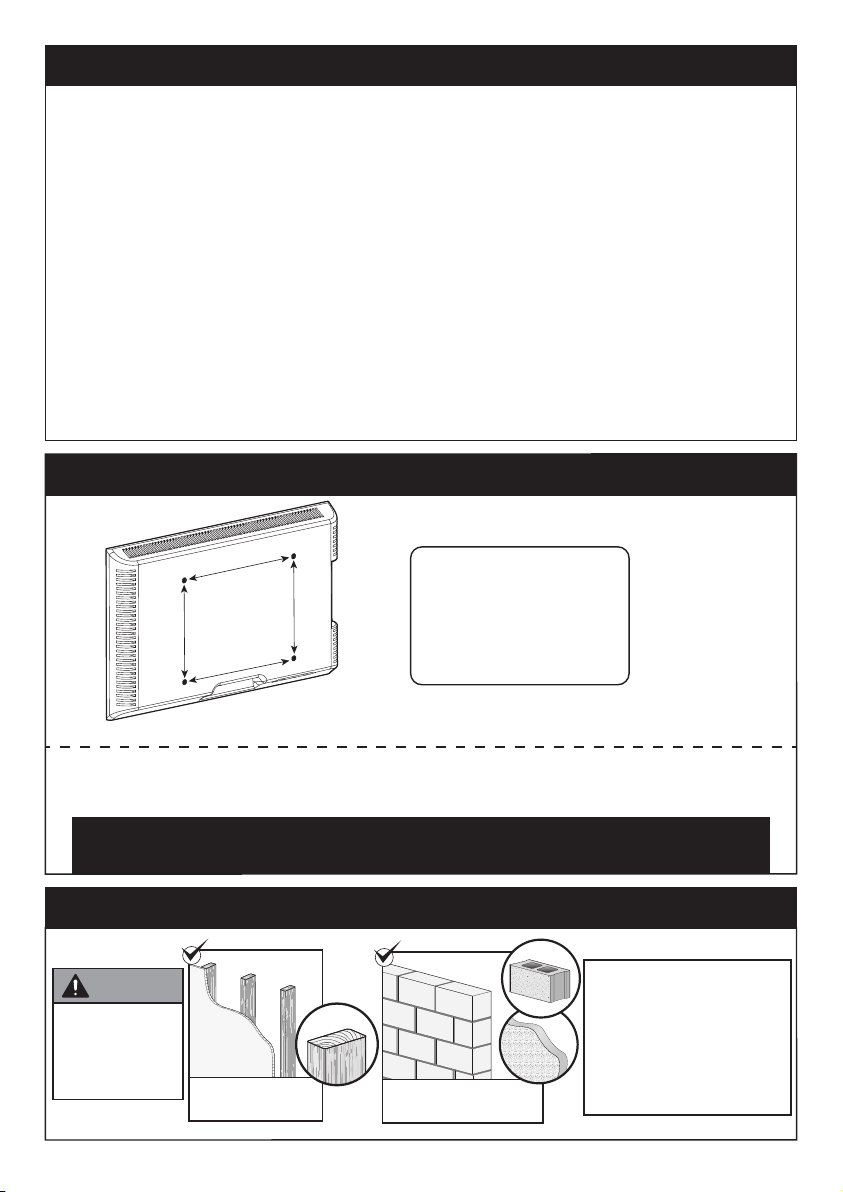

IMPORTANT SAFETY INFORMATION
Check the VESA Pattern of TV before the Installation
75 mm ≈ 3 in.
100 mm ≈ 4 in.
200 mm ≈ 8 in.
300 mm ≈ 12 in.
400 mm ≈ 16 in.
Minimum VESA pattern: 75mm/3 in.(W)x75mm/3 in.(H)
If your TV VESA is greater than 400x400 mm/16x16in. or less than
VESA 75x75mm/3x3 in., this mount is NOT compatible.
If this mount is NOT compatible, please contact customer service at
[email protected] to find a compatible mount.
MAX: 400mm/16 in.
MAX: 400mm/16 in.
Please carefully read all instructions before attempting installation. If you do
not understand the instructions or have any concerns or questions, please
contact our customer service at [email protected].
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in
this manual. Do not exceed weight capacity. We are not liable for damage or
injury caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, solid concrete, concrete
block and brick walls. - DO NOT install into drywall alone.
• The wall must be capable of supporting five times the weight of the TV and
mount combined.
Verify Your Wall Construction
Solid Concrete
or Concrete Block
CAUTION
DO NOT
install into
drywall alone Wood Studs
(with Drywall)
If you are not sure the
wall construction,
please contact our
customer service at
[email protected]

02
Tools Needed (Not lncluded)
Supplied Parts and Hardware
Supplied Parts and Hardware for Step 1
Extender Brackets
x2 x2
Carriage Bolt
M6 x 12mm
x8
G
Nut
M6
x8
H
02 03
Faceplate x1
01A
Warning:This product contains small items that could be a choking hazard
if swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not
use damaged or defective parts. lf you require replacement parts, contact our
customer service at [email protected].
• Please note: Not all hardware included in this package will be used.
Stud Finder Tape Measure Pencil Drill
5/32 in. (4mm)
Wood Drill
3/8 in. (10mm)
Concrete Drill
3/8 in. (10mm)
Socket Wrench
1/2 in. (13mm)
Socket Wrench
Phillips
Screwdriver
Hammer
Awl

03

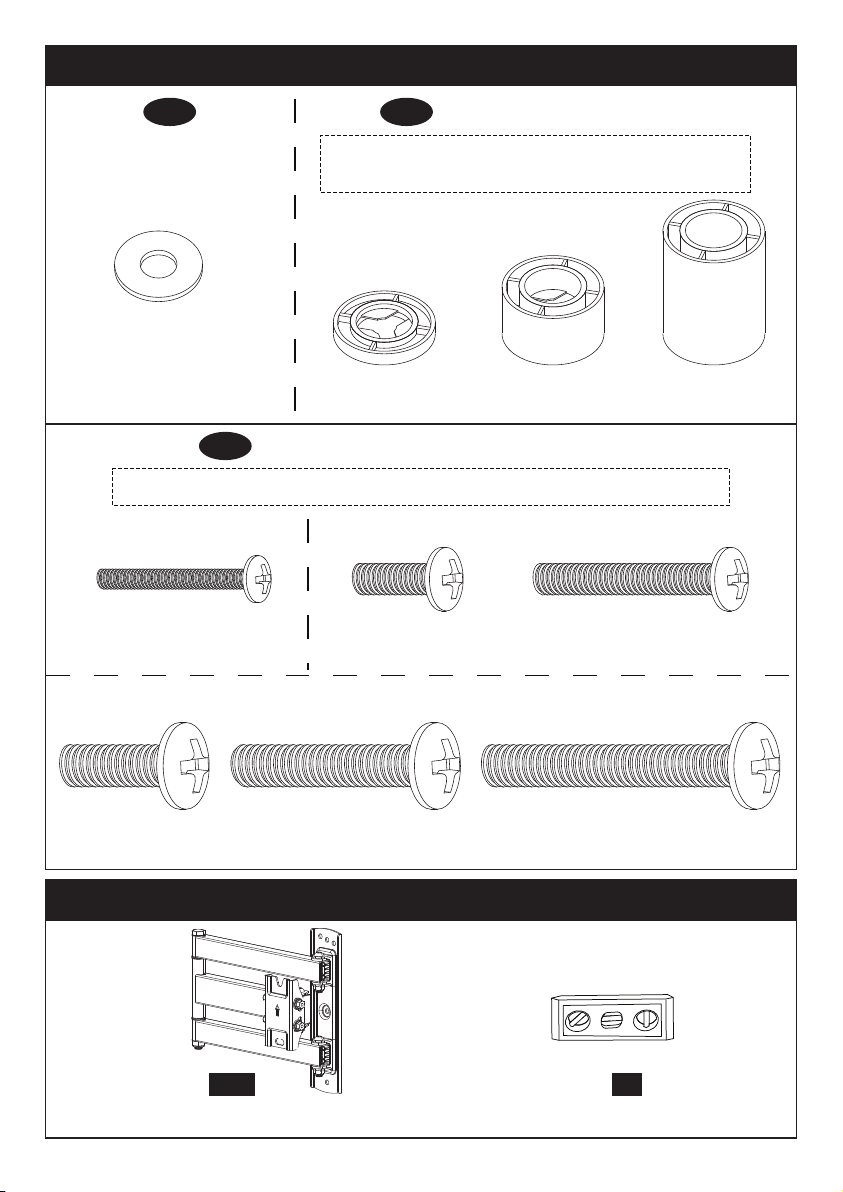

Supplied Parts and Hardware for Step 2
Supplied Parts and Hardware for Step 3
[B] x4
M4/M6
[C1] x8
φ8.5x18x2.5mm
[C2] x4
φ8.5x18x10mm
[C3] x4
φ8.5x18x22mm
04 05
Washer (if needed)
Spacers (if needed)
Note: The spacers are shown in accordance
with the actual size
06
M8
M6M4
TV Bolts (Only one bolt size fits your TV)
Note: The bolts are shown in accordance with the actual size
[D1] x4
M4 X 30mm
[F1] x4
M8x20mm
[E1] x4
M6x15mm
[E2] x4
M6x35mm
[F2] x4
M8x35mm
[F3] x4
M8x50mm
Level x1
07
Arm Assembly/Wall Plate
x1
01B

x4
Wall
Anchor
φ10X50mm
04
This anchor is for concrete
or brick walls ONLY. DO
NOT use them in drywall or
wood studs.
CAUTION!
A2
Option A
No Need to Attach Extender Brackets [02] and [03] to Faceplate [01A].
Step 1 Select the Combination that Applies to Your VESA Hole Pattern
100mm
200mm
75mm
100mm 200mm
75mm
01A
x4
A1
Lag Screw
ST6.3x60 mm
Note: The lag screw is shown in accordance with the actual size
For VESA hole pattern:
3x3 in. (75x75 mm)
4x4 in. (100x100 mm)
8x4 in. (200x100 mm)
8x8 in. (200x200 mm)
Option B
Need to Attach Extender Brackets [02] and [03] to Faceplate [01A].
3/8in. (10mm)
Socket Wrench
(Not lncluded)
G
H
02
03
02
03

05
Select TV Bolts
Only one bolt size fits your TV.
Step 2 Secure the Faceplate [01A] or Faceplate [01A] with
Extender Brackets [02] and [03] to TV
M4 M6 M8
400mm
300mm
200mm
300mm
400mm 300mm
300mm
400mm
400mm
For VESA hole pattern:
16x12 in. (400x300 mm)
For VESA hole pattern:
12x12 in. (300x300 mm)
16x16 in. (400x400 mm)
For VESA hole pattern:
12x8 in. (300x200 mm)
16x8 in. (400x200 mm)
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Note: If necessary, the spacers can be used in multi-layer. If the installation
fails after trying various methods, please contact customer service at
[email protected].
Too Long
Correct Correct
Too Short

06
UP

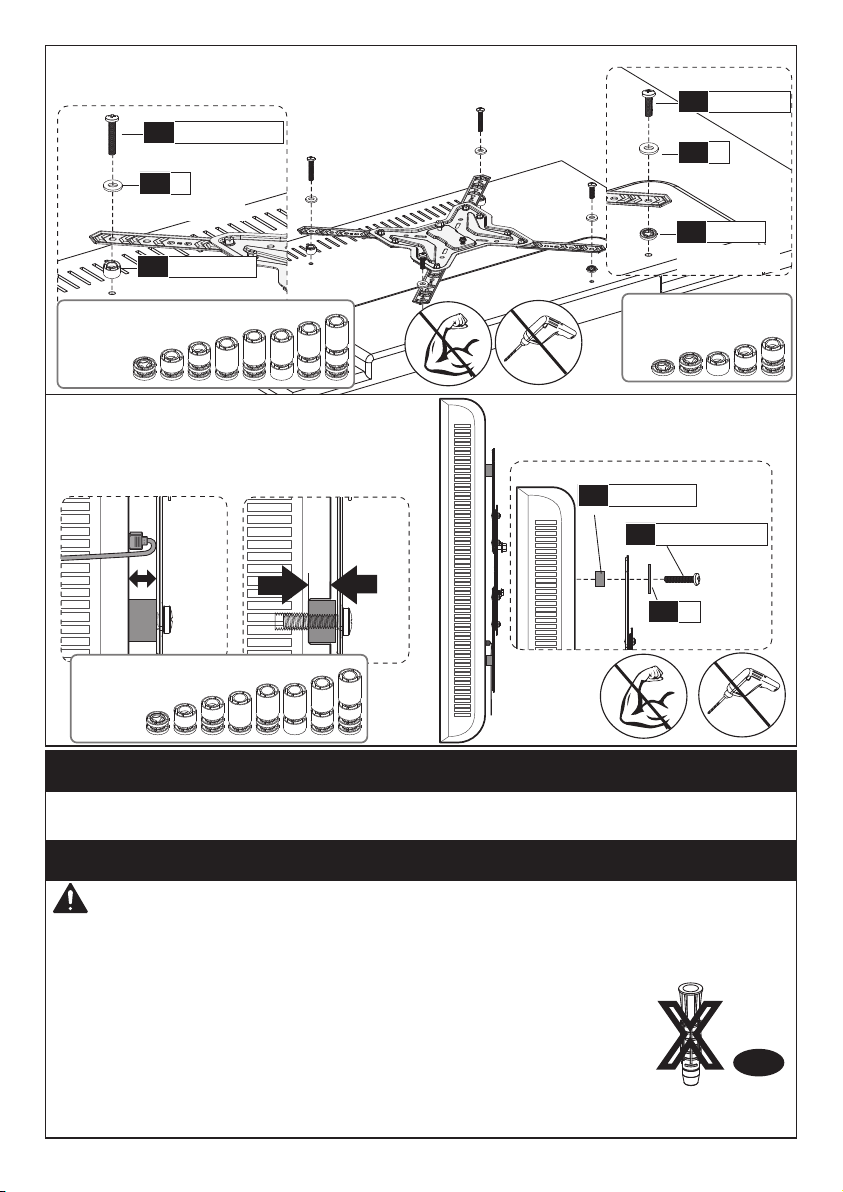

Option A (For Flat Back TV)
D1/E1/F1
B
C1/C2
06
04
05
(If needed)
(If needed)
Alternate
Spacer
Setups
Please note: The bolt hole locations on your TV may vary in accordance of the
manufacturers design of the TV. We are only illustrating possible locations of the bolt
holes.
CAUTION: Ensure the face-
plate [01A] or faceplate [01A] with
extender brackets [02] and [03] is
EQUALLY CENTERED on your TV
and securely fastened in place.
Option B (For Round Back TV)
D1/E2/F2/F3
B
C1/C2/C3
06
04
05
(If needed)
Alternate
Spacer
Setups

D1/E2/F2/F3
06
C1/C2/C3
05
(If needed)
B
04
07
For wood stud installation, follow STEP 3A
For concrete installation, follow STEP 3B
Option D
For cable interference or inset holes,
use spacers [05] to create extra space
between the TV and TV faceplate
Step 3 Attach the Arm Assembly/Wall Plate [01B] to Wall
Spacers may be necessary for 2 holes ONLY.
Option C (For TV with A “Bump”)
D1/E2/F2/F3
B
C1/C2/C3
06
04
05
(If needed)
D1/E1/F1
B
C1/C2
06
04
05
(If needed)
(If needed)
Alternate Spacer
Setups
Alternate
Spacer
Setups
Alternate
Spacer
Setups

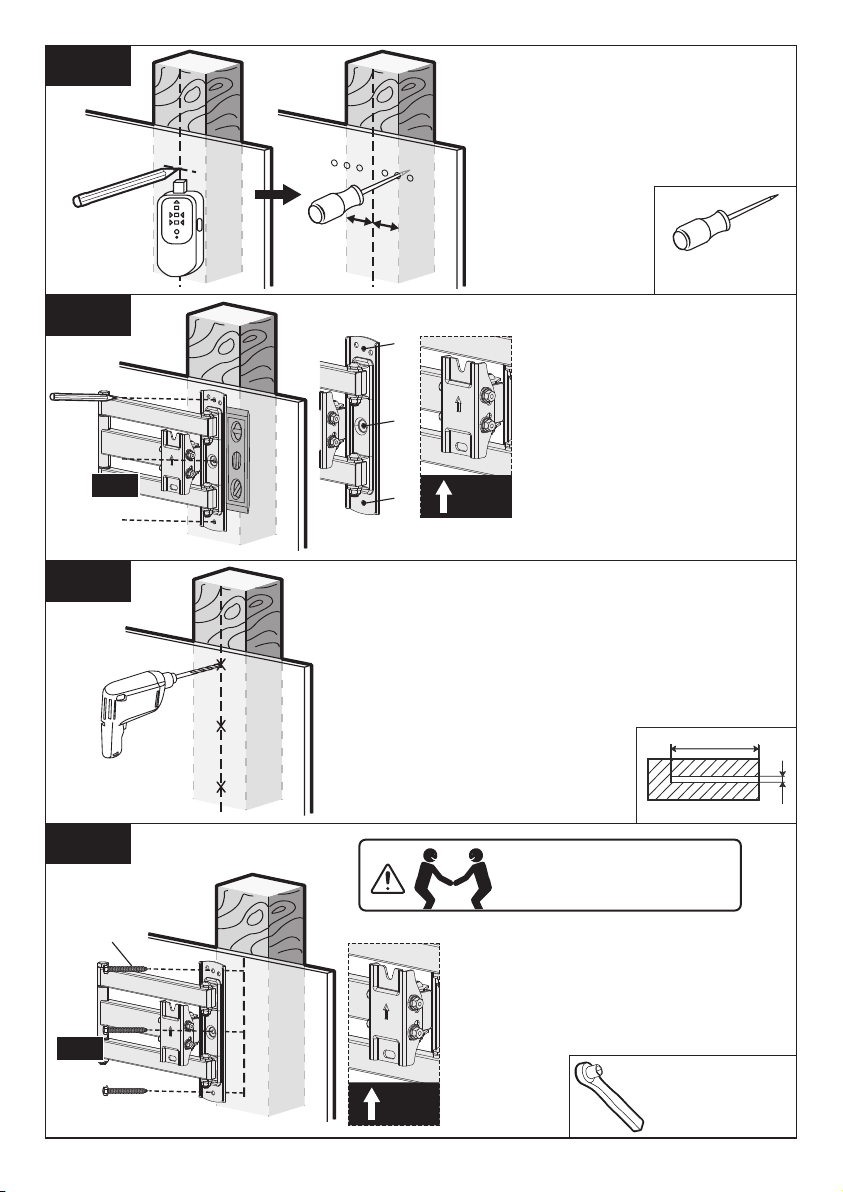

Step 3A Wood Stud Option
Wall
Anchor
A2
X
WARNING:
Ensure the arm assembly/wall plate [01B] is securely fastened to the
wall before continuing to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum
1.5 x 3.5 in. (38 x 89 mm)
● Stud center must be verified
Avoid potential personal injury or property damage! DO NOT over-tighten the lag
screws [A1]. Tighten the lag screws [A1] only until they are pulled firmly against the
arm assembly/wall plate [01B].
DO NOT USE ANCHOR FOR THIS STEP

08
Position the arm assembly/
wall plate [01B] at your
desired height and line up
the holes with your stud
center line. Level the arm
assembly/wall plate [01B]
and mark the holes.
ø5/32 in.(4 mm)
2 23/64 in.(60mm)
Use a stud finder (not included)
to locate wood studs or use an
awl (not included) to verify the
edges. Mark the edge and
center locations.
Drill 3 pilot holes using a 5/32 in.
(4mm) diameter drill bit. Make sure
the depth is not less than 2 23/64 in.
(60mm).
01B
Awl
(not included)
UP
1
2
3
3A-1
3A-2
3A-3
3/8in. (10mm)
Socket Wrench
(Not lncluded)
Install the arm assembly/wall plate
[01B] using lag screws [A1].
Tighten the lag screws [A1] only
until they are pulled firmly against
the arm assembly/wall plate [01B].
A1
01B
You may need assistance
with this step.
3A-4
UP

A2
Position arm assembly-
/wall plate [01B] at your
desired height, level the
wall plate and mark the
pilot hole locations.
3B-2
3B-3
UP
2
1
3
4
01B
09
ø3/8 in.(10mm)
2 9/16 in.(65mm)
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the arm assembly/wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
● Never drill into the mortar between blocks
WARNING:
Ensure the arm assembly/wall plate [01B] is securely fastened
to the wall before continuing to the next step.
Avoid potential personal injury or property damage! DO NOT over-tighten the lag
screws [A1]. Tighten the lag screws [A1] only until they are pulled firmly against
the arm assembly/wall plate [01B].
Step 3B Solid Concrete or Concrete Block Option
A2
3B-1
Drill 4 pilot holes using a 3/8 in.
(10mm) diameter drill bit. Make sure
the depth is not less than 2 9/16 in.
(65mm). Never drill into the mortar
between blocks.
Use the hammer to knock anchors
[A2] into the wall.
Be sure the anchors [A2] are seated
flush with the concrete surface.

01B
A1
10
3B-4
3/8in. (10mm)
Socket Wrench
(Not lncluded)

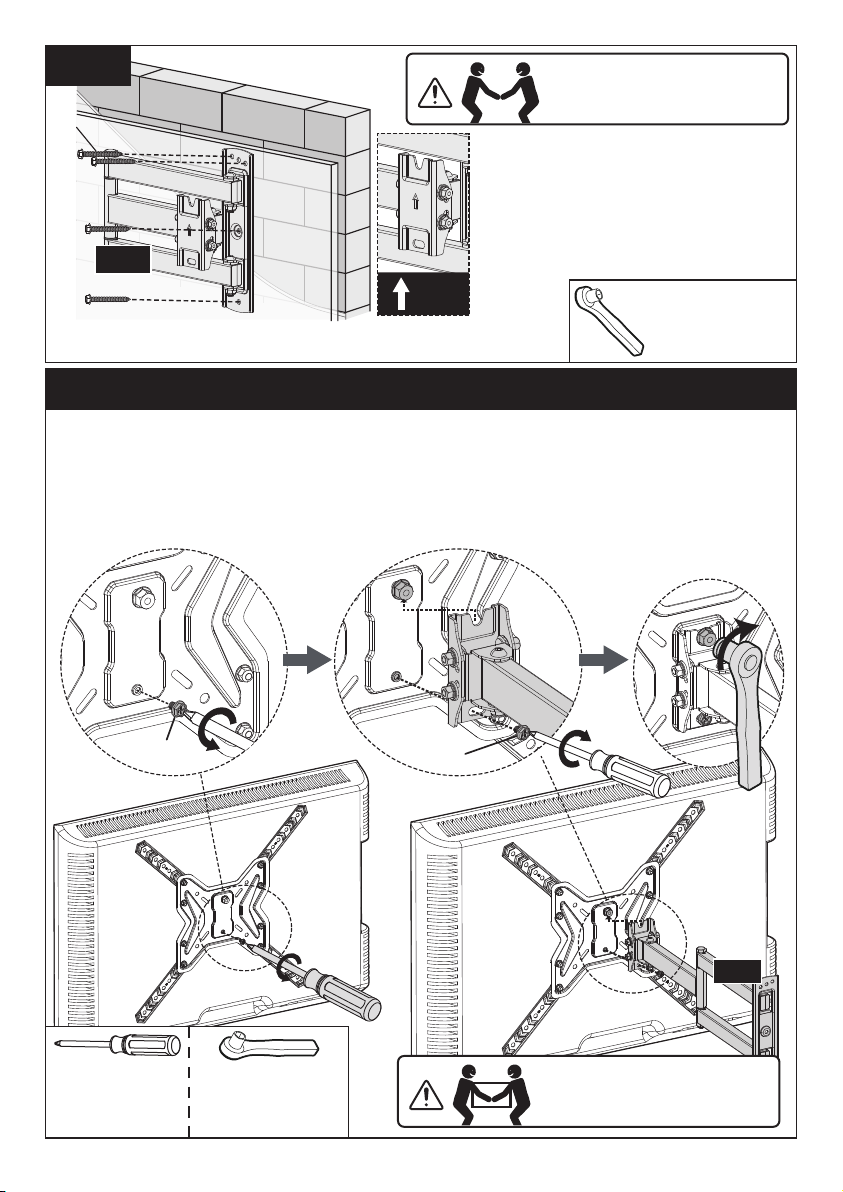

Step 4 Secure the TV onto the Arm Assembly/Wall Plate [01B]
Install wall plate using lag screws
[A1]. Tighten the lag screws [A1]
only until they are pulled firmly
against the arm assembly/ wall
plate [01B]. DO NOT over-tight-
en the lag screws [A1].
4-1. Remove the preassembled bolt [S1] from the faceplate [01A] using the
phillips screwdriver.
4-2. Hang the TV to the arm assembly/wall plate, making sure the upper bolt
hangs on the hook on the arm assembly/wall plate.
4-3. Tighten the bolt [S1] to secure the TV to the arm assembly/wall plate.
UP
You may need assistance
with this step.
①
③
②
S1
S1
Phillips
Screwdriver
(Not lncluded)
1/2 in.(13mm)
Socket Wrench
(Not lncluded)
Tighten
01B
HEAVY! You may need
assistance with this step.

11
3/8in. (10mm)
Socket Wrench
(Not lncluded)
If needed, the TV can be levelled.
1. Slightly loosen the bolt [S1].
2. Level your TV.
3. Retighten the bolt [S1] to hold TV in place.
1. Slightly loosen four tilt nuts [T].
2. Adjust the TV to the desired tilting angle.
3. Fasten the nuts to hold the tilting angle of the TV.
5-2 Tilt Adjustment

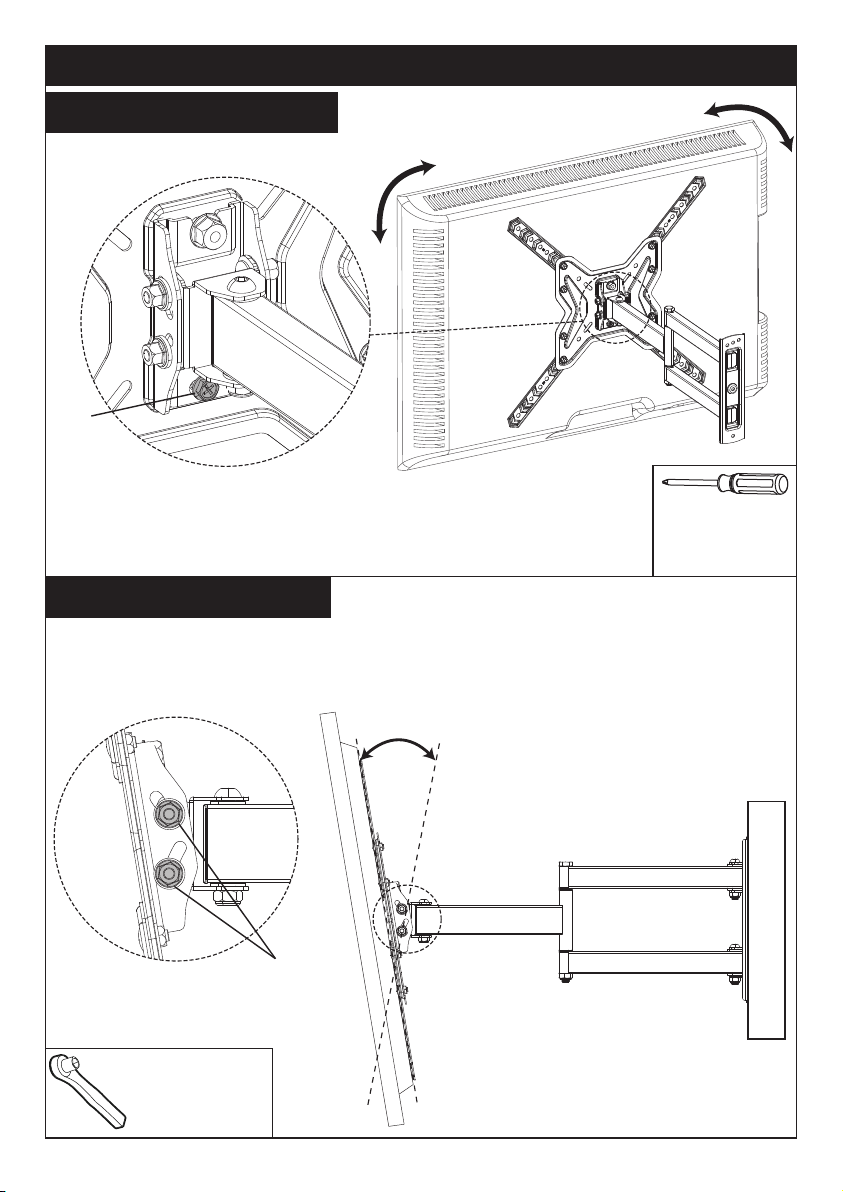

Step 5 Adjustments
5-1 Level Adjustment
S1
T
Phillips
Screwdriver
(Not lncluded)
