Ergotron Zido ZGCSSB User manual

1 of 3
300-5416-00 rev. B • 08/19
Product Part#
Zido Gel Cup/Probe Holder Small ZGCSSB
Zido Gel Cup/Probe Holder Large ZGCLSB
www.ergotron.com | USA: 1-800-888-8458
ZidoTM Gel Cup/Probe Holders
NOTE: The Zido Base Unit is not included.
User's Guide

2 of 3
300-5416-00 rev. B • 08/19
01
02
03 04
Product Quantity
01 Zido Gel Cup/Probe Holder Bracket 1
02 3/4" MDF Wood Screws 2
03 Long Gel Cup/Probe Holder 1
04 Short Gel Cup/Probe Holder (not shown) 1
WELCOME
Thank you for purchasing
Zido Gel Cup/Probe Holder!
If you have any questions or if we
can help you in any way, please
contact us at 800.325.3841.
PARTS LIST
Before beginning assembly of your Zido accessory, please
review the parts list to verify that your shipment is com-
plete.
A 5/32" hex driver (provided with your Zido cart) is re-
quired for this assembly.
A 1/8" drill bit and electric drill are also required.

3 of 3
300-5416-00 rev. B • 08/19
1/8" Drill Bit
Shelf Prole
1/2"
Tape
© 2019 Ergotron, Inc. All rights reserved.
www.ergotron.com | USA: 1-800-888-8458

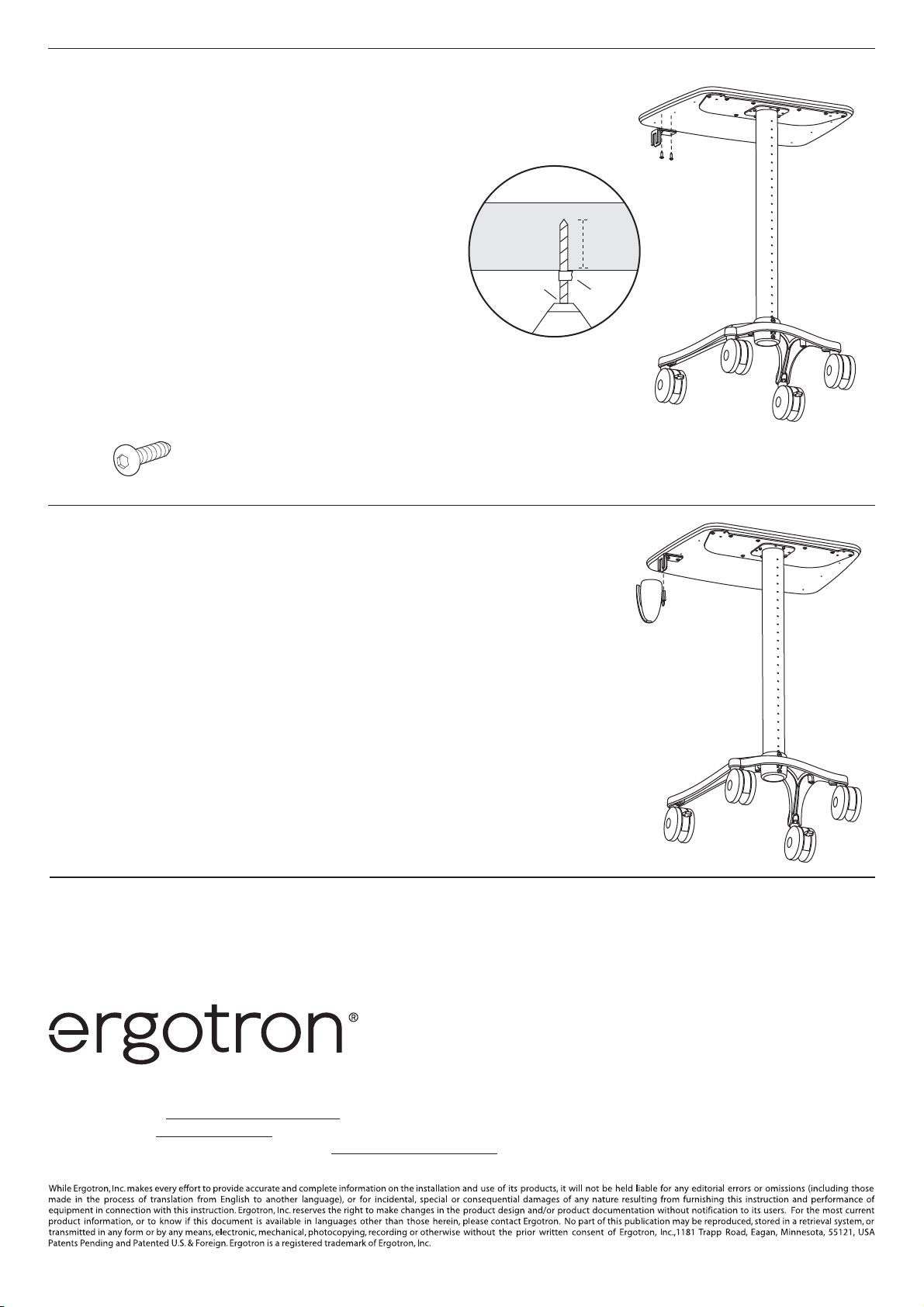

STEP 1
Install the Bracket
Select the installation location. Place the
mounting bracket on the bottom of the shelf at
the desired location so that the side with four
holes is against
the shelf.
Using the Mounting Bracket as a template, mark
the drill points through the two larger bracket
holes onto the bottom of the shelf.
Drill the screw holes using a 1/8”drill bit. Because
the shelf is 3/4”thick, only drill the hole 1/2”deep.
(Mark your drill bit with masking tape to be sure
you don’t drill too far.)
Install the bracket onto the shelf using
two 3/4" MDF wood screws.
STEP 2
Install the Holder
Slide the Gel Cup/Probe Holder over the
bracket until it clicks into place.
CONGRATULATIONS! YOUR HOLDER ASSEMBLY IS COMPLETE!
For local customer care phone numbers visit: http://contact.ergotron.com
For Service visit: www.ergotron.com
For Warranty visit: www.ergotron.com/warranty
For the latest User Installation Guide please visit: www.ergotron.com
3/4” Button Hd PB Screw
