ESAB Caddy Arc 152i User manual

Valid for serial no. 803-xxx-xxxx0460 448 074 20120524
Caddy
Arc 152i
RU Инструкция по
эксплуатации
GB Instruction manual

- 2 -
Rights reserved to alter specifications without notice.
Оставляем за собой право изменять спецификацию без предупреждения.
English 3................................................
Русский 12..............................................

English
- 3 -
TOCe
1 SAFETY 4...........................................................
2 INTRODUCTION 6...................................................
2.1 Equipment 6................................................................
3 TECHNICAL DATA 6.................................................
4 INSTALLATION 6....................................................
4.1 Location 7..................................................................
4.2 Mains power supply 7........................................................
4.2.1 Recommended fuse sizes and minimum cable area 7.......................
5 OPERATION 8.......................................................
5.1 Connections and control devices 8............................................
5.2 Control panel A31 8.........................................................
5.3 Connection of welding and return cable 8.......................................
5.4 Overheating protection 9.....................................................
5.5 MMA welding 9.............................................................
5.6 TIG welding 9...............................................................
6 MAINTENANCE 10....................................................
6.1 Inspection and cleaning 10................................................
7 FAULT-TRACING 10..................................................
8 ORDERING SPARE PARTS 11.........................................
9 DISMANTLING AND SCRAPPING 11...................................
DIAGRAM 22............................................................
ORDER NUMBER 24.....................................................
ACCESSORIES 25.......................................................

© ESAB AB 2008
- 4 -
bh31d1e
1 SAFETY
Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment
observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of welding
equipment. The following recommendations should be observed in addition to the standard regulations that apply to the work
place.
All work must be carried out by trained personnel well-acquainted with the operation of the welding equipment. Incorrect oper
ation of the equipment may lead to hazardous situations which can result in injury to the operator and damage to the equipment.
1. Anyone who uses the welding equipment must be familiar with:
its operation
location of emergency stops
its function
relevant safety precautions
welding
2. The operator must ensure that:
no unauthorized person is stationed within the working area of the equipment when it is started up.
no-one is unprotected when the arc is struck
3. The workplace must:
be suitable for the purpose
be free from drafts
4. Personal safety equipment
Always wear recommended personal safety equipment, such as safety glasses, flame-proof clothing, safety gloves.
Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which could become trapped or cause burns.
5. General precautions
Make sure the return cable is connected securely.
Work on high voltage equipment may only be carried out by a qualified electrician.
Appropriate fire extinquishing equipment must be clearly marked and close at hand.
CAUTION
Class A equipment is not intended for use in residential locations where
the electrical power is provided by the public low-voltage supply system.
There may be potential difficulties in ensuring electromagnetic
compatibility of class A equipment in those locations, due to conducted
as well as radiated disturbances.
GB

© ESAB AB 2008
- 5 -
bh31d1e
WARNING
Read and understand the instruction manual before installing or operating.
Arc welding and cutting can be injurious to yourself and others. Take precautions when welding and
cutting. Ask for your employer's safety practices which should be based on manufacturers' hazard
data.
ELECTRIC SHOCK - Can kill
Install and earth the unit in accordance with applicable standards.
Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
Insulate yourself from earth and the workpiece.
Ensure your working stance is safe.
FUMES AND GASES - Can be dangerous to health
Keep your head out of the fumes.
Use ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone
and the general area.
ARC RAYS - Can injure eyes and burn skin.
Protect your eyes and body. Use the correct welding screen and filter lens and wear protective
clothing.
Protect bystanders with suitable screens or curtains.
FIRE HAZARD
Sparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.
NOISE - Excessive noise can damage hearing
Protect your ears. Use earmuffs or other hearing protection.
Warn bystanders of the risk.
MALFUNCTION - Call for expert assistance in the event of malfunction.
PROTECT YOURSELF AND OTHERS!
ESAB can provide you with all necessary welding protection and accessories.
WARNING
Do not use the power source for thawing frozen pipes.
CAUTION
Read and understand the instruction manual before
installing or operating.
CAUTION
This product is solely intended for arc welding.
GB

© ESAB AB 2008
- 6 -
bh31d1e
2 INTRODUCTION
Arc 152i is a welding current power source intended for use with coated electrodes
(MMA welding) and TIG welding.
2.1 Equipment
Arc 152i is supplied with 3 m of mains cable and an instruction manual.
ESAB's accessories for the product can be found on page 25.
3 TECHNICAL DATA
Arc 152i
Mains voltage 230 V, 1 50/60 Hz
Primary current I1max 35 A
No-load power 30 W
Setting range 8-150 A
Maximum permissible load at
25% duty cycle
35% duty cycle
60% duty cycle
100% duty cycle
150 A / 26.0 V
140 A / 25.6 V
110 A / 24.4 V
90 A / 23.6 V
Power factorat maximum current 0.63
Efficiency at maximum current 78%
Open-circuit voltage 58-75 V
Operating temperature -10°C- +40°C
Transportation temperature -20°C- +55°C
Constant sound pressure in open circuit <70 db (A)
Dimensions, l x b x h 418 x 188 x 208 mm
Weight 7.8 kg
Enclosure class IP 23
Application class
Duty cycle
The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or cut at
a certain load without overloading. The duty cycle is valid for 40°C.
Enclosure class
The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid
objects or water. Equipment marked IP23 is designed for indoor and outdoor use.
Application class
The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.
4 INSTALLATION
The installation must be carried out by a professional.
CAUTION
This product is intended for industrial use. In a domestic environment this product may
cause radio interference. It is the user's responsibility to take adequate precautions.
GB

© ESAB AB 2008
- 7 -
bh31d1e

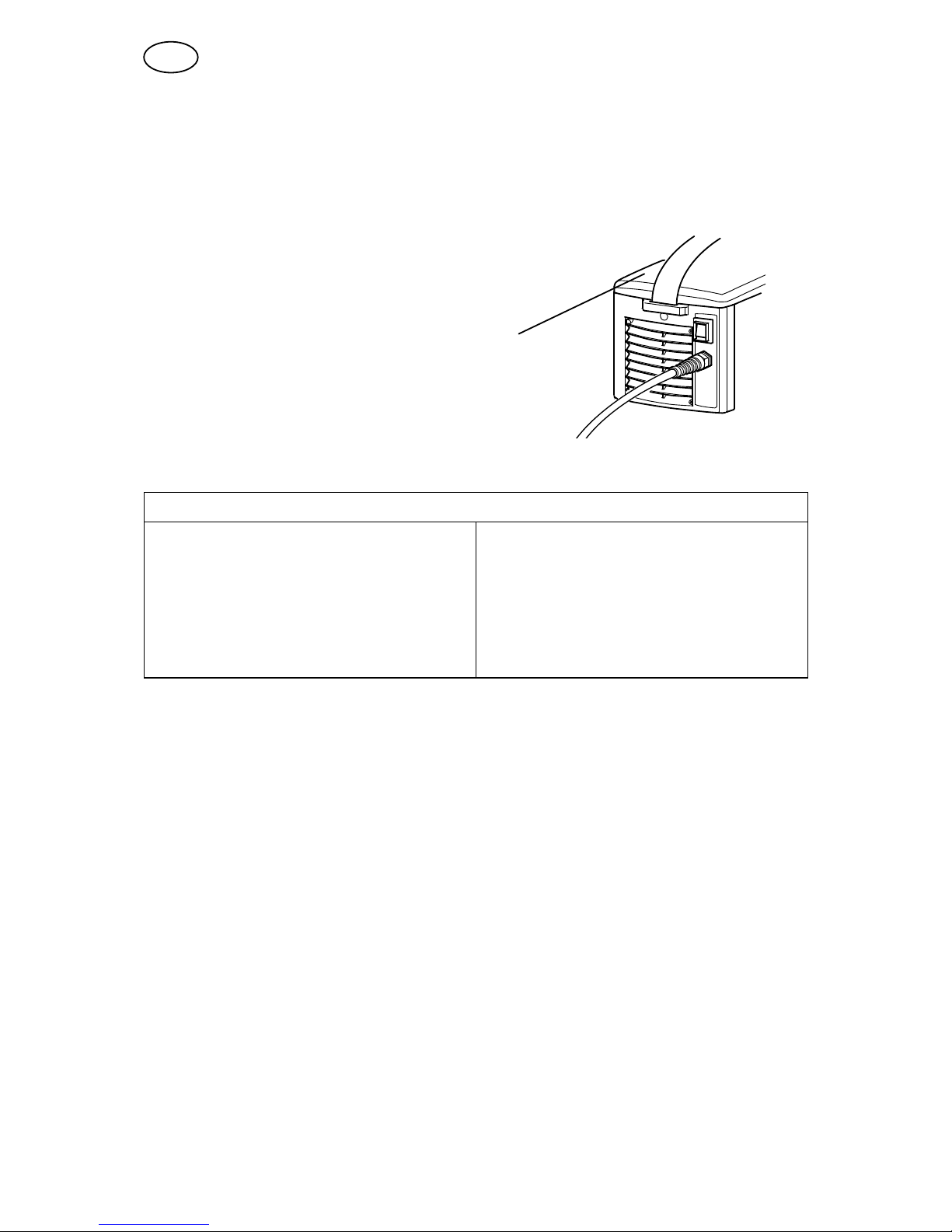

4.1 Location
Place the power source so that its cooling air inlets and outlets are not obstructed.
4.2 Mains power supply
Check that the welding power source is connected
to the correct voltage and that the correct fuse
size is used.
The standards for the country in question must be
complied with as regards the mains cable area.
A protective earth connection must be made in
accordance with regulations
Location of rating plate
4.2.1 Recommended fuse sizes and minimum cable area
Arc 152i
Mains voltage 230 V 10 %, 1-phase
Mains cable area mm23G2.5 mm2
Phase current I1eff 20 A
Welding cable, area 16 mm2
Fuse
anti-surge
Type C MCB
20 A*)
32 A
*) NOTE! The installed plug is approved for max. 16A.
NOTE!
The cable area and fuse rating above comply with Swedish regulations. Use the welding power source
in accordance with the relevant national regulations.
GB

© ESAB AB 2008
- 8 -
bh31d1e
5 OPERATION
General safety regulations for handling the equipment can be found on
page 4. Read through before you start using the equipment!
5.1 Connections and control devices
1Connection (+)
MMA: for return cable or welding cable
TIG: for return cable
4Toggle switch for mains power supply 0 / 1
2Control panel, see under 5.2 5Mains cable
3Connection (-)
MMA: connection for return cable
TIG: connection for Tig torch
5.2 Control panel A31
Knob for setting the current
Mains voltage LED (green)
Thermal overload trip indicator
(yellow)
5.3 Connection of welding and return cable
The power source has two outputs, a positive terminal and a negative terminal, for
connecting welding and return cables. The output to which the welding cable is
connected depends on the type of electrode used. The connecting polarity is stated
on the electrode packaging. Connect the welding cable to the terminal stated on the
electrode packaging.
Connect the return cable to the other output on the power source. Secure the return
cable's contact clamp to the work piece and ensure that there is good contact
between the work piece and the output for the return cable on the power source.
GB

© ESAB AB 2008
cmha2p11
cmha2p10
- 9 -
bh31d1e
5.4 Overheating protection
The welding power source has a thermal overload trip which operates if the
temperature becomes too high, interrupting the welding current and lighting a yellow
indicating lamp on the front of the power source. The thermal overload trip resets
automatically when the temperature has fallen.

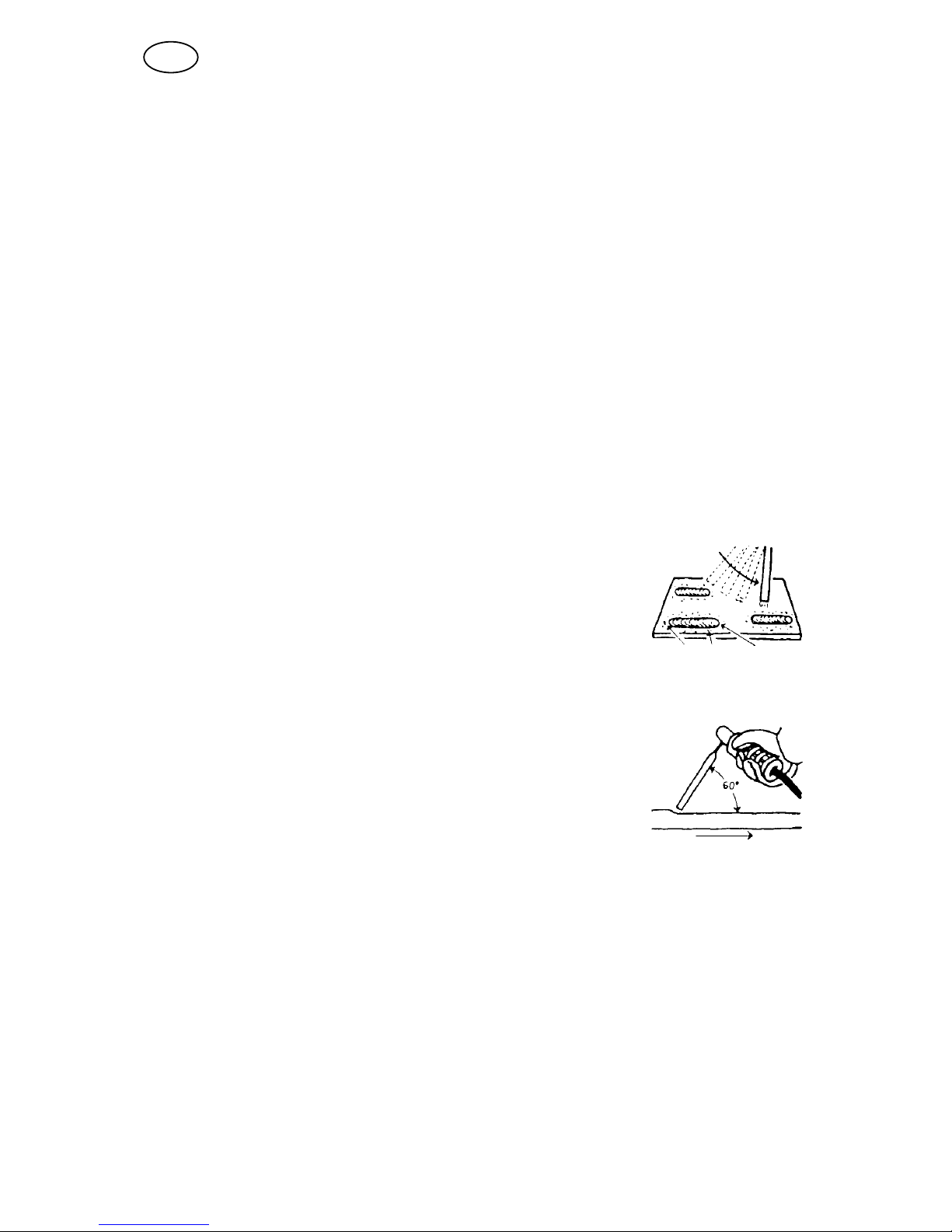

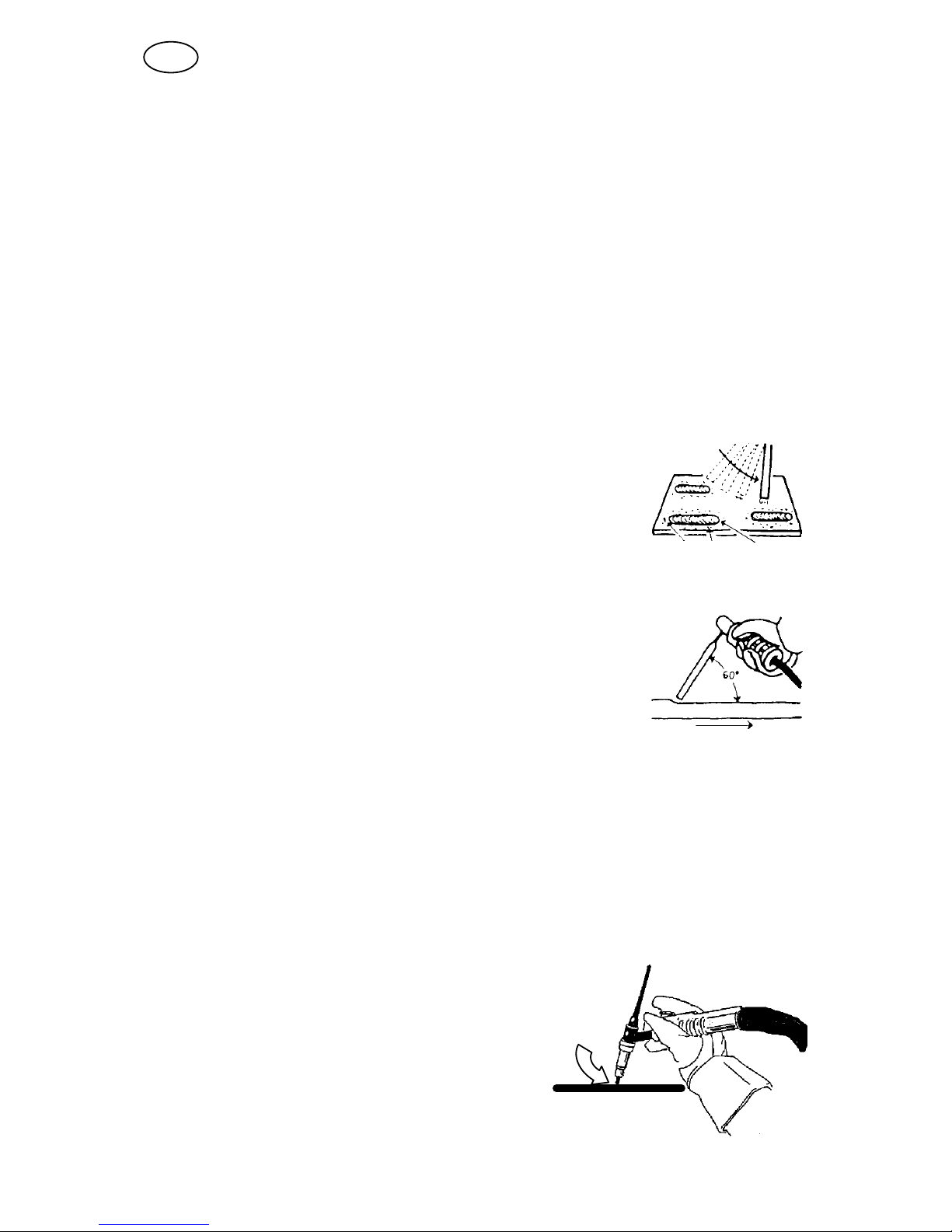

5.5 MMA welding
Arc 152i gives direct current, and you can weld most metals to alloy and non-alloy
steel, stainless steel and cast iron. Arc 152i allows you to weld most coated electrodes
from ∅1.6 to ∅3.25.
MMA welding may also be referred to as welding with coated electrodes. Striking the
arc melts the electrode, and its coating forms protective slag.
If, when striking the arc, the tip of the electrode is pressed against the metal, it immedi
ately melts and sticks to the metal, rendering continued welding impossible.
Therefore, the arc has to be struck in the same way that you would light a match.
Quickly strike the electrode against the metal, then raise it so
as to give an appropriate arc length (approx. 2 mm). If the arc
is too long, it will crackle and spit before finally going out com
pletely.
If you are working on a welding bench, check before attempting
to strike the arc that residual waste metal, pieces of electrode
or other objects on the bench do not insulate the part to be
welded.
Once the arc has been struck, move the electrode from left to
right. The electrode must be at an angle of 60°to the metal in
relation to the direction of welding.
When you want to weld wide beads, or when you want the weld
to be so thick that you have to weld in a number of layers, how
ever, you have to use lateral movements.
5.6 TIG welding
TIG welding melts the metal of the workpiece, using an arc struck from a tungsten
electrode, which does not itself melt. The weld pool and the electrode are protected
by shielding gas.
TIG welding is particularly useful where high quality is demanded and for welding
thin plate. Arc 152i also has good characteristics for TIG welding.
In order to TIG weld, Arc 152i must be equipped with:
a TIG torch with gas valve
a welding gas cylinder (a suitable welding gas)
a welding gas regulator (suitable gas regulator)
tungsten electrode
suitable auxiliary material, if necessary.
TIG scrape start
To scrape start lightly scrape the tungsten
electrode against the workpiece to create an arc.
GB

© ESAB AB 2008
- 10 -
bh31d1e
6 MAINTENANCE
Regular maintenance is important for safe, reliable operation.
CAUTION
All guarantee undertakings from the supplier cease to apply if the customer attempts any
work to rectify any faults in the product during the guarantee period.
6.1 Inspection and cleaning
Check regularly that the welding power source is not clogged with dirt.
How often and which cleaning methods apply depend on: the welding process, arc
times, placement, and the surrounding environment. It is normally sufficient to blow
down the power source with dry compressed air (reduced pressure) once a year.
Clogged or blocked air inlets and outlets otherwise result in overheating.
The welding torch's wear parts should be cleaned and replaced at regular intervals in
order to achieve trouble-free welding.
7 FAULT-TRACING
Try these recommended checks and inspections before sending for an authorised
service technician.
Type of fault Corrective action
No arc. Check that the mains power supply switch is turned on.
Check that the welding current supply and return cables are
correctly connected.
Check that the correct current value is set.
Check the mains power supply.
The welding current is
interrupted during welding.
Check to see whether the thermal cut-outs have tripped.
Check the mains power supply fuses.
The thermal cut-out trips
frequently.
Make sure that you are not exceeding the rated data for the
welding power source (i.e. that the unit is not being
overloaded).
Poor welding performance. Check that the welding current supply and return cables are
correctly connected.
Check that the correct current value is set.
Check that the correct electrodes are being used.
Check the gas flow.
GB
