ENGLISH
– 39 –
TOCe
1 DIRECTIVE 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 SAFETY 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 INTRODUCTION 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Equipment 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 TECHNICAL DATA 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 INSTALLATION 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1 Placing 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 Assembly of components 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3 Assembly of stabilizer 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.4 Electrical installation 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.5 Mains power supply 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 OPERATION 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1 Connection and control devices 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2 Function explanation 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 MAINTENANCE 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1 Inspection and cleaning 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 FAULT TRACING 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 ORDERING OF SPARE PARTS 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

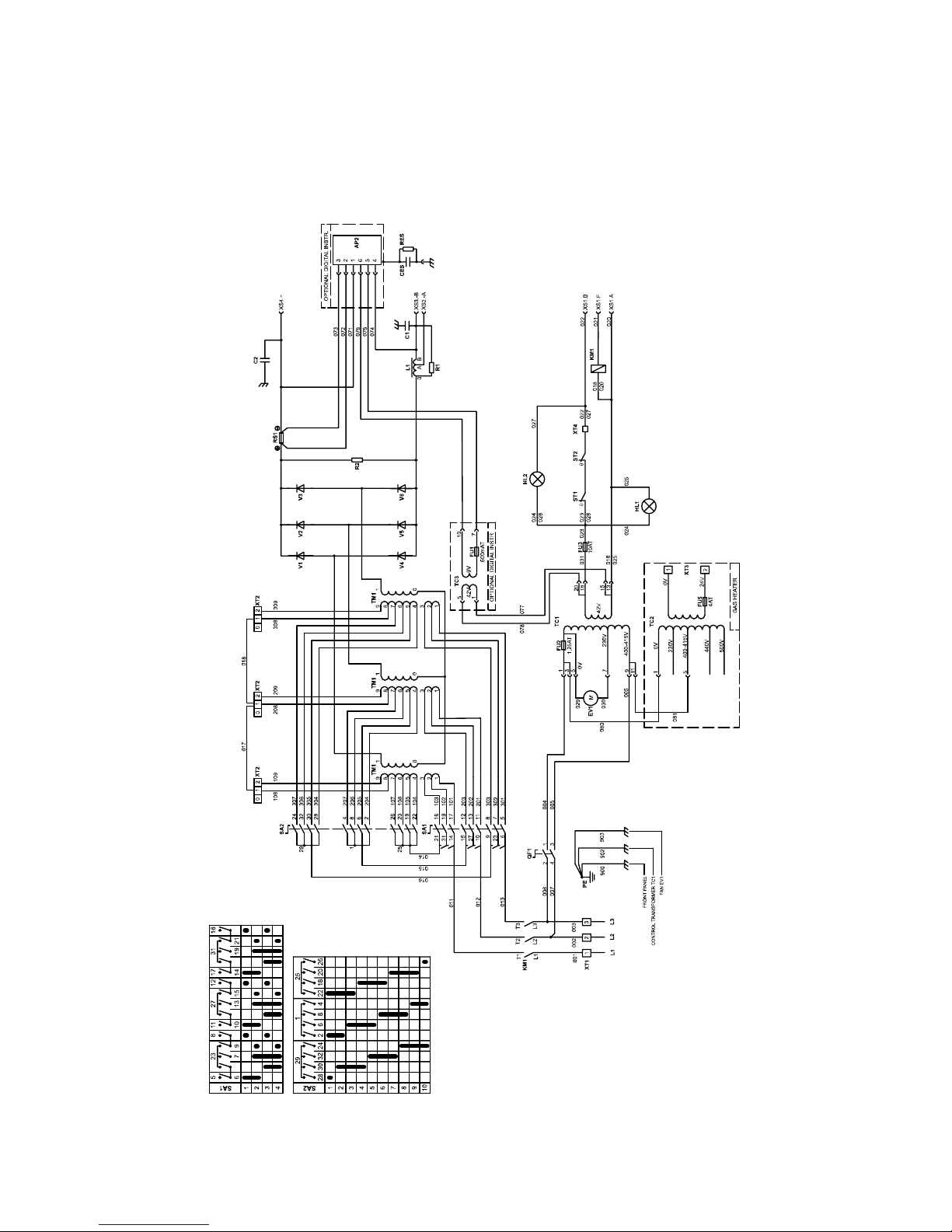

DIAGRAM 138. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

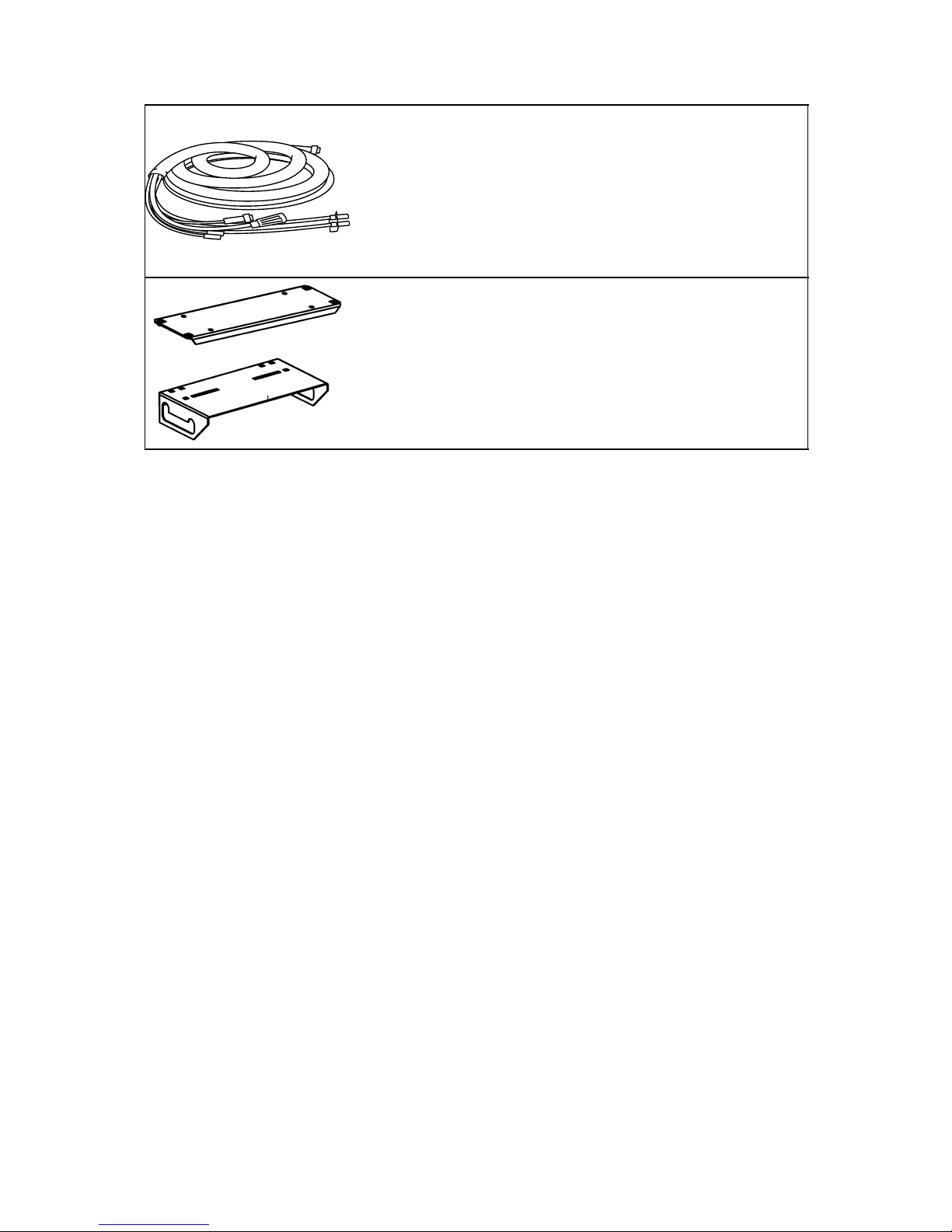

ACCESSORIES 141. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

– 40 –
325e
1 DIRECTIVE
DECLARATION OF CONFORMITY
ESAB Welding Equipment AB, S–695 81 Laxå, Sweden, gives its unreserved guarantee that welding
power source ESABMig 325 from serial number 226 complies with standard IEC/EN 60974–1, in ac-
cordance with the requirements of directive (73/23/EEC) and addendum (93/68/EEC) and with stan-
dard EN 50199 in accordance with the requirements of directive (89/336/EEC) and addendum
(93/68/EEC).
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Henry Selenius
Vice President
ESAB AB Arc Equipment
Box 8004
402 77 GÖTEBORG
SWEDEN Tel: + 46 31 509000 Fax: + 46 31 509261
Laxå 24.02.2003
2 SAFETY
Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who
works on or near the equipment observes all the relevant safety precautions. Safety precautions
must meet the requirements that apply to this type of welding equipment. The following recommen-
dations should be observed in addition to the standard regulations that apply to the workplace.
All work must be carried out by trained personnel well–acquainted with the operation of the welding
equipment. Incorrect operation of the equipment may lead to hazardous situations which can result
in injury to the operator and damage to the equipment.
1. Anyone who uses the welding equipment must be familiar with:
Sits operation
Slocation of emergency stops
Sits function
Srelevant safety precautions
Swelding
2. The operator must ensure that:
Sno unauthorised person is stationed within the working area of the equipment when it is
started up.
Sno–one is unprotected when the arc is struck
3. The workplace must:
Sbe suitable for the purpose
Sbe free from draughts
4. Personal safety equipment
SAlways wear recommended personal safety equipment, such as safety glasses, flame–proof
clothing, safety gloves.
SDo not wear loose–fitting items, such as scarves, bracelets, rings, etc., which could become
trapped or cause burns.
5. General precautions
SMake sure the return cable is connected securely.
SWork on high voltage equipment may only be carried out by a qualified electrician.
SAppropriate fire extinquishing equipment must be clearly marked and close at hand.
SLubrication and maintenance must not be carried out on the equipment during operation.
GB

– 41 –
325e
WARNING
READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE INSTALLING OR OPERATING.
ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU-
TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE
BASED ON MANUFACTURERS’ HAZARD DATA.
ELECTRIC SHOCK – Can kill
SInstall and earth the welding unit in accordance with applicable standards.
SDo not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
SInsulate yourself from earth and the workpiece.
SEnsure your working stance is safe.
FUMES AND GASES – Can be dangerous to health
SKeep your head out of the fumes.
SUse ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone
and the general area.
ARC RAYS – Can injure eyes and burn skin.
SProtect your eyes and body. Use the correct welding screen and filter lens and wear protective
clothing.
SProtect bystanders with suitable screens or curtains.
FIRE HAZARD
SSparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.
NOISE – Excessive noise can damage hearing
SProtect your ears. Use earmuffs or other hearing protection.
SWarn bystanders of the risk.
MALFUNCTION – Call for expert assistance in the event of malfunction.
PROTECT YOURSELF AND OTHERS!
WARNING!
Read and understand the instruction manual
before installing or operating.
Do not use the power source for thawing frozen pipes.
WARNING!
This product is solely intended for arc welding.
GB

– 42 –
325e
3 INTRODUCTION
The ESABMig 325 are step switched power sources designed for MIG/MAG–welding
together with wire feed units ESABFeed 30 and the most of ESAB wire feeders.
The power units are fan–cooled and equipped with thermal overload protection.
The machines can be fitted with an instrument for display of current and voltage. It
incorporates a hold function and can be calibrated.
ESAB’s accessories for the product can be found on page 141.
3.1 Equipment
The power source is supplied with:
SReturn cable 5m with return clamp
SShelf for gas cylinder
SGuide pin for wire feed unit
SInstruction manual
4 TECHNICAL DATA
ESABMig 325
Voltage 400–415V, 3~50/60 Hz 230/400–415/500V 3~50 Hz
230/440–460 3~60Hz
Permissible load
at100 % duty cycle 195 A/24 V 195 A/24 V
at 60 % duty cycle 250 A/27 V 250 A/27 V
at 30 % duty cycle 320 A/30 V 320 A/30 V
Setting range (DC) 40A/16V–320A/30V 40A/16V–320A/30V
Open circuit voltage 16–40 V 16–40 V
Open circuit power 200 W 200 W
Efficiency at max current 75% 75%
Power factor at max current 0,94 0,94
Control voltage 42 V, 50/60 Hz 42 V, 50/60 Hz
Dimensions lxwxh 840 x 425 x 830 840 x 425 x 830
Weight 111 kg 111 kg
Operating temperature –10 to +40oC–10 to +40oC
Enclosure class IP 23 IP 23
Application classification
Duty cycle
The duty cycle refers to the time as a percentage of a ten–minute period that you can weld at a cer-
tain load without overloading.
Enclosure class
The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid
objects or water. Equipment marked IP23 is designed for indoor and outdoor use.
Application class
The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.
GB

– 43 –
325e
5 INSTALLATION
The installation must be executed by a professional.
WARNING!
This product is intended for industrial use. In a domestic environment this product may cause radio
interference. It is the user’s responsibility to take adequate precautions.
5.1 Placing
Position the welding power source such that its cooling air inlets and outlets are not
obstructed.
5.2 Assembly of components
During transport, the rear wheels of the power source are in their forward position.
Before use, place the wheels in their rear position.
WARNING!
GB

– 44 –
325e

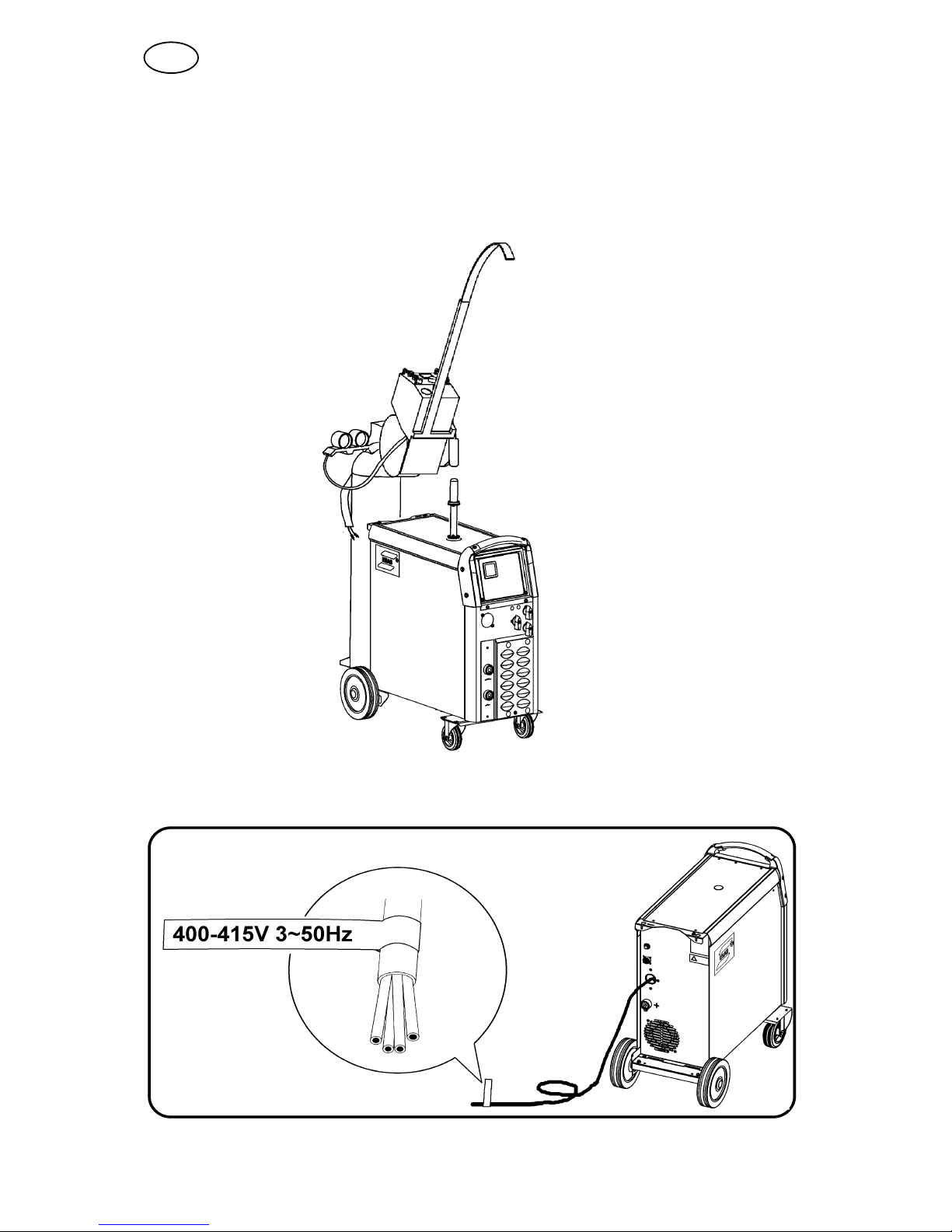

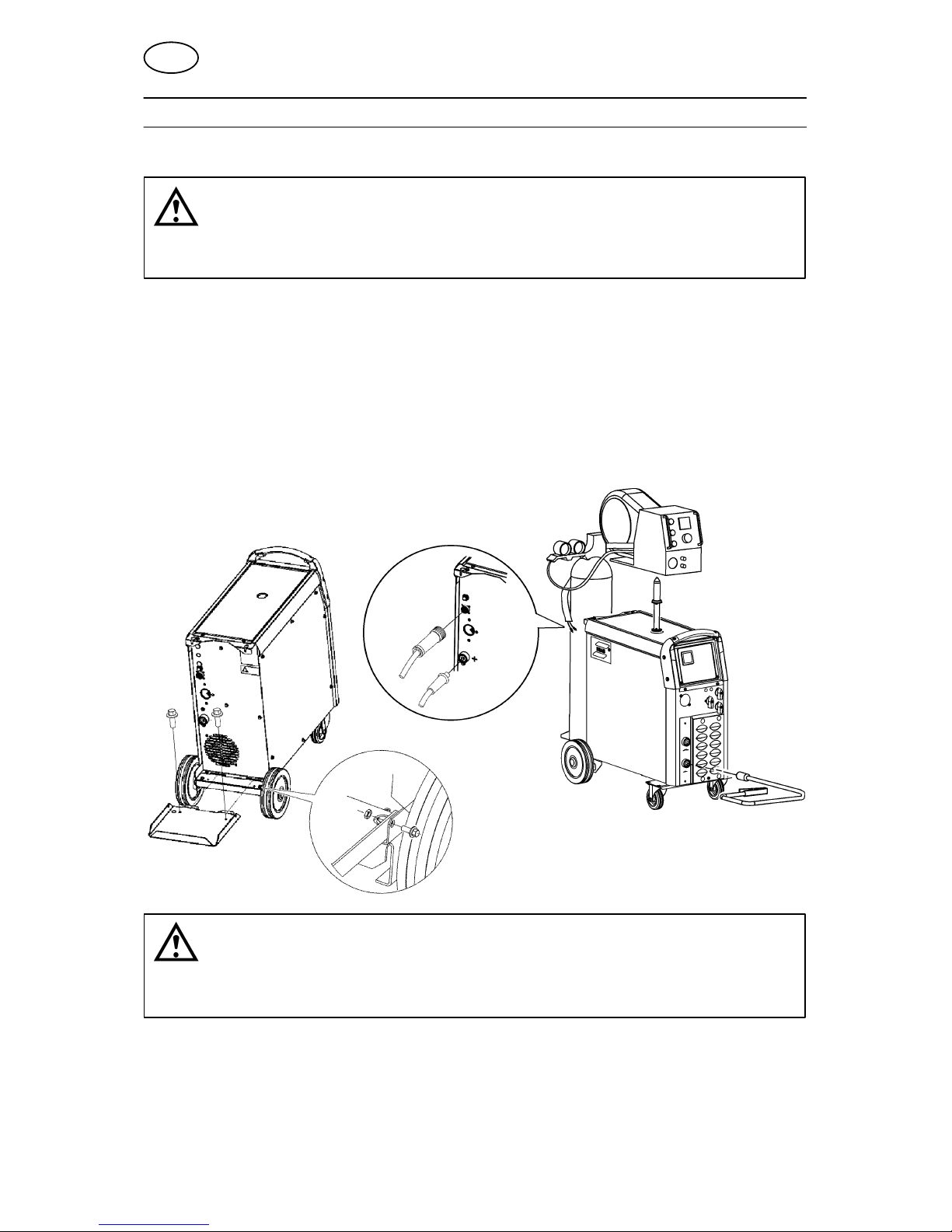

5.3 Assembly of stabilizer
Assemble the stabilizer if counter balance is to be installed on machine. The stabilizer
is an accessory. Ordering number you can find on page 142.
Attention! Utilization of counter balance without stabilizer may cause the machine
tipping over.
5.4 Electrical installation
GB

– 45 –
325e
5.5 Mains power supply
Check that the unit is connected to the correct mains power supply voltage, and that
it is protected by the correct fuse size. A protective earth connection must be made,
in accordance with regulations.
Rating plate with supply connection data
ESABMig 325 3∼ 50 Hz 3∼ 50/60 Hz 3∼ 50 Hz 3∼ 60 Hz 3∼ 60 Hz
Voltage V 230 400/415 500 230 440/460
Current A
at100% duty cycle 16 9 7 16 8
at 60% duty cycle 23 14 10 23 12
at 30% duty cycle 35 20 16 34 18
Cable area mm24 x 4 4 x 2,5 4 x 2,5 4 x 4 4 x 2,5
Fuse, slow A 20 16 16 20 16
NB: The mains cable areas and fuse sizes as shown above are in accordance with Swedish
regulations. They may not be applicable in other countries: make sure that the cable area and fuse
sizes comply with the relevant national regulations.
GB

– 46 –
325e
6 OPERATION
General safety regulations for the handling of the equipment can be found on
page 40. Read through before you start using the equipment!
WARNING – TIPPING RISK!
There is a risk of tipping while transportation and operation, if the welding machine leans
more than 10o. In that case appropriate securing has to be provided !
6.1 Connection and control devices
1Mains supply switch 7Connection for return cable (–), high induc-
tance
2Switch, precise control 8Connection for return cable (–), low induc-
tance
3Switch, coarse control 9Connection for welding current cable (+)
4Indicating lamp, power supply ON 10 Connection for control cable for wire feeder
5Orange indicating lamp, overheating 11 MCB
6Space for digital meters (optional), see
page 141
6.2 Function explanation
6.2.1 Overheating protection
A thermal overload cutout protects against overheating. The cutout resets automatically
when the unit has cooled.
6.2.2 Inductance connection
Higher inductance produces a more flowing weld and fewer spatters. Lower inductance
produces a harsher sound and a stable, concentrated arc.
GB
