ESAB Origo Tig 3000i User manual

GB
Valid for serial no. 612--xxx--xxxx0459 942 001 GB 070809
Tig 3000i AC/DC
Origot
Instruction manual

-- 2 --
TOCe
Rights reserved to alter specifications without notice.
1 DIRECTIVE 3........................................................
2SAFETY 3...........................................................
3 INTRODUCTION 5...................................................
3.1 Equipment 5................................................................
3.2 Control panel 5.............................................................
4 TECHNICAL DATA 5.................................................
5 INSTALLATION 6....................................................
5.1 Lifting instruction 6..........................................................
5.2 Location 6..................................................................
5.3 Mains power supply 7........................................................
6 OPERATION 7.......................................................
6.1 Connections and control devices 8............................................
6.2 Key to symbols 8............................................................
6.3 Fan control 8...............................................................
6.4 Overheating protection 8.....................................................
7 MAINTENANCE 9....................................................
7.1 Inspection and cleaning 9....................................................
8 FAULT--TRACING 9..................................................
9 ORDERING SPARE PARTS 10..........................................

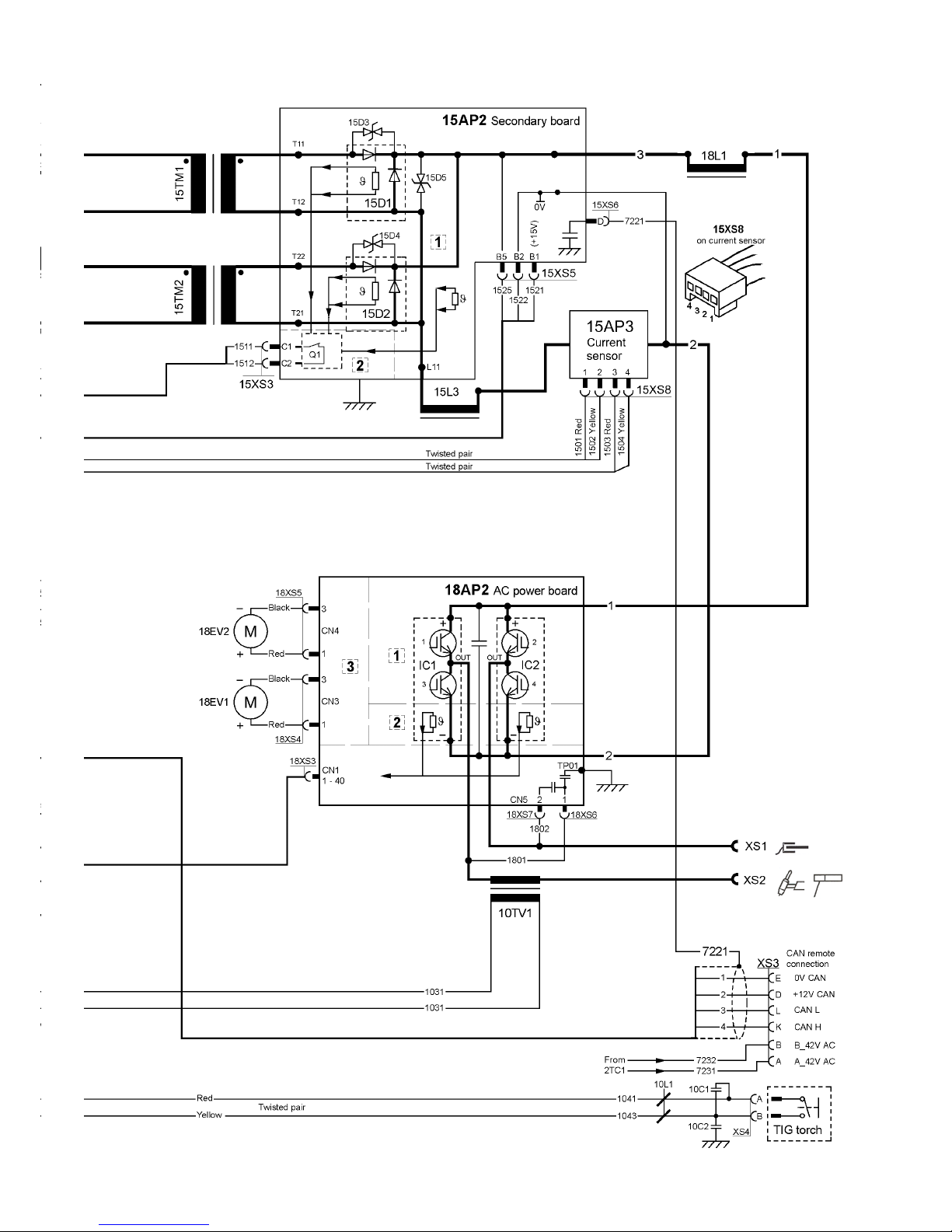

DIAGRAM 12............................................................

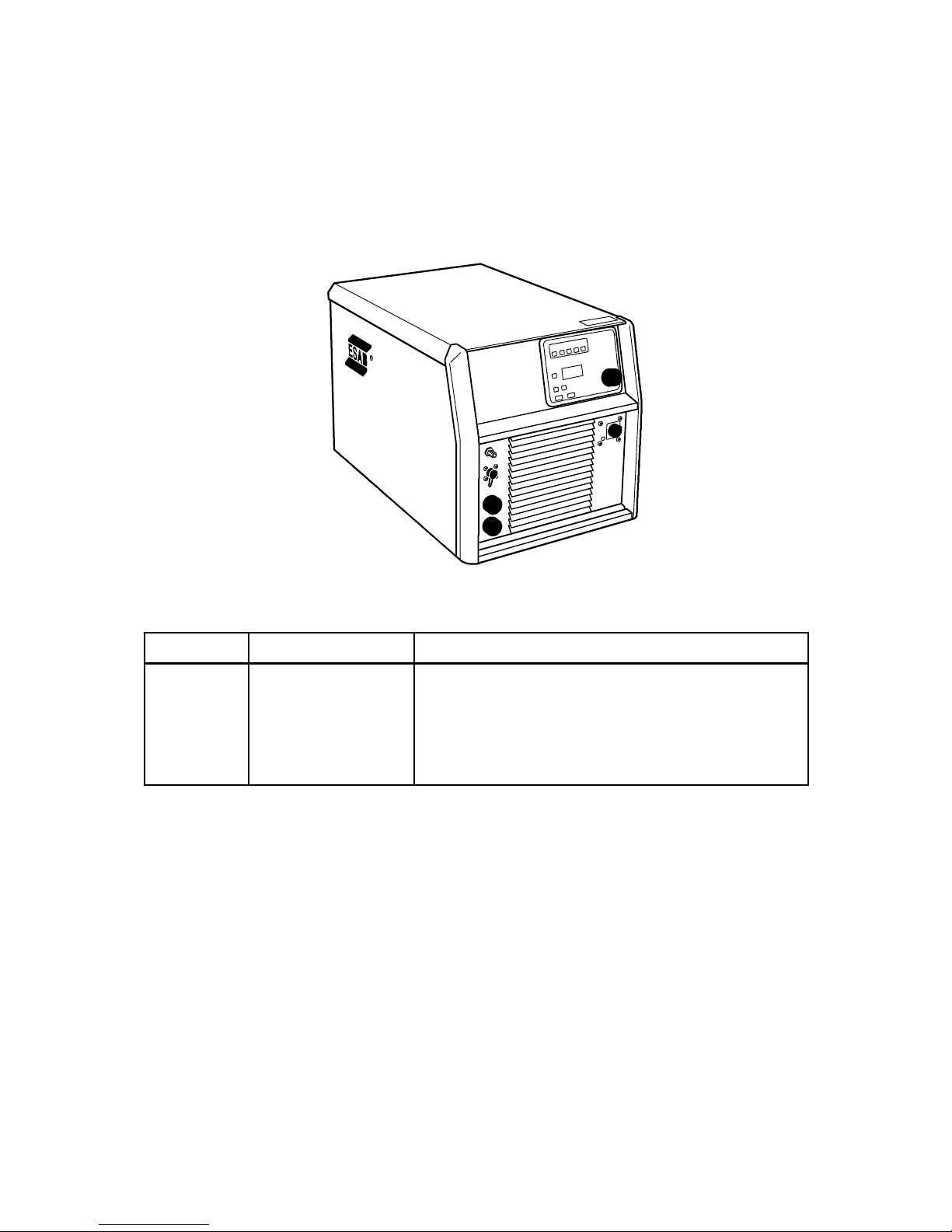

ORDERING NUMBER 14.................................................

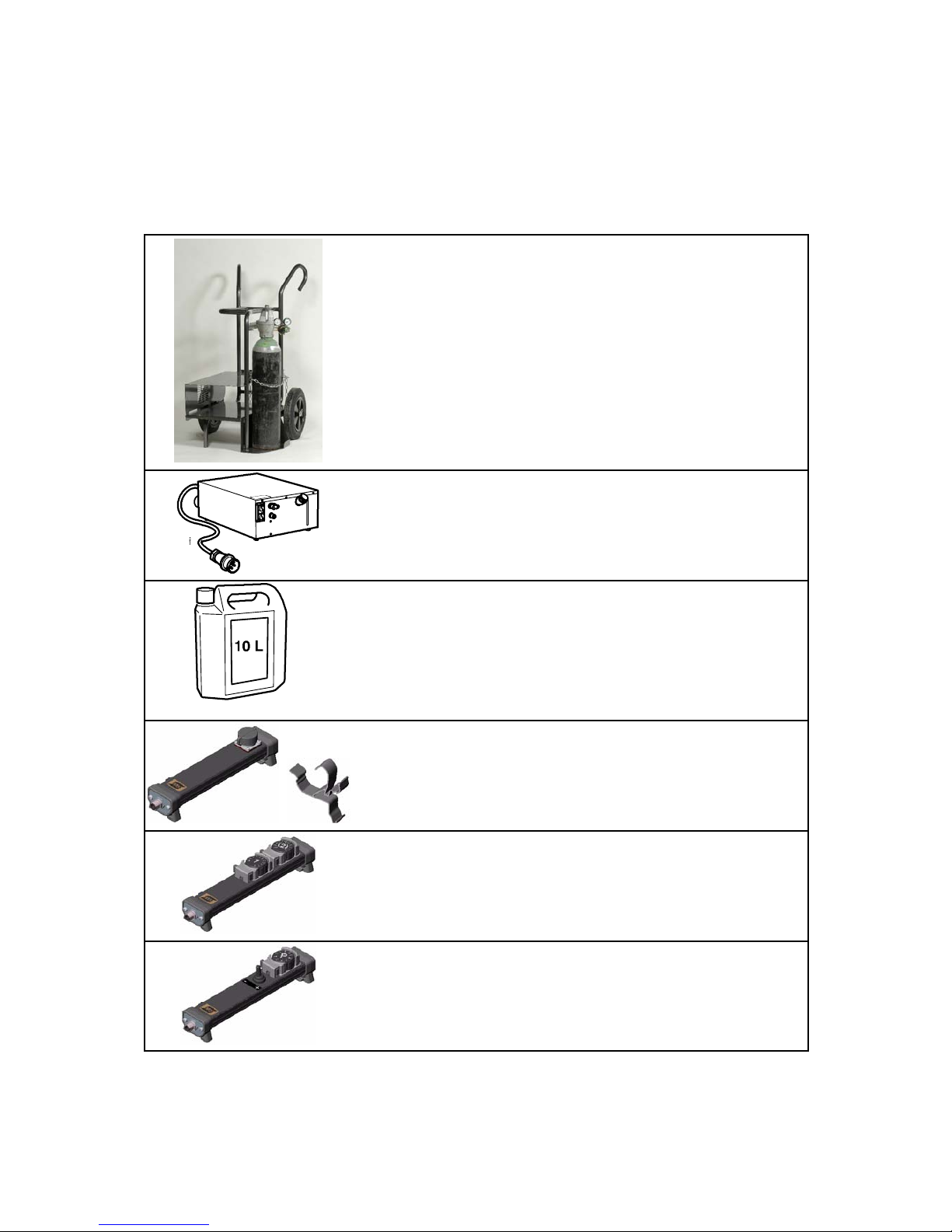

ACCESSORIES 16.......................................................

-- 3 --
bt31d1ea
1DIRECTIVE
DECLARATION OF CONFORMITY
ESAB AB, Welding Equipment, SE--695 81 Laxå, Sweden, gives its unreserved guarantee that weld-
ing power source Tig 3000i AC/DC from serial number 612 are constructed and tested in compliance
with the standard EN 60974--1 /--3 and EN 60974--10 in accordance with the requirements of directive
(2006/95/EC) and (2004/108/EEC).
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --------
Kent Eimbrodt
Global Director
Equipment and Automation
Laxå 2007--03--14
2SAFETY
Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who
works on or near the equipment observes all the relevant safety precautions. Safety precautions
must meet the requirements that apply to this type of welding equipment. The following recommen-
dations should be observed in addition to the standard regulations that apply to the workplace.
All work must be carried out by trained personnel well--acquainted with the operation of the welding
equipment. Incorrect operation of the equipment may lead to hazardous situations which can result
in injury to the operator and damage to the equipment.
1. Anyone who uses the welding equipment must be familiar with:
Sits operation
Slocation of emergency stops
Sits function
Srelevant safety precautions
Swelding
2. The operator must ensure that:
Sno unauthorized person is stationed within the working area of the equipment when it is
started up.
Sno--one is unprotected when the arc is struck
3. The workplace must:
Sbe suitable for the purpose
Sbe free from drafts
4. Personal safety equipment
SAlways wear recommended personal safety equipment, such as safety glasses, flame--proof
clothing, safety gloves.
SDo not wear loose--fitting items, such as scarves, bracelets, rings, etc., which could become
trapped or cause burns.
5. General precautions
SMake sure the return cable is connected securely.
SWork on high voltage equipment may only be carried out by a qualified electrician.
SAppropriate fire extinquishing equipment must be clearly marked and close at hand.
SLubrication and maintenance must not be carried out on the equipment during operation.
GB

-- 4 --
bt31d1ea
WARNING
READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE INSTALLING OR OPERATING.
ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU-
TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE
BASED ON MANUFACTURERS’ HAZARD DATA.
ELECTRIC SHOCK -- Can kill
SInstall and earth the welding unit in accordance with applicable standards.
SDo not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
SInsulate yourself from earth and the workpiece.
SEnsure your working stance is safe.
FUMES AND GASES -- Can be dangerous to health
SKeep your head out of the fumes.
SUse ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone
and the general area.
ARC RAYS -- Can injure eyes and burn skin.
SProtect your eyes and body. Use the correct welding screen and filter lens and wear protective
clothing.
SProtect bystanders with suitable screens or curtains.
FIRE HAZARD
SSparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.
NOISE -- Excessive noise can damage hearing
SProtect your ears. Use earmuffs or other hearing protection.
SWarn bystanders of the risk.
MALFUNCTION -- Call for expert assistance in the event of malfunction.
PROTECT YOURSELF AND OTHERS!
ESAB can provide you with all necessary welding protection and accessories.
WARNING!
Read and understand the instruction manual before installing
or operating.
Do not use the power source for thawing frozen pipes.
WARNING!
This product is solely intended for arc welding.
Do not dispose of electrical equipment together with normal waste!
In observance of European Directive 2002/96/EC on Waste Electrical and Electronic
Equipment and its implementation in accordance with national law, electrical equipment
that has reached the end of its life must be collected separately and returned to an
environmentally compatible recycling facility. As the owner of the equipment, you should
get information on approved collection systems from our local representative.
By applying this European Directive you will improve the environment and human health!
GB

-- 5 --
bt31d1ea
3 INTRODUCTION
The Tig 3000i AC/DC is a TIG welding power source, which can also be used for
MMA welding. It can be used with alternating current (AC) or direct current (DC).
ESAB’s accessories for the product can be found on page 16.
3.1 Equipment
The power source is supplied with:
Instruction manual for the welding power source, instruction manual for the control
panel and 5 m return cable.

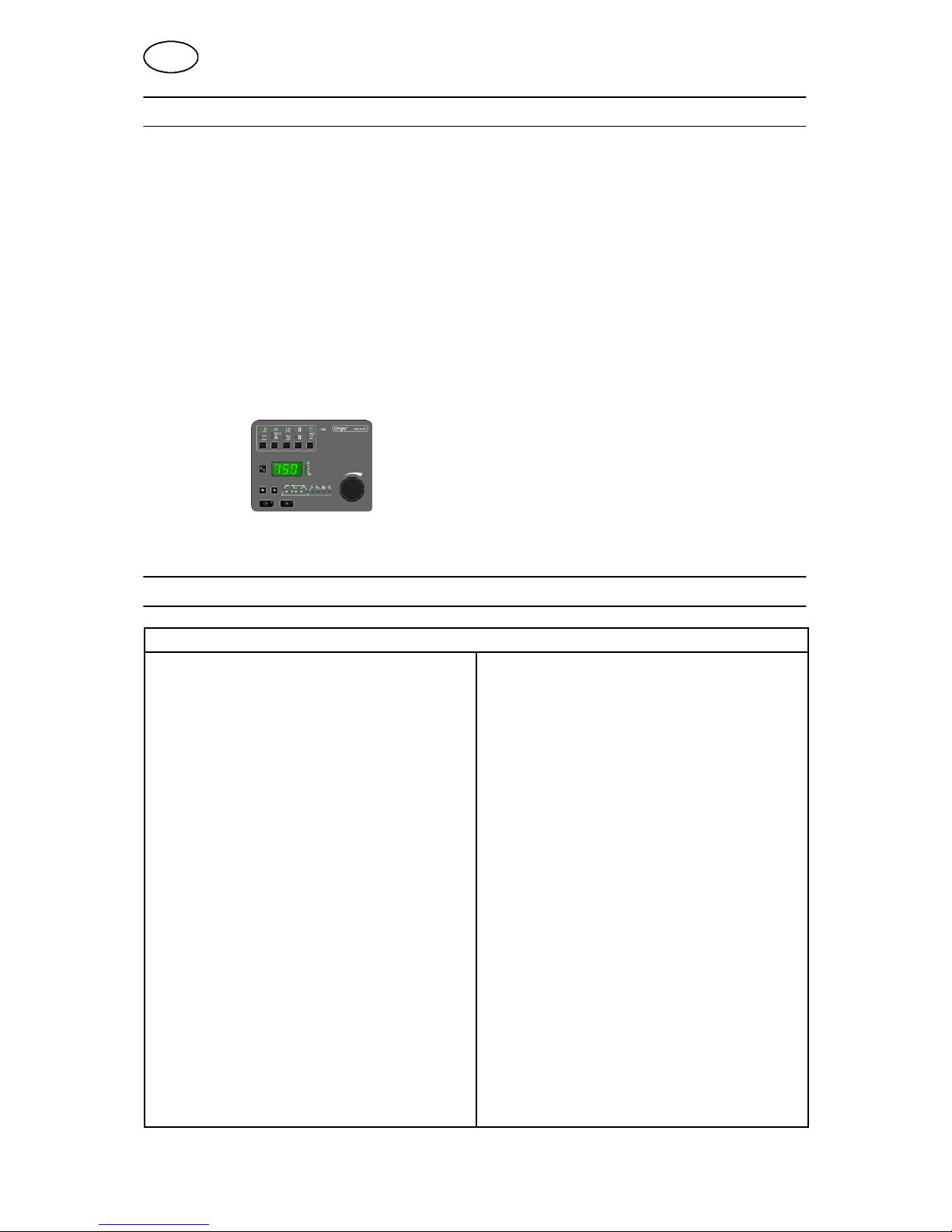

3.2 Control panel
TA24 AC/DC
See the separate instruction manual for a detailed description of the control panel.
4 TECHNICAL DATA
Tig 3000i AC/DC
Mains voltage 400 V, ±10%, 3∼50/60 Hz
Primary current
Imax TIG
Imax MMA
20 A
25 A
No--load power demand when in the
energy--saving mode, 6.5 min. after welding
30 W
Setting range TIG,AC* / DC
MMA
4--300 A
16--300 A
Permissible load at TIG, AC/DC
35% duty cycle
60% duty cycle
100% duty cycle
300 A / 22 V
240 A / 19.6 V
200 A / 18 V
Permissible load at MMA
30% duty cycle
60% duty cycle
100% duty cycle
300 A / 32 V
230 A / 29.2 V
190 A / 27.6 V
Power factor at maximum current
TIG
MMA
0.72
0.72
Efficiency at maximum current
TIG
MMA
67%
77%
Open--circuit voltage
MMA 54--64 V
GB

-- 6 --
bt31d1ea
Tig 3000i AC/DC
Operating temperature -- 1 0 t o + 4 0 ˚C
Constant A--weighted sound pressure <70 dB
Dimensions lxwxh 652 x 412 x 423 mm
Weight 42 kg
Insulation class transformer H
Enclosure class IP 23C
Application class
*) The minimum current during AC welding depends on the alloy used for the aluminium plates and
their surface cleanliness.
Duty cycle
The duty cycle refers to the time as a percentage of a ten--minute period that you can weld at a cer-
tain load without overloading.
Enclosure class
The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid
objects or water. Equipment marked IP23 is designed for indoor and outdoor use.
Application class
The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.
5 INSTALLATION
The installation must be executed by a professional.
WARNING!
This product is intended for industrial use. In a domestic environment this product may cause radio
interference. It is the user’s responsibility to take adequate precautions.
5.1 Lifting instruction
5.2 Location
Position the welding power source such that its cooling air inlets and outlets are not
obstructed.
GB

-- 7 --
bt31d1ea

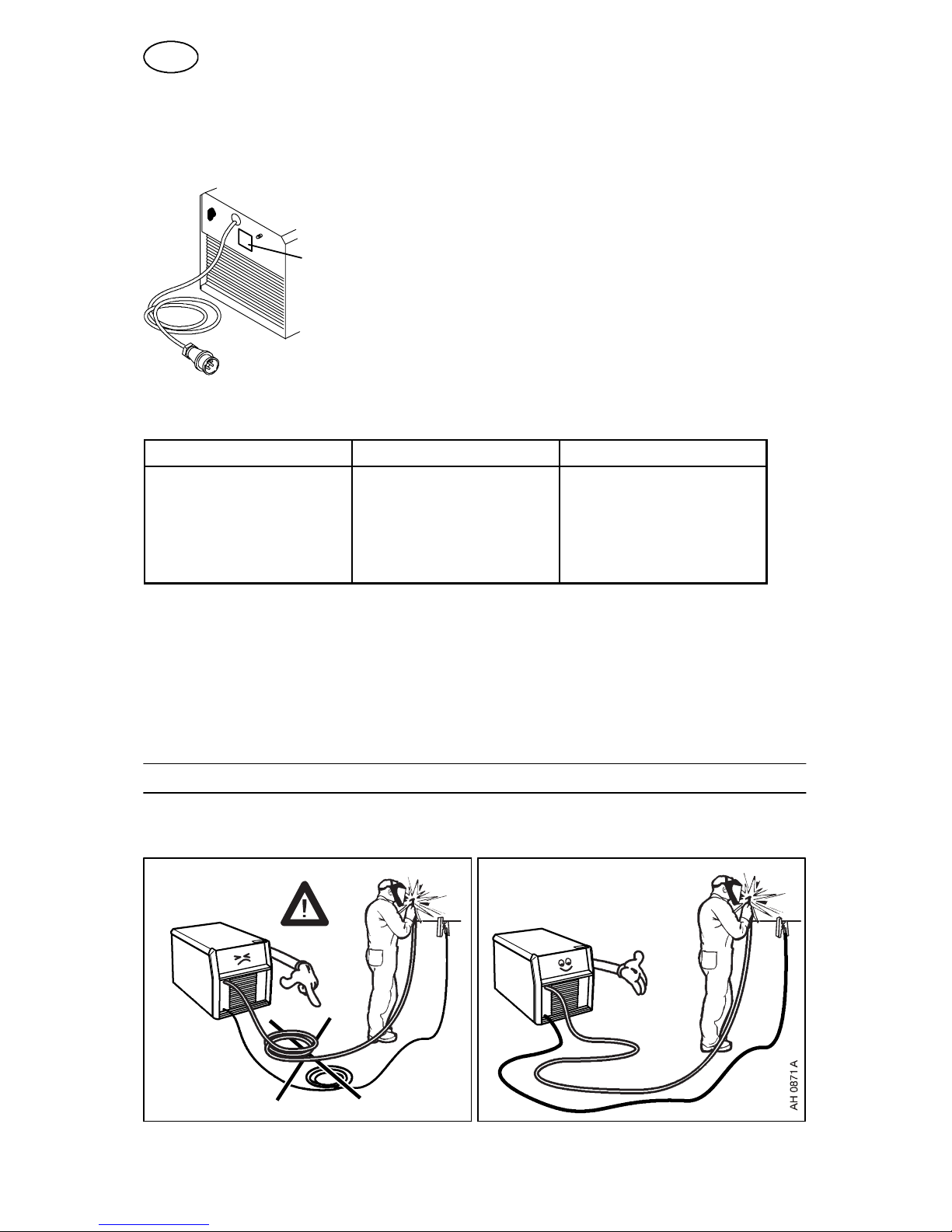

5.3 Mains power supply
Check that the welding power source is connected to the
correct mains power supply voltage, and that it is protected by
the correct fuse size. A protective earth connection must be
made in accordance with regulations.
Rating plate with supply connection data
Recommended fuse sizes and minimum cable area
Tig 3000i AC/DC TIG MMA
Mains voltage 400 V 3μ50 Hz 400 V 3μ50 Hz
Mains cable area mm24G2,5 4G2,5
Phase current IRMS 12 A 14 A
Fuse
anti--surge
type C MCB
16 A
20 A
16 A
20 A
Note! The mains cable areas and fuse sizes as shown above are in accordance with Swedish
regulations. Use the welding power source in accordance with the relevant national regulations.
Note! The welding power source is designed for connection to a 230 / 400 volt
system with four conductors.
If the power source is to be used in countries with a higher supply voltage, the power
source must be connected via a safety transformer.
6 OPERATION
General safety regulations for the handling of the equipment can be found on
page 3. Read through before you start using the equipment!
GB

-- 8 --
bt31d1ea
6.1 Connections and control devices
1Control panel,
see separate instruction manual
5Connection for return cable
2Mains voltage switch 6Connection for welding cable or welding
torch
3Connection for shielding gas 7Connection for start signal from the
welding torch
4CAN connection for cooling unit or remote
control unit
8Connection for gas to the torch
6.2 Key to symbols
MMA TIG Return clamp
6.3 Fan control
The power source has a time control that means that the fans continue to run for 6.5
minutes after welding has stopped, and the unit switches to energy--saving mode.
The fans start again when welding restarts.
The fans run at reduced speed for welding currents up to 110 A, and at full speed for
higher currents.
6.4 Overheating protection
The welding power source has overheating protection that operates if the
temperature becomes too high. When this occurs the welding current is interrupted
and a fault code is displayed on the control panel.
The overheating protection resets automatically when the temperature has fallen.
GB

-- 9 --
bt31d1ea
7 MAINTENANCE
Regular maintenance is important for safe, reliable operation.
Note!
All guarantee undertakings from the supplier cease to apply if the customer himself
attempts any work in the product during the guarantee period in order to rectify any
faults.
Maintenance must be executed by a professional.
Only those persons who have appropriate electrical knowledge (authorized
personnel) may remove the safety plates.
7.1 Inspection and cleaning
Power source
Check regularly that the welding power source is not clogged with dirt.
How often and which cleaning methods apply depend on: the welding process, arc
times, placement, and the surrounding environment. It is normally sufficient to blow
down the power source with dry compressed air (reduced pressure) once a year.
Clogged or blocked air inlets and outlets otherwise result in overheating.
Welding torch
The welding torch’s wear parts should be cleaned and replaced at regular intervals in
order to achieve trouble--free welding.
8 FAULT--TRACING
Try these recommended checks and inspections before sending for an authorised
service technician.
Type of fault Corrective action
No arc. SCheck that the mains power supply switch is turned on.
SCheck that the welding current supply and return cables are
correctly connected.
SCheck that the correct current value is set.
The welding current is
interrupted during welding.
SCheck whether the overheating protection has operated (fault
code E6 is displayed on the control panel).
SCheck the mains power supply fuses.
The overheating protection trips
frequently.
SMake sure that you are not exceeding the rated data for the
welding power source (i.e. that the unit is not being
overloaded).
Poor welding performance. SCheck that the welding current supply and return cables are
correctly connected.
SCheck that the correct current value is set.
SCheck that the correct electrodes are being used.
SCheck the mains power supply fuses.
GB

-- 1 0 --
bt31d1ea
9 ORDERING SPARE PARTS
Tig 3000i AC/DC is designed and tested in accordance with the international and Euro-
pean standards IEC/EN 60974--1, 60974--3 and EN 60974--10. It is the obligation of the
service unit which has carried out the service or repair work to make sure that the pro-
duct still conforms to the said standard.
Spare parts may be ordered through your nearest ESAB dealer, see the last page of
this publication.
GB

-- 1 1 --
p

Edition 070809
Diagram
-- 1 2 --
bt31e

Edition 070809
-- 1 3 --
bt31e

Tig 3000i AC/DC
Edition 070809
Ordering number
-- 1 4 --
bt31o
Ordering no. Denomination Type
0459 735 880 Welding power source OrigotTig 3000i AC/DC, TA24 AC/DC
0459 839 006 Spare parts list Tig 3000i AC/DC
0459 839 003 Spare parts list Control panel OrigotTA24 AC/DC
0459 944 Instruction manual Control panel OrigotTA24 AC/DC
Instruction manuals and the spare parts list are available on the Internet at www.esab.com

-- 1 5 --
p

Tig 3000i AC/DC
R0459 942 /E070809/P20
Accessories
-- 1 6 --
bt30a
Trolley 2 wheel ..........................
Trolley 4 wheel ..........................
0459 366 890
0460 060 880
Cooling unit CoolMidi 1800 ..............
Includes 5 m cable
0459 840 880
Coolant (Ready mixed) 50% water and 50%
mono--ethyleneglycol(10l) ................ 0194 230 002
Remote control adapter RA12 12pole ....
For analogue remote controls to CAN based
equipment.
0459 491 910
RemotecontrolunitMTA1CAN ..........
MIG/MAG: wire feed speed and voltage
MMA: current and arc force
TIG: current, pulse and background current
0459 491 880
RemotecontrolunitM110ProgCAN......
Choice of on of 10 programs
MIG/MAG: voltage deviation
TIG and MMA: current deviation
0459 491 882

Tig 3000i AC/DC
R0459 942 /E070809/P20
-- 1 7 --
bt30a
RemotecontrolunitAT1CAN ............
MMA and TIG: current
0459 491 883
RemotecontrolunitAT1CFCAN .........
MMA and TIG: rough and fine setting of
current.
0459 491 884
Remote control unit T1 Foot CAN ........
Including 5 m cable
0460 315 880
Remote cable CAN 4 pole -- 12 pole
5m .....................................
10m....................................
15m....................................
25m....................................
0.25m ..................................
0459 554 880
0459 554 881
0459 554 882
0459 554 883
0459 554 884
Return cable 5m50mm
2................ 0156 743 907
Information on Tig torches can be found in separate brochures.

-- 1 8 --
p

-- 1 9 --
p

ESAB AB
SE--695 81 LAXÅ
SWEDEN
Phone [phone]
www.esab.com
070514
ESAB subsidiaries and representative offices
Europe
AUSTRIA
ESAB Ges.m.b.H
Vienna--Liesing
Tel: [phone]
Fax: [phone]
BELGIUM
S.A. ESAB N.V.
Brussels
Tel: [phone]
Fax: [phone]
THE CZECH REPUBLIC
ESAB VAMBERK s.r.o.
Vamberk
Tel: [phone]
Fax: [phone]
DENMARK
Aktieselskabet ESAB
Herlev
Tel:[phone]
Fax:[phone]
FINLAND
ESAB Oy
Helsinki
Tel: [phone]
Fax: [phone]
FRANCE
ESAB France S.A.
Cergy Pontoise
Tel:[phone]
Fax:[phone]
GERMANY
ESAB GmbH
Solingen
Tel: [phone]
Fax: [phone]
GREAT BRITAIN
ESAB Group (UK) Ltd
Waltham Cross
Tel: [phone]
Fax: [phone]
ESAB Automation Ltd
Andover
Tel: [phone]
Fax: [phone]
HUNGARY
ESAB Kft
Budapest
Tel:[phone]
Fax:[phone]
ITALY
ESAB Saldatura S.p.A.
Mesero (Mi)
Tel:[phone]
Fax:[phone]
THE NETHERLANDS
ESAB Nederland B.V.
Amersfoort
Tel: [phone]
Fax: [phone]
NORWAY
AS ESAB
Larvik
Tel:[phone]
Fax:[phone]
POLAND
ESAB Sp.zo.o.
Katowice
Tel: [phone]
Fax: [phone]
PORTUGAL
ESAB Lda
Lisbon
Tel: [phone]
Fax: [phone]
SLOVAKIA
ESAB Slovakia s.r.o.
Bratislava
Tel:[phone]
Fax:[phone]
SPAIN
ESAB Ibérica S.A.
Alcalá de Henares (MADRID)
Tel: [phone]
Fax: [phone]
SWEDEN
ESAB Sverige AB
Gothenburg
Tel:[phone]
Fax:[phone]
ESAB international AB
Gothenburg
Tel:[phone]
Fax:[phone]
SWITZERLAND
ESAB AG
Dietikon
Tel: [phone]
Fax: [phone]
North and South America
ARGENTINA
CONARCO
Buenos Aires
Tel: [phone]
Fax: [phone]
BRAZIL
ESAB S.A.
Contagem--MG
Tel: [phone]
Fax: [phone]
CANADA
ESAB Group Canada Inc.
Missisauga, Ontario
Tel: [phone]
Fax: [phone]
MEXICO
ESAB Mexico S.A.
Monterrey
Tel: [phone]
Fax: [phone]
USA
ESAB Welding & Cutting Products
Florence, SC
Tel: [phone]
Fax: [phone]
Asia/Pacific
CHINA
Shanghai ESAB A/P
Shanghai
Tel: [phone]
Fax: [phone]
INDIA
ESAB India Ltd
Calcutta
Tel: [phone]
Fax: [phone]
INDONESIA
P.T. ESABindo Pratama
Jakarta
Tel: [phone]
Fax: [phone]
JAPAN
ESAB Japan
Tokyo
Tel: [phone]
Fax:[phone]
MALAYSIA
ESAB (Malaysia) Snd Bhd
Selangor
Tel: [phone]
Fax:[phone]
SINGAPORE
ESAB Asia/Pacific Pte Ltd
Singapore
Tel:[phone]
Fax: [phone]
SOUTH KOREA
ESAB SeAH Corporation
Kyungnam
Tel: [phone]
Fax: [phone]
UNITED ARAB EMIRATES
ESAB Middle East FZE
Dubai
Tel: [phone]
Fax: [phone]
Representative offices
BULGARIA
ESAB Representative Office
Sofia
Tel/Fax: [phone]
EGYPT
ESAB Egypt
Dokki--Cairo
Tel: [phone]
Fax: [phone]
ROMANIA
ESAB Representative Office
Bucharest
Tel/Fax: [phone]
RUSSIA
LLC ESAB
Moscow
Tel: [phone]
Fax: [phone]
LLC ESAB
St Petersburg
Tel: [phone]
Fax: [phone]
Distributors
For addresses and phone
numbers to our distributors in
other countries, please visit our
home page
www.esab.com
