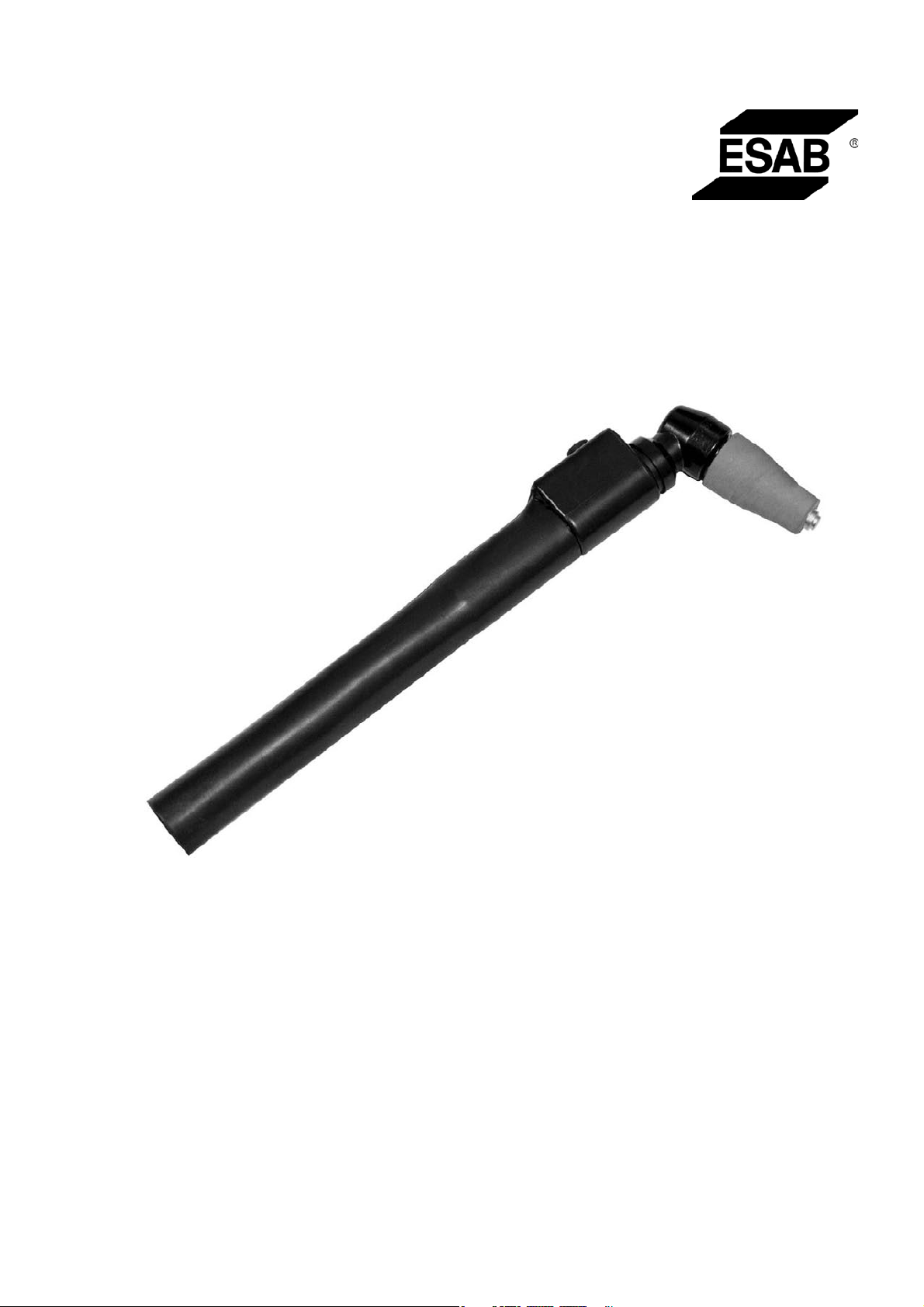

ESAB PT-31XL User manual

PT-31XL and PT-31XLPC
Plasma Arc Cutting Torches
0558 005 698 GB
Instruction Manual (EN)

66
This equipment will perform in conformity with the description thereof contained in this manual and accompa-
nying labels and/or inserts when installed, operated, maintained and repaired in accordance with the instruc-
tions provided. This equipment must be checked periodically. Malfunctioning or poorly maintained equipment
should not be used. Parts that are broken, missing, worn, distorted or contaminated should be replaced imme-
diately. Should such repair or replacement become necessary, the manufacturer recommends that a telephone
or written request for service advice be made to the Authorized Distributor from whom it was purchased.
This equipment or any of its parts should not be altered without the prior written approval of the manufacturer.
The user of this equipment shall have the sole responsibility for any malfunction which results from improper
use, faulty maintenance, damage, improper repair or alteration by anyone other than the manufacturer or a ser-
vice facility designated by the manufacturer.
BE SURE THIS INFORMATION REACHES THE OPERATOR.
YOU CAN GET EXTRA COPIES THROUGH YOUR SUPPLIER.
These INSTRUCTIONS are for experienced operators. If you are not fully familiar with the
principles of operation and safe practices for arc welding and cutting equipment, we urge
you to read our booklet, “Precautions and Safe Practices for Arc Welding, Cutting, and
Gouging,” Form 52-529. Do NOT permit untrained persons to install, operate, or maintain
this equipment. Do NOT attempt to install or operate this equipment until you have read
and fully understand these instructions. If you do not fully understand these instructions,
contact your supplier for further information. Be sure to read the Safety Precautions be-
fore installing or operating this equipment.
CAUTION
USER RESPONSIBILITY

67
TABLE OF CONTENTS
1.0 SafetyPrecautions.................................................................................. 69
2.0 Description..........................................................................................71
2.1 Description.....................................................................................71
2.2 Scope..........................................................................................71
2.3 Accessories.................................................................................... 72
2.4 TechnicalData(requiredbyCE) ................................................................ 73
3.0 Installation/Operation...............................................................................75
3.1 Torch/ConsumablesInspection ................................................................75
3.2 DisassemblyofTorch-RemovingConsumables..................................................76
3.3 InstallingConsumables-AssemblyofTorch .....................................................76
4.0 Maintenance........................................................................................ 77
4.1 Maintenance.................................................................................. 77
5.0 ReplacementParts.................................................................................. 79
5.1 General ....................................................................................... 79
5.2 Ordering...................................................................................... 79
5.3 Definitions .................................................................................... 79
5.4 PT-31XLandPT-31XLPCReplacementParts ..................................................... 79
Section / Title Page

68
TABLE OF CONTENTS

69
SECTION 1 SAFETY PRECAUTIONS
1.0 Safety Precautions
Users of ESAB welding and plasma cutting equipment have the ultimate responsibility for ensuring that anyone
who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet
the requirements that apply to this type of welding or plasma cutting equipment. The following recommendations
should be observed in addition to the standard regulations that apply to the workplace.
All work must be carried out by trained personnel well acquainted with the operation of the welding or plasma
cutting equipment. Incorrect operation of the equipment may lead to hazardous situations which can result in
injury to the operator and damage to the equipment.
1. Anyone who uses welding or plasma cutting equipment must be familiar with:
- its operation
- location of emergency stops
- its function
- relevant safety precautions
- welding and / or plasma cutting
2. The operator must ensure that:
- no unauthorized person stationed within the working area of the equipment when it is started up.
- no one is unprotected when the arc is struck.
3. The workplace must:
- be suitable for the purpose
- be free from drafts
4. Personal safety equipment:
- Always wear recommended personal safety equipment, such as safety glasses, flame proof
clothing, safety gloves.
- Do not wear loose fitting items, such as scarves, bracelets, rings, etc., which could become
trapped or cause burns.
5. General precautions:
- Make sure the return cable is connected securely.
- Work on high voltage equipment may only be carried out by a qualified electrician.
- Appropriate fire extinquishing equipment must be clearly marked and close at hand.
- Lubrication and maintenance must not be carried out on the equipment during operation.

70
SECTION 1 SAFETY PRECAUTIONS
WELDINGAND PLASMA CUTTINGCAN BE INJURIOUS TO YOURSELF AND
OTHERS. TAKE PRECAUTIONS WHEN WELDINGOR CUTTING. ASK FOR
YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE BASED ON
MANUFACTURERS’ HAZARD DATA.
ELECTRIC SHOCK - Can kill.
- Install and earth (ground) the welding or plasma cutting unit in accordance with applicable standards.
- Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
- Insulate yourself from earth and the workpiece.
- Ensure your working stance is safe.
FUMES AND GASES - Can be dangerous to health.
- Keep your head out of the fumes.
- Use ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone
and the general area.
ARC RAYS - Can injure eyes and burn skin.
- Protect your eyes and body. Use the correct welding / plasma cutting screen and filter lens and wear
protective clothing.
- Protect bystanders with suitable screens or curtains.
FIRE HAZARD
- Sparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.
NOISE - Excessive noise can damage hearing.
- Protect your ears. Use earmuffs or other hearing protection.
- Warn bystanders of the risk.
MALFUNCTION - Call for expert assistance in the event of malfunction.
READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE INSTALLINGOR OPERATING.
PROTECT YOURSELF AND OTHERS!
WARNING

71
SECTION 2 DESCRIPTION
Figure 2-1. Dimensional Data for the PT-31XL and PT-31XLPC Torches
(70 mm)
2 3/4"
(178 mm)
7"
2.1 General
The patented PT-31XL and PT-31XLPC are manual torches with a 75°head designed for use with several plasma arc
cutting packages using clean, dry air as the plasma gas. The service lines are 3.8, 7.6 or 15.2 meters (12 1/2, 25 or
50 feet) long and the torch is rated to operate up to 50 amperes at 100% duty cycle for cutting most metals.
2.2 Scope
This manual is intended to provide the operator with all the information required to assemble, operate, and repair
the PT-31XL and PT-31XLPC Plasma Arc Cutting Torches. For additional safety precautions, process instructions,
and system troubleshooting; refer to the appropriate instruction manual for your Plasma Arc Cutting Package.
WARNING
ELECTRIC SHOCK CAN KILL.PLASMA CUTTINGUSES HIGH VOLTAGE.
SKIN CONTACT WITH THE TORCH, THE POWER SOURCE, THE WORK
PIECE OR ANY GROUNDED OBJECT MUST BE AVOIDED WHENEVER
THE POWER SOURCE IS ON.
USINGTHE TORCH ON ANY POWER SOURCE NOT EQUIPPED WITH A
FLOW SWITCH SAFETY INTERLOCK MAY EXPOSE OPERATOR TO UN
EXPECTED HIGH VOLTAGE.
BEFORE BEGINNINGOPERATION OF THE TORCH, REFER TO THE SAFE
TY PRECAUTIONS AND OPERATINGINSTRUCTIONS.

72
SECTION 2 DESCRIPTION
* Also see Tables 5-2 and 5-3.
Table 2-1 Contents of Spare Parts Kits:
* PT-31XL and PT-31XLPC Spare Parts Kits P/Ns
Description Part Number
P/N 0558003464
50A / HP-50
(Europe only)
P/N 0558003462
35A / Caddycut
(Europe only)
P/N 0558005392
40A / PC-650
(Europe only)
Heat Shield, long "CE“ 0558000509 1 1 1
30/40 amp High Performance Nozzle 0558000512 3
35/40 amp Extended Life Nozzle 0558000508 3
Nozzle, 50 amp 0558000513 3
Swirl Baffle 0558000506 1 1 1
Electrode 0558000507 3 2 2
O-ring 0558000514 1
Lubricant (0.25 ounce) 0558000443 1
Torch Guide Kit
Permits cutting accurate circles from 45mm (1.7") to 1050mm (41.3") in diameter with the PT-31XL or PT-31XLPC. The attach-
ment includes a head and radius bar assembly, center-point / adaptor, and dual swivel castor assembly. Cuts can be made
inside or outside the circle. The torch head is always held vertical during the cutting operation. The attachment is also handy
for maintaining a constant standoff in other types of cutting. ..............................................................................................0558003258
2.3 Accessories
A spare parts kit is recommended for maintaining the torch with minimum downtime. A spare parts kit is supplied with
each plasma cutting package.

73
a. Process:
Manual torch used for plasma arc cutting
b. Method of guidance:
Manual
c. Voltage class:
M (113v peak to 400v peak)
Striking voltage: 8000 VAC
Stabilizing voltage: 200 VDC
d. Maximum rated current: 50 amps
Maximum current at 100% duty cycle: 50 amps
Type gas: Air 120 I/min. at 5.5 bar (254 cfh at 80 psi)
e. Max. and min. gas pressure at inlet: 4.8 to 5.9 bar (70 to 86 psi)
f. Type of cooling:
Air
g. Rating of auxiliary electrical control in torch:
N/A
h. Requirements for connection of torch:
Wrenches and screwdriver
i. Essential information about safe operation of torch:
Refer to all safety precautions in manual
j. Essential information about safe operation of the plasma cutting torch and the functioning of interlocking and safety
devices:
Meets requirements by means of pneumatic interlock safety system. The interlocking device deenergizes the torch
when parts, particularly protective cone, are removed to expose electrode connection. For the interlocking device
to function properly, the torch electrode must remain in the protective cone. Do not attempt to install the electrode
into the torch without first placing it in proper position (with the other parts) within the protective cone.
2.4 Technical Data (required by CE)
k. Type of plasma cutting power source that can form a safe system with the plasma cutting torch:
PCM-500i, PowerCut 650, HandyPlasma 550, HandyPlasma 380, HandyPlasma 250, HandyPlasma 50 and Caddycut.
I. Plasma cutting ability:
See Graphs 2-1a, 2-1b and 2-1c on following page:
SECTION 2 DESCRIPTION

74
SECTION 2 DESCRIPTION
Steel Thickness (inches)
Speed (ipm)
Graph 2-1c 50 Amp Cutting Parameters
Graph 2-1a 35 Amp Cutting Parameters
Graph 2-1b 40 Amp Cutting Parameters
Steel Thickness (mm)
Speed mm/min)
Steel Thickness (inches)
Speed (ipm)
Steel Thickness (mm)
Speed (mm/min)
Steel Thickness (inches)
Speed (ipm)
Steel Thickness (mm)
Speed (mm/min)
0
500
1000
1500
2000
2500
03691215
35A
0
10
20
30
40
50
60
70
80
90
100
0 0.125 0.25 0.375 0.5 0.625
35A
0
500
1000
1500
2000
2500
3000
0 3 6 9 12 15 18
40A
0
20
40
60
80
100
120
0 0.125 0.25 0.375 0.5 0.625 0.75
()
40A
0
508
1016
1524
2032
2540
3048
3556
4064
0 3 6 9 12 15 18
50A
0
20
40
60
80
100
120
140
160
0 0.125 0.25 0.375 0.5 0.625 0.75
50A

75
SECTION 3 INSTALLATION / OPERATION
THE TORCH HEAD CONTAINS A GAS FLOW CHECK VALVE THAT ACTS IN
CONJUNCTION WITH CIRCUITRY WITHIN THE POWER SOURCE. THIS
SYSTEM PREVENTS THE TORCH FROM BEINGENERGIZED WITH HIGH
VOLTAGE IF THE TORCH SWITCH IS ACCIDENTALLY CLOSED WHEN THE
SHIELD IS REMOVED. ALWAYS REPLACE TORCH WITH THE PROPER
TORCH MANUFACTURED BY ESABSINCE IT ALONE CONTAINS ESAB'S
PATENTED SAFETY INTERLOCK.
WARNING
Periodically check the heat shield, electrode, nozzle, and swirl baffle. Replace if worn or damaged.
The cable bundle assembly should be inspected periodically. If there are any cuts through the protec-
tive jacket or if gas leaks are noted, replace the damaged assembly.
Do not continue to use torch if the electrode erodes to a length shorter than 0.63 inch (16mm) as
shown in Figure 3-1.
The gas flow check valve is part of the safety interlock and is permanently assembled in the torch head.
The head must be replaced if this valve malfunctions. The light spring force used to close the ball check
can be felt by pushing on the electrode when assembling the front end components.
Note
The electrode seat comes assembled in the front end of the torch. When using the XT consumables,
make sure the plunger, P/N 0558000511, is installed under the seat. If missing, remove seat and
install plunger. Make sure seat is tightened firmly with a wrench but do NOT overtighten.
1.
2.
3.
4.
BEFORE INSPECTINGOR CHANGINGCONSUMABLES MAKE SURE
POWER SWITCH ON THE POWER SOURCE IS IN THE OFF POSITION
AND PRIMARY INPUT POWER IS DEENERGIZED.
For detailed installation and operation follow all torch instructions in the plasma system manual packed with your cutting
package. DO NOT install or attempt to operate this torch without following those instructions first.
BE SURE TO INSTALL THE SWIRL BAFFLE IN THE TORCH. FAILURE TO
DO SO WOULD ALLOW THE NOZZLE TIP TO CONTACT THE ELEC
TRODE. THIS CONTACT WOULD PERMIT HIGH VOLTAGE TO BE AP
PLIED TO THE NOZZLE. YOUR CONTACT WITH THE NOZZLE OR
WORKPIECE COULD THEN RESULT IN SERIOUS INJURY OR DEATH BY
ELECTRIC SHOCK.
3.1 Torch / Consumables Inspection
WARNING
WARNING
WARNING
CONDITIONS UNDER WHICH EXTRA PRECAUTIONS ARE TO BE OB
SERVED DURINGPLASMA CUTTING:
1. REFER TO GENERAL WARNINGS IN MANUAL.
2. DO NOT CUT CLOSED CONTAINERS. AN EXPLOSION MAY RESULT.

76
SECTION 3 INSTALLATION / OPERATION
3.2 Disassembly of Torch - Removing Consumables
To disassemble the front end, hold the torch with the shield in an upright position as shown in Figure 3-
2. This will prevent the nozzle, electrode, and swirl baffle from falling free when the shield is removed.
If the torch is fixed and cannot be rotated upward, the alternate method of disassembly is to disassemble
the electrode, swirl baffle and nozzle as above being careful not to damage them by letting them fall.
1.
2.
Figure 3-2. Front End AssemblyFigure 3-1. O-ring and Electrode Maintenance
0.63" (16 mm)
Heat Shield
Nozzle
Swirl Baffle
Electrode
*Plunger
Torch
Seat
Minimum
"XT" Electrode
Replace electrode when end
wears to 0.63" (16 mm) long.
Lubricant can be applied to O-ring or Heat Shield
*Plunger, P/N
0558000511, used only
with "XT" consumables.
3.3 Installing Consumables - Assembly of Torch
Note
Apply a small amount of lubricant - 0558000443, supplied in spare parts kit, to the heat shield or
to the o-ring as shown in Figure 3-1. Check o-ring for damage whenever the shield is removed.
Replace if necessary. O-ring part number is 0558000514.
To assemble with the torch front end facing up, assemble electrode, swirl baffle, tip and heat shield in
that order as shown in Figure 3-2. The swirl baffle is symmetrical and it can be positioned either way.
Tighten heat shield snugly to hold the parts in firm contact with each other and the torch head. Do not
overtighten the heat shield.
If the torch is fixed and cannot be rotated upward, the alternate method of assembly is to assemble the
electrode, swirl baffle and nozzle as above and drop them into the heat shield. Then thread the heat
shield upward into the torch body.
1.
2.

77
WARNING
4.1 Maintenance
BEFORE ANY MAINTENANCE IS ATTEMPTED ON THIS TORCH, MAKE
SURE THE POWER SWITCH ON THE CONSOLE IS IN THE "OFF" POSI
TION AND THE PRIMARY INPUT IS DEENERGIZED.
BE SURE TO TIGHTEN POWER CABLE CONNECTIONS SECURELY US
ING2 WRENCHES DURINGREASSEMBLY. FACTORY RECOMMENDED
TORQUE IS 30 INLBS 3.39 NM. FAILURE TO DO SO COULD RESULT
IN SERIOUS INJURY TO THE OPERATOR.
WARNING
1
Snapswitch band fromhandleandrelease
switch, no further disassembly is required
for switch replacement. (see figure 4-2 for
switch replacement)
Vinyl tape
Cable Bundle Assembly
Push flex support
back from handle
2
Two wrenches (3/8”& 7/16”)
Torch Head-
Unscrew handle. Remove head from power cable.
(use two wrenches, see warning above)
Handle
jacket rolled back
Remove tape securing the jacket and switch lead wires.
(note how switch leads are coiled around power cable.
Reassemble in like manner).
Figure 4-1. Torch Head Disassembly Sequence
SECTION 4 MAINTENANCE

78
SECTION 4 MAINTENANCE
CRIMP OR SOLDER

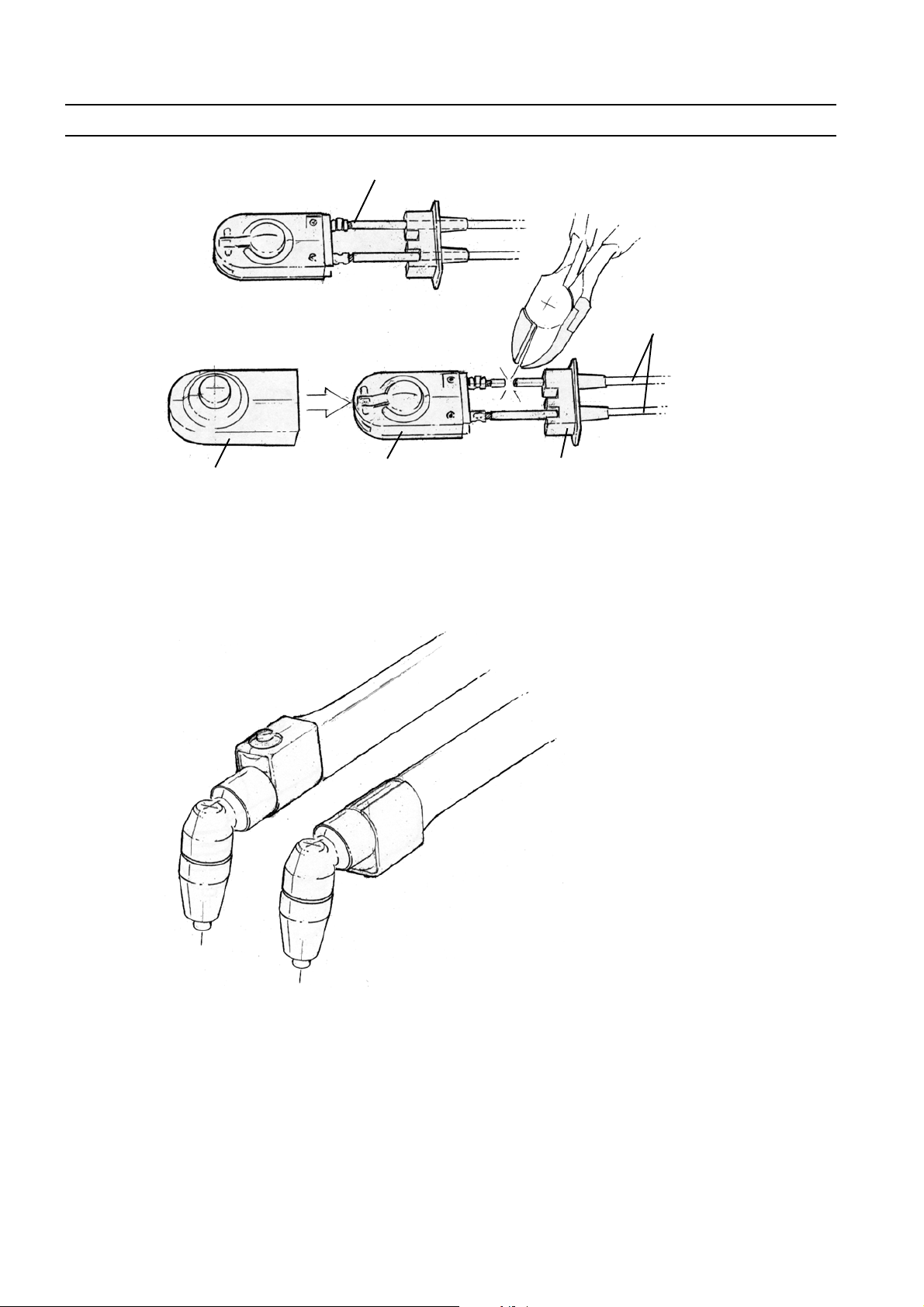

To replace - Remove switch band from torch (see figure 4-1). Pull the switch and end plug out of the cover. Snip the white
leads from the switch (leads supplied with the torch cable bundle are sufficiently long to allow cutting). Crimp or solder
the replacement switch to the leads.
WHITE LEADS
COVER SWITCH END PLUG
SWITCH KIT P/N 0558005509
Figure 4-3. Switch Placement
Note:
Switch can be mounted on top or bottom
of handle.
To reposition the switch on the torch, slide the flex support back, remove the tape securing the leads to the power cable,
reposition switch, retape the leads, and pull the flex support back in place (see note below). See Figure 4-1.
Note
A thin film of silicone lubricant P/N 0558000443, supplied with the spare parts kit, applied inside
of the flex support will ease the assembly of this part.
Figure 4-2. Switch Disassembly

79
SECTION 5 REPLACEMENT PARTS
5.1 General
Always provide the serial number of the unit on which the torch will be used. The serial number is stamped on the
unit nameplate.
To ensure proper operation, it is recommended that only genuine ESAB parts and products be used with this
equipment. The use of non-ESAB parts may void your warranty.
Replacement parts may be ordered from your ESAB Distributor.
Be sure to indicate any special shipping instructions when ordering replacement parts.
Refer to the Communications Guide located on the back page of this manual for a list of customer service phone
numbers.
5.2 Ordering
Bill of material items that have blank part numbers are provided for customer information only.
Hardware items should be available through local sources.
Note
5.0 Replacement Parts
5.4 PT-31XL and PT-31XLPC Replacement Parts
The PT-31 torch is used on several different cutting packages which require different torch trigger connection configura-
tions as shown in Figure 5-1, 5-2 and Table 5-1.
The PT-31 torch is adaptable to standard, heavy duty or XT consumables to meet specific cutting applications. See
Subsections 5.4.1.
Individual consumable parts can be ordered as needed if spare parts kits do not fit current needs.
In most cases, it is recommended that you order the same consumable parts that were shipped with your plasma cutting
system.
1.
2.
3.
"XT" Consumables - Used with currently produced product (HandyPlasma 380, HandyPlasma 550, PCM-500i, PowerCut
650, Caddycut), and older products dating back to 1990.
Standard Consumables / Heavy Duty Consumables - Available for support of pre-1990 year machines (PCM-32i, PCM-50
and PCM-31) and consumables configurations. These are the original consumables designed for the torch.
High Performance Nozzle - Gives maximum cutting thickness and speed capability.
Extended Life Nozzle - Gives extended nozzle life at the expense of top end cutting thickness and speed capability.
5.3 Definitions

80
SECTION 5 REPLACEMENT PARTS

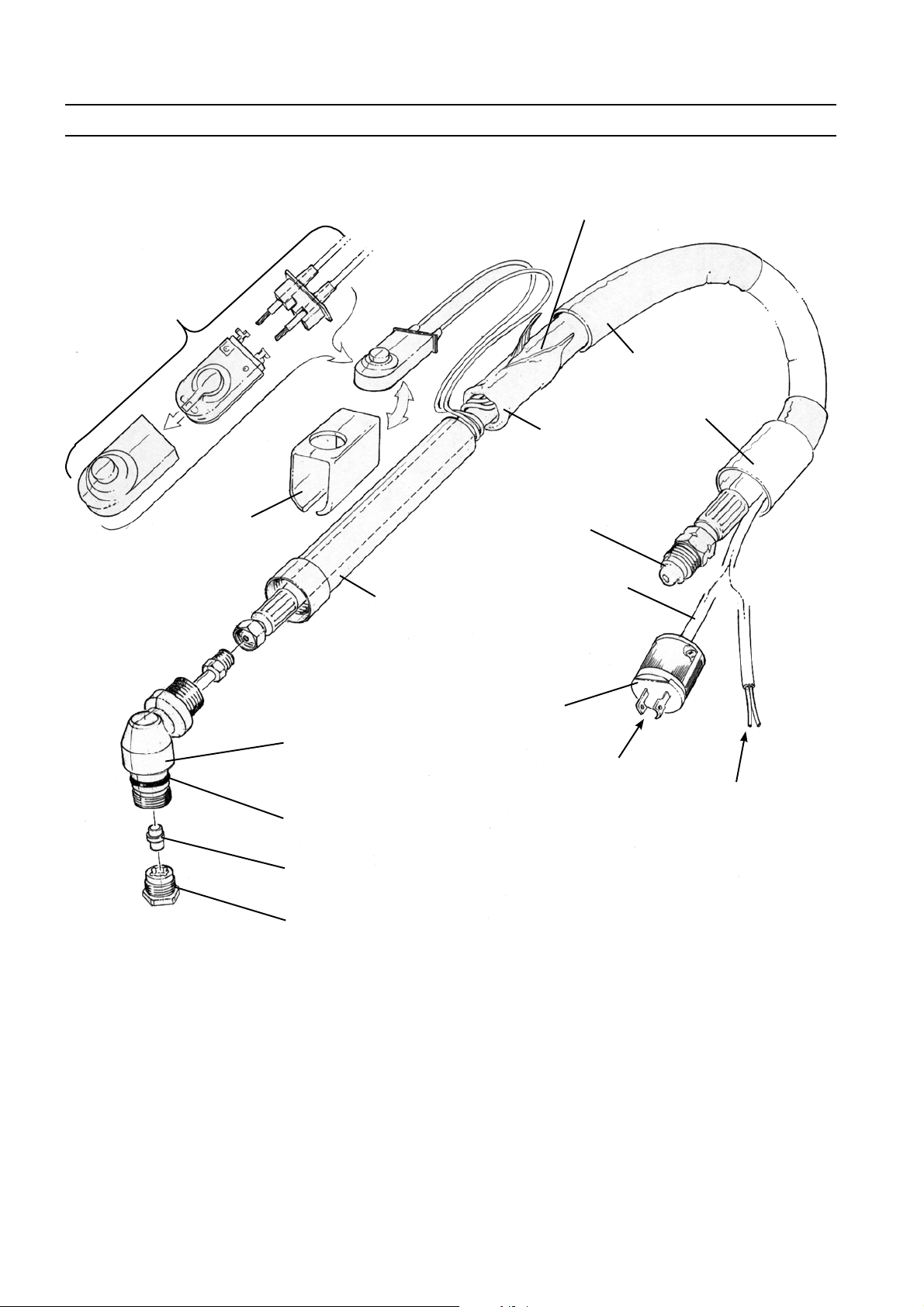

Figure 5-1. PT-31XL Torch Parts and Configurations
Switch Kit - p/n 0558005509
(see figure 4-2)
jacket shown rolled back
Flex Support - p/n 21218
Boot -
p/n 058000759
Cable Bundle Assembly -
12 1/2 ft (3.8 m) - p/n 0558005510
25 ft (7.6 m) - p/n 0558005511
50 ft (15.2 m) - p/n 0558006540
Strain Relief -
p/n 0558000794
Gas & Power 5/8 - 18 L.H.
Switch Plug -
p/n 2062336
Handle - p/n 0558005503
Switch Band - p/n 33400
75° Head - p/n 0558000790
includes:
O-ring, Seat
O-ring - p/n 0558000514
(Supplied with head)
Seat -
p/n 0558000510
(Supplied with head)
Plunger -
p/n 0558000511
(Used only with “XT” consumables)
Configuration 1
Configuration 3

81
SECTION 5 REPLACEMENT PARTS
Switch Kit - p/n 0558005509
(see figure 4-2)
jacket shown rolled back
Flex Support - p/n 21218
Boot -
p/n 0558000759
Cable Bundle Assembly -
25 ft (7.6 m) - p/n 0558005515
50 ft (15.2 m) - p/n 0558006545
Strain Relief -
p/n 0558000794
Gas & Power 3/8 - 24 UNF-2A
Handle - p/n 0558005503
Switch Band - p/n 33400
75° Head - p/n 0558000790
includes:
O-ring, Seat
O-ring - p/n 0558000514
(Supplied with head)
Seat -
p/n 0558000510
(Supplied with head)
Plunger -
p/n 0558000511
(Used only with “XT” consumables)
Configuration 2

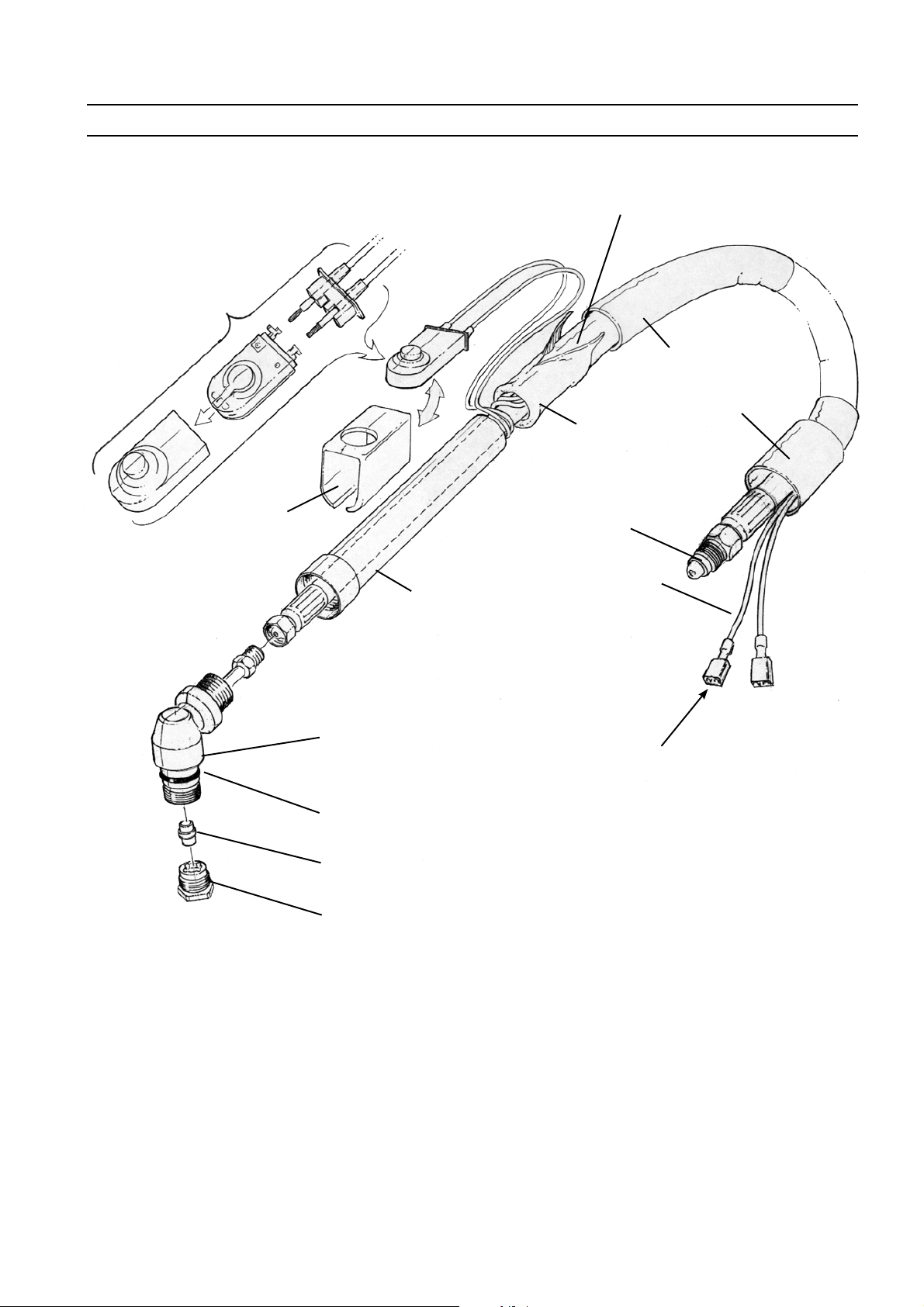

Figure 5-2. PT-31XLPC Torch Parts (used with Powercut 650 only)

82
SECTION 5 REPLACEMENT PARTS

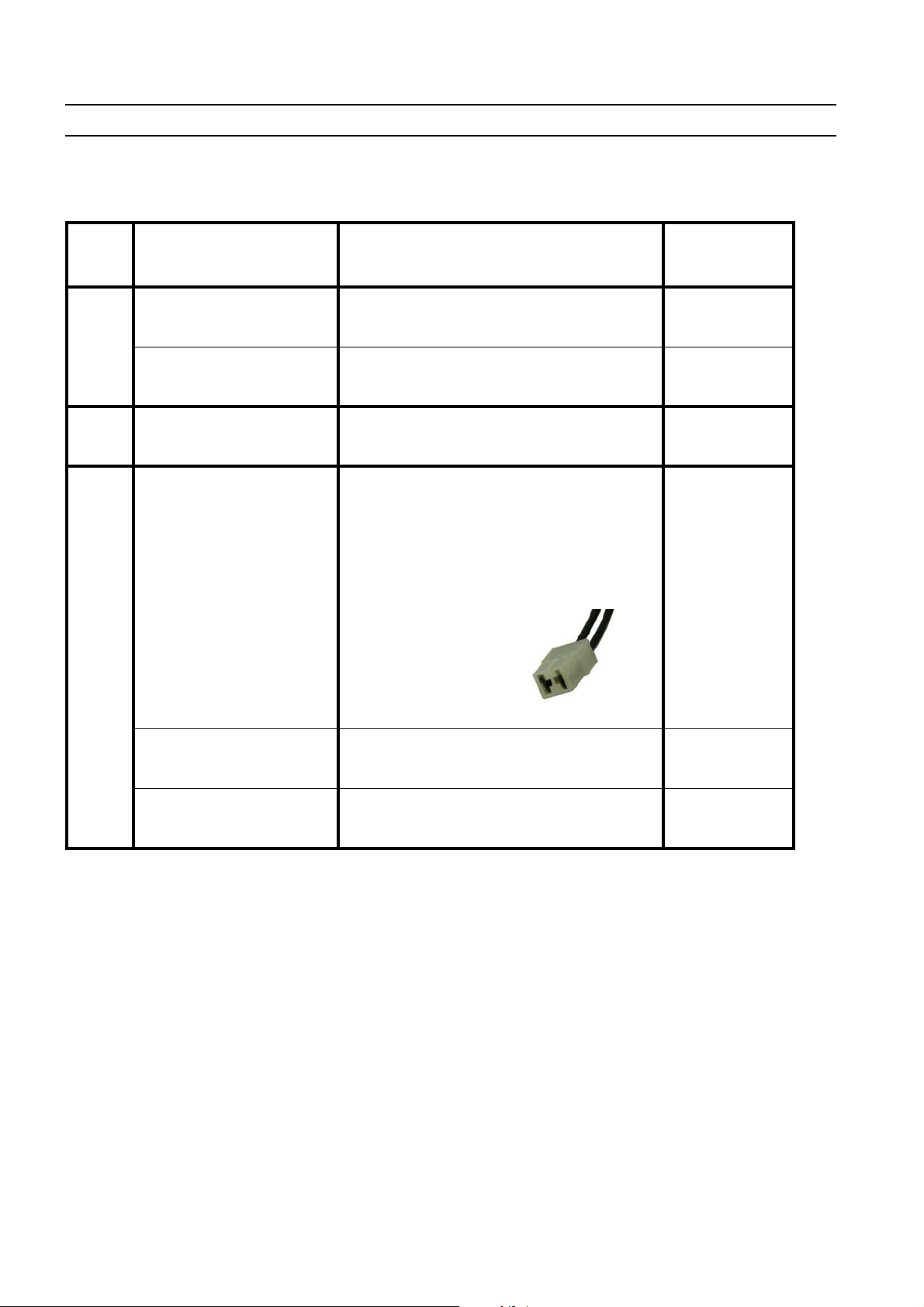

Table 5-1 PT-31 Replacement Torch and Torch Parts
Con-
figura-
tion #
Complete
Torch Assembly Installed Consumables Plasma Cutting System
1
20084 - 3.8m (12 1/2') lines
20080 - 7.6m (25') lines
20082 - 15.2m (50') lines
Seat and o-ring. Consumables and plunger not
included.
21985 - 7.6m (25') lines
30A / 40A high performance "XT" consumables,
standard heat shield P/N 20282, seat, o-ring and
plunger.
PCM 500i, Handy
Plasma-550 (Asia)
20558005393 -7.6m (25') lines
0558005334 -15.2m (50') lines
30A / 40A high performance "XT" consumables,
standard heat shield P/N 20282, seat, o-ring and
plunger.
Powercut-650
3
0558004482
3.8m (12 1/2') lines
30A / 40A high performance "XT" consumables,
standard heat shield P/N 20282, seat, o-ring and
plunger.
NOTE: When ordering the PT-31XL torch
assembly for use on the HandyPlasma-380,
Female Torch Connector P/N 0558004947 shown
below must also be ordered. HandyPlasma-380
0558001466
3.8m (12 1/2') lines
30A / 40A high performance "XT" consumables,
long heat shield P/N 0558000509, seat, o-ring and
plunger.
CaddyCut
(Europe)
0558003467
7.6m (25') lines
50A high performance "XT" consumables, long
heat shield P/N 0558000509, seat, o-ring and
plunger.
HandyPlasma-50
(Europe)

83
“XT"
“Extended Thickness”
P/N 0558000511
(Assembles between
seat and head)
30/40 Amp P/N 0558000512
(HIGH PERFORMANCE)
35/40 Amp P/N 0558000508
(EXTENDED LIFE)
50 Amp P/N 0558000513
P/N 0558000507
P/N 0558000506
"Pink”
6 Holes
P/N 0558000509 CE
(Long Heat Shield) Version

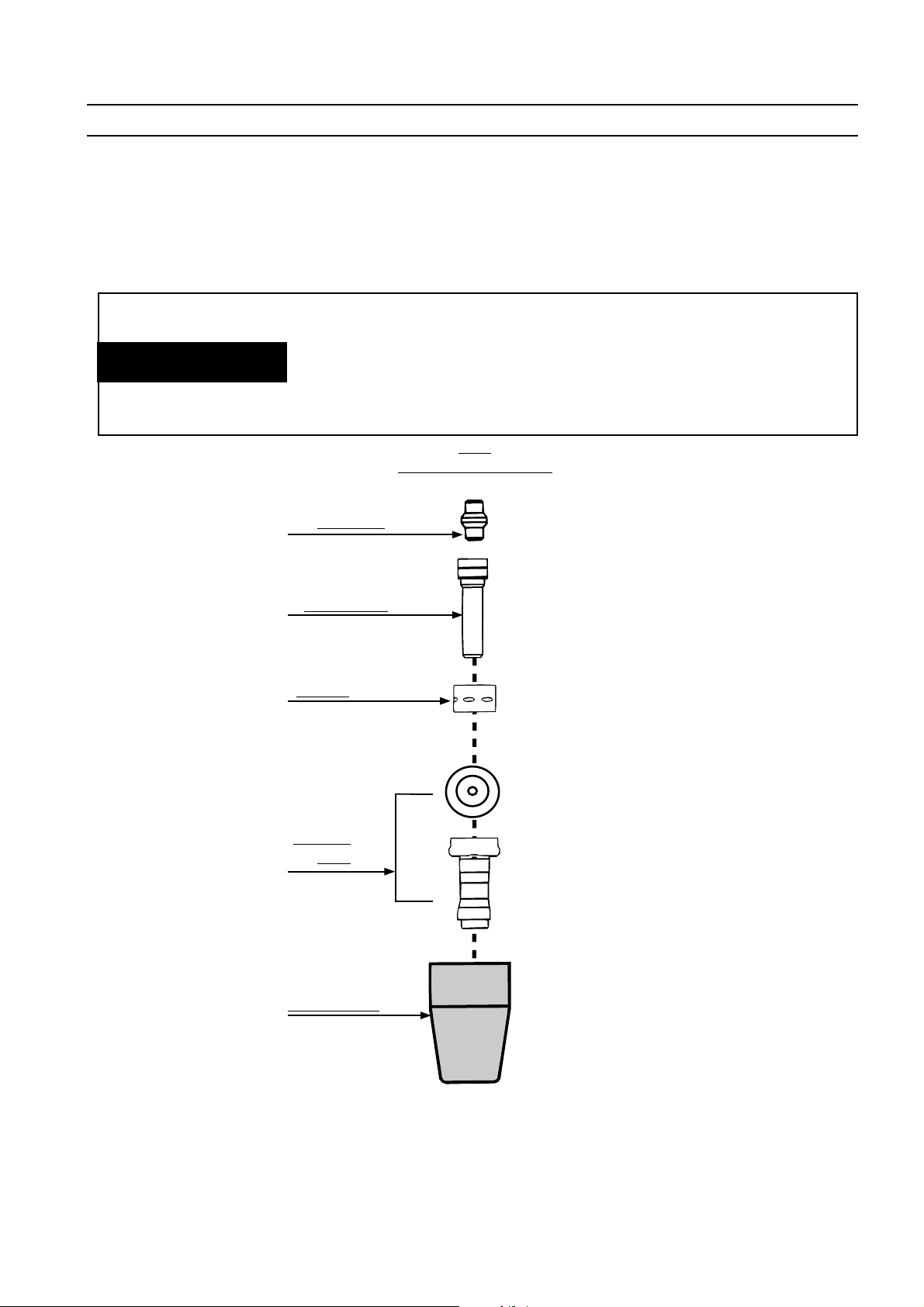

Figure 5-3 Torch Front End "XT" Consumables
BAFFLE
NOZZLE
(TIP)
HEAT SHIELD
ELECTRODE
SECTION 5 REPLACEMENT PARTS
5.4.1 “XT” Consumables
The “XT” electrode and nozzle design extends the metal cutting thickness range and improves cut speed and
edge quality for production plasma cutting applications. The torch safety interlock is enabled through the“non-
consumable” plunger installed behind the removable seat in the torch head.
The use of other than genuine ESABconsumables and replacement parts can cause personal
injury and / or damage to the equipment.
ESABdoes not warrant parts for its equipment which are not furnished by ESAB. The use of
parts that are not furnished by ESABdoes not automatically void ESAB's warranties for its
equipment. Anyobligationsotherwise arisingfromESAB'swarrantywillbe voidedif,but only
if, the design, manufacture or composition of parts or components not supplied by ESABare
a material cause of the malfunction or poor performance of (or damage to) the equipment.
WARNING
PLUNGER

84
SECTION 5 REPLACEMENT PARTS
Table 5-2 Contents of PT-31XL and PT-31XLPC "XT" Consumables Spare Parts Kits
note 1 - for PCM-500i, PowerCut-650, HandyPlasma 550 and HandyPlasma 380
note 2 - HandyPlasma-50 for Europe
note 3 - Caddycut for Europe
"XT" Consumables Kits
P/N 0558003464
50 Amp
(note 2)
P/N 0558003462
35 Amp
(note 3)
P/N 0558005392
40 Amp (CE)
(note 1)
Description P/N (Qty) P/N (Qty) P/N (Qty)
Heat Shield 0558000509 (1) 0558000509 (1) 0558000509 (1)
Nozzle 0558000513 (3) 0558000508 (3) 0558000512 (3)
Electrode 0558000507 (3) 0558000507 (2) 0558000507 (2)
Seat — — —
O-Ring 0558000514 (1) — —
Swirl Baffle 0558000506 (1) 0558000506 (1) 0558000506 (1)
Lubricant (1
oz.)
— — 0558000443 (1)
Plunger — — —
