Escient FireBall E-120 Use and maintenance manual

FIREBALL REMOTE CONTROL GUIDE WD006-1-1
12/23/2003
6325 Digital Way Indianapolis, IN 46278 317.616.6789 phone [phone] fax www.escient.com
FIREBALL REMOTE
CONTROL GUIDE
Programming the Escient FireBall H-40/E-40/E-120/MP-100
Remote Control and Wireless Keyboard

FIREBALL REMOTE CONTROL GUIDE WD006-1-1
12/23/2003
6325 Digital Way Indianapolis, IN 46278 317.616.6789 phone [phone] fax www.escient.com
FireBall IR Remote Control
The FireBall H-40, E-40, E-120, MP-100, and TuneBase
200 include a universal remote control that can be
programmed to operate up to 3 different Escient
products and 5 other home theater devices.
The 3 source buttons on the remote control labeled FB,
TB, and PP can only be programmed to operate the
Escient products. The 5 source buttons on the remote
labeled AUX, CBL, DVD, TV, and RCV can be
programmed to operate other devices.

FIREBALL REMOTE CONTROL GUIDE WD006-1-1
12/23/2003
6325 Digital Way Indianapolis, IN 46278 317.616.6789 phone [phone] fax www.escient.com

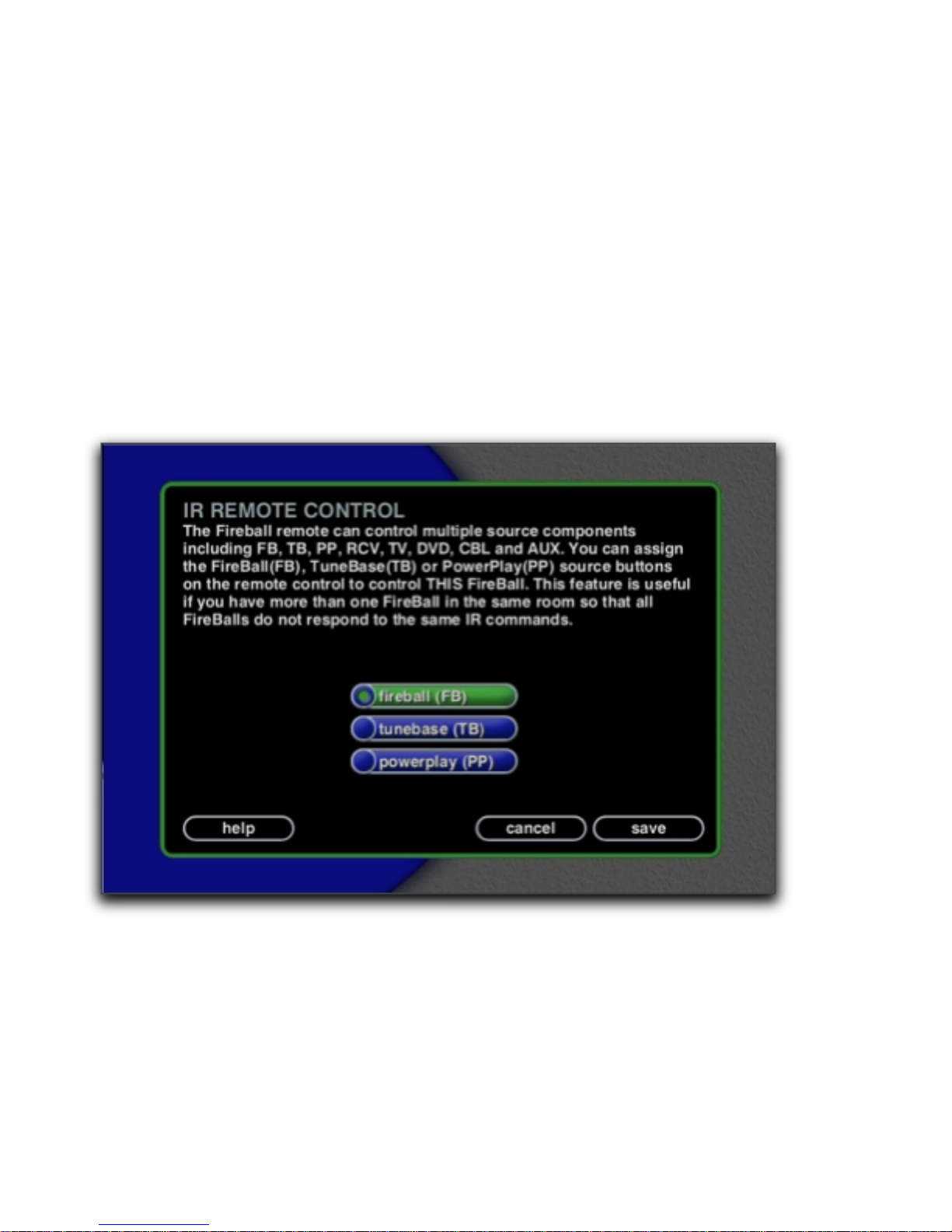

Controlling Multiple FireBalls with 1 Remote
Every FireBall is preset from the factory to operate from the FB source button, however, the
FireBall can be configured to use any one of the three Escient source buttons using the on
screen Setup menus. This is useful when there are multiple FireBalls installed at the same
location, so all FireBalls don’t respond to the same IR commands. Use the following steps to
change which source button (FB, TB, or PP) each FireBall will listen for commands from:
 Press the Setup key on the remote to display the FireBall setup menu.
 Highlight and Select the Utilities menu item.
 Highlight and Select the IR Remote Control menu item.
 Highlight and Select which source button to use to control this FireBall.
 Press the new source button on your remote to reconfigure the remote and confirm the
change by selecting the OK button on screen.
Repeat these steps for each FireBall in your system, selecting a different FB button for each.
Resetting the FB, TB, and PP Source Buttons
The FB, TB, and PP source buttons are preprogrammed at the factory with the correct codes
to control a FireBall H/E, a TuneBase 200, and a PowerPlay. If you changed these buttons to
control other devices, you will have to reset the FB, TB, or PP source buttons back to the
original codes in order to control the original device again. Use the following steps to program
these buttons back to their factory states:
 Press the FB, TB, or PP source button to be re-programmed.
 Press & Hold the “Code Set” button on the remote until the LED flashes twice.

FIREBALL REMOTE CONTROL GUIDE WD006-1-1
12/23/2003
6325 Digital Way Indianapolis, IN 46278 317.616.6789 phone [phone] fax www.escient.com
 Enter “987” using the remote’s numeric keypad. The LED should again flash twice.
 Enter the factory reset code which corresponds to the source button being reset:
o“0052” for FB
o“0051” for TB
o“0053” for PP
 The LED will again flash twice indicating the programming was successful.
Repeat these steps for each FireBall in your system, selecting a different source button for
each.
Programming the Universal Source Buttons
Use the following steps to program the AUX, CBL, DVD, TV, and RCV source buttons to
control other devices. The following table indicates which device types can be programmed on
which source buttons:
Source Button Device Assignment
AUX CD, DVD, LDP, VCR, Audio Cassette, PVR
CBL Cable, Video Accessories, Satellite, DSS
DVD VCR, Audio Cassette, DVD, LDP, DAT, PVR
TV TV
RCV Amplifier, Tuner, Phono, Misc. Audio, CD, Home Automation, MD
 Locate the 4 digit device code for the device you want to control in Appendix A.
 Press the source button to be programmed.
 Press & Hold the “Code Set” button on the remote until the LED flashes twice.
 Enter the 4 digit code using the remote’s numeric keypad. The LED will flash twice
indicating the code was accepted.
Note: If the LED does a single long flash then the entered code was not valid for that source
button.
See Appendix B for details and instructions for accessing the other various functions available
on the remote control:

FIREBALL REMOTE CONTROL GUIDE WD006-1-1
12/23/2003
6325 Digital Way Indianapolis, IN 46278 317.616.6789 phone [phone] fax www.escient.com
FireBall Wireless IR Keyboard
The Escient FireBall, TuneBase 200, and PowerPlay include a wireless IR keyboard with
universal remote control capabilities. The keyboard can be programmed to operate one
Escient product and four other devices.
Only the FireBall source button (the one with the swoop) can be programmed to operate
the FireBall, TuneBase, or PowerPlay. The four source buttons on the remote labeled TV,
VCR, CBL, and AUD can be programmed to operate other devices.
WARNING!
The CBL source button is not programmed to control any device by default. We recommend
that you do not program the CBL button for another source, but if you choose to program the
CBL source button, note that the POWER key on the keyboard will no longer power the
FireBall on/off.
Programming the Keyboard to Control FB, TB or PP Sources
Swoop
Button
The FireBall (swoop) source button is preprogrammed at the factory to correspond to the FB
button on the remote. The FireBall source button can be programmed to correspond to any of
the FB source buttons using the following method:
 Press Swoop

FIREBALL REMOTE CONTROL GUIDE WD006-1-1
12/23/2003
6325 Digital Way Indianapolis, IN 46278 317.616.6789 phone [phone] fax www.escient.com
 Press & Hold the “Set” button on the keyboard until the LED flashes twice.
 Slowly enter “997” using the number buttons on the keyboard. The LED will flash twice
again.
 Press the “CH-” button on the left side of the keyboard. The LED will flash four times.
 Press the Fireball (swoop) source button.
 Press & Hold the “Set” button on the keyboard until the LED flashes twice.
 Slowly enter:
o1163 for the FB button
o1162 for the TB button
o1164 for the PP button
 The LED will again flash twice indicating the programming was successful.

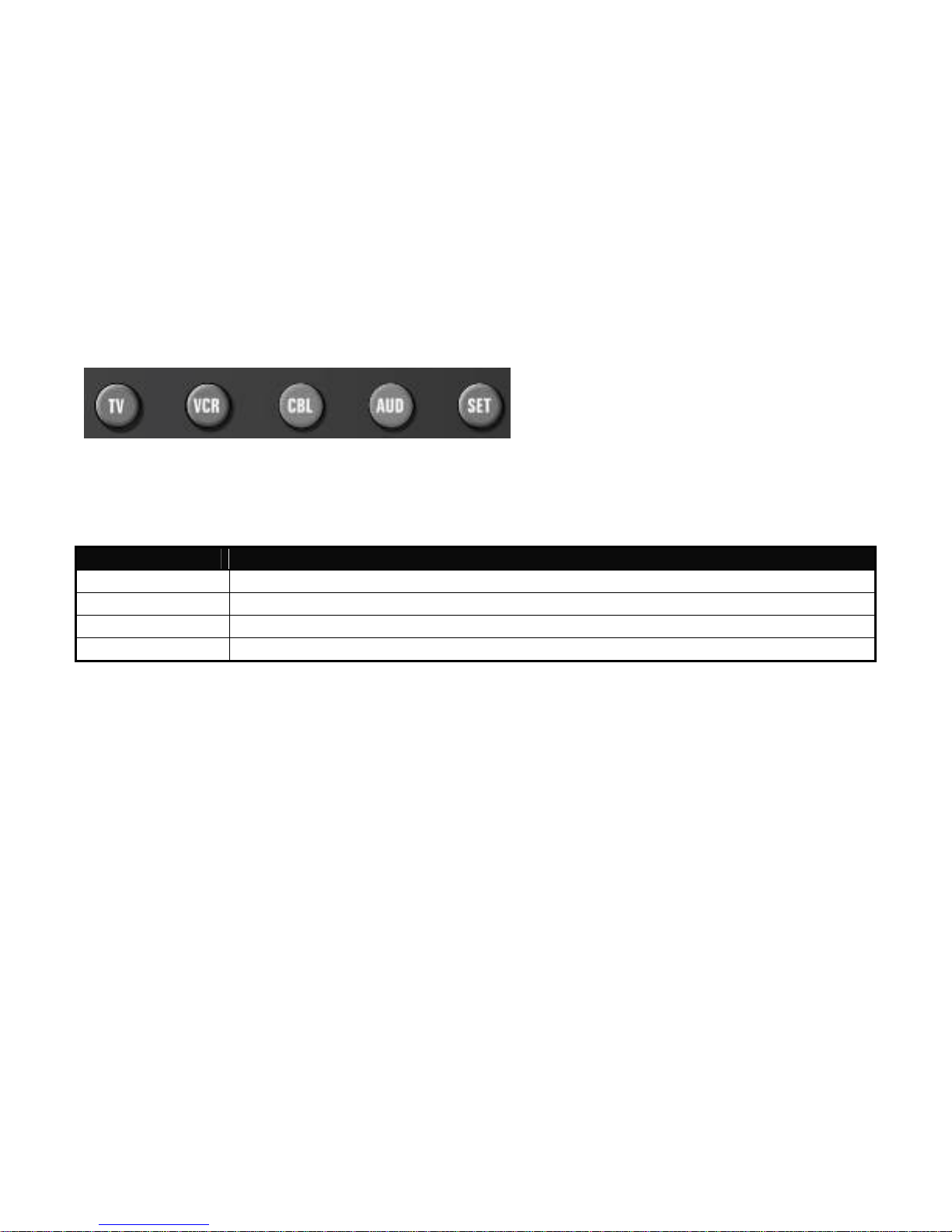

Programming the Universal Source Buttons
Use the following steps to program the TV, VCR, CBL, and AUD source buttons to control
other devices. The following table indicates which device types can be programmed on which
source buttons:
Source Button Device Assignment
TV TV
VCR VCR, Audio Cassette, DVD, LDP, DAT, PVR
CBL Cable, Video Accessories, Satellite, DSS
AUD Amplifier, Tuner, Phono, Misc. Audio, CD, Home Automation, MD
 Locate the 4 digit device code for the device you want to control in Appendix A.
 Press the source button to be programmed.
 Press & Hold the “Code Set” button on the remote until the LED flashes twice.
 Enter the 4 digit code using the remote’s numeric keypad. The LED will flash twice
indicating the code was accepted.
Note: If the LED does a single long flash then the entered code was not valid for that source
button.
See Appendix B for details and instructions for accessing the other various functions available
on the remote control:

FIREBALL REMOTE CONTROL GUIDE WD006-1-1
12/23/2003
6325 Digital Way Indianapolis, IN 46278 317.616.6789 phone [phone] fax www.escient.com
APPENDIX A – Universal Device Codes
SETUP CODES FOR AMPLIFIERS
GE 0078
Harman/Kardon 0892
JVC 0331
Marantz 0892
Optimus 0395
Philips 0892
Polk Audio 0892
Realistic 0395
Sony 0689
Soundesign 0078
Victor 0331
Wards 0078
Yamaha 0354
SETUP CODES FOR CABLE
ABC 0003, 0017
Americast 0899
Bell South 0899
General Instrument 0276, 0476, 0810
GoldStar 0144
Hamlin 0009, 0273
Jerrold 0003, 0276, 0476, 0810
Memorex 0000
Motorola 1106
Pace 0237
Panasonic 0107, 0000
Paragon 0000
Philips 0305, 0317
Pioneer 0144, 0533, 0877
Pulsar 0000
Quasar 0000
Regal 0273, 0279
Runco 0000
Samsung 0144
Scientific Atlanta 0017, 0477, 0877
Starcom 0003
Toshiba 0000
Zenith 0000, 0525, 0899
SETUP CODES FOR CD PLAYERS
Aiwa 0157
Burmester 0420
California Audio Labs 0029
Carver 0157, 0179
DKK 0000
Denon 0003, 0873
Emerson 0305
Fisher 0179
Garrard 0420
Genexxa 0032, 0305

FIREBALL REMOTE CONTROL GUIDE WD006-1-1
12/23/2003
6325 Digital Way Indianapolis, IN 46278 317.616.6789 phone [phone] fax www.escient.com
Harman/Kardon 0157, 0173
Hitachi 0032
JVC 0072
Kenwood 0028, 0190, 0826, 0037, 0626, 0681
Krell 0157
LXI 0305
Linn 0157
MCS 0029
MTC 0420
Magnavox 0157, 0305
Marantz 0157, 0626, 0029
Mission 0157
NSM 0157
Onkyo 0101, 0868
Optimus 0032, 0468, 0420, 0179, 0305, 1063, 0000, 0037,
0145
Panasonic 0029
Parasound 0420
Philips 0157, 0626
Pioneer 0032, 0468, 0305, 1062, 1063
Polk Audio 0157
Proton 0157
QED 0157
Quasar 0029
RCA 0053, 0032, 1062, 0468, 0305, 0179
Realistic 0179, 0420
Rotel 0157, 0420
SAE 0157
Sansui 0157, 0305
Sanyo 0179
Scott 0305
Sears 0305
Sharp 0037, 0861
Sherwood 1067
Sonic Frontiers 0157
Sony 0000, 0490
Soundesign 0145
Tascam 0420
Teac 0420
Technics 0029
Victor 0072
Wards 0053, 0157
Yamaha 0036, 0888
SETUP CODES FOR HOME AUTOMATION
GE 0240
One For All 0167
Radio Shack 0240
Security System 0167
Universal X10 0167
X10 0167
SETUP CODES FOR VIDEO
Panasonic 1120
Pioneer 1010
Sensory Science 1126

FIREBALL REMOTE CONTROL GUIDE WD006-1-1
12/23/2003
6325 Digital Way Indianapolis, IN 46278 317.616.6789 phone [phone] fax www.escient.com
Sharp 1010
SETUP CODES FOR RECEIVERS
ADC 0531
Aiwa 0121, 1405, 1089
Capetronic 0531
Carver 1089, 1189
Denon 1160, 1104
Harman/Kardon 0110
JBL 0110
JVC 0074
Kenwood 1027, 0186, 1313, 1569, 1570
MCS 0039
Magnavox 1089, 0531, 1189
Marantz 1189, 1089, 0039
Onkyo 0135
Optimus 1023, 0186, 0531, 0670
Panasonic 0039, 1518
Philips 1089, 1189, 1269
Pioneer 0150, 0531, 0630, 1023
Proscan 1254
Quasar 0039
RCA 1254, 0531, 1023
Sansui 1089
Sharp 0186
Sony 1158, 1058, 1258
Soundesign 0670
Sunfire 1313
Technics 0039, 1308, 1518, 1309
Thorens 1189
Victor 0074
Yamaha 0176, 0186, 1176
SETUP CODES FOR SATELLITE
AlphaStar 0772
Chaparral 0216
Echostar 0775, 1005
Expressvu 0775
GE 0566
General Instrument 0869
HTS 0775
Hitachi 0819
Hughes Network Systems 0749, 1142, 1749
JVC 0775
Magnavox 0722, 0724
Memorex 0724
Mitsubishi 0749
Next Level 0869
Panasonic 0247, 0701
Philips 1076, 1142, 0722, 0724, 0749
Proscan 0392
RCA 0566, 0392, 0143, 0855
Radio Shack 0869
Samsung 1109
Sony 0639
Star Choice 0869

FIREBALL REMOTE CONTROL GUIDE WD006-1-1
12/23/2003
6325 Digital Way Indianapolis, IN 46278 317.616.6789 phone [phone] fax www.escient.com
Toshiba 0749, 0790
Uniden 0724, 0722
Zenith 0856
SETUP CODES FOR TELEVISION
AOC 0019, 0030
Admiral 0093, 0463
Aiko 0092
Aiwa 0701
Akai 0030
Alaron 0179
America Action 0180
Anam 0180
Audiovox 0092, 0180, 0451, 0623
Baysonic 0180
Belcor 0019
Bell & Howell 0016, 0154
Bradford 0180
Brockwood 0019
Broksonic 0236, 0463
CXC 0180
Candle 0030, 0056
Carnivale 0030
Carver 0054
Celebrity 0000
Cineral 0451, 0092
Citizen 0056, 0030, 0060, 0092
Concerto 0056
Contec 0180
Craig 0180
Crosley 0054
Crown 0180
Curtis Mathes 0060, 0030, 0016, 0047, 0051, 0054, 0056, 0093,
0145, 0154, 0166, 0451, 1147, 1347
Daewoo 0092, 0623, 0019, 0624, 0451
Daytron 0019
Denon 0145
Dumont 0017, 0019
Electroband 0000
Emerson 0236, 0180, 0178, 0179, 0463, 0624, 0623, 0019,
0154
Envision 0030
Fisher 0154
Fujitsu 0179, 0683
Funai 0180, 0171, 0179
Futuretech 0180
GE 0047, 1347, 0051, 0178, 0451, 1147, 0093
Gibralter 0017, 0019, 0030
GoldStar 0178, 0019, 0030, 0056
Gradiente 0056, 0053
Grunpy 0179, 0180
Hallmark 0178
Harley Davidson 0179
Harman/Kardon 0054
Harvard 0180
Hitachi 0145, 0056, 0016
Infinity 0054
Inteq 0017
