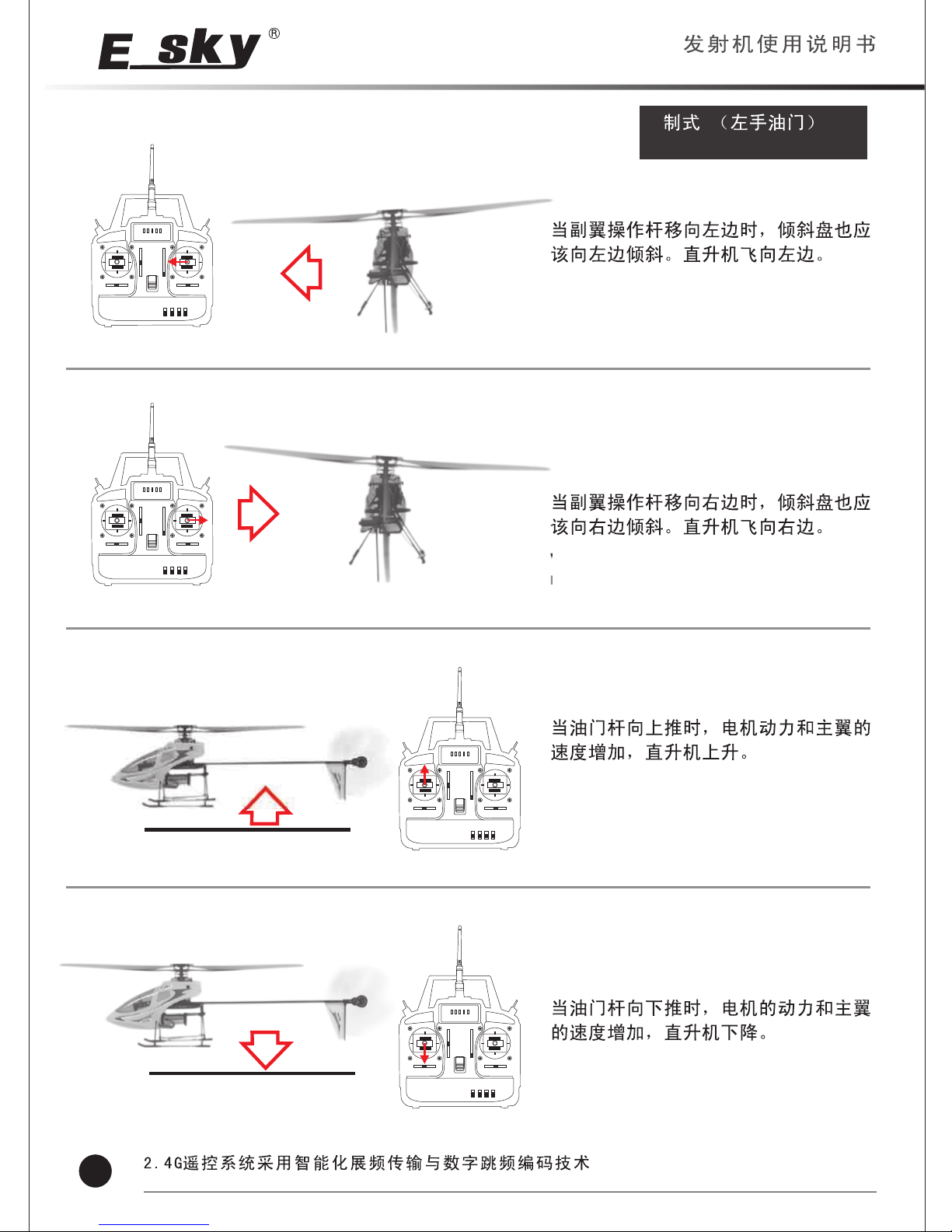

When the throttle stick is pushed downward.
the speed of the motor and main rotor
increases, as a result, the helicopter descends.
When the throttle stick is pushed upward,
the speed of the motor and main rotor
increases, as a result, the helicopter lifts up.
When the aileron stick is moved to the
right, the swashplate also tilt to the right,
and the helicopter moves to the right.
When the aileron stick is moved to the left,
the swashplate also tilt to the left, and the
helicopter moves to the left.
2
Model 2 (left throttle)
2.4G
2.4G TRANSMITTER INSTRUCTION MANUAL
92.4G Remote control system adopts Advanced Spread Spectrum Technology and digital FSK (frequency shift key) Coding Technology.

The rudder stick operation for Model 2 is the same as Model 1
When the elevator stick is pushed backward,
the nose of the helicopter will tilt upward,
then the helicopter moves backward and
its speed increases.
ADJUSTMENTS BEFORE FLYING
The meso-position of each operating stick, aileron and rudder had already set in the factory, you can adjust
it according to your needs. If need adjustment ,you can adjust according to your remote products.
If you are a novice ,please connect and adjust each part according to the corresponding manual and
pictures to ensure the proper operation.
Caution
2.4G
2.4G TRANSMITTER INSTRUCTION MANUAL
10
2.4G Remote control system adopts Advanced Spread Spectrum Technology and digital FSK (frequency shift key) Coding Technology.

NOR
IDEL UP
THR
Endpoint
Output Value
123HL
0%
50%
100%
PIT Output Value
123HL
0%
50%
100%
123HL
THR Output Value
0%
50%
100%
123HL
PIT Output Value
0%
50%
100%
Throttle/pitch curve diagram
/
Hovering Pitch knob
1 2 3 HL 1 2 3 HL
0%
50%
100%
0%
50%
100%
Output Value Output Value
3D
The hovering pitch knob function is to shift the center point of curve either upward or downward to adjust
totor RPM at the hover position.
NOR Pitch 3D Pitch
Endpoint
Endpoint Endpoint
Endpoint Endpoint
2.4G
2.4G TRANSMITTER INSTRUCTION MANUAL
2.4G Remote control system adopts Advanced Spread Spectrum Technology and digital FSK (frequency shift key) Coding Technology. 14

PITCH TRIM KNOB
PITCH 0
Point
Output Value
123HL
0%
50%
100%
The pitch trim knob is a trimmer for the pitch channel .This knob
should be set to at first ,then adjust the rotor RPM by shifting
it upward or downward.
As the setting of each manufacturer is different ,only small trim
adjustment will be required if the pitch curve had set properly.

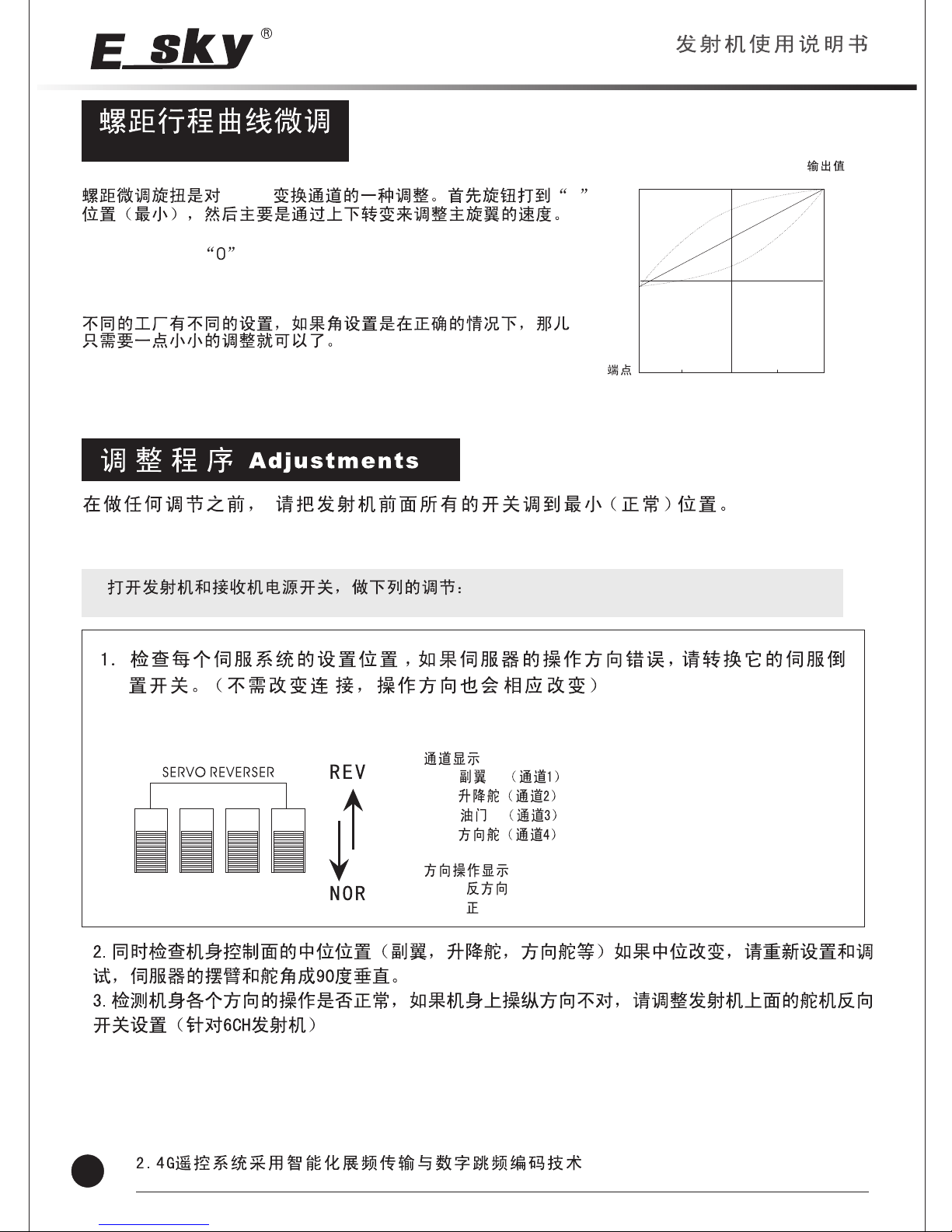

Before any adjustment, please set all the switches in the front of the transmitter to the lowest(normal)
position.
Turn on the power switch of the transmitter and the receiver , then make the following adjustments:
THRELEAIL RUD
AIL :
ELE:
THR:
RUD:
REV:
NOR:
Channel display
AIL : Aileron(channel 1)
ELE: Elevator(channel 2)
THR: Throttle(channel 3)
RUD: Rudder servo(channel 4)
Rudder operating display
REV: Reverse
NOR: Normal
Check the direction of each servo, If a servo operates in the wrong direction, switch its SERVO
REVERSR switch (the direction of operation can be changed without changing the linkage.)
2.Check the aileron, elevator and rudder neutral adjustment, if the neutral position changed,please reset
and readjust it ,make the servo horn to be perpendicar to the servo.
3.Check to see whether the operation of each direction is normal, if not ,please adjust the SERVE
REVERSERswitch (For 6CH transmitter ).
2.4G
2.4G TRANSMITTER INSTRUCTION MANUAL
15 2.4G Remote control system adopts Advanced Spread Spectrum Technology and digital FSK (frequency shift key) Coding Technology.

4
5
4. At last, check the range curve of each servo direction, turn the servo horn rod outward if the range is
too small and turn it inward while the range is too large.
5. After finishing all the connections, recheck the operating direction and setting etc.
Please charge with an adapter, overcharge or overheating may cause
burn or fire etc. or combustion. Please charge Ni-CD/Ni-MH battery
with original TWF changer or quick charger, and power off the charger
in time after finishing the charging .
2.4G
2.4G TRANSMITTER INSTRUCTION MANUAL
