Espressotoria PICCOLO User manual

_____________________________Espressotoria® System Piccolo
Automatic coffee capsule machine
Instruction Manual
Instruction Manual
PICCOLO

Safety instructions _________________________________________
Please take time to read these safety precautions carefully before connecting your machine to the power supply. It is
essential to follow them and the operating instructions.
- First read this entire operation manual.
- To avoid damage, only use capsules designed for this system with
this machine.
- Danger of electric shock! Never immerse the appliance in water or
any other liquid.
- Connect only to a properly grounded power point (220-240V~)
protected by:
a) At least a 10A fuse when collect only the coffee machine; OR
b) At least a 15A fuse when collect the coffee machine together
with the ESPRESSOTORIA® MILK FROTHER
- To make sure that the appliance is switched off, switch the power
point off and remove the plug from the power point.
- Never clamp or run the power cable over sharp corners or edges.
- Danger of electric shock! Damaged power cables may only be
replaced at the customer service centre.
- Danger of electric shock! Never touch the power
plug/socket/cable or the appliance with damp or wet hands.
- Danger of electric shock! Never unplug by pulling the power cable
out of the power point or machine, always turn off the machine
and power point before removing the power plug.
- If you need an extension cable, make sure it is suitable for your
appliance (3-pole grounded,1.5 mm²conductor cross-section), and
lay the cable to avoid tripping.
- We recommend connecting the appliance via An FI circuit-breaker.
Consult an electrician or other electrical specialist if in doubt.
- Danger of scalding! Never move the appliance during operation!
- Never operate the appliance without water.
- Danger of burning! Never touch very hot parts of the appliance
(e.g. brew unit during operations).
- Danger of scalding! Do not touch the steam or water jets.
- Danger of scalding! Do not move the operating lever when the
appliance is still under pressure making coffee.
- Choose a dry, stable and level support surface for the appliance
not immediately underneath the power point, at least 60cm away
from the washbasin and taps.
- Never place the appliance on flammable/fusible surfaces or
equipment.
- Never place the appliance or power cable on or nearer than 50cm
to hot surfaces or open flames.
- The appliance with power outlet (max 240V 760W) on the right
housing of coffee machine, it is only for connect with the
ESPRESSOTORIA® MILK FROTHER for making hot milk or milk froth.
- Always put on the protection cover when the appliance outlet is
not in use.
- To avoid any electric shock, never insert any other appliances
other than the ESPRESSOTORIA® MILK FROTHER
- WARNING! To avoid spillage on the connector!
- Never cover the appliance during operation
- Keep children away from the appliance during operation.
- Only use the appliance in dry rooms.
- Danger of tripping! Do not let the power cable hang down.
- Pull out the power plug and allow the appliance to cool down completely before
cleaning and or maintenance.
- To prevent frost damage, do not store the appliance at temperatures below 5℃
(e.g.in caravans).
- To prevent damage, never use replacement parts or accessories not recommended
by the manufacturer.
- This appliance can be used by children aged from 8 years and above if they have
been given supervision or instruction concerning use of the appliance in a safe way
and user maintenance shall not be made by children unless they are older than 8
and supervised. Keep the appliance and its cord out of reach of children aged less
than 8 years.
- Appliances can be used by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
- Children should be supervised to ensure that they do not play with the appliance.
- This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- Do not use the appliance in case of:
- faulty operation
- damaged power cable
- after falling or other damage
- In such case the appliance must be checked and repaired by an authorized customer
service centre in other to avoid hazard.
- Always pull out the power plug, in accordance with these safety instructions,
before:
- Relocating the appliance.
- Cleaning or maintenance.
- Long periods of disuse.
- Clean the water tank, drip try, perforated cover and capsule container with tepid
water and household detergent. Never clean them in the dishwasher.
- Danger of scalding! The heating element surface is subject to residual heat after
use.
- Always disconnect the appliance from the supply if it is left unattended and before
assembling, disassembling or cleaning
- Switch off the appliance and disconnect from supply before changing accessories or
approaching parts that move in use.
Intended utilization
The ESPRESSOTORIA® SYSTEM PICCOLO automatic capsule machine is
designed only to make espresso and coffee.

Before use ______________________________________________
Congratulations!
This ESPRESSOTORIA® SYSTEM PICCOLO Automatic
coffee capsule machine is a first-class product,
manufactured with the greatest care. If you look after it
properly it will reward you with many years of good
service.
Before using your new machine, please read this
operating manual carefully, keep it safe and pass it on
to the next user. For further information please contact
the service and sales center.
After unpacking, please check that the following parts are included:
1.Before using for the first time 2.Installation / Power connection
Caution
●Check that your power supply voltage is the same
as marked on the machine rating plate (220-240V)
●Destroy all the plastic bags to prevent danger to
children!
Note
●There can be remaining water in the tank from the
function testing before leaving the factory.
●Coffee capsules are not included!
Thoroughly rinse out the water tank with hot
water before using for the first time. Clean the
coffee capsule machine using a damp cloth only
(see 11. Cleaning the appliance)
Caution
●Danger of tripping! Do not let the power cable hang down.
●Danger of electric shock! Never clamp or run the power
cable over sharp corners or edges or hot surfaces.
●To make sure that the machine is switched off, remove the
plug from the power point.
●Danger of scalding: beware of hot water.
●Do not operate the machine with an empty water tank.
●Always pull out the power plug before cleaning the
machine.
The machine location must meet the following requirements:
●Place the machine on a dry, stable and level surface, not directly
under the power point. Only use the machine in a dry room.
●Never place the machine or power cable on or nearer than 50cm
to hot surfaces or open flames.
●Never place the machine nearer than 60cm from the wash basin.
●If you need an extension cable, make sure it is suitable for your
machine (3-pole grounded, 1.5mm² conductor cross-section).
●Remove the protective foil from the perforated drip tray cover
and insert it in the drip tray.
Note
●Before using for the first time the internal piping
must be flushed out (for details see: 9. Flushing
machine and internal piping).
Note
●There can be remaining water in the tank from the
function testing before leaving the factory.
●Coffee capsules are not included!

Overview ______________________________________________

Starting up _____________________________________________

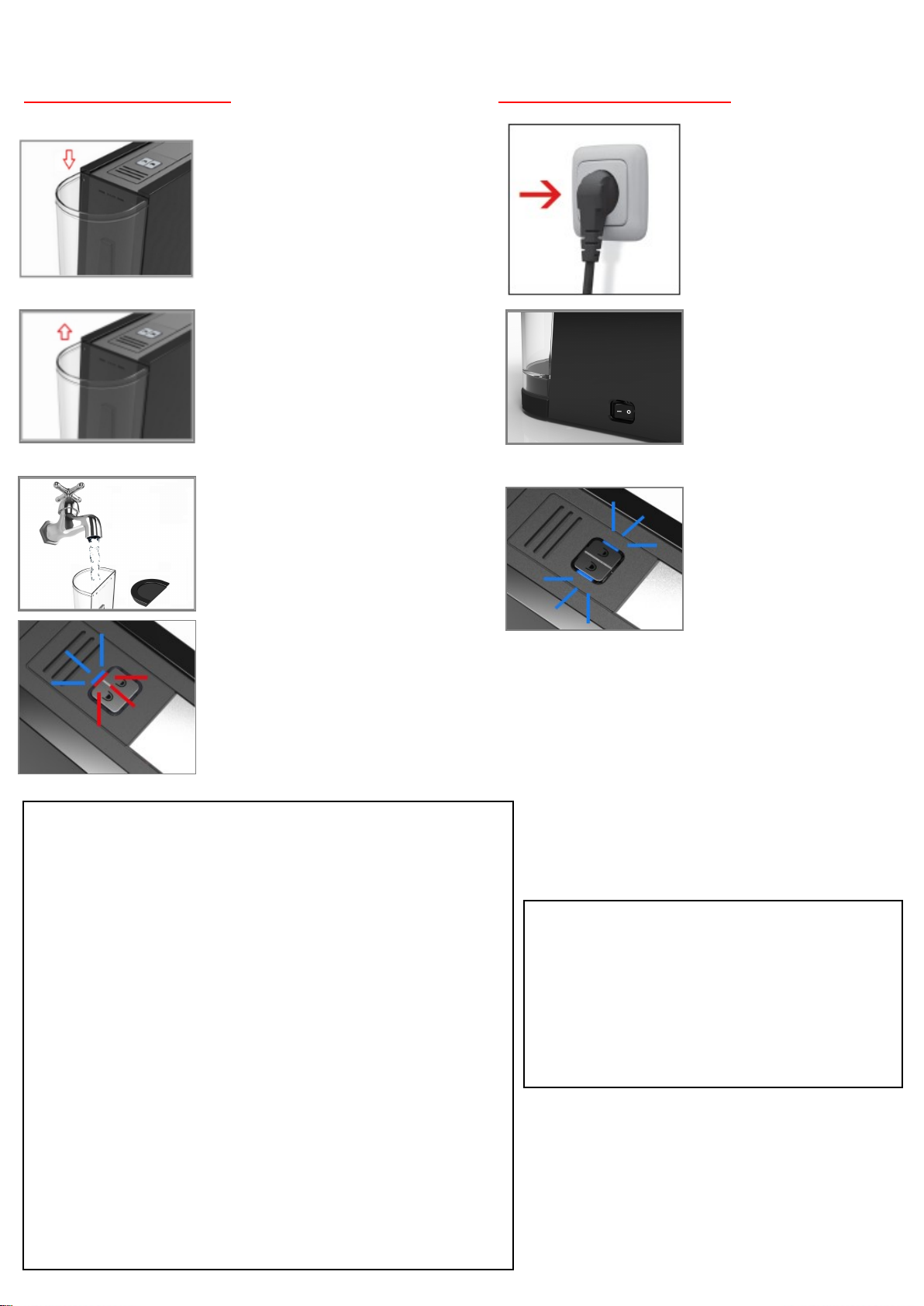

3.Filling the water tank 4.Starting up / Preheating
Filling without removing the tank
●Turn off the machine.
●Unplug cord from power point.
●Remove the water tank lid.
●Fill the tank up to the MAX mark with
cold water (the maximum is 0.8 litre).
●Replace the lid.
●Plug cord into power point.
Filling by removing the water tank
●Switch off the machine.
●Remove the water tank lid.
●Lift up the water tank holding it by
the special grip (on the outside) and
remove it pulling upwards.
●Fill the tank up to the MAX mark with
cold water (the maximum is 0.8 litre).
●Lower the water tank into place,
pushing firmly.
●Replace the lid.
When there is insufficient water in
the tank, the water tank sensor light
with flash alternately in blue & red to
remind you to fill.
Connecting the appliance
Connect the machine to a
rounded power point by
plugging in the power plug.
Switching on
Before turning on the power
switch, make sure that:
●the operating lever is
closed.
●the water tank is full.
●the water tank is firmly in
place.
●the drip tray with the
container is completely
inserted.
●Turn on the machine with
the main power switch.
Preheating
After switching on the machine LED1 & LED2
flash in blue to indicate heating up.
When heating up is finished (after approx. 1
min.), LED1 & LED2 remain illuminated. The
machine is now ready to use.
Note
Before using for the first time and after long
periods of non-use (for example, vacations)
the internal piping must be flushed out. For
details see: 9. Flushing machine and internal
piping
Note
●Never use distilled water.
●Use only cold tap water.
●After filling the water tank, and before the next time that
coffee is dispensed, press one of the dispensing buttons,
until you obtain a regular flow of water from the dispenser
(without the capsule).
●Water which has been softened with commercially available
water filter can be used. Damages caused by wrong
handling of the water filter are not covered by the
guarantee.
●If the water tank is empty the pump sounds very loud.
●This does not indicate any malfunctioning. Press one of the
dispensing buttons and the pump is immediately deactivated.
●If no dispensing button is pressed, the pump is
automatically deactivated after 30 seconds.

Making coffee ________________________________________

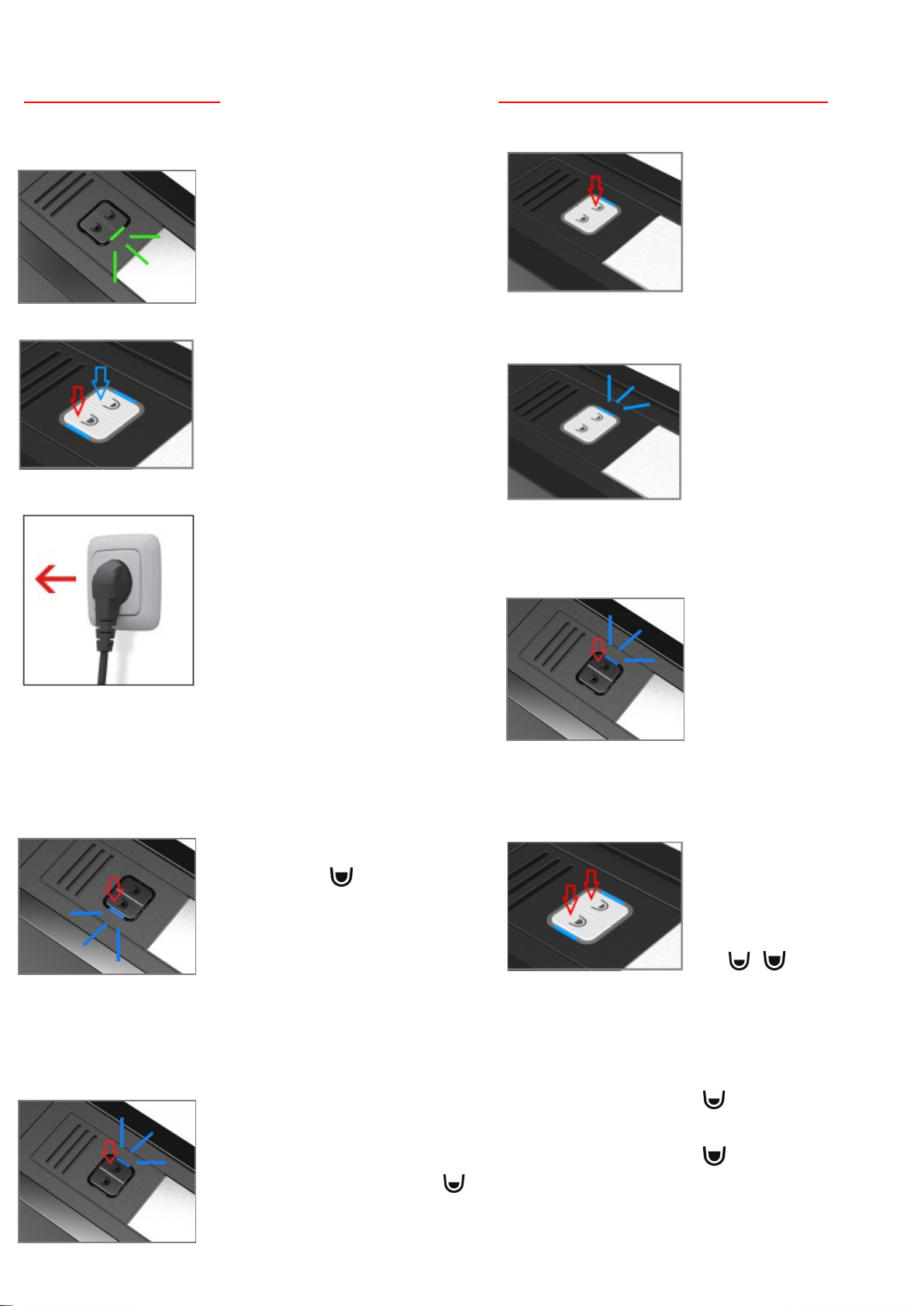

5.Making coffee 6.After making coffee
Making coffee with this machine
is only possible with capsules
designed for this system.
Use one capsule per cup.
Follow the steps in this order:
●Be sure there is enough water
in the tank before making
coffee.
●Move the operating lever back
completely.
●Insert a capsule in the capsule
opening. It automatically falls
into the right position.
●Move the operating lever
completely forward to load the
capsule into the brewing
position.
●Place an empty cup under the
dispenser.
●Press the coffee dispensing
buttons:
Small cup: 30ml
Large cup: 100ml
After making coffee the empty
capsule is ejected as follows:
●Move the operating lever
completely back to eject the
empty capsule into the
container.
●The container holds up to 10
used capsules. It must be
emptied regularly.
●If the used capsule reach the
max capacity of the container,
the capsule full indicator will
alternate flash in blue & green
when you move the operating
lever back. This reminds you to
empty the container.
●If you want another cup of
coffee, just insert a new
capsule and press the coffee
dispensing button (see 5.
Making coffee).
The automatic switch-off device is programmable
(8. Programming the flow time of water).
The dispensing process stops automatically when
the programmed flow time of coffee has been
reached. To interrupt the process at any time, press
the button again.
Note
For safety reasons the dispensing button may be
pressed only if the operating lever is closed.
Note
●The capsule may stick in the opening if it has
been there for a long time. If so open and close
the operating lever. If the capsule is still blocked,
pushed down lightly with a finger.
●Various kinds of coffee (including decaffeinated)
capsules are available.
Tip
●Use thick, pre-heated cups for espressos in order
to prevent cooling down too quickly. Cups can be
pre-heated by rinsing them with hot water.
Caution
BEVERAGE WILL BE HOT!
Danger of Scalding
Caution
To avoid damaging your machine, never use other
makes of capsule.

Energy saving mode / Programming the amount of water_____
7.Energy saving mode 8.Programming the amount of water
If the machine is not being used,
after 5 minutes the energy
saving mode is activated, the
voltage absorbed by the
machine falls to 0.5 Watt. The
energy saving mode is indicated
by LED3 lighting up in green.
To use the machine press one of
the dispensing buttons. The
machine is ready to dispense
coffee as soon as LED1 & LED2
are steadily lit up in blue.
If the machine is not used for an
extended period of time (for
example, during vacations),
ensure the machine is switched
off, empty the water tank, turn
the power point off and then
pull the power plug out of the
power point.
Switch to long ready mode
Switch off the machine and close
the metal handle. Then switch
on the machine again while
pressing the button. Keep
the button pressed until LED2
glows blue. The machine will
stay ready now for max. 4 hours.
After 4 hours, the machine
returns to energy saving mode
automatically.
To return to the normal energy
saving mode, switch the
machine off and then switch it
on again while pressing the
button. Keep it pressed until
LED1 glows blue.
You can program the flow
time of water for the two
coffee dispensing buttons:
●Hold down the button
for 3 seconds to be
programmed (for
example for an espresso)
until LED1 glows blue.
The dispensing cycle
commences.
●Once the desired flow
time has been reached,
press the button again.
The dispensing process
stops, the flow time of
water is programmed
and both buttons light
up.
Programmable flow time
of coffee (the same for
both buttons):
Small cup: around
min.30ml to max.220ml
Large cup: around
min.30ml to max.220ml
To return to the default
quantities, press
the & buttons for 3
seconds until LED1 & LED2
glow blue simultaneously.
The default quantities are:
Small cup:
around 30ml
Large cup:
around 100ml

Maintenance _____________________________________________
9.Flushing out the machine and internal piping 10.Emptying capsule container and drip tray
Before using for first time,
or after long periods of
non-use (for example
vacations), the machine
must be flushed out. This
short procedure thoroughly
flushes out and cleans the
internal piping.
●Turn on the machine with
the main power switch.
●Place an empty cup under
the coffee/hot water
dispenser.
●Make sure that there are
no capsules in the opening
and close the operating
lever.
●Press one of the lighted
dispensing buttons (the
pump begins working and
the water circulates).
●After reaching the
programmed flow time
the pump is automatically
deactivated. This
procedure can be
repeated by pressing one
of the buttons again. Also
note that the procedure
can be interrupted at any
time by pressing the
chosen button.
The capsule container holds
around 8-10 empty
capsules and the drip tray
around 100 ml of residual
water. For hygiene reasons
we recommend emptying
the capsule container and
the drip tray every day.
●Hold the drip tray firmly
and pull it out by lifting
gently.
●Remove the perforated
drip tray cover.
●Aer emptying/cleaning,
reassemble the pieces in
reverse order and insert
them in the machine as far
as they go’s
Drip tray and cover,
capsule container
●Clean the drip tray,
perforated cover and
capsule container with
tepid water and
household detergent.
●Never clean them in the
dishwasher!
Caution
 The water coming out of the dispenser
is hot! Danger of scalding!
Caution
Water in the drip tray and capsule container,
as well as spent capsules may be hot. Danger
of scaling.

Cleaning / Storage / Final disposal / Technical date________________
11.Cleaning the appliance 12.Storage / Final disposal
Technical data
Rated voltage 220-240V~50/60Hz
Rated power
coffee machine only :
t
ogether with milk frother
DMF1 :
915-1090W
1372-1633W
Energy saving mode 0.5 Watt
Basic machine dimensions
(with depth and height)
110 x 367 x 217mm
approx.
Length of power cable Max. 1.0m
Weight (without water) 3.2kg approx.
Water tank capacity Max. 0.8 L
Materials housing/water
tank
plastic
Radio interference
suppression
according to EU standards
Compliance CE, ROHS,
Coffee machine
●Always ensure the machine
is switched off and pull out
the power plug, in
accordance with the safety
instructions, before
cleaning the machine.
●Never immerse the
machine in water or clean
it under running water.
Clean the machine with a
damp cloth and allow
drying afterwards.
●Never use abrasive
cleaning agents or
materials.
Accessories
●Clean the water tank,
capsule container and drip
tray with tepid water and
household detergent.
●Never clean it in the
dishwasher!
2-minutes cleaning mode
with cold water
Press the & button
for 9 Seconds, until LED3
glows green, then release.
2-minutes cleaning mode
with hot water
Press the & button
for 6 Seconds, until LED2
glows blue, then release.
●If the machine will not be used for
some time, switch it off, switch the
power point off and pull out the
power plug from the power point.
●Store your coffee machines in a dry,
dust-free place out of reach of
children.
●To avoid frost damage, do not store
the machine at temperatures below
5 °C (such as caravans).
●Important: If the machine is not
used for a long time, please follow
the cleaning instructions set out in
this manual prior to use.
Important: Do not dispose of electrical
Appliances as unsorted municipal waste, use
separate collection facilities. Contact your
local government for information regarding
the collection systems available.
Caution
Any other servicing should be performed by an
authorized service representative. Design or execution changes are reserved in the
interest of technical progress.

Descale __________________________________________________
13.Descale
Caution
 Never clean the machine with vinegar. This
causes damage and makes your coffee taste
bad!
 Damage caused by incorrect descaling or failure
to descale is not covered by the guarantee.
 These liquids are scalding hot! Danger of
scalding!
 Follow the safety instructions in the descaler
packaging.
Caution
Do not consume water dispensed from the
descaling or rinsing process
Note
 Descalers must be used following the
manufacturer’s instructions!
Drinking water varies according to region. The lime
particles in hard drinking water are deposited as residues
in the machine and can block the piping and cause
damage. To prevent this, be sure to decalcify the machine
at the very least after making 300 to 400 cups of coffee or
in any case if the output falls significantly or, in any case
after one or two months.
Descale the machine correctly to prevent damage. So
it is essential to follow these instructions:
1. Recommendations: purchase commercially
available descaler (descaling liquid), and dilute it
following the instructions set out by the particular
descaling liquid manufacturer; pour the mixture in
the water tank.
2. Make sure the capsule container is empty.
3. Place a large bowl under the dispensing head to
collect the descaling liquid and lime residues and
turn on the power switch (the coffee dispensing
displays flash in blue).
4. Press both dispensing button to choose the hot
water or cold water cleaning mode (See
11.Cleaning the appliance) according to the
instructions on the descaling agent. Wait until
output has completed.
5. Repeat the process 4 & 5 until the tank is empty.
6. Rinse the water tank well and refill with water.
Place the tank back inside the machine and press
the coffee dispensing button. Press the button
again until the water tank is empty.

Problems and Remedies ____________________________________
Problems and their remedies
Problem Possible cause Remedy
No coffee output or insufficient output
water tank empty fill the water tank
defective pump contact the service center
capsule not (completely) perforated use a new capsule
contact the service center
operating lever open close lever completely
scale built up in the machine descale the machine
No coffee output water tank not properly in place insert water tank correctly
defective pump contact the service center
Cold coffee heating system defective contact the service center
Pump sounds very loud water tank empty fill the water tank
water tank not properly in place insert water tank correctly
Water drips continuously out of
dispensing head machine /piping blocked with lime deposits descale the machine
Occasional drops drip out of
dispensing head empty capsules have remained in the boiler eject the capsule (occasional drops are normal, it is not a defect)
Coffee tastes sour machine not flushed out enough after descaling flush out the machine again
capsule has passed expiration date use a new capsule
The amount of water programmed per
cup is not correct
water tank empty fill the water tank
Water quantity dosage not programmable reprogram
Program changed reprogram
LED4 flashes red very quickly electronic malfunctioning
Switch off the machine, wait for 20 minutes
and restart it. If the problem persists,
contact the service centre.
LED3 lights up in green No malfunctioning. The machine is in energy
saving mode. press one of the dispensing buttons
The machine stops dispensing water tank empty fill the water tank with fresh water
defective pump contact the service center
The lever cannot be lowered the used capsules tray is full empty the used capsule tray
capsule stuck inside remove the used capsule
LED3 flashes green very quickly
machine is exposed to cold temperature for
prolonged time, the heating function is disabled
for safety reasons
Switch off machine, wait until it reaches
room temperature and restart. If the
problem persists, contact the service center.
Water tank sensor light
alternate blinking with Blue & Red water tank empty fill the water tank
water tank empty but the sensor light
not flashes.
The water tank exposed to intense
light or sunlight
Relocate the machine, avoid from the
intense light or sunlight.
Capsule tray light
alternate blinking with Blue & Green the used capsule tray is full empty the used capsule tray
Repairs to your machine may only be carried out at the service center.
Unprofessional repairs and use of non-original replacement parts can be
dangerous for the user. In case of unprofessional repairs, no liability will
be accepted for resultant damage and the guarantee is invalidated.
If this troubleshooting guide does not help you solve your problem,
please contact your Espressotoria® System Customer service on
AU:1300 393 895/NZ:0800 787 877
Important: pull out the power plug immediately in case of faults,
defects or possible damage to the machine after a fall.

How to make milk-based coffees? ____________________________
ESPRESSOTORIA® SYSTEM compatible MILK FROTHER
Simply purchase the ESPRESSOTORIA® SYSTEM compatible MILK
FROTHER, connect with your ESPRESSOTORIA® SYSTEM PICCOLO
coffee capsule machine to make milk-based coffees.

IMPORTED BY:
CANTARELLA BROS PTY LTD VITTORIA FOOD & BEVERAGE PTY LIMITED
ABN 68 000 095 607 OS 422 9999
118 WETHERILL ST, 162 GRAFTON ROAD
SILVERWATER NSW 2128 GRAFTO, AUKLAND 1001
AUSTRALIA NEW ZEALAND
PHONE: [phone] PHONE: [phone]
