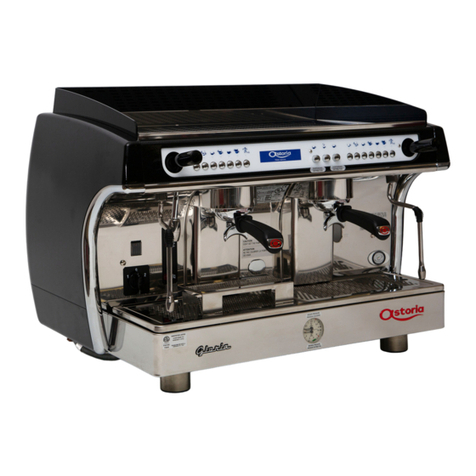

Astoria AL User manual

ITALIANO
English
Français
Deutsch
español
português
русский
AL
AEP
SAE
DISPLAY
EN
DE
PT
FR
ES
RU
IT
MACCHINA PER CAFFÈ ESPRESSO
Manuale d’uso e manutenzione. Istruzioni per l’utente.
ESPRESSO COFFEE MACHINE
Use and maintenance manual. Instructions for the user.
MACHINE A CAFÉ ESPRESSO
Manuel d’utilisation et d'entretien. Mode d'emploi.
ESPRESSO-KAFFEEMASCHINE
Bedienungs-und wartungsanleitung. Anweisungen für den Benutzer.
MÁQUINA PARA CAFÉ EXPRESO
Manual de uso y mantenimiento. Instrucciones para el usuario.
MÁQUINA DE CAFÉ EXPRESSO
Manual de uso e de manutenção. Instruções para o utilizador.
МАШИНА ДЛЯ ПРИГОТОВЛЕНИЯ КОФЕ ЭСПРЕССО
инструкции для пользователя.
ISTRUZIONI ORIGINALI

USER manual34 of 216
HIGH TEMPERATURE HAZARD
Some parts of the machine can reach
high temperatures and cause burns; therefore,
the following precautions must be taken:
• Avoid contact with the dispensing group,
lterholderheaterandwater,steamand
automatic steam wand nozzles.
• Do not direct the steam, hot water or milk
towards hands or other parts of the body.
The appliance can be used by people
(including children under 8 years old)
with reduced physical, sensory or
mental capabilities, or those who lack the re-
quired experience or knowledge, provided
they are being supervised, or have received
instructions regarding how to safely operate
the appliance and understand the risks in-
volved. Children must be supervised, to make
sure they do not play with the appliance.
Users must promptly inform the Technician
if they notice any machine or accident pre-
vention system defects and/or malfunctions,
as well as any dangerous situations of which
they become aware.
Should an anomaly occur in the gas supply
system (if installed), call out a Technician.
The gas supply system (if installed) must be
shut off during long periods of machine inac-
tivity (at night or when the facility is closed).
It is strictly forbidden to make changes of
any kind or extent to the machine and its
functions, as well as to this document.
Make sure that the Technician per-
forms the annual routine mainte-
nance and inspects all the safety devices.
I.III. MAINTENANCE AND CLEANING
The following residual risks are present when
maintaining and cleaning the machine and
cannot be eliminated.
It is prohibited to wash the machine with petrol
and/or solvents of any kind.
ELECTRICAL HAZARD
The maintenance and cleaning opera-
tions must comply with the safety regulations:
• During the cleaning operations, the ma-
chine must be turned off and you must
make sure that all the components are at
room temperature.
• Do not immerse the machine in water.
• Do not pour liquids onto the machine or
use water jets when cleaning.
• Do not allow maintenance and cleaning
operations to be carried out by children
or persons that have not been properly
trained.
• Do not remove the guards and/or parts of
the body.
• Do not access the inside of the machine.
• Do not perform maintenance and clean-
ing operations other than those described
in this Manual.
HIGH TEMPERATURE HAZARD
When cleaning, pay attention to the
parts of the machine that can become hot:
• Avoid contact with the dispensing group,
water nozzles and steam nozzles.
• Never direct the steam, hot water or milk
dispensing nozzle tips towards hands and
other body parts.

USER manual 35 of 216
English
I.IV.PPE FEATURES
When maintaining and cleaning the machine,
the following PPE is required:
Gloves
To protect the user from all machine
parts that become hot or come in con-
tactwithfood(lterholders,lters,etc.).
Only perform the maintenance and
cleaning operations indicated in this
manual.
Any maintenance and cleaning operations
not indicated in this document can only be
performed by a specialised and authorised
Technician.
All maintenance operations can only be car-
ried out once:
• the power supply has been disconnected.
• the water supply has been shut off.
• the gas supply system has been shut off.
• the machine has fully cooled down.
If a malfunction cannot be resolved, turn the
machine off and call out the Technician. Do
not attempt any repairs.
The appliance must be descaled by the Tech-
nician in order to prevent materials that are
hazardous for food use from being released.
I.V. EMERGENCY SITUATIONS
Should an emergency situation occur as a result
of a machine malfunction, adopt the measures
provided for in the emergency plan posted in
the premises and in any case, proceed to imme-
diately carry out the actions based on the type
of problem.
SHORT CIRCUIT FIRE
Intheeventofarecausedbythemachine’s
electrical system malfunctioning, adopt the fol-
lowing behaviours:
• Disconnect the machine from the power
mains via the main switch.
• Callthereandrescueservice.
• Get everyone a safe distance away from
the premises.
• ExtinguishtheamesusingaCO2re
extinguisher.
GAS LEAK
Intheeventofarecausedbythemachine’s
system malfunctioning, adopt the following be-
haviours:
• Shut off the gas supply by closing the
valve upstream of the machine.
• Get everyone a safe distance away from
the premises.
• Ventilate the premises.
• Call the technician that installed the ma-
chine.
• Ifnecessary,callthereandrescueser-
vice.
GAS LEAK FIRE
Intheeventofarecausedbythemachine’s
gas system malfunctioning, adopt the follow-
ing behaviours:
• Shut off the gas supply by closing the
valve upstream of the machine.
• Disconnect the machine from the power
mains via the main switch.
• Callthereandrescueservice.
• Get everyone a safe distance away from
the premises.
• ExtinguishtheamesusingaCO2re
extinguisher.

USER manual36 of 216
General contents
1. INTRODUCTION..................................................................37
1.1 Guidelines for reading the Manual.................................37
1.2 Storing the Manual................................................................37
1.3 Method for updating the Instruction Manual...........37
1.4 Recipients...................................................................................37
1.5 Glossary and Pictograms.....................................................38
1.5.1 Glossary .................................................................................................38
1.5.2 Pictograms............................................................................................38
1.6 Guarantee..................................................................................38
2. MACHINE IDENTIFICATION..........................................39
2.1 Make and model designation...........................................39
2.2 General description................................................................39
2.3 The manufacturer’s customer service...........................39
2.4 Intended use.............................................................................40
2.5 Machine diagram...................................................................40
2.6 Pushbutton panels for the AEP & SAE versions.........42
2.7 Pushbutton panels for the DISPLAY versions.............43
2.8 Data and CE marking...........................................................44
3. STORAGE.................................................................................45
4. INSTALLATION.....................................................................45
5. COMMISSIONING..............................................................45
6. OPERATION ...........................................................................45
6.1 Safety precautions.................................................................45
6.2 Emissions....................................................................................45
6.3 Turning the machine on and off......................................45
6.3.1 Electric heating (versions without Display).............................45
6.3.2 Electric heating (versions with Display)....................................46
6.3.3 Gas heating (if a gas system has been installed).................46
6.3.4 Electric+gas heating (if a gas system has been installed) 46
6.3.5 Turning off the machine .................................................................46
6.4 Preparing the machine.........................................................47
6.4.1 Grinding and dosing coffee ...........................................................47
6.4.2 Turning on the work surface light (if present)........................47
6.5 Dispensing coffee...................................................................47
6.5.1 Preparingthelterholder...............................................................47
6.5.2 “AL” version ..........................................................................................47
6.5.3 “AEP” version........................................................................................48
6.5.4 “SAE - DISPLAY” version..................................................................48
6.6 Dispensing steam...................................................................48
6.6.1 Control knob version.........................................................................49
6.6.2 Lever knob version.............................................................................49
6.7 Dispensing hot water ...........................................................50
6.7.1 “AL - AEP” versions.............................................................................50
6.7.2 “SAE - DISPLAY” versions ................................................................50
6.8 Dispensing with the automatic steam wand ............50
6.8.1 Tips regarding its use.......................................................................50
6.8.2 Dispensing ............................................................................................51
6.8.3 Adjusting the temperature ............................................................51
6.9 Dispensing cappuccinos .....................................................51
6.10 Cup warmer...............................................................................51
6.10.1 “AL - AEP” versions.............................................................................51
6.10.2 “SAE” version........................................................................................52
6.10.3 “DISPLAY” version..............................................................................52
6.11 Programming the “DISPLAY” version machine
parameters................................................................................52
6.11.1 Accessing the menu..........................................................................52
6.11.2 Programming the Clock...................................................................53
6.11.3 Programmingthemachine’sSwitch-OnandSwitch-Off
function..................................................................................................53
6.11.4 Programming a Working Day........................................................54
6.11.5 Programming the Heating Unit Pressure .................................54
6.11.6 Programming the Cup Warmer....................................................54
6.11.7 Programming the Automatic Steam Wand Temperature .54
6.11.8 Displaying and resetting the litre counter...............................55
6.11.9 Coffee totals.........................................................................................55
6.11.10 Programming the Language .........................................................55
6.11.11 Loading the default data................................................................55
6.12 Tips for a good cup of coffee............................................55
7. MAINTENANCE AND CLEANING.................................56
7.1 Safety precautions.................................................................56
7.2 Periodic maintenance...........................................................56
7.3 Maintenance after a short period of machine
inactivity.....................................................................................56
7.4 Malfunctions and solutions................................................56
7.5 Cleaning operations..............................................................59
7.5.1 General instructions..........................................................................59
7.5.2 Washing the cappuccino maker...................................................59
7.5.3 Cleaningtheltersandlterholders.........................................59
7.5.4 Washing the dispensing group ....................................................60
7.5.5 Cleaning the group shower screen, shower screen contain-
mentringandlterholder.............................................................61
7.5.6 Cleaning the steam nozzle.............................................................61
8. DISPLAY WARNINGS.........................................................61
9. SPARE PARTS.........................................................................62
10. DECOMMISSIONING ........................................................62
11. DISASSEMBLY.......................................................................62
12. DISPOSAL...............................................................................62
12.1 Disposal information.............................................................62
12.2 Environmental information................................................62

USER manual 37 of 216
English
1. INTRODUCTION
Please read this Manual in its entirety before using the appli-
ance, in order to optimise machine performance and operate
it safely.
The espresso coffee machine you have purchased has been
designed and manufactured with innovative methods and
technologies which ensure long lasting quality and reliability.
This Manual is the guide that will enable you to learn about
thebenetsofchoosingourbrand.Youwillndinformation
on how to get the best out of your appliance, how to keep it
runningefcientlyandwhatyoushoulddoifproblemsoccur.
Before using the machine, carefully read and follow
the instructions contained in this publication. Keep
this manual and all attached publications in an ac-
cessible and secure place. This document assumes that the ma-
chine has been installed in a location where the current work
safety and hygiene standards are observed.
The Manufacturer reserves the right to make any improve-
ments and/or modications to the product. We guarantee
thatthisManualreectsthetechnicalstateoftheappliance
at the time it was released to the market.
We take this opportunity to invite customers to make any pro-
posals to improve the product or its Manual.
1.1 Guidelines for reading the Manual
This Manual is divided into separate chapters. The chapter
order is linked to the temporal logic of the life of the machine.
Terms, abbreviations and pictograms are used to facilitate
the immediate understanding of the text.
This Manual consists of a cover, index and series of chapters.
Each chapter is sequentially numbered. The page number is
shown in the footer.
Therstpagedisplaysthemachineidenticationdataand
the last page displays the date and revision of the Instruction
Manual.
Abbreviations
Sec. = Section
Chap. = Chapter
Para. = Paragraph
P. = Page
Fig. = Figure
Tab. = Table
Units of measurement
The units of measurement are those provided by the Interna-
tional System (SI).
1.2 Storing the Manual
The Instruction Manual must be stored in a safe place and
accompany the machine in all ownership transfers.
The manual should be stored, handled with care with clean
hands and not placed on dirty surfaces. Do not remove, tear
or arbitrarily modify any of its parts.
The manual must be stored away from moisture and heat,
and in close proximity to the machine it refers to.
On the User's request, the Manufacturer can provide addi-
tional copies of the Instruction Manual.
1.3 Method for updating the Instruction
Manual
The Manufacturer reserves the right to modify and make
improvements to the machine without providing notice or
updating the Manual that has already been supplied to the
User.
Should the Manual become illegible or otherwise
hard to read, the User must request a new copy
from the Manufacturer before carrying out any op-
erations on the machine.
It is absolutely forbidden to remove or rewrite parts of the
Manual.
Users are responsible for complying with the instructions
contained in this Manual.
Should any incident occur as a result of these recommenda-
tions being used incorrectly, the Manufacturer declines any
liability.
This manual is also available on the manufacturer’s website
via a restricted-access page.
1.4 Recipients
This Manual is intended for the User.
Machine recipient qualications
The machine is intended for a professional non-generalised
use, so it must be used by trained people, and in particular
those who:
• Are aged 18 and over.
• Are physically and mentally capable of using the machine.
• Are able to understand and interpret the Instruction Man-
ual and safety requirements.
• Know the safety procedures and how they are imple-
mented.
• Are able to use the machine.
• Haveunderstoodtheproceduresofuseasdenedbythe
machine'sManufacturer.

USER manual38 of 216
1.5 Glossary and Pictograms
This paragraph lists uncommon terms or terms whose mean-
ings are different than those most commonly used.
Abbreviations are explained below, as well as the meaning
ofpictogramsdescribingtheoperator'squalicationandthe
machine status; they are used to quickly and uniquely pro-
vide the information needed to correctly and safely use the
machine.
1.5.1 Glossary
User
The person in charge of operating the machine and perform-
ing the routine cleaning operations indicated in this manual.
Technician
A specialised person who has been specially trained and au-
thorised to carry out the following operations in accordance
with current regulations: transport and handling, storage, in-
stallation, commissioning, maintenance, decommissioning,
dismantling and disposal of the machine.
Danger
A potential source of injury or damage to health.
Dangerous area
Any area in the vicinity of the machine where the presence
of a person constitutes a risk to the safety and health of that
person.
Risk
Combination of the probability and severity of an injury or
damage to health that can arise in a hazardous situation.
Guard
Machinecomponentusedspecicallytoprovideprotection
by means of a physical barrier.
Personal protective equipment (PPE)
Clothing or equipment worn by someone to protect their
health or safety.
Intended use
The use of the machine in accordance with the information
provided in the instructions for use.
User qualication
Minimum level of skills an operator must have to carry out the
operation described.
Machine status
The machine status includes the mode of operation and the
conditionofthemachine'ssafetydevices.
Residual risk
Risks that remain despite adopting the protective measures
integratedintothemachine'sdesignanddespitetheguards
and complementary protective measures that have been
adopted.
Safety component:
• Designed to perform a safety function.
• whose failure and/or malfunction endangers the safety of
persons.
1.5.2 Pictograms
Descriptions preceded by these symbols contain very im-
portant information/requirements, particularly in regards to
safety. Failure to comply with these may result in:
• A safety risk for those operating the machine.
• User injury, including serious injury (in some cases even
death).
• The guarantee being rendered null and void.
• The Manufacturer waiving liability.
GENERAL DANGER symbol used when there is a
risk of permanent serious injury that would require
hospitalisation, or in extreme cases, even cause
death.
ELECTRICAL HAZARD symbol used when there is a
risk of permanent serious injury that would require
hospitalisation, or in extreme cases, even cause
death.
HIGH TEMPERATURE HAZARD symbol used when
there is a risk of permanent serious injury that
would require hospitalisation, or in extreme cases,
even cause death.
CAUTION symbol used when there is a risk of mi-
nor injury that could require medical attention.
WARNING symbol used when there is a risk of mi-
nor injury that could be treated with rst-aid or
similar measures.
NOTE symbol used to provide important informa-
tion about the topic.
Mandatory symbol indicating that safety gloves must
be worn; used when there is a risk of permanent seri-
ous injury that would require hospitalisation.
Mandatory symbol indicating that the documen-
tation must be read; used to make the user aware
of the importance of this action for their safety.
1.6 Guarantee
Allofthemachine'scomponentsarecoveredbya12-month
guarantee, except for electrical and electronic components
and parts prone to wear and tear.

USER manual 39 of 216
English
2. MACHINE IDENTIFICATION
2.1 Make and model designation
The machine and model ID information is found on the ma-
chine'sNAMEPLATEandintheprovidedEUDECLARATION
OFCONFORMITY.
2.2 General description
The machine described in this Manual consists of mechani-
cal, electrical, and electronic components which, when used
together, produce milk, coffee and water-based beverages.
This product is manufactured in compliance with the EU Di-
rectives, Regulations and Standards indicated in the EU DEC-
LARATIONOFCONFORMITYprovidedwiththemachine.
2.3 The manufacturer’s customer service
ASTORIAMACCHINEPERCAFFÈS.R.L.
Via Condotti Bardini, 1
31058 SUSEGANA (TV) - ITALY
Tel. [phone] - Fax [phone]
Email: [email protected]
Website: www.astoria.com

USER manual40 of 216
2.4 Intended use
The espresso coffee machine has been designed to profes-
sionally prepare hot beverages such as tea, cappuccinos and
weak, strong and espresso coffee, etc. The appliance is not
intended for domestic use, it is intended for professional pur-
poses only.
The machine can be used under all the conditions set forth,
contained or described in this document; any other condi-
tions must be considered dangerous. The machine must be
installedinaplacewhereitsaccessisrestrictedtoqualied
personnel only who have received suitable training (coffee
shops, restaurants, etc.).
Permitted uses
All uses compatible with the technical features, operations
and applications described in this document, in addition to
those that do not endanger the safety of users or cause dam-
age to the machine or its surrounding environment.
All uses not specically mentioned in this Manual
are prohibited and must be expressly authorised
by the Manufacturer.
Intended uses
The machine has been designed exclusively for professional
use.Theuseofproducts/materialsotherthanthosespecied
by the Manufacturer, which can cause damage to the ma-
chine and be dangerous for the operator and/or those in close
proximity to the Machine, is considered incorrect or improper.
Contraindications of use
The machine must not be used:
• for uses other than those indicated in this paragraph or for
uses that differ from or are not mentioned in this Manual.
• with materials other than those listed in this Manual.
• with safety devices that have been disabled or are not
working.
Incorrect use of the machine
The type of application and performance that this machine
has been designed for, requires a number of operations and
procedures that cannot be changed, unless previously agreed
with the Manufacturer. All permitted behaviours are indicated
in this document; any operation not listed and described
herein is to be considered improper and therefore, hazardous.
Improper use
The only permitted uses are described in the Manual; any
other use is considered improper and therefore, hazardous.
General safety features
The User must be aware of accident risks, safety devices and
the general safety rules set forth in EU directives and by the
legislation of the country where the machine is installed.
The User must know how all the machine's devices work.
They must also have fully read and understood this Manual.
Maintenance work must be performed by the Technician af-
ter the machine has been properly prepared. The tampering
or unauthorised replacement of one or more machine compo-
nents, the use of accessories which modify its use and the use
of materials other than those recommended in this Manual,
can cause accidents.
2.5 Machine diagram
1. Cup warmer shelf
2. Group lever
3. Heating unit water level window (in some versions, the
level window is replaced by a green indicator light).
4. Pressure gauge
5. Steam knob
6. Scald protection
7. Steam nozzle
8. 2-cuplterholder
9. Adjustable foot
10. Hot water spout
11. Gas burner inspection window (optional)
12. 1-cuplterholder
13. Gas safety (optional)
14. Gas ignition button (optional)
15. Cup holder grille
16. ONswitch
17. Machine on indicator light.
18. Hot water knob
19. Manual dispensing push-buttons (AEP).
20. Push button panel (SAE).
21. Display
22. Manual and water dispensing push buttons (DISPLAY).
23. Steam wand push-button panel (optional)
24. Steam wand nozzle (optional).
25. Machine/cup heater lights.
26. Cup heater switch
27. Blindlter
28. Presser
29. Cleaning brush
27 28
29

USER manual 41 of 216
Display
1 2
0
1 2
0
English
AL version
AEP version
SAE - DISPLAY version
1
2
3
6
7
2
6
6
6
5
3
5
7
25
25
17
3
5
7
4 15
49
4923 8 12 15
8 12 15
812 119
17
17
25
5
1
7
5
18
19
19
19
22
22 20
10
10
24
21
26
16
16
16
26
26
6
7
14
13
5
1
10

USER manual42 of 216
2.6 Pushbutton panels for the AEP & SAE versions
stop
prog.
1 espresso
1 espresso
1 espresso
2 espressos
2 espressos
2 medium coffees
2 espressos
1 medium coffee
1 medium coffee
1 medium coffee
2 medium coffees
2 medium coffees
1 long coffee
1 long coffee
2 long coffees
2 long coffees
Stop / Programming
/ Continuous
Stop / Programming
/ Continuous
Stop / Programming
/ Continuous
Manual dispensing
coffee
Manual dispensing
coffee
Manual dispensing
coffee
Manually
dispensing coffee
Manually
dispensing coffee
Dispensing Hot Water
Dispensing Hot Water
Dispensing Hot Water
Dispensing
Hot Water
Dispensing
Hot Water
Manually dispensing coffee from
the left-hand group
Manually dispensing coffee from
the left-hand group
Manually dispensing
coffee from the left-
hand group
Manually dispensing coffee from
the right-hand group
Manually dispensing coffee from
the right-hand group
Manually dispensing
coffee from the right-
hand group

USER manual 43 of 216
English
2.7 Pushbutton panels for the DISPLAY versions
Display
Display
Dispensing Hot Water
Mode
Mode
Decrease (-)
Decrease (-)
Exit programming
Exit programming
Increase (+)
Increase (+)
Enter
Enter
Dispensing Hot Water
Dispensing via the automatic steam wand
Dispensing via the automatic steam wand
Manually dispensing coffee from
the left-hand group
Manually dispensing coffee from
the left-hand group
Manually dispensing coffee from
the left-hand group
Manually dispensing coffee from
the right-hand group
Manually dispensing coffee from
the right-hand group
Dispensing Hot Water

USER manual44 of 216
2.8 Data and CE marking
The machine’s general technical data is provided in the following table:
TECHNICAL DATA TABLE 1GR COMPR. 2GR 3GR 4GR
120 V
Power
2000-2330 W 2600-2930 W 2600-2930 W --- ---
220-240 V 2500-3500 W 3000-6650 W 3000-6650 W 4500-6700 W 5000-7350 W
380-415 V
Frequency 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz
Heating unit 6-8 L 7 L 10.5-14 L 17-21 L 23 L
Safety valve calibration 0.19 MPa (1.9 bar)
Heating unit operating pressure 0.08 - 0.14 MPa (0.8 - 1.4 bar)
Mains water pressure 0.15 - 0.6 MPa max. (1.5 - 6 bar max.)
Coffee dispensing pressure 0.8 - 0.9 MPa (8 - 9 bar)
Working environment temperature 5 - 35°C 95° MAX. R.H.
Sound pressure level < 70 dB
The nameplate is afxed
under the drain tray
In compliance with directive 2006/42/CE, the machine is
marked with the CE code with which the manufacturer de-
clares under his responsibility that the machine is safe for
persons and things.
Alternativemarkingscanbeafxedaccordingtothetarget
markets, provided they comply with current product regula-
tions.
The nameplate which provides the appropriate markings,
identicationdataandspecictechnicaldata,isafxedun-
der the drain tray.
An example of a nameplate is provided below.
When contacting the Manufacturer, always provide the fol-
lowing information:
• S/N - machine serial number.
• Mod. - machine model.
• Y - year of manufacture.
The appliance data can also be found on the label located on
themachine'spackaging.
It is forbidden to remove or modify the nameplate.
Should it deteriorate or become illegible, contact
the Technician or Manufacturer.
Via C. Bardini
,
1 SUSEGANA
(
TV
)
- ITALY
Tel. [phone] Fax [phone]
MADE IN ITALY
W
S/N: Mod.
Hz
Y
V
ASTORIA MACCHINE PER CAFFÈ S.r.l.
MARCHIO COMMERCIALE

USER manual 45 of 216
English
3. STORAGE
The machine is stored by the Manufacturer or Technician.
4. INSTALLATION
The machine must only be installed by the Technician.
When the machine is being installed, the Techni-
cian must replace the water in the hydraulic cir-
cuits.
The machine's support base must be perfectly at,
not incline by more than 2° and have no irregulari-
ties.
The electrical system must be equipped with a
suitable residual-current device in compliance with
current laws and safety regulations.
5. COMMISSIONING
The machine must only be commissioned by the Technician.
6. OPERATION
6.1 Safety precautions
Carefully read the instructions provided in chapter
"I. SAFETY PRECAUTIONS" on page 33.
6.2 Emissions
Vibrations
Under conditions of use that comply with the instructions for
correct use provided in this manual, any detected vibrations
do not give rise to dangerous situations.
Sound emissions
The noise level emitted by the machine is on average lower
than 70 dB; therefore, there is no obligation to use personal
protective equipment for the auditory system.
If the machine emits any unusual sounds, the Technician
mustbenotied.
Electromagnetic environment
The machine is designed to work properly in any industrial
electromagnetic environment, falling within the Emission and
Immunity limits provided by current standards.
6.3 Turning the machine on and off
During the machine's heating-up phase (which
varies depending on the model), the negative pres-
sure valve will release steam for a few seconds un-
til the valve closes.
If the machine is inactive for longer than a week,
the Technician must replace 100% of the water in-
side the hydraulic circuits.
Before turning the machine on, proceed as follows:
• Openthewatervalveofthewatermainsandsoftener.
• Make sure that the level of water in the heating unit is
higher than the minimum level indicated on the water
level window (1).
The level window is replaced with a green indicator
light (2) in some versions: when lit, it indicates the
correct water level in the heating unit and when it
ashes slowly, it indicates that the water is being loaded.
2
1
If there is no water (rst installation or after heating unit
maintenance),theheatingunitmustbelledinadvancein
order to prevent the heating element from overheating.
6.3.1 Electric heating (versions without
Display)
Depending on whether a switch or power switch is installed
on the machine, proceed as indicated in the below-indicated
specicprocedure:
SWITCH
• Openthewatermainsvalve.
2
• Turntheswitchtothemanualllfunction(2)andllthe
heating unit with water until the optimal level is restored.
• Turn the switch to position “1” and wait for the machine to
warm up completely.
1
0

USER manual46 of 216
POWER SWITCH
• Openthewatermainsvalve.
• Turn the power switch to position “1” (elec-
tricity is supplied to the pump to automati-
callylluptheappliance'sheatingunitand
steam heating unit) and wait for the heating
unittobeautomaticallylledwithwater.
• Turn the main switch to position “2” (full electricity is sup-
plied, including to the heating element in the heating
unit) and wait for the machine to warm up completely.
6.3.2 Electric heating (versions with
Display)
• Pressthemachine'smainswitch(1).
1
• Waitfortheheatingunittobeautomaticallylledwith
water, if necessary.
• Wait another second or so for the automatic test to be
carried out.
WAIT
FUNCTIONAL TEST
TEST RESULTS
- OK -
• The machine is ready for use when the following mes-
sages appear on the display:
1.0 BAR 120°C
09:16 09-10-12 5
1.0 BAR 120°C P
09:16 09-10-12 5
Time
Heating unit
pressure
Date Day of the week
Heating unit
temperature
Programming
indicator
See the days of the week reference table in para-
graph "Programming a Working Day" on page 54.
1 2
0
If the temperature inside the heating unit is lower
than 90°C (machine’s heating-up phase), the mes-
sage LOW will appear on the display.
To restart the machine, press and hold the same buttons for
3 seconds.
6.3.3 Gas heating (if a gas system
has been installed)
• Turn the power switch (A) to position 1.
• Openthegasvalve(B) on the mains.
• Press and hold the button (C) and simultaneously press
theONbutton(D).Oncetheamehasignited,holddown
the knob (C) for a few seconds, to allow the thermocouple
to activate correctly.
• Thencheckthattheamehasignitedthroughthewin-
dow (E).
• Wait for the operating pressure shown on the pressure
gauge to reach the working value of 0.1-0.12 MPa (1-1.2
bar).
AD C BE
6.3.4 Electric + gas heating (if a gas
system has been installed)
During the machine's heating-up phase (roughly
20 minutes), the negative pressure valve will re-
lease steam for a few seconds until the valve closes.
Do not open the gas mains when the heating unit is empty.
• Proceed as indicated in the previous paragraph.
• Aftercheckingthattheamehasignited,turnthepower
switch (A) to position 2. In this way the heating unit's
heating element is powered and the operating pressure
will be reached more quickly.
• Wait for the operating pressure shown on the pressure
gauge to reach the working value of 0.1-0.12 MPa (1-1.2
bar).
6.3.5 Turning off the machine
Turn off the machine using the main switch or power switch.

USER manual 47 of 216
English
6.4 Preparing the machine
6.4.1 Grinding and dosing coffee
It is important to have a grinder-dispenser next to the ma-
chine so that the coffee can be ground on a daily basis.
The coffee must be ground and dispensed according to in-
structions provided by the manufacturer of the grinder-dis-
penser. The following points should also be kept in mind:
• To obtain a good espresso it is not recommended that you
store large amounts of coffee beans. Comply with the ex-
piry date indicated by the producer.
• Never grind large volumes of coffee, it is advisable to pre-
pare the amount that can be held in the dosing device
and if possible, use it by the end of the day.
• Do not buy pre-ground coffee, as it perishes quickly. If nec-
essary, buy coffee in small vacuum-sealed packs.
6.4.2 Turning on the work surface light
(if present)
Somemachinesmaybettedwithworksurfacelighting.To
activatetheworksurfacelighting,enablethespeciccom-
mand.
6.5 Dispensing coffee
Do not remove the lter holder from the dispens-
ing group when coffee is being dispensed.
The coffee dispensing method is different for each machine
type;therefore,theinstructionsspecictothemodelbeing
used must be followed.
Inanycase,beforedispensing,thelterholdermustbelled
as described in the next paragraph.
6.5.1 Preparing the lter holder
Before lling the lter holder, make sure it is
empty and any previous coffee residue has been
removed.
• Fillthelterwithadoseofgroundcoffee(approx.6-7g);
follow the procedures specied by the manufacturer of
the grinder-dispenser.
• Compress the coffee with the special press.
• Cleantherimofthegroundcoffeelterbeforeattaching
thelterholdertothedispensinggroup.
• Hookthelterholdertothegroupwithoutclosingittoo
tightly in order to prevent the gasket from wearing quickly.
6.5.2 “AL” version
Never perform the below-described operations
without coffee in the lter or without the lter
holder attached to the dispensing group. The rapid
upward movement of the lever may cause damage to the
appliance, individuals or property.
The dispensing time depends on the grind neness and the
amount of coffee in the lter holder.
• Place a cup/demitasse under the group’s dispensing spout.
• Pull the lever all the way down.
• Whilst the lever is down, wait a moment (3-5 seconds) for
the coffee to be pre-infused.
• Next, carefully lift the lever until a certain resistance is
felt, then release the lever.
• The lever will continue ascending to its idle position, dur-
ing which time the coffee will be dispensed. Wait for the
coffeetonishdispensing.

USER manual48 of 216
6.5.3 “AEP” version
• Place a cup/demitasse under the group’s dispensing spout.
• Press the desired dispensing button : the machine
will start dispensing coffee; when the desired amount of
coffee has been dispensed into the cup, press the switch
again to stop dispensing.
6.5.4 “SAE - DISPLAY” version
DISPENSING COFFEE
• Place a cup/demitasse under the group’s dispensing spout.
• Press the desired dose button, e.g. and wait for the
coffee to be dispensed (LED will switch on).
• To stop the coffee dispensing ahead of time, press the
or button.
Should an anomaly occur or the push button panel
freeze, use the manual switch (see the "AEP" ver-
sion).
PROGRAMMING THE COFFEE
Each dose must be programmed with freshly
ground coffee and not with previously-used coffee
grounds.
The machine is programmed by default. Should the coffee
dosesneedtobemodied,proceedasfollows:
• Always programme the pushbutton panel of the right-
mostgrouprst.Thisway,allthepushbuttonpanelswill
be automatically programmed. If necessary, subsequently
programme the others.
• Place a cup/demitasse under the group’s dispensing spout.
• Press the button for at least 5 seconds, until all the
dose button LEDs are lit.
• Press the dose button that you would like to programme,
e.g.  (the button will ash whilst it is being pro-
grammed).
• Toconrmthedose,pressthe button again or the
button.
• If desired, repeat this operation for the other dose but-
tons.
• When the programming is complete, press the but-
ton until all of the LEDs on the push-button panel go off.
All the groups will now be programmed this way.
Should you wish to programme them differently,
proceed to singularly programme the left-hand
groups one by one as illustrated above.
6.6 Dispensing steam
The steam dispensing method is different for each machine
type;therefore,theinstructionsspecictothemodelbeing
used must be followed.
To optimally froth the milk, follow these simple rules:
• Onlyheattheamountofmilkthatyouintendtouse;once
heated, it will have to be completely poured out of the jug
and cannot be reheated.
• Froth the milk which should be at a temperature of around
4°C.
In any case, before proceeding to dispense steam, the follow-
ing precautions must always be followed.

USER manual 49 of 216
English
Carefully move the steam nozzle using the specic
anti-scald rubber grip (1).
Do not direct the steam towards hands or other
parts of the body. Do not touch the steam nozzles with bare
hands; use the appropriate PPE.
1
Before using the steam nozzle, the condensation
draining operation must always be carried out for
at least 2 seconds.
To keep the steam nozzle tips in perfect working
order, it is advisable to carry out a brief dry dis-
pensing run after each use. Keep the tips clean at
all times using a cloth dampened in lukewarm water. Only
leave the steam wand immersed in the milk for the time
needed to heat it.
Do not open the steam valve with the steam wand
immersed in milk and the machine switched off, as
the latter would suck milk into the pipes.
6.6.1 Control knob version
• Immerse the steam nozzle into the liquid to be heated.
• Rotate the valve knob anticlockwise.
• The quantity of steam dispensed will be proportional to
how open the valve is.
• To stop dispensing, turn the valve’s knob clockwise.
6.6.2 Lever knob version
• Immerse the steam nozzle into the liquid to be heated.
• Move the valve lever horizontally to start dispensing steam
(it can be moved in any horizontal direction, as shown in
thegure).
OFF
Automatic
return
Automatic
return
• The quantity of steam dispensed will be proportional to
how far the lever has been moved.
• To stop dispensing steam, release the lever; it will auto-
matically return to its central position.
To continuously dispense steam, move the lever in
a vertical direction until it reaches the locked posi-
tion, by hooking it in the constantly open position
(it can be moved in either vertical direction, as shown in the
gure).
Stop
Stop
OFF
Move the knob back to its central position to stop dispensing.

USER manual50 of 216
6.7 Dispensing hot water
Danger of scalding. Do not direct hot water to-
wards hands or other parts of the body. Do not
touch the hot water nozzle with bare hands; use
the appropriate PPE.
The hot water dispensing method is different for each ma-
chinetype;therefore,theinstructionsspecictothemodel
being used must be followed.
6.7.1 “AL - AEP” versions
• Place the jug under the hot water nozzle.
• Rotate the valve knob anticlockwise.
• The quantity of hot water dispensed will be proportional
to how open the valve is.
• When the desired quantity of water has been dispensed,
turn the valve knob clockwise to stop dispensing.
6.7.2 “SAE - DISPLAY” versions
DISPENSING HOT WATER
• Place the jug under the hot water nozzle.
• Press the water button and wait for the hot water to be
dispensed.
• The machine dispenses a programmed quantity of hot
water; to stop it from dispensing ahead of time, press the
hot water dispensing button again or press the
button.
PROGRAMMING THE HOT WATER
The machine is programmed by default. Should the hot water
dosesneedtobemodied,proceedasfollows:
• Place the jug under the hot water nozzle.
• Press the button for at least 5 seconds, until all the
dose button LEDs are lit.
• Press the hot water dispensing button to start dispens-
ing.
• When the desired amount of water has been reached,
press the buttonagaintoconrmthedose.
• When the programming is complete, press the but-
ton until all of the LEDs on the push-button panel go off.
6.8 Dispensing with the automatic
steam wand
6.8.1 Tips regarding its use
• Onlyfroththeamountofmilkthatyouintendtouse;once
heated, the milk will have to be completely poured out of
the jug and cannot be reheated.
• The automatic steam wand only guarantees an accuracy
of ± 3°C between the set temperature and the actual milk
temperature, if the starting milk temperature is 4°C.
• As the steam automatically stops dispensing when the set
milktemperatureisreached,onlyllthejughalfwayin
order to prevent the milk froth from spilling out.
• Use a suitably-sized jug for the amount of milk that requires
frothing (approx. 200 ml is recommended) and make sure
that it is circular and not conical (see the image).

USER manual 51 of 216
English
6.8.2 Dispensing
Do not direct the steam towards hands or other
parts of the body. Do not touch the steam nozzles
with bare hands; use the appropriate PPE.
• Immerse the automatic steam wand nozzle tips (1) into
the milk.
1
2
• Press the Autosteamer button (2).
• Wait until the dispensing process has been completed.
• To stop dispensing ahead of time, press the same button
Autosteamer again.
Keep the tips clean at all times using a cloth damp-
ened in lukewarm water. Milk can be kept in the
fridge for a maximum of 3-4 days.
6.8.3 Adjusting the temperature
To adjust the activation temperature of the automatic steam
wand, follow the instructions provided in paragraph "6.11.7
Programming the Automatic Steam Wand Temperature" on
page 54.
6.9 Dispensing cappuccinos
• Put the suction tube in the milk.
• Place the jug under the spout of the
cappuccino maker.
• Openthe steam valveandwhen the
desired amount has been obtained,
close the steam valve.
• Pour the frothed milk into the cups with
the coffee.
To obtain hot non-frothed milk,
lift the cappuccino maker ap
upwards. For better results, we
suggest that you do not dispense directly
into the coffee cup, but into a jug or pot,
and then pour the frothed milk on top the
coffee.
Be sure to constantly keep the cappuccino maker clean, by
following the instructions provided in paragraph "7.5 Clean-
ing operations" on page 59.
6.10 Cup warmer
For safety reasons, we do not recommend placing
cloths or other objects on the cup warmer shelf in
order to prevent the machine from overheating.
HIGH TEMPERATURE HAZARD: the cup warmer
can reach temperatures that may cause burns. Be
very careful.
The cup warmer temperature can be set according to personal
requirements. The procedure for activating and adjusting the
cup warmer according to the model in your possession, is de-
scribed below.
6.10.1 “AL - AEP” versions
To use the cup warmer on this version of the machine, pro-
ceed as follows:
• Place the cups on the cup warmer (1) shelf of the coffee
machine.
• Turn the cup warmer switch (2)totheONposition.
2
A
1
To adjust the cup warmer temperature, proceed as follows:
• Remove the cup holder grille and drip tray.
• Turn the thermostat (A) to adjust the temperature or dis-
able the cup warmer. The cup warmer temperature will be
proportional to the value indicated on the thermostat.
Thermostat value Cup warmer adjustment
0 Cup warmer OFF
30 Minimum temperature
60 Average temperature
90 Maximum temperature

USER manual52 of 216
6.10.2 “SAE” version
To use the cup warmer on this version of the machine, pro-
ceed as follows:
• Place the cups on the cup warmer (1) shelf of the coffee
machine.
• Turn the cup warmer switch (2)totheONposition.
1
2
To adjust the cup warmer temperature, proceed as follows:
• When the machine is switched on, press the button
ontherightpushbuttonpanel:theashingLEDwillindicate
the current cup warmer setting, as indicated in the images.
70 °C
80 °C 100 °C
90 °C 110 °C
Cup warmer
Disabled
70 °C
80 °C 90 °C
Cup warmer
Disabled
• Hold down the button until the LED on the panel
goesfromaashingtoasteadylight.
• Press the button that corresponds to the desired temper-
ature.
• Toconrmtheselectedvalue,pressthe button.
6.10.3 “DISPLAY” version
To use the cup warmer on this version of the machine, pro-
ceed as follows:
• Place the cups on the cup warmer (1) shelf of the coffee
machine.
• Turn the cup warmer switch (2)totheONposition.
To adjust the cup warmer temperature, follow the
instructions provided in paragraph "6.11.6 Pro-
gramming the Cup Warmer" on page 54.
6.11 Programming the “DISPLAY” version
machine parameters
6.11.1 Accessing the menu
• To access the programming menu, press and hold the
(MODE) button for at least 3 seconds.
• Use the (MODE) button to scroll the various areas of the
programming menu.
• Use the (ENTER) button to move from one parameter to
another within the same area.
• To change the value of each parameter, use the two ( +)
increase and (-) decrease buttons.
Decrease (-)
Increase (+)
Mode
Enter Stop
Program.
Decrease (-)
Increase (+)
Mode
Enter Stop
Programm.
The system automatically exits the programming
mode 20 seconds after the last operation was car-
ried out.
Always use the right-hand side pushbutton panel for the pro-
gramming modes.
The machine menu is indicated below.
The machine menu can vary. This occurs should a
different version of the software be installed on
the machine; sometimes the software is also up-
dated even during maintenance to improve its performance.
