Essential Garden Ridgeway 08402027-0 User manual

Ridgeway Gazebo
garden
USE AND CARE GUIDE
Product Code: 08402027-0
UPC Code: 749241316944
Date of purchase: _____/ _____/ _____
1

Thank you for your purchase
Thank you for your purchase!
We are pleased that you have chosen Kmart for your outdoor furniture purchase.
We hope that you enjoy the unmatched quality, comfort, and style of your new patio
set. Every piece is meticulously considered all the way down to the smallest details,
exclusively for you, by our world class design team. We know you have a choice when
it comes to your patio furniture needs, so from our team to yours, thank you for letting
us be a part of your outdoors.
Table of contents
Table of Contents ....................................................................................2
Safety Information ..................................................................................3
Set Up your Shelter Properly ................................................................3
Examine your Shelter ............................................................................3
Warranty ..................................................................................................3
Excluded ................................................................................................3
Service Center .......................................................................................3
Care and Maintenance ............................................................................4
Pre-Assembly ...........................................................................................5
Hardware Included ................................................................................5
Package Contents ..................................................................................6
Assembly Instructions .............................................................................8
Customer Service ....................................................................................20
2

Safety Information
SET UP YOUR SHELTER PROPERLY
Please read and understand this entire manual before attempt to assemble, operate, or
install the product.
If any part is missing or damaged. Do not attempt to assemble the product.
Two to four people are needed for assembly.
In order to avoid damage to the gazebo and its components please use appropriate tools.
Do not use the structure as support.
Check all bolts on a regular basis to maintain the solidity of the structure.
Keep instructions for future use.
Approximate time: 1 – 2 hours
.
EXAMINE YOUR SHELTER
Examine occasionally to ensure there are no loose parts. If loose parts are found, they
should be retightened immediately.
3
Warranty
1 YEAR WARRANTY FOR FRAME AND FABRIC
Limited warranty is applicable on parts only. Warranty extends solely to the original
purchaser who must offer original sales receipt for record.
WHAT IS COVERED
Limited warranty is applicable on parts only. We warranty to the original purchase for
one year limited from the date of purchase that the frame and fabric will be free from
manufacturing defects.
SERVICE CENTER
The purchaser must contact our customer service center directly if this product is
found to be defect in material or workmanship. The manufacturer, as its option, will
repair or replace the defectives parts.
Please contact us via 1-800-961-9838, 9AM-5PM, Pacific Time Zone, Monday-Friday,
or [email protected]
.
WHAT IS NOT COVERED
Product used for commercial, contract, or other non-residential purposes, or damage
due to acts of nature, vandalism, misuse, or improper assembly is not covered.
Corrosion or rusting of hardware is not covered. Warranty is to the original purchase
and is non-transferable. Any replacement of warranted items will be in the original style
and color, or a similar style and color if the original is unavailable or has been
discontinued.

Care and Maintenance
4
For cleaning, use a mild detergent solution and rinse with water. Do not use acetone
abrasive or others special detergents to clean and air dry only.
Due to the nature of steel, surface oxidation (rusting) will occur if this protective coating
is scratched. This is a natural process. To minimize this condition, it is recommended
that care be taken when assembling and handling the product in order to prevent the
paint from being scratched.
Warning
WARING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS
TENT FABRIC.
This tent meets the flammability requirements of CPAI-84. The fabric may burn if left in
continuous contact with any flame source. The application of any foreign substance to the
tent fabric may render the flame-resistant properties ineffective.
This gazebo is intended for decorative and sunshade purposes only and is not meant to
withstand inclement weather including high winds, rain and snow. Gazebo fabric is water
resistant, not water proof and may leak during exposure to precipitation.
Load of the hook on the roof: 50lbs (MAX). Please don’t hang fan or any other
working items on the hook.

5

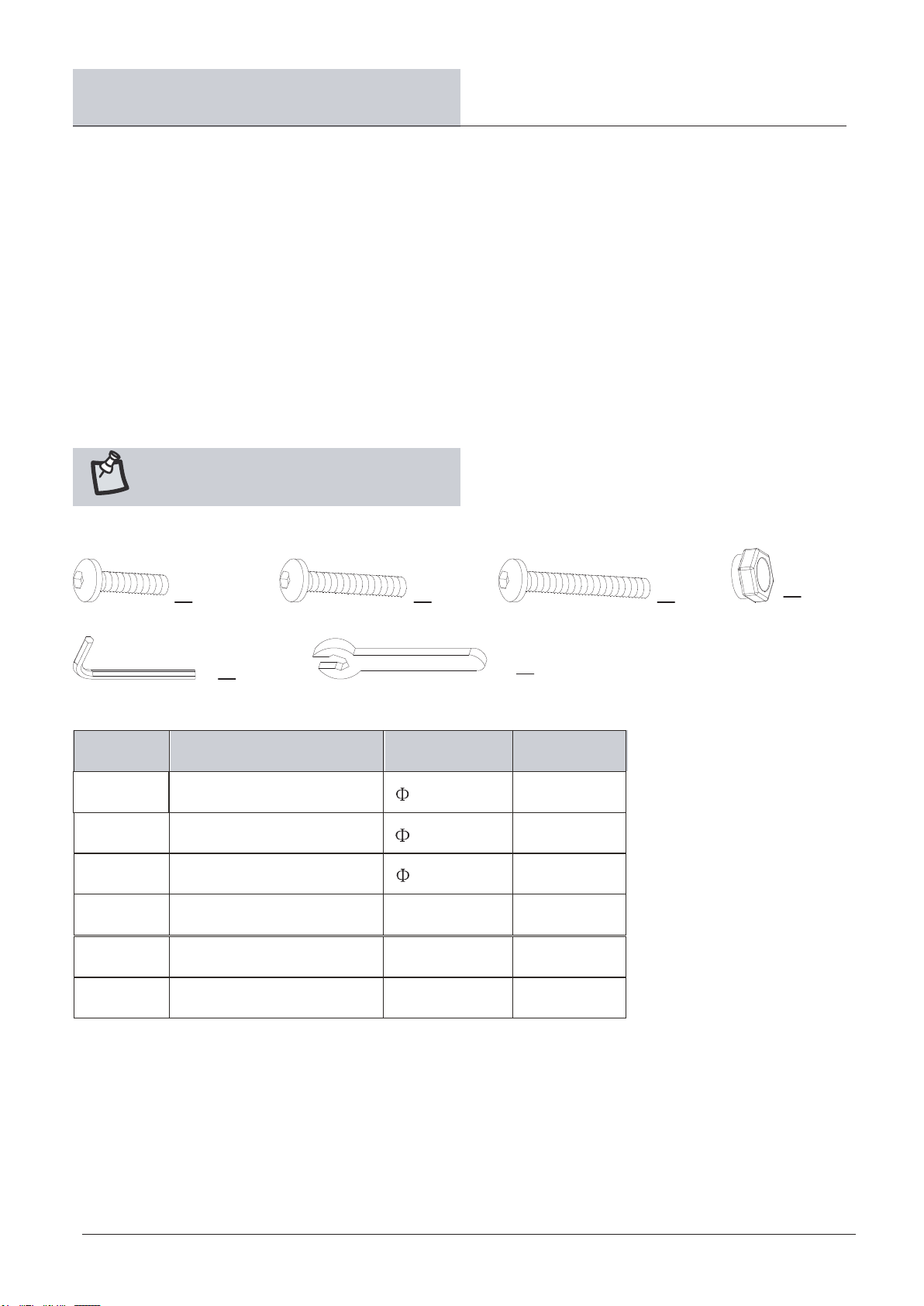

Pre-Assembly
PLANNING ASSEMBLY
To prevent damage, place all parts on a soft surface during assembly.
Tools required for assembly (not included): Allen wrench (included), a screwdriver,
stepladder (min. 5ft.) and other safety items such as gloves, safety eyewear, and hardhat.
To avoid injury from exposed sharp edges, it may be necessary to use the above safety
equipment.
Do not leave it unattended if not fully assembled even if bolted to the ground.
HARDWARE INCLUDED
NOTED: Hardware not shown
to actual size.
AA CCBB DD
EE FF
Part Description Size QTY.
AA
BB
CC
DD
BOLT
BOLT
BOLT
ALLEN WRENCH
( )
6 x 15mm
( )
6 x 35mm
( )
8
24
16
FF
EE
SPANNER
BOLT NUT 16
1
1
6 x 45mm

6
Pre-Assembly (continued)
Package Contents
BCD
E
F
G
H
J
K
L
M
N
O
P
Q
R
T
U
UU
S
I
v

Pre-Assembly (continued)

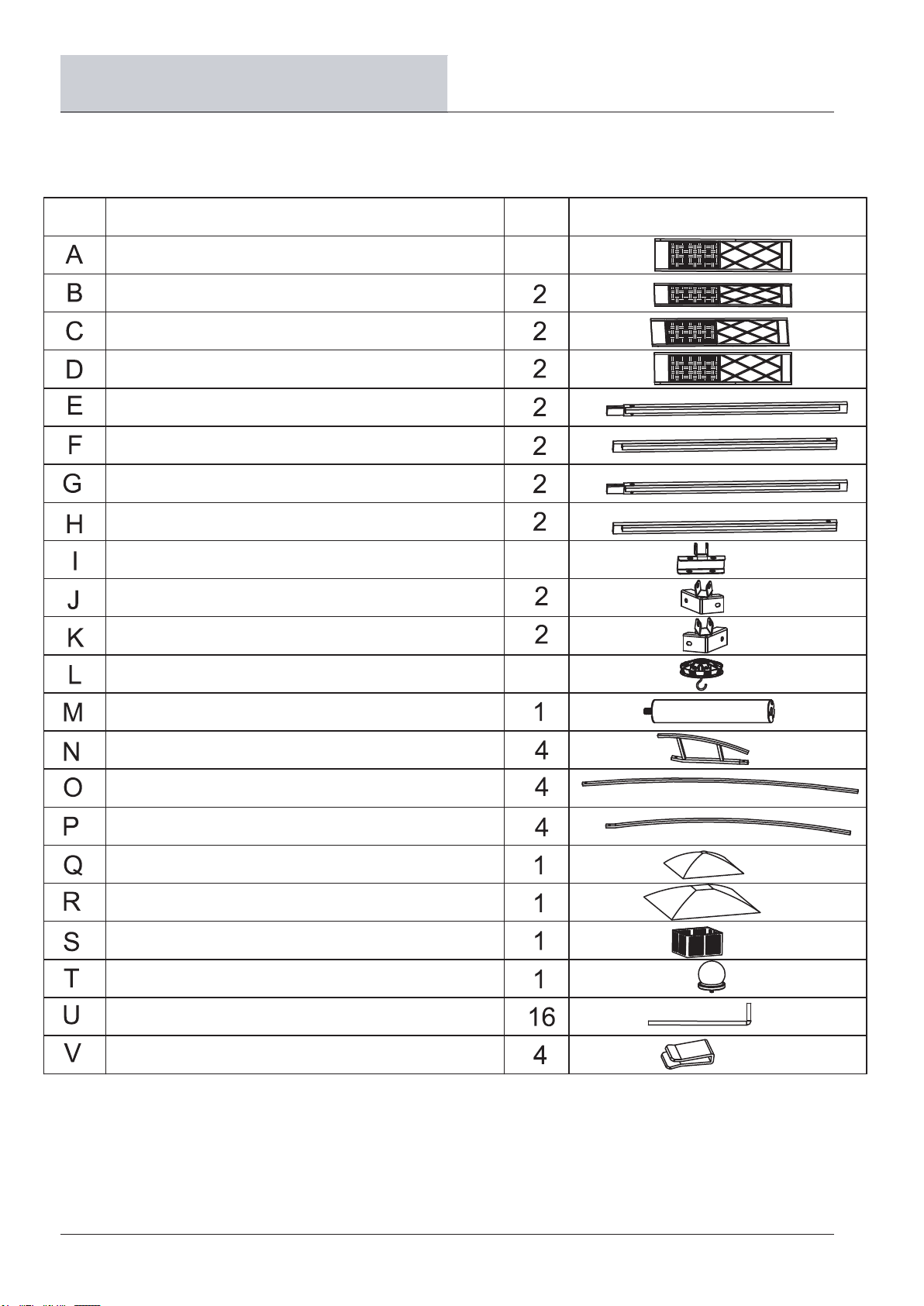

Package Contents
7
LLUSTRATION
QTY
2
4
1
DESCRIPTION
ITEM
Leg Panel 1
Leg Panel 3
Leg Panel 2
Leg Panel 4
Crossbar 1
Crossbar 2
Crossbar 3
Crossbar 4
Center Connector
Corner Connector 1
Corner Connector 2
Roof Connector
2-Tier Support Tube
2-Tier Roof Tube
Corner Roof Tube
Center Roof Tube
Air Vent Cover
Canopy
Mosquito Net
Finial
Stake
Fixed Clamp

8
Assembly Instructions
AB
1
1
AB
A
B
A x 2
1
CC

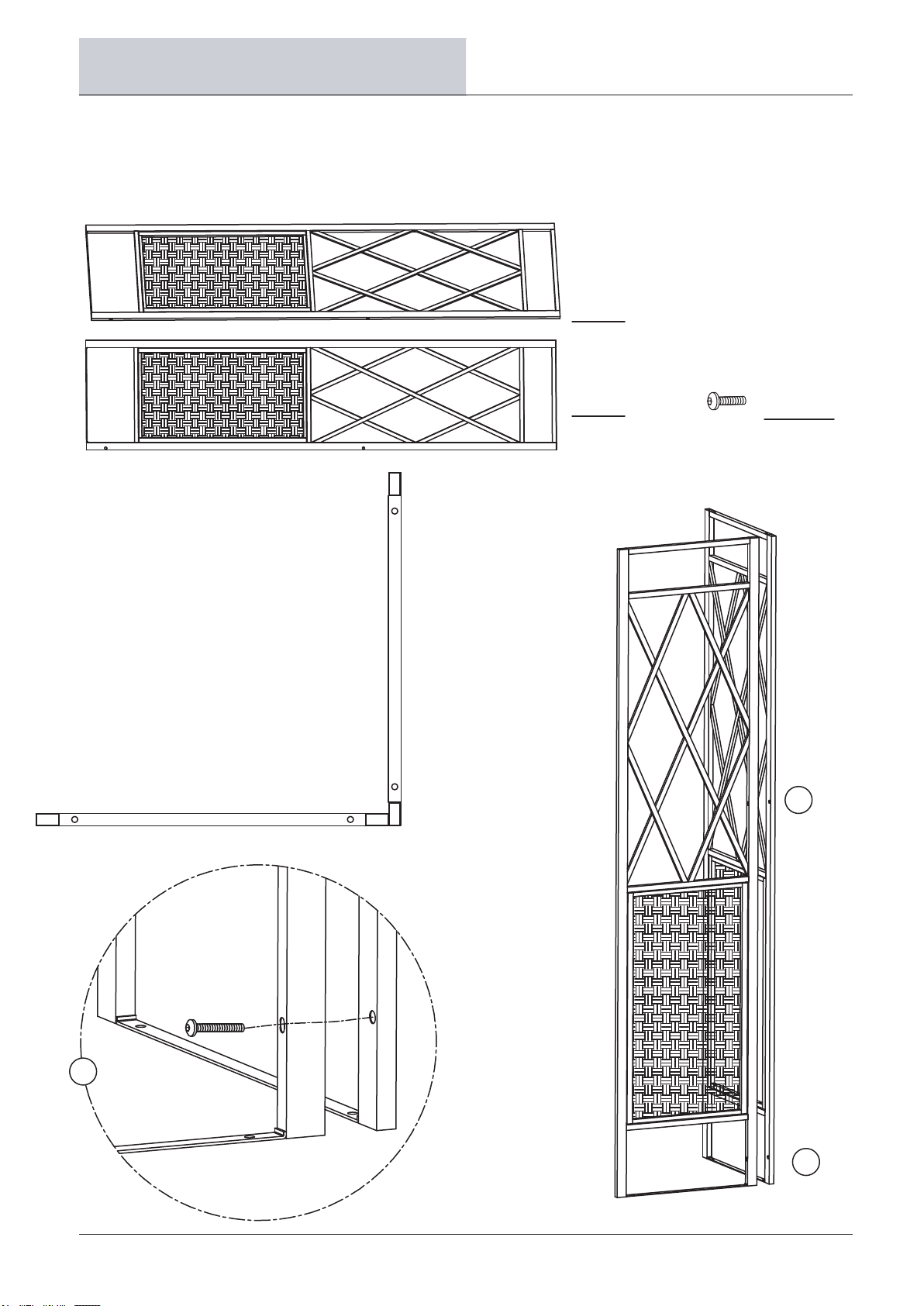

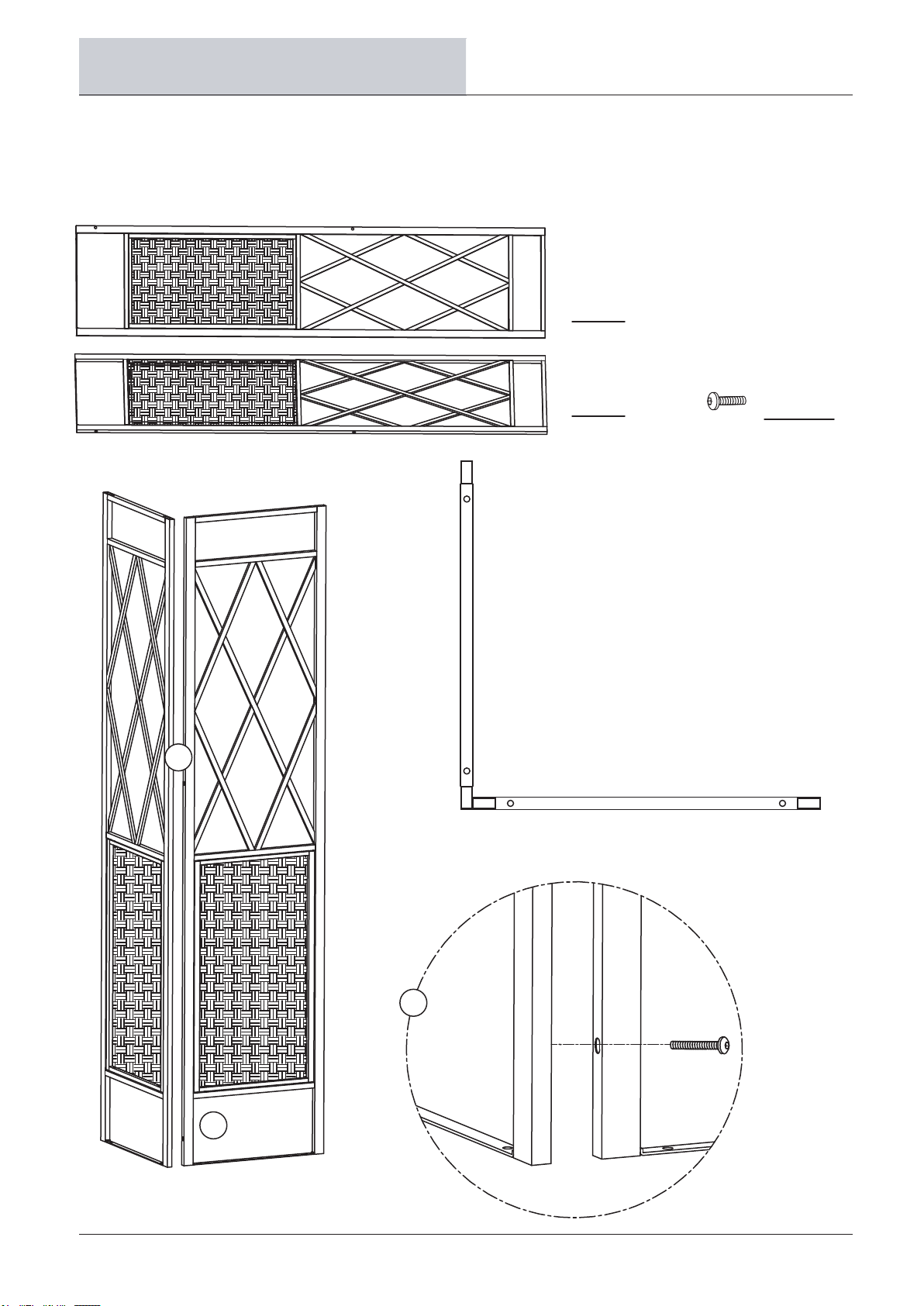

1. Secure Leg Panel 1 (A) with Leg Panel 2 (B) by Screw (CC).
B x 2 CC x 4

9
Assembly Instructions
C x 2
1. Secure Leg Panel 3 (C) with Leg Panel 4 (D) by Screw (CC).
D x 2 CC x 4
C
D
C
D
1
1
C
D
1
CC

10
Assembly Instructions
E x 2
1. Insert Crossbar 1 (E) into Crossbar 2 (F), then secure with Center Connector (I)
by using Screw (CC) and Bolt Nut (DD).
F x 2 CC x 4
E
F
I
1
E
FI1
E
F
I1
E
F
I
CC CC
DD DD 1
I x 2
DD x 4

11
Assembly Instructions
G x 2
1. Insert Crossbar 3 (G) into Crossbar 4 (H), then secure with Center Connector (I)
by using Screw (CC) and Bolt Nut (DD).
H x 2
CC x 4
I x 2
DD x 4
G
H
I
1
G
HI1
G
H
I1
G
H
I
1
CC CC
DD DD

12
Assembly Instructions
N x 4
1. Insert 2 – Tier Roof Tube (N) into Corner Roof Tube (O).
O x 4
N
O
1
ON
1
N
O

13
Assembly Instructions
BB x 16

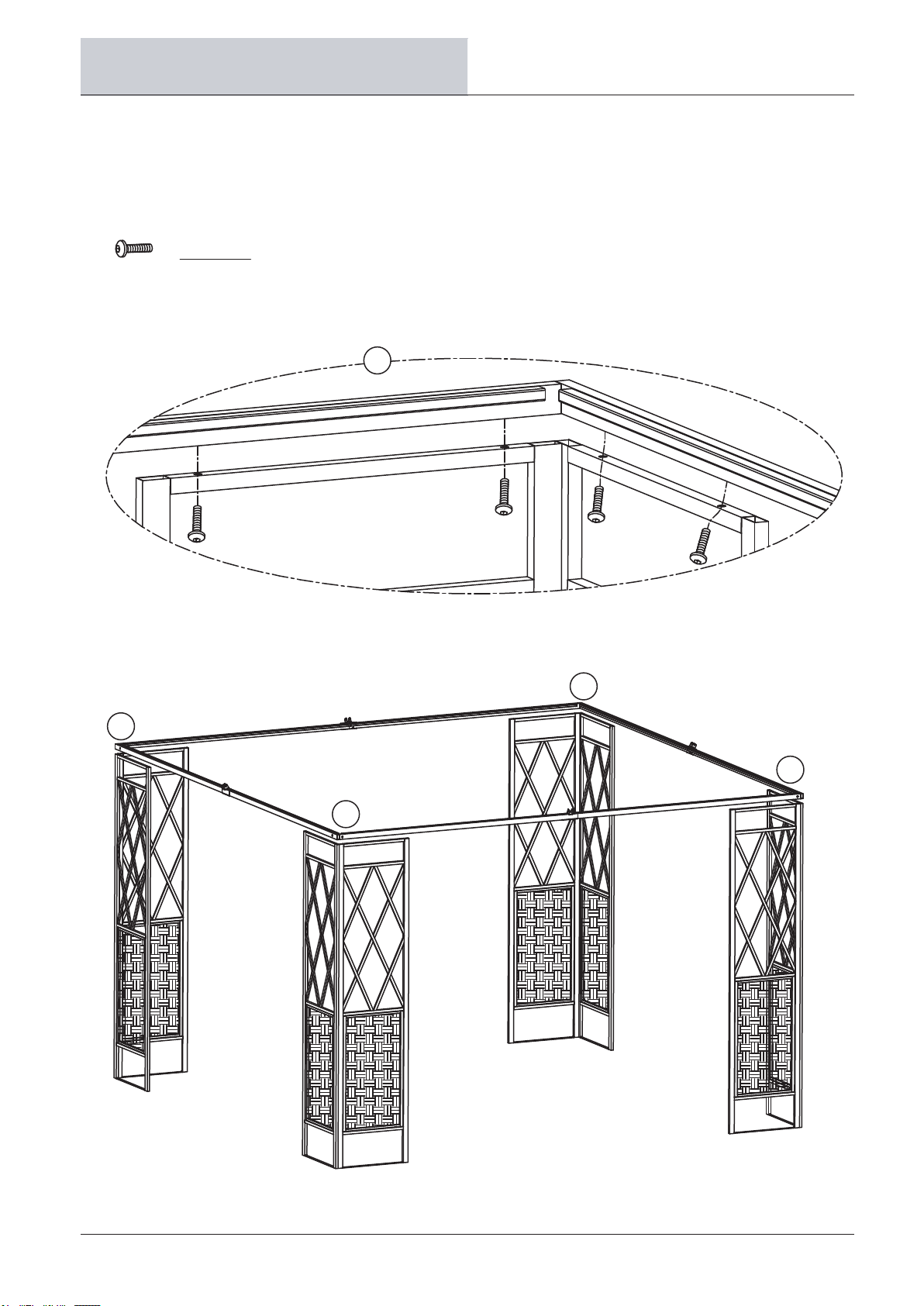

1. Secure assembled Leg Panel (A, B) with Crossbar (E, H) using Screw (BB) as
fig. 1 shown.
Repeat this step for remaining assembled Leg Panel (C, D).
AB
C
A
B
D
C
D
E
F
F
E
G
H
H
G
1
1
1
1
A
BA
H
E
1
BB
BB BB
BB

14
Assembly Instructions

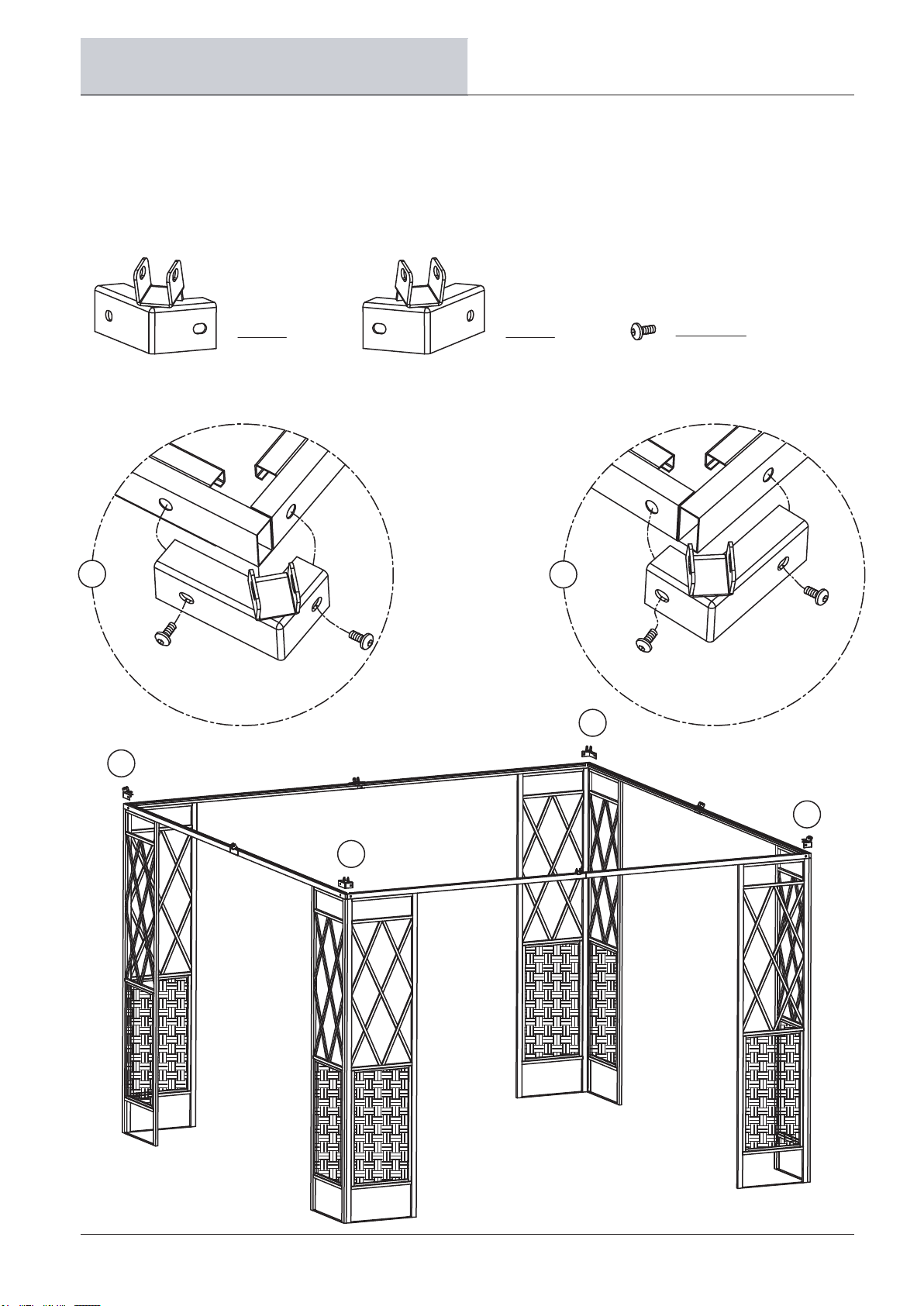

1. Use Corner Connector 1 (J) to secure Crossbar 4 (H) and Crossbar 1 (E) by
Screw (AA) as fig 1 shown.
Use Corner Connecotr 2 (K) to secure Crossbar 2 (F) and Crossbar 3 (G) by
Screw (AA) as fig 2 shown.
J x 2
1
J
E
H
AA
AA
2
FG
K
AA
AA
E
F
G
H
F
E
H
G1
1
J
J
K
K
2
2
K x 2 AA x 8

15
Assembly Instructions
1. Secure 2 - Tier Support Tube (M) with Roof Connector (L).
2. Insert 2 - Tier Roof Tube (N) into Roof Connector (L) as fig. 2 shown.
3. Insert Screw (BB) through Corner Connector 1 (J) into Corner Roof Tube (O)
fixed with Bolt Nut (DD) as fig 3 shown.
Repeat this step for remaining Corner Connector 2 (K) as fig. 4 shown.
L x 1 M x 1
L
M
1
L
N
N
N
N
2
3
O
K
J
O4
BB
DD
BB
L
M1
NN
N
2
3
3
4
4
O
O
O
O
J
K
K
BB x 4 DD x 4

16
Assembly Instructions
1. Insert Center Roof Tube (P) into Roof Connector (L) as fig. 1 shown.
2. Insert Screw (BB) through Center Connector (I) into Center Roof Tube (P)
fixed with Bolt Nut (DD) as fig. 2 shown.
P x 4
BB x 4 DD x 4
L
P
P
P
P
P
P
I
I
1
22
2
2
L
1
P
I
2
DD
BB

17
Assembly Instructions

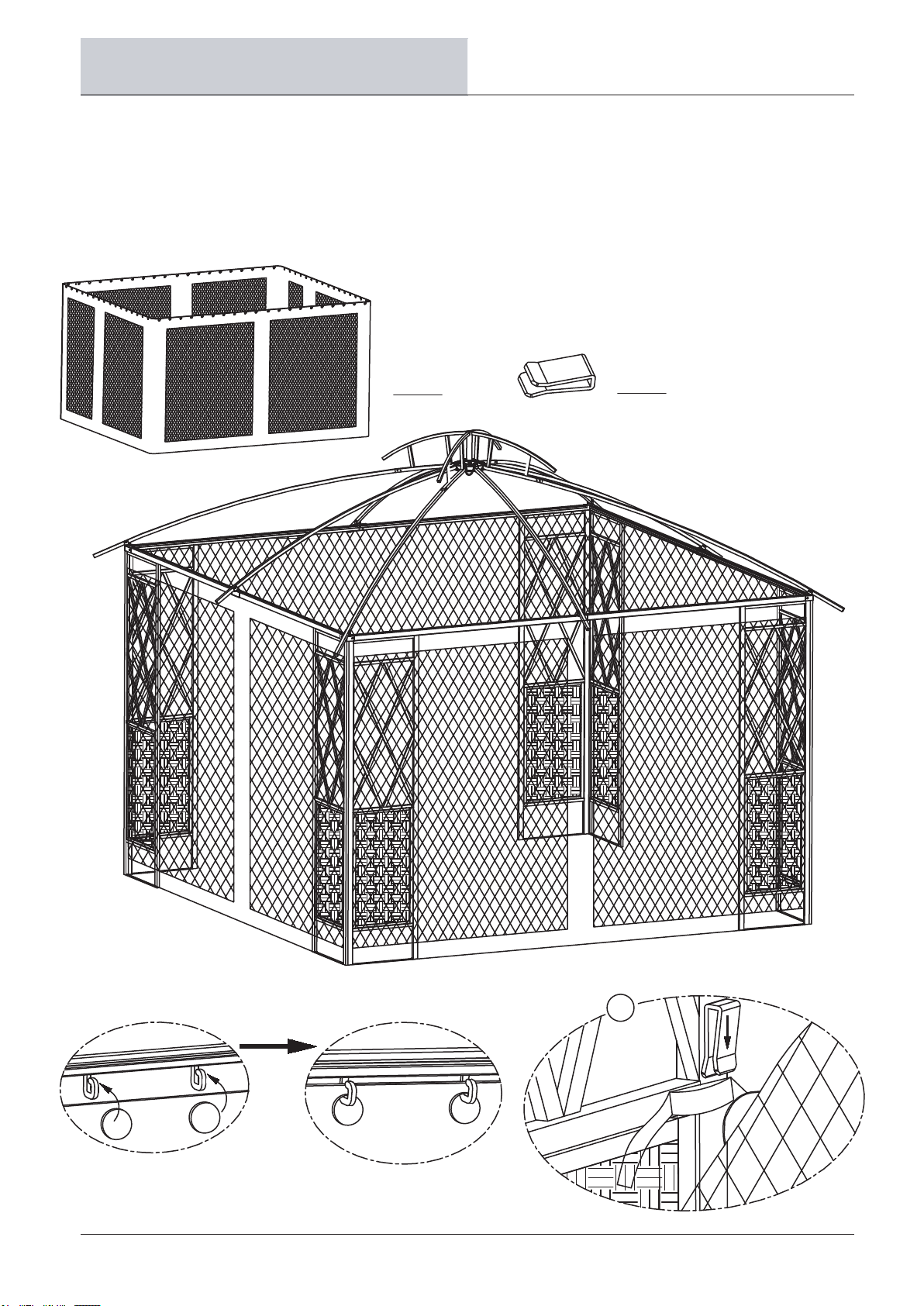

1. Hang Mosquito Net (S) from crossbar on gazebo with preassembled hooks.
Note: Do not open zippers on net (A) before hanging; be sure to close all zippers
before removing the net.
2. Insert Fixed Clamp (V) into Leg Panel (B & C) and Mosquito Net (S) as
fig. 1 shown.
S x 1
S
F
E
F
E
H
G
G
H
E
S
E
S
AB
C
B
D
S
B
V
V x 4
1

18
Assembly Instructions
1. Place Canopy (R) and Air Vent Cover (Q) on the top then secure Finial (T) on the
top of canopy. Place canopy in right position of each corner. Insert Stake (U)
through based of all leg panel as shown.
Tips: Place canopy on the top, then place air vent cover on the top and secure finial
on the top. Fix 4 corners of canopy on the corner roof tube at first, then fix 4
centers of canopy on the center roof tube.
Q x 1 R x 1
T
Q
Q
R
T
UU
U
UA
B
T x 1 U x 16

19
BONDVAST
BOND VAST INDUSTRIAL LIMITED
No. 174 Ding Tan Pi Tan Vill Lutsao Hsiang, Chla Yi Hsien, Tai Wan, ROC
FAX: [phone]
CUSTOMER SERVICE HOT LINE: 1-800-961-9838
SERVICE HOURS: MONDAY - FRIDAY 9:00AM - 5:00PM (PACIFIC TIME)
E-MAIL: [e-mail]
CUSTOMER SERVICE

Made in / Hecho en CHINA
Distributed by Kmart Corporation, Hoffman Estates, IL 60179
For questions or comments about product:
Email: [email protected] or Call toll-free: 1-800-961-9838
Please refer to part numbers when reordering
See our extensive assortment of outdoor living products
on-line at www .sears.com and www .kma rt.com
