Essilor FHE300 Instructions for use

FHE 300
IMFHE300 V.3
1

Instructions and maintenance manual
Ref. man FHE300 Rev. 11/201
4
TECHNICAL DATA AND FEATURES
FHE300
Hot air Heaters for frames
Machine
Reference A200S
Maximum length (X) 315 mm
Maximum width (Y) 190 mm
Maximum height (Z) 215 mm
Machine weight 2.6 kg
Working temperature 130 - 175 °C+5% -10%
Power Supply 230-240 V±10% 115 V
Number of phases 2 + ground
Frequency 50 Hz 60 Hz
Maximum current
consumption 6.3 A 12.5 A
Fuses X 2 T 10A L250V F 16A L250V
AMBIENT CONDITIONS OF OPERATING ENVIRONMENT
Maximum Altitude 2,000 m
Temperature 5 - 40 °C
Relative maximum
humidity 80%
Degree of pollution 2
Y
X
Z
AUTHORIZED USE
ESSILOR FHE300 device is a hot air conveyer designed to soften
celluloid frames and frames of similar materials.
Any use of the machine other than that for which it was designed and built, as
indicated in this handbook, will be regarded as “PROHIBITED USE”.
The manufacturer is not thereby liable for any damage caused to any persons or the
machine.
The device described below is not designed for use in explosive atmospheres or in the
presence of flammable vapours or liquids. Consequently it is prohibited to install it and use
it in such environments.
2

Instructions and maintenance manual
Ref. man FHE300 Rev. 11/201
4
RESIDUAL DANGERS AND RISKS
During operation, the hot air conveyor generates heat and can cause a risk
of burns.
Warning labels are fitted on the machine. The user is responsible for
periodically checking their integrity and, if necessary, for replacing the
damaged labels with identical ones, by contacting the manufacturer’s Help
Desk.
INFORMATION FOR THE RECIPIENT
To ensure operator safety and to avoid any damage to the machine, before carrying out any
operation on this device, it is essential to have read and fully understood this instruction
manual in its entirety.
PACKAGING
The packaging provided contains:
The main body of the device
Power supply
Instructions for use and maintenance manual
Heat Concentrator
By its very nature, the device can be moved manually without using any lifting equipment.
Whilst the packaged machine remains idle prior to being used, it is recommended
that it be stored in a place where it will be safe from atmospheric agents.
UNPACKING
After having unpacked the machine, check that there are no signs of any damage. If
there are, contact the Help desk.
The recipient is responsible for the disposal of the packaging materials which should
be done in accordance with the current standards in the country where the machine
is to be used.
RESPONSIBILITIES OF THE CUSTOMER
The user must install the device in appropriate premises duly equipped with an
electrical installation complying with the current standards.
The plug socket to which the device is connected must remain accessible.
It is recommended that the device be installed in areas which are well ventilated, dry
and lit in accordance with current legislation.
3

Instructions and maintenance manual
Ref. man FHE300 Rev. 11/2014
INSTRUCTIONS FOR THE USER
CONNECTION AND OPERATION
Before connecting the device, check that the line voltage corresponds to that
indicated on the label on the machine and that the main switch is set to “0” (zero).

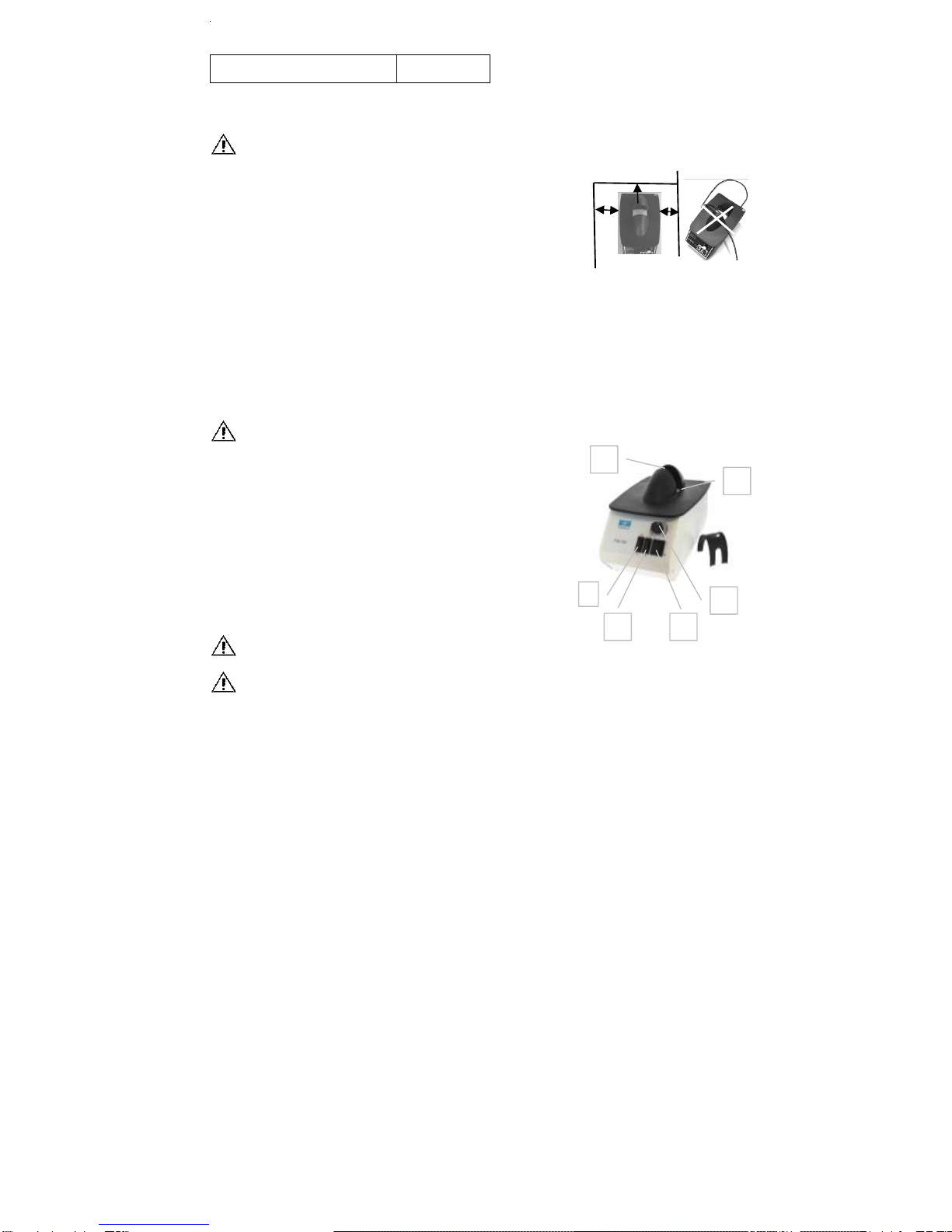

4
6
5
3
12
Place the device on a completely flat surface in order to
ensure maximum stability and take care to leave a free space
of at least 10 cm either side and behind. After checking that
the main switch is set to “0” (zero), connect the power cable
by first of all attaching the end which connects to the body of
the machine and then the end with the plug.Make sure that
the cable is away from the working area as this can reach
dangerously high temperatures.
10cm
10cm 10cm
OPERATION
Is done by turning the main switch which lights up to indicate that the device has power
STOP MODES AND EMERGENCY STOP
The normal stop function of the device is achieved by setting the main switch to “0” (zero).
The emergency stop function is achieved by disconnecting the power supply from the plug
socket.
After an emergency stop or a stop due to an anomaly or a power cut, always set the
main switch to “0” (zero).
EXAMPLES OF WORK
Set the device to cool or heat using the switch. (2)
Select the temperature level using the switch(2)
Start the machine by pressing the main switch(1)
After 1.5 minutes, the machine is ready for use
Place the part of frame to be softened between the heat
conveyors(5)
Mold the part according to requirements; if necessary the
temperature can be adjusted using the control (4)
Be careful not to introduce any thread-like objects (e.g., arms of the glasses) into the
grills (6) to avoid risking contact with live parts.
To warm up a small surface on the frame (bridge, spectacle…) please use the heat
conveyor. Once the step is done, this accessory must be removed as this can provoke an overheating
inside the machine.
4

Instructions and maintenance manual
Ref. man FHE300 Rev. 11/2014
MAINTENANCE
Any modification affecting the operation or the safety of the machine must be carried out by
the manufacturer’s technicians or manufacturer approved technicians. Otherwise, ESSILOR
will not accept any liability for any alterations or damage which could ensue.
In the event of the machine being used incorrectly, or as a result of damage through
operations not listed in the manual, Essilor will not accept any liability.
Any servicing and special maintenance operations must be carried out with the
device switched off and the power supply removed by disconnecting the power
cable.
GENERAL MAINTENANCE
The device does not require maintenance, provided that it
is not moved out of the well-ventilated clean area.
SPECIAL MAINTENANCE
Special maintenance operations are carried out in the event of the device stopping following
a breakdown of mechanical or electrical parts.
For safety reasons, the end-user is not authorised to carry out special maintenance
operations. In this instance please contact ESSILOR or an approved Help Desk.
INSTRUCTIONS FOR SERVICE REQUESTS AND SPARE PARTS
In any communication with our Help desk always state the type of machine, the
registration number and the year of manufacture stated on the label which identifies
each machine and, where possible, specify the nature of the problem or the defect
presented by the machine.
In order to ensure optimum operation of the device, any replacement parts must be
original spare parts and of the same design and materials.
CLEANING THE MACHINE
Use a damp cloth and a gentle detergent.
Before carrying out this operation, make sure that the device is switched off by
disconnecting the power cable.
Infiltration of liquids can damage the electrical parts of the device.
5

Instructions and maintenance manual
Ref. man FHE300 Rev. 11/2014
TROUBLE SHOOTING
Possible cause ACTION
Replace the existing fuse inside the
plug(*)
Spent fuse
Resistance and/or
broken motor Contact the Help desk
(*)To check the fuse, turn the main switch to “0” (zero),
disconnect the power cable and open the case.
Problem: The machine is not heating or does not blow hot
air
Remove the fuse and check the integrity of the wiring inside
DISMANTLING THE MACHINE AT THE END OF ITS LIFE
The symbol of a dustbin with a line through it indicates that the device should be
disposed of separately to general waste. The recycling of the device at the end of its
life must be planned and managed by the manufacturer. The user wishing to dispose
of the device should contact the manufacturer and follow their recycling procedures.
Complying with the planned recycling procedures for the device helps to avoid
possible negative effects on the environment and health, and promotes the re-use
and/or recycling of the component parts of the device.
Incorrect disposal of the device by its owner may result in penalties, in line with the
current standards in the country of use of the device.
6

Instructions and maintenance manual
Ref. man FHE300 Rev. 11/2014
REFERENCING GUIDELINES AND APPLIED STANDARDS
Mandatory directives
Reference Part
Directive the UE
n°2014/35/UE Low voltage(DBT)
Directive the UE
n°2014/30/UE Electromagnetic compatibility (EMC)
Directive the UE
n°2011/65/UE
Restriction of the use of certain hazardous substances in electrical
and electronic equipment (RoHS)
Voluntary standards
Reference Part
EN ISO 12100
(2010)
Safety of the equipment– fundamental Concepts - general Principles of
design
Part 1– basic Terminology/methodology
Part 2 - Technical principles
Safety requirements for electrical equipment for measurement, control
and laboratory use
EN 61010-1(2010)
Electrical equipment for measurement, control and laboratory use. EMC
requirements.
EN 61326-1(2013)
