Estate Design EFW-TJ34A User manual

OWNER’S MANUAL
HARRISON-FLAT
LINEAR ELECTRIC FIREPLACE WITH HEATER
MODEL# EFW-TJ34A, EFW-TJ48A
i WARNING Read and understand this entire owner’s manual, including all safety information, before plugging
in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.
iCAUTION Keep this owner’s manual for future reference. If you sell or give this product away, make sure this
manual accompanies this product.
Wall Mounted Option
Free Standing Option with Feet
NO VENTING REQUIRED
110V AC; 60 Hz; 1500 Watts

2
IMPORTANT SAFETY INSTRUCTIONS!
iWARNING
• Read all instructions before using this heater!
• This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces.
If provided, use handles when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (36") from the
front of the heater, and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used.
• DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner. Discard heater, or call a certified technician
for examination and or/repair.
• DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs,
runners, or similar coverings. DO NOT route power cord under furniture or appliances.
Arrange power cord away from traffic area, and where it will not be tripped over.
• Connect to properly grounded outlets ONLY.
• DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening,
as this may cause electric shock, fire, or damage the heater.
• To prevent a possible fire, DO NOT block air intakes or exhaust in any manner.
Doing so could cause a fire. DO NOT use on soft surfaces, like a bed, where openings
may become blocked.
• A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended
by the manufacturer may cause fire, electric shock, or injury to persons.
• ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an
extension cord or relocatable power tap (outlet/power strip).
• DO NOT place the heater near a bed because objects such as pillows or blankets
can fall off the bed and be ignited by the heater.
• NEVER use this heater in bathrooms, laundry rooms, or any other location where the
heater could fall into a bathtub or pool, become damp, or come in contact with water.
• AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint,
or other blockage. Unplug the unit and clean with a vacu um ONLY. DO NOT rinse or get wet.
•NEVER hang this unit on a wall directly below an electrical outlet.
•NEVER permanently install in a recessed area of the wall. This may result in
blocked air flow, overheating, or fire.
•NEVER use a wall mount bracket from another manufacturer.
Pictures within this manual are for reference only. Please refer to the actual
product for appearance.
NOTICE

3
iWARNING
Grounding Pin
Adapter
Metal Grounding Screw
• For residential use only! NOT for commercial use! Any commercial or public use of this
heater voids all warranties, and could cause injury.
• This product is not intended to be a primary heat source. It is for supplemental heat only.
•INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
• Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
• NEVER modify this heater. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
• ALWAYS turn this heater off before unplugging it from the outlet.
• ALWAYS disconnect this unit from the power supply before performing any assembly
or cleaning, or before relocating the product.
• NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
• ALWAYS store this heater in a dry location. NEVER use the product if it has become wet.
• Place the heater near a wall outlet so an extension cord is not needed.
• ONLY use this heater on a minimum 110V AC 15-Amp grounded circuit. NEVER overload
the circuit. If this heater trips the circuit breaker, or blows the fuse, unplug it and all other
appliances on the same circuit before the next use.
• NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within
the outlet that could cause the outlet to overheat or catch fire.
• ALWAYS check your heater cord and plug connections with each use!
i) Make sure the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it has
not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.

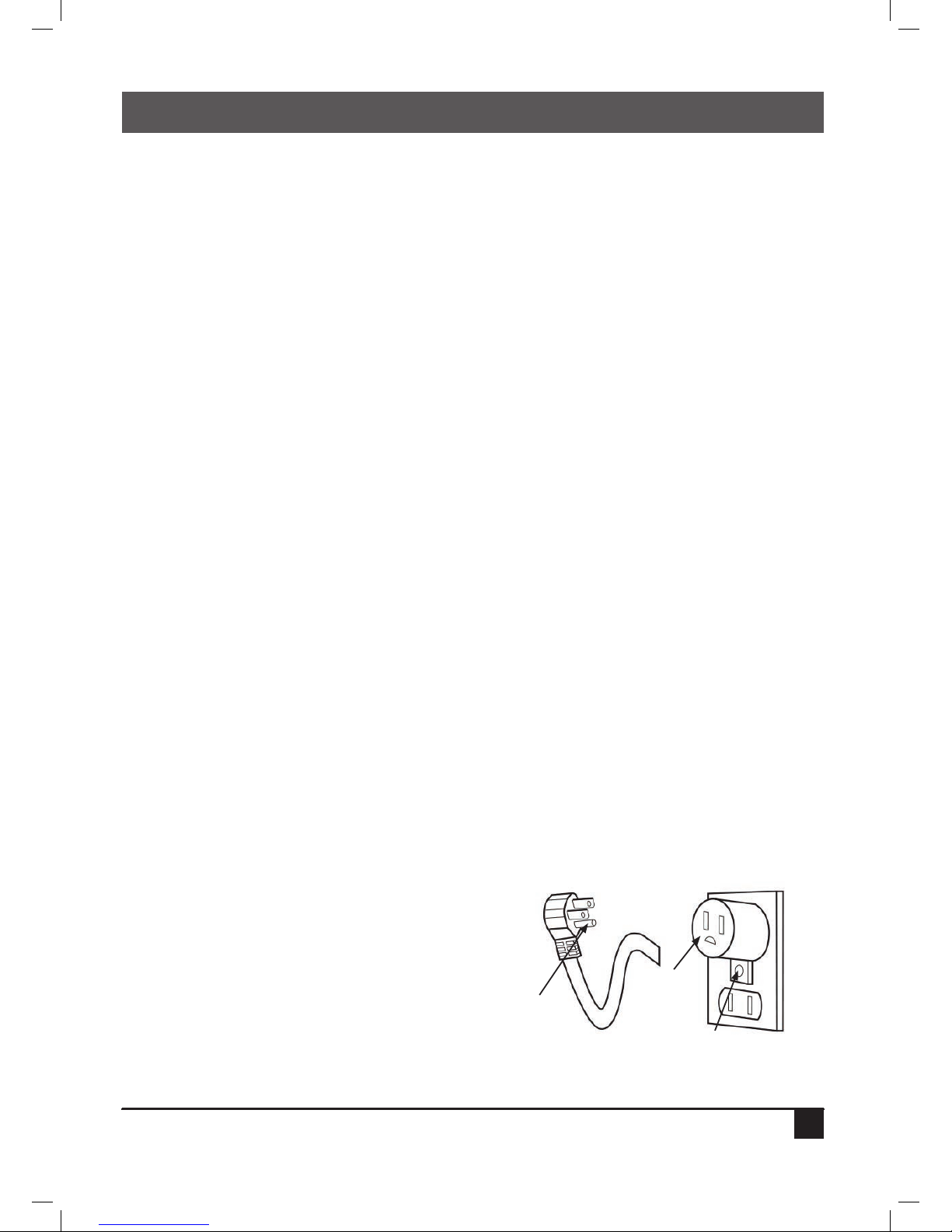

• The power cord supplied with the heater has
three prongs: two flat blades (live and neutral)
and one round pin (ground). If a 3-slot receptacle
is not available, an adapter MUST be used.
The adapter MUST be properly grounded
to the outlet box (see figure at right).
[NOTE: Adapter NOT INCLUDED.]
• SAVE THESE INSTRUCTIONS!

4
PREPARATION
PARTS AND HARDWARE
3-Wood Screws(B) 3-Drywall Anchors(C) Remote Control
Front Panel x 2
2-M4x8 Metal
Screws(D)
White Stones(F)
4-M6x14 Bolts(H)
Shelf Insert(I)
Faux Log Bed
(Currently Installed) Crushed Glass(F)
River Rocks(F) Faux Branches(F)
• Remove all parts and hardware from the carton and place them on a clean, soft,
and dry surface.
• Compare the contents with the parts list to make sure nothing is missing.
• Dispose of all packaging materials properly.
• Please recycle whenever possible.
This product includes GLASS! ALWAYS use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
Make sure all parts are dry, and the power cord and plug are not damaged.
See IMPORTANT SAFETY INFORMATION on pages 2 and 3.
i
i
Fireplace(A)
TOOLS NEEDED (NOT INCLUDED)
Phillips Screwdriver
Electric Drill
Stud Finder
1/4" Wood Drill Bit
Level Tape Measure
Hammer
Wall Bracket(E) 2-Foot Brackets(G)
3-Metal Washers(J)

5
INSTALLATION AND ASSEMBLY
ALWAYS unplug this fireplace heater before assembly, cleaning, or relocating.
Failure to do so could result in electric shock, fire, or personal injury.
i

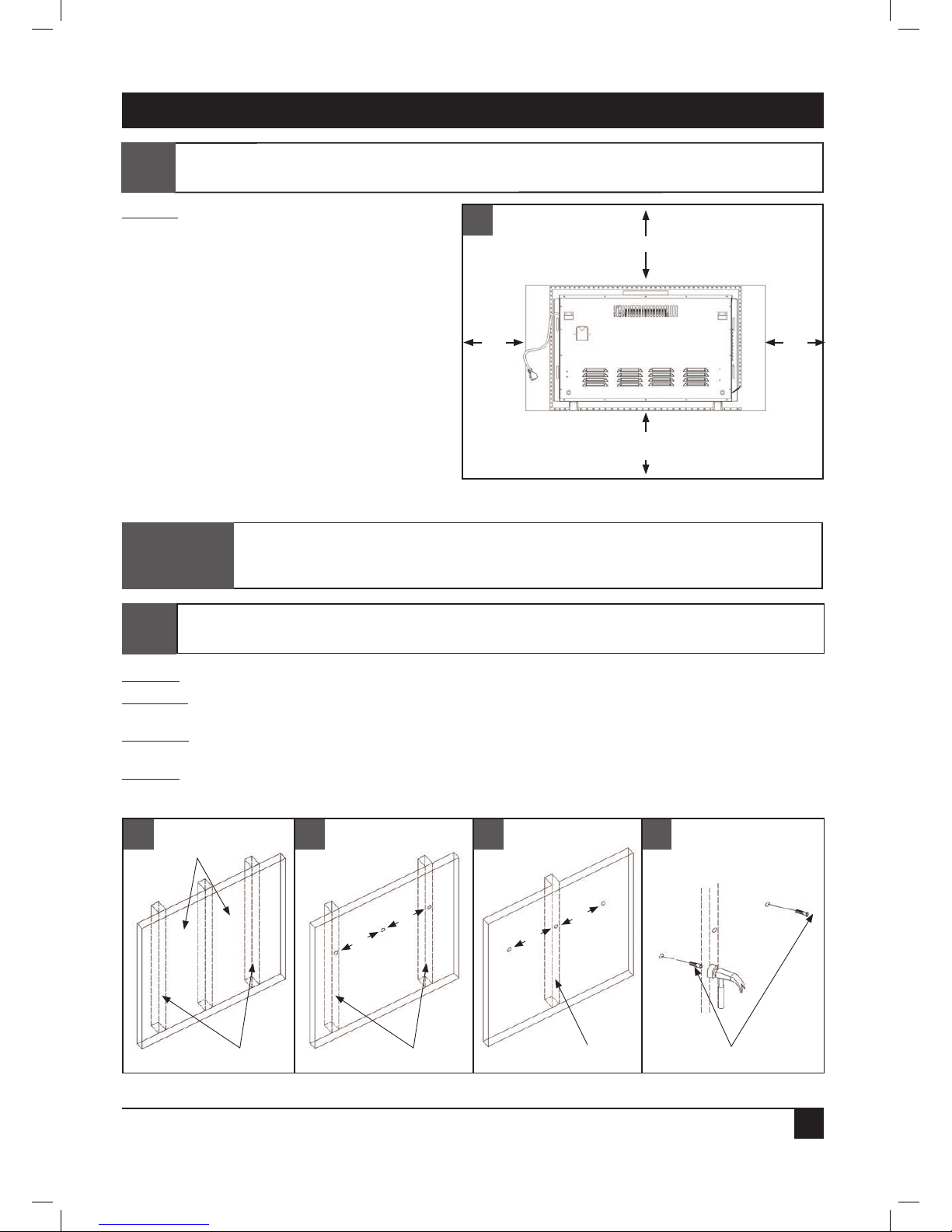

STEP 1: Find a safe location.
Minimum clearance
on each side: 20".
Minimum clearance below:
20". (Wall mount only).
Minimum clearance above:
39.5".
Minimum clearance from the front:
36".
Choose a location near an outlet so
an extension cord is not required.
DO NOT position the unit
directly below a power outlet.
The Drywall Anchors(C) included with this fireplace are for use ONLY with a wood
framed wall covered in drywall (sheet rock). For concrete walls, cinder blocks, or
other wall types, consult a professional for the best attachment methods.
NOTICE
Minimum 39.5"
Minimum 20"
(Wall mount only)
20"20"
1
STEP 2: Locate the wall studs using an electronic stud finder.
STEP 2a: If two studs are available, drill 1 hole in each using 1/4” drill bit. Drill third and
final hole in between the two studs.
STEP 2b: If only 1 stud is available, use stud as center and drill 2 holes on either side of stud
(each hole should be 8” apart from one another).
STEP 3: With a hammer, tap the Drywall Anchors(C) carefully into the hole(s) until they are flush
with the drywall surface. Use care to avoid damaging the drywall with the hammer.
2
Studs
Drywall Anchors(C) 2a 2b
Two Studs One Stud
8"
8" 8"
8"
3
Drywall Anchors(C)
ALWAYS make sure the unit is unplugged before beginning assembly! NEVER move or
clean the heater while it is plugged in.
i

6

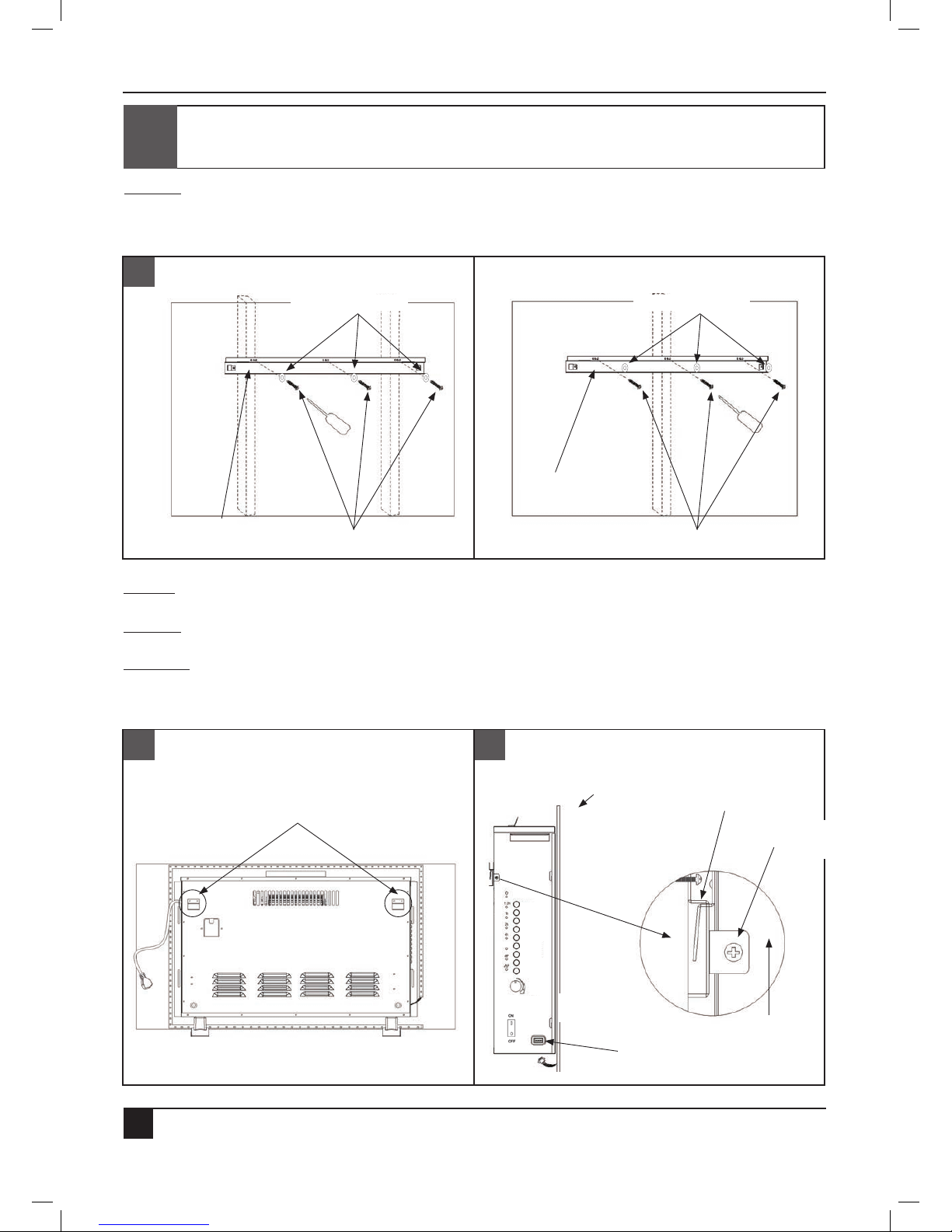

STEP 4: Align the holes in the Wall Bracket(E) with the pilot holes and Drywall Anchors(C).
Thread three Wood Screws(B) and Metal Washers (J) through the holes in the wall
bracket and directly into the wall studs and Drywall Anchors(C). Make sure the Wall
Bracket(E) is level. Tighten all screws securely with a screwdriver.
5a5
4
Back light
Connector Plug
Two Studs One Stud
Wood Screws(B) Wood Screws(B)
Hooks
Fireplace(A)
Side View
of Fireplace(A)
Front View
of Fireplace(A)
Back of Fireplace(A)
Wall Bracket(E)
Wall Bracket(E)
NOTE: WE RECOMMEND THAT TWO CAPABLE ADULTS PERFORM THIS PROCEDURE.
STEP 5: With the help of a capable adult, lift the Fireplace(A) and align the two hooks on the back
of the fireplace with the slots on the Wall Bracket(E). Carefully set the hooks into the slots.
STEP 5a: Secure the fireplace to the Wall Bracket(E) with two M4x8 Metal Screws(D), one on
each side. Thread the Metal Screws (D) through the fireplace and into the Wall Bracket(E)
side tabs. Tighten both screws with a screwdriver.
AVOID INJURY and DAMAGE! Wood Screws(B) should be screwed directly
into wall studs when possible.
i
Wall Bracket(E)
M4x8
Metal Screws(D)
M4x8
Metal Screws(D)
Metal Washers(J) Metal Washers(J)
FLAME
FLAME + -
FUEL BED
FUEL BED
BACK LIGHT
BACK LIGHT +-
FLAME SPEED
TIMER+ -
HEATER
THERMOSTAT

7
MEDIA BED INSTALLATION
This next step involves GLASS! ALWAYS use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
i

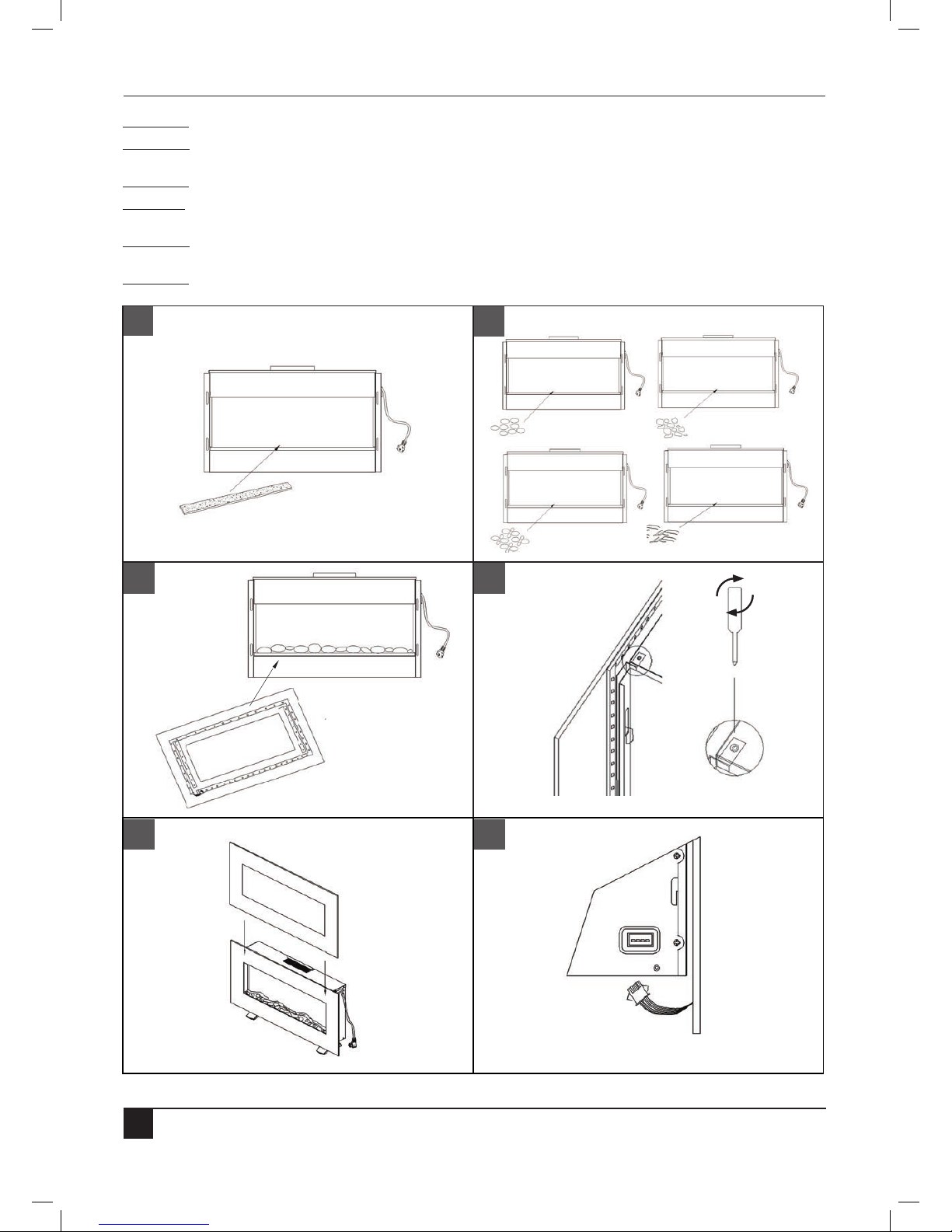

NOTE: The fireplace comes with the Faux Log Bed in place, and can be used as is. To switch to
crushed glass, rocks or faux branches, follow these steps with two capable adults.
STEP 6: You must unplug the backlight connector prior to completing any further steps.
When facing the unit, the connector plug is located on the left of the fireplace.
STEP 6a: While one person holds the glass panel, remove the two screws at the top edge of the
fireplace with a screwdriver. Together, carefully remove the front glass panel and set it
aside on a clean soft surface.
STEP 6b: Remove the two log bed screws (one at each end of the log bed), and lift the log bed out.
6 6a
6b
Loosen
Back Light
Connector Plug
ALWAYS keep the decorative glass OUT OF REACH OF CHILDREN AND PETS! Leave
no glass pieces where children or pets can find them. Failure to do so could cause a
choking hazard.
i
Faux Log Bed

8
STEP 6c: Set the Shelf Insert(I) onto the ledge in the opening at the front of the fireplace.
STEP 6d: Arrange the crushed glass, white stones, river rock, or faux branches on the Shelf Insert(I)
in the desired position.
STEP 6e: Set the front glass panel back onto the firebox.
STEP 6f: Align the tabs of the glass panel with the holes on the top edge of the fireplace.
Thread the screws back into the holes and tighten them both with a screwdriver.
STEP 6g: Two additional Front Panels are included. Attach desired Front Panel color by sliding
over the Black Glass as shown.
STEP 6h: Plug the backlights back in.
Crushed
Glass
Faux
Branches
White
Stones
River
Rocks
6d
6c
6e
6g 6h
6f
Shelf Insert
Tighten
Back Light
Connector Plug

9
FOOT ASSEMBLY FOR FREE STANDING OPTION

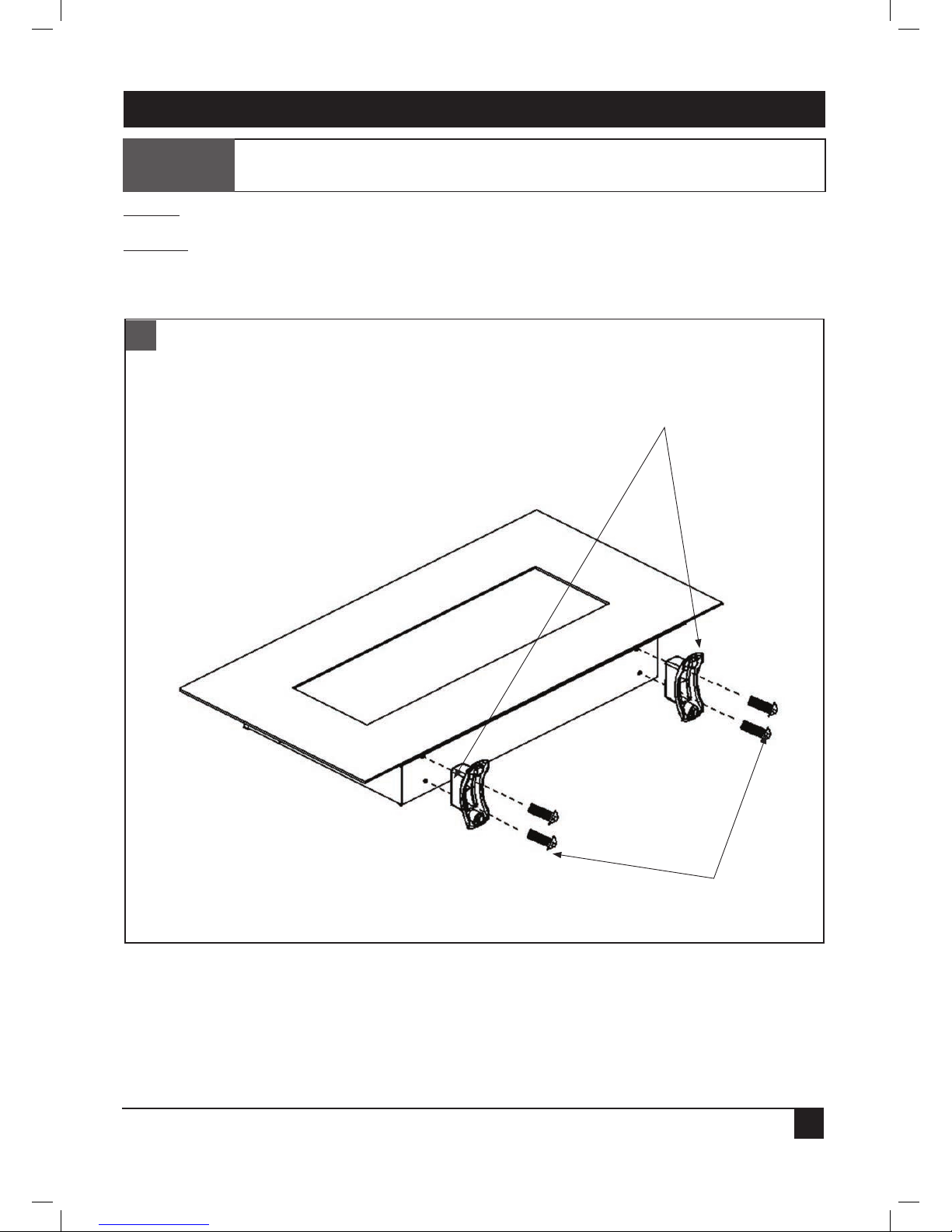

STEP 7: With the help of a capable adult, carefully lay the fireplace on a protected work surface,
on it’s back.
STEP 7a: Secure the Foot Bracket(G) to the bottom of the fireplace with two M6x14 Bolts(H).
Tighten each screw securely with a screwdriver. Repeat Step 7a using remaining
Foot Bracket(G) and two M6x14 Bolts(H).
Foot Brackets(G)
M6x14 Bolts(H)
7a
WE RECOMMEND THAT TWO CAPABLE ADULTS PERFORM THIS
PROCEDURE.
NOTICE

10
OPERATION
Read and understand this entire owner’s manual, including all safety information,
before plugging in or using this product. Failure to do so could result in electric shock,
fire, serious injury, or death.
h
POWER
Make sure the ON/OFF switch, located on the left side panel, is in the OFF position. Plug the power
cord into a 110 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages
2 and 3). Make sure the outlet is in good condition and that the plug is not loose. NEVER exceed
the maximum amperage for the circuit. DO NOT plug other appliances into the same circuit.
METHODS OF OPERATION
This electric fireplace can be operated by the CONTROL PANEL, located on the left side panel of
the fireplace (see figure below), or by the battery-powered REMOTE CONTROL. Before operating,
please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3, and heed all warnings.
Front View
Back View
Heat Enabling
Switch
Top View
FLAME
FLAME + -
FUEL BED
FUEL BED
BACK LIGHT
BACK LIGHT +-
FLAME SPEED
TIMER+ -
HEATER
THERMOSTAT
FLAME
FLAME + -
FUEL BED
FUEL BED
BACK LIGHT
BACK LIGHT +-
FLAME SPEED
TIMER+ -
HEATER
THERMOSTAT
Back Light
Connector Plug
Left Side View
Heat Vent
Control
Panel
Indicator
Lights

11
CONTROL PANEL FUNCTIONS
When the heat function is used for the first time, a slight odor may be present.
This is normal and should not occur again unless the heater is not used for an
extended period of time.
NOTICE
CONTROLS FUNCTION
Flame Button Press Flame Button to desired flame color.
10 different color options.
Flame +/- Press Flame (+/-) Button to desired flame brightness.
3 options. ONLY works when flame button is ON.
Fuel Bed
Color
Press Fuel Bed Color Button to desired fuel bed color.
(10 different color options).
Fuel Bed +/- Press Fuel Bed (+/-) Button to desired brightness.
3 options. Only works when flame button is ON.
Back Light Press Back Light Button to desired back light color.
10 different color options.
Back Light
+/-
Press Back Light (+/-) Button to desired back light
brightness. 3 options. ONLY works when Back Light button
is ON.
Flame Speed Press Flame Speed Button to desired flame speed.
5 options.
Timer Press Timer (+) once to increase timer setting by ½ hour
increments. Maximum timer setting is 7½ hours. Indicator light
will illuminate. Press Timer (-) once to decrease timer setting
by 1 hour increments.
Heater Press Heater Button once, 750W (LOW HEAT) heater turns
on and the fan starts to blow warm air. Press Heater Button
again, turns on 1,500W (HIGH HEAT) heater turns on and blows
hot air. Press Heater Button again and the heater turns OFF.
The fan will continue to blow to allow heater to cool down, and
then turns off. NOTE: The Heat Enabling Switch (on the back
of the unit) must be ON for the Heater function to operate.
Thermostat
Control Knob
Heater must be ON either LOW or HIGH heat for the
thermostat function to operate. The heat output is controlled
by the Thermostat Control Knob. Set the Thermostat Control
Knob to the maximum position initially. When the room reaches
the desired temperature, reduce the setting by slowly turning
the thermostat knob, counterclockwise until the heater will click
and turn off. The heater will then maintain the room temperature
at the desired level. NOTE: The Heat Enabling Switch (on the
back of the unit) must be ON for the Heater function
to operate.
Main Power
ON/OFF
Press ON. Power turns ON. All functions are enabled. Press
OFF. Power, flame effect, and all functions turn off.
THERMOSTAT
ON
OFF

12
REMOTE CONTROL FUNCTIONS
MAIN POWER ON THE FIREPLACE CONTROL PANEL MUST BE IN THE ON
POSITION TO USE REMOTE CONTROL.
NOTICE
REMOTE CONTROL BUTTONS FUNCTION
Press once to turn Power ON.
Press again to turn Power OFF.
Press Heater Button once, 750W (LOW HEAT)
heater turns on and the fan starts to blow warm air.
Press Heater Button again turns on 1,500W (HIGH
HEAT) heater turns on and blows hot air. Press Heat-
er Button again and the heater turns OFF. The fan will
continue to blow to allow heater to cool down, and then
turns off. NOTE: The Heat Enabling Switch (on the
back of the unit) must be ON for the Heater function
to operate.
Press Flame Button to desired flame color.
10 different color options
Press Flame (+/-) Button to desired flame brightness.
3 options. ONLY works when Flame button is ON.
Press Fuel Bed Color Button to desired fuel bed color.
(10 different color options).
Press Fuel Bed (+/-) Button to desired brightness.
3 options. Only works when flame button is ON.
Press Timer (+) once to increase timer setting by ½
hour increments. Maximum timer setting is 7½ hours.
Indicator light will illuminate. Press Timer(-) once to
decrease timer setting by 1 hour increments.
Press Flame Speed Button to desired flame speed.
5 options.
Press Back Light Button to desired back light color.
10 different color options.
Press Back Light (+/-) Button to desired back light
brightness. 3 options. ONLY works when Back Light
button in ON.
+ -
+ -
+ -
To improve operation, aim the remote control at the front of the fireplace.
DO NOT press the buttons too quickly. Give the unit time to respond to each
command.
NOTICE

13
CLEANING
Metal:
• Dust using a brush or lint-free cloth, slightly dampened with a citrus oil-based product.
• DO NOT use brass polish or household cleaners as these will damage the metal.
Glass:
• Spray glass cleaner onto soft cloth (NOT directly on to glass).
Dry thoroughly with a paper towel or lint-free cloth.
• NEVER use abrasive cleansers or any cleaner that could scratch the surface.
Plastic:
• Wipe with a slightly damp cloth and a mild solution of dish soap and warm water.
• Dry off surface.
Vents:
• Use a vacuum or duster to remove dust and dirt from the heater and vent areas as needed.
Electrical and Moving Parts:
• The fan motors are lubricated at the factory and will not require lubrication.
• Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
• Store heater in a clean dry place when not in use.
CARE AND MAINTENANCE
REMOTE CONTROL BATTERY INFORMATION
ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning,
performing maintenance, or moving this fireplace. Failure to do so could result in electric
shock, fire, or personal injury.
NEVER immerse in water or spray with water or other liquids (ex: cleaning solutions).
Doing so could result in electric shock, fire, or personal injury.
h
h
Risk of electric shock! DO NOT OPEN any panels! No user-serviceable parts inside!
h

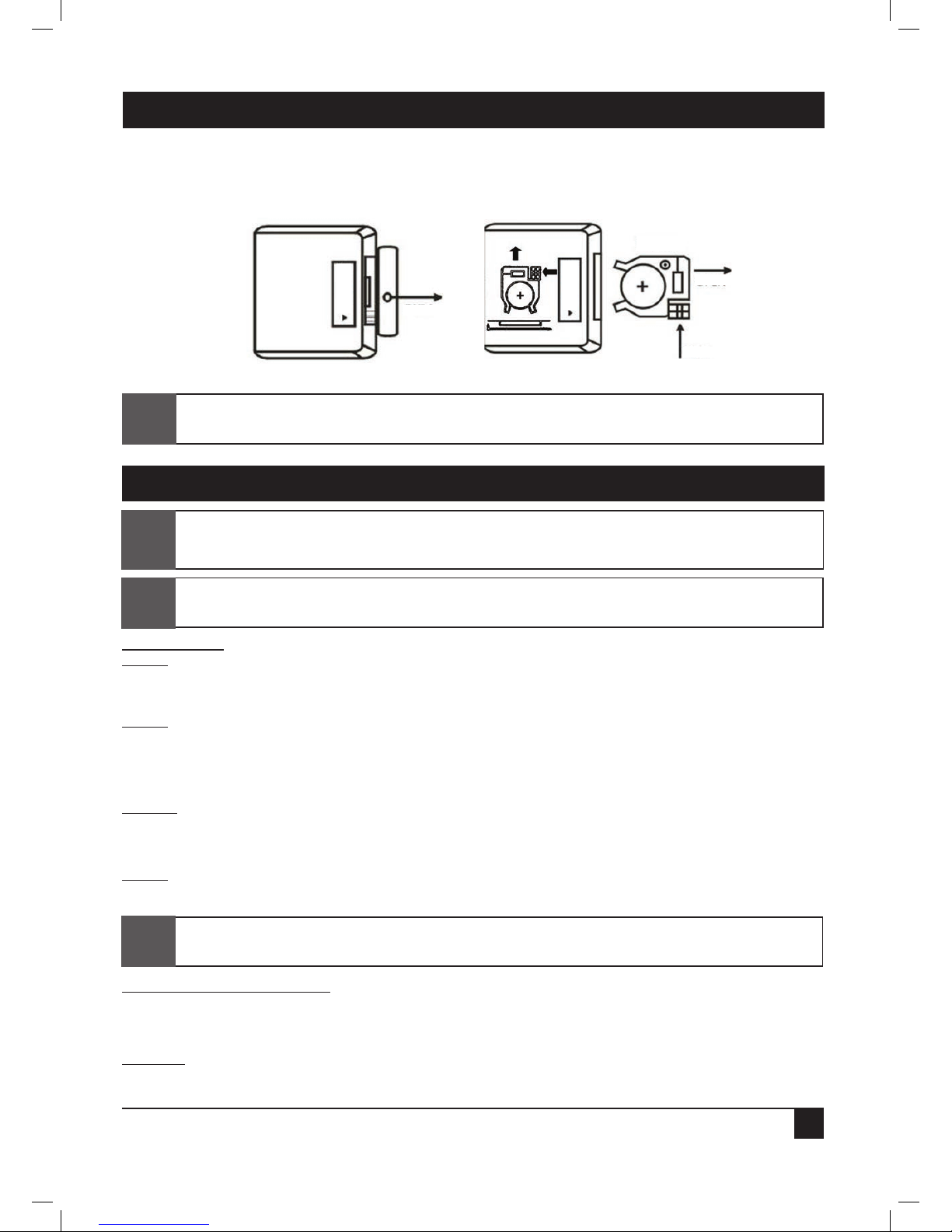

• This remote control uses one CR2025 battery (included).
• Instructions for battery installation are on the Remote Control Battery compartment.
NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion. Dispose of batteries at your local hazardous material processing center.
h
RELEASE
PUSH
OPEN
CR2025
RELEASE
PULL

14
LIMITED WARRANTY
This warrants to the original purchaser that this product is free from defects in material and
workmanship as of the date of purchase and that it will, under normal use and proper care, remain so for
two years from the date of purchase. Missing or initially defective parts will be replaced free of charge
during the period of this limited warranty. If parts are unavailable, comparable replacement or refund
will be given. The original dated sales receipt is required for all warranty claims. This warranty does not
cover damage which has occurred during transport from the point of purchase to the consumer’s home.
This warranty does not cover glass, light bulbs or batteries.
This limited warranty does not cover replacement of glass or light bulbs, shipping costs, and normal
wear and tear. The following will void this limited warranty: Damage caused from misuse, tampering
with, or altering the product in any manner; Damage from being used in the wrong power source;
Water damage; Damage caused from being used outdoors; Damage caused from being used for ex-
tended periods of time; This warranty is limited to non-commercial residential use only. Any commercial,
public, or institutional use voids all warranties. This product is not intended to be used as a primary
heat source.
This product is not intended to be used as a primary heat source. Read and understand
all assembly and operating instructions, and all safety information and warnings before use.
Dong Fang Jun Ma (hereafter DFJM) its directors, officers, or agents, will not be liable to the purchaser
or any third party, whether in contract, in tort, or on any other basis, for any indirect, special, punitive,
exemplary, consequential, or incidental loss, cost, or damage arising out of or in connection with the
sale, maintenance, use, or inability to use this product, even if DFJM, or its directors, officers, or agents
have been advised of the possibility of such losses, costs or damages, or if such losses, costs, or
damages are foreseeable. In no event, will DFJM, or its officers, directors, or agents be liable for any di-
rect losses, costs, or damages that exceed the purchase price of the product. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to the purchaser. This limited warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Thank you for purchasing this product! If you have questions about the assembly or operation of this
product, are missing parts, or have defective parts, please e-mail us at:
[e-mail]
Or, call us toll free (M-F 8:30am to 4:30pm Central Time) at:
1-866-273-2284
Manufactured by:
Dong Fang Jun Ma
Fangjianong Village, Datian Town,
Linhai, Zhejiang.
MADE IN CHINA
