Estate Design EFW-XB34D User manual

ELECTRIC FLAT PANEL FIREPLACE HEATER
Model Number: EFW-XB34D
OWNER’S MANUAL
Wall Hanging Mode
Pedestal Mode
WARNING
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
CAUTION Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.

2
IMPORTANT SAFETY INFORMATION!
WARNING
Read all instructions before using this heater!
This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of
the heater, and keep them away from the sides and rear.
Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner. Discard heater, or return to authorized service
facility for examination and/or repair.
DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs, runners,
or similar coverings. DO NOT route power cord under furniture or appliances. Arrange power
cord away from traffic area, and where it will not be tripped over.
Connect to properly grounded outlets ONLY.
DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening, as
this may cause electric shock or fire, or damage the heater.
To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. Doing so could
cause a fire. DO NOT use on soft surfaces, like a bed, where openings may become blocked.
A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an
extension cord or relocatable power tap (outlet/power strip).
DO NOT place the heater near a bed because objects such as pillows or blankets can fall off
the bed and be ignited by the heater.
NEVER use this heater in bathrooms, laundry rooms, or any other location where the heater
could fall into a bathtub or pool, become damp, or come in contact with water.
AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
blockage. Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.
NEVER hang this unit on a wall directly below an electrical outlet.
NEVER permanently install in a recessed area of the wall. This may result in blocked air
flow, overheating, or fire.
ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.
NEVER use a wall mount bracket from another manufacturer.

3
WARNING
For residential use only! NOT for commercial use! Any commercial or public use of this
heater voids all warranties, and could cause injury.
This product is not intended to be a primary heat source. It is for supplemental heat only.
INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
NEVER modify this heater. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
ALWAYS turn this heater off before unplugging it from the outlet.
ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.
Place the heater near a wall outlet so an extension cord is not needed. If an extension cord is
needed, the gauge of the cord must be at least 14AWG, and the rating must be at least
1875 Watts. NEVER use a smaller gauge cord with a lower rating. Doing so may result in
fire or electric shock.
ONLY use this heater on a 120V AC 15-Amp grounded circuit. NEVER overload the circuit.
If this heater trips the circuit breaker, unplug all other appliances on the same circuit before the
next use. Avoid plugging other appliances into the same circuit as this heater.
NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within the
outlet that could cause the outlet to overheat or catch fire.
ALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it has
not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
The power cord supplied with the heater has three
prongs: two flat blades (live and neutral) and one
round pin (ground). If a 3-slot receptacle is not
available, an adapter MUST be used. The adapter
MUST be properly grounded to the outlet box (see
figure at right). [NOTE: Adapter NOT INCLUDED.]
SAVE THESE INSTRUCTIONS!

4
Preparation
This product includes a GLASS! Always use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
Remove all contents from the carton and place them on a clean, soft, dry surface. Check to make
sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible.
You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape
measure; electric drill; 1/4” wood drill bit, 1/16” wood drill bit, and a hammer.
Parts and Hardware
A – Fireplace
B – Wood Screws ( 3 )
C – Drywall anchors
( 3 )
D – M4x8 Metal
Screws (2)
E- Wall Bracket (1)
RC – Remote Control
F
– Decorative River Rock
F
- Decorative Stones
F
- Decorative Faux Log Bed
F
-
Decorative Glass
G – Feet (2)
H – M6 x 14Bolts (4)
I - Shelf
F
– Sea Glass
Installation and Assembly
Rear View of Fireplace
Step 1. Find a safe location.
Minimum clearance on each side:
19.7” (50 cm).
Minimum clearance below:
19.7” (50 cm). Wall mounted only.
Minimum clearance above:
39.4” (100 cm).
Minimum clearance from the front
and sides: 3 feet (90 cm).
Choose a location near an outlet so
an extension cord is not required.
DO NOT position the unit directly
below a power outlet
19.7”
(50 cm)
Minimum 39.4” (100 cm)
Minimum 19.7” (50 cm)
19.7”
(50 cm)

5
NOTICE
The wall mount fasteners included with this fireplace are for use ONLY with a
wood-framed wall covered in drywall (sheet rock). For concrete walls, cinder
blocks, or other wall types, consult a professional for the best attachment methods.
ALWAYS unplug this fireplace heater before assembly or cleaning, or before
relocating. Failure to do so could result in electric shock, fire, or personal injury.
STEP 2A. Locate the wall studs using an electronic stud-finder.
STEP 2B. The outer screws should go into a wall stud,and the center screw into a drywall anchor
STEP 2C. If only two studs are available, two screws MUST be screwed directly into studs,
and the other screws must be screwed into the drywall anchors.
STEP 2D. Mark the hole locations with a pencil. The holes should be 8” (20.3 cm) apart, and level.
The minimum height from the surface below must be 75.2” (191 cm).
AVOID INJURY and DAMAGE! Three screws should be screwed directly into wall
studs., The two additional screws may be screwed into the drywall anchors
STEP 3. Drill a pilot hole into each mark using a 1/4” wood drill bit for the drywall anchors, and a
1/16” wood drill bit for the wall studs. With a hammer, tap the drywall anchor(s) (C) carefully into
the hole(s) until they are flush with the drywall surface. Use care to avoid damaging the drywall with
the hammer.

6
.
STEP 4. Align the holes in the wall bracket (E) with the pilot holes and drywall anchors. Thread
three wood screws (B) through the holes in the wall bracket and directly into the wall studs and
drywall anchor(s). Make sure the bracket is level. Tighten all screws securely with a screwdriver.
IMPORTANT
NOTE:
The heat enabling switch
on the back of the
fireplace must be ON for
the heater to work. Turn it
to ON position before
hanging the fireplace on
the wall.
STEP 5A. Turn ON the heat enabling switch, which is located on the back of the fireplace (A).
STEP 5B. With the help of a capable adult, lift the fireplace and align the hooks on the back of the
fireplace (see arrows) with the slots on the wall bracket. Carefully set the hooks into the slots.
STEP 5C. Secure the fireplace to the wall bracket with two M4x8 metal screws (D), one on each
side. Thread the screws through the fireplace and into the wall bracket side tabs. Tighten both
screws with a Phillips screwdriver.
A
A
E
D

7
Decorative Glass Installation
This next step involves GLASS! ALWAYS use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
ALWAYS keep the decorative glass OUT OF REACH OF CHILDREN! Leave no glass
pieces where children can find them. Failure to do so could cause a choking hazard.
NOTE: Before removing glass panel, disconnect the backlight power connector.
To switch to decorative glass or stones, follow these steps. Have a capable adult help you.
STEP 6A. While one person holds the glass panel, remove the two screws at the top edge of the fireplace
with a Phillips (+) screwdriver.
STEP 6B. Together, carefully remove the front glass panel and set it aside on a clean soft surface.
STEP 6C. Remove the two log bed screws (one at each end of the log bed), and lift the log bed out.
STEP 6D. Set the shelf (I) onto the ledge in the opening at the front of the fireplace.
STEP 6E. Arrange the decorative glass or stones (F/F/F/F) on the shelf in the desired position.
STEP 6F. Set the front glass panel back onto the firebox.
STEP 6G. Align the tabs of the glass panel with the holes on the top edge of the fireplace. Thread the screws
back into the holes and tighten them both with a Phillips screwdriver.
Foot Pedestal Assembly
STEP 7. Secure the pedestal bracket (G) to the bottom of the fireplace (A) with four M6x14 metal
bolts (H). Tighten each screw securely with a Phillips screwdriver.
STEP 8. Repeat Step STEP 7. Using remaining pedestal foot (G)
A
G
G
H
H
Disconnect
Disconnect

8
Operation
Read and understand
this entire owner’s manual, including
all safety information
,
before plugging in or using this product. Failure to do so could result in electric shock,
fire, serious injury, or death.
Power
Make sure the ON/OFF switch, located on the left side panel, is in the OFF position. Plug the power
cord into a 110~120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on
Pages 2 and 3). Make sure the outlet is in good condition and that the plug is not loose. NEVER
exceed the maximum amperage for the circuit. DO NOT plug other appliances into the same circuit.
Methods of Operation

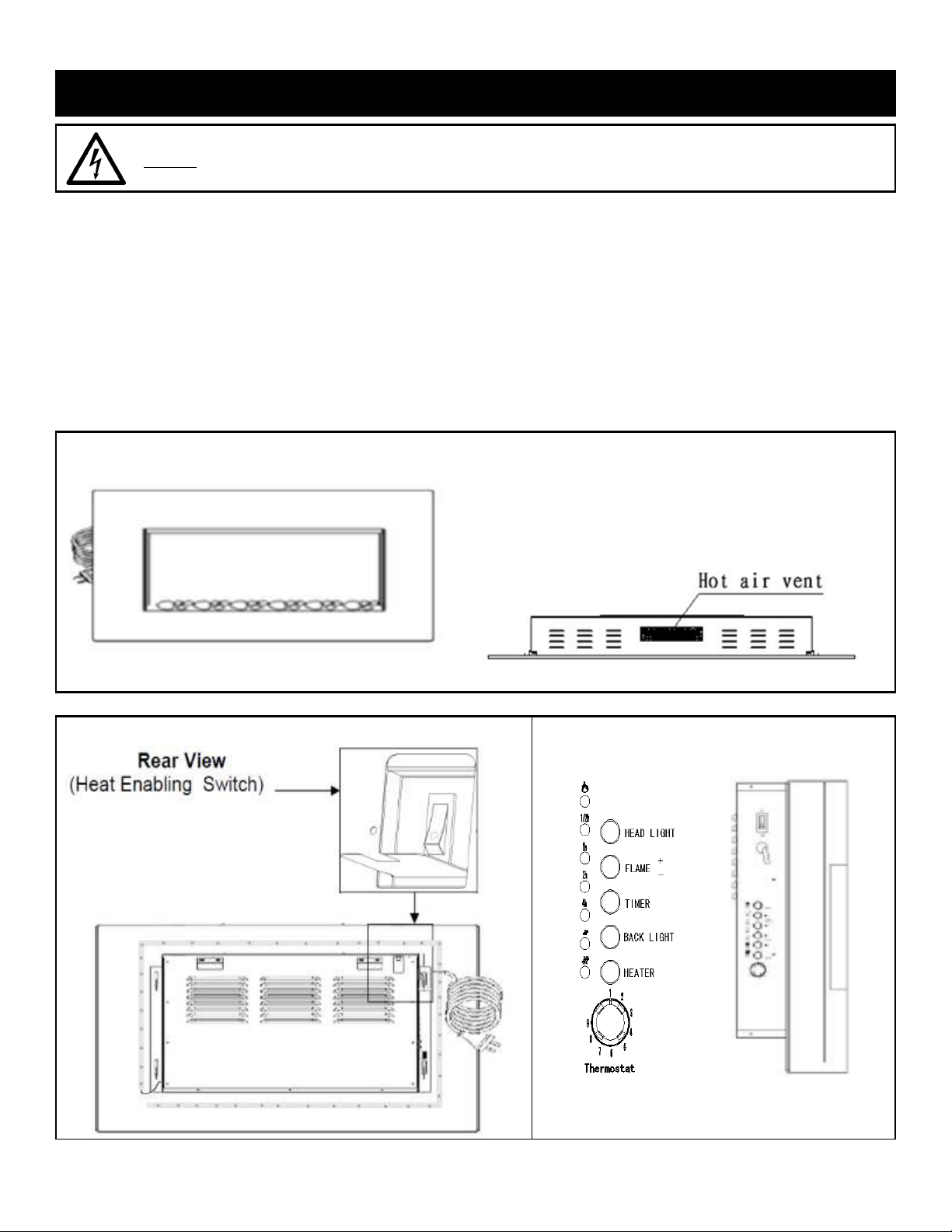

This electric fireplace can be operated by the CONTROL PANEL, located on the right side panel of
the fireplace (see figure below), or by the battery-powered REMOTE CONTROL.
Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3, and
heed all warnings.
Front View Top View
Left Side View

9

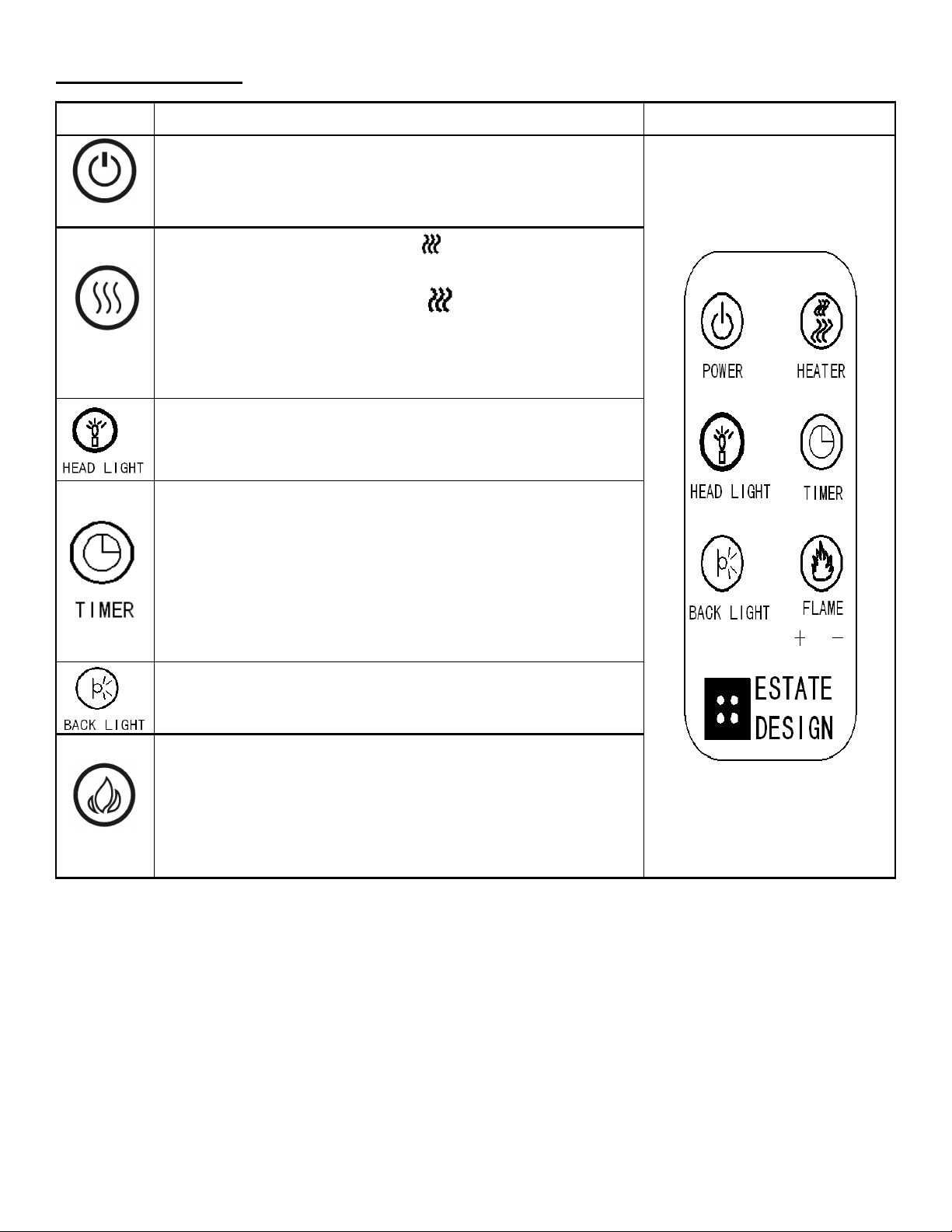

Control Panel Operation
BUTTON ACTION and INDICATION CONTROL PANEL
HEAD LIGHT
Press to cycle through the ten Flame Options
FLAME
When the Power is turned on, the flame effect starts at High.
1. Press once. Flame effect changes from High to Low.
2. Press again. Flame effect changes from Low to Medium.
. Press again. Flame effect changes from Medium to High
TIMER
1. Press once. ½ h light turns on. Timer is set to ½ hour.
2. Press again. 1h light turns on. Timer is set to 1 hour.
. Press until desired setting is reac ed. Timer setting
increases by ½ hour up to 7½ h.
Examples: 3 hours = 2 +1 ; 7½ hours = 4 +2 +1 +½ .
4. Press again. Timer setting increases by ½ hour until desired
setting is reached, or until timer turns off.
5. Press again to restart timer from ½ .
BACK LIGHT
Controls the LED light strips at the left and right edges of the
fireplace. The LED backlights include individual and
alternating color combination
HEATER
1. Press once. Small indicator lights up. Fan blows cool air.
750W heater turns on and blows warm air.
2. Press again. Large indicator lights up. 1500W heater
turns on and blows hot air.
. Press again. Heaters turn off. The fan blows cool air to allow
heater to cool down,
then turns off.
THERMOSTAT SETTING: Heater must be on for t ermostat
settings to work. Turn the knob to set the temperature of
the heater ranging from about 48°F (9°C) to about 9 °F
( 4°C).
Settings will vary with room size, insulation, etc.
The thermostat will turn the heater on and off to maintain
the set temperature.
NOTICE
When the heater is first turned on, a slight odor may be present. This is normal and
should not occur again unless the heater is not used for a long period of time.
NOTICE
To improve operation, aim the remote control at the front of the fireplace. DO NOT
press the buttons too quickly. Give the unit time to respond to each command.

10
Remote Control (Control panel POWER switch must be ON to use remote control.)
BUTTON ACTION and INDICATION REMOTE CONTROL
POWER
1. Press once. Flame effect turns on High and indicator
light turns on.
2. Press again. Power and all functions turn off.
HEATER
1. Press once. Small indicator lights up. Fan blows
cool air. 750W heater turns on and blows warm air.
2. Press again. Large indicator lights up. 1500W
heater turns on and blows hot air.
3. Press again. Heaters turn off. Fan blows cool air to
allow heater to cool down, then turns off.
Press to cycle through the ten Flame Options
1.
Press once
. ½ h light turns on. Timer is set to ½ hour.
2. Press again. 1h light turns on. Timer is set to 1 hour.
3. Press until desired setting is reached. Timer setting
increases by ½ hour up to 7½ h.
Examples: 3 hours = 2h+1h; 7½ hours = 4h+2h+1h+½h.
4. Press again. Timer setting increases by ½ hour until
desired setting is reached, or until timer turns off.
5. Press again to restart timer from ½h.
Controls the LED light strips at the left and right edges of
the fireplace. The LED backlights include individual and
alternating color combination
FLAME
When the Power is turned on, the flame effect starts at High.
1. Press once. Flame effect changes from High to Low.
2. Press again. Flame effect changes from Low to Medium.
3. Press again. Flame effect changes from Medium to High.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature (212°F / 100°C), the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF.
3. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint. If they are,
use a vacuum to clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into the outlet.
5. If the problem continues, have your outlet and wiring inspected by a professional.

11
Remote Control Battery Information
•This remote control uses one battery (included).
•Instructions for battery installation are on the Remote Control battery compartment.
NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion.Dispose of batteries at your local hazardous material processing center.
Care and Maintenance
Cleaning
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock,
fire, or personal injury.
Metal:
•Buff using a soft cloth, slightly dampened with a citrus oil-based product.
•DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
•Use a good quality glass cleaner sprayed onto the cloth or towel. Dry thoroughly with a paper
towel or lint-free cloth.
•NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
•Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Plastic:
•Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
•NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Maintenance
Risk of electric shock! DO NOT OPEN any panels other than the bulb replacement
plate! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
Electrical and Moving Parts:
•The fan motors are lubricated at the factory and will not require lubrication.
•Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
•Store heater in a clean dry place when not in use.

12
Limited Warranty
This warrants to the original purchaser that this product is free from defects in material and workmanship as of
the date of purchase and that it will, under normal use and proper care, remain so for one year from the date of
purchase. Missing or initially defective parts will be replaced free of charge during the period of this limited
warranty. If parts are unavailable, comparable replacement or refund will be given. The original dated sales
receipt is required for all warranty claims. This warranty does not cover damage which has occurred during
transport from the point of purchase to the consumer’s home. This warranty does not cover glass, light bulbs,
batteries, transportation, labor, or other issues not associated with the manufacture of the product.
This product is for residential use only. Any and all commercial use of this product voids all
warranties, and frees the manufacturer from all liability. Read and understand all assembly and operating
instructions, and all safety information and warnings, before use. The following will void this warranty: Damage
caused from tampering with, modifying, or altering the fireplace insert in any manner; Damage due to incorrect
assembly, improper care, misuse, or abuse; Damage from being used with the wrong power source; Water
damage; Damage caused from this insert being used outdoors; Damage caused from this insert being used for
excessive periods of time; Damage caused by the insert being used in a commercial application; Damage from
use as a primary heat source; Other misuse or abuse not specifically listed herein.
This product is not intended to be used as a primary heat source. It is for supplemental heating
purposes only. Vendor Development Group, Inc.(hereafter, VDG), its directors, officers, or agents, will not be
liable to the purchaser or any third party, whether in contract, in tort, or on any other basis, for any indirect,
special, punitive, exemplary, consequential, or incidental loss, cost, or damage arising out of or in connection
with the sale, maintenance, use, or inability to use this product, even if VDG, or its directors, officers, or agents
have been advised of the possibility of such losses, costs or damages, or if such losses, costs, or damages are
foreseeable. In no event will VDG, or its officers, directors, or agents be liable for any direct losses, costs, or
damages that exceed the purchase price of the product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to the purchaser. This
limited warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Thank you for purchasing this product! If you have questions about assembly, or about the safe
operation of this product, please e-mail us at:
customerser[email protected]
Or, call us toll-free (M-F 8:30 AM to 4:30 PM Central Standard Time) at:
1-866-561-0731
VDG, Inc.
Minneapolis, MN 55401
Made in China
