Estate Design EFW-XB24B User manual

ELECTRIC FIREPLACE INSERT
Models: EFW-XB24B
For use with Mantel Model Nos.
OWNER’S MANUAL
WARNING! Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could result in
fire, electric shock, serious personal injury, or death.
Only use this heater as described in this manual. Any other use is not recommended
by the manufacturer, and may cause fire, electric shock, or other personal injury.
WARNING! INDOOR use only! NEVER use this heater outdoors!
CAUTION! Keep this owner’s manual for future reference. If you sell or give this product
away, make sure this manual accompanies this product.

2
IMPORTANT SAFETY INFORMATION!
WARNING
Read all instructions before using the heater!
DO NOT USE OUTDOORS!
DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs,
runners, or similar coverings. DO NOT route power cord under furniture or appliances.
Arrange power cord away from traffic area, and where it will not be tripped over.
DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening, as this
may cause electric shock or fire, or damage the heater.
To prevent possible fire, DO NOT block air intakes or exhaust in any manner. Doing so could
cause a fire. DO NOT use on soft surfaces, like a bed, where openings may become blocked.
A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an
extension cord or relocatable power tap (outlet/power strip).
ALWAYS keep electric cords, home furnishings, drapes, clothing, papers, or other
combustibles at least 3 feet (0.9m) away from the front of this heater, and away from the
bottom, sides, and rear of this heater.
DO NOT place the heater near a bed because objects such as pillows or blankets can fall
off the bed and be ignited by the heater.
AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
blockage. Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.
WARNING
ALWAYS HANG UNIT BEFORE USE. DO NOT turn on or use while the unit is sitting on the
floor, ground, or other surface.
The wall mount system is designed for use ONLY with this product. NEVER use a wall
mount system from another manufacturer.
Use extreme caution if using this heater near children, or where children may be present.
NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
This heater is hot when in use. AVOID INJURY! DO NOT TOUCH hot surfaces, or attempt
to move this heater while it is hot.
ALWAYS turn this heater off before unplugging it from the outlet.
NEVER modify this fireplace. Doing so could result in personal injury or property damage.
Discontinue use if this fireplace malfunctions or is dropped or damaged in any manner.

3
WARNING
Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.
ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.
NEVER use this heater in bathrooms, laundry rooms, or any other location where the
heater could fall into a bathtub or pool, become damp or come in contact with water.
NEVER hang this unit on a wall directly below an electrical outlet.
NEVER operate this heater if the power cord or plug has become damaged, or if the
grounding pin is damaged or missing.
Place the heater near a wall outlet so an extension cord is not needed. If an extension cord is
needed, the gauge of the cord must be at least 14AWG, and the rating must be at least
1875 Watts. NEVER use a smaller gauge cord with a lower rating. Doing so may result in
fire or electric shock.
ONLY use this heater on a 110~120 Volt 15 Amp grounded circuit. NEVER overload the
circuit. If this heater trips the circuit breaker, unplug all other appliances on the same circuit
before the next use. Avoid plugging other appliances into the same circuit as this heater.
NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within
the outlet that could cause the outlet to overheat or catch fire.
ALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it
has not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.

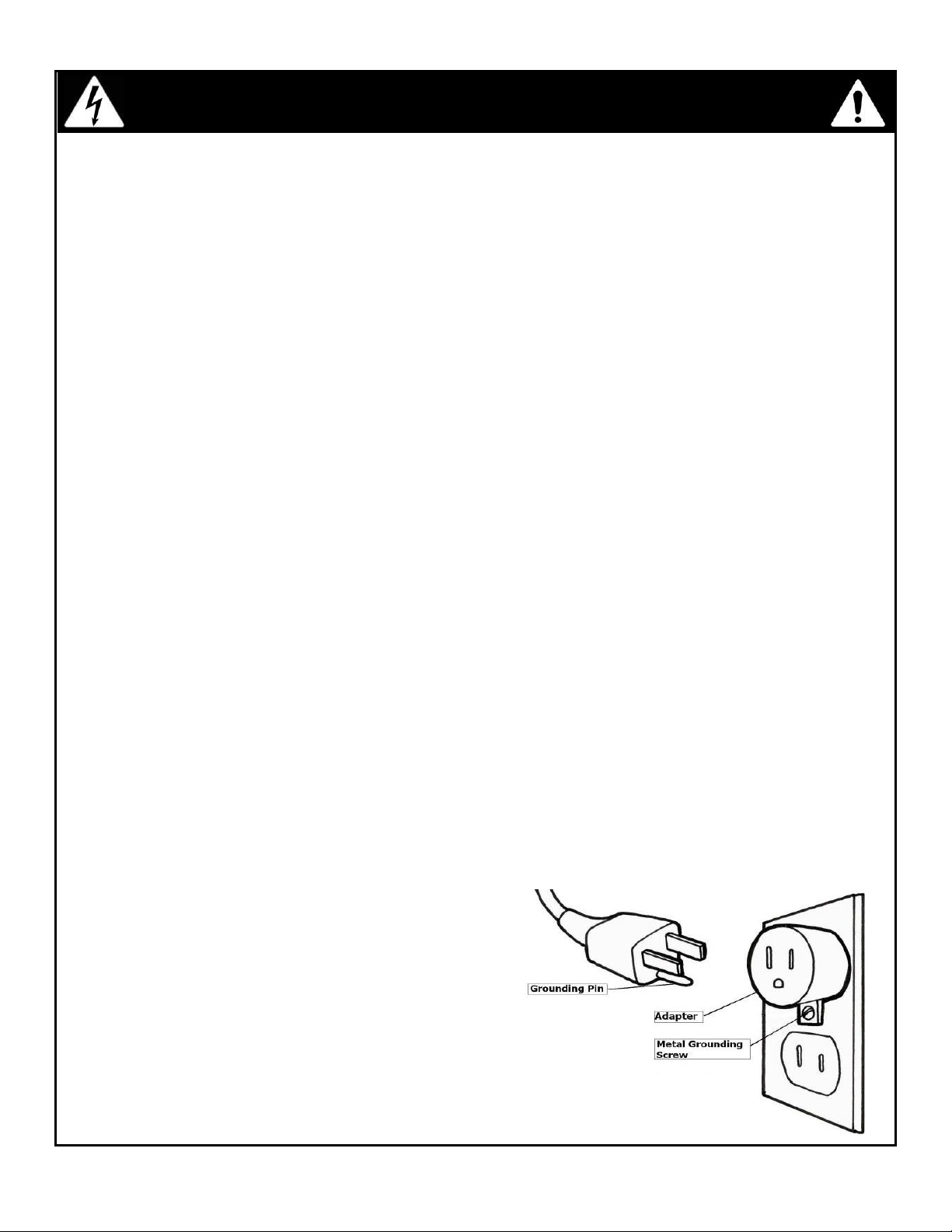

The power cord supplied with the heater has
three prongs: two flat blades (live and neutral)
and one round pin (ground). If a 3-slot
receptacle is not available, an adapter MUST
be used. The adapter MUST be properly
grounded to the outlet box (see figure at
right). [NOTE: Adapter NOT INCLUDED.]
SAVE THESE
INSTRUCTIONS!

4

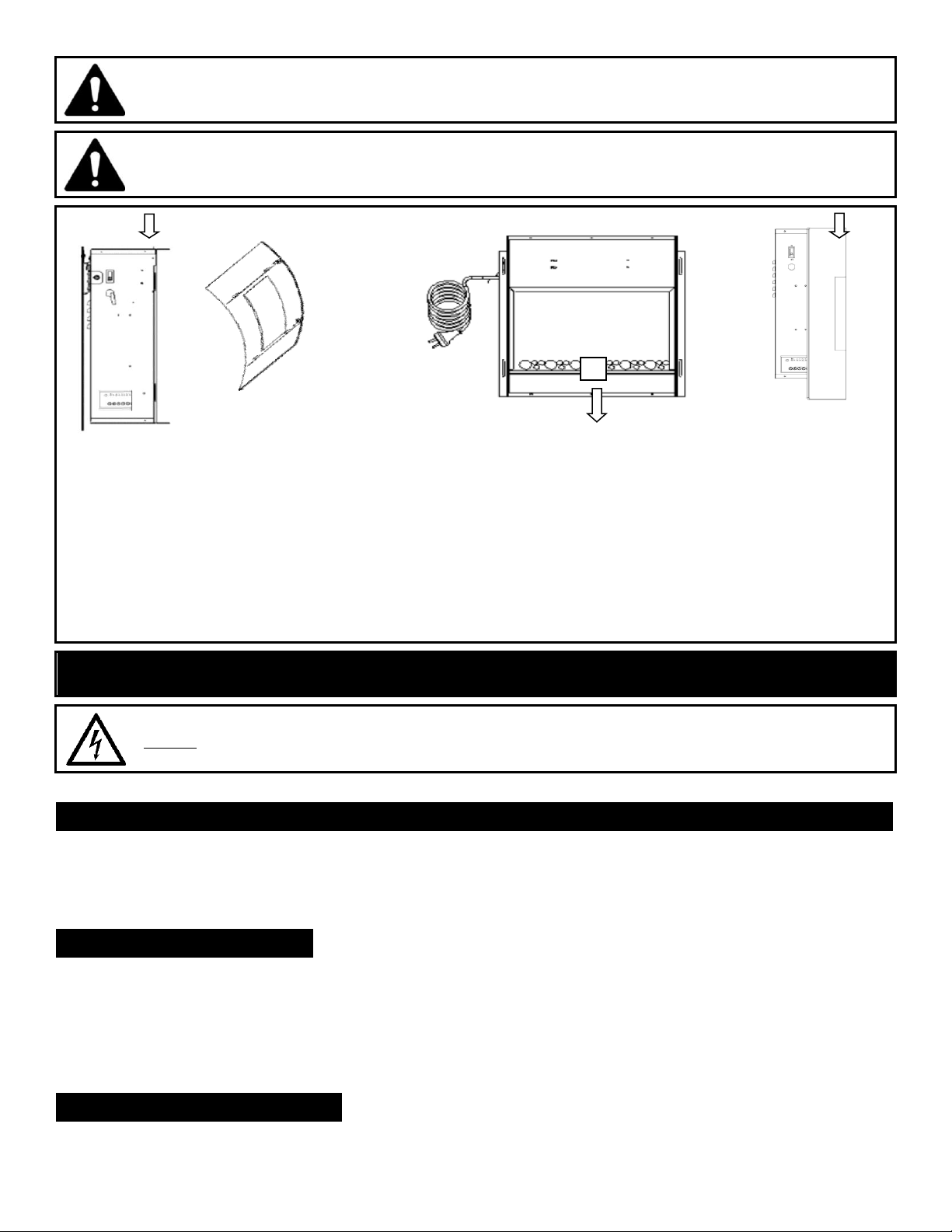

Preparation
This product includes a GLASS! Always use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
Remove all contents from the carton and place them on a clean, soft, dry surface. Check to make
sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible.
You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape
measure; electric drill; 1/4” wood drill bit, 1/16” wood drill bit, and a hammer.

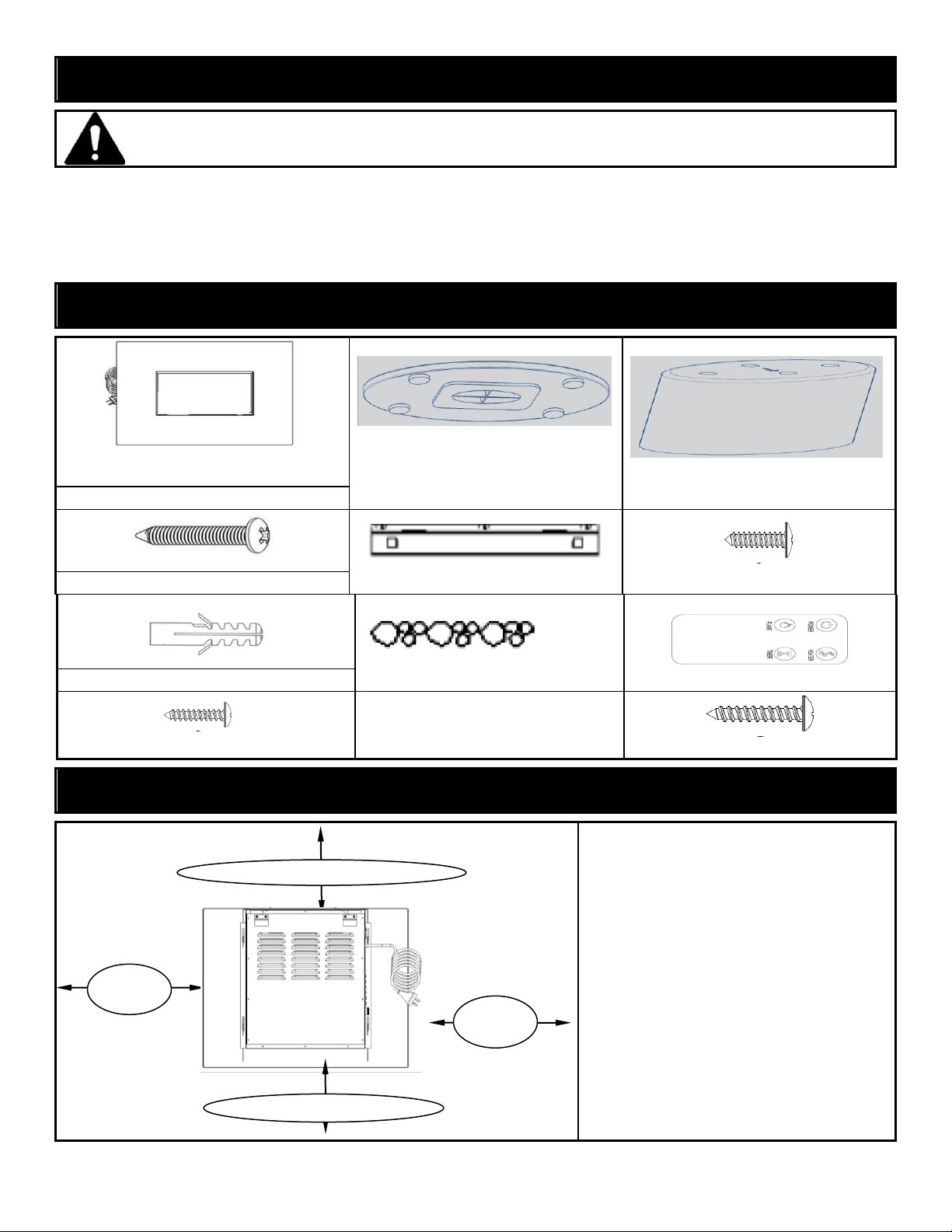

Parts and Hardware
A –Fireplace + Glass (1)
G–Base ( 1 )
I –Leg ( 1 )
B –Wood Screws ( 3 )
E- Wall Bracket (1)
J –M6x16 Metal Screws (4)
C –Drywall anchors ( 3 )
F - Decorative Glass
RC –Remote Control
D –ST4x8 Metal Screws (2)
K –ST4x10 Metal Screws (4)
Installation and Assembly
Rear View of Fireplace
Step 1. Find a safe location.
Minimum clearance on each side:
19.7” (50 cm).
Minimum clearance below:
19.7” (50 cm). Wall mount only.
Minimum clearance above:
39.4” (100 cm).
Minimum clearance from the front
and sides: 3 feet (90 cm).
Choose a location near an outlet so
an extension cord is not required.
DO NOT position the unit directly
below a power outlet.
19.7”
(50 cm)
Minimum 39.4” (100 cm)
Minimum 19.7” (50 cm)
19.7”
(50 cm)

5
NOTICE
The wall mount fasteners included with this fireplace are for use ONLY with a
wood-framed wall covered in drywall (sheet rock). For concrete walls, cinder
blocks, or other wall types, consult a professional for the best attachment methods.

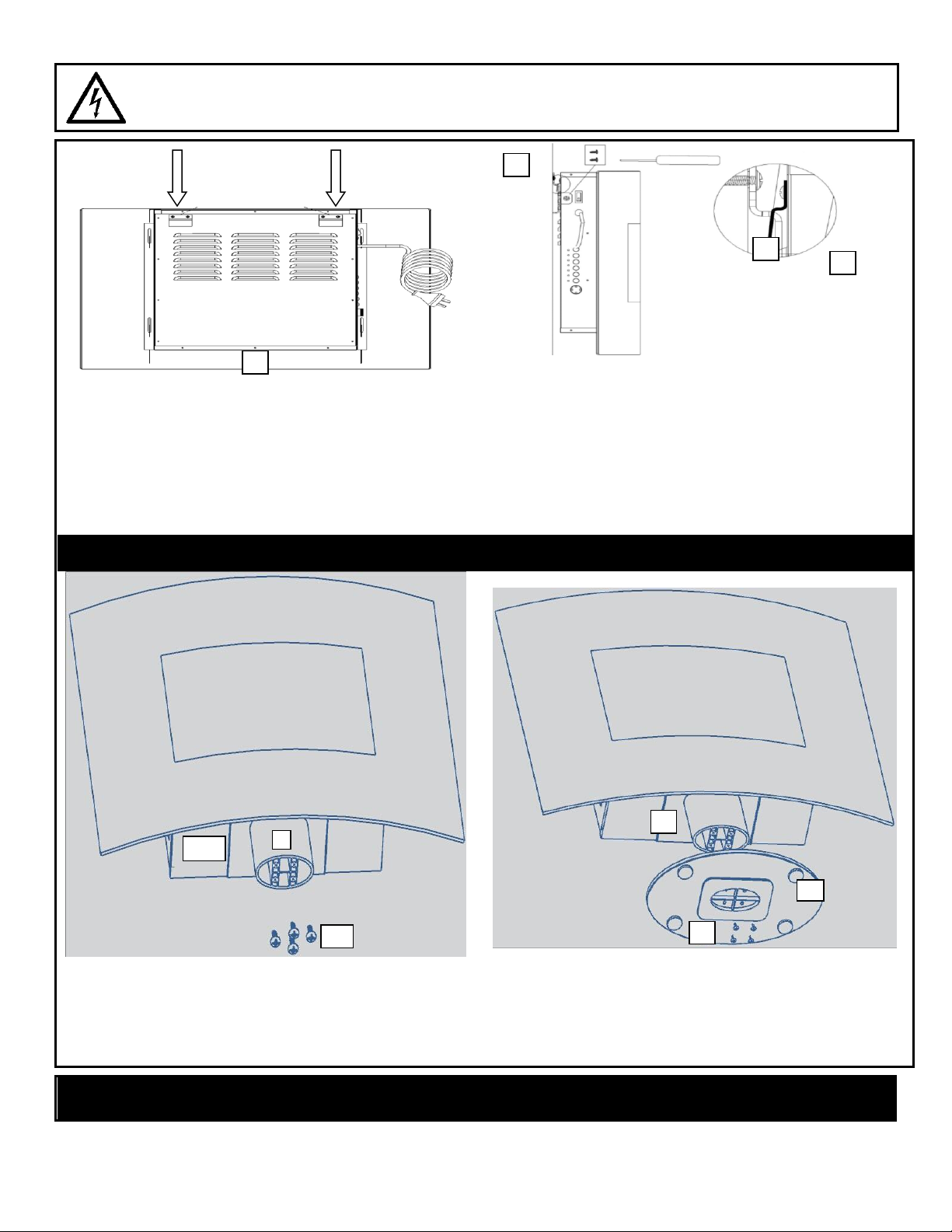

ALWAYS unplug this fireplace heater before assembly or cleaning, or before
relocating. Failure to do so could result in electric shock, fire, or personal injury.

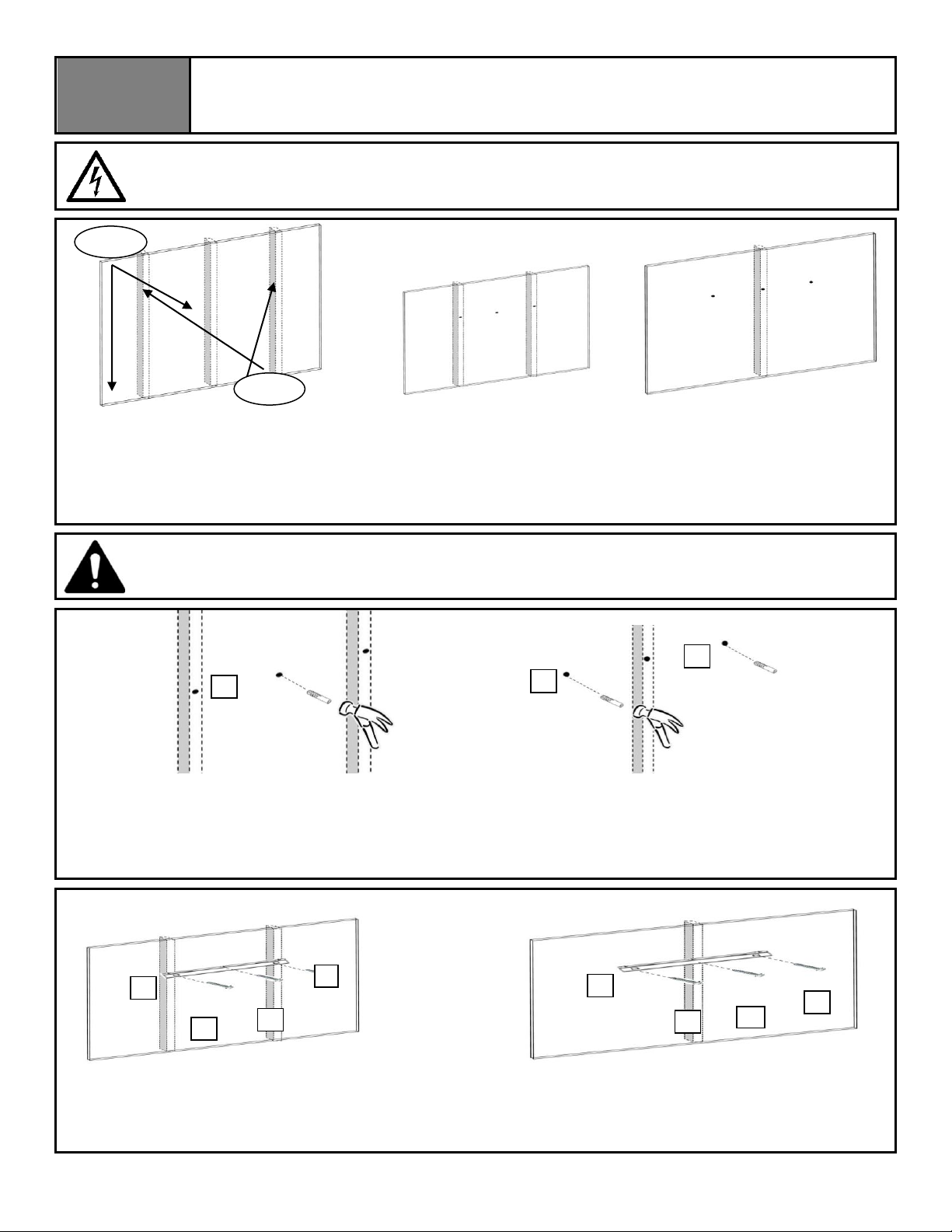

STEP 2. A. Locate the wall studs using an electronic stud-finder. B. The two outer screws should
be screwed into a wall stud, and the center screw into a drywall anchor. C. If only one stud is
available, the center screw MUST be screwed directly into it, and the two outer screws may be
screwed into the drywall anchors. D. Mark the hole locations with a pencil. The holes should be 8”
(20.3 cm) apart, and level. The minimum height from the surface below must be 75.2” (191 cm).
AVOID INJURY and DAMAGE! The center screw must be screwed directly into a wall
stud. The two additional screws may be screwed into the drywall anchors.
STEP 3. Drill a pilot hole into each mark using a 1/4” wood drill bit for the drywall anchors, and a
1/16” wood drill bit for the wall studs. With a hammer, tap the drywall anchor(s) (C) carefully into
the hole(s) until they are flush with the drywall surface. Use care to avoid damaging the drywall with
the hammer.
STEP 4. Align the holes in the wall bracket (E) with the pilot holes and drywall anchors. Thread
three wood screws (B) through the holes in the wall bracket and directly into the wall studs and
drywall anchor(s). Make sure the bracket is level. Tighten all screws securely with a screwdriver.
Drywall
Studs
C
C
C
B
B
B
B
B
B
E
E

6
ALWAYS unplug this fireplace heater before assembly or cleaning, or before
relocating. Failure to do so could result in electric shock, fire, or personal injury.
NOTE: We recommend that two capable adult perform this procedure.
STEP 5. With the help of a capable adult, lift the fireplace and align the two hooks on the back of the
fireplace with the slots on the wall bracket. Carefully set the hooks into the slots.
STEP 6. Secure the fireplace to the wall bracket with two M4x8 metal screws (D), one on each side.
Thread the screws through the fireplace and into the wall bracket side tabs. Tighten both screws with
a Phillips screwdriver.
Pedestal Assembly
STEP 7. Secure the pedestal bracket (I) to the bottom of the fireplace (A) with four M6x16 metal
screws (J). Tighten each screw securely with a Phillips screwdriver.
STEP 8. Secure the base (G) to the bottom of the leg (H) with four ST4x10 metal screws (K). Tighten
each screw securely with a Phillips screwdriver.
Decorative Glass Installation
A
A
E
D
A
I
J
K
H
G

7
This next step involves GLASS! ALWAYS use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
ALWAYS keep the decorative glass OUT OF REACH OF CHILDREN! Leave no glass
pieces where children can find them. Failure to do so could cause a choking hazard.
NOTE: We recommend that two capable adult perform this procedure.
STEP 9A. With you or someone holding the glass panel, remove the two screws at the top edge of
the fireplace with a Phillips (+) screwdriver.
STEP 9B. Together, carefully remove the front glass panel and set it aside on a clean soft surface.
STEP 9C. Arrange the decorative glass (F) on the shelf in the desired position.
STEP 9D. Align the glass panel tabs with the holes on the top edge of the fireplace. Set the glass in
place. Thread the screws back into the holes and tighten them both with a Phillips screwdriver.
Operation
Read and understand this entire owner’s manual, including all safety information,
before plugging in or using this product. Failure to do so could result in electric shock,
fire, serious injury, or death.
Power r
Make sure the ON/OFF switch, located on the left side panel, is in the OFF position. Plug the power cord into a
110~120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3). Make
sure the outlet is in good condition and that the plug is not loose. NEVER exceed the maximum amperage for
the circuit. DO NOT plug other appliances into the same circuit.
Methods of Operation
This electric fireplace can be operated by the CONTROL PANEL, located on the right side panel of
the fireplace (see figure below), or by the battery-powered REMOTE CONTROL.
Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3, and
heed all warnings.

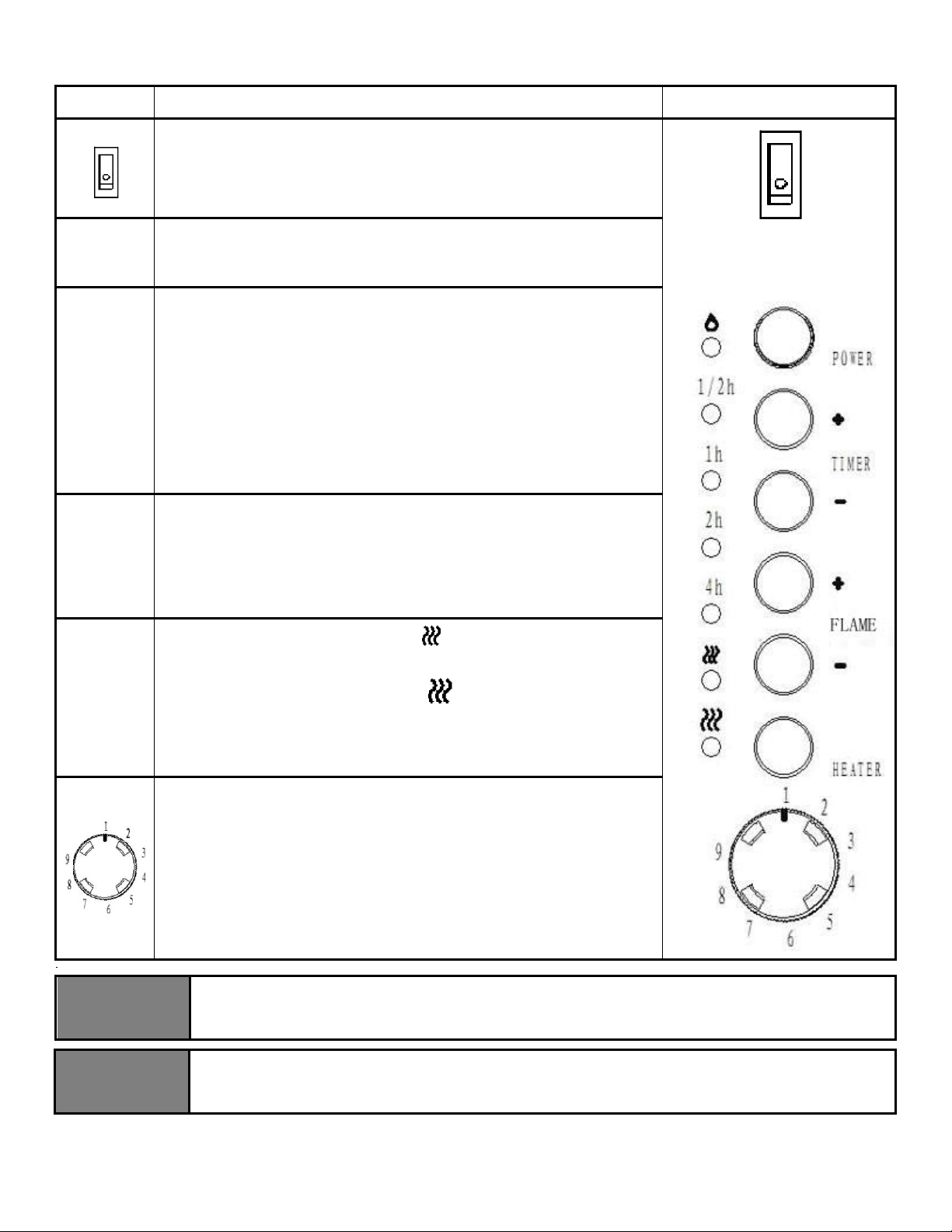

Control Panel Operation
F
F

8
BUTTON
ACTION and INDICATION
CONTROL PANEL
ON
OFF
1. Press ON (l). Power turns on. All functions are enabled.
2. Press OFF (O). Power, flame effect, and all functions
turn off.
POWER
1. Press once. Flame effect and indicator turn on.
2. Press again. Power and all functions turn off.
+
TIMER
-
1. Press +. ½ h light turns on. Timer is set to ½ hour.
2. Press again. 1h light turns on. Timer is set to 1 hour.
3. Press until desired setting is reached. Timer setting
increases by ½ hour up to 7½ h.
Examples: 3 hours = 2h+1h; 7½ hours = 4h+2h+1h+½h.
4. Press - . Timer decreases by ½ hour until desired setting
is reached, or until timer turns off.
+
FLAME
-
1. Press +. Flame effect gets brighter. Press again until
desired setting is reached.
2. Press -. Flame effect gets dimmer. Press again until
desired setting is reached.
HEATER
1. Press once. Small indicator lights up. Fan blows cool
air. 750W heater turns on and blows warm air.
2. Press again. Large indicator lights up. 1500W heater
turns on and blows hot air.
3. Press again. Heaters turn off. The fan blows cool air to
allow heater to cool down, then turns off.
THERMOSTAT SETTING: Heater must be on for
thermostat settings to work. Turn the knob to set the
temperature of the heater ranging from about61F (16C)
to about 93F (34C).
Settings will vary with room size, insulation, etc.
The thermostat will turn the heater on and off to maintain
the set temperature.
\
NOTICE
When the heater is first turned on, a slight odor may be present. This is normal and
should not occur again unless the heater is not used for a long period of time.
NOTICE
To improve operation, aim the remote control at the front of the fireplace. DO NOT
press the buttons too quickly. Give the unit time to respond to each command.

9

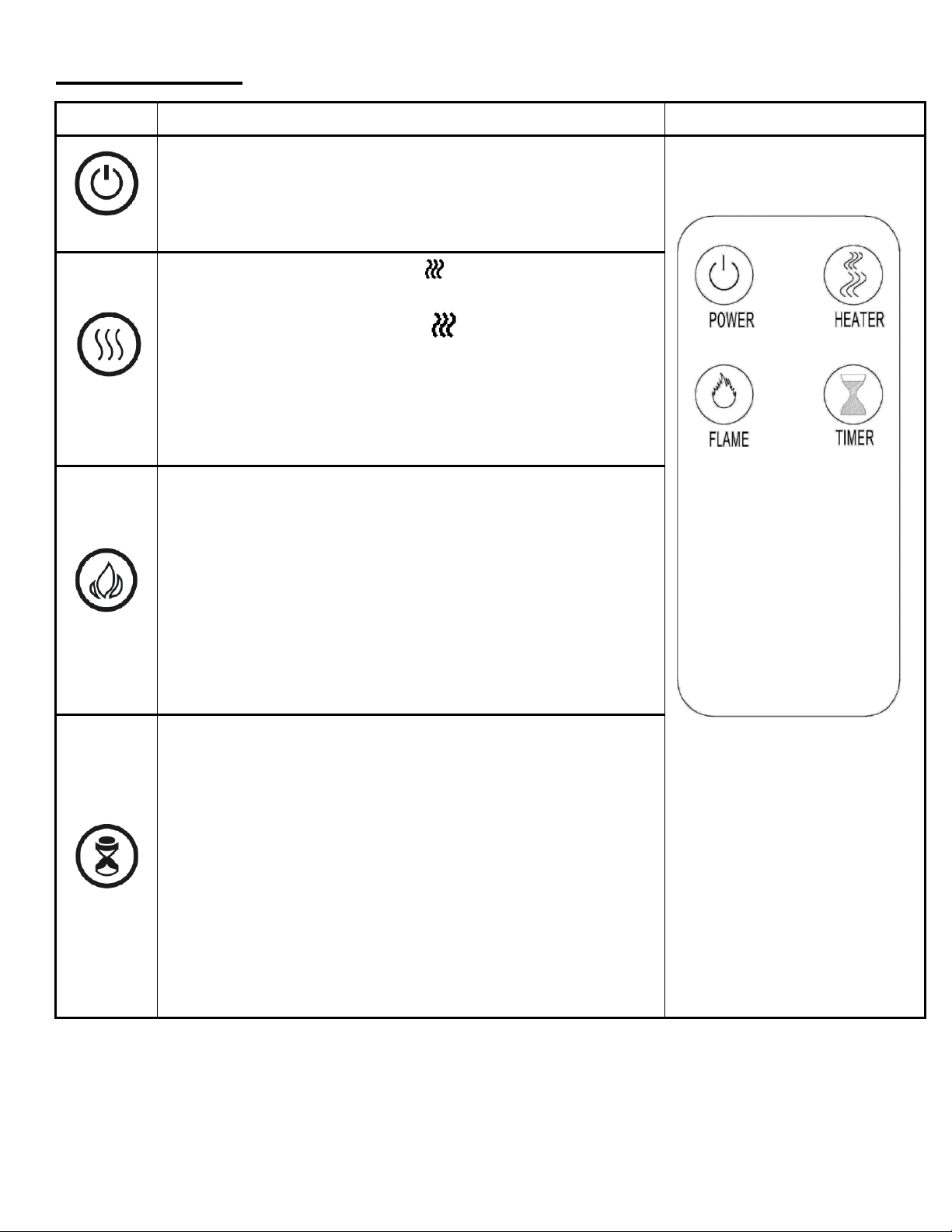

Remote Control (Control panel POWER switch must be ON to use remote control.)
BUTTON
ACTION and INDICATION
REMOTE CONTROL
POWER
1. Press once. Flame effect turns on High and indicator
light turns on.
2. Press again. Power and all functions turn off.
HEATER
1. Press once. Small indicator lights up. Fan blows cool
air. 750W heater turns on and blows warm air.
2. Press again. Large indicator lights up. 1500W heater
turns on and blows hot air.
3. Press again. Heaters turn off. Fan blows cool air to
allow heater to cool down, then turns off.
FLAME
When the Power is turned on, the flame effect starts at
High.
1. Press once. Flame effect changes from High to Low.
2. Press again. Flame effect changes from Low to Medium.
3. Press again. Flame effect changes from Medium to
High.
TIMER
1. Press once. ½ h light turns on. Timer is set to ½ hour.
2. Press again. 1h light turns on. Timer is set to 1 hour.
3. Press until desired setting is reached. Timer setting
increases by ½ hour up to 7½ h.
Examples: 3 hours = 2h+1h; 7½ hours = 4h+2h+1h+½h.
4. Press again. Timer setting increases by ½ hour until
desired setting is reached, or until timer turns off.
5. Press again to restart timer from ½h.

10
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature, the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF.
3. Wait 5 minutes.
4. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint. If they are,
use a vacuum to clean the vent areas.
5. With the POWER switch in the OFF position, plug the power cord back into the outlet.
6. If the problem continues, have your outlet and wiring inspected by a professional.
Remote Control Battery Information
This remote control uses one battery (included).
Instructions for battery installation are on the Remote Control battery compartment.
NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion.Dispose of batteries at your local hazardous material processing center.
Care and Maintenance

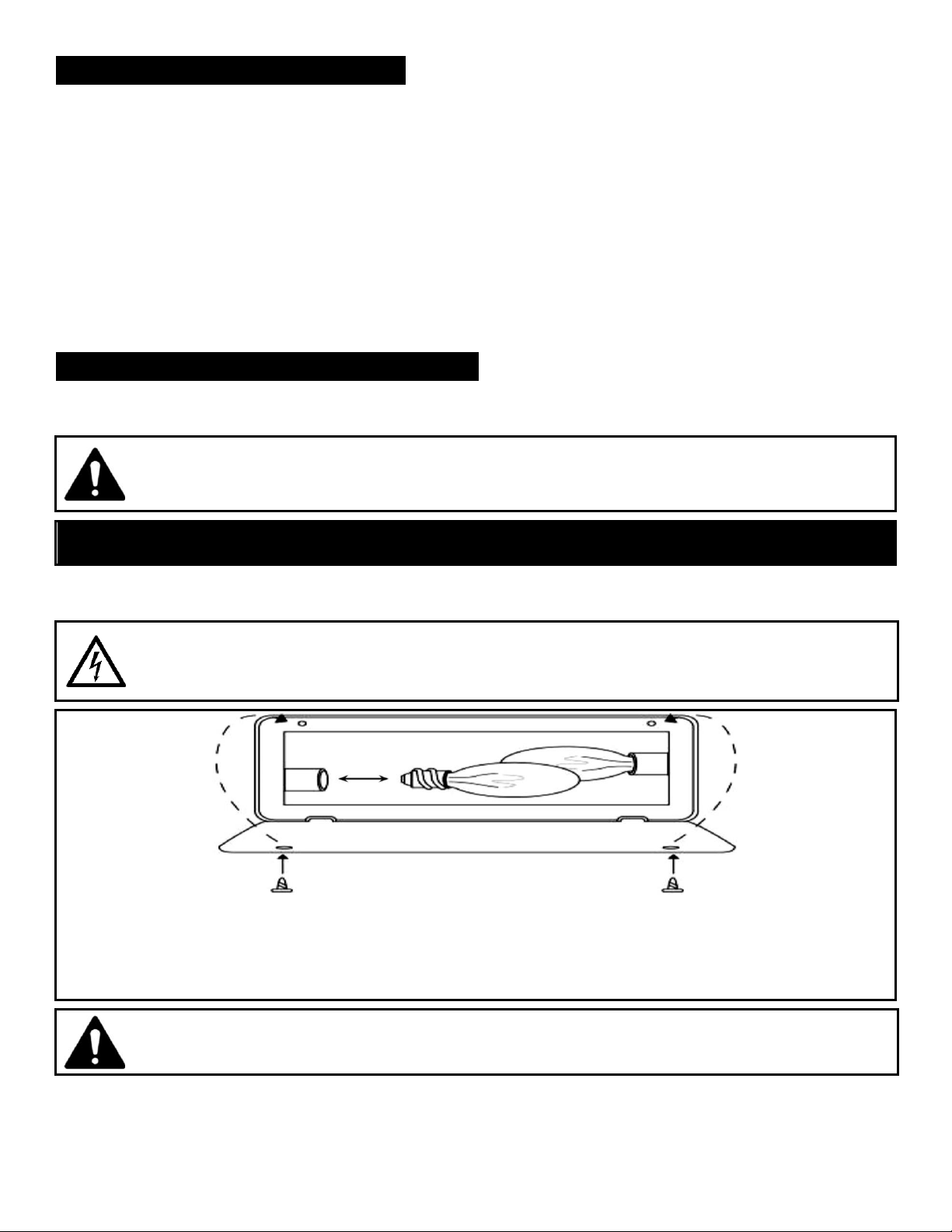

Replacing the light bulb
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
changing the bulb. Failure to do so could result in electric shock, or personal injury.
1. Allow the fireplace to cool down before moving it. 2. Lay the fireplace down on a soft surface.
3. Unscrew the two bulb plate screws and remove the bulb plate. 4. Carefully unscrew the light bulb
and replace it with another 40W candelabra style light bulb of the same design. 5. Replace the bulb
plate and secure it in place with the two screws. Note: Do not over-tighten the screws.
WARNING! Other than replacing the light bulb, NO SERVICING of the internal or
electrical parts should be performed by the consumer. Do not service the unit yourself.

11
Cleaning
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock,
fire, or personal injury.
Metal:
Buff using a soft cloth, slightly dampened with a citrus oil-based product.
DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
Use a good quality glass cleaner sprayed onto the cloth or towel. Dry thoroughly with a paper
towel or lint-free cloth.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Plastic:
Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Maintenance
Risk of electric shock! DO NOT OPEN any panels other than the bulb replacement
plate! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
Electrical and Moving Parts:
The fan motors are lubricated at the factory and will not require lubrication.
Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
Store heater in a clean dry place when not in use.

12
Limited Warranty
Manufacturer warrants this product for replacement or repair of parts to the original purchaser for a
period of 1 (one) year from the original date of purchase. The original dated sales receipt is required
for all warranty claims.
This limited warranty does not cover replacement of glass or light bulbs, shipping costs, and normal
wear and tear. The following will void this limited warranty: Damage caused from misuse, tampering
with, or altering the product in any manner; Damage from being used in the wrong power source;
Water damage; Damage caused from being used outdoors; Damage caused from being used for
extended periods of time; This warranty is limited to non-commercial residential use only. Any
commercial, public, or institutional use voids all warranties.
This product is not intended to be used as a primary heat source.
Read and understand all assembly and operating instructions, and all safety information and
warnings before use.
Vendor Development Group, Inc.(hereafter, VDG), its directors, officers, or agents, will not be liable to
the purchaser or any third party, whether in contract, in tort, or on any other basis, for any indirect,
special, punitive, exemplary, consequential, or incidental loss, cost, or damage arising out of or in
connection with the sale, maintenance, use, or inability to use this product, even if VDG, or its
directors, officers, or agents have been advised of the possibility of such losses, costs or damages, or
if such losses, costs, or damages are foreseeable. In no event will VDG, or its officers, directors, or
agents be liable for any direct losses, costs, or damages that exceed the purchase price of the
product. Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to the purchaser. This limited warranty gives you
specific legal rights, and you may also have other rights which vary from state to state.
Thank you for purchasing this product! If you have questions about the assembly or operation of this
product, are missing parts, or have defective parts, please e-mail us at...
[email protected]
Or, call us toll free (M-F 8:30AM to 4:30PM Central Time) at…
1-866-561-0731
Manufactured by:
Ningbo Xinbo Metalwork Co., Ltd.
Yuyao, Zhejiang, China 315400
MADE IN CHINA
