ESX Vision Naviceiver VN620W User manual

V1. 5
15,7 CM (6.2”) DOUBLE-DIN
TOUCHSCREEN NAVICEIVER
15,7 CM (6.2”) DOUBLE-DIN
TOUCHSCREEN NAVICEIVER
VN620W
VN620D
OWNER‘S
MANUAL
INSTALLATION GUIDE

2
Always follow the instructions in this manual before using the device. Please keep this manual easily
accessible in the vehicle for future reference.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries. iPod and iPhone are trademarks of Apple Inc.. The Bluetooth word mark is
registered trademark owned by Bluetooth SIG, Inc. Other trademarks, trade names or brands are the property of their respective owners.
Features
• iGo Primo, 3D Navisoftware with TMC on 8GB SD card, 46 countries including Turkey with Points of
Interests display and search function, 3D building views, TTS voice output, warnings, over 25 system and
prompt languages. Latest Map Guarantee (30 days) after activation via www.naviextras.com.
• High-resolution 15.7 cm (6.2“) LCD touchscreen display with 800 x 480 pixels
• Advanced i20 operating system based on Microsoft Windows CE 6
• MTK Dual Core Cortex A9+A11 800 MHz CPU, 256MB DDR3 RAM, 256MB NAND Flash RAM
• Audio amplifier with 4 x 50 Watts max.
• Pre-amplifier outputs 2 x Front/2 x Rear/Subwoofer
• DSP-Audioprocessor with 10-Band-Equalizer
• Bluetooth™ handsfree, phone book synchronization and A2DP audio streaming
• Media playback (MP3/WMA/MPEG4/MPEG1/2/WMV/AVI/DivX/FLAC etc.), supports FullHD 1080p (1920 x
1080) playback
• Quick-Boot (approx. 10 seconds)
• Support ACC Logic: the device can be operated up to 30 minutes without ignition
• DVD-Player (DVD, DVD-R/RW, DVD+R/RW, VCD, CD, CD-Text, CD-R/RW, MP3)
• Radio AM/FM with RDS function (supports Europe, Northamerica, Asia)
• Virtual Disk to convert audio CDs into MP3 format
• E-LINK mirror function with compatible Android smartphones
• Quick Charge USB function with up to 2.1A charge current
• Voice control (except navigation)
• Custom design function (wallpaper, startup logo, menu)
• Several design themes (skins) for customizing the user interface
• Individually adjustable pre-channel volume for each application
• File manager with an open file structure, photo slideshow
• MicroSD card slot and USB port with copy function
• Integration of external applications (Compatible with Windows CE 6)
• Date/time function, 12/24 hrs. display
• 3 x Audio/Video output
• 2 x Audio/Video input
• Front and rear camera inputs
• Supports original factory AUX-In and USB-Port
• Supports analog steering wheel controls
• Supports 2D-/3D navigation maps with TMCpro function
• Supports external TV or radio receivers (DVB-T, DAB, etc.)
• Supports iPod / iPhone™ with ID3 tag display via USB (compatible with iPhone 5/6), with media library,
cover display and ID3 Tag display
INTRODUCTION

3
Scope of delivery .....................................................................................................................................4
Safety Information...................................................................................................................................6
Basic functions........................................................................................................................................8
Operating elements.................................................................................................................................8
Main menu ...........................................................................................................................................10
Navigation ............................................................................................................................................11
Multimedia player .................................................................................................................................12
Radio ....................................................................................................................................................14
DVD (DVD/CD player).............................................................................................................................17
Applications ..........................................................................................................................................18
– Bluetooth™.......................................................................................................................................19
– LinkPod .............................................................................................................................................21
– AV/TV.................................................................................................................................................23
– A2DP .................................................................................................................................................24
– Audio .................................................................................................................................................25
– Files...................................................................................................................................................28
– Virtual Disk ........................................................................................................................................29
– E-Link................................................................................................................................................31
– Quick Charge.....................................................................................................................................32
– Option................................................................................................................................................33
Custom settings.....................................................................................................................................39
Menu assignments................................................................................................................................39
Wallpaper .............................................................................................................................................40
Bootlogo ...............................................................................................................................................41
Additional functions ..............................................................................................................................42
Infrared remote control .........................................................................................................................42
Multifunction steering wheel .................................................................................................................43
Limited media playback ........................................................................................................................43
Optional rearview camera .....................................................................................................................43
Troubleshooting .....................................................................................................................................44
Installation.............................................................................................................................................48
Installation notes...................................................................................................................................48
Interconnection.....................................................................................................................................50
Installation hints....................................................................................................................................54
General notes.........................................................................................................................................56
INDEX

4
SCOPE OF DELIVERY
No. Item Figure Quantity
1Main device 1
2Stylus 1
3MicroSD 8GB incl.
Navigations Software
1
4Remote Control 1
5G71-POW0422
System Connector on ISO 1
6M6241
System Connector on open cables 1
7G71-AUD0119
Audio / Video / AV Inputs 1
8G71-MNV0010
Audio Output with Remote Turn-On 1
9G71-MIC0008
External BT-Microphone 1
10 G71-CCD0037
Camera Connections 1

5
SCOPE OF DELIVERY
No. Item Figure Quantity
11 G71-MNV0009
Audio / Video Outputs 1
12 G71-USB0055
USB Port
VN620-D:
1
VN620-W:
2
13 G71-WHE0063
Var. System Connections 1
14 GPS Antenna 1
15 TMC Wire Antenna 1
16 Double DIN
Mounting Frame 1
17 Double DIN Radio
Decoration Panel 1
18 Unlock Device Clamps 2

6
SAFETY INFORMATION
• In general, the assembly and installation of the device must be performed by a trained and technically
skilled specialists, as the installation and connection of the device requires complex knowledge.
• This device is only suitable for the operation in a vehicle with an on-board voltage of 12 volts, negative
ground.
• Improper installation or use may void the warranty.
• Note any time the traffic regulations of the country in which the device is operated.
• Please ensure, that with the engine turned off the vehicle‘s battery does not discharge fully. The device
is another electrical consumer which must be operated with the engine running, other-wise the vehicle‘s
battery will be discharged and the vehicle can not be started.
• Set the volume of the device only as loud, that you are still be able to hear warning signals (e.g. police
sirens) and traffic noise inside the vehicle.
• Operate the device as driver only if it‘s absolutely necessary and in the driving safety is not compromised.
The same stands for looking at the screen. If necessary, better park your vehicle at a safe and appropriate
location.
• The traffic rules of the EU prohibit to view moving pictures or movies while driving, if the screen of the
device is installed within sight of the driver, as he may be distracted. View the screen as driver only for the
navigation function, and then only briefly that you will not be distracted. Note at any time the local traffic
regulations. In an accident, regress claims could be made by the car insurance company.
• This device is not a substitute for your personal judgment or perception. All suggested routes from the
navigation system should never be taken as a reason to disregard the local traffic rules. Your personal
assessment of traffic or your knowledge of safe driving practices is paramount. Always match your driving
with the current traffic situation.
• Do not follow the suggested routes, if the navigation system instructs you to take an unsafe or illegal way,
puts you in an unsafe situation, or directs you into an area which you consider unsafe.
• If problems occur while driving, park the vehicle in a safe and appropriate place to continue before you
operate.

7
SAFETY INFORMATION
• The device supports only DVD/CD standard disk size of diameter with 12 cm. Do not attempt to insert disks
with a different size or any other object into the disk slot. Be sure to load only one disk at the same time.
• Please use only the included original accessories. Ensure a sufficient mounting of the device by using
the included installation accessories, as in the event of an accident enormous accelerations may occure.
Poorly installed devices and equipment in accidents could represent a severe risk to the driver and the
other passengers of the vehicle.
• Note under all circumstances the regulations and advice of the vehicle manufacturer and do not make any
modifications to the vehicle, which could interfere with safe driving. Please treat all parts of the device and
the components of your vehicle always with caution.
• Please avoid short circuits and make sure that no metal objects can get inside the device. Also make sure
that all connections are properly connected and avoid the interchanging of the polarity of all connections.
Complete the installation only while the the ignition is turned off.
• In the event of a defect or malfunction, do not attempt to repair it by yourself or open the device, this is
dangerous and could cause injury or damage to the equipment or vehicle. A repair should be done by
trained and authorized personnel only. The device uses a Class 1 laser to read the disk. Eye contact with
a laser is very dangerous to the human eye.
• If you connect an external device, you should first read the instruction manual of the external device and
make sure that it is compatible. Avoid connecting an incompatible external device.
• If you install external applications onto the operating system of the device or operate files, make sure
that they are „virus free“ and compatible with Windows CE 6. Otherwise there is a risk that the operating
system no longer works properly and must be reinstalled.
• Do not damage or scratch the screen with sharp objects. Do not operate the screen with hard objects
• Please refer the notes in chapter GENERAL NOTES on page 56
This symbol indicates important information and instructions in this manual, which
serve to improve traffic safety and operability of the device.

8

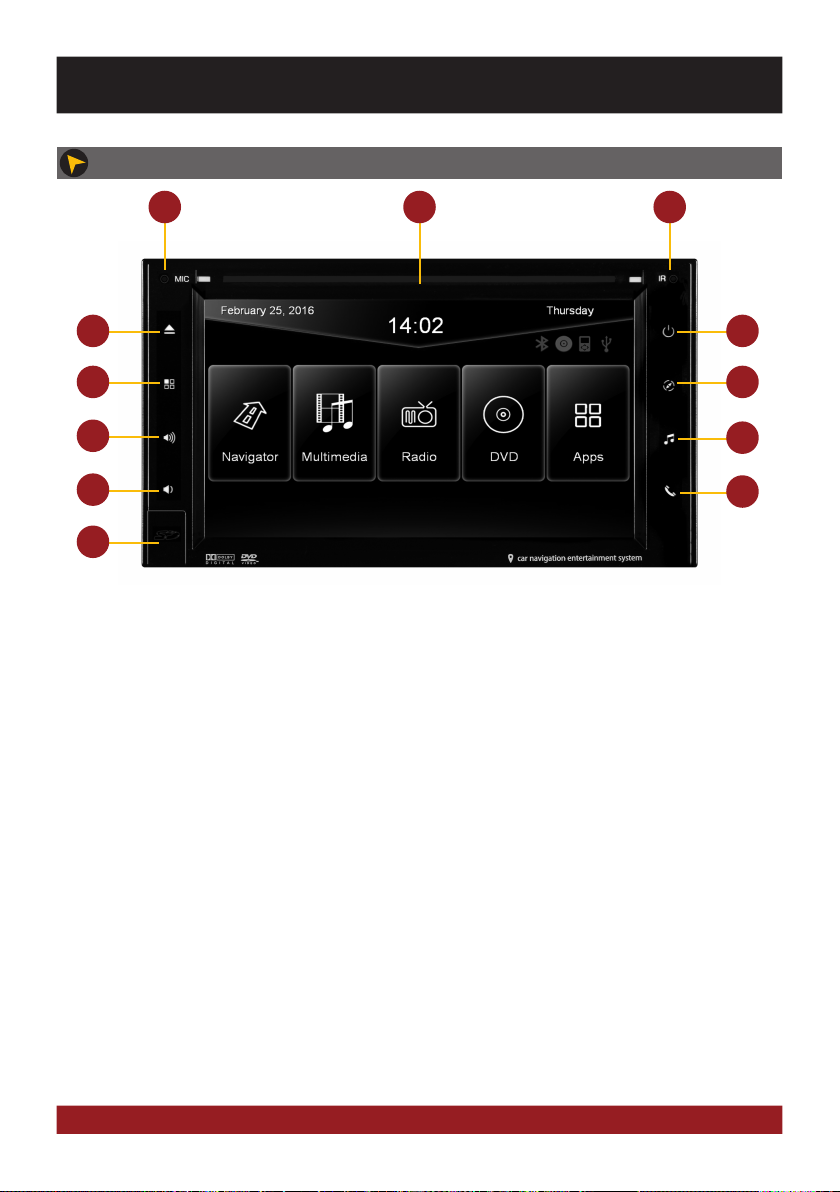

2 31
7
5
9
11
4
6
8
10
12
1. Internal Bluetooth™ microphone
2. Slot for CD/DVD disks (Ø 12 cm).
3. Infrared sensor for the remote control
4. Eject the inserted CD/DVD.
5. Press briefly: Mute
Press and hold: the device switches to
stand-by (push and hold - no audio, display
darkens, running navigation stops,
Bluetooth connection interrupts)
6. Opens main menu.
7. Opens navigation system.
8. Turns volume up
9. Starts media playback from USB
10. Turns volume down
11. Press briefly: Opens voice control
Press and hold: Opens Bluetooth™ mode
12. MicroSD card slot and reset button
OPERATING ELEMENTS VN620-W
BASIC FUNCTIONS

9
2 31
4
5
6
7
1. Infrared sensor for the remote control
2. Slot for CD/DVD disks (Ø 12 cm).
3. MicroSD card slot
4. Tap briefly: Opens voice control
Tap and hold: Opens main menu
5. Rotate: turn down or turn up the volume
Press briefly: Mute
Press and hold: the device switches to
stand-by (push and hold - no audio, display
darkens, running navigation stops,
Bluetooth connection interrupts)
6. Behind the cover (open to the left), the reset
button, the 3,5 mm AUX- and front USB input
are located
7. Internal Bluetooth™ microphone
OPERATING ELEMENTS VN620-D
BASIC FUNCTIONS

10

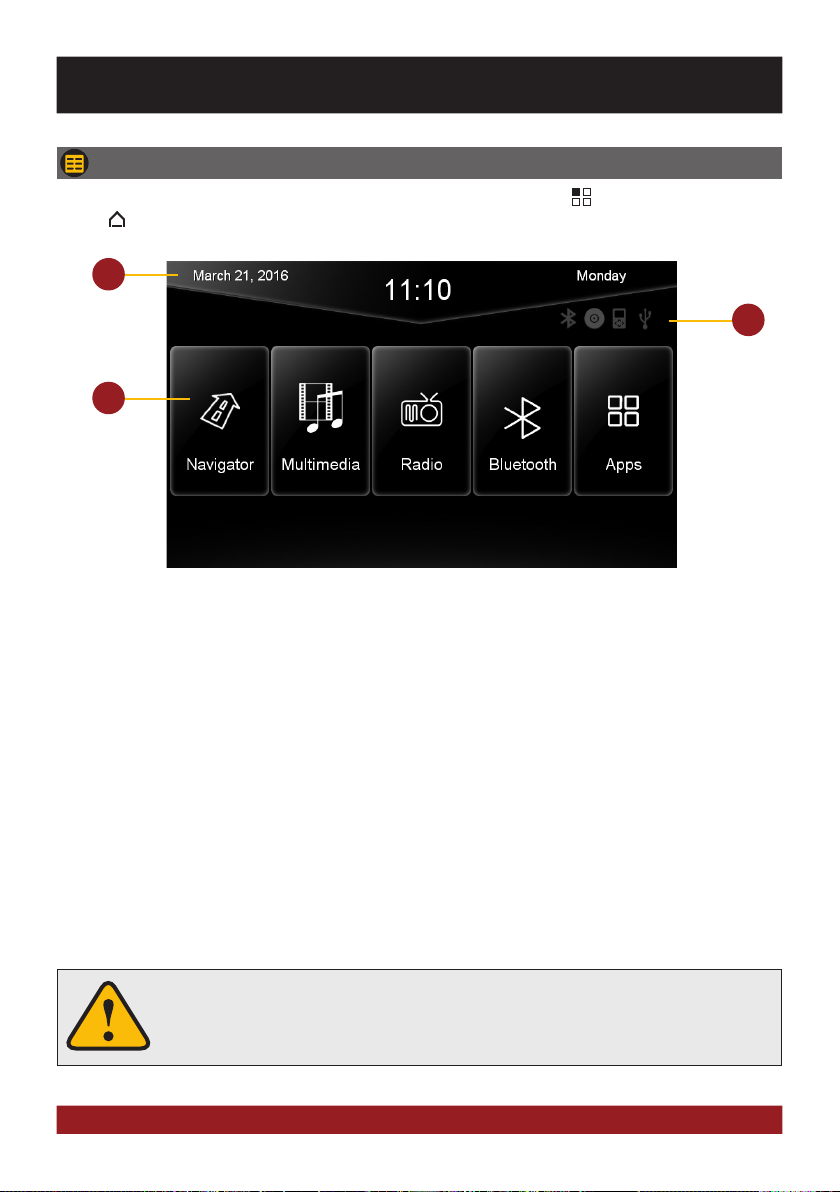

MAIN MENU
After power on, the device starts with the main menu. By pressing the „ “ button (VN620-W) or
„Menu “ (VN620-D) on the device, you can always get to the main menu too.
2
1
1. Depending on the selected design theme (Skin), the current date and time will be displayed here.
2. The four function icons are (depending on the skin) is highlighted in white and thus activated when the
corresponding function is in use, such as „Bluetooth connection“, „CD / DVD in the drive“, „iPod con-
nection“ or „USB connection“.
3. The main menu displays five to eight key panels, which start the selected application or lead to the
regarding submenue.
In chapter „CUSTOM SETTINGS“, section „Menu assignments“ (Pg. 39) shows how to customize and
arrange the key panels.
3
Basically, the device can operate several applications simultaneously. But if too
many extensive applications running at the same time, it can slow the operation
(not responding to your input) or even crash the system.
BASIC FUNCTIONS

11
BASIC FUNCTIONS
Tap on „SD“ and then select the software on the Mi-
croSD card with a double click. This navigation software
is starting as soon as you tap on „Navigation“ in the main
or push the „NAVI“ buttons on the device.
Note: If you have accidentally changed the path and
want to use the original ESX iGO software, the path must
be always „\Storage Card\NaviOne\Navione.exe“.
Please refer to the separate manual for the navigation software.
The device provides the ability to use any navigation software (Windows CE 6.0 compatible). Patch the naviga-
tion software (on MicroSD card) with the device as follows:
NAVIGATION
Open the navigation application by tapping „Navigator“ in the main menu or by pressing the „ “
(only VN620-W) button on the device.
The unit receives GPS satellite signals automatically. In poor weather conditions or
for example while passing a tunnel, these signals may be disturbed. This could lead
to a malfunction of the GPS positioning.
Tap on „System“.Tap on „Option“.
Tap on „Browse“.

12
56
8
9
43
10
21
7
1211
MULTIMEDIA PLAYER
By tapping „Multimedia“ in the main menu or by pressing the „ “ button on the device (only
VN620-W), the source selection USB or SD for audio and video playback opens. Refer to page 17
for CD Audio playback.
1. Tap here to enter the main menu without inter-
rupting the playback of the current title.
2. Current time.
3. Source information and track number.
4. Tap here to exit the application, the playback
will be interrupted.
5. ID3-Tag album cover of the current audio file.
6. Title/artist/album information.
7. Progress bar of the currently playing audio file.
With the displacement of the knob you can
jump to another point in the track.
8. Elapsed time and the total time of the track.
9. Tap here to open folder list or to change the
play mode (music or video).
10. Playback controls for audio player
- Play previous track
- Start or pause playback
- Play next track
11. Repeat function
- Repeat all titles
- Repeat only the current folder
- Repeat single track
12. Tap here to start random playback
BASIC FUNCTIONS

13
BASIC FUNCTIONS
If the playback does not start (a USB stick can not be detected or the source selec-
tion is not working as expected) close the multimedia player with „X“ top right
(page 12, # 4) and restart it.
FOLDER PLAYBACK
Tap on the folder icon in the multimedia menu on the bottom left
(see page 9, #9) and the currently playing folder appears. Now
you can scroll through the list and select another song by taping
directly or with „go back“ to a higher directory level to open an-
other another folder. Tap on the desired file and its playback starts
immediately. Close this menu on the top left with „X“ to go back to
the multimedia player menu.
REPEAT FUNCTION
Symbol 1: When the last song has been played within a folder,
the playback will continue to the next folder. After the last song,
playback starts again from the beginning.
Symbol 2: The current folder is repeated
Symbol 3: A single track is repeated
RANDOM PLAY
To shuffle all tracks or all tracks within a folder (if a folder was
previously selected).
MOVIE PLAYBACK
Select the folder icon and then „Movie“ on the bottom right. Now
all movie files of the connected media are displayed. Are these
located in several folders, you can switch to a different directory
with „go back“ like in the music player. The „Repeat Function“ and
„Random Play“ have the same function as in the music player. Tap
during the fullscreen playback shortly at any point on the screen to
open playback options.
Note: The playback of a movie file is only possible if the hand
brake is closed.

14
7
13
4 65
14
21
15
12
9
3
8
10
11
1. Tap here to enter the main menu without inter-
rupting the radio playback.
2. Current time.
3. Displays the current frequency band and the
current station frequency, tap here for directly
quick tuning.
4. PTY category of the current station.
5. Signal strength of the current station.
6. Tap here to exit the application, the playback
will be interrupted.
7. RDS name of the current station.
8. Fine adjustement of the frequency, Arrow left
for downward, arrow right upwards.
9. RDS (AF, TA, PTY) features.
10. RDS information of the current station.
11. With the arrows you can quick-start the search
for a station from the current frequency up or
down.
12. Station presets.
13. Press „Scan“ about 2 seconds to start the
automatic radio station search. Then up to 32
currently available stations will be stored in all
four the station presets.
Note: All previously stored stations will be
erased and overwrote.
A quick tap on the icon enables a jump to the
next available station.
14. Tap here to the open the different preset pages,
with 8 station presets each.
15. Tap here to open the settings.
BASIC FUNCTIONS
RADIO
Open the radio application by tapping „Radio“ in the main menu .

15
BASIC FUNCTIONS
Settings and station presets
Tap on the „gear“ icon to open the settings and then:
„Rename Station“ to rename the current radio station.
„Delete Station“ to delete the current radio station from the
presets.
„Delete All Stations“ to delete all radio stations from the pre-
sets.
„Local Setting“ to open the settings for the local radio fre-
quency standards.
Tap on „Audio“ to open the audio settings. Refer to the instruc-
tions in section „Audio“ in the „APPS“ menu.
REG OFF and REG ON switches the RDS function „REGIONAL“
on or off. If the menu shows „REG OFF“, the regional function
is activated.
Rename Station:
Tap on the white input box to change the radio station name by
using the screen keyboard.
Tap on „Name as freq.“ to set the frequency as radio station
name.
Confirm your entry with „OK“ or tap „Cancel“ to exit the menu
without changes.
Local Setting:
Choose e.g. EUROPE from the list of local radio frequency stan-
dards.
Confirm your entry with „OK“ or tap „Cancel“ to exit the menu
without changes.
After you change the settings, restart the radio application.
Basically, the device can operate several applications simultaneously. But if too
many extensive applications running at the same time, it can slow the operation
(not responding to your input) or even crash the system.

16
BASIC FUNCTIONS
RDS functions
This device supports RDS (Radio Data System) in the frequency range 87.5 - 107.9 MHz FM. The follow-
ing RDS functions are only available if they are supported by the selected radio station.
AF (Alternative Frequency)
The AF function enables the automatic switching of the receiv-
ing frequency when leaving the reception range of a transmitter.
The device then checks the reception quality and automatically
switches to a different frequency, when the same program in
another reception area is also available. This is done automati-
cally, without the user is notice anything.
TA (Traffic Announcement)
The TA function enables the interruption of the media playback
(audio player, CD, DVD, etc.) for traffic announcements. After
the announcement, the previous media playback starts again.
PTY (Program Type)
The PTY function is a classification of radio stations in different
categories. Each program of a RDS radio station is classified
categorically.
After you have selected a category, the unit automatically
searches for the next matching radio station in this category.
During the „Automatic scan“ only programs will be found, that
match to the chosen category. If you no longer want this func-
tion, select the category „None“.

17
7
1
8
2
9
3
10
4
11
5
12
6
13
BASIC FUNCTIONS
1. Shuffle
2. Repeat (chapter, track, all tracks, Off)
3. Video settings
4. Eject inserted disk
5. Minimize, playback resumes
6. End DVD Playback
7. Previous chapter
8. Play / Pause
9. Next chapter
10. Title menu of the DVD
11. Change language (if available)
12. Change subtitles (if available)
13. DVD menu of the DVD
DVD (DVD/CD-Player)
The DVD player supports the following formats: DVD, DVD-R/RW, DVD+R/RW, VCD, CD, CD-R/RW, MP3.
Open the DVD application by tapping „DVD“ in the main menu.
Tap during DVD playback on any spot on the display to open the DVD menu. When you playback a
CD or MP3-CD, the user interface is different.

18
APPS
Open the application menu by tapping on „Apps“ in the main menu.
The device offers a variety of applications that can be used as described below. Some of these func-
tions require the appropriate accessories.
1 2
10
3
11
4
12
5
76
89
In Chapter „CUSTOM SETTINGS“, section „Menu assignments“ (Pg. 39) shows how to customize and
arrange the key panels.
1. Tap here to switch off the display. To switch on
the display again, tap onto the screen.
2. Tap here to open the LinkPod menu, if an
iPod/iPhone is connected with the device.
3. Tap here to open the AV/TV menu.
4. Tap here to open the audio settings.
5. Tap here to go back to the main menu.
6. Tap here to the Bluetooth™ menu.
7. Tap here to open the VirtualDisk menu.
8. Tap here to start the A2DP audio streaming.
9. Tap here to open the option menu.
10. Tap here to open the E-Link menu.
11. Tap here to open the Quick Charge menu.
12. Tap here to open the file manager.
BASIC FUNCTIONS

19
Sollte ein Mobiltelefon per Bluetooth mit dem Gerät verbunden sein, hat dieses Pri-
orität sollte ein Anruf erfolgen und schaltet während des Telefonats die Medienwie-
dergabe (Radio, Audio, DVD etc.) stumm.
BLUETOOTH™
Open the Bluetooth™ application by tapping „Bluetooth“ in the main menu or by pressing the
„“ (only VN620-W) button on the device.
BASIC FUNCTIONS
PAIRING
Select your device from the device list in the phone and enter the PIN code 1234. Alternatively, you can also
search your mobile phone under „Devices“ and connect to the device. Once you have connected your phone
to the device, the pairing starts automatically as soon as the two devices are within range. Leave Bluetooth
activated on the mobile phone. If a mobile phone has already been added to the list of Bluetooth devices, you
can also manually pair the devices. The range for a satisfactory connection is about 10 m.
At first pair the devices, if necessary refer to the manual of your
mobile phone. Open the „Settings“ menu on your mobile phone
and open the Bluetooth settings.
Turn on Bluetooth and then search for compatible devices. The
Bluetooth name of the device will be displayed.
To disconnect the two Bluetooth
devices, tap on „Devices“.
Choose the mobile phone from the list and tap „Dis-
connect“ or quit the Bluetooth connection on your
phone.
Alternatively, the phone can also be deleted from the list, but after that, the automatic pairing is disabled and
the mobile phone must be re-paired with the device. To delete the mobile phone from the list, select the name
and press „Delete“. This is only possible if the devices are not currently paired.
DISCONNECT
The paired mobile phone has always priority and a phone call mutes always the cur-
rently playback of media (navigation, radio, audio, DVD, etc.). This applies both for
incoming calls as well as outgoing calls.

20
BASIC FUNCTIONS
Once your mobile phone has been connected via Bluetooth to the device, the synchronization of your contacts
and call history starts automatically.
CONTACTS AND CALL HISTORY
Tap on „Contacts“.
Tap on the white search field to search for
a contact, by typing its name on the screen
keyboard.
Tap on „History“.
Tap on „Missed“ to display the missed
phone calls.
Tap on „Received“ to display the already re-
ceived phone calls.
Tap on a name to start a phone call.
