OWNER’S MANUAL
CONDITIONED POWER DISTRIBUTION
MODEL PD11LV – 15 AMPS
3
2
1
4
256
PD11LV
9
78
PD11LV
REAR PANEL
1Light Switch - activates rack illumination. Choose HI or LOW intensity
2Light Tubes - illuminates up to 25 rack spaces or over 3 feet
3Digital Voltmeter Readout - displays incoming line voltage
4Circuit Breaker—resetable 15 amp thermal circuit breaker
5Outlet Switch - lighted power switch activates protection and filtration to all black outlets and front panel outlets
6Front Panel Outlet - convenient, filtered, protected and switched outlet
7Power Cord - Six foot heavy duty U-grounded 14-gauge power cord
8Ivory Outlets - unswitched outlets with continuous power available. Circuit breaker protected.
9Black Outlets - EMI/RFI filtered, spike/surge protected and switched outlets
PD11LV Operating Instructions:
1. Install in a standard 19” rack or free standing position.
2. Connect Power Distribution power cord (#7) into standard 120V wall outlet.
3. Plug sensitive electrical equipment into conditioned black outlets (#9) or (# 6).
4. Move power outlet switch (#5) to “ON” position to provide power and protection to electrical equipment.
5. For illumination, pull out light tubes (#2) and move light switch (#1) to “HI” or “LOW” position.
IMPORTANT: Be sure light switch (#1) is in “OFF” position when light tubes are recessed.
6. Digital voltmeter readout (#3) is calibrated to nominal 117V at the factory. No adjustment necessary.
When calibration is required for special applications, an adjustable trimpot is located on the voltmeter readout assembly.
WARNING: Removing top cover is necessary. Adjustment must be done by a qualified individual.
7. Digital voltmeter readout (#3) automatically displays incoming voltage when power cord (#7) is connected. If you wish to
have digital display on only when power switch is “ON”, move switch on voltmeter display assembly inside unit to “OFF”
position.WARNING: Removing top cover is necessary. Adjustment must be done by a qualified individual.

PD11LV SPECIFICATIONS:
Dimensions 19" L x 7 1/2" D x 1 3/4" H
Weight 7 lbs. (less packaging)
Housing Quality
Black powder coated chassis
Electrical 120V, 50/60 Hz, single phase
Max. amps 15/unit
Max. watts 1800/unit
Spike/surge protection Line to neutral, neutral to ground,
line to ground
Response time < 1 nanosecond
Max. clamping voltage 330V
Max. spike current 6500 amps
Max. surge energy 630 joules total
Noise filter (EMI/RFI) Frequency 150 kHz -200 MHz
Attenuation up to 20 dB
Certification ETL Listed
PD11LV FEATURES
• 10 protected U-grounded power outlets,
8 switched, 2 "always on"
• Four dual 15 amp U-grounded outlets
• One "always on" dual 15 amp U-grounded outlet on back
panel
• Full 15 amps, 1800 watts capacity per unit
• Protected "always on" 15 amp AC power outlet on the
front panel
• Total unit 15 amp circuit breakers located on front panel
• Digital voltmeter readout
• Dual swivel rack high output illuminators with High/Low
settings and easy-to-change bulb accessibility
• Spike and surge protection
• EMI/RFI filtration
• 1 rack space
• 3 year limited warranty
Thank you for choosing
ETA Systems Power Distribution
Drawing upon our 20 years of solving
high-amperage lighting needs and lis-
tening to customers’ concerns, we
have developed a most extensive line
of Audio Conditioned Power Distribu-
tion. As the problems inherent with AC
power increase, you will find ETA pro-
viding solutions.
Call 1-800-321-6699 for a Full Line
Brochure
• “Always-On” Protected Outlets
• 10 Rear Panel Outlets
• Front Panel Convenience Outlets
• Digital Voltmeter Display Readouts
• Microprocessor Managed Voltage Regulators
• Programmable and Linkable Sequential Turn-on Models
• Models Adaptable for Multiple AC Adapters
• High Amp Conditioned Models
• Easy Bulb Change Feature
Standard on Every ETA
Power Conditioning Model
• Spike and Surge Protection and EMI/RFI Filtration on All
Three Legs of the Incoming AC Power—A Must to Ensure
Protection of Electronic Components and Equipment.
Power Conditioning Firsts from ETA
A Creative Light & Sound Company
1532 Enterprise Parkway,Twinsburg, OH 44087 USA
330-425-3388 • 800-321-6699 • Fax: [phone]
http://www.etasys.com E-mail [e-mail]
SYSTEMS
©
TM
Typical Uses
All Professional Permanent Installations,
Recording Studios, Theatres, Schools,
Clubs, Churches, any entertainment
venue, business board rooms, and au-
dio/visual multi-use presentation rooms.
Portable Applications : On-The-Road Con-
cert Tours, Bands, and D.J. services.
Other Important Applications: A/V racks,
computer networks, and home entertain-
ment centers.

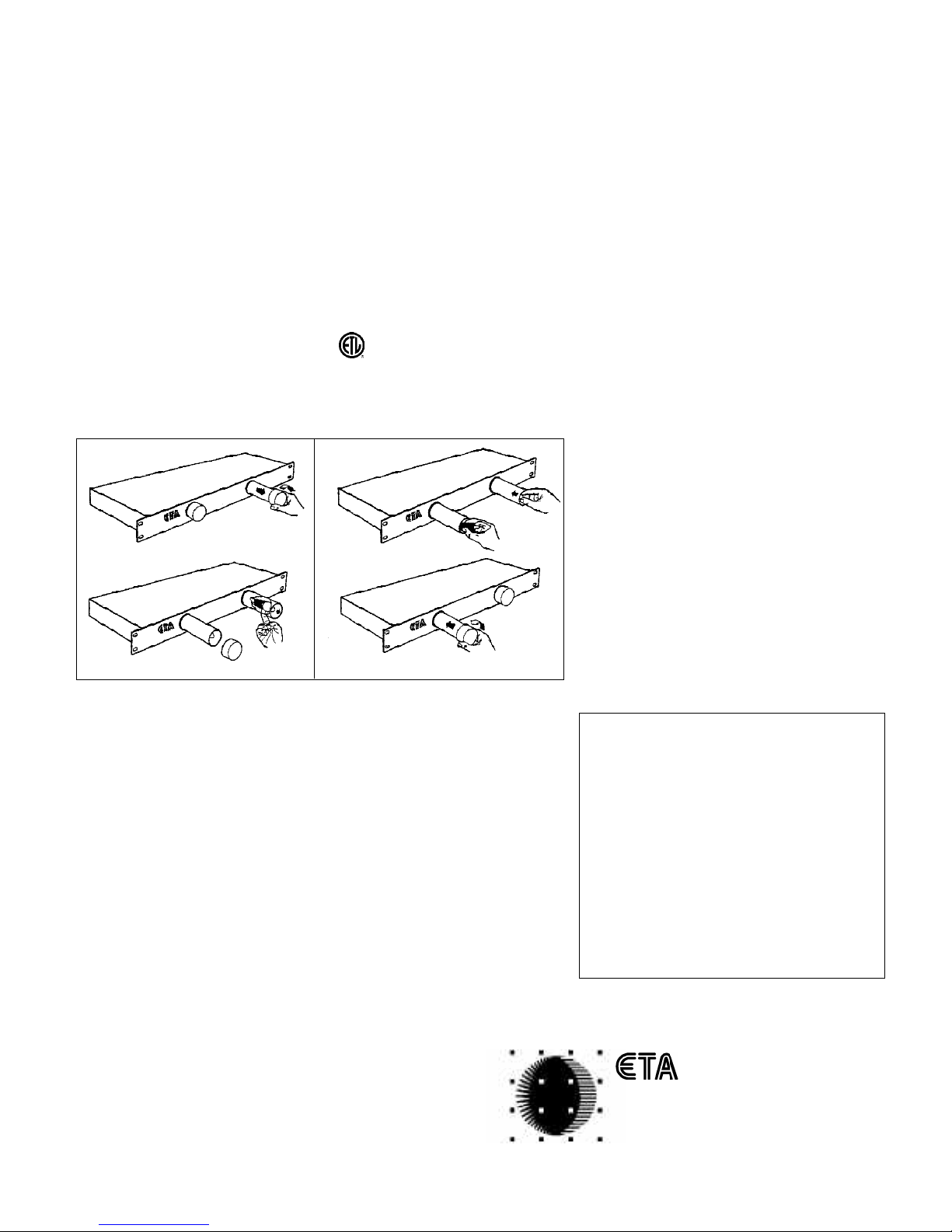

EASY 4-STEP BULB REPLACEMENT 120 volt 4 watt bulb (Christmas tree bulb)
1. Twist cap clockwise
3. Replace bulb
2. Release bulb & socket 4. Replace socket, turn cap counter-clockwise
All designs and specifications are subject to change without notice.
Copyright © 2000 ETA Systems. 11/00 6MAN-005
